User’s Manual
XPOS72A-5B-2930
XPOS72A-5B-1900

Copyrights
© 2015 All rights reserved. The information in this
document is subject to change without prior notice in
order to improve reliability, design and function and does
not represent a commitment on the part of the
manufacturer.
This document contains proprietary information
protected by copyright. All rights are reserved. No
part of this manual may be reproduced by any
mechanical, electronic, or other means in any form
without prior written permission of the manufacturer.
All trademarks are property of their respective
owners
Liability Disclaimer
In no event will the manufacturer be liable for direct,
indirect, special, incidental, or consequential
damages arising out of the use or inability to use the
product or documentation, even if advised of the
possibility of such damages.
Regulatory Information
FCC Notices
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the Federal Communications Commission
(FCC) Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Increase the separation between the equipment
and the receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or
television technician for help.
This device complies with Part 15 (A) of the FCC
Rules. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference
and
2) this device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: THE MANUFACTURER IS NOT
RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS DEVICE. SUCH
MODIFICATIONS COULD VOID THE USER'S
AUTHORITY TO OPERATE THE DEVICE.
CE Notice
This device complies with EMC Directive
2004/108/EC issued by the Commission of the
European Community.

Copyrights
ii
i
WEEE Notice
The WEEE mark applies only to countries within the
European Union (EU) and Norway.
This appliance is labeled in accordance with
European Directive 2002/96/EC concerning waste
electrical and electronic equipment (WEEE). The
Directive determines the framework for the return
and recycling of used appliances as applicable
throughout the European Union. This label is applied
to various products to indicate that the product is not
to be thrown away, but rather reclaimed upon end of
life per this Directive.

Contents
iv
Contents
Copyrights.............................................................................................. ii
Liability Disclaimer................................................................................ ii
Regulatory Information ......................................................................... ii
FCC Notices......................................................................................................... ii
CE Notice............................................................................................................. ii
WEEE Notice....................................................................................................... iii
Contents.................................................................................................iv
1. Hardware Setup ................................................................................. 5
1.1. Quick Tour .................................................................................................... 5
Front View...................................................................................................... 5
Back View...................................................................................................... 5
Back Panel I/O............................................................................................... 6
1.2. Basic Peripherals Installation ..................................................................... 6
Power Adapter ............................................................................................... 7
USB Mouse, USB Keyboard and USB ODD.................................................. 7
LAN Cable...................................................................................................... 7
Cash Drawer.................................................................................................. 8
Customer Display........................................................................................... 8
MSR............................................................................................................. 10
1.3. Adjust Angle ............................................................................................... 12
1.4. Turn on the device ..................................................................................... 12
4. I/O Definition .....................................................................................13
2.1. Serial Port................................................................................................... 13
2.2. Cash Drawer............................................................................................... 13
5. Specification .....................................................................................16

Chapter 1
5
1.
1. Hardware Setup
1.1. Quick Tour

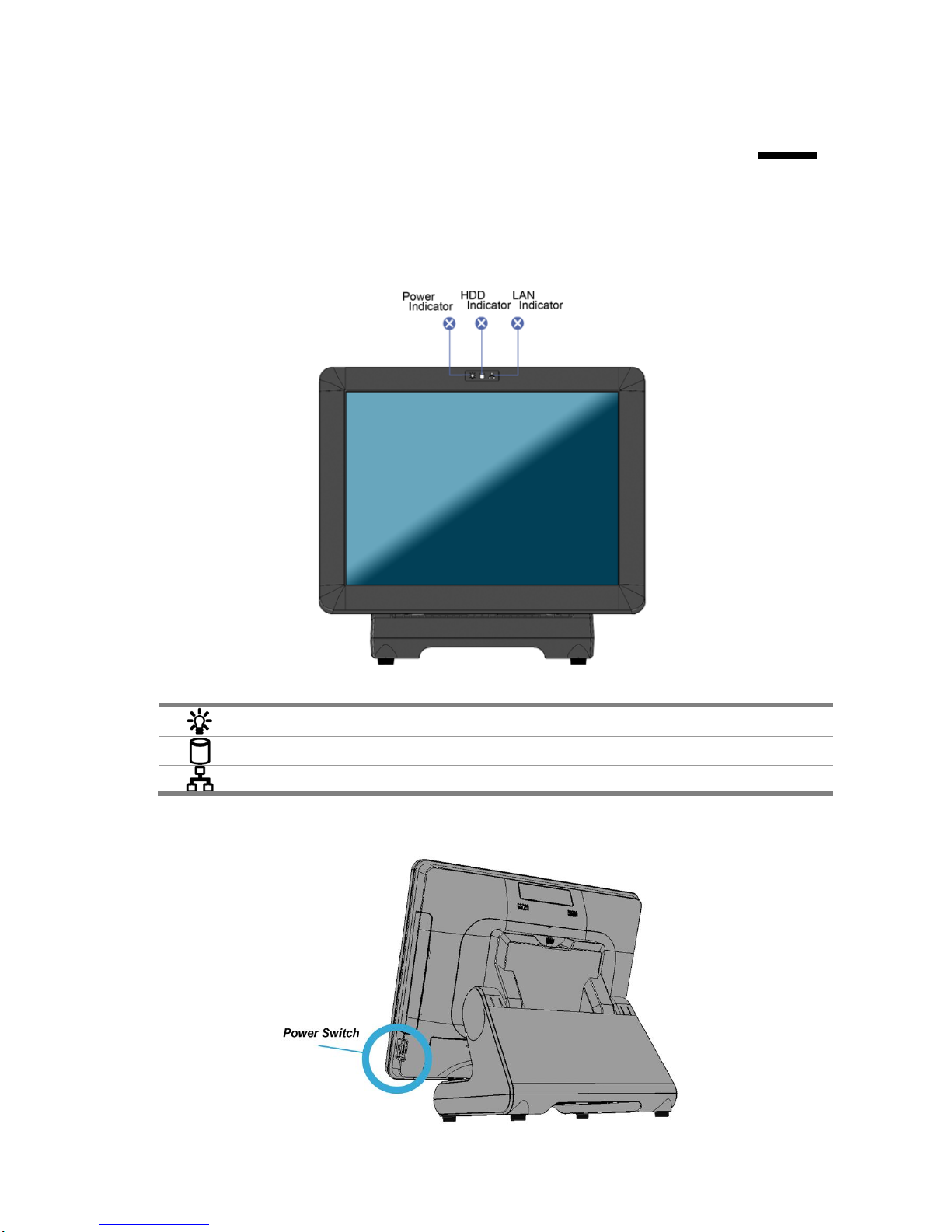

Front View
LED Indicator
The Power indicator will glow green when power is on.
The HDD indicator will blink green when the HDD is accessed.
The LAN indicator will blink green when transferring data though the LAN.
Back View

Chapter 1
6
Back Panel I/O
1.2. Basic Peripherals Installation
All cables and wires from peripherals to the POS device are recommended to
connected as the direction as shown below.

Chapter 1
7

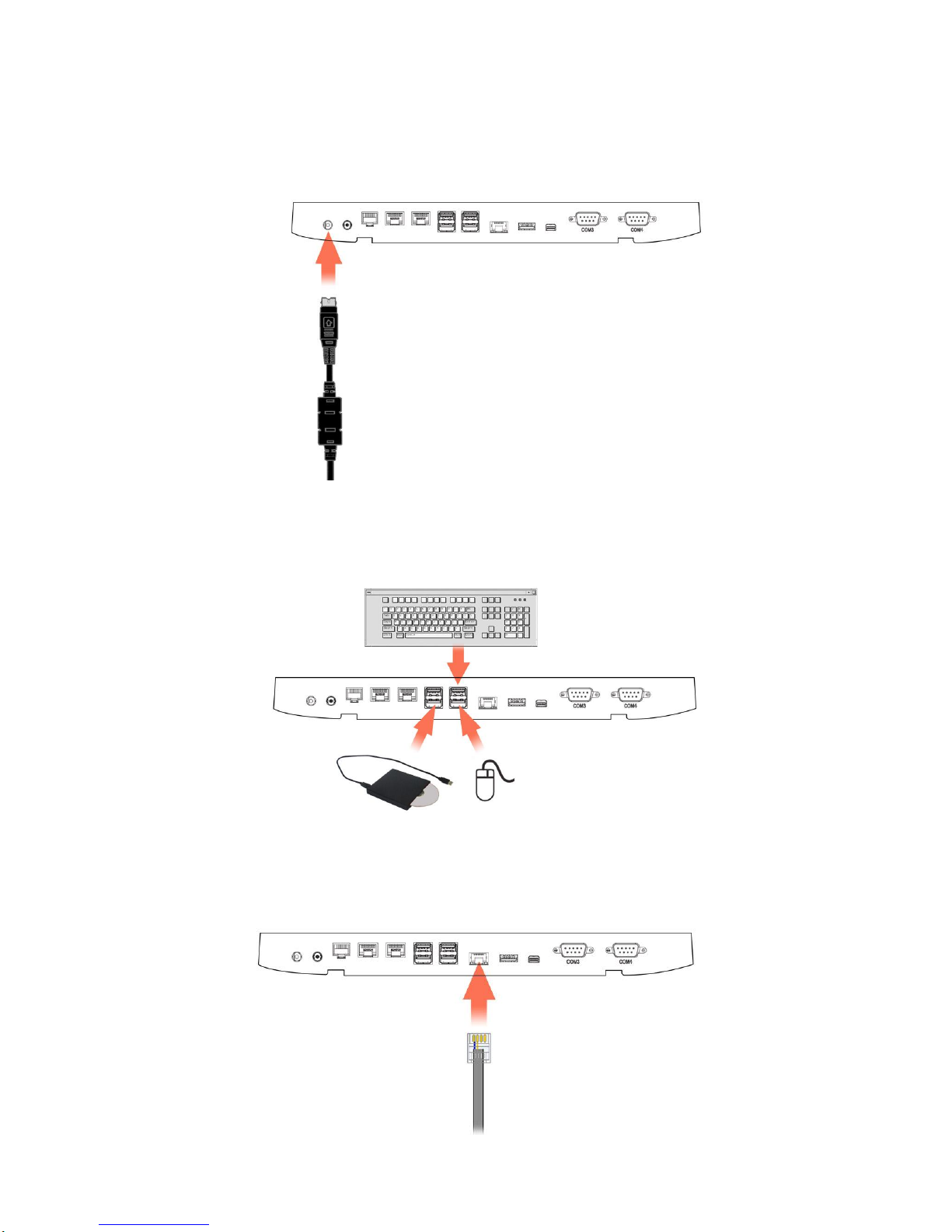

Power Adapter
Connect the 4-pin output jack of the adapter to the DC 19V jack on the back panel
of the device.
USB Mouse, USB Keyboard and USB ODD
Connect your USB Mouse, USB Keyboard and USB ODD to USB ports on the
back panel of the device.
LAN Cable
Connect one end of RJ-45 LAN cable to the LAN port on the back panel of the
device, another end to your internet device.

Chapter 1
8
Cash Drawer
Connect one end of RJ-12 cable to the Cash Drawer port on the back panel of
the device, another end to your cash drawer.
Customer Display

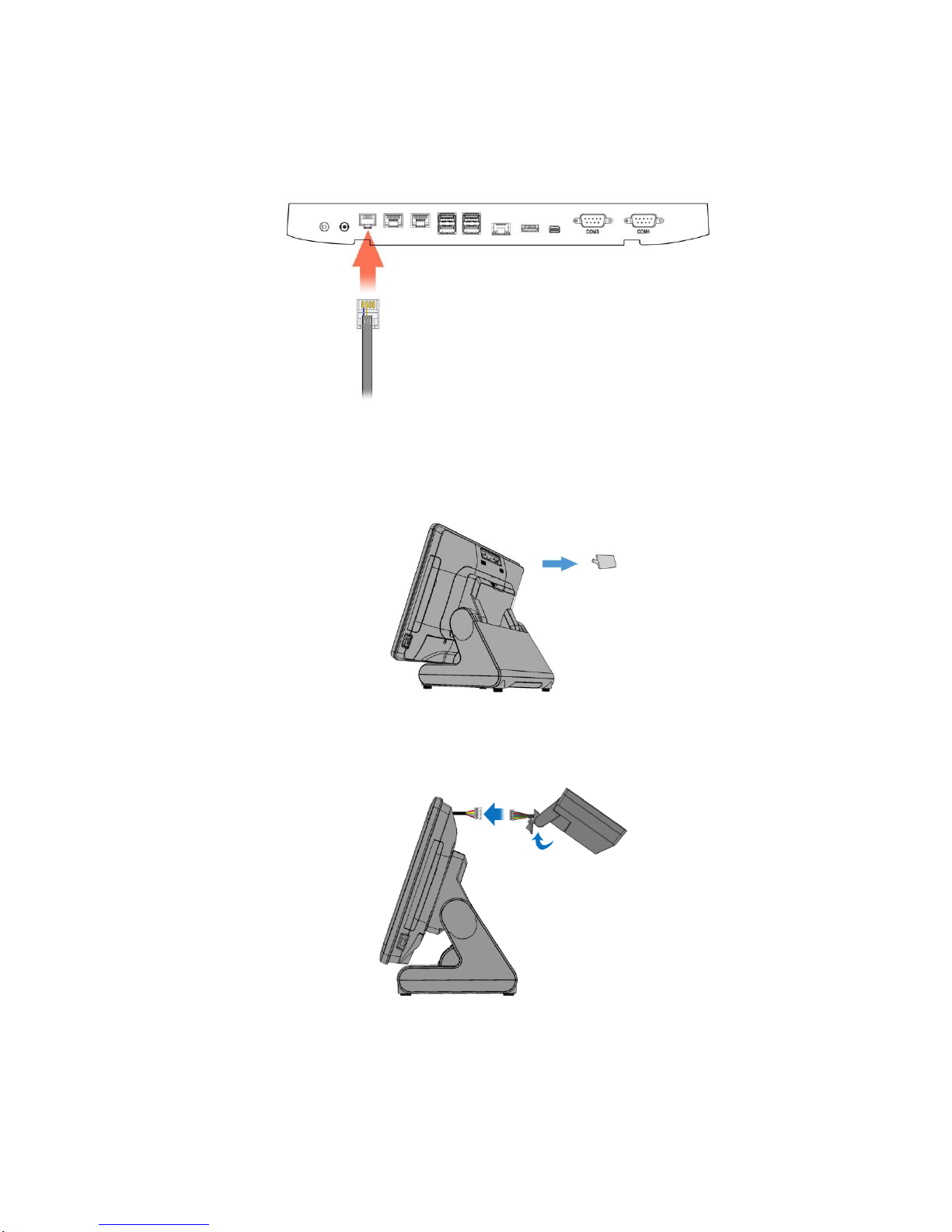

1. Remover the customer display mounting hole cover from the device and pull
out the connector from the device.
2. Adjust the hinge of the customer display, and then connect to the device as
shown below.

Chapter 1
9
3. Mount the customer display to the device and tighten the two PHILLIPS M3
screws as shown below.
4. Finished.
B. Power Supply Configuration

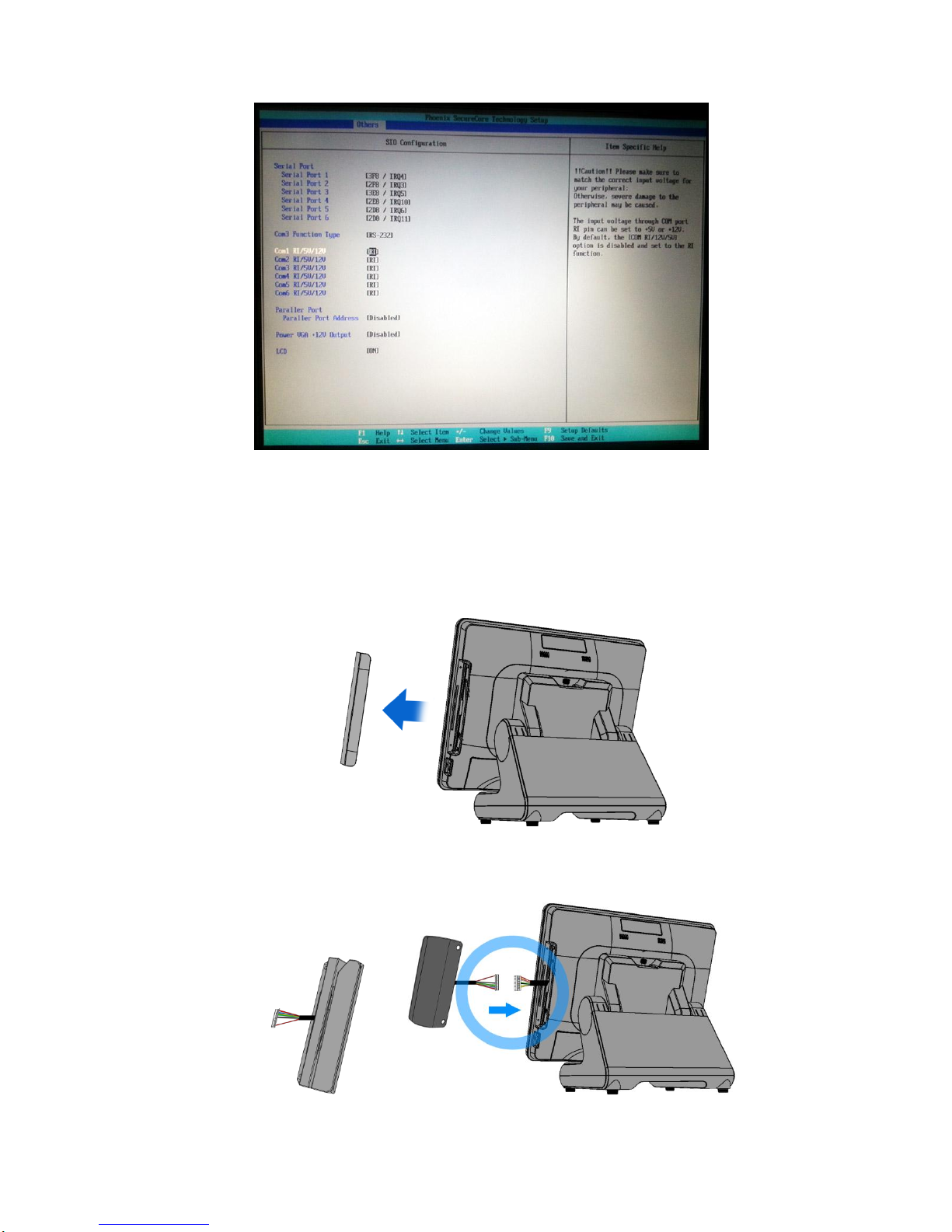

Power up the device and hit the DEL key to enter the BIOS. When the BIOS screen
appears use the TAB key to select Advanced. Use the arrow keys to select Super IO
Configuration then type ENTER. The screen below will appear. Use the arrow keys to
select Serial Port 6 RI/12V depending on what port the customer display is connected
to. Select 12V to enable power to the correct COM port. Type F10 to save the settings
and exit the BIOS setup.
Caution: Never enable the 12 V without the customer display attached and be sure to
disable the 12 V before removing the customer display.

Chapter 1
10
NOTE: The figure above is for reference only; it is possible that the actual screen
on your device does not agree with it.
MSR
1. Remove the MSR cover from the device.
2. Connect the cable of the MSR assembly to the device.
MSR

Chapter 1
11

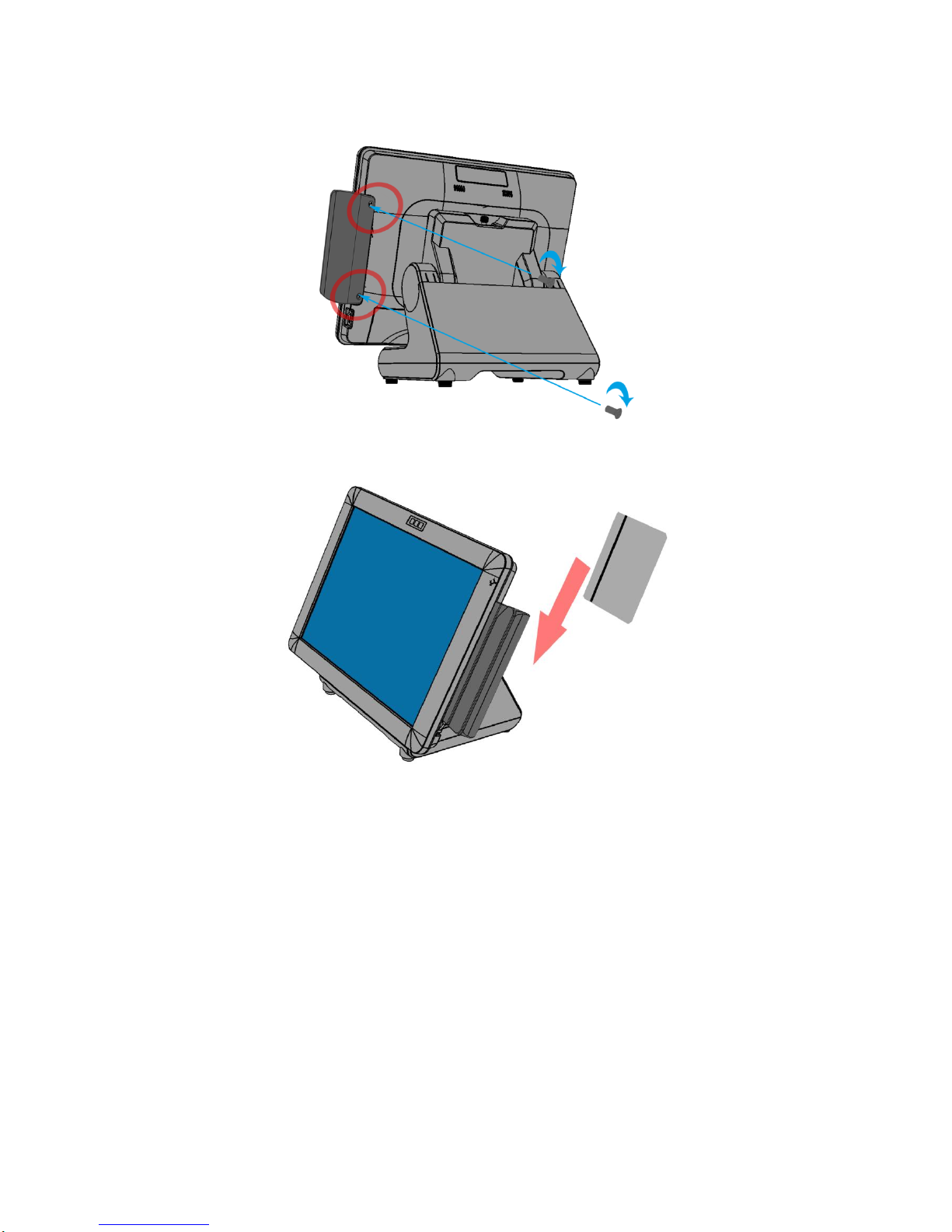

3. Tighten the two PHILLIPS M3 screws to fix the MSR assembly as shown below.
4. Finished.
Note: The RS232 MSR is powered by COM5, Baud rate is 9000, 8, n, 1.

Chapter 1
12

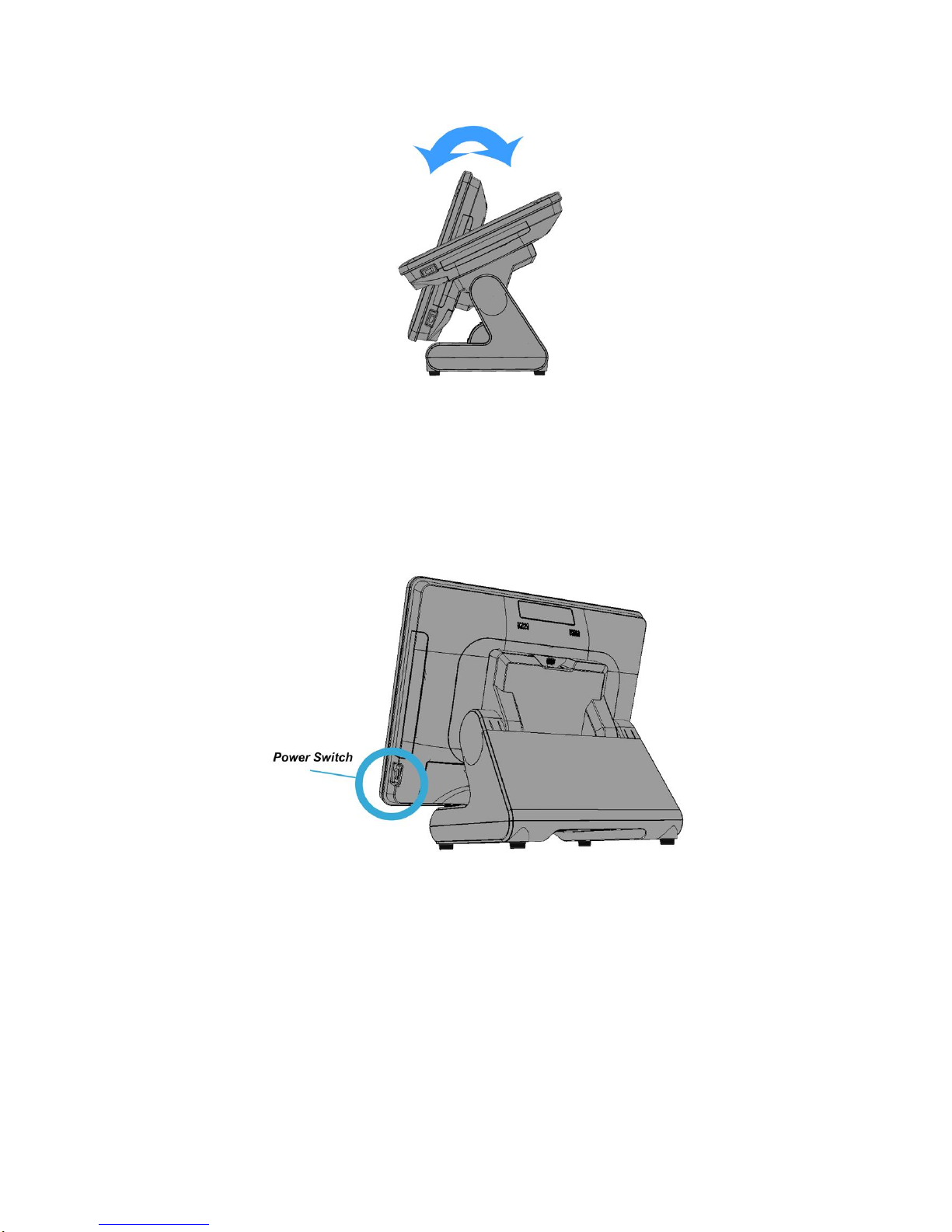

1.3. Adjust Angle
1.4. Turn on the device
1. Make sure all peripherals are connected properly.
2. Press and hold the power switch until the power indicator on the front panel
glow green.

Chapter 5
13
2.
4. I/O Definition
Please refer the detailed technical information about all I/O ports as followings.

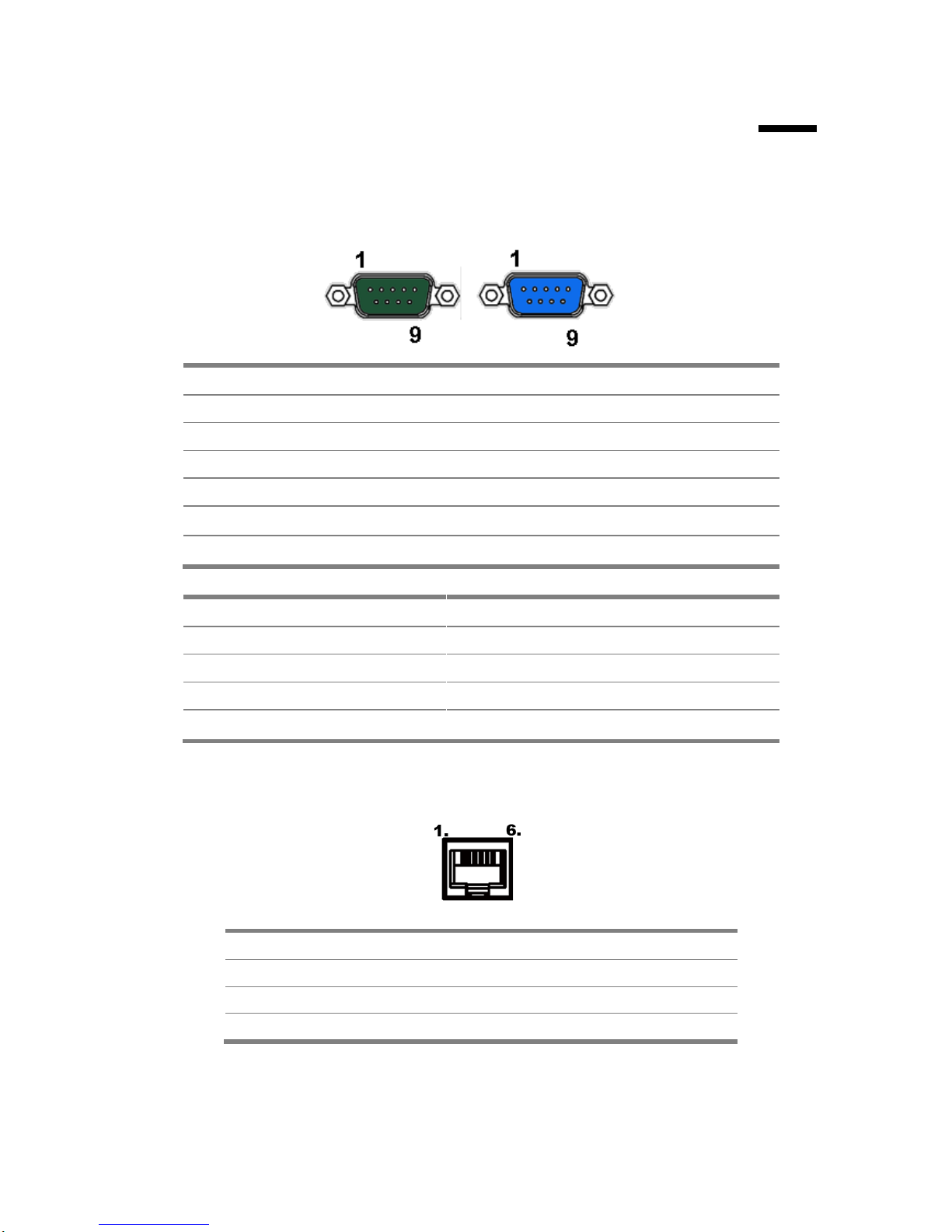

2.1. Serial Port
COM Port
PIN
Description
PIN
Description
1
DCD
6
DSR
2
RXD
7
RTS
3
TXD
8
CTS
4
DTR
9
RI / 5V /12V
5
GND
10
NC
PIN
R232
RS422
RS485
1
DCD
TX-
D-
2
RXD
TX+
D+
3
TXD
RX+
4
DTR
RX-
2.2. Cash Drawer
PIN
Description
PIN
Description
1
GND
4
12V / 19V
2
D_OUT0
5
D_OUT1
3
D_IN
6
GND

Chapter 5
14
Cash Drawer Control
The Cash Drawer Controller use one I/O addresses to control the Cash
Drawer.
Register Location:
48Ch
Attribute:
Read / Write
Size:
8-bit
BIT
BIT7
BIT6
BIT5
BIT4
BIT3
BIT2
BIT1
BIT0
Attribute
Reserved
Read
Reserved
Write
Reserved
7
6
5
4
3
2
1
0
X
X
X
X
X
Reserved
Cash Drawer “DOUT bit0” pin output control
Cash Drawer “DOUT bit1” pin output control
Reserved
Cash Drawer “DIN bit0” pin input status
Reserved
BIT7:
Reserved
BIT6:
Cash Drawer “DIN bit0” pin input status.
= 0: the Cash Drawer closed or no Cash Drawer
= 1: the Cash Drawer opened
BIT5:
Reserved
BIT4:
Reserved
BIT3:
Cash Drawer “DOUT bit1” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
BIT2:
Cash Drawer “DOUT bit0” pin output control.
= 1: Opening the Cash Drawer
= 0: Allow close the Cash Drawer
BIT1:
Reserved
BIT0:
Reserved

Chapter 5
15
Note: Please follow the Cash Drawer control signal design to control the Cash
Drawer.
Cash Drawer Control Command Example
Use Debug.EXE program under DOS or Windows98
Command
Cash Drawer
O 48C 04
Opening
O 48C 00
Allow to close
Set the I/O address 48Ch bit2 =1 for opening Cash Drawer by “DOUT bit0”
pin control.
Set the I/O address 48Ch bit2 = 0 for allow close Cash Drawer.
Command
Cash Drawer
I 48C
Check status
The I/O address 48Ch bit6 =1 mean the Cash Drawer is opened or not exist.
The I/O address 48Ch bit6 =0 mean the Cash Drawer is closed.

Chapter 5
16
5.
5. Specification

Chapter 5
17
Main Board
CPU
Intel® Bay Trail-Mobile/Desktop SoC Processor:
Celeron® N2930 (4 cores, up to 2.16 GHz, max TDP 7.5 Watt)
Celeron® J1900 (4 cores, up to 2.42 GHz, max TDP 10 Watt)
Graphic
Intel® HD Graphics
System Memory
SO-DIMM DDR3L 1067/1333MHz x 1, Max. 8GB
Cooing Solution
Fan-less
OS
Windows Embedded POSReady 7
Windows 7 Professional for Embedded Systems
Windows Embedded 8 Industry
Linux kernel 3.0+ & associated distributions
Android Compliant OS
Window 10
Display
Size
15" TFT LCD Panel
Brightness
250 nit
Resolution
1024 X 768
Panel backlight type
LED
Tilt Angle
17°~67°
Touch Screen
5 Wire Resistive
Storage Device
Interface
SATAII (3.0Gb/S) x 2
HDD or SSD
2.5" SATA HDD / SSD x 1
mSATA slot x 1
I/O Ports
Serial
RS-232 x 4, pin9 with RI/5V/12V selectable by BIOS
COM 1 / 2 : RS232, RJ50
COM 3 : RS232/422/485, DB9
COM 4 : RS232, DB9
USB
USB 2.0 x 4
USB 3.0 x 1
LAN
Gigabit Ethernet by RJ-45 x 1, support Wake on LAN
Cash Drawer
RJ12 x 1, support 12V / 24V DC cash drawer
Audio
2 W Speaker x 2
VGA
DB15 x 1 optional for replace COM4
DP / HDMI
mini Display Port x 1 (supporting active converter cable to VGA,DVI,
HDMI)
DC-in
19VDC input x 1, 2pins jack
DC-out
12VDC x 1 / 1A output
Color
Black
Material
Plastic / Aluminum
Certifications
CE / FCC / WEEE / RoHS
Dimension (W x D x H)
36.5 x 22.9 x 33.2 cm (14.4 x 9 x 13 inch)
Net Weight / Gross Weight
6.8 kg, 15.1 lb / 8.8 kg, 19.6 lb

Chapter 5
18
Operation Temperature
0 to +40°C
Storage Temperature
-20o ~ 60oC,
Humidity
20% to 85% RH (non condensing)
