Wegner LED Nomad User manual

Instructions Manual
LED Nomad

Operating Instructions
General Features and Components 4
Setting the Analog Watch 6
Setting the Digital Watch 7
Precautions and Tips for Using the Compass 8
Digital Compass Instructions 9
Magnetic Declination at major Cities 52
TABLE OF CONTENTS
Table of Contents

4GENERAL FEATURES AND COMPONENTS
Hour hand Directional arrow
(when luminated)
Date Button
Inner bezel
Time Button
Second hand
Strap or bracelet
Compass Button
Crown
Day Button
Minute hand

55
Compass Button
• ToselectCompassMode.
• TocalibrateCompass.
Day Button
• Toselect«DayofWeek»display.
Time Button
• TodisplayDigitalTimeinHour,MinuteorSeconds.
• ToentertheSetMode.
Date Button
• Toselect«DateandMonth».

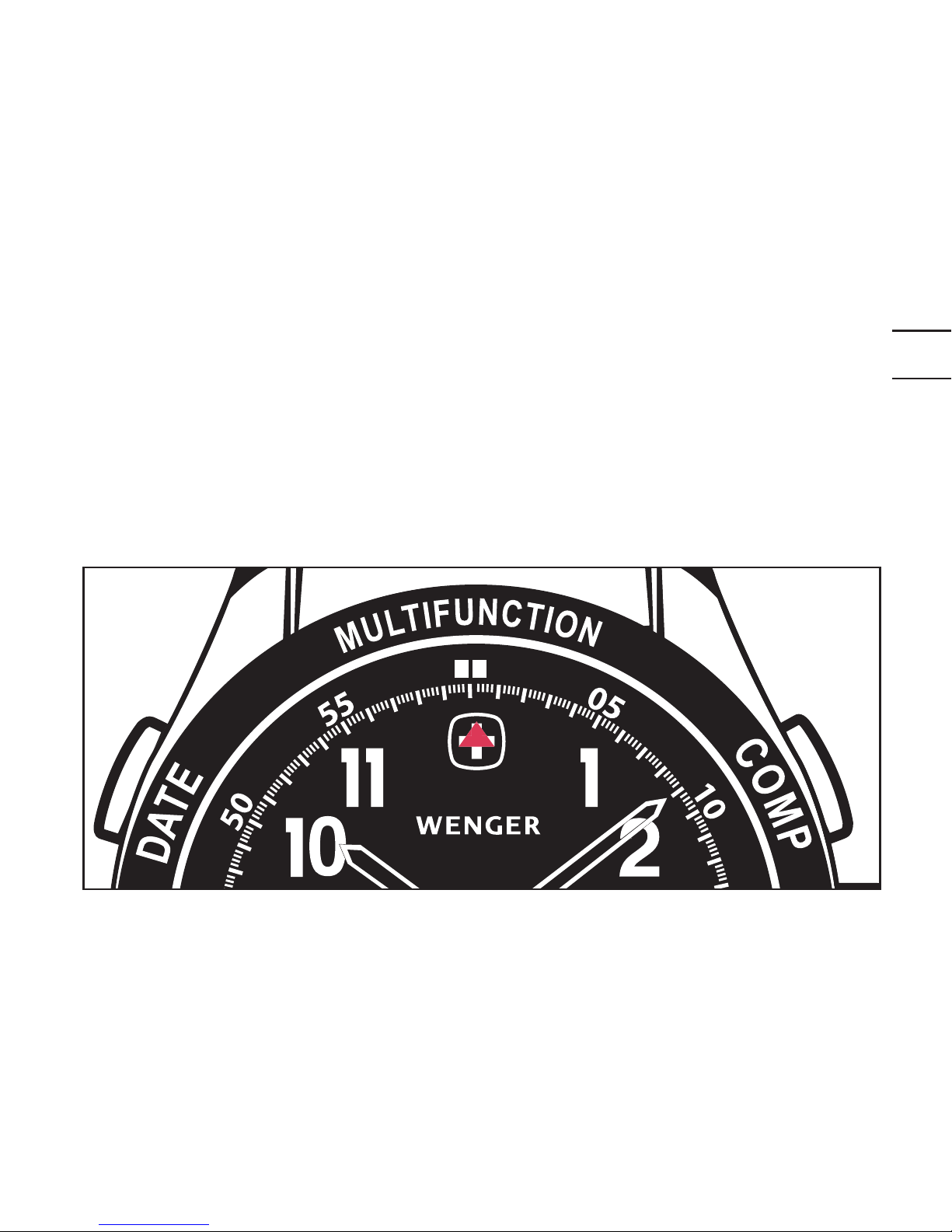

6SETTING THE ANALOG WATCH
1. Tosettheanalogtime,gentlypulloutthecrowntoPosition2.
2. Secondhandwillstopanddigitaltimewillash.
3. Rotatecrownsothewatchhandsmoveclockwisetothecorrecttime.
Second Hand Alignment
Tosynchronizethedigitalwithanalogseconds,pushinthecrowntoreturnitto
Position1atcorrectmoment.
Important note:
Iftheanalog«second»
andthedigital«second»
arenotsynchronized,the
digital setting may not
functionproperly.
Position 1 (fully depressed) Poition 2 (1 clickout)

7
SETTING THE DIGITAL TIME AND CALENDAR
1. HolddowntheTimeButtonuntilthedigitalsecondsash.
2. PresstheCompassButtontoscrollthroughminutes,hours,year,monthand
dateaswellasdateformat(bothmonthanddateashing),timeformat(12
hourto24hour)andseconds.
3. UsetheDayButtontoincreasetothedesiredvalue.Holditdowntoquickly
increasethevalue.
4. PresstheDateButtontoreturntothepreviousdisplay.
DATE DISPLAY
1. PresstheDateButtontoswitchontheDatedisplay.
2. Thedisplaywillshowfor2seconds,thenwillturnoffautomatically.
Note:Thedateformat(Month-DateorDate-Month)canbesetinthe«Setting
theDigitalTimeandCalendar».

8DAY OF THE WEEK DISPLAY
1. PresstheDayButtontoswitchontheDayoftheWeekdisplay.
2. Thedisplaywillshowfor2seconds,thenwillturnoffautomatically.
PRECAUTIONS AND TIPS FOR USING THE COMPASS
1. Keep the watch away from any magnets or appliances that contain magnets
orgeneratemagneticeldssuchasmobilephones,speakers,motors,etc.
2. Thiswatchpointstothemagneticnorth,whichisslightlydifferentfrom
thetruenorth.Checkthe«WhatisMagneticDeclination»sectionformore
details,page52-55.
3. Performthecompasscalibrationfrequently,orunderthefollowingcondi-
tions:
• Firsttimeusingthecompass,
• Whenthemeasuringresultissuspectedtobeincorrect,
• Whenthebatteryhasbeenreplaced,
• Whenthewatchisinadifferentlocationfromwhereitwaspreviously
calibrated.

9
COMPASS DISPLAY
1. PresstheCompassButtontoswitchonthecompassdisplay.
2. The compass bearing in degrees as an arrow indicator under the Wenger
crosswilldisplay.
3. Thedisplaywillshowfor30seconds,thenturnoffautomatically.

10 CALIBRATING THE COMPASS
1. Use«MagneticDeclinationbyMajorCity»todeterminedeclinationangle,
page52-55.
2. HolddowntheCompassButtonfor3secondstoselectsettingdisplay.
3. Whenthe«CAL»isdisplayed,keepthewatchparalleltothehorizon,and
steadily rotate the watch clockwise for two full rotations (the indicators will
moveinaclockwisedirectionautomatically).
4. Afterthetworotations,therststepofthecalibrationiscompleted.
5. Whiletheindicatorsarestillmoving,presstheCompassButtontosetthe
MagneticDeclination.
6. Use the Day Button to increase the setting (from –90 to 90) until the
desiredsettingappears.
7. Whencompleted,presstheDateButtontoreturntotheprevioussetting.

11
Target object or the direction where intend to go
Navigating-
direction
Compass
bearing
TAKING A COMPASS MEASUREMENT
1. Thewatchmustbeparallelwiththehorizonforaccuratereading.
2. Point the Wenger cross toward the object or direction you intend to go and
presstheCompassButton.
3. The compass bearing of the target will show in
degrees:
0° = North
90° = East
180° = South
270° = West
Note:
For more information about using
acompass,therearemanyre-
sourcesavailableontheinternet.

12 COMPASS BEARING VS. COMPASS DIRECTION
Compass Bearing – the horizontal direction of an object as measured by the
observerindegrees.
Compass Direction – the path given by a compass using the four cardinal
pointsincludingNorth,South,East&West.
Visit:http://geology.isu.edu/geostac/Field_Exercise/topomaps/bearing.htm
formoreinformation.
WHAT IS MAGNETIC DECLINATION?
• TheMagneticNorthPoleisslightlydifferentfromtheTrueNorthPole.This
watchpointstotheMagneticNorthPole.
• TheangulardifferencebetweentheMagneticNorthPoleandtheTrueNorth
PoleiscalledMagneticDeclination.Theamount(degreesandminutes)and
direction(easterlyandwesterly)dependsonwhereyouareintheworld.

13
• Forseriouscompassusersorpeoplewhointendtoperformaccuratenaviga-
tion,thecompassmustbeadjustedtoincludethemagneticdeclination.This
watchincludesacompensationsettingforMagneticDeclination.Seethe
«CalibratingtheCompass»section,page52-55.
MAGNETIC DECLINATION INFORMATION
• Mosttopographicmapsshowamagneticnorthpoleand/orthemagnetic
declinationinformation.Seethe«MagneticDeclinationatMajorCities»
section,page52-55.
• Forthosecitieswhosenamesarenotincludedinthelist,enterthecities
latitude and longitude into one of the below magnetic declination calculator
websites:
- http://gsc.nrcan.gc.ca/geomag/index_e.php
- http://www.ngdc.noaa.gov/seg/geomag

14 MAGNETIC DECLINATION COMPENSATION
• Compensateforanobject’sbearingbysubtractingwesterlymagneticdecli-
nationoraddingeasterlymagneticdeclinationwiththemagneticbearing.
Example 1
- Westerlymagneticdeclination=23°,Magneticbearing=323°.
- Truebearing:323°-23°=300°.
Example 2
- Easterlymagneticdeclination=22°,Magneticbearing=278°.
- Truebearing:278°+22°=300°.
• Thiswatchwillcompensatethecompassbearingautomaticallyiftheuser
inputs the magnetic declination angle into the watch at the Magnetic Decli-
nationsettingmode.
• Checkthe«CalibratingtheCompass»sectionformoredetailsofthecalibra-
tion.

15
Notes:

52 MAGNETIC DECLINATION AT MAJOR CITIES
Australia Canberra 12-E
Austria Vienna 2-E
Bahrain Manama 2-E
Bangladesh Dhaka 0
Belgium Brussels 1-W
Brazil Brasilia 19-W
Canada Ottawa 14-W
Chile Santiago 5-E
China Beijing 6-W
China Hong Kong 2-W
Costa Rica SanJose 0
Cuba Havana 3-W
Czech Republic Prague 2-E
Denmark Copenhagen 1-E
Egypt Cairo 3-E

53
MAGNETICDECLINATIONATMAJORCITIES(continued)
Finland Helsinki 6-E
France Paris 1-W
Germany Berlin 1-E
Greece Athens 3-E
Hungary Budapest 4-E
India New Delhi 1-E
Indonesia Jakarta 1-E
Israel Jerusalem 3-E
Italy Rome 1-E
Japan Tokyo 7-W
Jordon Amman 3-E
Kenya Nairobi 1-E
Korea Seoul 7-W
Malaysia KualaLumpur 1-E
Mexico MexicoCity 6-E

54 MAGNETICDECLINATIONATMAJORCITIES(continued)
Country City Declination
Nepal Kathmandu 0
Netherlands Amsterdam 1-W
NewZealand Wellington 22-E
Norway Oslo 0
Pakistan Islamabad 2-E
Philippines Manila 1-W
Portugal Lisbon 5-W
Russia Moscow 9-E
Singapore Singapore 0
South Africa Cape Town 23-W
Spain Madrid 3-W
Sweden Stockholm 3-E
Switzerland Bern 0
Taiwan Tai-pei 3-W
Thailand Bangkok 0

55
MAGNETICDECLINATIONATMAJORCITIES(continued)
Country City Declination
UAE Abu Dhabi 1-E
United Kingdom London 3-W
United States Washington DC 10-W
United States 14-E 25-E
United States Phoenix,AZ 12-E
United States LittleRock,AR 2-E
United States Sacramento,CA 16-E
United States Denver,CO 10-E
United States Atlanta,GA 4-W
United States Honolulu,HI 10-E
United States Boston,MA 16-W
United States Jackson,MS 1-E
United States SantaFe,NM 10-E
United States OklahomaCity,OK 6-E
United States Salem,OR 18-E
United States SaltLakeCity 14-E

Wenger Watch S.A.
ObererQuai51
CH-2502 Biel/Bienne
Switzerland
Tel: [phone]
Email:[e-mail]
Web:www.wenger.ch
