Weider 831.159710 User manual

USER'S MANUAL
®
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. 831.159710
Serial No.
(Write the serial number in the space
above for reference.)
Serial Number Decal (under seat)
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
SEARS, ROEBUCK AND CO.
HOFFMAN ESTATES, IL 60179

2
TABLE OF CONTENTS
FULL 90-DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART is attached in the center of this manual. Remove the PART IDENTIFI-
CATION CHART before beginning assembly.
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS WEIGHT SYSTEM EXERCISER, contact the nearest SEARS Service Center throughout the
United States and SEARS will repair or replace the WEIGHT SYSTEM EXERCISER, free of charge.
This warranty does not apply when the WEIGHT SYSTEM EXERCISER is used commercially or for
rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179

3
1. Read all instructions in this manual and in
the accompanying literature before using the
home gym.
2. It is the responsibility of the owner to ensure
that all users of the home gym are adequate-
ly informed of all precautions.
3. The home gym is intended for home use
only. Do not use the home gym in a commer-
cial, rental, or institutional setting.
4. Use the home gym only on a level surface.
Cover the floor or carpet beneath the home
gym for protection.
5. Inspect and tighten all parts often. Replace
any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the home gym at all times.
7. Keep hands and feet away from moving
parts.
8. Always wear athletic shoes for foot protec-
tion when using the home gym.
9. Always stand on the foot plate when per-
forming an exercise that could cause the
home gym to tip.
10. Never release the press arm, butterfly arms,
leg lever, lat bar, or nylon strap while weights
are raised. The weights will fall with great
force.
11. Make sure that the cables remain on the pul-
leys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.
12. Do not place more than 125 pounds on the
weight carriage.
13. Always disconnect the lat bar from the home
gym when performing an exercise that does
not use the lat bar.
14. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.

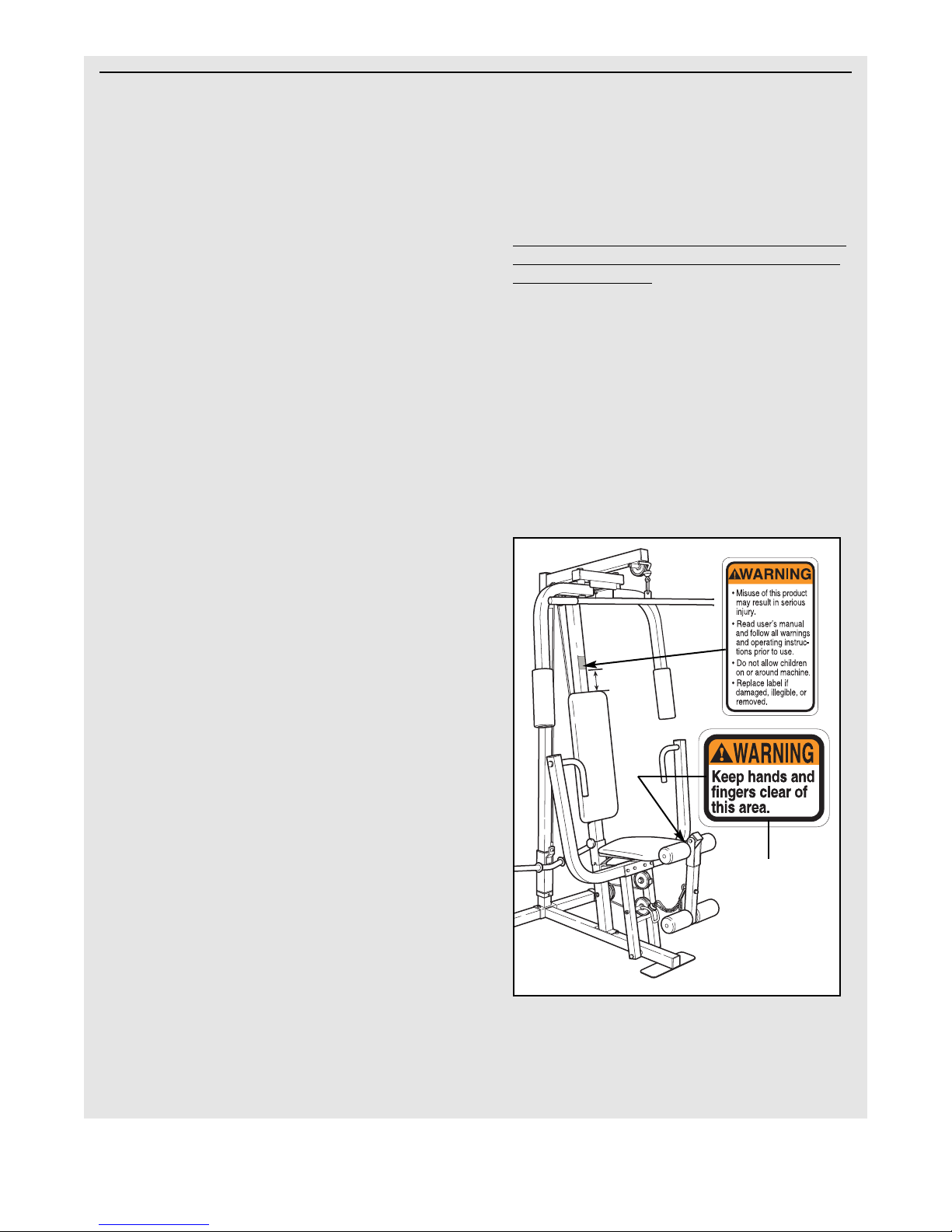

15. The decals shown below have been applied
to the home gym. If either decal is missing,
or if they are not legible, please call 1-800-
736-6879, Monday through Saturday, 7 a.m.
until 7 p.m, Central Time, to order a replace-
ment decal. Apply the replacement decals in
the locations shown.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the home gym.
WARNING: Before beginning this or any exercise program, consult your physician. This is especially
important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. SEARS assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
3”
Place this
decal on the
seat frame
facing the
user

4
BEFORE YOU BEGIN
ASSEMBLED
DIMENSIONS:
Height: 76 in.
Width: 37 in.
Length: 48 in.
Foot Plate
Low Pulley Station
High Pulley Station
Lat Bar
Leg Lever
Butterfly Arms
Press Arm
Weight Carriage
Seat
Backrest
Thank you for selecting the versatile WEIDER®8920
home gym. The WEIDER®8920 offers a selection of
weight stations designed to develop every major mus-
cle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the WEIDER®
8920 will help you to achieve the specific results you
want.
For your benefit, read this manual carefully before
using the WEIDER®8920 home gym. If you have
additional questions, please call our toll-free
HELPLINE at 1-800-736-6879, Monday through
Saturday, 7 a.m. until 7 p.m. Central Time (excluding
holidays). To help us assist you, please note the prod-
uct model number and serial number before calling.
The model number is 831.159710. The serial number
can be found on a decal attached to the WEIDER®
8920 (see the front cover of this owner's manual).

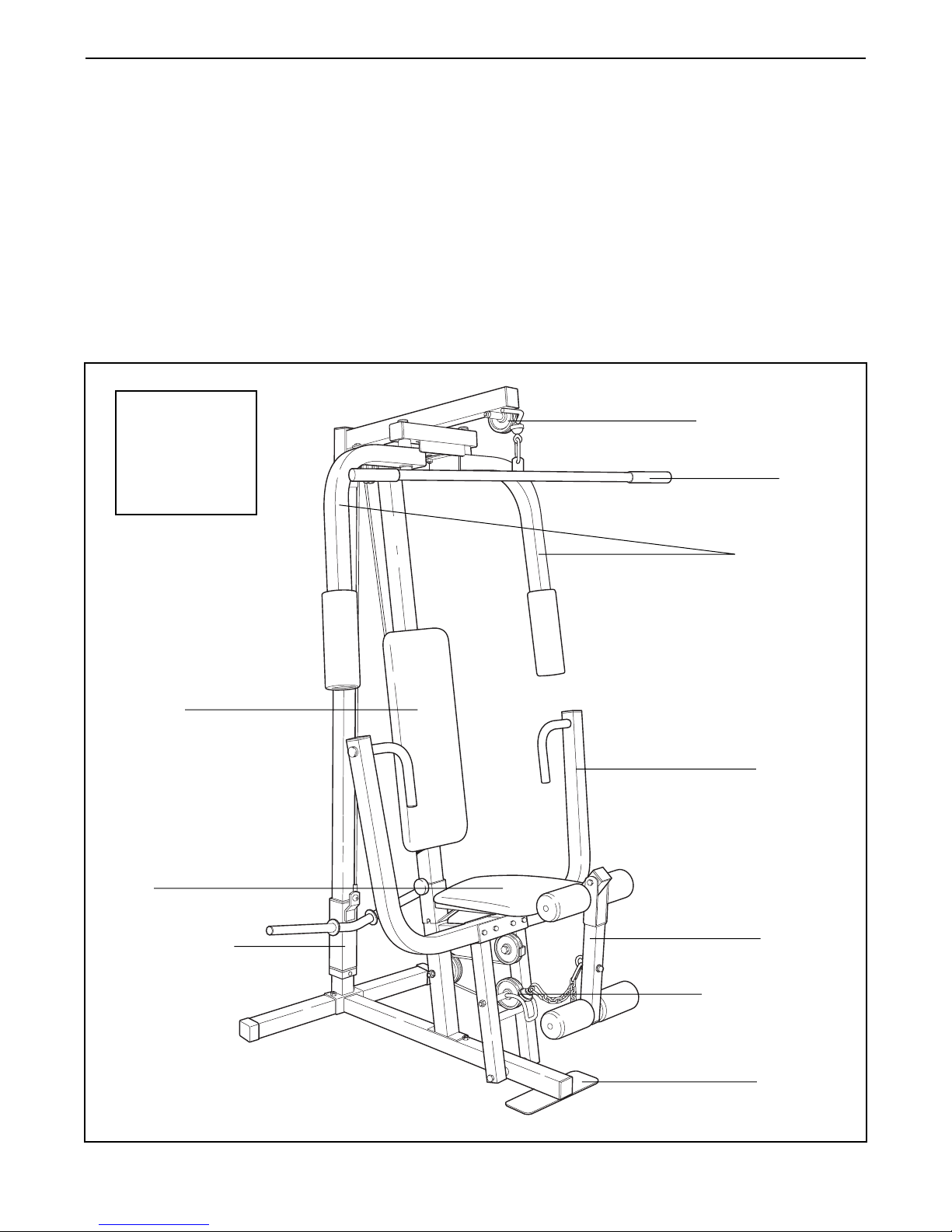

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

5
ASSEMBLY
1
56
3
5
51
51 14
127
4
Before beginning assembly, carefully read the
following information and instructions:
•Place all parts of the home gym in a cleared area
and remove the packing materials; do not dis-
pose of the packing materials until assembly is
completed.
• Assembly is divided into four stages: 1) frame
assembly, 2) press and butterfly arm assembly, 3)
cable and pulley assembly, and 4) seat and back-
rest assembly. The hardware for each stage is
packaged separately.
• Wait until you begin each assembly stage to open
that parts bag.
•For help identifying the small parts used in
assembly, use the PART IDENTIFICATION
CHART located in the center of this manual.
Note: Some small parts may have been pre-
attached for shipping. If a part is not in the parts
bag, check to see if it has been pre-attached.
•As you assemble the home gym, be sure that all
parts are oriented as shown in the drawings.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
THE FOLLOWING TOOLS (NOT INCLUDED) ARE
REQUIRED FOR ASSEMBLY:
• Two (2) adjustable wrenches
• One (1) standard screwdriver
• One (1) Phillips screwdriver
• One (1) rubber mallet
• Lubricant, such as grease or petroleum jelly,
and soapy water will also be needed.
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches, or a set of ratchet wrenches.
1. Before beginning assembly, be sure that
you have read and understand the infor-
mation in the box above.
Press a 2” Square Outer Cap (51) onto each
end of the Stabilizer (5). Press a 2” Square
Inner Cap (27) into the end of the Base (4).
Insert two 5/16” x 2 3/4” Carriage Bolts (14)
up through the Stabilizer (5). Insert two 5/16”
x 2 1/2” Carriage Bolts (1) up through the
Base (4).
Slide the bracket end of the Base (4) onto
the 5/16” x 2 3/4” Carriage Bolts (14) in the
Stabilizer (5). Slide the Rear Upright (56)
onto the Carriage Bolts. Hand tighten a 5/16”
Nylon Locknut (3) onto each Carriage Bolt.
FRAME ASSEMBLY

6
FRAME ASSEMBLY
2. Refer to drawing 2a. Press a 1” Inner Cap
(61) into each end of the weight tube on the
Weight Carriage (19). Note: The Square
Slider Bushings (70) should be pre-assem-
bled to the Weight Carriage (19) and Weight
Stop (67).
Turn the Weight Stop (67) so that the hole in
the Weight Stop is oriented in the same direc-
tion as the hole in the bottom of the Rear
Upright (56). Make sure that the Square
Slider Bushing (70) is above the Weight
Stop. Slide the Weight Stop onto the Rear
Upright (56).
Refer to drawing 2b. Align the hole in the
Weight Stop (67) with the hole near the base
of the Rear Upright (56). Secure the Weight
Stop to the Rear Upright with a 5/16” x 2 3/4”
Bolt (11) and a 5/16” Nylon Jamnut (72). Now
slide the Weight Carriage (19) onto the Rear
Upright.
Press a 1” Square Inner Cap (65) into the
Front Upright (42). Slide the Front Upright
(42) onto the 5/16” x 2 1/2” Carriage Bolts (1)
in the Base (4). Hand tighten a 5/16” Nylon
Locknut (3) onto each Carriage Bolt. Do not
tighten the Nylon Locknuts yet.
3. Press a 1 3/4” Square Inner Cap (44) into
each end of the crossbar on the Top Frame
(55). Press two 1” Inner Caps (61) into the
top of the crossbar.
Attach the Top Frame (55) to the Front
Upright (42) with two 5/16” x 2 3/4” Bolts (11),
two 5/16” Flat Washers (8), and two 5/16”
Nylon Locknuts (3). Attach the Top Frame to
the Rear Upright (56) with two 5/16” x 2 1/2”
Bolts (22), two 5/16” Flat Washers (8), and
two 5/16” Nylon Jamnuts (72). Press a 2”
Square Inner Cap (27) into the top of the
Rear Upright.
Tighten all Nylon Locknuts used in steps 1
through 3.
4. Press a 1” x 7/8” Plastic Bushing (26) onto
each welded spacer on the Press Frame (17).
Slide the Press Frame onto the Base (4) so
the Plastic Bushings are aligned with the indi-
cated tube in the base. Note: This will be a
tight fit. The Plastic Bushings should fit
onto the ends of the tube in the Base.
Lubricate a 3/8” x 8” Bolt (59). Attach the
Press Frame (17) to the Base (4) with the
3/8” x 8” Bolt and a 3/8” Nylon Locknut (21).
2
42
67
70
19
56
Hole
Hole
65
3
1
4
70
70
67
19
61
61
70
4
4
Tube
Welded
Spacers
17 Lubricate
59
21
26
2a
2b
72
19
11
67
56
ARM ASSEMBLY
3
22
11
88
44
44
61
27
55
56 42
3
Crossbar
72
8

7
ARM ASSEMBLY
5. Press a 1 3/4” Square Inner Cap (44) into the
top of one of the Press Arms (46). Press a 1”
Round Inner Cap (49) into each end of the
handle on the Press Arm. Attach the Press
Arm to one side of the Press Frame (17) with
two 5/16” x 2 1/2” Bolts (22) and two 5/16”
Nylon Locknuts (3).
Assemble the other Press Arm (46) in the
same manner.
6. Identify the Right Arm (48) and the Left Arm
(47). Note the position of the welded bracket
on each Arm. Arm identification is very
important for step 7.
7. Lubricate both axles on the Top Frame (55).
Slide the Right Arm (48) onto the right axle.
Note: Be careful not to confuse the Right
Arm with the Left Arm (47); refer to step 6
to identify the Right Arm. Be sure that the
upper end of the Right Arm is behind the
indicated bracket on the Top Frame (55).
Tap two 1” Retainers (63) and a 1” Round
Cover Cap (62) onto the right axle. Be sure
that the teeth on the Retainers bend
toward the Cover Cap, as shown in the
inset drawing.
Attach the Left Arm (47) in the same manner.
Press 1 3/4” Square Inner Caps (44) into the
lower ends of the Right and Left Arms (47,
48). Wet the lower end of each Arm with
soapy water. Slide a Foam Pad (45) onto the
lower end of each Arm.
46
3
22
46
49
49
44
17
44
49
5
48
47
Welded
Brackets
6
7
Bracket
Lubricate
Axle
45
47
55
48
45
44
63
62
63
55
62

8
CABLE ASSEMBLY
11
8
9
10
58
58
55
16
25
Hook
Ball
15
50
58
7
47
58
21
7
21
650
23
6
42
8. During steps 9 through 22, refer to the
CABLE DIAGRAM on page 19 of this manual
to verify proper cable routing. Before begin-
ning this section, identify the Short Cable (23)
and the Long Cable (58) by comparing the
lengths and the ends of the cables.
IMPORTANT: While assembling the cables,
do not overtighten the bolts and nuts
securing the pulleys. The pulleys must
turn freely.
9. Locate the Long Cable (58). Route the Long
Cable around a 3 1/2” Pulley (15).
Using a 3/8” x 3 1/2” Bolt (16) and a 3/8”
Nylon Jamnut (25), attach the 3 1/2” Pulley
(15) in the indicated location on the Top Frame
(55). Be sure that the end of the Cable with
the ball is on the indicated side of the
Pulley and that the Cable is between the
Pulley and the hook on the Top Frame
(55).
10. Wrap the Long Cable (58) around a “V”-Pulley
(6). Attach the “V”-Pulley and a Long Cable
Trap (50) to the indicated bracket on the
Front Upright (42) with a 3/8” x 2 1/2” Bolt (7)
and a 3/8” Nylon Locknut (21). Be sure that
the Long Cable Trap is positioned to hold
the Cable in place.
11. Route the Long Cable (58) around a “V”-
Pulley (6). Attach the “V”-Pulley (6) and a
Long Cable Trap (50) to the Left Arm (47)
with a 3/8” x 2 1/2” Bolt (7) and a 3/8” Nylon
Locknut (21). Be sure that the Cable is in
the groove of the Pulley and that the Long
Cable Trap (50) is positioned to hold the
Cable in place.

9
CABLE ASSEMBLY
12
48 21
50 7
6
58
12. Route the Long Cable (58) around a “V”-
Pulley (6). Be sure that the Cable is in the
groove of the “V”-Pulley and that a Long
Cable Trap (50) is turned to hold the Cable
in place.
Attach the “V”-Pulley (6) and the Long Cable
Trap (50) to the Right Arm (48) with a 3/8” x 2
1/2” Bolt (7) and a 3/8” Nylon Locknut (21).
Make sure the Bolt and Nylon Locknut are
tight.
13. Refer to the inset drawing. Using a 5/16” x
4 3/4” Bolt (64) and a 5/16” Nylon Locknut
(3), attach the Pulley Bracket (20) to the indi-
cated bracket on the Top Frame (55). Note:
The Pulley Bracket is pre-assembled with
a 3 1/2” Pulley (15) and a Cable Trap (66).
Route the Long Cable (58) around the 3 1/2”
Pulley (15) attached to the Pulley Bracket
(20). Be sure that the Cable is in the
groove of the Pulley and that the Cable
Trap (66) is turned to hold the Cable in
place. Make sure that the 3/8” x 2” Bolt (12),
securing the Pulley and Cable Trap to the
Pulley Bracket, is properly tightened and that
the Pulley Bracket can pivot freely.
14. Locate the Long “U”-Bracket (57) that is pre-
assembled with a 3 1/2” Pulley (15) and a
Cable Trap (not shown). Route the Long
Cable (58) around the Pulley and through the
Long “U”-Bracket. Be sure that the Cable is
in the groove of the Pulley, that the Cable
Trap is turned to hold the Cable in place,
and that the Cable and Pulley move
smoothly.
15. Route the Long Cable (58) around a 3 1/2”
Pulley (15). Using a 3/8” x 1 3/4” Bolt (71)
and a 3/8” Nylon Locknut (21), secure the
Pulley to the indicated bracket on the Top
Frame (55). Be sure that the Cable is in the
groove of the Pulley and that the Cable
and Pulley move smoothly.
13
58
66
15 12
20
64
55
3
20
14
58
57
15
15
71
15
58
Bracket
55
21
66

10
CABLE ASSEMBLY
17
21
15
59
15 66
9
9
Bracket
17
16

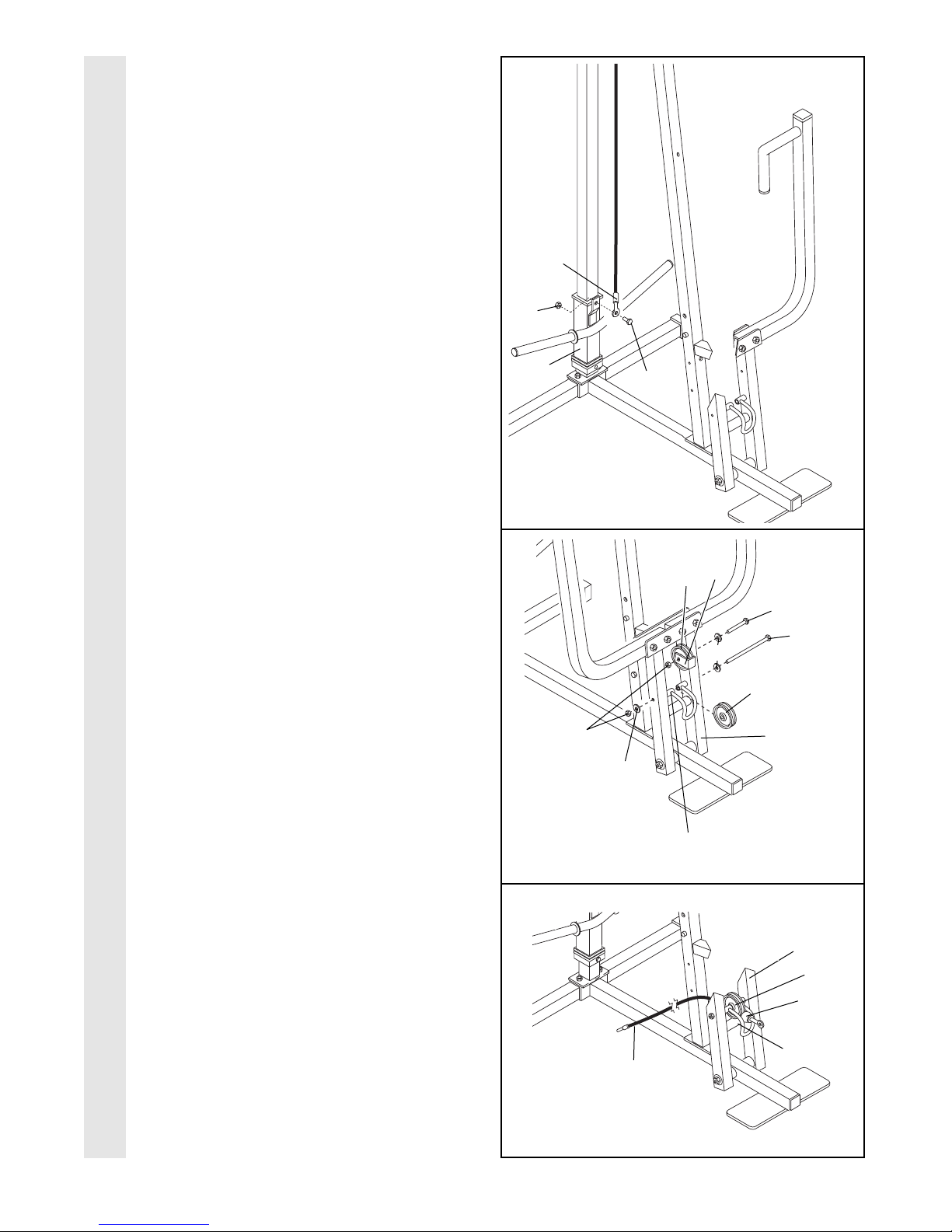

16. Attach the Long Cable (58) to the Weight
Carriage (19) with a 3/8” x 3/4” Bolt (69) and
a 3/8” Nylon Locknut (21). Make sure that
the Bolt and the Nylon Locknut are tight.
17. Using a 3/8” x 3 1/2” Bolt (16), a 3/8” Flat
Washer (9), and a 3/8” Nylon Locknut (21),
secure a 3 1/2” Pulley (15) and a Cable Trap
(66) to the upper hole in the Press Frame
(17). Make sure that the Cable Trap and the
Pulley are oriented as shown.
Hold a 3 1/2” Pulley (15) inside the indicated
bracket on the Press Frame (17). Using a 3/8”
x 8” Bolt (59), two 3/8” Flat Washers (9), and
a 3/8” Nylon Locknut, attach the 3 1/2” Pulley
to the Press Frame as shown.
18. Locate the Short Cable (23). Route the
Short Cable under the indicated 3 1/2” Pulley
(15). Be sure that the end of the Cable with
the ball is between the Pulley and the
crossbar on the Press Frame (17).
23
Crossbar
Ball
15
17
18
16
19
21
69
58

11

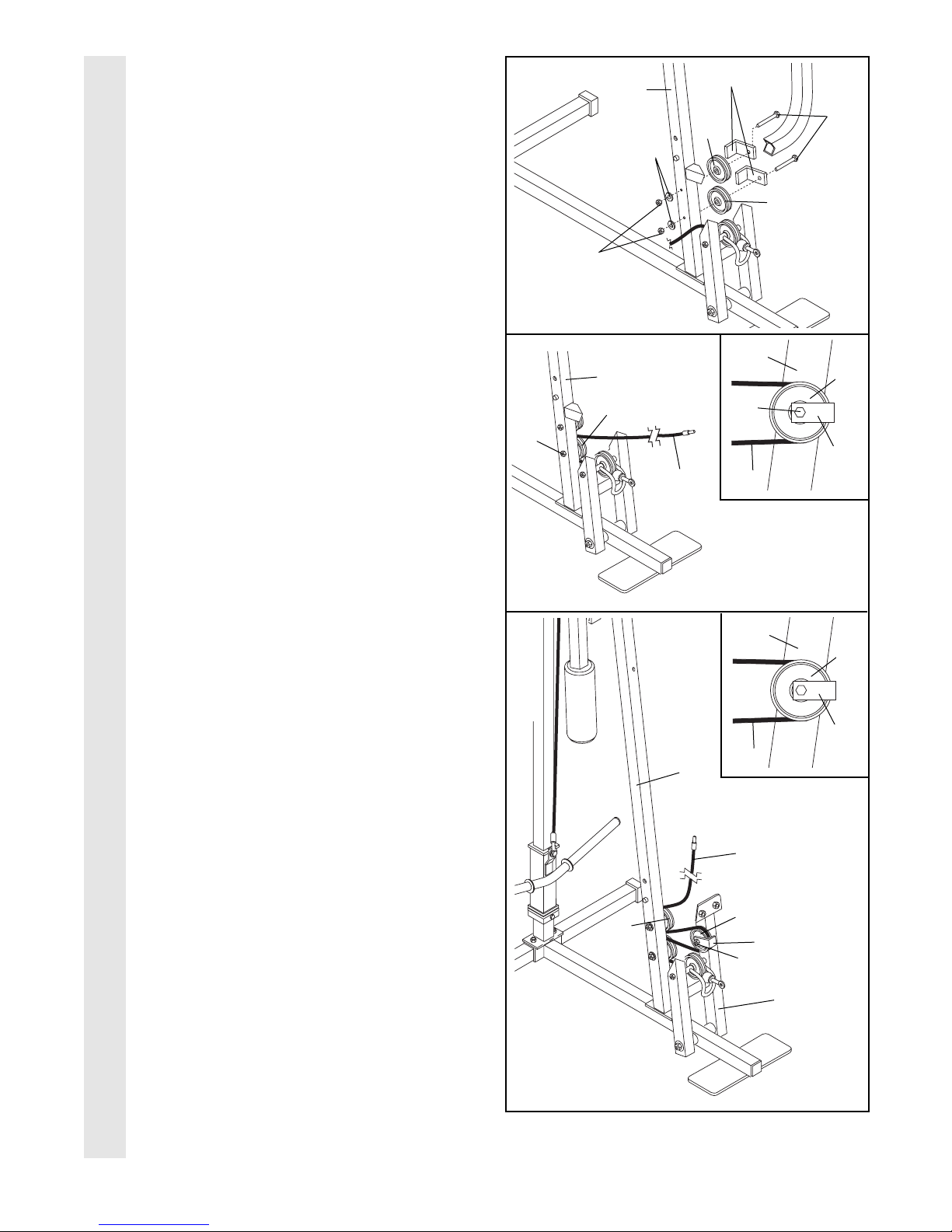

CABLE ASSEMBLY
19. Slide a Cable Trap (66) and a 3 1/2” Pulley
(15) onto each 3/8” x 3 3/4” Bolt (68). Insert
the Bolts into the Front Upright (42) from the
direction shown. Hand tighten a 3/8” Nylon
Locknut (21) with a 3/8” Flat Washer (9) onto
each Bolt. Be sure that all parts are orient-
ed as shown. Do not tighten the Nylon
Locknuts yet.
20. Route the Short Cable (23) around the 3 1/2”
Pulley (15) attached to the lower hole in the
Front Upright (42). See the inset drawing.
Be sure that the Cable Trap (66) is turned
to hold the Cable in place and that the
Cable is routed around the Pulley as
shown. Tighten the 3/8” Nylon Locknut (21)
and the 3/8” x 3 3/4” Bolt (68).
21. Route the Short Cable (23) up around the
3 1/2” Pulley (15) attached to the upper hole
in the Press Frame (17). Be sure that the
Cable Trap (66) is turned to hold the Cable
in place and that the Cable is routed
around the Pulley as shown.
Next, route the Short Cable (23) around the
3 1/2” Pulley (15) attached to the upper hole
in the Front Upright (42). Refer to the inset
drawing. Be sure that the Cable Trap (66)
is turned to hold the Cable in place and
that the Cable is routed around the Pulley
(15) as shown.
21
23
42
15
15 66
21
17
20
23
21
42
15 68
23
Inset shows view
from other side
42
66
15
23
Inset shows view
from other side
42
66
15
19
21
15
15
68
9
42 66

22. Attach the end of the Short Cable (23) to the
Long “U”-Bracket (57) with a 1/4” Nylon Lock-
nut (2) and a 1/4” Flat Washer (10). Do not
completely tighten the Nylon Locknut; it
should be threaded onto the end of the
Cable until two threads are showing above
the Nylon Locknut, as shown in the inset
drawing.
23. Attach the Backrest (41) to the Front Upright
(42) with two 1/4” x 2 1/2” Screws (43) and
two 1/4” Flat Washers (10).
CABLE ASSEMBLYSEAT ASSEMBLY
12
23
41
42
10
43
22
57
2
10
23
23
57
2
10

13
24. Press a 1 1/2” Square Inner Cap (32) into the
Seat Frame (36).
Insert the 1/4” x 2” Carriage Bolt (38) into the
center hole in the Seat Plate (37). Attach the
Seat Plate to the Seat (13) with two 1/4” x
3/4” Screws (18).
Insert the 1/4” x 2” Carriage Bolt (38) into the
indicated hole in the Seat Frame (36).
Tighten a 1/4” Nylon Locknut (2) with a 1/4”
Flat Washer (10) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Seat Frame (36) with a 1/4” Flat Washer (10)
and the 1/4” x 2” Screw (24).
25. Press a 1 1/2” Square Inner Cap (32) into the
Leg Lever (29).
Lubricate the 5/16” x 2 1/4” Bolt (33). Attach
the Leg Lever (29) to the Seat Frame (36)
with the 5/16” x 2 1/4” Bolt and a 5/16” Nylon
Locknut (3). Do not overtighten the Nylon
Locknut. The Leg Lever must pivot freely.
Insert the 3/8” x 2 1/2” Eyebolt (35) into the
Leg Lever (29) from the direction shown.
Tighten a 3/8” Nylon Locknut (21) with a 3/8”
Flat Washer (9) onto the Eyebolt. Note: Be
sure the Eyebolt is positioned vertically on
the Leg Lever.
26. Rest the Seat Frame (36) on the indicated pin
in the Front Upright (42). Attach the Seat
Frame to the Front Upright with a 5/16” x
2 3/4” Carriage Bolt (14) and the Seat Knob
(40).

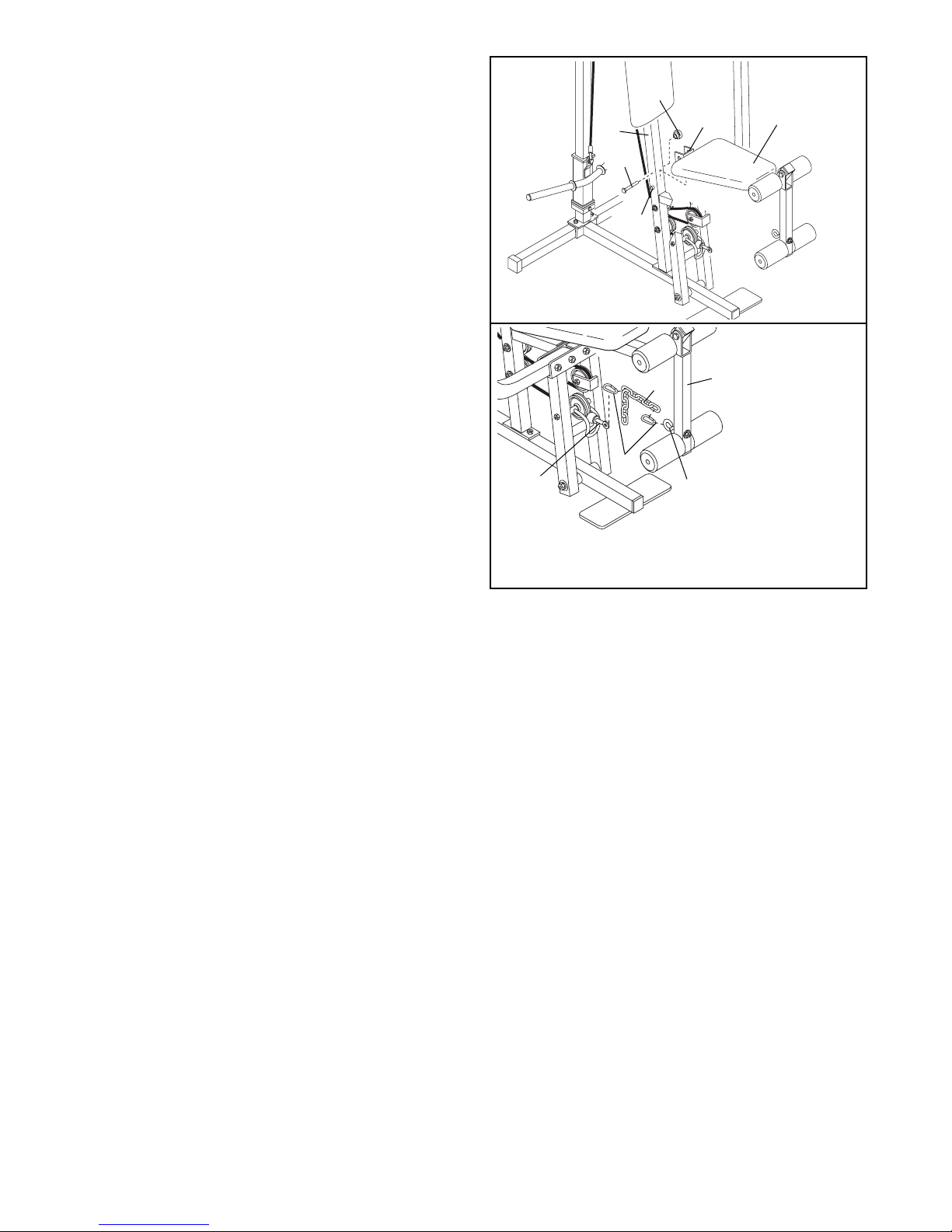

24
25
SEAT ASSEMBLY
10
2
24
36
36
3
Lubricate–33
29
921
32
35
13
38
37 32
18
26
36
40
Pin
42
14

14
27. Press 3/4” Round Inner Caps (34) into the
ends of both Pad Tubes (28).
Insert one Pad Tube (28) into the Seat Frame
(36). Slide a Foam Pad (30) onto each end of
the Pad Tube.
Insert the other Pad Tube (28) into the Leg
Lever (29). Slide a Foam Pad (30) onto each
end of the Pad Tube.
28. Make sure that all parts have been properly tightened. The use of all remaining parts will be explained
in ADJUSTMENT, beginning on page 15 of this manual.
Before using the home gym, pull each cable a few times to make sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPOR-
TANT: If the cables are not properly routed, they may be damaged when heavy weight is used.
See the CABLE DIAGRAM on page 19 of this manual for proper cable routing. If there is any
slack in the cables, you will need to remove it by tightening the cables. See TROUBLE-SHOOT-
ING AND MAINTENANCE on page 18.
27
30
34
28
34
29
30
36
SEAT ASSEMBLY

15
ADJUSTMENT
The instructions below describe how each part of the home gym can be adjusted. Refer to the exercise poster
accompanying this manual to see how the home gym should be set up for each exercise. IMPORTANT: When
attaching the lat bar or nylon strap, make sure that the attachments are in the correct starting position
for the exercise to be performed. If there is any slack in the cables or chain as an exercise is performed,
the effectiveness of the exercise will be reduced.
54
53
52
58
19
Weight
Tube
Stops
54
23
52
53
ADDING WEIGHTS TO THE WEIGHT CARRIAGE
To add resistance to your workout, slide an equal
amount of weight (not included) onto each side of the
weight tube on the Weight Carriage (19). Make sure
that the weights are pushed against the stops and
that the amount of weight on each end of the weight
tube is the same. Note: Due to the cables and pul-
leys, the actual amount of resistance at each
exercise station may vary from the amount of
weight used. Use the WEIGHT RESISTANCE
CHART on page 17 to find the actual amount of
resistance at each weight station.
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION
Attach the Lat Bar (54) to the Long Cable (58) with a
Cable Clip (53). For some exercises, the Chain (52)
should be attached between the Lat Bar and the Long
Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the Long Cable so
the Lat Bar is in the correct starting position for
the exercise to be performed.
The Nylon Strap (not shown) can be attached in the
same manner.
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE LOW PULLEY STATION
Attach the Lat Bar (54) to the Short Cable (23) with a
Cable Clip (53). For some exercises, the Chain (52)
should be attached between the Lat Bar and the
Pulley Cable with two Cable Clips. Adjust the length
of the Chain between the Lat Bar and the Short
Cable so the Lat Bar is in the correct starting
position for the exercise to be performed.
The Nylon Strap (not shown) can be attached in the
same manner.
WARNING: Do not place more than 125
pounds on the weight carriage.

16
ATTACHING AND REMOVING THE SEAT
Set the bracket on the Seat Frame (36) onto the indi-
cated pins on the Front Upright (42). Attach the Seat
Frame to the Front Upright with the 5/16” x 2 3/4”
Carriage Bolt (14) and the Seat Knob (40).
For some exercises, the Seat (13) must be removed.
First, be sure that the chain is not attached to the leg
lever. Next, remove the Seat Knob (40) and the 5/16”
x 2 3/4” Carriage Bolt (14) from the Seat Frame (36).
Lift the Seat Frame off the Front Upright (42).
ATTACHING THE LEG LEVER TO THE LOW
PULLEY STATION
To use the Leg Lever (29), the seat must be attached
to the front upright (see ATTACHING AND REMOV-
ING THE SEAT above).
Attach one end of the Chain (52) to the Eyebolt (35)
with a Cable Clip. Attach the Chain (52) to the Short
Cable (23) with a Cable Clip (53). Note: Be sure the
Eyebolt is positioned vertically on the Leg Lever.
40
36
42 13
Pin
52
53
23
29
35
14

17
WEIGHT ON PRESS ARM BUTTERFLY ARM LOW PULLEY/ HIGH PULLEY
WEIGHT (lbs.) (lbs.) LEG LEVER (lbs.)
CARRIAGE (lbs.)
0 12 7 10 10
522111816
10 31 15 25 21
15 40 20 32 26
20 50 24 39 32
25 59 29 46 37
30 68 33 53 42
35 78 38 61 47
40 87 42 68 53
45 97 47 75 58
50 106 51 82 63
55 115 56 89 68
60 125 60 96 74
65 134 64 103 79
70 144 69 111 84
75 153 73 118 89
80 162 78 125 95
85 172 82 132 100
90 181 87 139 105
95 190 91 146 110
100 200 96 153 116
105 210 100 160 121
110 219 104 168 126
115 228 109 175 131
120 237 113 182 137
125 247 118 189 142
WEIGHT RESISTANCE CHART
This chart shows the approximate weight resistance at each weight station. The column labeled “WEIGHT ON
WEIGHT CARRIAGE” refers to the amount of weight, in pounds, placed on the weight carriage. The weight
resistance shown for the butterfly arm station is for each butterfly arm. Note: The actual resistance at each
station may vary due to friction between the cables, pulleys, and weight carriage.

18
TROUBLE-SHOOTING AND MAINTENANCE
Inspect and tighten all parts each time you use the home gym. Replace any worn parts immediately. The home
gym can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the home gym, can stretch slightly when it is first used. If there is slack
in the cables before resistance is felt, the cables should be tightened.
Slack can be removed from the Short Cable (23) by
by tightening the 1/4” Nylon Locknut (2) at the end of
the Cable.
Additional slack can be removed by moving the 3 1/2”
Pulley (15) to the other hole in the Long “U”-Bracket
(57). Remove the 3/8” Nylon Locknut (21) and the
3/8” x 2” Bolt (12) from the Cable Trap (66), the
Pulley, and the “U”-Bracket. Re-attach the Pulley and
the Cable Trap to the other hole in the “U”-Bracket.
Make sure that the Cable Trap is in the proper
position and that the Cable and Pulley move
smoothly.
Note: If a cable tends to slip off the pulleys, the
cable may have become twisted. Remove the
cable and re-install it. If a cable needs to be
replaced, see ORDERING REPLACEMENT PARTS
on the back cover of this manual.
57
66 15
223
12
21

19
CABLE DIAGRAM
The cable diagram below shows the proper routing of the Short Cable (23) and the Long Cable (58). Use the
diagram to be sure that the two cables and the cable traps have been assembled correctly. If the cables have
not been correctly routed, the home gym will not function properly and damage may occur. The numbers show
the correct route for each cable. The starting and ending points of each cable are labeled. The small drawings
show the correct position of each cable trap. Make sure that the cable traps do not touch or bind the cables.
4
3
2
7
6
5
4
3
2
Weight Carriage—8
1—Low Pulley
1—High Pulley
Long Cable (58)
5—Long “U”-Bracket
Short Cable (23)
TOP VIEW

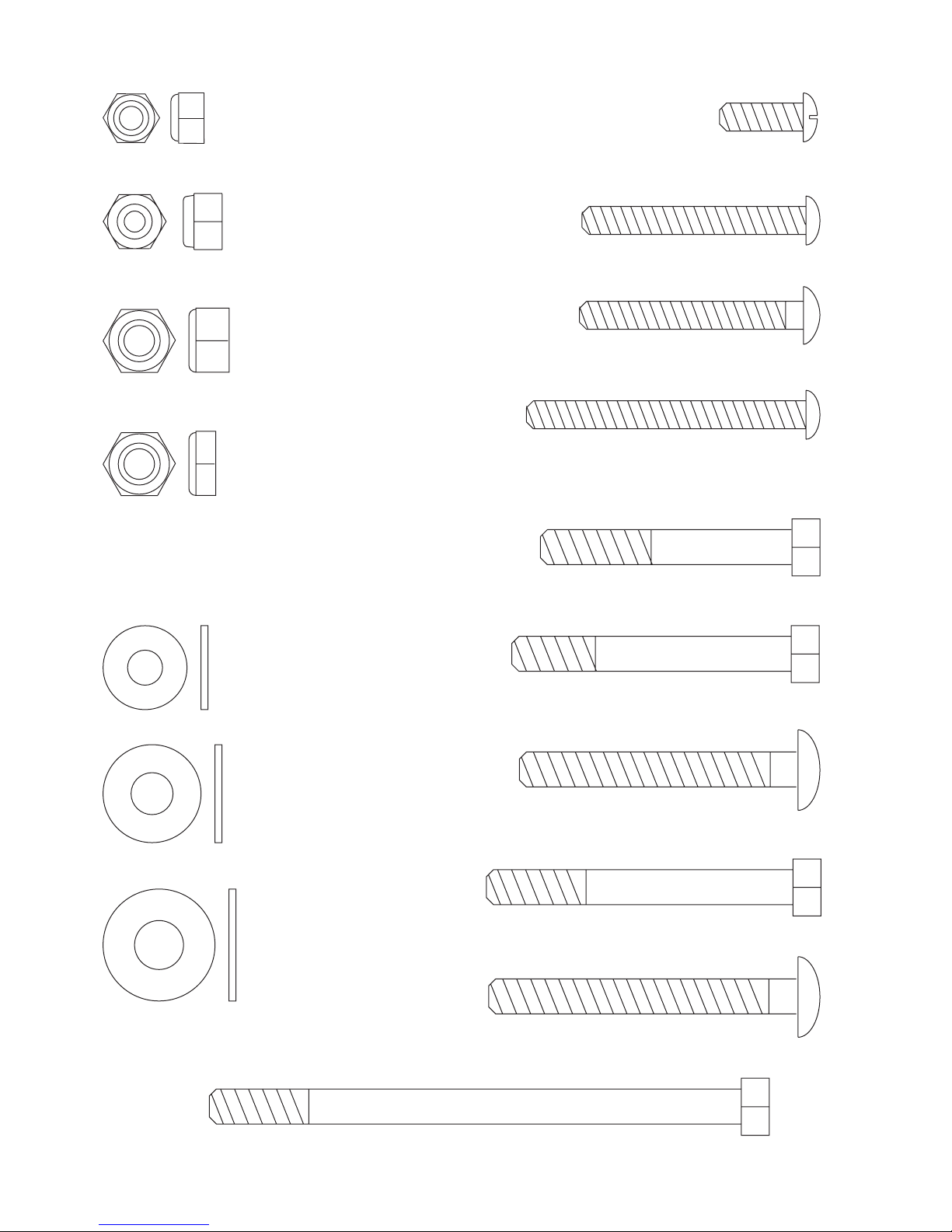

1/4" x 2" Screw (24)
1/4" x 2 1/2" Screw (43)
5/16" x 2 1/2" Bolt (22)
5/16" x 2 3/4" Bolt (11)
5/16" x 2 1/2" Carriage Bolt (1)
5/16" x 2 3/4" Carriage Bolt (14)
5/16" x 4 3/4" Bolt (64)
1/4" x 2" Carriage Bolt (38)
3/8" Flat Washer (9)
5/16" Flat Washer (8)
1/4" Flat Washer (10)
3/8" Nylon Jamnut (25)
3/8" Nylon Locknut (21)
5/16" Nylon Locknut (3)
1/4" Nylon Locknut (2)
5/16" x 2 1/4" Bolt (33)
1/4" x 3/4" Screw (18)
831.159710 R0801A
