1. Read all instructions in this manual and in
the accompanying literature before using the
weight system. Use the weight system only
as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight system are ade-
quately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in a com-
mercial, rental, or institutional setting.
4. Use the weight system only on a level sur-
face. Cover the floor or carpet beneath the
weight system to protect the floor.
5. Make sure all parts are properly tightened
each time the weight system is used.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the weight system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protec-
tion when using the weight system.
9. The weight system is designed to support a
maximum user weight of 300 pounds.
10. Never release the press arm, butterfly arms,
leg lever, leg press base, lat bar, ab strap, or
handle while weights are raised; the weights
will fall with great force.
11. Make sure that the cables remain on the pul-
leys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.
12. Always stand on the foot plate when per-
forming an exercise that could cause the
weight system to tip.
13. Always disconnect the lat bar from the
weight system when performing an exercise
that does not use the lat bar.
14. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
15. The warning decals
shown here have been
placed on the weight
system in the locations
shown on page 4. If a
decal is missing or
illegible, please call
our Customer Service
Department toll-free at
1-800-999-3756,
Monday through
Friday, 6 a.m. until 6
p.m. Mountain Time, to
order a free replace-
ment decal. Apply
the replacement
decal in the location
shown.
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the weight system.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
Keep hands and
fingers clear of
this area.
IMPORTANT PRECAUTIONS
Decal 1
Decal 2

4
BEFORE YOU BEGIN
ASSEMBLED
DIMENSIONS:
Height: 77 in.
Width: 81 in.
Length: 59 in.
Foot Plate
Low Pulley Station
Ab Pulley Station
High Pulley Station
Lat Bar
Leg Lever
Butterfly Arm
Press Arm
Weight
Seat
Seat
Backrest
Backrest
Leg Press
Plate
Thank you for selecting the versatile WEIDER®PRO
3200 weight system. The PRO 3200 weight system
offers a selection of weight stations designed to devel-
op every major muscle group of the body. Whether
your goal is to tone your body, build dramatic muscle
size and strength, or improve your cardiovascular sys-
tem, the weight system will help you to achieve the
results you want.
For your benefit, read this manual carefully before
using the weight system. If you have questions after
reading this manual, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is WESY29521. The
serial number can be found on a decal attached to the
weight system (see the front cover of this manual).

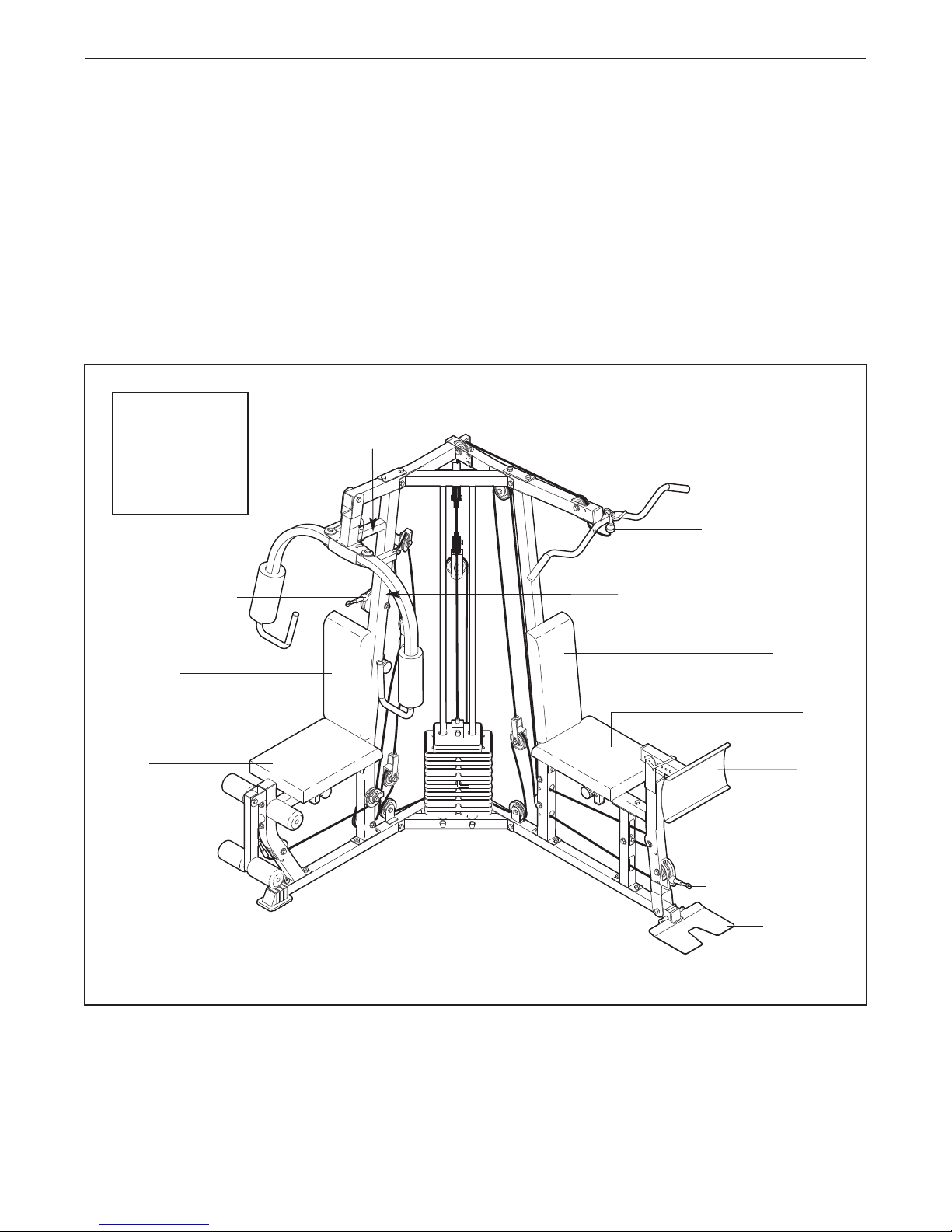

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Warning
Decal 1
Warning Decal 2
(One on each side
of the upright.)
Note: The terms “right side” and “left side” are determined rel-
ative to a person facing away from the weight system; they do
not correspond to right and left in the pictures in the manual.
Right Side
Left Side

75
5
Before beginning assembly, carefully read the
following information and instructions:
•Assembly requires two people.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the weight system, make sure
all parts are oriented as shown in the drawings.
•For help identifying small parts, use the PART
IDENTIFICATION CHART.
An Allen wrench (included) and the following
tools (not included) are required for assembly:
• two adjustable wrenches
• one rubber mallet
• one standard screwdriver
• one Phillips screwdriver
• lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight system can be assembled suc-
cessfully by anyone. However, it is important to
realize that the versatile weight system has
many parts and that the assembly process will
take time. Most people find that by setting aside
plenty of time, assembly will go smoothly.
ASSEMBLY
1
33
33
81
67
1
70
81
67
28
75
75
57
57

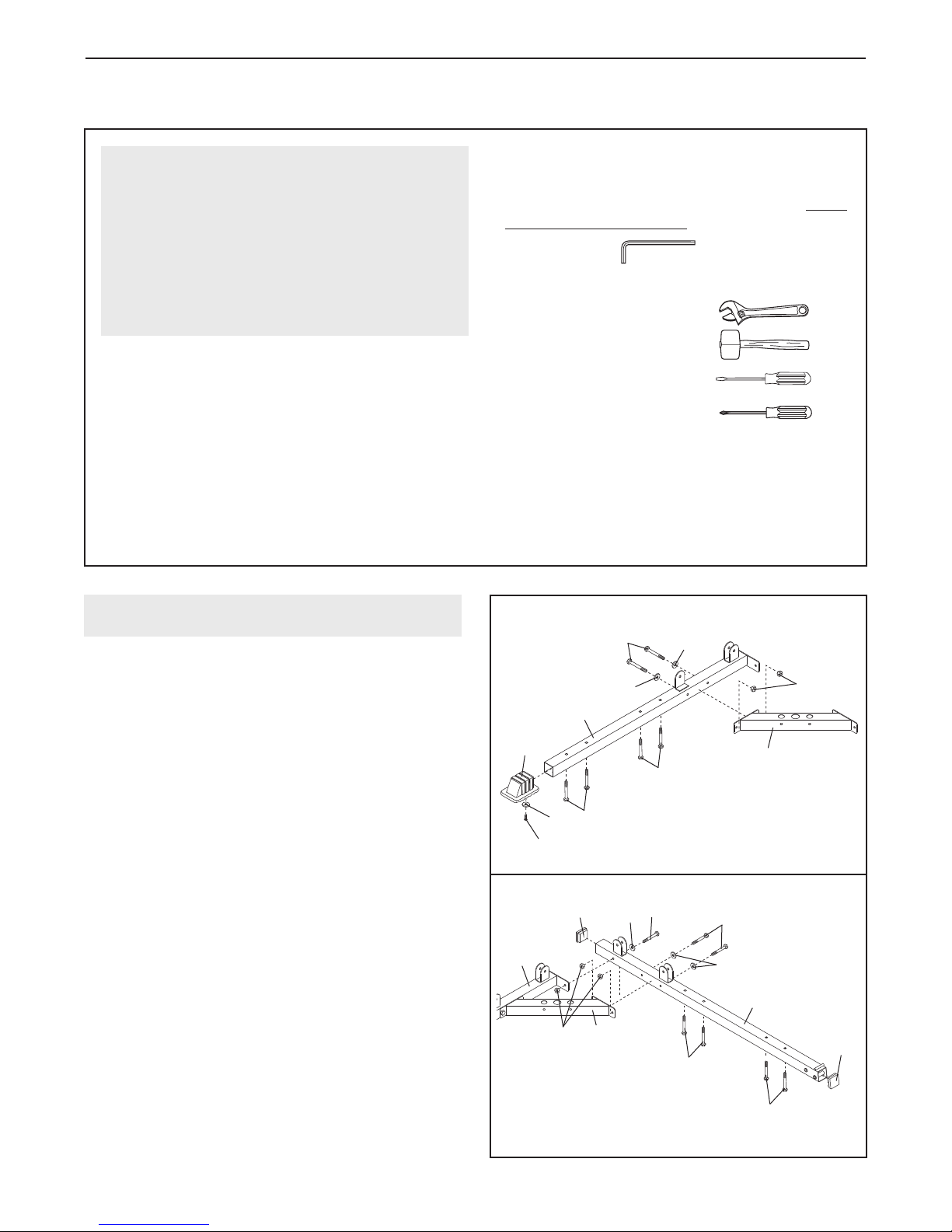

1. Before beginning assembly, make sure that
you understand the information in the box
above.
Attach the Base Cap (28) to the Right Base (1)
with an M4 x 20mm Self-tapping Screw (77) and
an M5 Washer (50).
Attach the Center Base (67) to the Right Base (1)
with two M10 x 70mm Bolts (81), two M10
Washers (75), and two M10 Nylon Locknuts (70).
Do not tighten the Locknuts yet.
Insert four M10 x 65mm Carriage Bolts (57) up into
the Right Base (1).
2. Press two 50mm Square Inner Caps (33) into the
Left Base (2).
Insert four M10 x 65mm Carriage Bolts (57) up into
the Left Base (2).
Attach the Left Base (2) to the Right Base (1) and
Center Base (67) with three M10 x 70mm Bolts
(81), three M10 Washers (75), and three M10
Nylon Locknuts (70).
Tighten the M10 Nylon Locknuts (70) used in
steps 1 and 2.
FRAME ASSEMBLY
2
1
2
81
70
57
77
50
75
57

6
4. Press a 50mm x 70mm Inner Cap (22) into the
top of the Right Leg (73).
Attach the Right Leg (73) to the Right Base (1)
with the two indicated M10 x 65mm Carriage
Bolts (57) and two M10 Nylon Locknuts (70).
Attach the Right Upright (6) to the Right Base (1)
with the two indicated M10 x 65mm Carriage
Bolts (57) and two M10 Nylon Locknuts (70).
Do not tighten the M10 Nylon Locknuts (70)
yet.
3. Attach the Base Plate (37) to the Left Base (2)
with an M10 x 135mm Bolt (58) and an M10
Nylon Locknut (70). Be sure that the textured
side is on top.
Attach the Left Upright (7) to the Left Base (2)
with the two indicated M10 x 65mm Carriage
Bolts (57) and two M10 Nylon Locknuts (70).
Attach the Left Leg (36) to the Left Base (2) with
the two indicated M10 x 65mm Carriage Bolts
(57) and two M10 Nylon Locknuts (70). Be sure
the large upper hole in the Left Leg is on the
side shown.
Do not tighten the M10 Nylon Locknuts (70)
yet.
3
4
2
57
70
6
1
73
22
36
Large
Hole
7
70
57
57 37
70
58
70
70
70
70
70
70
57

7

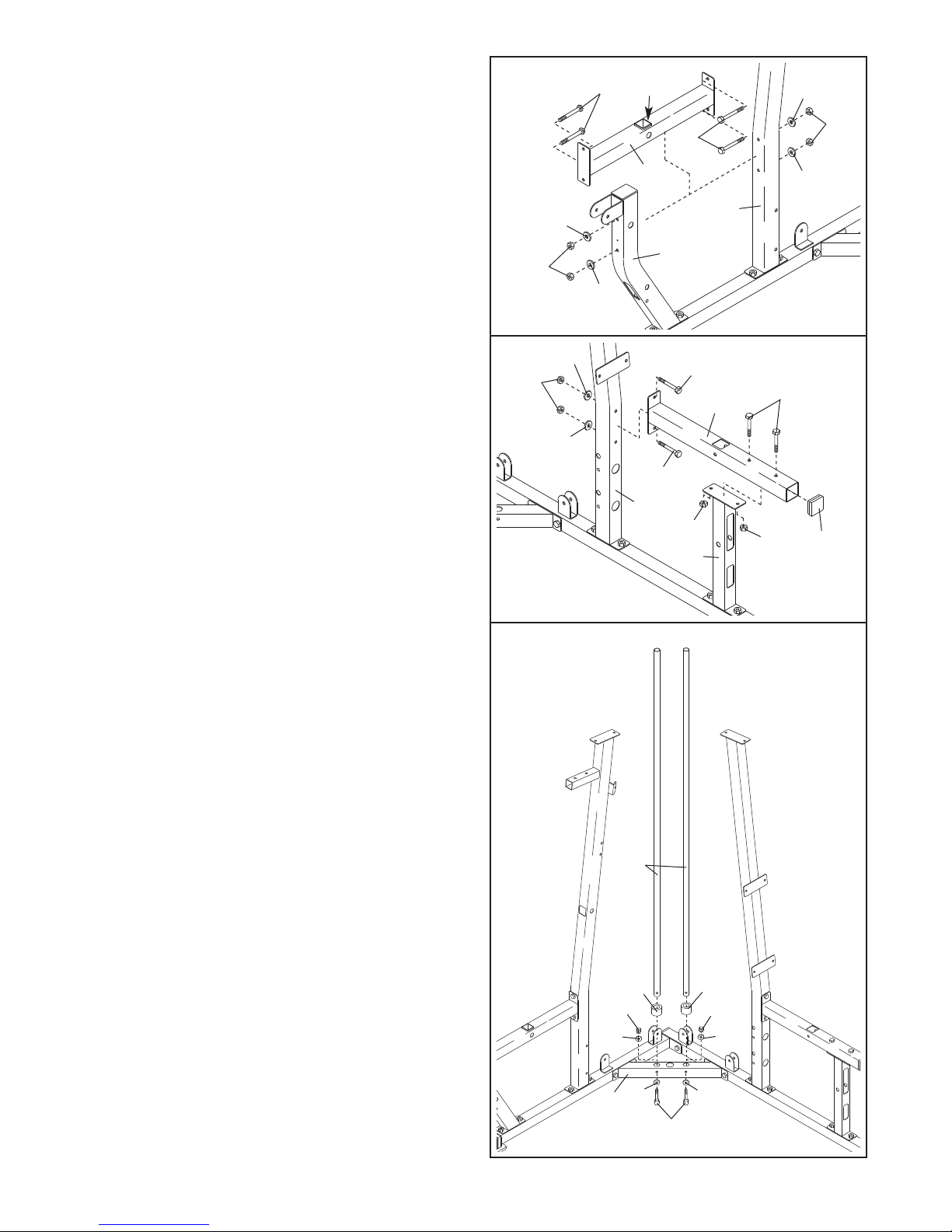

7. Set two Weight Bumpers (83) over the indicated
holes in the Center Base (67). Insert the two
Weight Guides (20) into the holes. Attach the
Weight Guides to the Center Base with two M10 x
65mm Bolts (63), four M10 Washers (75), and
two M10 Nylon Locknuts (70).
75
75
75
75
73
70
6
5
60 Short
Side
60 70
5
70 70
83 83
75
75
75
63
75
67
20
7
6. Press a 50mm Square Inner Cap (33) into the
end of the Left Seat Frame (29).
Attach the Left Seat Frame (29) to the Left Leg
(36) with two M10 x 65mm Carriage Bolts (57)
and two M10 Nylon Locknuts (70).
Attach the Left Seat Frame (29) to the Left
Upright (7) with two M10 x 85mm Bolts (60), two
M10 Washers (75), and two M10 Nylon Locknuts
(70).
Do not tighten the M10 Nylon Locknuts (70)
yet.
33
75
75
36
70 70
60
29
60
7
70
6
57
5. Orient the Right Seat Frame (5) with the short
side of the adjustment tube on top. Attach the
Right Seat Frame to the Right Leg (73) with two
M10 x 85mm Bolts (60), two M10 Washers (75),
and two M10 Nylon Locknuts (70).
Attach the Right Seat Frame (5) to the Right
Upright (6) with two M10 x 85mm Bolts (60), two
M10 Washers (75), and two M10 Nylon Locknuts
(70).
Do not tighten the M10 Nylon Locknuts (70)
yet.

8

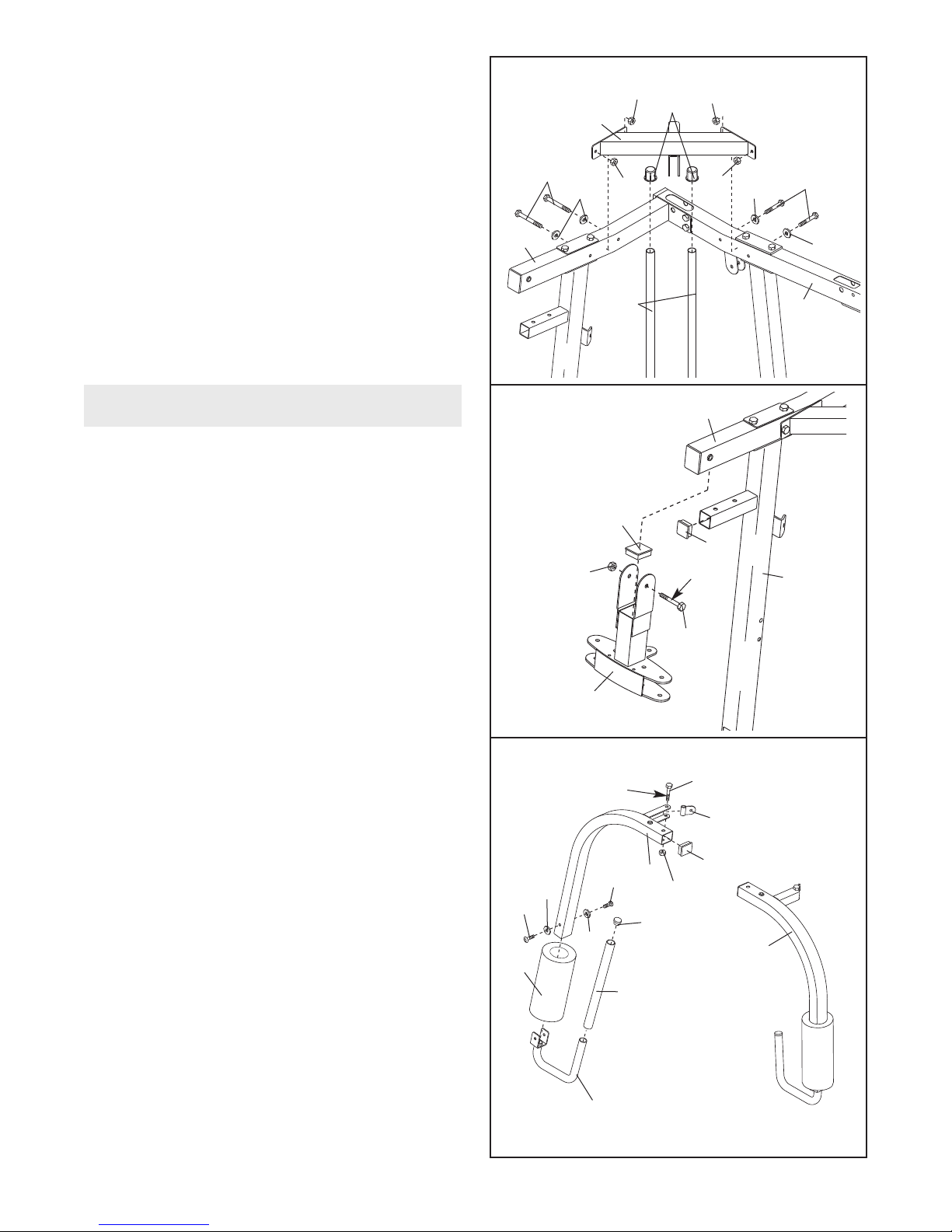

10. Press a 50mm x 70mm Inner Cap (22) into the
end of the Right Top Frame (8).
Attach the Right Top Frame (8) to the Right
Upright (6) with two M10 x 90mm Bolts (59), a
Support Plate (21), and two M10 Nylon Locknuts
(70).
Attach the Right Top Frame (8) to the Left Top
Frame (3) with two M10 x 70mm Bolts (81), two
M10 Washers (75), and two M10 Nylon Locknuts
(70).
Do not tighten the M10 Nylon Locknuts (70)
yet.
9. Press two 50mm x 70mm Inner Caps (22) into
the ends of the Left Top Frame (3).
Attach the Left Top Frame (3) to the Left Upright
(7) with two M10 x 90mm Bolts (59), a Support
Plate (21), and two M10 Nylon Locknuts (70). Do
not tighten the Locknuts yet.
8. Slide the eight Weights (72) onto the Weight
Guides (20) with the pin grooves on the side
shown.
Press the Weight Tube Bumper (32) into the bot-
tom of the Weight Tube (82). Insert the Weight
Tube into the center hole in the stack of Weights
(72). Be sure the Weight Tube is oriented as
shown.
Lubricate the indicated holes in the Top Weight
(74). Slide the Top Weight onto the Weight
Guides (20), with the pin groove on the bottom.
72
32
74
20
82
8Lubricate
Pin
Groove
Holes
22
70
70
59
3
21
22
7
9
6
59
22
70 70
70
3
75 81
8
21
10

9
13. Lubricate an M10 x 50mm Bolt (62) with grease.
Attach the Pivot Bracket (48) to the Right Butterfly
Arm (11) with the Bolt and an M10 Nylon Locknut
(70). Do not overtighten the Locknut; the Pivot
Bracket must be able to pivot easily.
Press a 40mm x 50mm Inner Cap (23) into the
indicated end of the Right Butterfly Arm (11). Wet
the bottom end of the Arm with soapy water. Slide
a Large Foam Pad (19) onto the Arm.
Slide a Foam Grip (76) onto a Press Handle (12).
Press a 25mm Round Inner Cap (24) into the end
of the Handle. Attach the Handle to the Right
Butterfly Arm (11) with two M8 x 16mm Bolts (64)
and two M8 Washers (26).
Slide the Large Foam Pad (19) down so that the
bottom of the Foam Pad is even with the bottom
of the Right Butterfly Arm (11).
Repeat this step with the Left Butterfly Arm (10).

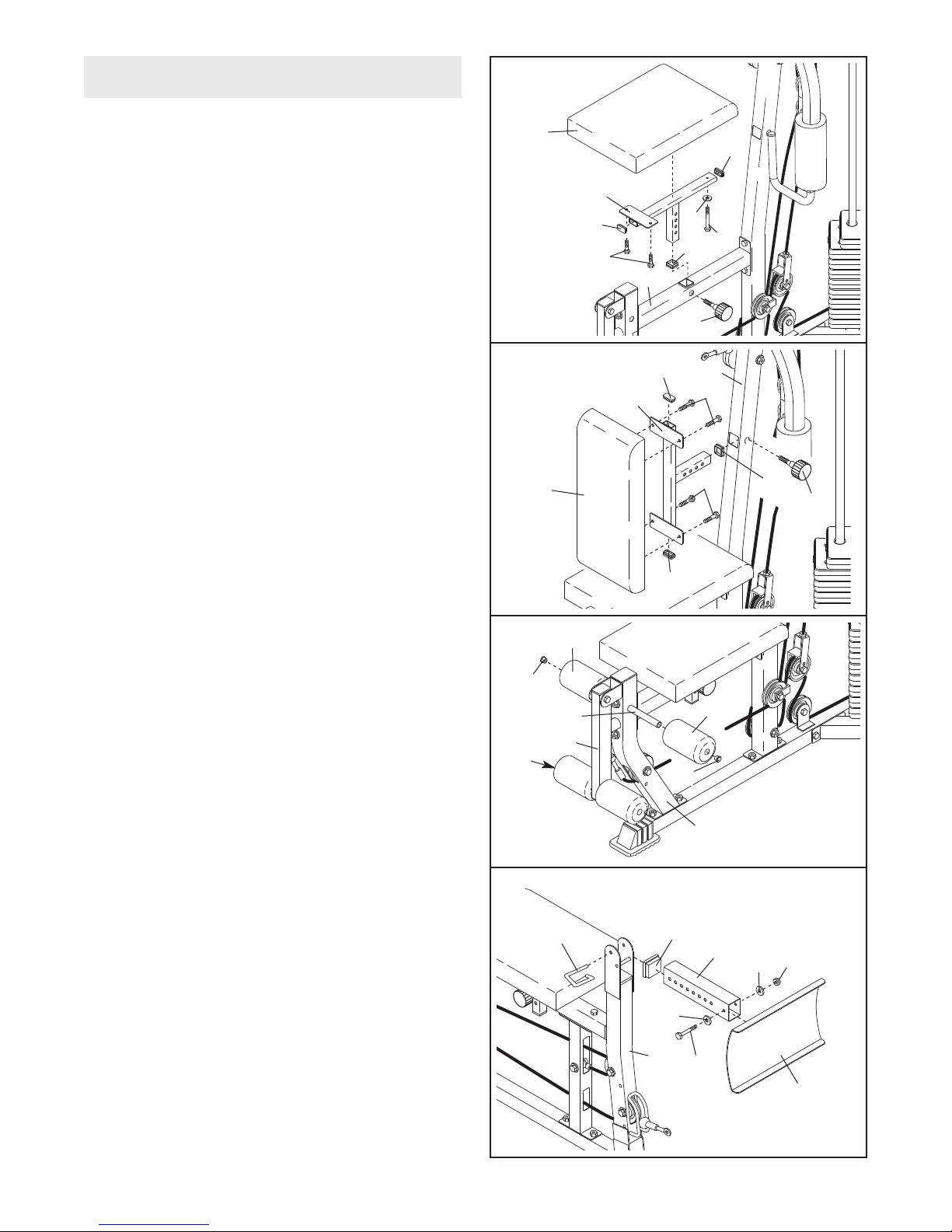

11. Press the two Weight Guide Bushings (44) into
the Center Top Frame (14). Slide the Center Top
Frame onto the Weight Guides (20).
Attach the Center Top Frame (14) to the Right
Top Frame (8) with two M10 x 70mm Bolts (81),
two M10 Washers (75), and two M10 Nylon
Locknuts (70).
Attach the Center Top Frame (14) to the Left Top
Frame (3) with two M10 x 70mm Bolts (81), two
M10 Washers (75), and two M10 Nylon Locknuts
(70).
Tighten all of the M10 Nylon Locknuts (70)
used in steps 3–11.
75 75
75
70
70
14
8
3
44
20
81
81 70
70
11
22
41
70
8
6
9
61
Lubricate
12
64
26
26
64
76
19 10
12
1170
48
62
24
23
13
12. Press a 38mm Square Inner Cap (41) into the
Right Upright (6). Press a 50mm x 70mm Inner
Cap (22) into the Butterfly Frame (9).
Lubricate an M10 x 80mm Bolt (61) with grease.
Attach the Butterfly Frame (9) to the Right Top
Frame (8) with the Bolt and an M10 Nylon Locknut
(70). Do not overtighten the Locknut; the
Butterfly Frame must be able to pivot easily.
ARM ASSEMBLY
Lubricate

10
16. Press a 50mm x 70mm Inner Cap (22) into the
top of the Leg Press Frame (30).
Lubricate an M10 x 80mm Bolt (61) with grease.
Attach the Leg Press Frame (30) to the Left Base
(2) with the Bolt and an M10 Nylon Locknut (70).
Do not overtighten the Locknut; the Leg Press
Frame must be able to pivot easily.
14. Lubricate an M10 x 80mm Button Head Bolt (97)
and both sides of two Plastic Washers (55) with
grease. Attach the Right Butterfly Arm (11) to the
Butterfly Frame (9) with the Bolt, the two Plastic
Washers, two Butterfly Caps (54), and an M10
Nylon Locknut (70). Do not overtighten the
Locknut; the Butterfly Arm must be able to
pivot easily. Be sure the indented sides of the
Plastic Washers fit over the welded bushing in
the Butterfly Arm.
Repeat this step with the Left Butterfly Arm
(10).
910
11
97
54
54
55
55
Welded
Bushing
Lubricate
70
14
23 Lubricate
23
63
70
4
73
25
77 50
15
2
22
70
61
30
16
15. Attach the Bumper (25) to the Right Leg (73) with
an M4 x 20mm Self-tapping Screw (77) and an
M5 Washer (50).
Press two 40mm x 50mm Inner Caps (23) into
the ends of the Leg Lever (4).
Lubricate an M10 x 60mm Bolt (63) with grease.
Attach the Leg Lever (4) to the Right Leg (73)
with the Bolt and an M10 Nylon Locknut (70). Do
not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
Lubricate
Lubricate

11

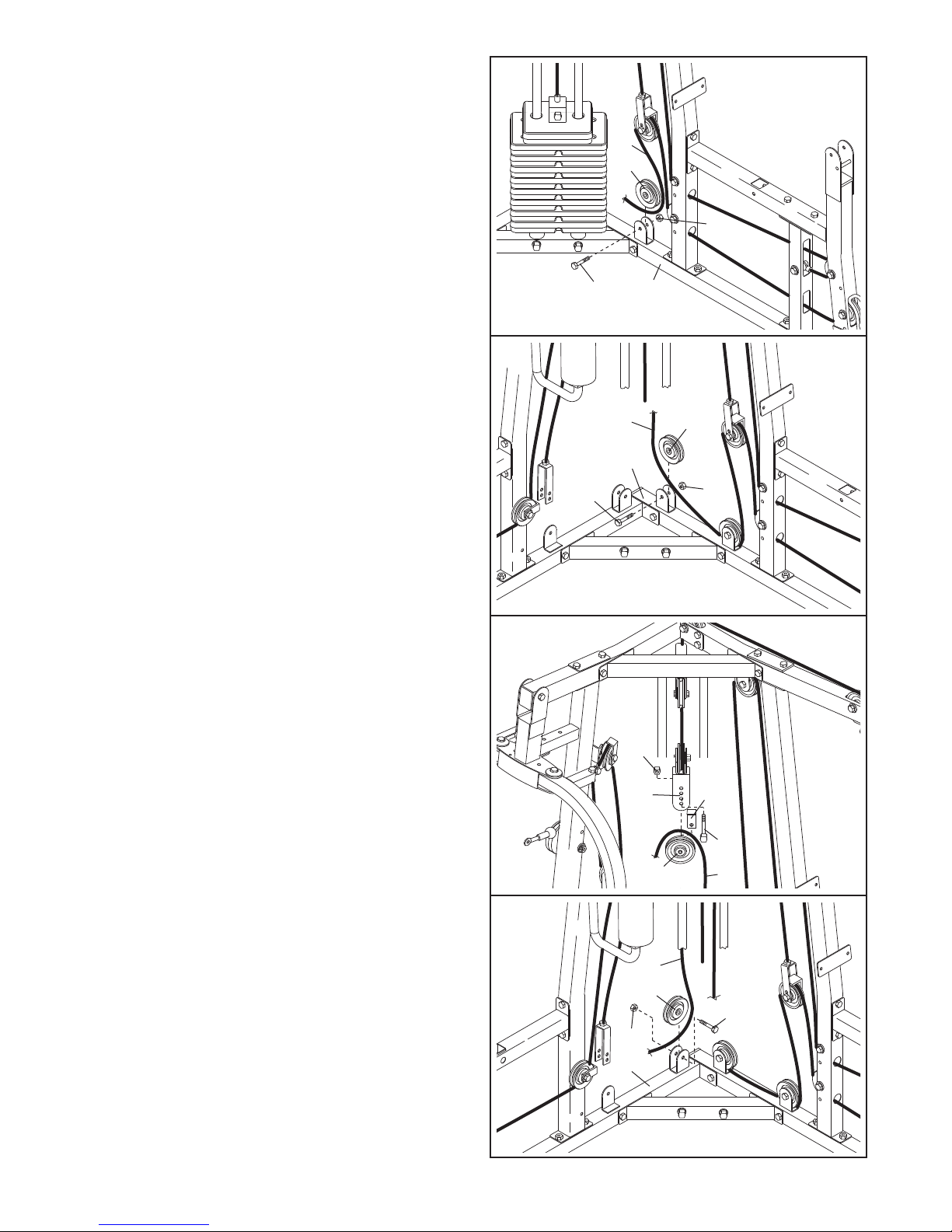

20. Note: The following drawings are shown from
the left side of the weight system, with the
Left Top Frame (3) removed for clarity.
Wrap the High Cable (45) around a 90mm Pulley
(38). Attach the Pulley at the rear hole, inside of
the bracket on the Center Top Frame (14) with an
M10 x 45mm Bolt (66) and an M10 Nylon Locknut
(70).
17.
Locate the High Cable (45). Route the Cable up
through the Left Top Frame (3) and around a
90mm Pulley (38). Attach the Pulley inside the
Top Frame with an M10 x 70mm Bolt (81), two
M10 Washers (75), two 13mm Spacers (34), and
an M10 Nylon Locknut (70).
18. Route the High Cable (45) around a 90mm Pulley
(38) and down through the Left Top Frame (3).
Attach the Pulley and a Cable Trap (91) inside
the Top Frame with an M10 x 70mm Bolt (81),
two M10 Washers (75), two 13mm Spacers (34),
and an M10 Nylon Locknut (70). Be sure the
Cable Trap is turned to hold the Cable in the
groove of the Pulley.
Note: To complete this step, it may be neces-
sary to loosen the indicated M10 Nylon
Locknuts (70). Retighten the Locknuts when
this step is completed.
19. Wrap the High Cable (45) around a 90mm Pulley
(38). Attach the Pulley to the single hole side of
the Adjustable Double “U”-Bracket (56) with an
M10 x 45mm Bolt (66) and an M10 Nylon Locknut
(70).
38
45
75
70
81 75
34
3
34
17
3
34
75
34
75
81
38
70
70
91
45
18
70
56
38
66
45
19
38
66
70
45
14
20
CABLE ASSEMBLY
IMPORTANT: While assembling the cables,
do not overtighten the locknuts attaching
the pulleys; the pulleys must be able to turn
freely. Refer to the CABLE DIAGRAMS and
the CABLE ID CHART on pages 24 and 25
for help identifying the cables and for prop-
er cable routing.

12

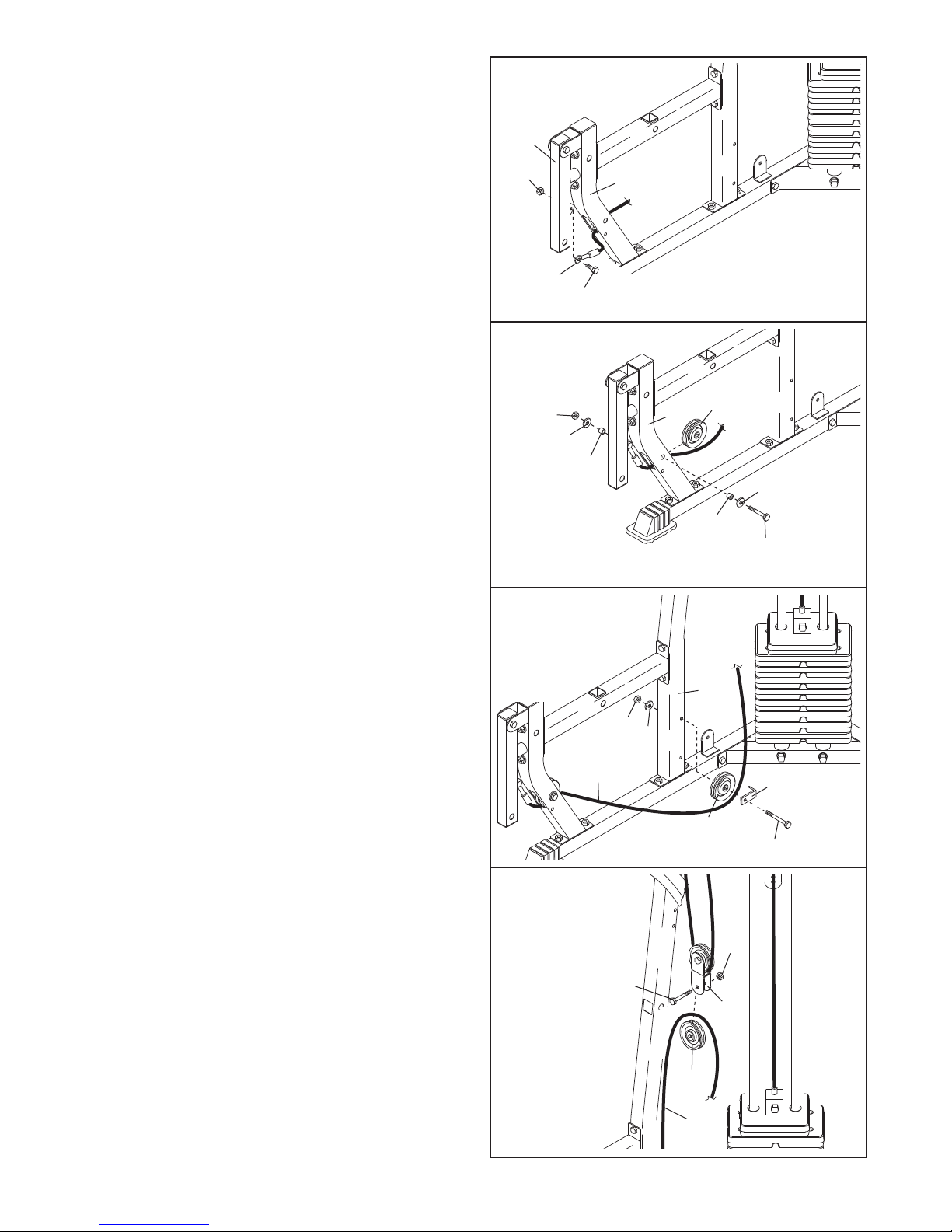

23. Locate the Leg Press Cable (95). Attach the
Cable inside the Left Leg (36) with aM10 x 70mm
Bolt (81), two M10 Washers (75), two Long
Spacers (80), and an M10 Nylon Locknut (70).
24. Wrap the Leg Press Cable (95) around a 90mm
Pulley (38). Attach the Pulley inside the Leg
Press Frame (30) with an M10 x 70mm Bolt (81),
two M10 Washers (75), two 13mm Spacers (34),
and an M10 Nylon Locknut (70).

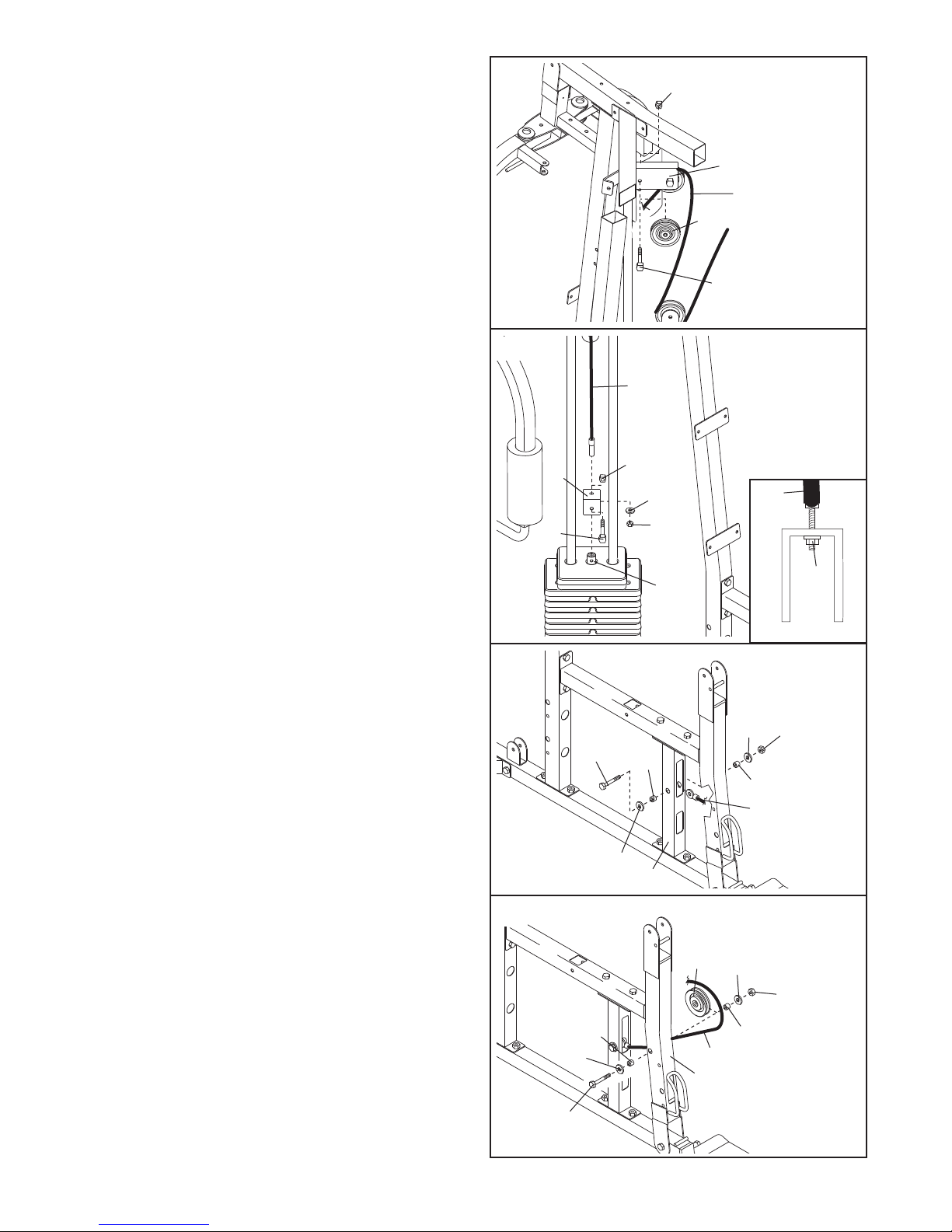

22. Attach the end of the High Cable (45) to the
Small “U”-Bracket (79) with an M8 Washer (26)
and an M8 Nylon Locknut (71). Note: Do not
completely tighten the Nylon Locknut; it
should be threaded only two turns onto the
end of the Cable, as shown in the inset draw-
ing.
Attach the Small “U”-Bracket (79) to the Weight
Tube (82) with an M8 x 45mm Bolt (69) and an
M8 Nylon Locknut (71). Do not overtighten the
Locknut; the Weight Tube should be able to
pivot in the “U”-Bracket.
21. Wrap the High Cable (45) around a 90mm Pulley
(38). Attach the Pulley at the forward hole, inside
of the bracket on the Center Top Frame (14) with
an M10 x 45mm Bolt (66) and an M10 Nylon
Locknut (70).
38
45
14
70
66
21
82
69 71
26
45
79 71
22
81 80
80
70
75
36
75
95
34
34
75
75
70
95
81
30
38
23
24
45
71

13
27. Attach the end of the Leg Press Cable (95) to the
“U”-Bracket (85) with an M8 Washer (26) and an
M8 Nylon Locknut (71). Note: Do not complete-
ly tighten the Locknut; it should be threaded
only two turns onto the end of the Cable, as
shown in the inset drawing.
28. Locate the Butterfly Cable (46). Attach the
Cable to the Pivot Bracket (48) on the Left
Butterfly Arm (10) with an M8 x 16mm Shoulder
Bolt (78) and an M8 Nylon Locknut (71).
26. Wrap the Leg Press Cable (95) around a 90mm
Pulley (38). Attach the Pulley inside the bracket
on the Left Top Frame (3) with an M10 x 45mm
Bolt (66) and an M10 Nylon Locknut (70).
25. Route the Leg Press Cable (95) through the Left
Leg (36) and the Left Upright (7) as shown. Wrap
the Cable around a 90mm Pulley (38). Attach the
Pulley inside the Upright with an M10 x 70mm
Bolt (81), two M10 Washers (75), two 13mm
Spacers (34), and an M10 Nylon Locknut (70).
95
70
75
75
38
81
7
36
34
34
25
3
70
95
38
66
26
95
71
85 71
95
26
27
28
10
46
48
71
78

14
31. Wrap the Butterfly Cable (46) around a “V”-Pulley
(39). Attach the Pulley and a Long Cable Trap
(40) to the bracket on the Right Upright (6) with
an M10 x 60mm Bolt (65) and an M10 Nylon
Locknut (70). Be sure the Cable Trap is turned
to hold the Cable in the groove of the Pulley.
32. Attach the Butterfly Cable (46) to the Pivot
Bracket (48) on the Right Butterfly Arm (11) with
an M8 x 16mm Shoulder Bolt (78) and an M8
Nylon Locknut (71).
29. Wrap the Butterfly Cable (46) around a “V”-Pulley
(39). Attach the Pulley and a Long Cable Trap
(40) to the bracket on the Right Upright (6) with
an M10 x 60mm Bolt (65) and an M10 Nylon
Locknut (70). Be sure the Cable Trap is turned
to hold the Cable in the groove of the Pulley.
30. Wrap the Butterfly Cable (46) around a 90mm
Pulley (38). Attach the Pulley to the Double “U”-
Bracket (103) with an M10 x 45mm Bolt (66) and
an M10 Nylon Locknut (70).
65
46
40
70
6
39
29
66
70
38
103
46
30
6
39
46
65
70
40
31
46
71
11
78
48
32

15
35. Wrap the Leg Lever Cable (96) around a 90mm
Pulley (38). Attach the Pulley and a Cable Trap
(91) to the Right Upright (6) with an M10 x 95mm
Bolt (98), an M10 Washers (75), and an M10
Nylon Locknut (70). Be sure the Cable Trap is
turned to hold the Cable in the groove of the
Pulley.
36. Wrap the Leg Lever Cable (96) around a 90mm
Pulley (38). Attach the Pulley to the Double “U”-
Bracket (103) with an M10 x 45mm Bolt (66) and
an M10 Nylon Locknut (70).
34. Attach a 90mm Pulley (38) inside the Right Leg
(73) with an M10 x 70mm Bolt (81), two M10
Washers (75), two 13mm Spacers (34), and an
M10 Nylon Locknut (70).
33. Locate the Leg Lever Cable (96). Route the
eyelet end of the Cable through the Right Leg
(73) and attach it to the Leg Lever (4) with an
M10 x 25mm Shoulder Bolt (99) and an M10
Nylon Locknut (70).
73
4
70
99
96
33
34
34
81
73 38
75
75
70
34
91
38
6
96
98
35
96
66
38
103
70
36
75
70

16
39. Route the Low Cable (47) through the Left Leg
(36) and the Left Upright (7). Attach a 90mm
Pulley (38) inside the Upright with an M10 x
70mm Bolt (81), two M10 Washers (75), two
13mm Spacers (34), and an M10 Nylon Locknut
(70).
40. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (91) to
the lower set of holes in the indicated “U”-Bracket
(85) with an M10 x 50mm Bolt (62) and an M10
Nylon Locknut (70). Be sure the Cable Trap is
turned to hold the Cable in the groove of the
Pulley.
38. Locate the Low Cable (47). Route the small ball
on the Cable through the cage on the Leg Press
Frame (30).
Attach a 90mm Pulley (38) inside the Leg Press
Frame (30) with an M10 x 70mm Bolt (81), two
M10 Washers (75), two 13mm Spacers (34), and
an M10 Nylon Locknut (70).
37. Attach the end of the Leg Lever Cable (96) to the
other “U”-Bracket (85) with an M8 Washer (26)
and an M8 Nylon Locknut (71). Note: Do not
completely tighten the Nylon Locknut; it
should be threaded only two turns onto the
end of the Cable, as shown in the inset draw-
ing.
85
37
30
70
75
Cage
47
81
38 34
34
38
34
34
75
75
70
7
36
38
47
81
39
38
47
91
85
70
62
40
96
71
75
26
71
96

17
41. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley to the indicated bracket on
the Left Base (2) with an M10 x 45mm Bolt (66)
and an M10 Nylon Locknut (70).
43. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (91) to
the second set of holes from the bottom of the
Adjustable Double “U”-Bracket (56) with an M10 x
50mm Bolt (62) and an M10 Nylon Locknut (70).
Be sure the Cable Trap is turned to hold the
Cable in the groove of the Pulley.
44. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley to the indicated bracket on
the Right Base (1) with an M10 x 45mm Bolt (66)
and an M10 Nylon Locknut (70).
42. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley to the indicated bracket on
the Left Base (2) with an M10 x 45mm Bolt (66)
and an M10 Nylon Locknut (70).
66
70
2
38
47
41
66 70
2
38
47
42
56
70
91
62
38 47
43
66
70
1
38
47
44

18
45. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (91) to
the indicated bracket on the Right Base (1) with
an M10 x 45mm Bolt (66) and an M10 Nylon
Locknut (70). Be sure the Cable Trap is turned
to hold the Cable in the groove of the Pulley.
47. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (91) to
the side of the Right Upright (6) with an M10 x
95mm Bolt (98), an M10 Washer (75), and an
M10 Nylon Locknut (70). Be sure the Cable Trap
is turned to hold the Cable in the groove of
the Pulley.
48. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley and a pair of Pulley
Covers (92) to the Right Upright (6) with an M10
x 100mm Bolt (84), two M10 Washers (75), and
an M10 Nylon Locknut (70). Be sure the small
tabs on the Pulley Covers are on the side
shown, and the Cable is between the Pulley
and the rod on the Upright.
46. Wrap the Low Cable (47) around a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (91) to
the lower set of holes in the indicated “U”-Bracket
(85) with an M10 x 50mm Bolt (62) and an M10
Nylon Locknut (70). Be sure the Cable Trap is
turned to hold the Cable in the groove of the
Pulley.
66
1
38
91
45
62
70
91
85
38 47
46
98
70
91
75
6
38
47
47
70
75
Small
Tabs
92
92
6
84
38
47
48
70
75

19
50. Press two 20mm x 40mm Inner Caps (104) and a
25mm x 40mm Inner Cap (105) into the
Adjustable Backrest Frame (101).
Attach a Backrest (15) to the Adjustable Backrest
Frame (101) with four M6 x 16mm Bolts (13).
Insert the Adjustable Backrest Frame (101) into
the Right Upright (6) and secure it with an
Adjustment Knob (102).
Attach the other Backrest (15) and the Left
Upright (not shown) with four M6 x 16mm
Bolts (13).
51. Slide the Long Pad Tube (17) through the hole in
the Right Leg (73). Slide two Foam Pads (18)
onto the ends of the Pad Tube. Press two 19mm
Round Inner Caps (27) into the ends of the Pad
Tube.
Repeat this step with the Short Pad Tube (94)
and the Leg Lever (4).
52. Press a 50mm x 70mm Inner Cap (22) into the
indicated end of the Adjustment Tube (88).
Attach the Leg Press Plate (31) to the Adjustment
Tube (88) with an M8 x 65mm Bolt (89), two M8
Washers (26), and an M8 Nylon Locknut (71).
Attach the Adjustment Tube (88) to the Leg Press
Frame (30) with the Leg Press Pin (87). Be sure
the Pin is in the locked position around the
Leg Press Frame.
49. Press two 20mm x 40mm Inner Caps (104) and a
25mm x 40mm Inner Cap (105) into an Adjustable
Seat Frame (100).
Attach a Seat (16) to an Adjustable Seat Frame
(100) with two M6 x 16mm Screws (13), an M6 x
33mm Screw (90), and an M6 Washer (35).
Insert the Adjustable Seat Frame (100) into the
Right Seat Frame (5) and secure it with an
Adjustment Knob (102).
Repeat this step with the other Seat (16) and
the Left Seat Frame (not shown).
16
35
90
5
13
104
104
100
105
102
102
105
104
101
104
49
6
15
17
27
73
27
4
18
18
94
13
50
51
26
71
31
22
89
30
87 88
26
52
13
SEAT ASSEMBLY

This section explains how to adjust the weight system. See the EXERCISE GUIDELINES on page 26 for impor-
tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediate-
ly. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ATTACHING THE ACCESSORIES TO A PULLEY
STATION
Attach the Lat Bar (42) to the High Cable (45) with a
Cable Clip (52). For some exercises, the Chain (not
shown) should be attached between the Lat Bar and
the High Cable with two Cable Clips. Adjust the
length of the Chain between the Lat Bar and the
High Cable so the Lat Bar is in the correct start-
ing position for the exercise to be performed.
The Handle (not shown) and Ab Strap (not shown)
can be attached in the same manner. The acces-
sories can be attached to the Low Cable (not shown)
in the same manner.
52
45
42
ADJUSTMENTS
20
54. Make sure that all parts have been properly tightened. The use of all remaining parts will be explained in
ADJUSTMENTS, starting below.
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If
the cables are not properly routed, they may be damaged when heavy weight is used. See the CABLE
DIAGRAM on pages 24 and 25 of this manual for proper cable routing. If there is any slack in the
cables, you will need to remove it by tightening the cables; see TIGHTENING THE CABLES on page
22.
53. Insert the two Locking Pins (53) into the Butterfly
Frame (9). Attach the tether on the Pins to the
Butterfly Frame with an M4 x 9.5mm Self-tapping
Screw (68). Do not fully tighten the Screw.
953
53
68
53
