Weider 8700 I User manual

Serial Number Decal
(under the seat)
www.iconeurope.com
USER’S MANUAL
Model No. WEEVSY30810.2
Serial No.
Write the serial number in the space
above for reference.
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
UNITED KINGDOM
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
CASTLEFORD
WF10 5QJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.

2

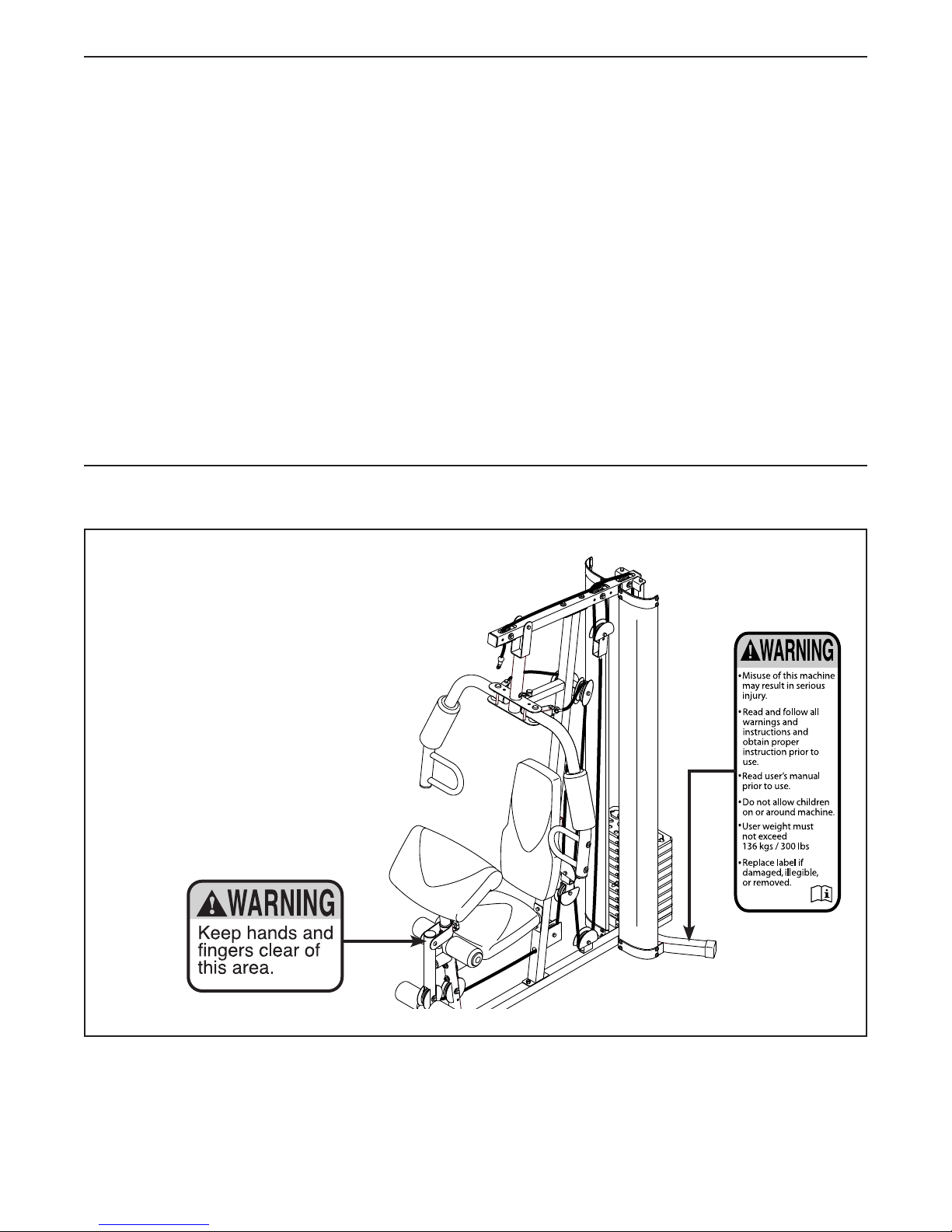

WARNING DECAL PLACEMENT
TABLE OF CONTENTS
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WEIDER is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ADJUSTMENT ............................................................................21
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
CABLE DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
MAINTENANCE ...........................................................................25
EXERCISE GUIDELINES ....................................................................26
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover

3
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the weight system only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the weight system are
adequately informed of all precautions.
4. The weight system is intended for home use
only. Do not use the weight system in a com-
mercial, rental, or institutional setting.
5. Use the weight system only on a level sur-
face. Cover the floor beneath the weight
system to protect the floor.
6. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
7. Keep children under age 12 and pets away
from the weight system at all times.
8. The weight system should not be used by
persons weighing more than 300 lbs.
(136 kg).
9. Wear appropriate exercise clothes while
exercising; do not wear loose clothes
that could become caught on the weight
system. Always wear athletic shoes for foot
protection.
10. Keep hands and feet away from moving
parts.
11. Always secure the weight stack with the lock
pin and the lock after exercising to prevent
unauthorized use of the weight system (see
LOCKING THE WEIGHT STACK on page 23).
12. Make sure that the cables remain on the pul-
leys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on the pulleys.
13. Always stand on the foot plate when per-
forming an exercise that could cause the
weight system to tip.
14. Never release the arms, leg lever, lat bar, or
handle strap while weights are raised. The
weights will fall with great force.
15. Always disconnect the lat bar from the
weight system when performing an exercise
that does not require the lat bar.
16. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your weight system before using your weight
system. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.

4
Height: 6 ft. 11 in. (211 cm)
Width: 3 ft. 7 in. (109 cm)
Depth: 6 ft. 5 in. (196 cm)
Shroud
High Pulley Station
Low Pulley Station
Right Side
Left Side
Backrest
Weight
Weight Pin
Leg Lever
Foot Plate
Seat
Arm
Arm Pin
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®8700
I weight system. The weight system offers a selection
of weight stations designed to develop every major
muscle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight system
will help you to achieve the specic results you want.
For your benet, read this manual carefully before
using the weight system. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Curl Pad
Note: The terms “right side” and “left side” are used relative to a person sitting on the seat; they
do not correspond to right and left on the drawings in this manual.

5
M6 Washer (82)
M8 Locknut (58)
M8 Washer (59)
M10 Locknut (56)
M4 Washer
(33)
M10 x 77mm Bolt (79)
M10 x 46mm Bolt (81)
M10 x 67mm Bolt (71)
M8 x 65mm Bolt (68)
M8 x 22mm
Shoulder Bolt (65)
M6 x 32mm Screw (64)
M6 x 38mm Screw (95)
M6 x 16mm
Screw (62)
M4 x 20mm
Self-tapping Screw (69)
M10 x 51mm Bolt (66)
M10 Washer (57)
M4 x 12mm
Screw (78)
Large Washer (85)
M8 x 63mm Carriage Bolt (87)
M4.2 x 16mm
Self-tapping Screw (49)
M10 x 86mm Carriage Bolt (67)
M10 x 25mm
Button Screw (77)
M10 x 130mm Bolt (72)
M10 x 25mm Screw (74)
M10 x 64mm Bolt Set (76)
M10 x 63mm Bolt (75)
11mm Spacer
(86)
13mm Spacer
(52)
M12 Nut (84)
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6
The Four Stages of the Assembly Process
Frame Assembly—You will begin by assembling
the base and the uprights that form the skeleton of
the weight system.
Arm Assembly—During this stage you will
assemble the arms and the leg lever.
Cable Assembly—During this stage you will attach
the cables and pulleys that connect the arms to the
weights.
Seat Assembly—During the final stage you will
assemble the seat and the backrest.
• Assembly requires two persons.
• Because of its weight and size, assemble the
weight system in the location where it will be
used. Make sure that there is enough clearance
to walk around the weight system.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one standard screwdriver
one rubber mallet
two adjustable wrenches
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY

7
1.
Attach the Foot Plate (38) to the Base (1) with
an M10 x 130mm Bolt (72) and an M10 Locknut
(56). Do not overtighten the Locknut; the Foot
Plate must pivot easily.
1
1
38
2. Attach the Weight Guides (21) and the Base
(1) to the Stabilizer (2) with two M10 x 67mm
Bolts (71), two M10 Washers (57), and two M10
Locknuts (56). Do not tighten the Locknuts
yet.
2
56
71
71
2
57
57
21
56
72
To make assembly easier, read the
information on page 6 before you begin.
1
Frame Assembly

8
4. Attach the Front Leg (7) to the Base (1) with
two M8 x 63mm Carriage Bolts (87) and two M8
Locknuts (58). Do not tighten the Locknuts
yet.
3
4
7
58
58
3. Attach the Upright (3) to the Base (1) with two
M8 x 63mm Carriage Bolts (87) and two M8
Locknuts (58). Do not tighten the Locknuts
yet.
87
58
1
58
87
3
1

9

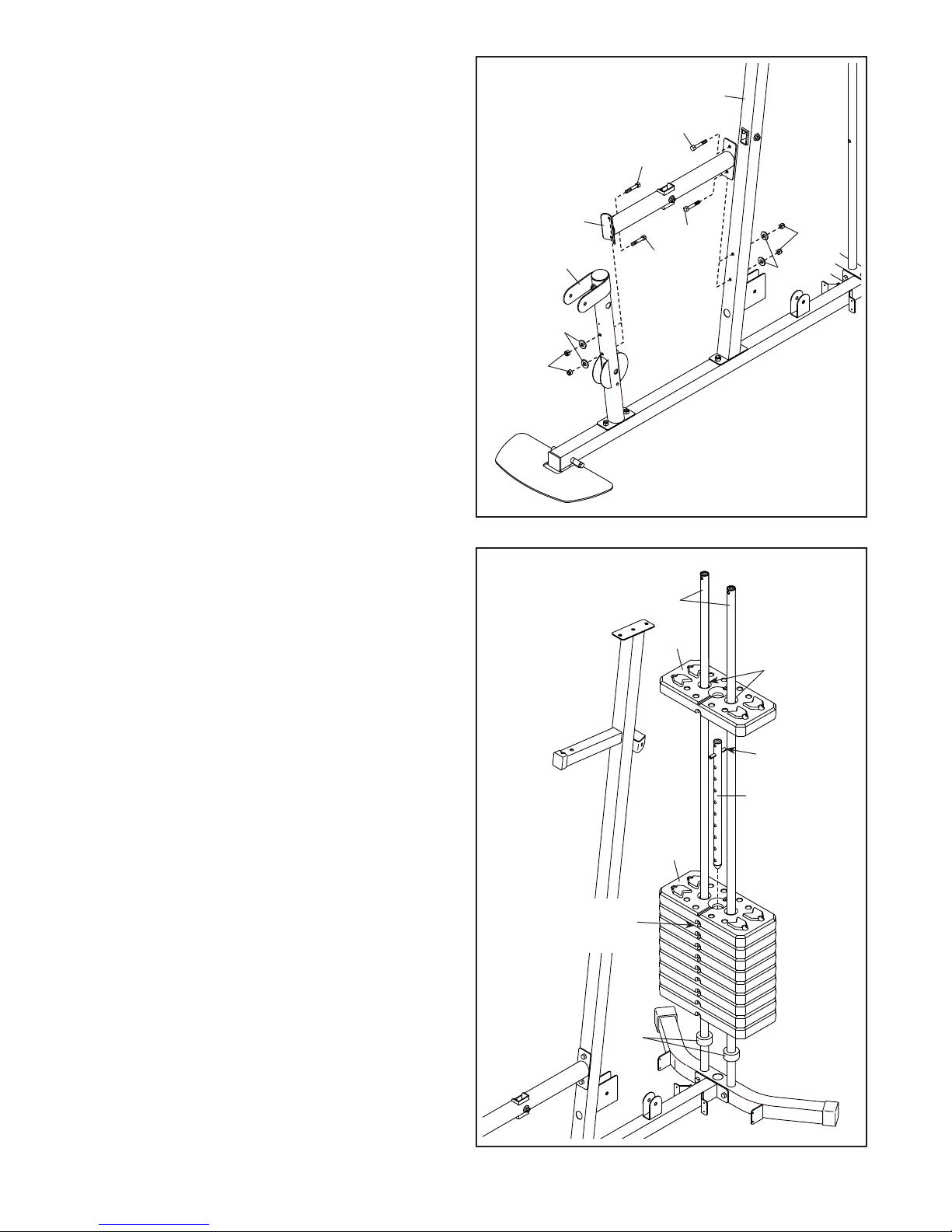

6. Slide the two Weight Bumpers (27) onto the
Weight Guides (21).
Orient nine Weights (22) so that the pin holes
are on the bottom as shown. Slide the Weights
onto the Weight Guides (21).
Insert the Weight Selector (24) into the nine
Weights (22). Make sure that the pin on the
Weight Selector is oriented as shown.
Apply some of the included grease inside the
indicated holes in the remaining Weight (22).
Then, slide the Weight onto the Weight
Guides (21).
5
6
21
5. Attach the Seat Tube (6) to the Upright (3) with
two M8 x 65mm Bolts (68), two M8 Washers
(59), and two M8 Locknuts (58). Do not tighten
the Locknuts yet.
Attach the Seat Tube (6) to the Front Leg (7)
in the same way.
7
6
3
58
59
68
68
68
68
59
58
27
22
22
24
Pin
Pin Hole
Grease

10
7
56
57
71
56
21
8. Attach the Leg Bumper (60) to the Front Leg (7)
with an M4 x 20mm Self-tapping Screw (69) and
an M4 Washer (33). Make sure that the end of
the Leg Bumper is pointing upward.
9. Apply grease to an M10 x 64mm Bolt Set (76).
Attach the Leg Lever (8) to the Front Leg (7) with
the M10 x 64mm Bolt Set (76). Make sure that
the barrel of the Bolt Set is inserted through
both sides of the bracket on the Front Leg.
8
9

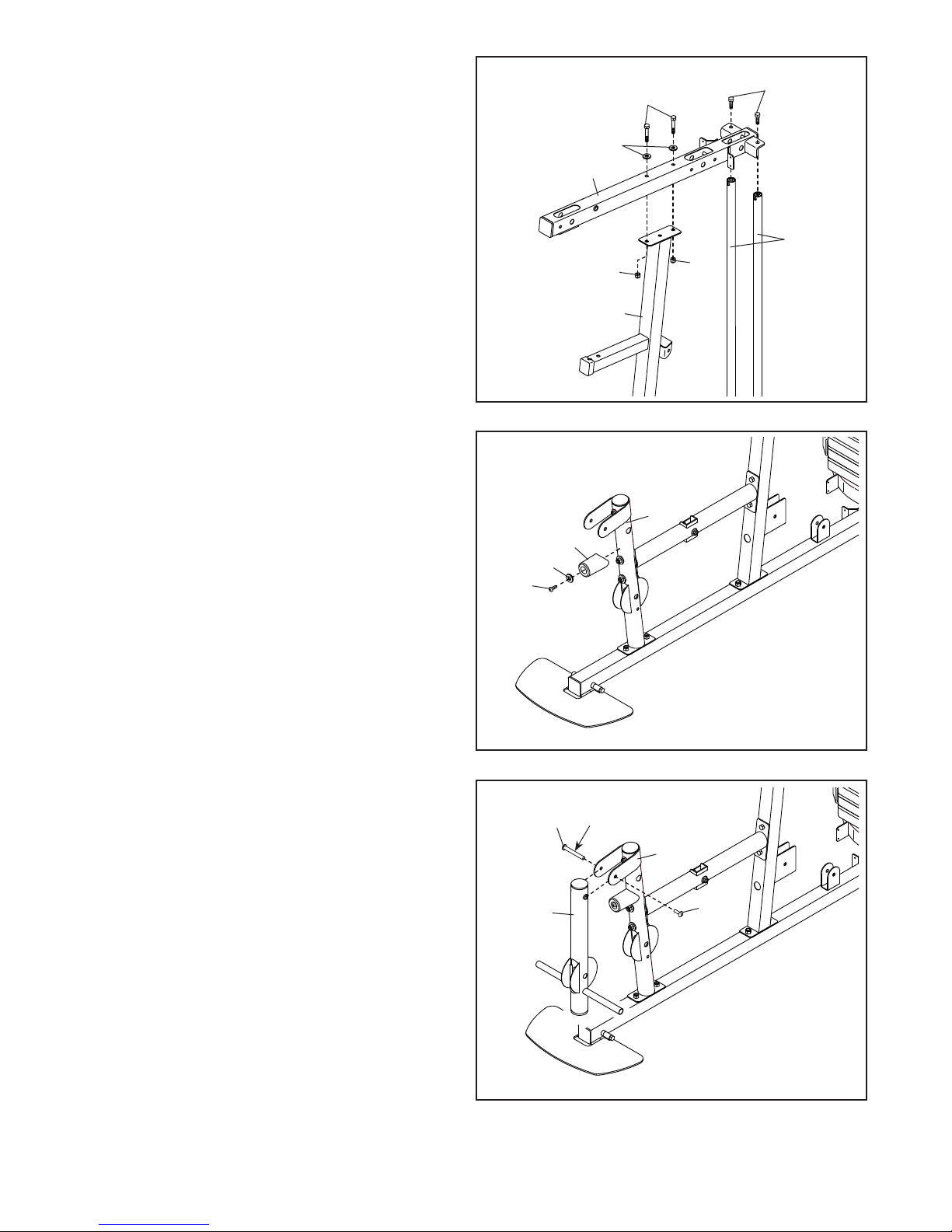

7. Attach the Top Frame (4) to the Upright (3) with
two M10 x 67mm Bolts (71), two M10 Washers
(57), and two M10 Locknuts (56). Do not tighten
the Locknuts yet.
Attach the Top Frame (4) to the Weight Guides
(21) with two M10 x 25mm Screws (74). Do not
tighten the Screws yet.
See steps 2 to 7. Tighten the M10 Locknuts (56)
and the M8 Locknuts (58).
4
3
7
74
76
76
Grease
60
33
69
8
7

11

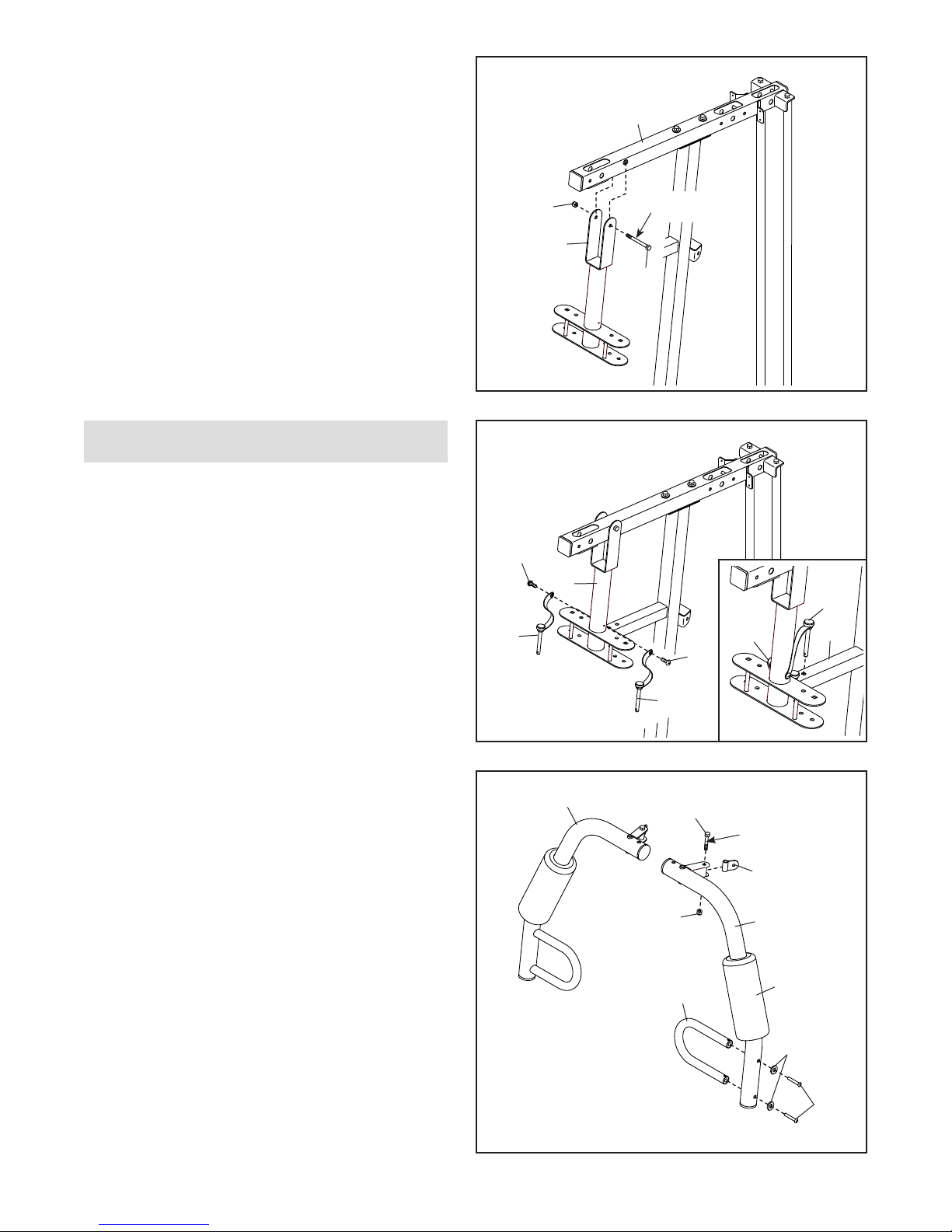

10. Apply grease to an M10 x 77mm Bolt (79).
Attach the Pivot Frame (5) to the Top Frame
(4) with the M10 x 77mm Bolt (79) and an M10
Locknut (56). Do not overtighten the Locknut;
the Pivot Frame must pivot easily.
11
Arm Assembly
11. Attach the two Arm Pins (40) to the Pivot
Frame (5) with two M4 x 20mm Self-tapping
Screws (69).
See the inset drawing. Insert the Arm Pins (40)
into the indicated holes in the Upright (3). 5
69
69
40
40
12
11
10
39
57
77
66
56
9
42
Grease

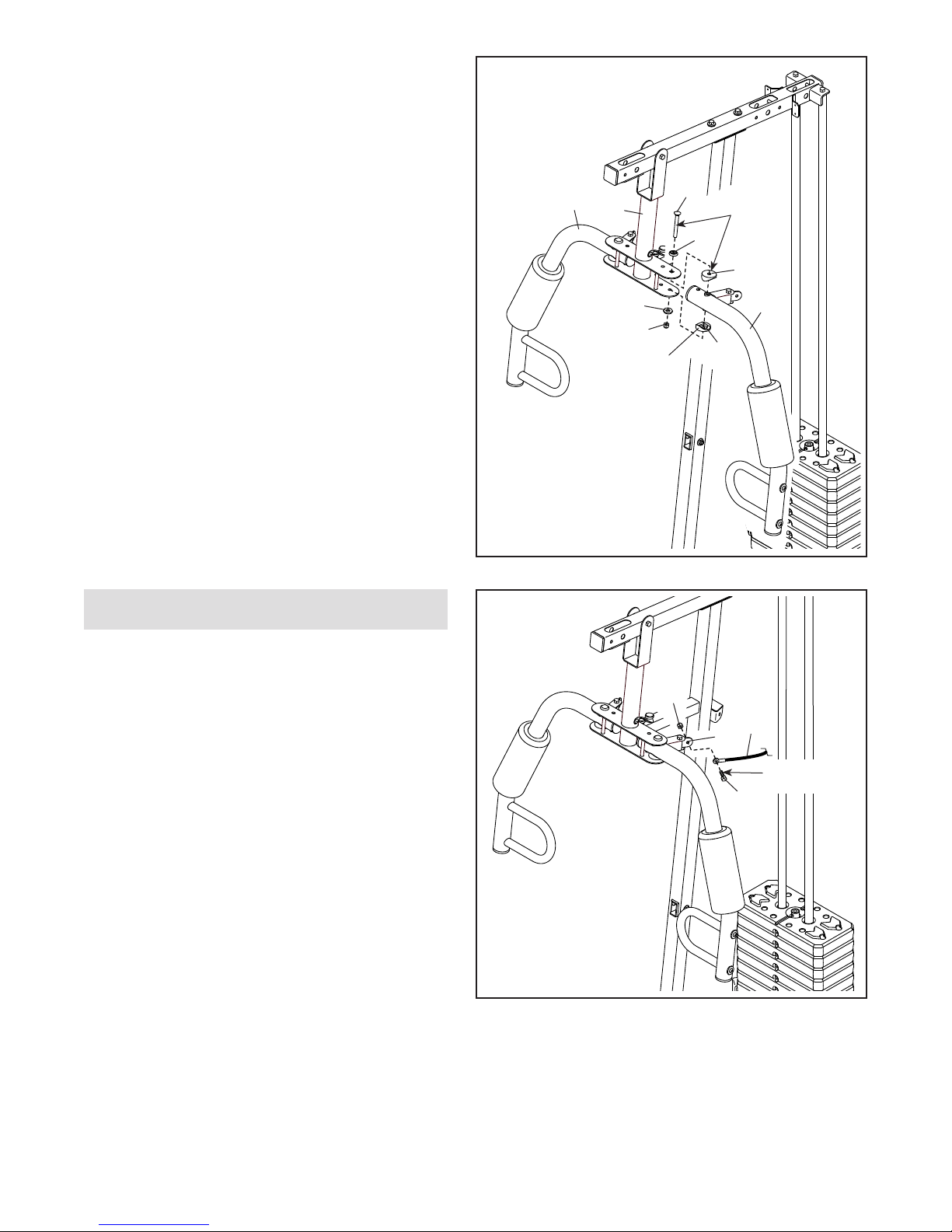

12. Apply grease to an M10 x 51mm Bolt (66).
Attach a Cable Pivot (39) to the Left Arm (10)
with the M10 x 51mm Bolt (66) and an M10
Locknut (56). Do not overtighten the Locknut;
the Cable Pivot must pivot easily.
Wet the inside of a Large Foam Pad (42) with
soapy water. Slide the Large Foam Pad onto the
Left Arm (10).
Attach a Handle (11) to the Left Arm (10) with
two M10 x 25mm Button Screws (77) and two
M10 Washers (57).
Assemble the Right Arm (9) in the same way.
40 3
40
10
4
5
79
56 Grease

12
13
13. Apply grease to an M10 x 86mm Carriage Bolt
(67) and to two Arm Bushings (44).
Attach the Left Arm (10) to the Pivot Frame
(5) with the M10 x 86mm Carriage Bolt (67),
a Carriage Bolt Bushing (20), the two Arm
Bushings (44), an M10 Washer (57), and an M10
Locknut (56). Do not overtighten the Locknut;
the Left Arm must pivot easily.
Attach the Right Arm (9) to the Pivot Frame
(5) in the same way.
10
9
44
56
67
57
20
5
44
Grease
Grease
14. See the CABLE DIAGRAM on page 24 to iden-
tify the cables as you assemble them.
Identify the Arm Cable (54).
Apply grease to an M8 x 22mm Shoulder
Bolt (65).
Attach the Arm Cable (54) to the left Cable Pivot
(39) with the M8 x 22mm Shoulder Bolt (65) and
an M8 Locknut (58).
58
65
54
39
14
Grease
Cable Assembly

13

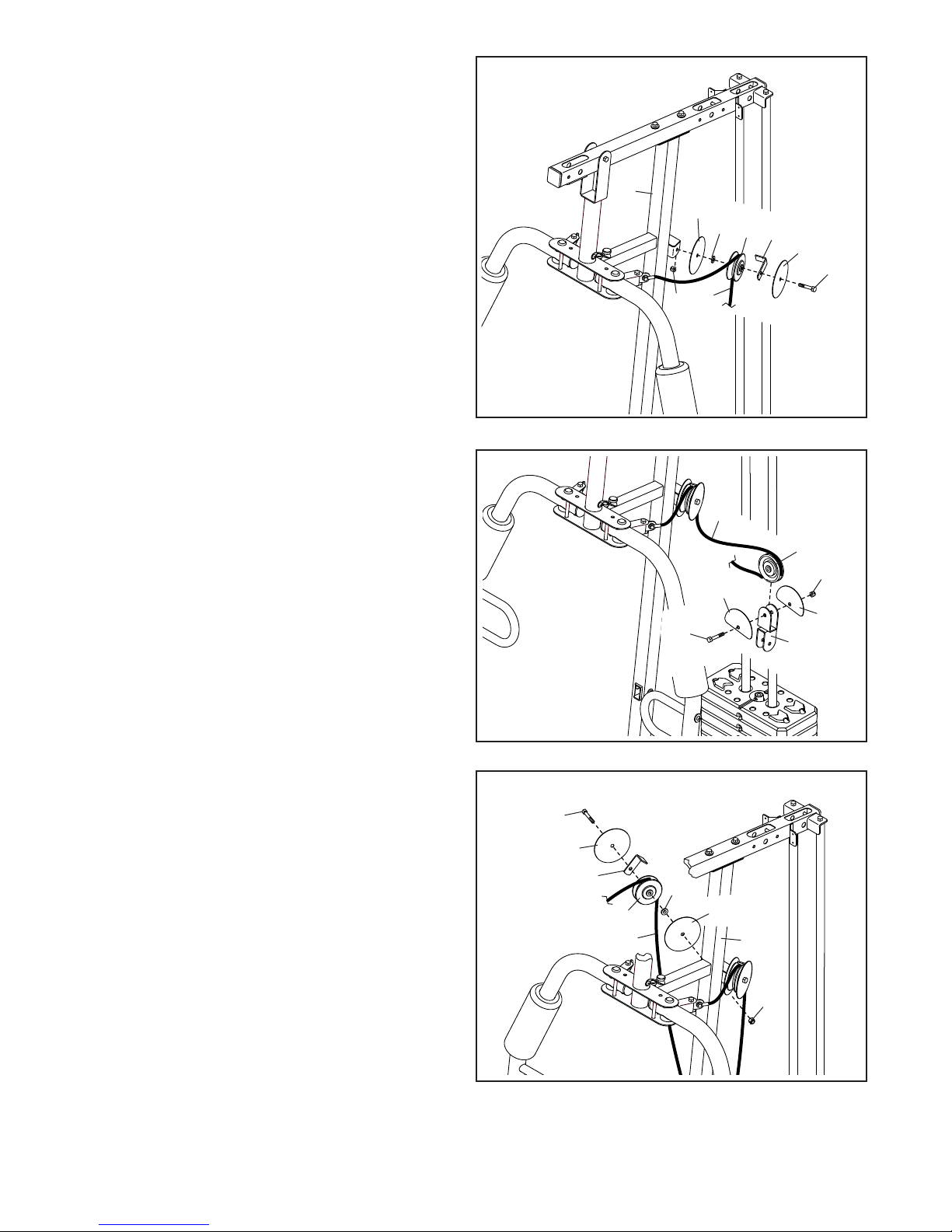

15. Identify the two V-pulleys (46), the nine Thick
Pulleys (not shown), and the two Thin Pulleys
(not shown).
Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley (46), a Large Cable Trap
(50), two Full Guards (41), and an M10 Washer
(57) to the Upright (3) with an M10 x 63mm Bolt
(75) and an M10 Locknut (56).
Make sure that the Large Cable Trap (50) is
oriented to hold the Arm Cable (54) in the
groove of the V-pulley (46). 56
3
57 46 50
41
75
54
41
15
16. Route the Arm Cable (54) around a Thick
Pulley (48).
Attach the Thick Pulley (48) and two Half Guards
(43) to the Double U-bracket (63) with an M10 x
46mm Bolt (81) and an M10 Locknut (56). Make
sure that the Half Guards are on the outside
of the Double U-bracket as shown.
48
43
43
63
56
54
16
17
56
3
57
46
50
75
54
41
81
41
17. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley (46), a Large Cable Trap
(50), two Full Guards (41), and an M10 Washer
(57) to the Upright (3) with an M10 x 63mm Bolt
(75) and an M10 Locknut (56).
Make sure that the Large Cable Trap (50) is
oriented to hold the Arm Cable (54) in the
groove of the V-pulley (46).

14
18. Apply grease to an M8 x 22mm Shoulder
Bolt (65).
Attach the Arm Cable (54) to the right Cable
Pivot (39) with the M8 x 22mm Shoulder Bolt
(65) and an M8 Locknut (58).
18
58
65
Grease
19. Identify the Low Cable (53). Route the Low
Cable through the Leg Lever (8) and the Front
Leg (7).
Attach a Thick Pulley (48) inside the Leg Lever
(8), above the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
13mm Spacers (52), and an M10 Locknut (56).
20. Attach a Thick Pulley (48) inside the Front Leg
(7), above the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
13mm Spacers (52), and an M10 Locknut (56).
19
8
7
53
52
52
57
57
48
71
56
20
56 7
52
52
57
57
71
54 39
48 53

15
21. Route the Low Cable (53) through the Upright
(3) and under a Thick Pulley (48).
Attach the Thick Pulley (48) inside the Upright
(3) with an M10 x 46mm Bolt (81) and an M10
Locknut (56).
22. Route the Low Cable (53) over a Thick
Pulley (48).
Attach the Thick Pulley (48) and two Half Guards
(43) to the Double U-bracket (63) with an M10 x
46mm Bolt (81) and an M10 Locknut (56). Make
sure that the Half Guards are on the outside
of the Double U-bracket as shown.
21
56
22
48
81
81
3
23. Route the Low Cable (53) under a Thick
Pulley (48).
Attach the Thick Pulley (48) and two Half Guards
(43) to the Base (1) with an M10 x 46mm Bolt
(81) and an M10 Locknut (56). Make sure that
the Half Guards are on the outside of the
bracket as shown.
23
43
1
43
81
56
48
63
43
43
53
48
56
53
53

16
25. Identify the High Cable (55). Route the High
Cable upward through the Top Frame (4) and
over a Thick Pulley (48).
Attach the Thick Pulley (48) inside the Top
Frame (4) with an M10 x 67mm Bolt (71), two
M10 Washers (57), two 13mm Spacers (52), and
an M10 Locknut (56).
26. Route the High Cable (55) over a Thin Pulley
(47) and downward through the Top Frame (4).
Attach the Thin Pulley (47) inside the Top Frame
(4) with an M10 x 67mm Bolt (71), an M10
Washer (57), and an 11mm Spacer (86). Make
sure that the Thin Pulley does not fall out of
the Top Frame while you complete steps 27
and 28.
24. Attach the Low Cable (53) to the U-bracket (45)
with an M8 Washer (59) and an M8 Locknut (58).
See the inset drawing. Do not overtighten the
M8 Locknut (58); it should be threaded onto
the end of the Low Cable (53) so that only
two threads are showing above the Locknut.
24
25
26
58
45
59
53
56
4
55
52 52
57
57
48
4
55
86 57
47
71
71
53
45
58

17
27. Wrap the High Cable (55) under a Thick
Pulley (48).
Attach the Thick Pulley (48), a Small Cable Trap
(51), and two Half Guards (43) to the upper hole
in the U-bracket (45) with an M10 x 51mm Bolt
(66) and an M10 Locknut (56).
Make sure that the Small Cable Trap (51) is
oriented to hold the High Cable (55) in the
groove of the Thick Pulley (48) and that the
Half Guards (43) are on the outside of the
U-bracket (45).
29. Route the High Cable (55) over a Thick Pulley
(48) and downward through the Top Frame (4).
Attach the Thick Pulley (48) inside the Top
Frame (4) with an M10 x 67mm Bolt (71), two
M10 Washers (57), two 13mm Spacers (52), and
an M10 Locknut (56).
28. Route the High Cable (55) upward through the
Top Frame (4) and over a Thin Pulley (47).
Attach the Thin Pulley (47) inside the Top Frame
(4) with the M10 x 67mm Bolt (71) used in step
26, an 11mm Spacer (86), an M10 Washer (57),
and an M10 Locknut (56).
27
28
29
66
51
56
48
55
43
43
45
55
47
71
71
4
86
57
56
55
52
52
48
57
457
56

18
30. Thread an M12 Nut (84) all the way onto the
High Cable (55).
Place a Large Washer (85) on top of the Weight
Selector (24).
Tighten the High Cable (55) into the Weight
Selector (24) until all the slack is removed from
the cables.
Tighten the M12 Nut (84) against the Large
Washer (85).
55
84
85
24
31. Attach the Backrest (16) to the Backrest Frame
(61) with two M6 x 16mm Screws (62), an M6 x
32mm Screw (64), and an M6 Washer (82).
Insert the Backrest Frame (61) into the Upright
(3) and tighten a Long Knob (91) into the Upright
and one of the holes in the Backrest Frame.
31
32
16
64
61 62
82
3
Wide
End
91
30
15
73
91
62
6
Seat Assembly
95
82
32. Attach the Seat (15) to the Seat Frame (73) with
two M6 x 16mm Screws (62), an M6 x 38mm
Screw (95), and an M6 Washer (82).
Insert the Seat Frame (73) into the Seat Tube (6)
and tighten a Long Knob (91) into the Seat Tube
and one of the holes in the Seat Frame.

19
34. Attach a Shroud Support (19) and the top of the
Left Shroud (17) to the left side of the Top Frame
(4) with two M4.2 x 16mm Self-tapping Screws
(49) and two M4 Washers (33). Do not tighten
the Screws yet.
Then, attach a Shroud Clamp (90) to the top of
the Left Shroud (17) and the Shroud Support
(19) with two M4 x 12mm Screws (78) and two
M4 Washers (33). Do not tighten the Screws
yet.
33. Insert the Pad Tube (29) into the Front Leg (7).
Slide a Small Foam Pad (28) onto each side of
the Pad Tube (29). Then, press a Pad Cap (34)
into each Small Foam Pad.
Slide a Small Foam Pad (28) onto each end of
the Leg Lever (8). Then, press a Pad Cap (34)
into each Small Foam Pad.
33
34
29
7
8
28
28
34
78
49
33
90
33
34
34
34
28
28
4
19
17

20

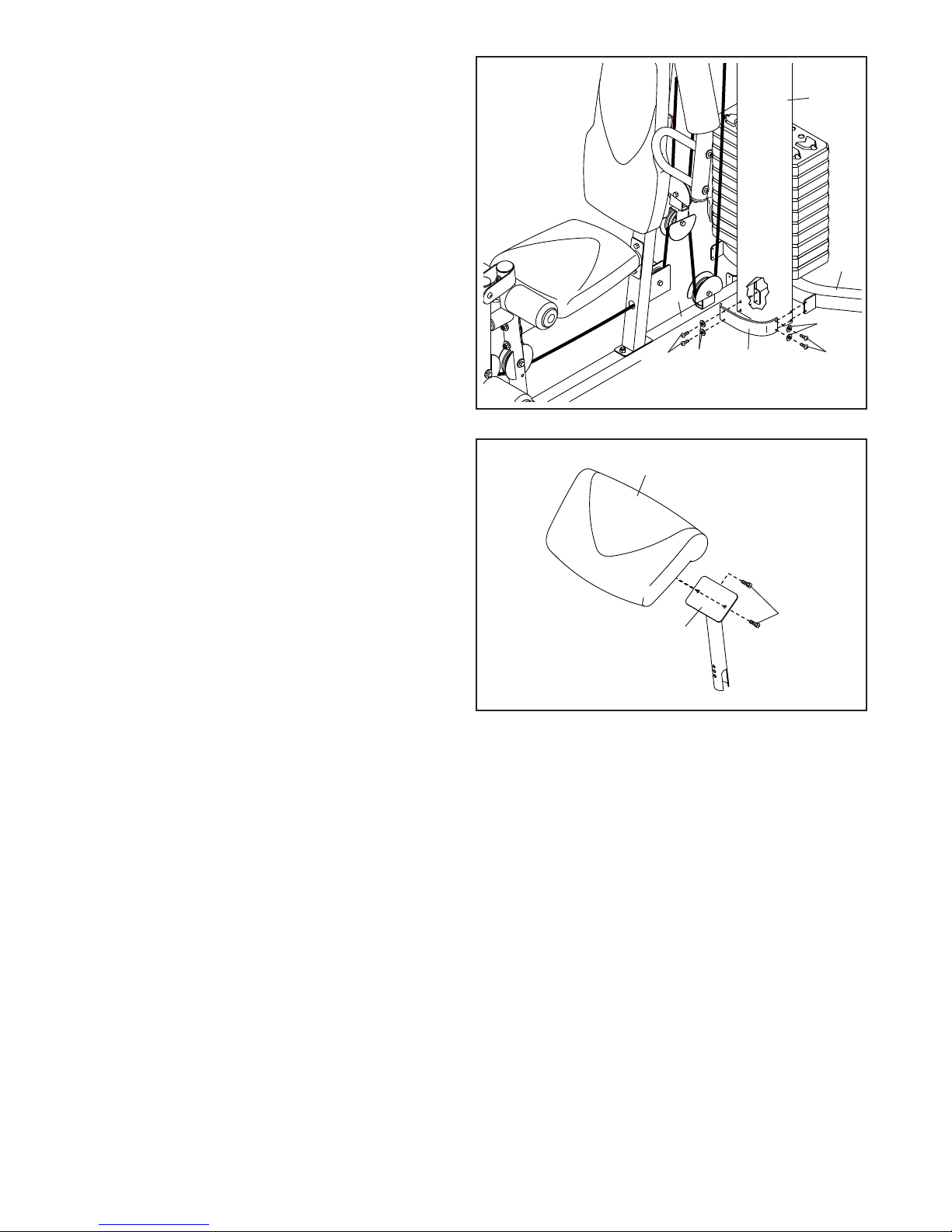

36. Attach the Curl Pad (14) to the Curl Post (13)
with two M6 x 16mm Screws (62).
37. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENT, beginning on page 21.
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
around the pulleys. If one of the cables does not move smoothly, find and correct the problem.
IMPORTANT: If the cables are not properly installed, they may be damaged when heavy weight is
used. See the CABLE DIAGRAM on page 24 for proper cable routing. If there is any slack in the cables,
you will need to remove the slack by tightening the cables. See MAINTENANCE on page 25.
36
14
13
62
35. Attach a Shroud Support (19) and the bottom
of the Left Shroud (17) to the Base (1) and the
Stabilizer (2) with four M4.2 x 16mm Self-tapping
Screws (49) and four M4 Washers (33). Do not
tighten the Screws yet.
Repeat steps 34 and 35 to attach the Right
Shroud (not shown).
See steps 34 and 35. Tighten the M4.2 x 16mm
Self-tapping Screws (49) and the M4 x 12mm
Screws (78). 2
1
35
49
19
49
33
33
17
