Weider 8950 User manual

USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. WEEMSY18220
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer,we are com-
mitted to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, please call:
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: [email protected]
www.iconeurope.com
Visit our website at
08457 089 009

2
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
TROUBLESHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the centre of
this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before
beginning assembly.
TABLE OF CONTENTS

3
1. Read all instructions in this manual and in
the accompanying literature before using the
weight system. Use the weight system only
as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight system are ade-
quately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in a com-
mercial, rental, or institutional setting.
4. Use the weight system only on a level sur-
face. Cover the floor or carpet beneath the
weight system to protect the floor.
5. Make sure all parts are properly tightened
each time the weight system is used.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the weight system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protec-
tion when using the weight system.
9. The weight system is designed to support a
maximum user weight of 135 kg (300 lbs).
10. Always stand on the foot plate when per-
forming an exercise that could cause the
weight system to tip.
11. Never release the arms, leg lever, or lat bar
whilst weights are raised; the weights will fall
with great force.
12. Make sure that the cables remain on the pul-
leys at all times. If the cables bind whilst you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.
13.
Always disconnect the lat bar from the
weight system when performing an exercise
that does not use the lat bar.
14. If you feel pain or dizziness at any time
whilst exercising, stop immediately and
begin cooling down.

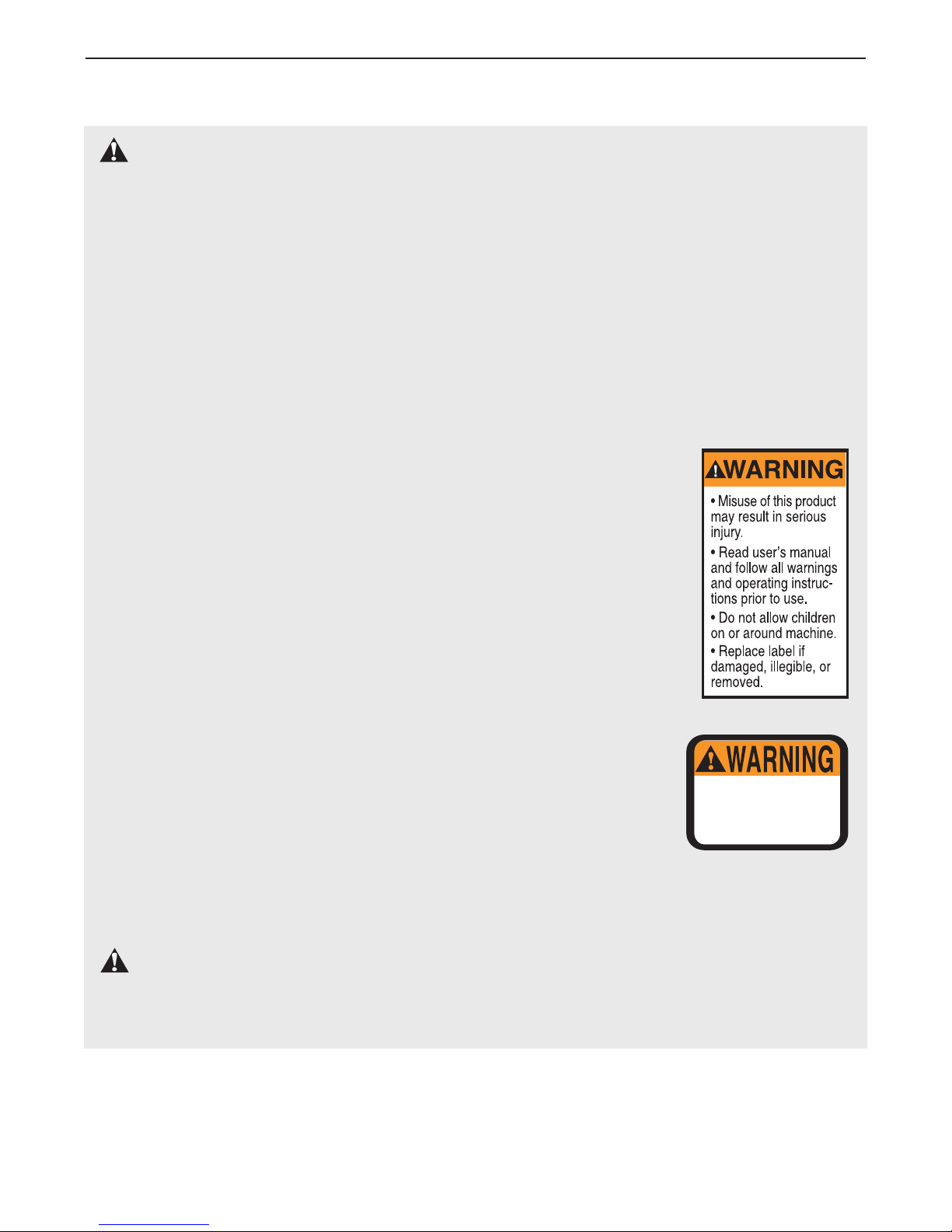

15. The warning decals
shown here have been
placed on the weight
system in the loca-
tions shown on page
4. If a decal is missing
or illegible, please call
our Customer Service
Department toll-free at
08457 089 009 to order
afree replacement
decal. Place the decal
on the weight system
in the location shown.
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the weight system.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
Keep hands and
fingers clear of
this area.
IMPORTANT PRECAUTIONS
Decal 1
Decal 2

4
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®8950
weight system. The WEIDER®8950 weight system
offers a selection of weight stations designed to devel-
op every major muscle group of the body. Whether
your goal is to tone your body, build dramatic muscle
size and strength, or improve your cardiovascular sys-
tem, the WEIDER®8950 weight system will help you to
achieve the results you want.
For your benefit, read this manual carefully before
using the weight system. If you have additional
questions, please call our Customer Service
Department at 08457 089 009.To help us assist you,
please note the product model number and serial
number before calling. The model number is
WEEMSY18220. The serial number can be found on a
decal attached to the weight system (see the front
cover of this manual for the location of the decal).
Before reading further, please review the drawing
below and familiarise yourself with the parts that are
labelled.
ASSEMBLED
DIMENSIONS:
Height: 200 cm (79 in.)
Width: 93 cm (36.6 in.)
Length: 119 cm (47 in.)
Foot Plate
Weight Stack
High Pulley Station
Lat Bar
Leg Lever
Butterfly Arm/Press Arm
Seat
Backrest
Warning Decal 1
Warning Decal 2

5
Before beginning assembly, carefully read the
following information and instructions:
•Assembly requires two people.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the weight system, make sure
all parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
The following tools (not included) are required
for assembly:
• two adjustable spanners
• one rubber mallet
• one standard screwdriver
• one Phillips screwdriver
• lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end span-
ners, or a set of ratchet spanners.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight system can be assembled suc-
cessfully by anyone. However, it is important to
realise that the versatile weight system has
many parts and that the assembly process will
take time. Most people find that by setting aside
plenty of time, assembly will go smoothly.
ASSEMBLY
1
2
26
68
41
59
59
Indent
Indent
These holes
are smaller
than on the
opposite side.
41
1. Before beginning assembly,be sure that you
have read and understand the information in
the box above.
Press a 50mm Square Inner Cap (26) into the end
of the Base (1). Press two 50mm Square Outer
Caps (41) onto the ends of the Stabiliser (2).
Orient the Stabiliser (2) with the indents around
the holes on the bottom. Insert two M10 x 65mm
Carriage Bolts (59) into the bottom of the
Stabiliser. Insert two M8 x 63mm Carriage Bolts
(58) into the bottom of the Base (1). Note: It may
be helpful to place tape over the heads of the
Carriage Bolts to hold them in place.
Attach the Base (1) to the Stabiliser (2) with the
M10 x 65mm Carriage Bolts (59) and two M10
Nylon Locknuts (68). Do not tighten the
Locknuts yet.
FRAME ASSEMBLY
1
58

6
2. Attach the Upright (3) to the Base (1) with the two
M8 x 63mm Carriage Bolts (58) and two M8
Nylon Locknuts (69). Donot tighten the
Locknuts yet.
Press a 25mm x 50mm Inner Cap (25) into the
tube on the Upright (3). Attach the Press Frame
Lock (39) to the Upright with an M8 x 63mm Bolt
(66), two M8 Washers (71), and an M8 Nylon
Locknut (69). Do not overtighten the Nylon
Locknut; the Press Frame Lock must be able
to pivot easily.
2
3
1
17
37
70 57
2
68
68
10
71
69
66
71
3
25
58
39
69
3. Set two Weight Bumpers (17) over the indicated
holes in the Stabiliser (2). Insert two Weight
Guides (10) into the same holes. Secure the
Weight Guides in place with two M10 x 70mm
Bolts (57), two M10 Washers (70), two M10 x
12.5mm Spacers (37), and two M10 Nylon
Locknuts (68).
Tighten the Nylon Locknuts (68, 69) used in
steps 1 and 3.

7
24
8
57
3
68
6
6. Press a 45mm Square Inner Cap (24) into the
end of the Seat Frame (8).
Attach the Seat Frame (8) to the Upright (3) with
two M10 x 70mm Bolts (57) and two M10 Nylon
Locknuts (68).
10
68
70 70
63
69
62 26
3
4
5
4
14
3
12
15
10
13
4. Slide the eight Weights (15) onto the Weight
Guides (10), with the slot for the Weight Pin (not
shown) on the bottom and on the side away from
the Upright (3).
Insert the Weight Tube Bumper (13) into the bot-
tom of the Weight Tube (12). Insert the Weight
Tube into the Weights (15).
Slide the Top Weight (14) onto the Weight Guides
(10).
5. Press a 50mm Square Inner Cap (26) into the
Top Frame (4).
Attach the Top Frame (4) to the Upright (3) with
two M8 x 68mm Bolts (63) and two M8 Nylon
Locknuts (69). Do not tighten the Locknuts yet.
Attach the Top Frame (4) between the Weight
Guides (10) with an M10 x 155mm Bolt (62), two
M10 Washers (70), and an M10 Nylon Locknut
(68).
Tighten the Nylon Locknuts (68, 69) used in
steps 2 and 5.

8
9. Press two 45mm Square Inner Caps (24) into the
Left Arm (7). Press a 25mm Round Inner Cap
(23) into the handle. Lubricate the indicated post
with grease. Slide a 38mm x 50mm Round
Bushing (28) onto the post on the Arm; make
sure that the lip on the Bushing is oriented as
shown.
Attach an Arm Pad (20) to the Left Arm (7) with
two M6 x 58mm Bolts (65) and two M6 Washers
(73).
Repeat this step with the Right Arm (6).
8. Press two 25mm x 50mm Inner Cap (25) into the
top of the Press Frame (5). Press two 50mm
Square Inner Caps (26) into the ends of the
Press Frame.
Lubricate an M10 x 125mm Bolt (64) with grease.
Orient the Press Frame (5) with the bracket on
the side shown. Attach the Press Frame to the
Top Frame (4) with the Bolt, two M10 Washers
(70), and an M10 Nylon Locknuts (68). Do not
overtighten the Locknut; the Press Frame
must be able to pivot easily.
7. Press two 45mm Square Inner Caps (24) into the
Leg Lever (9).
Lubricate an M10 x 73mm Bolt (74) with grease.
Attach the Leg Lever (9) to the Seat Frame (8)
with the Bolt and an M10 Nylon Locknut (68).
Make sure the warning decal is in the indicat-
ed position. Do not overtighten the Locknut;
the Leg Lever must be able to pivot easily.
9
8
68
74Lubricate
Warning
Decal
24
24
7
64 25
70
70 68
4
526
26
8
20
7
23
24
65
24
6
28
Post
Lip
Handle
73
73
9
Bracket
ARM ASSEMBLY
Lubricate

9
12. Route the High Cable (50) over a 90mm Pulley
(34) and down through the Top Frame (4). Attach
the Pulley and a Cable Trap (36) to the bracket
on the Top Frame with an M10 x 50mm Bolt (53)
and an M10 Nylon Locknut (68). Make sure the
Cable Trap is oriented to hold the Cable in the
groove of the Pulley.
13. Route the High Cable (50) under a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the second set of holes from the
top of the two Pulley Plates (44) with an M10 x
52mm Bolt (52) and an M10 Nylon Locknut (68).
Make sure the small tabs on the Pulley Covers
are on top.
10. Insert the post on the Left Arm (7) through the
hole in the Press Frame (5). Be sure the Arm is
behind the indicated bracket on the Press
Frame.
Slide a 25mm Washer (29) over the post on the
Left Arm (7). Attach an M6 x 43mm Bolt (61) to
the post with an M6 Nylon Locknut (72). Be sure
the Locknut and the head of the Bolt are over
the edge of the Washer, as shown in the inset
drawing.
Press a 25mm Round Outer Cap (27) onto the
top of the post on the Left Arm (7).
Repeat this step with the Right Arm (6).
11. Refer to the CABLE DIAGRAM on page 17 for
proper cable routing.
Locate the High Cable (50). Route the threaded
shaft end of the Cable up through the Top Frame
(4) and over a 90mm Pulley (34). Attach the
Pulley inside the Top Frame with an M10 x 65mm
Bolt (55), two M10 Washers (70), two M10 x
12.5mm Spacers (37), and an M10 Nylon Locknut
(68).
27
29
72
7
6
5
10
61
36
53
50
34
68 4
50
34
37
37
70
70
68
55 4
11
68
44
44
35
35
34
50
12
13
52
CABLE ASSEMBLY
29
61 72
Post
Slot
Bracket
Slot

10
16. Locate the Press Cable (49). Slide the Cable
onto the hook on the Left Arm (7).
17. Attach the Pulley Arm (38) to the Upright (3) with
an M10 x 78mm Bolt (54) and an M10 Nylon
Locknut (68). Do not overtighten the Locknut;
the Pulley Arm must be able to pivot easily.
Wrap the Press Cable (49) over a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the indicated side of a Pulley Arm
(38) with an M10 x 52mm Bolt (52) and an M10
Nylon Locknut (68). Make sure the large tabs
on the Pulley Covers are in the indicated posi-
tion.
15. Attach the end of the High Cable (50) to the
Small “U”-bracket (11) with an M8 Washer (71)
and an M8 Nylon Locknut (69). Note: Do not
completely tighten the Locknut; it should be
threaded onto the Cable so that two threads
show past the Locknut, as shown in the inset
drawing.
Attach the Small “U”-bracket (11) to the Weight
Tube (12) with an M8 x 45mm Bolt (60) and an
M8 Nylon Locknut (69). Do not overtighten the
Locknut; the Weight Tube must be able to
pivot in the Small “U”-bracket.
14. Wrap the High Cable (50) over a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the bracket on the Top Frame (4)
with an M10 x 52mm Bolt (52) and an M10 Nylon
Locknut (68). Make sure the small tabs on the
Pulley Covers are on bottom. 68
50
34
35
35
4
52
14
11
71
60
69
12
15
7
54
3
35
34
68
16
17
50
69
49
Hook
49
38
52
Large
Tab

11
19. Attach the Pulley Arm (38) to the Upright (3) with
an M10 x 78mm Bolt (54) and an M10 Nylon
Locknut (68). Do not overtighten the Locknut;
the Pulley Arm must be able to pivot easily.
Wrap the Press Cable (49) over a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley Covers
(35) to the indicated side of a Pulley Arm (38) with
an M10 x 52mm Bolt (52) and an M10 Nylon
Locknut (68). Make sure the large tabs on the
Pulley Covers are in the indicated position.
18. Wrap the Press Cable (49) under a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the Offset Double “U”-bracket (42)
with an M10 x 52mm Bolt (52) and an M10 Nylon
Locknut (68). Make sure the small tabs on the
Pulley Covers are on top.
34
52
68
4935
42
35
18
35
49
52
38 68
68
Large
Tab
3
54
34
35
19
20. Slide the end of the Press Cable (49) onto the
hook on the Right Arm (6). 49
6
20
21. Locate the Short Cable (47). Attach the eyelet
on the Cable to the Base (1) with an M10 x
70mm Bolt (57), an M10 Washer (70), and an
M10 Nylon Locknut (68). Do not overtighten the
Locknut.
57
70
68
47
1
21

12
23. Attach the end of the Short Cable (47) to the “U”-
bracket (43) with an M8 Washer (71) and an M8
Nylon Locknut (69). Note: Do not completely
tighten the Locknut; it should be threaded
onto the Cable so that two threads show past
the Locknut, as shown in the inset drawing.
24. Locate the Low Cable (48). Attach the Cable
inside the Base (1) with an M10 x 65mm Bolt
(55), two M10 Washers (70), two M10 x 22mm
Spacers (51), and an M10 Nylon Locknut (68).
22. Wrap the Short Cable (47) over a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the Offset Double “U”-bracket (42)
with an M10 x 52mm Bolt (52) and an M10 Nylon
Locknut (68). Make sure the small tabs on the
Pulley Covers are on bottom.
52
47 35
35
34
68
42
22
47
71
69
43
23
51
68
1
70
70
24
55 48
25. Route the Low Cable (48) over a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the second set of holes from the
bottom of the two Pulley Plates (44) with an M10
x52mm Bolt (52) and an M10 Nylon Locknut
(68). Make sure the small tabs on the Pulley
Covers are on bottom.
44
52
35
34
35
48
68
25
47
69

13
27. Route the Low Cable (48) over a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the lower set of holes in the “U”-
bracket (43) with an M10 x 52mm Bolt (52) and
an M10 Nylon Locknut (68). Make sure the small
tabs on the Pulley Covers are on bottom.
28. Route the Low Cable (48) under a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the Upright (3) with an M10 x
100mm Bolt (46), two M10 Washers (70), and an
M10 Nylon Locknut (68). Make sure the large
tabs on the Pulley Covers in the indicated
position.
26. Wrap the Low Cable (48) under a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley Covers
(35) to the bracket on the Base (1) with an M10 x
52mm Bolt (52) and an M10 Nylon Locknut (68).
Make sure the small tabs on the Pulley Covers
are on top.
35
35
68
34
1
48
52
26
34
48
35
35
52 43
68
27
Large
Tab
48
70
70 68
35
35
34 3
28
29. Attach the Low Cable (48) to the Leg Lever (9)
with the M8 x 64mm Shoulder Bolt (56), an M8
Washer (71), and an M8 Nylon Locknut (69).
71
9
69
46
56 48
29

33. Make sure that all parts have been properly tightened. The use of all remaining parts will be explained in
ADJUSTMENTS, on the next page.
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If
the cables are not properly routed, they may be damaged when heavy weight is used. See the CABLE
DIAGRAM on page 17 of this manual for proper cable routing. If there is any slack in the cables, you
will need to remove it by tightening the cables; see TROUBLESHOOTING AND MAINTENANCE on
page 18.
14
31. Attach the Seat (19), oriented as shown, to the
Seat Frame (8) with four M6 x 16mm Screws
(40).
32. Slide a Pad Tube (45) through the hole in the
Seat Frame (8). Slide two Round Pads (21) onto
the ends of the Pad Tube. Press two 19mm
Round Inner Caps (22) into the ends of the Pad
Tube.
Repeat this step with the other Pad Tube (45)
and the Leg Lever (9).
30. Attach the Backrest (18) to the Upright (3) with
two M6 x 63mm Screws (67) and two M6
Washers (73).
18
73
73
3
40
67
67
19
Narrow
End
8
30
31
22
21
22
21
45
45
9
8
32
SEAT ASSEMBLY

15
This section explains how to adjust the weight system. Refer to the accompanying exercise guide to see the cor-
rect form for each exercise.
Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediate-
ly. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ATTACHING THE LAT BAR
Attach the Lat Bar (31) to the High Cable (50) with a
Cable Clip (33). Remove the Lat Bar when perform-
ing an exercise that does not require it.
33
50
31
CHANGING THE WEIGHT SETTING
Tochange the weight setting, insert a Weight Pin (16)
under the desired Weight (15) until the bent end of
the Weight Pin is touching the Weights. Turn the bent
end downward. The weight setting of each weight
stack can be changed from 6 pounds to 106 pounds,
in 12.5-pound increments. Note: Due to the cables
and pulleys, the amount of resistance at each
exercise station may vary from the weight setting.
Use the WEIGHT RESISTANCE CHART on page 16
to find the approximate amount of resistance at
each weight station.
CONVERTING THE ARMS
To use the Arms (6, 7) as butterfly arms, remove the
“L”-pins (30), and engage the Press Frame Lock (39)
into the Press Frame (5).
To use the Arms (6, 7) as press arms, disengage the
Press Frame Lock (39), and insert the “L”-pins (30)
into the holes in the Press Frame (5).
16
15
ADJUSTMENTS
30
5
39

16
WEIGHT RESISTANCE CHART
The chart below shows the approximate weight resistance at each exercise station. “Top” refers to the 6-lb. top
weight. The other numbers refer to the 12.5-lb. weight plates. Weight resistance shown for the butterfly arm sta-
tion is for each butterfly arm. Note: The actual resistance at each station may vary due to differences in
individual weight plates as well as friction between the cables, pulleys, and weight guides.
WEIGHT
Top
1
2
3
4
5
6
7
8
HIGH
PULLEY
(lbs.)
18
32
46
59
75
92
109
121
132
PRESS ARM
(lbs.)
26
41
56
73
87
106
120
130
142
BUTTERFLY ARM
(lbs.)
21
28
37
48
60
74
89
99
109
LEG LEVER
(lbs.)
36
51
69
86
109
132
148
164
184
Note: 1 lb. = 0.454 kg

The cable diagrams below show the proper routing of the Short Cable (47), the Low Cable (48), the Press Cable
(49), and the High Cable (50). Use the diagrams to make sure that the cables have been assembled correctly. If
the cables have not been correctly routed, the weight system will not function properly and damage may occur.
The numbers show the correct route for each cable.
High Cable (50)
CABLE DIAGRAMS
4
4
1
2
1
2
5
5
1
2
3
4
5
6
Press Cable (49)
Low Cable (48)
Short Cable (47)
3
3
1
2
3
17

TROUBLESHOOTING AND MAINTENANCE
18
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight
system, can stretch slightly when it is first used. If
there is slack in the cables before resistance is felt,
the cables should be tightened.
Slack can be removed by moving a 90mm Pulley (not
shown) and a pair of Pulley Covers (35) to a set of
holes closer to the centre of the two Pulley Plates
(44). Remove the M10 Nylon Locknut (68) and the
M10 x 52mm Bolt (52) from the Pulley, the Pulley
Covers, and the Pulley Plates. Re-attach the Pulley
and the Pulley Covers to the new set of holes in the
Pulley Plates with the Bolt and Nylon Locknut.
Slack can also be removed by moving the 90mm
Pulley (not shown) and the pair of Pulley Covers (35)
to the higher set of holes in the “U”-bracket (43).
Remove the M10 Nylon Locknut (68) and the M10 x
52mm Bolt (52) from the Pulley, the Pulley Covers, and
the “U”-Bracket. Re-attach the Pulley and the Pulley
Covers to the higher set of holes in the “U”-Bracket
with the Bolt and Locknut.
Slack can also be removed from the cables by tighten-
ing the M8 Washer (71) and M8 Nylon Locknut (69)
attaching the Short Cable (47) to the “U”-bracket (43).
To do this, you may need to remove the Pulley Covers
(35) from the “U”-bracket. The High Cable (not shown)
and the Small “U”-bracket (not shown) can be adjusted
in the same manner.
Make sure that the cables are not too tight, or the
Top Weight (14) will be lifted.
68
35
44
52
47
35
52
68
69
71
43

19
NOTES

ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
Tel:
Outside the UK: 0 (044) 113 387 7133
Fax: [phone]
Please provide the following information when ordering replacement parts:
• The MODEL NUMBER of the product (WEEMSY18220)
• The NAME of the product (WEIDER®8950 weight system)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING
attached at the centre of this manual)
Part No. 193960 R0504A Printed in China © 2004 ICON IP, Inc.
08457 089 009
