Weider TDPWM0 User manual

USERÕS MANUAL
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assistance
from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUS-
TOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. TDPWM
Patent Pending
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!

2
Table of Contents
Before Beginning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Assembling Your TORSO DEVELOPER PLUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
How to Use Your TORSO DEVELOPER PLUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Suggested Stretches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WEIDER is a registered trademark of ICON Health & Fitness, Inc.

3
1. Read all instructions in this manual before
using the TORSO DEVELOPER PLUS.
2. It is the responsibility of the owner to ensure
that all users of the TORSO DEVELOPER
PLUS are informed of all precautions.
3. Keep children under the age of 12 and pets
away from the TORSO DEVELOPER PLUS at
all times.
4. Use the TORSO DEVELOPER PLUS only as
described in this manual.
5. Never release the handlebar while the bungee
cords are stretched.
6. Never twist the Handlebars or the Bungee
Cords.
7. If you feel faint, dizzy, or short of breath at
any time while exercising, stop immediately
and begin cooling down.
8. The TORSO DEVELOPER PLUS is intended
for home use only. Do not use the TORSO
DEVELOPER PLUS in a commercial, rental, or
institutional setting.
9. Before you begin this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of
35 or persons with pre-existing health prob-
lems. ICON assumes no responsibility for
personal injury or property damage sustained
by or through the use of this product.
Before Beginning
Important Precautions
Congratulations on your purchase of the innova-
tive TORSO DEVELOPER PLUS from WEIDER.
The TORSO DEVELOPER PLUS is designed to
shape your upper abs, obliques, lower abs, and
other muscle groups to give you a firm, flat stom-
ach and toned muscles in only minutes a day.
Used as part of a fitness program that includes
regular aerobic exercise and a proper diet, the
TORSO DEVELOPER PLUS will help you to look
better, feel better, and enjoy the benefits of better
fitness.
Before you use the WEIDER¨TORSO DEVEL-
OPER PLUS, please read this manual carefully.
If you have additional questions, please call our
Customer Service Department toll-free at 1-800-
999-3756, Monday through Friday, 6 a.m. until
6 p.m. Mountain Time (excluding holidays). Please
note the product model number before calling; the
model number is TDPWM.
Knee Pad
Bungee Cords
Clip Bushing
Ab Bar
Roller
Handlebar
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the WEIDER¨TORSO DEVELOPER PLUS.

4
Place all parts of the TORSO DEVELOPER PLUS in a cleared area and remove the packing materials. Do not
dispose of the packing materials until assembly is completed.
Assembly requires the included hat cap tool and allen wrench and your own adjustable
wrench and hammer .

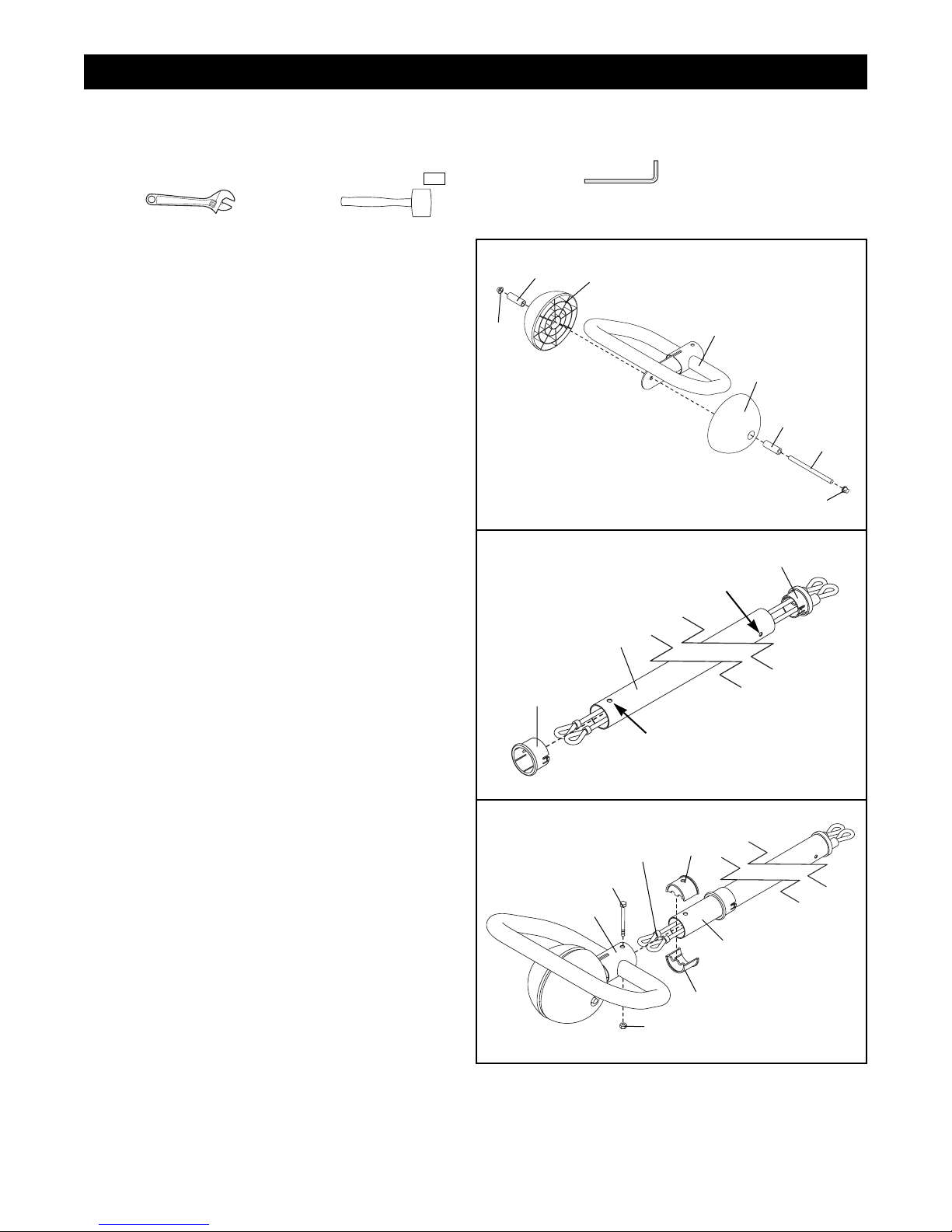

2. Slide the Bungee Assembly (9) into the Bungee
Tube (1) as shown. Be sure to insert the
Bungee Assembly into the end of the
Bungee Tube with the small holes. The tabs
on the Bungee Assembly should snap into
the small holes. Slide the Outer Bushing (12)
onto the other end of the Bungee Tube.
3. The help of another person is recommended for
this step.
Place the Split Bushings (3) over the Bungee
Tube (1). Line up the notches in the Split
Bushings so they hold the bungee cords. Align
the holes in the Split Bushings with the large
holes in the Bungee Tube.
Slide the Ab Bar (4) over the Split Bushings (3).
Align the holes in the Ab Bar with the holes in
the Split Bushings and the Bungee Tube (1).
Thread the Bolt (10) through the holes and
tighten the Nut (11) onto the Bolt.
1
12
3
4
10
Bungee
Cords
3
1
11
Large
Holes
Small
Holes
9
2
3
Assembling the TORSO DEVELOPER PLUS
4
5
5
6
6
7
8
8
1
1. Using a hammer, lightly tap a Hat Cap (8) onto
one end of the Roller Axle (7).
Insert a Roller Bushing (6) into each Roller (5).
Place the Rollers on both sides of the Ab Bar
(4). Slide the Roller Axle (7) through the Roller
Bushings and the Ab Bar. Using the included
hat cap tool, secure another Hat Cap (8) to the
Roller Axle.

5
6. Align the holes in the Outer Tube (2) with the
holes in the Pulley Bushing (18). Attach the
Pulley Bushing to the Outer Tube using two
Screws (19).
Wrap the bungee cords around the Pulleys (2)
and attach the bungee cords to the Clip
Bushing (13). Make sure that the bungee
cords are wrapped correctly around the
Pulleys so that they fit snugly into the
grooves. Note: To reduce the resistance of the
TORSO DEVELOPER PLUS, attach only one
bungee cord to the Clip Bushing.
7. For certain exercises, it is recommended that
you use the included Knee Pads (13) with your
TORSO DEVELOPER PLUS. To use the Knee
Pads, simply slide them onto the Handgrips
(15) as shown.
6
7
18
19
19
13
13
13
15
15
20
Bungee
Cords
2
5. Slide the Outer Tube (2) over the Bungee Tube
(1) so that the end of the Outer Tube with the
large holes points toward the Ab Bar (4). Slide
the Outer Tube over the Outer Bushing (12),
making sure that the tabs on the Outer
Bushing snap into the holes in the Outer
Tube.
Slide the Handlebar (14) over the Outer Tube
(2) so that the Clip Bushing (13) points toward
the Ab Bar (4).
14
13
12
Tabs
Large
Holes
Small
Holes
2
1
4
5
13
4. Insert the Handlebar Bushing (17) into one end
of the Handlebar (14). Make sure that the tabs
on the Handlebar Bushing snap into the
holes in the Handlebar. Insert the Clip
Bushing (13) into the other end of the
Handlebar, making sure that the tabs snap
into the holes.
Slide a Handgrip (15) onto each side of the
Handlebar (14).
17
15
15
14
4

6

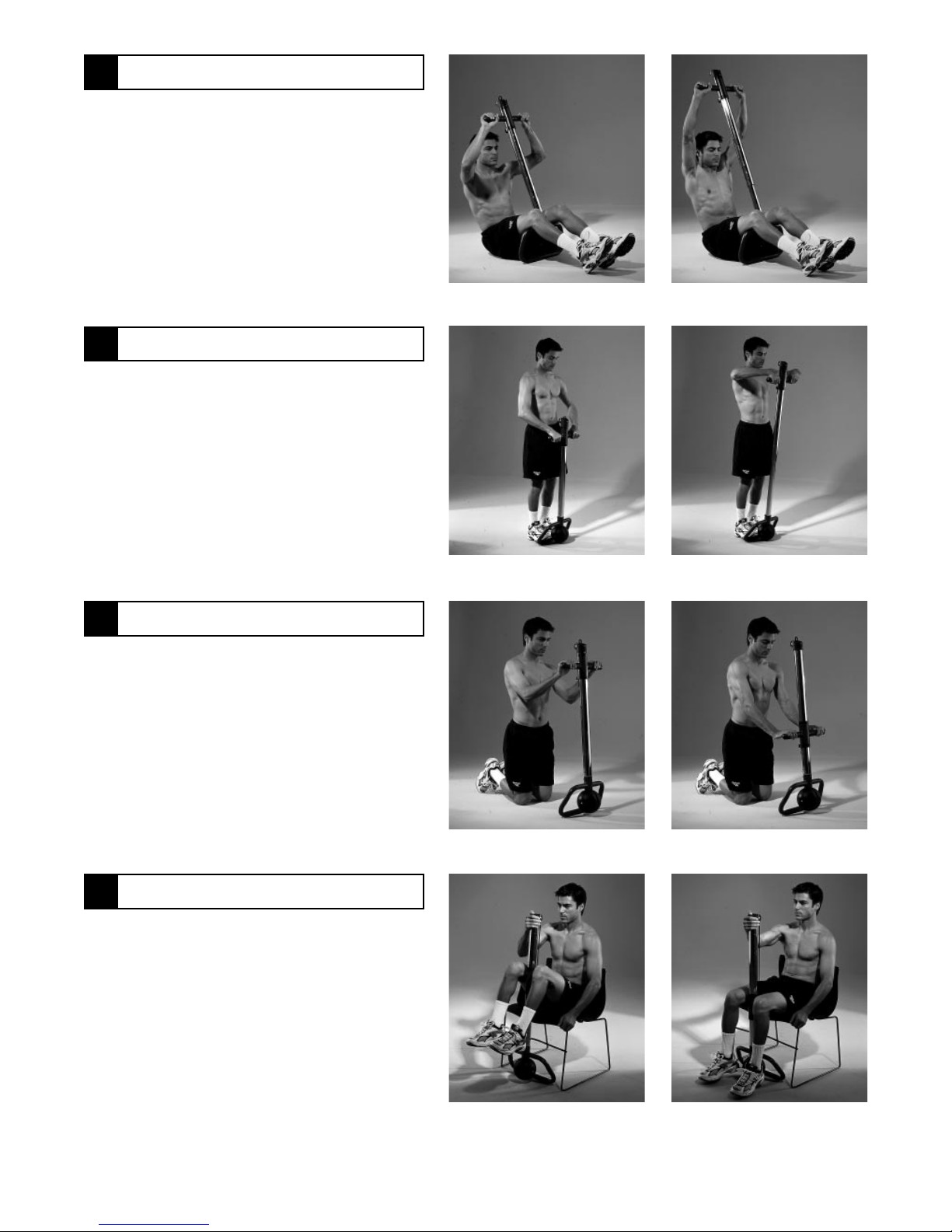

How to use your TORSO DEVELOPER PLUS
The TORSO DEVELOPER PLUS provides exercises for many of the bodyÕs major muscle groups. The following
instructions will lead you through seven recommended exercises to work out your arms, legs, back, and torso.
Make sure to properly stretch before beginning (see page 9).
2Abdominal
This exercise requires the use of the knee pads
(see assembly step 8). Place your TORSO
DEVELOPER PLUS on the floor with the
rollers downward. Kneel on the knee pads and
grasp the top, sides, or bottom of the ab bar.
Extend your body outward, tensing your abdom-
inal muscles. Return to the beginning position.
Repeat as many times as desired.
3Curl
Stand with the TORSO DEVELOPER PLUS in
front of you. Place your feet on the lower por-
tion of the ab bar. Grasp the handgrips from
beneath. Pull up on the handgrips until your
hands are at chest level. Return to the begin-
ning position. Repeat as many times as desired.
1Leg Press
While sitting on a chair, hold the handgrips and
place your feet on the upper portion of the ab
bar. Make sure that the rollers are on the floor.
Extend your legs, pushing the rollers away from
you. Return to the beginning position. Repeat
as many times as desired.

7
5Upright Row
Stand with the TORSO DEVELOPER PLUS in
front of you. Place your feet on the lower por-
tion of the ab bar. Grasp the handgrips from
above and pull them upward until they are at
shoulder level. Return to the beginning position.
Repeat as many times as desired.
7Donkey Kick
Sitting on a chair, hold the TORSO DEVELOP-
ER PLUS with one hand and put your knees
over the handgrips. Pull your legs downward.
Return to the beginning position. Repeat as
many times as desired.
6Triceps Press
Kneel with the TORSO DEVELOPER PLUS in
front of you. Grasp the handgrips from above
and extend your arms downward. Return to the
beginning position. Repeat as many times as
desired.
4Shoulder Press
Sit on the floor with your knees over the ab bar.
Grasp the handgrips and push them upward.
Return to the beginning position. Repeat as
many times as desired.

8
Exercise Guidelines
The TORSO DEVELOPER PLUS offers a variety of
exercises that tone your abdominals, back, arms,
chest, and shoulders. The photographs in this manual
show the proper form for each exercise.
To tailor the intensity of each exercise to the level
thatÕs right for you, simply change the resistance of the
TORSO DEVELOPER PLUS or change the number of
repetitions that you perform. Start with the lowest
resistance level. When you can easily complete sever-
al repetitions of all exercises, move up to the next
resistance level. Be careful to avoid overdoing it during
the first few weeks of your exercise program. It is bet-
ter to increase the number of repetitions you do than to
increase the resistance of the TORSO DEVELOPER
PLUS too quickly.
Always begin and end each workout with a few min-
utes of stretching. Some recommended stretches and
their proper technique are shown on page 9.
Remember to keep plenty of water nearby as you
exercise, and drink periodically to avoid dehydration.
CAUTION: If you feel faint, dizzy, or short of breath
at any time while exercising, stop immediately and
begin cooling down.
HOW TO ADJUST THE RESISTANCE
The TORSO DEVELOPER PLUS offers two different
resistance levels to allow you to tailor the intensity of
your exercise. The resistance level is adjusted by con-
necting or disconnecting the resistance bands.
To connect one
of the bungee
cords, first hold
the handlebar
at the top of the
outer tube as
shown at the
right. Next, firm-
ly hold the knob
on the end of a
bungee cord,
pull the knob down, and fit the knob into the appropriate
groove in clip bushing. To disconnect a bungee cord,
firmly hold the knob, pull the knob out of the groove in
the clip bushing, and rest the knob in the upper end of
the bungee tube. IMPORTANT: Always keep at least
one bungee cord attached to the slider.
If you are just beginning an exercise program, connect
only one bungee cord to the clip bushing. This will give
you the lowest resistance level. When you are ready
for a more advanced resistance level, connect both
bungee cords.

9
Suggested Stretches
3. Quadriceps Stretch
Place one hand against a wall and grasp one foot with your other hand
as shown. Hold your foot as close to your buttocks as possible, and
hold for 15 counts. Repeat 3 times for each leg.
1. Hamstring Stretch
Extend one leg and rest the opposite foot against it as shown. Reach
toward your toes and hold for 15 counts. Repeat 3 times for each leg.
Begin and end each workout with a few minutes of stretching. Stretching prepares the body for exercise by
increasing the body temperature, heart rate, and circulation. After exercise, stretching allows the heart rate to
return to normal and the muscles to cool down gradually. Stretching is also effective for increasing flexibility. The
correct form for three basic stretches is shown below. Move slowly as you stretchÑnever bounce.
2. Toe Touch Stretch
Stand with your knees bent slightly as shown. Relax your back and
shoulders as you reach down toward your toes. Hold for 15 counts.
Repeat 3 times.

10
Part ListÑModel No. TDPWM R0500A
1 1 Bungee Tube
2 1 Outer Tube
3 2 Split Bushing
4 1 Ab Bar
5 2 Roller
6 2 Roller Bushing
7 1 Roller Axle
8 2 Hat Cap
9 1 Bungee Assembly
10 1 Bolt
11 1 Nut
12 1 Outer Bushing
13 1 Clip Bushing
14 1 Handlebar
15 2 Handgrip
16 2 Knee Pad
17 1 Handlebar Bushing
18 1 Pulley Bushing
19 2 Screw
20 2 Pulley
21 1 Pulley Pin
# 1 UserÕs Manual
# 1 Hat Cap Tool
# 1 Allen Wrench
Key No. Qty. Description Key No. Qty. Description
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice.

11
1
2
3
3
4
5
5
6
6
7
8
8
9
10
11
12
13
14
15
16
16 15
17
18
19
19
20
20
21

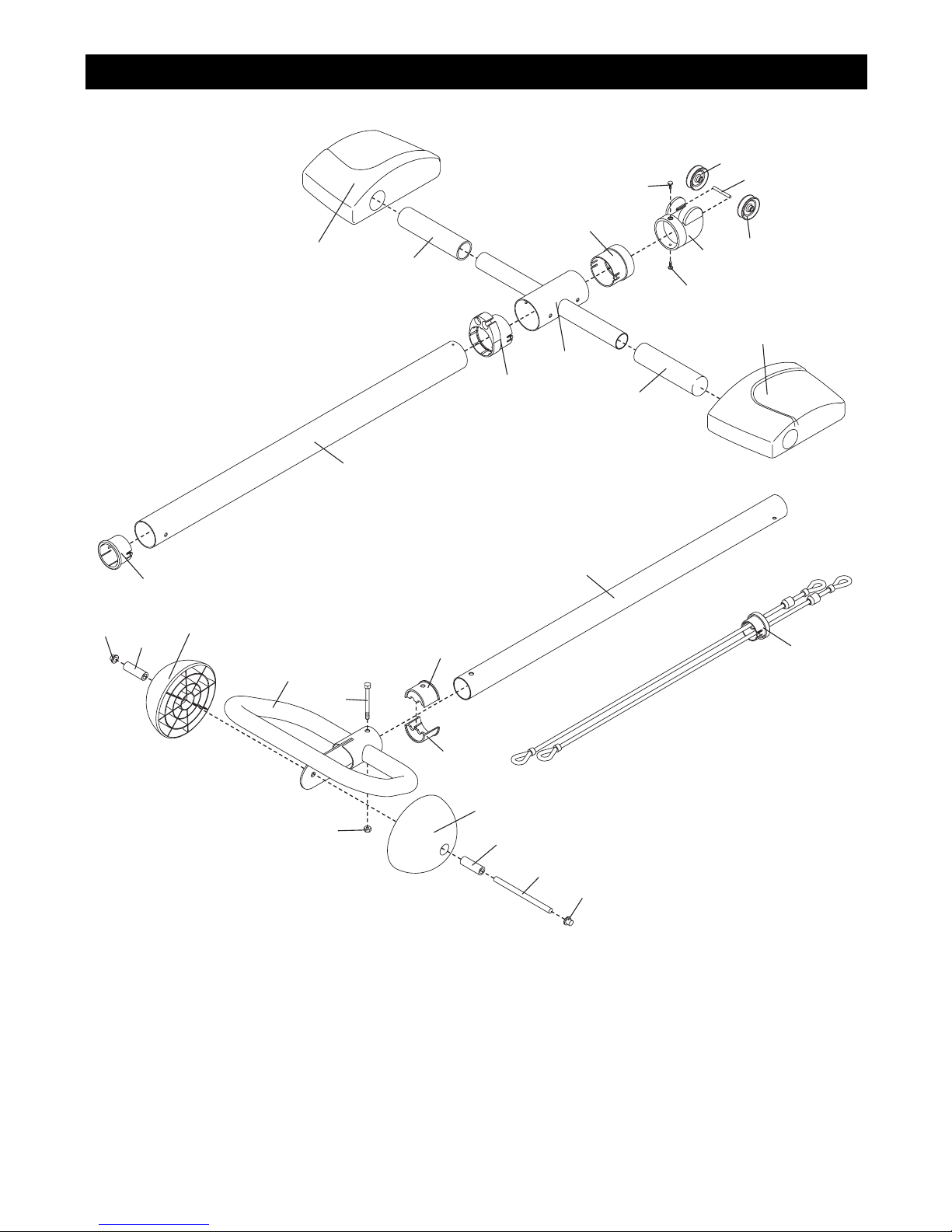

Exploded DrawingÑModel No. TDPWM R0500A

Part No. 166102 R0500A Printed in USA © 2000 ICON Health & Fitness, Inc.
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and mate-
rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing
or repairing, at ICON's option, the product at one of its authorized service centers. All products for which war-
ranty claim is made must be received by ICON at one of its authorized service centers with all freight and
other transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-
authorized by ICON. This warranty does not extend to any product or damage to a product caused by or
attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an
ICON authorized service center, to products used for commercial or rental purposes, or to products used as
store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connec-
tion with the use or performance of the product or damages with respect to any economic loss, loss of prop-
erty, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other conse-
quential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
Limited Warranty
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please be prepared to give the following information:
¥ The MODEL NUMBER of the product (TDPWM)
¥ The NAME of the product (WEIDER¨TORSO DEVELOPER PLUS)
¥ The KEY NUMBER and DESCRIPTION of the part(s) (see the Part List and Exploded Drawing on pages 10
and 11).
Please have the TORSO DEVELOPER PLUS near your telephone for reference when calling.
Ordering Replacement Parts
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
