Weidmuller Crimpfix 2.5 M User manual

Weidmüller Interface GmbH & Co.
Klingenbergstraße 16
D-32758 Detmold
Telefax 05231/14 - 0
Telefon [phone] - 20 83
Operating Manual
Stripping and crimping machine
Crimpfix 2.5 M
Fabrication number

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 2
Inhaltsverzeichnis
1. Terms of use ..................................................................................................................................3
2. Prescribed use ...............................................................................................................................3
3. Safety and the environment............................................................................................................4
3.1 General ......................................................................................................................................................... 4
3.2 Safety instructions ........................................................................................................................................ 4
3.3 Safety precautions ........................................................................................................................................ 4
3.4 Setup............................................................................................................................................................. 4
3.5 Symbols and indications ............................................................................................................................... 5
3.6 Training of personnel .................................................................................................................................... 5
3.7 Special obligations of the person in charge..................................................................................................... 5
3.8 Using risks .................................................................................................................................................... 5
4. Transport........................................................................................................................................5
5. Technical specifications..................................................................................................................6
6. General view of the machine ..........................................................................................................7
7. Operating instructions ....................................................................................................................8
7.1 Putting into operation.................................................................................................................................... 8
7.2 Starting the machine ..................................................................................................................................... 8
7.3 Inserting ferrules ........................................................................................................................................... 8
7.4 Changing the ferrule belt .............................................................................................................................. 9
7.5 Adjustment of the cross-section.................................................................................................................... 9
7.6 Control of the stripping quality ...................................................................................................................... 9
7.7 Wire feeding - Wire section......................................................................................................................... 10
7.8 0.34-Tooling Set (optional) ......................................................................................................................... 10
7.9 Feeding funnel ............................................................................................................................................ 10
8. Main menu ................................................................................................................................... 11
9. Special functions .......................................................................................................................... 12
9.1 Display Contrast.......................................................................................................................................... 12
9.2 Adjusting Stripping Depth ........................................................................................................................... 12
10. Maintenance................................................................................................................................. 12
10.1 Stripping-waste container ........................................................................................................................... 12
10.2 Interior......................................................................................................................................................... 12
10.3 Striping blades changing position............................................................................................................... 13
10.3.1. Changing stripping blades .................................................................................................................. 14
10.3.2. Changing ferrule cutting blade ............................................................................................................ 14
11. Trouble shooting .......................................................................................................................... 15
11.1 Error messages........................................................................................................................................... 17
12. Electric diagram ........................................................................................................................... 18
13. Spare parts................................................................................................................................... 19
14. Declaration of conformity.............................................................................................................. 20

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 3
1. Terms of use
Please read carefully through this manual and observe the notes and explanations. Only by carefully following
these instructions the proper and trouble free operation of the Crimpfix 2.5 M machine can be guaranteed.
These operating instructions have been written with due care and attention. However, unless otherwise required
by law, we do not guarantee that the data, images and drawings are accurate or complete nor do we accept
liability for their contents. Weidmüller’s general terms and conditions of sale apply in their respective valid form.
Subject to alteration without notice
2. Prescribed use
This device is intended for use in applications only as described in the operating instructions. Any other form of
usage is not permitted and can lead to accidents or destruction of the device. Using the machine in non-
approved applications will lead immediately to the expiration of all guarantee and warranty claims on the part of
the operator against the manufacturer.
Using the selected machine for purposes other than those specified or failure to observe the operating
instructions and warning notes can lead to serious malfunctions that may result in personal injury or damage to
property.
Stripping of insulated wires according to DIN VDE 0295/class 5
DIN VDE 0281/102
DIN VDE 0281/103
Cross-section 0.5 – 2.5 mm²
0.34 mm² optional
Feeding-length 40 mm
Crimping of Weidmüller ferrules on reel with insulating collar:
H 0,34/12 optional
H 0,5/14
H 0,75/14
H 1,0/14
H 1,5/14
H 2,5/14
Crimpform
Trapez-Indent
The use of ferrules type H 0.34/12 is only possible with the 0.34 tooling set.
The indented use includes also the observance of all information in the operating manual and the compliance of
the maintenance work. (See chapter 10)

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 4
3. Safety and the environment
3.1 General
Only the intended using ensure the operational safety of the machine.
This manual contains important safety directions. All people working at the machine have to observe them.
3.2 Safety instructions
Depending on the model, the Crimpfix 2.5 M is configured with a power supply for AC voltage of either115 V or
240 V.
Caution:
Only plug the Crimpfix 2.5 M into an outlet with an earth (ground) connection.
The Crimpfix 2.5 M should only be operated in a dry environment with no exposure to moisture (splashed water,
fog, etc.).
3.3 Safety precautions
Read the following instructions carefully before starting up the Crimpfix 2.5 M. Observe the warnings and notes
on the Crimpfix 2.5 M at all times.
•Do not insert any unsuitable objects into the openings.
•Do not spill any fluids onto the Crimpfix 2.5 M.
•The mains voltage must correspond to the system voltage given on the Crimpfix 2.5 M type plate.
CAUTION!
•Only connect the machine to a properly earthed and correctly-fused plug socket outlet.
•Do not use a plug socket outlet already being used by devices that are turned on and off in regular intervals,
such as photocopiers or fans.
•Do not connect the Crimpfix 2.5 M to either a switched or a time – controlled plug socket outlet.
•Never use damaged or scuffed power cables.
•If you connect the Crimpfix 2.5 M to the power supply via an extension cable, ensure that the total nominal
current of all the devices connected to the extension cable does not exceed the ampere rating for that
extension cable. In addition, you should ensure that the total nominal current of all the devices plugged into
the wall – mounted socket outlet does not exceed the ampere rating for that wall – mounted socket outlet.
CAUTION!
Do not carry out repairs to the device yourself.
Unplug the Crimpfix 2.5 M and contact a qualified service engineer if anything of the following occurs:
•The power cord or plug are scuffed or damaged.
•Fluid has penetrated the Crimpfix 2.5 M.
•The Crimpfix 2.5 M is fallen down or the enclosure is damaged.
•The Crimpfix 2.5 M does not operate normally or the standard of performance varies noticeably.
When contacting the manufacturer for any information please have the machine type and fabrication number
available!(see type plate on the machine)
3.4 Setup
Select a suitable location for the setup, considering the following factors:
•Place the Crimpfix 2.5 M on a flat, stable surface larger than the base area of the machine.
•Ensure that there is sufficient space to allow the operator to push in cables without any restriction

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 5
3.5 Symbols and indications
Before switching on the machine, read through the operating manual carefully.
Use the machine only at dry places.
Caution!
This symbol indicates a possible hazardous situation.
Failure to observe these warnings could result in moderate injuries or property damages.
3.6 Training of personnel
•Only trained and qualified personnel are allowed to handle the machine.
•The responsibilities of the personnel for operating, changing tools and maintaining must defined.
•Only the manufacturer or authorized service workshops are entitled to repair these products.
3.7 Special obligations of the person in charge
•Knowledge about local regulations for safety and accident prevention.
•To take care that all safety and danger indications are clearly visible, replace them if necessary.
•To inform the manufacturer immediately if the machine and the application becomes unsafe.
•To change machine parts in defective condition immediately.
•To use only original spare and wear parts.
•Modifications or conversions at the machine require written approval by the manufacturer.
3.8 Using risks
•Operate the machine only when all safety system are fully functional.
•The operator is only allowed to clear faults on which the cover does not have to be removed.
•Only trained and qualified personnel are allowed to open the cover and to do maintenance or repair.
•Before opening the machine and changing spare parts remove the plug.
4. Transport
•Use always the complete original packaging for transports.
•For service and repair work the machine must be sent with all accessories.
•Before returning the machine, empty the stripping-waste container.

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 6
5. Technical specifications
Drive................................................................................................................................ Electric motor
Power supply .............................................................................................................. 1~230 V / 50 Hz
Power consumption .................................................................................................................. 100 VA
Fuse (line filter) ..............................................................................................................2 x T2AH250V
Protecting class..............................................................................................................................IP20
Cycle time ..................................................................................................................................... 1.5 s
Continuous sound level .......................................................................................................< 70 dB(A)
Dimensions (w x d x h) without reel and holder.................................................(292 x 310 x 260) mm
Colour ................................................................................................................................... RAL 7021
Weight.......................................................................................................................................... 15 kg
Temperature
Operating .......................................................................................................................+10°C - +45°C
Storage/Transport.......................................................................................................... -20°C - +70°C
Relative humidity
Operating .......................................................................................................5% - 95% (no bedewing)
Storage/Transport..........................................................................................5% - 95% (no bedewing)
Barometric pressure
Operating ..................................................................................................................... 1080 - 795 hPa
Storage/Transport ........................................................................................................ 1080 - 660 hPa

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 7
6. General view of the machine
Figure 1: Front view
Figure 2: Back view
Mains switch
Reel holder
Fuse
Flap
Mains plug
Stripping-waste container
Flap
Feeding funnel
Reel holder
Stripping-waste container
Display
Keypad
Cross-section range
Switch from 0.5-2.5 to 0.34
Fixing screw of the reel holder

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 8
7. Operating instructions
7.1 Putting into operation
•Put in the stripping-waste container. Take care that the container is completely inserted.
•Connect the mains cable to the machine and to the electrical supply. (The data on the type plate must agree
with the mains supply.)
7.2 Starting the machine
•Actuate the main switch on the back side of the unit.
•The operating-menu appears on the display and the last selected program is loaded.
7.3 Inserting ferrules
•Open the flap.
•Release the locking pin (see Figure 3) and remove the magazine.
•Put on the ferrule reel, so that it rotates in clockwise direction.
•While inserting the ferrules, the transporting pusher must be retracted. If the pusher juts out, you have to
press it back.
•Insert the belt until the first ferrule is snapped in. Be careful that no ferrule sticks out of the magazine.
•If the locking lever was pressed, the transporting pusher must be retracted and the ferrule belt must be
reloaded again.
•Put in the magazine until it snaps in and close the flap.
Figure 3: Magazine
9Tansporting pin
Locking pin
Locking lever
Locking lever
Tansporting pusher
Be careful that no ferrule sticks
out and the transporting pusher
is retracted while inserting

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 9
7.4 Changing the ferrule belt
•Open the flap.
•Release the locking pin (see Figure 3) and remove the magazine.
•Push the transport pin completely up and take out the ferrule belt.
•Put on the new ferrule reel, so that it rotates in clockwise direction.
•While inserting the ferrules, the transporting pusher must be retracted. If the pusher juts out, you have to
press it back.
•Insert the new belt until the first ferrule snaps in. Be careful that no ferrule sticks out of the magazine.
•If the locking lever was pressed, the transporting pusher must be retracted and the ferrule belt must be
reloaded again.
•Put in the magazine until it snaps in and close the flap.
•Take care that you have selected the correct cross-section program.
7.5 Adjustment of the cross-section
program
Econfirm
select the right cross-section (P1 - P6)
Econfirm and back to the operating menu
7.6 Control of the stripping quality
Neccesary after each change of wire type, cross section or wire manufacturer!
•Choose the right cross section program.
•Open the flap.
•Release the locking pin (see figure 3) and remove the magazine.
•Close the flap.
•Put the wire in the feeding funnel until a new cycle starts.
•Check the stripping and if necessary adjust the stripping depth. (See chapter 9.2)
1
3
b
a=
ab
D
Isolation
Cutting edge of the stripping blades
Stranded wires
The cut edge of the
stripping blades have to
look like a rue and must
be symmetrical to the
stranded wires
Figure 4: Top view of a correct stripping

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 10
7.7 Wire feeding - Wire section
•The wire has to be cut off straight and may not have any bends or bows.
•Insert the wire into the feeding funnel until the working cycle is triggered.
•After triggering hold the wire.
correct incorrect
oblique cut
deformed wire
wires sticking out
squeezed wire
40 mm
correct incorrect
wires standing back
Figure 5: Wire feeding - Wire section
7.8 0.34-Tooling Set (optional)
Contents: Magazine 0.34
Feeding funnel 0.34
Label
Figure 6: 0.34-Tooling-Set (optional)
The H 0,34/12 ferrules may be handled only with the 0.34-tooling set.
Set the cross-section range by rotating the adjustment screw on front of the machine.
•Take out the plastic plug.
•Turn the screw clockwise with an Allen key to the limit stop.
To setup the machine back to the range of 0.5 – 2.5 mm² proceed in opposite direction.
7.9 Feeding funnel
Remove feeding funnel
•Loosen the screws.
•Take out the feeding funnel
Install feeding funnel
•Insert the feeding funnel that the marking is on top.
•Tighten the screws evenly.
Feeding funnel
Magazine
Label

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 11
8. Main menu
C
C
C
C
C
E
E
E
E
E
E
C
C
C
C
E
E
S1 S3 0
S1 S3
D : mm
S.Motor
S.Motor
5s
5s
Remove the magazine!
Startsensor Stopsensor Current
* triggered
Manual mode
Forwards
Backwards
Exit
Exit
Starting position
M.Motor
Cancel and exit (Reference run)
D = Distance of the stripping blades
Save and exit
Adjust the stripping depth
of the current program
1 : 0.34 mm² (D=0.70mm)
2
3
4
5
: 0.50 mm² (D=0.90mm)
: 0.75 mm² (D=0.97mm)
: 1.00 mm² (D=1.36mm)
: 1.50 mm² (D=1.69mm)
6 : 2.50 mm² (D=2.01mm)
7 : -S1- mm² Special program
8 : -S2- mm² Special program
9 : -S3- mm² Special program
Save and exit
Cancel and exit
Program
P-No : Cross-section
Daily piece counter
Software-Version / Type
5s Delete daily piece counter
P-No Cross-section
Ready S: Piece counter/
M.Motor
Program
Operating menu
Language
German / English
Language
German
English
Current P-No:Cross-section
D: current value in mm
Guide value
depends on wire
type and wire
manufacturer

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 12
9. Special functions
9.1 Display Contrast
Mains switch +
Edit
EExit
9.2 Adjusting Stripping Depth
Remove the magazine
Close the flap
2x S-Motor
EPress it 5 seconds till cursor
starts blinking
Reduce D ¼enhance cutting
depth
or
Enhance D ¼reduce cutting
depth
EConfirm and back to the
operating menu
Check the stripping quality after changing the
stripping depth. (Chapter 7.6)
1
3
b
a=
ab
D
Isolation
Cutting edge of the stripping blades
Stranded wires
Figure 7: Top view of a correct stripping
The cut edge of the stripping blades have to look like a rue
and must be symmetrical to the stranded wires
Program Cross section Diameter Wire type Wire manufacturer
1 0,34 mm² 1,20 mm LiY
2 0,5 mm² 1,40 mm H05V-K
3 0,75 mm² 1,60 mm H05V-K
4 1,0 mm² 1,80 mm H05V-K
5 1,5 mm² 2,10 mm H07V-K
The adjusted guide values
depend on wire type and wire
manufacturer and can be used
for new intact striping blades.
6 2,5 mm² 2,45 mm H07V-K
LAPPKABEL
10. Maintenance
See chapter 3.8. Using risks
10.1 Stripping-waste container
•Regularly empty the stripping-waste container.
10.2 Interior
•Switch off the machine and unplug it.
•Remove the stripping-waste and other impurities
•Do not clean with compressed air.
•Do not oil and/or lubricate the machine.

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 13
10.3 Striping blades changing position
Figure 8: Striping blades changing position
→Striping blades changing position →Basic position
•Remove the magazine
•Unscrew and remove the feeding funnel
•3x M.Motor
•E5s Confirm
•CStarting position
•Press until Motor stops.
•Switch off the machine and unplug it.
•Remove the stripping waste container
•Unscrew and remove the reel holder
•Unscrew and remove the flap
•Remove the cover. (Screws at the bottom plate
and at the line filter)
•Remove right, red marked screw (3).
•Push the shaft (1) to the front and remove it.
•Loosen the plug connection at the S-Motor (8).
•Remove the two fixing screws of the key
attachment (10) and take it out to the front with
the key.
•Turn the stripping slide (7) to the left.
•Take care that the pin at the bottom side of the
stripping slide (7) snaps into the groove (2) of the
driving lever when it swings back.
•Push the shaft (1) back and fix it with the right, red
marked screw (3). Take care that the screw (3)
snaps into the groove of the shaft(1).
•Assembly the cover, the reel holder and the flap.
•Put the stripping waste container in.
•Put the machine into operation again.
•3x M.Motor
•E5s Confirm
•CStart position
•EQuit menu and back to main menu.
•Put in the magazine again.
•Control the stripping quality.
2
1
3
5
9
1 Shaft
2 Groove – driving lever
3 Right screw, red marked
4 Protection plate
5 Left screw, red marked
6 Magazine holder
7 Stripping slide
8 S-Motor
9 Table guidance
10 Fixing screw – key
attachment
10
4
8
6
7

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 14
Danger! Blades are sharp.
10.3.1. Changing stripping blades 10.3.2. Changing ferrule cutting blade
•Stripping blades changing position
•See Figure 9: Stripping slide (backside)
•Remove the fixing screws of the blade fasteners
(1) at the stripping unit.
•Remove the blade fasteners.
•Loosen the fixing screws of the blades (2). Open
them for only 1 – 2 rotations but do not unscrew
them completely.
•Take out the blades.
•Put the new blades in correct position up to the
limit stop and screw them on.
•Mount the blade fasteners and screw them on.
•Stripping blades changing position
•See Figure 8: Striping blades changing position
•Remove the left, red marked screw (5) and the
protection plate (4).
•Unscrew both fixing screws of the table guidance
(9) from the back.
•Pull the table guidance (9) to the front down of the
two guiding pins and take it out to the right below
the magazine holder (6).
•Remove the flat head screw above the ferrule
cutting blade and change the blade.
•Take care that the ferrule cutting blade fits in the
groove and up to the limit stop before bolting the
flat head screw.
•Put the table guidance from the right side below
the magazine holder onto the lower slide. Push it
careful on the two guiding pins and screw it on
from the back.
•Fix the protection plate (4) with the red marked
screw (5).

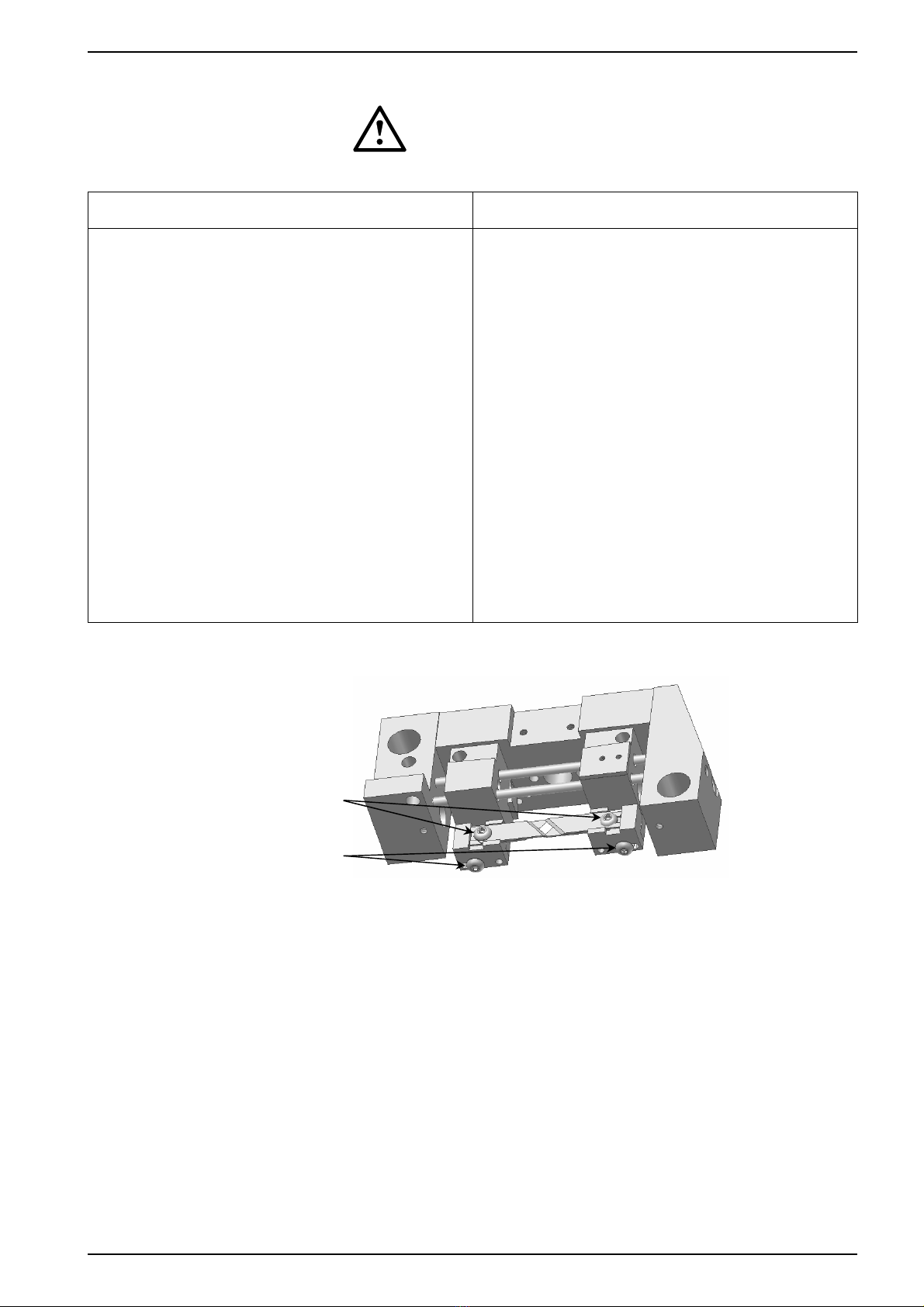

Figure 9: Stripping slide (backside)
1
2
Fixing screws
1 Blade fasteners
2 Blades

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 15
11. Trouble shooting
See chapter 3.8. Using risks
Trouble Elimination
Double crimp See Jammed wire
Jammed wire Remove the Magazine.
If there is a ferrule in the crimping tool, take it away.
Remove the feeding funnel.
If the feeding funnel is not removable:
3x M.Motor
E5s Confirm →manual operation
or Move carefully stepwise forwards or backwards
until the feeding funnel is removable.
CStarting position
Take out stripping waste.
Insert the feeding funnel and fix it.
EExit and back to the operating menu
Insert in the magazine.
Not able to put in a cable Holding clamps are not in starting position
Remove the magazine
3x M. Motor
E5s Confirm →manual operation
CStarting position
EExit and back to the operating menu
Insert in the magazine.
Machine is not starting Machine is not in operating mode
Remove the magazine
3x M. Motor
E5s Confirm →manual operation
Insert wire
Starting switch S1 is triggered (*) or damaged.
CStarting position
EExit and back to the operating menu
Insert in the magazine.
Wire is not stripped correct Stripping depth is not adjusted correctly.
See chapter 9.2 Adjusting Stripping Depth
Single strands are cut Stripping depth is not adjusted correctly.
See chapter 9.2 Adjusting Stripping Depth

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 16
Display is not readable Contrast setup is not ok.
Mains switch +
Edit
EExit
Key presses are not accepted Keyboard is damaged
Keyboard check
Main switch and C
0c
0e
C0f
E0d Back to main menu
Ferrule misses on the stripped wire Open the flap and remove the magazine.
If there is a ferrule in the ferrule holder take it out.
Insert the magazine and close the flap.
Wire is not stripped tough the machine is correct
adjusted
Turn off the machine and wait 30 s.
Start the machine and make a stripping test.
(see chapter 7.6)

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 17
11.1 Error messages
The error messages are shown on the display. The error messages are deleted by pressing key E.
Code Fault Elimination
Flashe. Saving or loading error
RS485-TO Timeout interface
Turn machine off and on or call the service.
S.motore Stepping motor at the limit stop or
blocked or timeout
Turn the machine off an on and choose the program
again.
Curr.e. Current to high
Machine is rough-running or blocked
3x M.Motor
E5s Confirm →manual operation
or Move carefully stepwise forwards or backwards
until the feeding funnel and the magazine are removable.
CStarting position
Insert feeding funnel and fix it.
EExit and back to the operating menu
Insert the magazine.
Start=0 Wrong triggering
The starting switch S1 is activate
short.
Remove magazine
Press E. The machine goes to the starting position.
Insert the magazine.
If you don’t remove the magazine, the right treatment of
the ferrule can’t be guaranteed.
Start=1 Start position error
Starting switcis used
Stop=1 Stop position=1
End position not reached
Stop=0 Stop position=0
Too much time for one cycle
3x M.Motor
E5s Confirm →manual operation
Press until the motor stops.
CStarting position
EExit and back to the operating menu.
Insert in the magazine.
Trash=0 No stripping waste container Insert the stripping waste container completely.
Flap=0 Flap open Close the flap.
Service Message after 200 000 crimps The machine should be returned to the manufacturer for
any necessary maintenance work.

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 18
12. Electric diagram

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 19
13. Spare parts
Designation Nr.o.
Stripping-blades (set) CFX 2.5M 9205800000
Transport/Holder catch CFX 2.5M 9205810000
Ferrule cutting blade CFX 2.5M 9205820000

Stripping and crimping machine Crimpfix 2.5 M
08-09-19-DK-Operating Manual_gb.doc / 2008-09-19 20
14. Declaration of conformity
The firm
Weidmüller Interface GmbH & Co.
Klingenbergstraße 16
D-32758 Detmold
attests, in sole-responsibility, that the product
Stripping and crimping machine
Crimpfix 2.5 M
Fabrication number:
which this declaration refers to, agrees with the following standards and guidelines:
Machinery Directive 98/37/EC
EMC Directive 89/336/EEC
Low Voltage Directive 73/23/EEC
Mechanical safety EN ISO 12100-1
EN ISO 12100-2
Electrical safety EN 60 204-1
Emission EN 61000-6-4:2007
Immunity EN 61000-6-2:2005
Detmold, 2008-09-19
Dr. Christoph Fröhlich
This Declaration of Conformity is suitable to the European Standard EN45014.
„General criteria for supplier's declaration of conformity"
The basis for the criteria has been found in international documentation, particularly in: ISO/IEC Guide 22, 1982,
„Information on manufacturer's declaration of conformity with standards or other technical specifications".
