Weiler E1650 Installation instructions

WEILER E1250A REMIXING TRANSFER VEHICLE
E1650
Remixing Transfer
Vehicle
Operator’s and Maintenance
Manual
July 2018
S/N 1001 - UP
Part No. 44513

WEILER E1250A REMIXING TRANSFER VEHICLE
WEILER WARRANTY
-Exclusive Limited Warranty-
The manufacturer warrants each new WEILER PRODUCT to be free of defects in workmanship and
material at the time of shipment to first end-user. The warranty period is 12 months.
A. If a defect is found, and the authorized dealer is notified during the 12 month warranty period, the
manufacturer will repair or replace any part or component on the unit that fails to conform to the
warranty.
B. The manufacturer has the right to repair any part or component prior to replacement.
C. All new replacement parts will carry a six (6) month warranty. Remanufactured parts will carry a
ninety (90) day warranty.
D. ENGINES, TIRES, BATTERIES and ATTACHMENTS are normally warranted by their
manufacturers and may have different warranty than that of the manufacturer.
NO WARRANTY OF ANY KIND SHALL BE MADE WITH RESPECT TO:
A. Any defects or damage caused by misuse, misapplication, negligence accident or failure to maintain
or use the product in accordance with current operating instructions.
B. Any product that has been used with an attachment or in an application where excessive workload or
stress causes failure of the part or component.
C. Failure to conduct normal maintenance and operating service to include but not limited to providing
lubricants, coolant, fuel, inspections and regular tune-ups.
D. Unauthorized alterations, modifications and or replacements parts and components not manufactured
by the manufacturer.
THE MANUFACTURER IS NOT RESPONSIBLE FOR THE FOLLOWING:
A. Charges for travel time, mileage or overtime.
B. Airfreight charges for parts shipped to point of service.
C. Transportation charges to and from point of service.
D. Consumable parts such as cutting edges, filters and items expected to receive normal wear and tear.
E. Liability or damages of any type due to lost profits or expenses to acquire replacement products
EXCEPT AS SPECIFICALLY STATED ABOVE, THE MANUFACTURER MAKES NO WARRANTY
OR REPRESENTATION, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE
WARRANTY SET FORTH ABOVE AND THE OBLIGATIONS AND LIABILITIES OF THE
MANUFACTURER THEREUNDER REPRESENT CUSTOMER’S SOLE AND EXCLUSIVE
REMEDIES AND ARE EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER REMEDIES,
WARRANTIES, GUARANTIES OR LIABILITIES. THERE ARE NO WARRANTIES WHICH EXTEND
BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT SHALL THE
MANUFACTURER’S LIABILITY HEREUNDER EXCEED THE PURCHASE PRICE FOR THE
PRODUCTS, NOR SHALL THE MANUFACTURER BE LIABLE FOR ANY SPECIAL INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
10/21/05

WEILER E1650 REMIXING TRANSFER VEHICLE
i
Product and Dealer Information
PRODUCT AND DEALER INFORMATION
Delivery Date:_______________________________
DEALER INFORMATION
Dealer Name_________________________________________________________________________________
Address_____________________________________________________________________________________
City_________________________________________________________________________________________
State__________________________________________ Zip / Post Code________________________________
Country_______________________________________ Phone________________________________________
OWNER INFORMATION
Owner Name_________________________________________________________________________________
Address_____________________________________________________________________________________
City_________________________________________________________________________________________
State_________________________________________ Zip / Post Code_________________________________
Country______________________________________ Phone_________________________________________
MACHINE IDENTIFICATION NUMBERS
Engine Model Number________________________________________________________________________
Engine Serial Number________________________________________________________________________
Machine Model Number_______________________________________________________________________
Machine Product Identification Number ________________________________________________________

WEILER E1650 REMIXING TRANSFER VEHICLE
ii Receiving and Delivery Report
RECEIVING AND DELIVERY REPORT
DEALER PREP
Check and perform the following:
General
____ Check machine for shipping damage or shortage.
____ Check that all optional and loose items are included with machine.
____ Check that all safety signs and control decals are not damaged.
____ Check that the Operator’s and Maintenance Manual is attached to machine.
____ Check neutral start system and engine stop operations.
____ Check for fluid leaks. If leak is found, correct leak and check component fluid level.
Engine/Drivetrain
____ Check fuel and DEF levels.
____ Check oil level.
____ Check coolant level.
Hydraulics
____ Check fluid level.
____ Check for proper function.
DELIVERY
Check and perform the following with the operator/owner:
Machine
____ Review all sections of this Operator’s and Maintenance Manual.
____ Fill out Dealer, Owner, and Machine information sections in this manual.
Review of Operation
____ Overall explanation and demonstration of how the machine works.
____ Explain machine and operator safety.
____ Preparing machine for operation.

WEILER E1650 REMIXING TRANSFER VEHICLE
iii
TABLE OF CONTENTS
Product and Dealer Information . . . . . . . . . . . . i
Receiving and Delivery Report . . . . . . . . . . . . ii
Table of Contents . . . . . . . . . . . . . . . . . . . . . . iii
Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . vi
SAFETY
Safety Messages . . . . . . . . . . . . . . . . . . . . .1-1
General Safety Rules . . . . . . . . . . . . . . . . . .1-5
Check Laws and Regulations . . . . . . . . . . . .1-5
Fire Extinguisher. . . . . . . . . . . . . . . . . . . . . .1-6
Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . .1-6
MACHINE CONTROLS
Machine Description. . . . . . . . . . . . . . . . . . .2-1
Machine Terminology . . . . . . . . . . . . . . . . .2-2
Machine Controls . . . . . . . . . . . . . . . . . . . . .2-3
OPERATING INSTRUCTIONS
Operator Qualifications. . . . . . . . . . . . . . . . .3-1
Personal Protection . . . . . . . . . . . . . . . . . . .3-2
Sound Levels . . . . . . . . . . . . . . . . . . . . . . . .3-3
Vibration Levels . . . . . . . . . . . . . . . . . . . . . .3-3
Prepare the Area . . . . . . . . . . . . . . . . . . . . .3-4
Mounting and Dismounting. . . . . . . . . . . . . .3-6
Pre-Starting Inspection (Before Each Use) .3-6
Machine Starting Procedure . . . . . . . . . . . . .3-7
Jump-Starting . . . . . . . . . . . . . . . . . . . . . . . .3-9
Machine Starting Procedure - Cold Start . .3-11
Machine Shutdown Procedure . . . . . . . . . .3-13
Preparing Machine . . . . . . . . . . . . . . . . . . .3-15
Driving Machine . . . . . . . . . . . . . . . . . . . . .3-18
Paving. . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-19
Machine Cleanup . . . . . . . . . . . . . . . . . . . .3-27
Cleaning or Removing Material . . . . . . . . .3-28
TRANSPORTING
Lifting Machine. . . . . . . . . . . . . . . . . . . . . . . 4-1
Roading Machine . . . . . . . . . . . . . . . . . . . . . 4-1
Limp Mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Towing/Retrieving Machine . . . . . . . . . . . . . 4-3
Trailering Machine . . . . . . . . . . . . . . . . . . . . 4-5
MAINTENANCE
Safety Messages . . . . . . . . . . . . . . . . . . . . 5-1
Safety Signs. . . . . . . . . . . . . . . . . . . . . . . . . 5-3
General Information . . . . . . . . . . . . . . . . . . . 5-3
Welding Precautions . . . . . . . . . . . . . . . . . . 5-4
Engine Maintenance . . . . . . . . . . . . . . . . . . 5-5
Maintenance Schedule . . . . . . . . . . . . . . . . 5-6
Maintenance Procedures . . . . . . . . . . . . . . . 5-7
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-49
SPECIFICATIONS
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . .A-1
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-2
Performance Specifications . . . . . . . . . . . . .A-2
Engine Specifications. . . . . . . . . . . . . . . . . .A-3
Fluid Capacities . . . . . . . . . . . . . . . . . . . . . .A-4
Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . .A-4
Hydraulic System Specifications . . . . . . . . .A-5
FAULT CODES
Electronic Display Error Fault Codes . . . . . .B-1
SCHEMATICS
Electrical Schematic. . . . . . . . . . . . . . . . . . .C-1
Hydraulic Schematic . . . . . . . . . . . . . . . . .C-10

This page intentionally left blank.

WEILER E1650 REMIXING TRANSFER VEHICLE
v
Foreword
FOREWORD
This manual is an important part of the machine and provides correct procedures for machine
operation and maintenance. Proper maintenance and service are essential for safety and for efficient
operation of the machine. Do not use the machine if it is not in suitable operating condition. Read and
understand these instructions thoroughly before operating the machine for the first time or
maintaining machine. Failure to do so could result in personal injury or equipment damage. Contact
an authorized Weiler dealer if you do not understand the instructions in this manual or need
additional information.
This tethered manual must remain with the machine at all times. Store it in the manual storage box.
Replace manual immediately if lost, damaged, or unreadable. If you sell the machine, be sure this
manual is transferred to the new owner.
If a question arises concerning the equipment, contact an authorized Weiler dealer. Factory-trained
personnel and genuine replacement parts are available for all service requirements.
To maintain and help ensure trouble-free operation of this machine, the routine maintenance as
specified in this manual must be carried out at the recommended intervals.
The instructions, illustrations, an specifications in this manual are based on the latest information
available at time of publication. This machine may have product improvements and features not yet
contained in this manual. Dimensions and weights are approximate and the illustrations may not
show the equipment in standard configuration.
The following acronyms may be used throughout this manual:
• CAN - Controller Area Network,
•CW-Clockwise,
• CCW - counterclockwise,
• DEF - Diesel Exhaust Fluid,
• DOC - Diesel Oxidation Catalyst,
• DPF - Diesel Particulate Filter,
• ECM - Electronic Control Module,
• LCD - Liquid Crystal Display,
• LED - Light Emitting Diode,
• PPE - Personal Protective Equipment,
• SMV - Slow Moving Vehicle, and
• SCR - Selective Catalytic Reduction.
Make no modifications to machine unless specifically requested or authorized by Weiler. Modification
of this machine could mean that it will no longer meet applicable standards or regulations, and the
machine may not function properly or in accordance with these operating instructions. Machine
modification should only be performed and verified for operational and safety requirements by
competent personnel.
Weiler reserves the right to make changes at any time without notice or obligation.
This equipment may be covered by one or more U.S. patents listed at
www.weilerproducts.com/patents.

WEILER E1650 REMIXING TRANSFER VEHICLE
vi Introduction
INTRODUCTION
Thoroughly read and understand these instructions and store the tethered manual in the manual
holder on the machine for future reference.
When purchasing a used Weiler machine you are requested to contact Weiler Customer Service at
641-828-6622 or at www.weilerproducts.com and request a customer login and password to gain
access to online manuals for this machine.
Additional copies of the manuals are available from an authorized Weiler dealer. When ordering a
new manual, use the part number on the front cover.
INTENDED USE
A E1650 Remixing Transfer Vehicle is used to transfer bulk asphalt material from delivery vehicles
to a paving machine. The machine receives paving material in the forward dump hopper, or picks
windrowed material up off of the roadway, delivers the material to the center hopper for storage and
remixing, and then conveys the material to the hopper of a paving machine.
Always use the machine in accordance with the instructions contained in this Operator’s and
Maintenance Manual, safety signs on the machine, and other material provided by Weiler. Usage in
any other way is considered contrary to the intended use.
Proper maintenance and repair are essential for safety and for efficient operation of the machine. Do
not use the machine if it is not in suitable operating condition.
This safety alert system identifies important safety messages in this
manual.
When you see this symbol, be alert, your safety is involved, carefully read
the message that follows, and inform other operators.

WEILER E1650 REMIXING TRANSFER VEHICLE
1-1
Safety 1
Safety Messages
SECTION 1: SAFETY
SAFETY MESSAGES
General safety messages appear in this Safety Messages section. Specific safety messages are located
in appropriate sections of the manual where a potential hazard can occur if the instructions or
procedures are not followed.
Personal Safety
A signal word “DANGER”, “WARNING”, or “CAUTION” is used with the safety alert symbol.
Safety signs with signal word “DANGER”, “WARNING”, or “CAUTION” are located near specific
hazards.
Machine or Property Damage
The signal word ˆNOTICE˜ is not used with a safety alert symbol and is followed by specific
instructions.
Decals with the signal word ˆNOTICE˜ are located near specific areas where machine or property
damage can occur.
DANGER indicates a hazardous situation that, if not avoided, will result in
death or serious injury.
WARNING indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
This is the safety alert symbol. This symbol is used in combination with an
exclamation mark or other symbols to alert you to the potential for bodily
injury or death.
NOTICE indicates information considered important, but not hazard related.
It is used to inform about possible machine and/or property damage.
This symbol indicates that machine damage can occur if proper procedures
are not followed, or at least one part of the machine is not operating correctly.
Shutting down machine may not be necessary, but some maintenance may be
required.
DANGER
WARNING
CAUTION
NOTICE

1
WEILER E1650 REMIXING TRANSFER VEHICLE
1-2
Safety
1
Safety Messages
Refer to "Machine Shutdown Procedure", page 4-9, for instructions.
WARNING
Read Operator’s and Maintenance Manual and safety signs before operating
machine.
WARNING
Check machine before operating. Machine must be in good operating
condition and all safety equipment installed and functioning properly.
WARNING
Wear personal protective equipment (PPE). Dress properly. Wear close-
fitting clothing and confine long hair. Avoid wearing jewelry, such as rings,
wristwatches, necklaces, or piercings. Refer to “Personal Protective
Equipment” in the Operator’s and Maintenance sections of this manual for
additional requirements.
WARNING
Follow Shutdown Procedure before inspecting, fueling, cleaning,
transporting, lubricating, repairing, or servicing machine.
WARNING
Runover possible. Contact with moving parts can cut or crush.
Make sure no one is working on, underneath, or close to machine before
starting engine or moving machine. Ensure area is free of personnel. Keep
spectators away.
WARNING
Falling load can crush.
Never work under lifted load unless load is securely supported to prevent
falling.

WEILER E1650 REMIXING TRANSFER VEHICLE
1-3
Safety 1
Safety Messages
WARNING
Pressurized fluid can penetrate body tissue. Leaks can be invisible. Keep
away from any suspected leak. Relieve pressure in the hydraulic system
before searching for leaks, disconnecting hoses, or performing any other
work on the system. When searching for a pressurized leak, use an object
such as a piece of wood or cardboard. Keep hands away. When loosening a
fitting where residual pressure can exist, slowly loosen fitting until fluid
begins to leak. Wait for leaking to stop before disconnecting fitting. Tighten
all connections before re-pressurizing system. Seek immediate surgical
treatment if fluid is injected under skin.
WARNING
Contact with moving parts can cut or crush.
Keep hands, feet, and clothing away from power-driven parts. Keep all
shields and guards in place and properly secured.
CAUTION
Diesel Exhaust Fluid (DEF) can cause eye irritation and can be moderately
irritating to the skin. Spilling DEF onto hot components can cause the
release of ammonia vapors. Exposure to decomposition products can cause a
health hazard. Serious effects can be delayed following exposure.
DEF is not expected to produce significant adverse health effects when the
recommended instructions for use are followed:
• Do not breathe DEF vapor or mist.
• Do not eat, drink, or smoke when using DEF.
• Avoid DEF contact with eyes, skin, and clothing.
• Use caution when dispensing DEF near a hot engine.
• Do not clean up any spills with bleach.
•Wash hands thoroughly after handling DEF.
CAUTION
Hot asphalt can cause injury from burns.
• Wear safety glasses, gloves, and protective clothing.
• Avoid contact with skin, eyes, and clothing.
In case of skin contact, get prompt medical attention.
WARNING
A rider can fall off and be crushed.
Never allow anyone to ride on the ladder or platform.

1
WEILER E1650 REMIXING TRANSFER VEHICLE
1-4
Safety
1
Safety Messages
WARNING
Exhaust gas temperature could exceed 1100°F (600°C) during regeneration.
High temperature can result in fire, burn, or explosion hazards.
To prevent fires, routinely clear any combustible material from engine and
engine exhaust system. Do not expose flammable material or explosive
atmospheres to exhaust gas or to exhaust system components during
regeneration.
WARNING
Engine exhaust can asphyxiate. If inhaled directly or continuously,
combustion fumes produced by engine can be hazardous.
If work has to be done in an enclosed environment, take all necessary
precautions to ensure the circulation of fresh air and protect the respiratory
system using a suitable mask.
WARNING
Breathing crystalline silica dust can cause lung disease. Cutting, drilling, or
working materials such as concrete, sand, or rock containing quartz can
result in exposure to silica dust.
Use dust control methods or appropriate respiratory protection when
exposed to silica dust conditions.

WEILER E1650 REMIXING TRANSFER VEHICLE
1-5
Safety 1
General Safety Rules
GENERAL SAFETY RULES
The following safety rules are important for safe operation of the machine. Remember that no amount
of safety rules or safety equipment can make the operation of any machine safe, unless the operator
follows the rules and uses the safety equipment.
•Only a responsible, properly trained safety-conscious individual should operate the machine.
•The operator should not leave the operator’s platform when the engine is running.
•Always keep the operator’s platform and ladder clean and free of debris to help prevent slipping
and falling.
•Stay clear of wheels, conveyors/augers, and hopper(s) when engine is running.
•Place all controls in neutral or off position and apply park brake before starting machine and
shutting machine down.
•Never place body between machine and truck, or machine and paver.
•Provide appropriate lighting and marking on the machine to meet jobsite requirements and
regulations.
•Be sure safety shields and guards are in place and in good condition before starting the machine.
•Before cleaning, adjusting, or servicing machine, turn engine off and place all controls in neutral
or off position and apply park brake. Lower all attachments, or securely support raised
components. A variation of the above procedure may be used if instructed within this manual.
•Never transport persons or dangerous goods (e.g. gas bottles, fuel) in the hopper.
CHECK LAWS AND REGULATIONS
Know and obey all federal, state, and local laws and regulations that apply to your work situation.
WARNING
Failure to follow any of the safety instructions within this manual could be
hazardous. This machine is to be used only for those purposes for which it
was intended as explained in this manual.

1
WEILER E1650 REMIXING TRANSFER VEHICLE
1-6
Safety
1
Fire Extinguisher
FIRE EXTINGUISHER
Mount a fire extinguisher (not supplied with machine) on the side of each front ladder, main
operator’s platform, and rear platform for easy access to the operator and personnel on the ground.
SAFETY SIGNS
Safety Signs - Inspect
Safety signs located on machine contain important and useful information that will help you operate
the machine safely. Refer to "Safety Signs - Check / Clean", page 5-41 for safety sign maintenance
and replacement.

WEILER E1650 REMIXING TRANSFER VEHICLE
1-7
Safety 1
Safety Signs

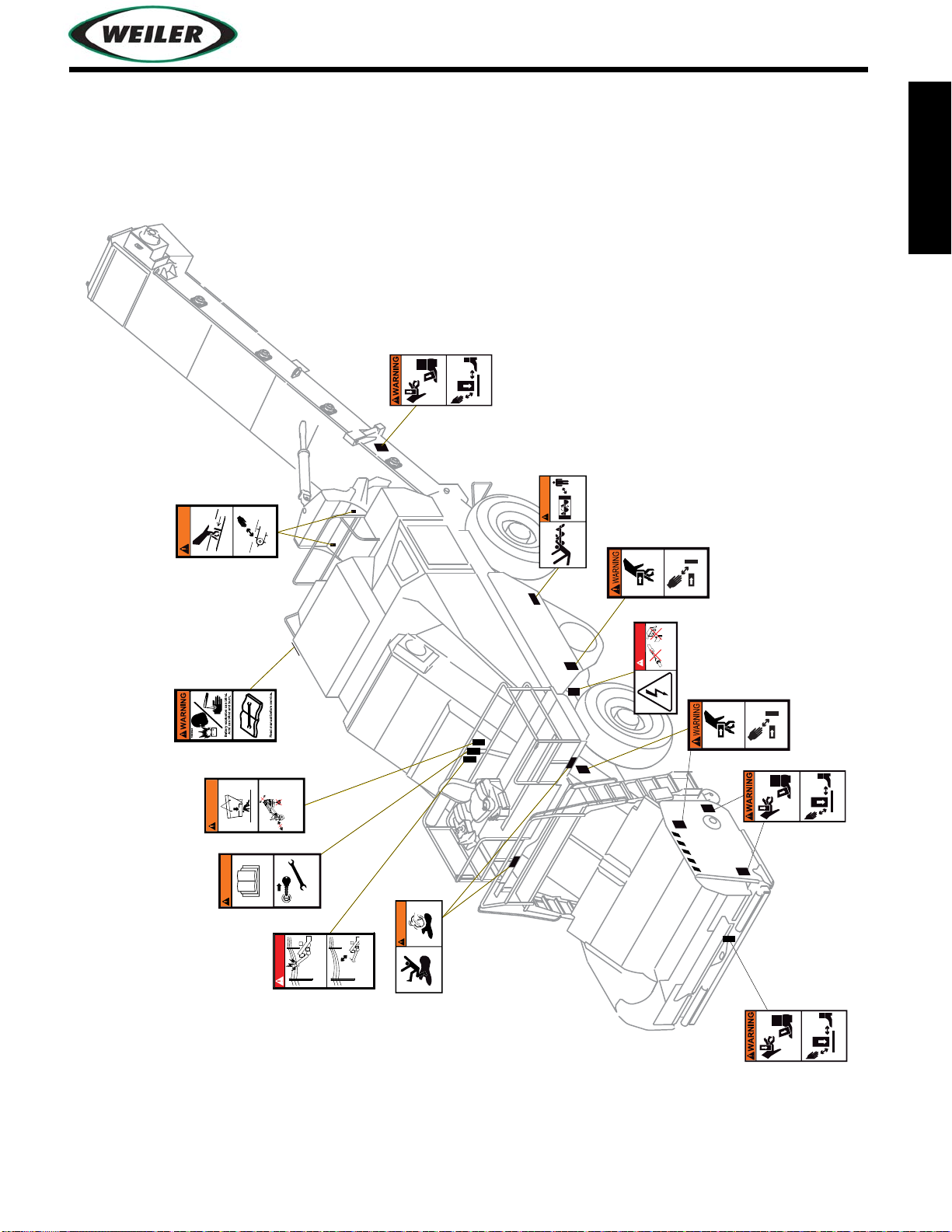

Safety Sign Locations
BOTH SIDES
BOTH SIDES
BOTH SIDES
BELOW BATTERY
COMPARTMENT
DOOR
BOTH SIDES
BOTH SIDES
CBA-46-2320
Moving parts can crush.
Keep hands and feet
away.
CBA-46-2320
Moving parts can crush.
Keep hands and feet
away.
23652
Crush Hazard
Keep hands away.
DANGER

&QPQVFKUEQPPGEVQT
EQPPGEVYJGPGPGTIK\GF
23652
Crush Hazard
Keep hands away.

WARNING
Rotating auger can cut
or crush. door. Stay away from
Auger behind clean-out
rotating auger.
CBA-46-2320
Moving parts can crush.
Keep hands and feet
away.
18398
Moving conveyor slats.
Keep hands out.
WARNING
WARNING

4GCFOCPWCN
DGHQTGQRGTCVKPI
5VQRGPIKPG
DGHQTGUGTXKEKPI
JQRRGTNKHVGF
UYKPIEQPXG[QTYKVJ
KPUGTV&QPQVFTKXGQT
.KHVQPN[9GKNGTJQRRGT
<2600 lb <1180 kg
WARNING
(CNNKPINQCFECPETWUJ


5VC[CYC[HTQO
GPGTIK\GFRQYGTNKPGU
DANGER
FGCVJQTUGTKQWUKPLWT[
'NGEVTKEUJQEMYKNNECWUG
WARNING
27347
Slip and fall hazard. Keep surface clean.

1
WEILER E1650 REMIXING TRANSFER VEHICLE
1-8
Safety
1
Safety Signs
BOTH SIDES
HOPPER INSERT
ALL SIDES
BOTH SIDES
INSIDE COVER
BOTH SIDES
INSIDE COVER
BOTH SIDES
BOTH SIDES INSIDE COVER
CD462333
Moving parts can crush. Stay away.
18398
Moving conveyor slats.
Keep hands out.
WARNING
Allow to cool before opening.
36515
Hot fluid under pressure
can scald.
V2326324
Fuel and fumes can
explode and burn.
STOP
Stop engine. No flame.
No smoking.

5VC[CYC[HTQO
GPGTIK\GFRQYGTNKPGU
DANGER
FGCVJQTUGTKQWUKPLWT[
'NGEVTKEUJQEMYKNNECWUG
CD462333
Moving parts can crush. Stay away.
JQRRGTNKHVGF
UYKPIEQPXG[QTYKVJ
KPUGTV&QPQVFTKXGQT
.KHVQPN[9GKNGTJQRRGT
<2600 lb <1180 kg
WARNING
(CNNKPINQCFECPETWUJ

WARNING

4GCFOCPWCN
DGHQTGQRGTCVKPI
5VQRGPIKPG
DGHQTGUGTXKEKPI
4WPQXGTECPETWUJ

HTQOYJGGNU
WARNING
-GGRHGGVCYC[

WARNING
(CNNKPINQCFECPETWUJ ECDNGU4GCF1RGTCVQTU/CPWCN
<1180 kg
<2600 lb
7UGQPN[RTQRGTN[TCVGFEJCKPUQT
.KHVQPN[9GKNGTJQRRGTKPUGTV
WARNING
27352
Rotating shaft. before operating.
Install shield
WARNING
27347
Slip and fall hazard. Keep surface clean.
CD462333
Moving parts can crush. Stay away.

WEILER E1650 REMIXING TRANSFER VEHICLE
1-9
Safety 1
Safety Signs
Safety Sign Explanations
WARNING
Read Operator’s and Maintenance Manual before operating.
Stop engine and remove ignition key before servicing.
WARNING
Falling load can crush.
Lift only approved Weiler hopper inserts. Do not use conveyor to lift any
other objects. Use only properly rated chains or cables. Read Operator’s and
Maintenance Manual.
WARNING
Moving parts can crush.
Keep hands and feet away from moving parts.
WARNING
Fuel and fumes can explode and burn.
Stop engine and remove ignition key before refueling. No flame. No
smoking.
WARNING
Rotating auger can cut or crush.

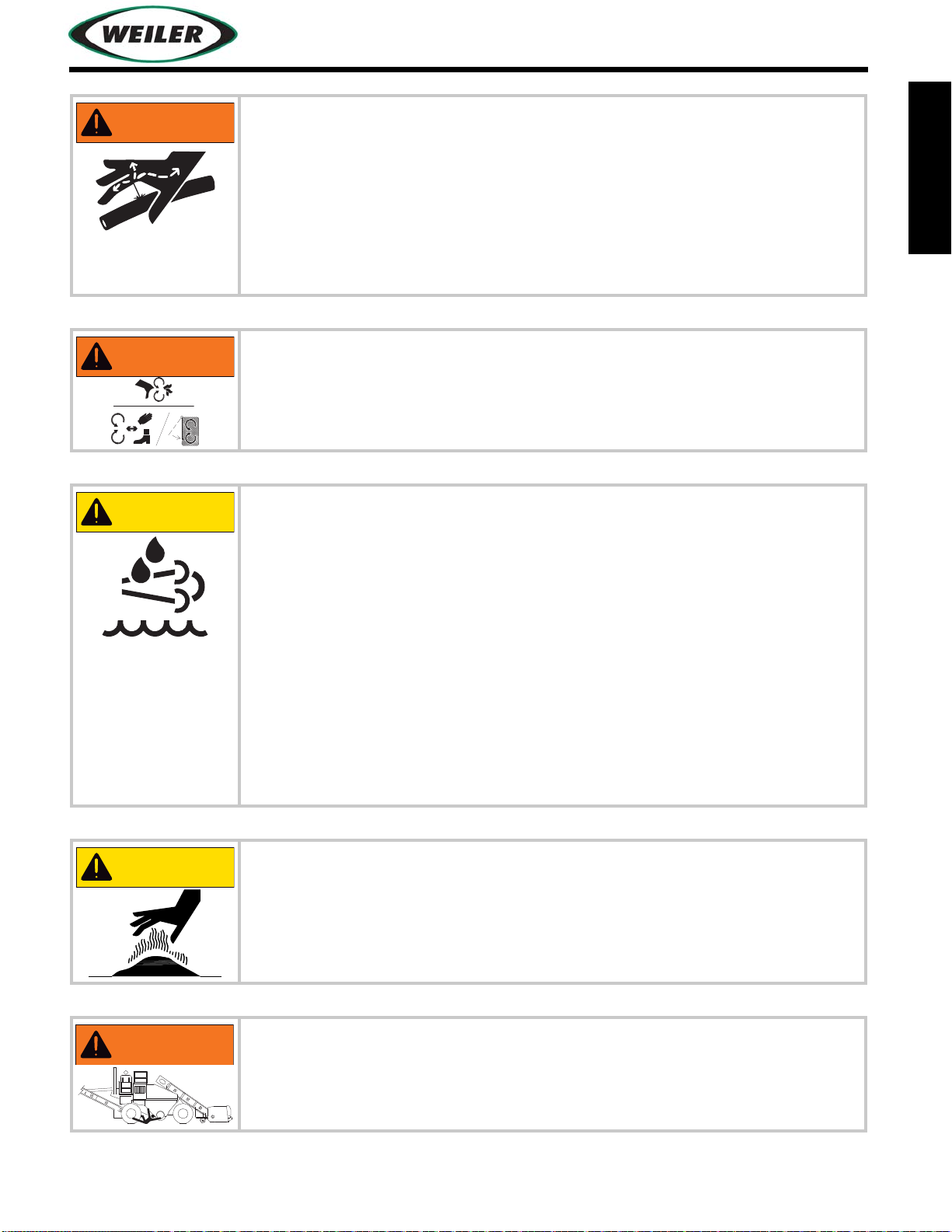

Auger behind cleanout door. Stay away from rotating auger. Stop engine
and remove ignition key before cleaning or servicing augers.
WARNING
Moving parts can crush.
Stay out of area between conveyor and frame.
WARNING
Runover can crush.
Keep feet away from wheels.

1
WEILER E1650 REMIXING TRANSFER VEHICLE
1-10
Safety
1
Safety Signs

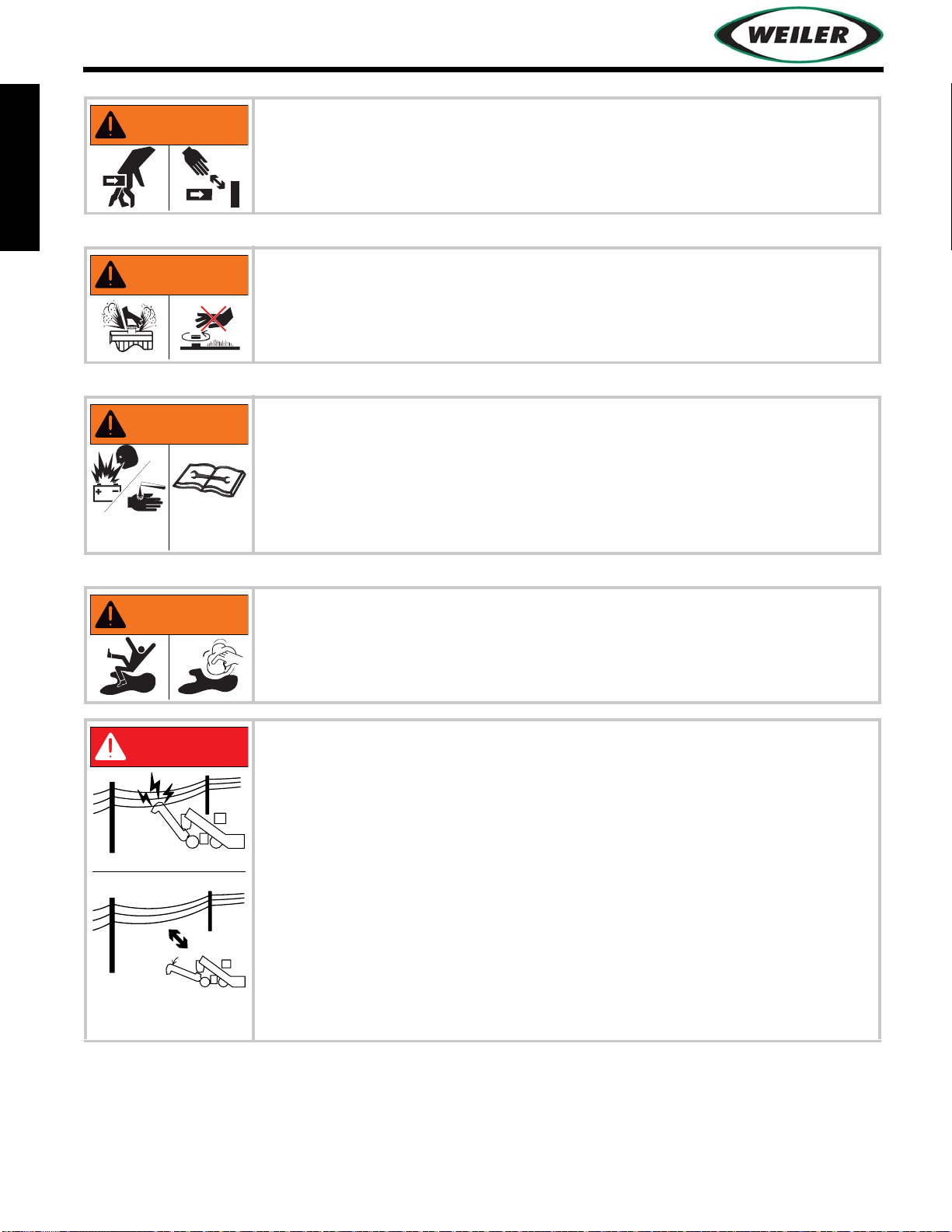

WARNING
Moving parts can crush fingers and hands.
Keep hands away from moving parts.
WARNING
Hot fluid under pressure can scald.
Allow to cool before opening coolant cap.
WARNING
Battery fumes are flammable and can explode. Battery explosion can blind.
Acid can blind and burn.
Keep all burning materials, flame, and sparks away from battery. Tools and
cable clamps can make sparks. Shield eyes and face. Do not smoke. Avoid
breathing fumes. Work in well ventilated area. Read Operator’s and
Maintenance Manual.
WARNING
Slippery and falling hazard.
Keep walkways, platforms, steps, and ladders clean.
DANGER
Electric shock will result from inadequate clearance or contact with an
energized power line.
Stay away from an energized power line. Maintain a clearance of at least 10
ft (3 m) between machine components, including the operator, and any
electrical line carrying up to 50,000 volts (50 kv). Add one additional foot of
clearance for every additional 30,000 volts (30 kv) or less. Allow for power
line sway.
Ground personnel must stay away as machine approaches or is near an
energized power line.
Lower conveyor and blade lights.
Electric utility provider must de-energize power lines before approaching.

WEILER E1650 REMIXING TRANSFER VEHICLE
1-11
Safety 1
Safety Signs
WARNING
Falling load can crush.
Stay clear of lifted hopper insert.
DANGER
Electrical shock / high voltage hazard.
Do not open junction boxes or handle connectors when energized. Stop
engine and remove ignition key before working on AC electrical system.
WARNING
Entanglement in rotating shaft can cause hand and arm injury.
Keep shield in place during operation.
WARNING
Moving conveyor slats can crush or cut off fingers and hands.
Never reach into conveyor chute of insert a cleanout tool into conveyor chute
when conveyor is moving. Stop engine and remove ignition key before
cleaning or servicing conveyor.

This page intentionally left blank.
