Compact KNX RF/TP coupler with support of
KNX Data Security, Security Proxy and Segment Coupler
KNX RF/TP Coupler 673.1 secure
Operation and installation manual
(Art. # 5474)

© 2022 WEINZIERL ENGINEERING GmbH Seite 2/22
Content
1Application .........................................................................................................................3
2Installation and connection...............................................................................................3
2.1 KNX programming mode......................................................................................................4
2.2 Manual operation and status display....................................................................................4
3Reset to factory default settings....................................................................................... 6
3.1 Factory default settings........................................................................................................6
4Wiring scheme ...................................................................................................................6
4.1 Line Coupler ........................................................................................................................7
4.2 Segment Coupler.................................................................................................................9
5KNX Security.................................................................................................................... 10
5.1 Security Proxy.................................................................................................................... 10
6ETS database ................................................................................................................... 11
6.1 ETS 5.................................................................................................................................11
6.2 ETS 6.................................................................................................................................11
6.3 Secure commissioning.......................................................................................................11
6.4 Secure group communication.............................................................................................14
6.5 Description.........................................................................................................................16
6.6 General settings.................................................................................................................16
6.7 Routing TP->RF.................................................................................................................17
6.8 Routing RF->TP.................................................................................................................19
6.9 Filter Table / Security Proxy Tables....................................................................................21

© 2022 WEINZIERL ENGINEERING GmbH Seite 3/22
1 Application
The KNX RF/TP Coupler 673.1 secure is a compact KNX radio coupler. It connects KNX RF
devices of a radio line with the KNX Bus Twisted Pair.
The device has an extended filter table for main group 0 … 31. The coupler supports KNX Long
Frames and is compatible with the ETS® software ETS 5 or higher.
The buttons on the front panel allow disabling the telegram filter for testing purposes. The LEDs
indicate operating conditions as well as communication errors on the KNX bus.
The power is supplied via the KNX bus.
The device supports KNX Data Security. The functionality of Security Proxy and Segment Coupler
is only supported with the ETS 6 database.
2 Installation and connection
Mounting can be recessed in the wall and thus almost “invisible”, because the housing has the
right size for mounting in a standard flush-mounted box.
When selecting the mounting location, the range of the radio devices to be connected to the device
must be taken into account. Shielding objects (e.g. metal cabinets) or interfering transmitters (e.g.
computers, electronic transformers, ballasts) near the gateway should be avoided.
The device is connected to the KNX bus using a bus terminal. The correct polarity of the terminal
according to the marking on the device must be observed.
The KNX RF/TP Coupler 673.1 secure has the following operating elements and displays:
❶Button for programming mode
❷Programming LED (red)
❸KNX bus connector
❹LED Status (multicolor)
❺LEDs 1 –8 (green)
❻Button A
❼Button B
If the bus voltage is missing, the device is without function.

© 2022 WEINZIERL ENGINEERING GmbH Seite 4/22
2.1 KNX programming mode
The KNX programming mode is activated/deactivated either by pressing the recessed KNX
programming button ❶.
When the programming mode is active, the programming LED ❷lights up red.
2.2 Manual operation and status display
The LED Status ❹lights up green when KNX bus voltage is present. This LED flashes red if the
application is not running, e.g. after an aborted ETS download. If manual operation is active, this is
indicated by the LED Status ❹lighting up orange.
Summary of the states of the LED Status ❹:
LEDs 1 –4 ❺indicate TP telegram traffic.
LEDs 5 –8 ❺indicate RF telegram traffic. If RF telegrams are received from another domain, the
LED Status ❹flashes orange briefly in addition.
Summary of the states of the LEDs 1 –8 ❺:
2.2.1 Manual operation TP
Briefly pressing button A ❻activates manual operation for mode TP.
Pressing button A ❻briefly deactivates/activates the forwarding of the group telegrams. This is
indicated by LEDs 1 and 2 ❺.
Pressing button B ❼briefly deactivates/activates the forwarding of the physically addressed
telegrams and the broadcast telegrams. This is indicated by LEDs 3 and 4 ❺.
Pressing button A ❻or button B ❼for a long time exits manual operation.
Manual operation can be locked in the ETS database.
LED Status
Meaning
LED lights green
The device operates in normal operating mode.
LED flashes red
The device is not loaded correctly
e.g. after aborting a download.
LED lights orange
Manual operation is active.
LED briefly orange
RF telegrams from another domain received.
LED Status
Meaning
LEDs 1 –4 briefly green
Manual operation is not active.
Telegram traffic via KNX TP.
LEDs 5 –8 briefly green
Manual operation is not active.
Telegram traffic via KNX RF.

© 2022 WEINZIERL ENGINEERING GmbH Seite 5/22
Summary of the states of the LEDs 1 –4 ❺:
2.2.2 Manual operation RF
Briefly pressing button B ❼activates manual operation for mode RF.
Pressing button A ❻briefly deactivates/activates the forwarding of the group telegrams. This is
indicated by LEDs 5 and 6 ❺.
Pressing button B ❼briefly deactivates/activates the forwarding of the physically addressed
telegrams, the broadcast telegrams and the system broadcast telegrams. This is indicated by
LEDs 7 and 8 ❺.
Pressing button A ❻or button B ❼for a long time exits manual operation.
Manual operation can be locked in the ETS database.
Summary of the states of the LEDs 5 –8 ❺:
LED Status
Meaning
LEDs 1 and 2 light green
Manual operation is active.
Forwarding of group telegrams via KNX TP is active.
LEDs 1 and 2 off
Manual operation is active.
Forwarding of group telegrams via KNX TP is not active.
LEDs 3 and 4 light green
Manual operation is active.
Forwarding of physically addressed telegrams and
broadcast telegrams via KNX TP is active.
LEDs 3 and 4 off
Manual operation is active.
Forwarding of physically addressed telegrams and
broadcast telegrams via KNX TP is not active.
LED Status
Meaning
LEDs 5 and 6 light green
Manual operation is active.
Forwarding of group telegrams via KNX RF is active.
LEDs 5 and 6 off
Manual operation is active.
Forwarding of group telegrams via KNX RF is not active.
LEDs 7 and 8 light green
Manual operation is active.
Forwarding of physically addressed telegrams, broadcast telegrams and
system broadcast telegrams via KNX RF is active.
LEDs 7 and 8 off
Manual operation is active.
Forwarding of physically addressed telegrams, broadcast telegrams and
system broadcast telegrams via KNX RF is not active.

© 2022 WEINZIERL ENGINEERING GmbH Seite 6/22
3 Reset to factory default settings
It is possible to reset the device to its factory default settings.
Disconnect the KNX bus connector ❸from the device.
Press the KNX programming button ❶and keep it pressed down.
Reconnect the KNX bus connector ❸to the device.
Keep the KNX programming button ❶pressed for at least another 6 seconds.
A short flashing of all LEDs (❷❹❺) visualizes the successful reset of the device to
factory default settings.
3.1 Factory default settings
In the factory default settings, the device has the physical address 15.15.0. Also, KNX Data
Security is disabled and the initial key (FDSK) must be used for secure commissioning.
Routing TP->RF
Group telegrams: Filter
Individual addressed telegrams: Filter
Routing RF->TP
Group telegrams: Filter
Individual addressed telegrams: Filter
4 Wiring scheme

© 2022 WEINZIERL ENGINEERING GmbH Seite 7/22
4.1 Line Coupler
The individual address of the KNX RF/TP Coupler 673.1 secure corresponds to the form x.y.0
(x, y: 1 … 15). Thus the device functions as a line coupler.
The device functions as a line coupler only if its individual address has the form x.y.0.
The KNX RF/TP Coupler 673.1 secure has a filter table and therefore helps to reduce the bus load.
The filter table supports the extended group address range (main groups 0 … 31) and is
automatically generated by the ETS.

© 2022 WEINZIERL ENGINEERING GmbH Seite 8/22

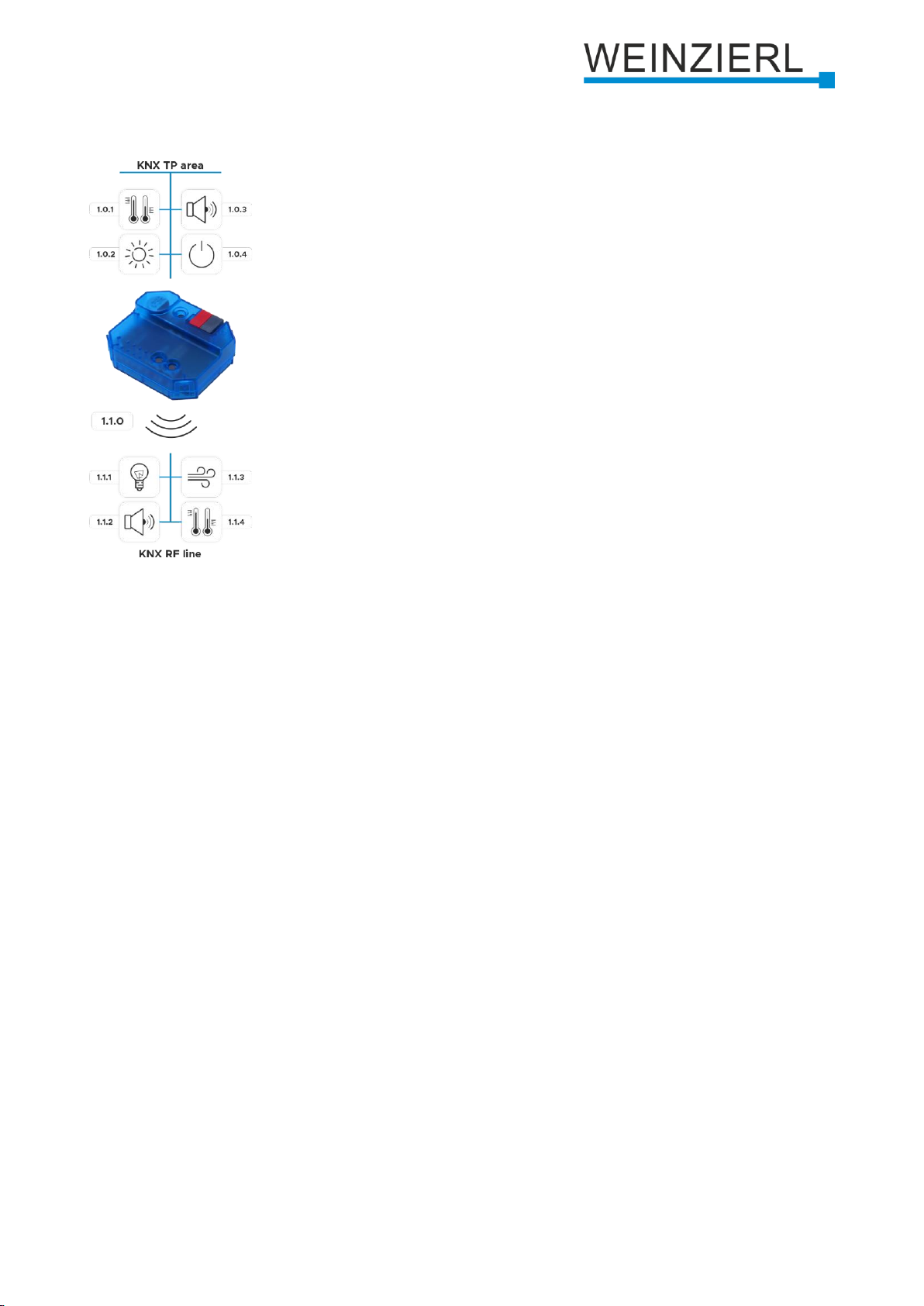

Wireless extension of a KNX line

© 2022 WEINZIERL ENGINEERING GmbH Seite 9/22
4.2 Segment Coupler
The individual address of the KNX RF/TP Coupler 673.1 secure corresponds to the form x.y.z
(x, y: 1 … 15, z: 1 … 255). Thus the device functions as a segment coupler.
The device functions as a segment coupler only if its individual address
has the form x.y.z.

© 2022 WEINZIERL ENGINEERING GmbH Seite 10/22
5 KNX Security
The KNX standard was extended by KNX Security to protect KNX installations from unauthorized
access. KNX Security reliably prevents the monitoring of communication as well as the
manipulation of the system.
The specification for KNX Security distinguishes between KNX IP Security and KNX Data Security.
KNX IP Security protects the communication over IP while on KNX TP the communication remains
unencrypted. Thus, KNX IP Security can also be used in existing KNX systems and with non-
secure KNX TP devices.
KNX Data Security describes the encryption on telegram level. This means that the telegrams on
the twisted pair bus or via RF (radio frequency) are also encrypted.
Encrypted telegrams are longer than the previously used unencrypted ones. For secure
programming via the bus, it is therefore necessary that the interface used (e.g. USB)
and any intermediate line couplers support the so called KNX Long Frames.
5.1 Security Proxy
A Security Proxy translates secure group communication from one side (e.g. secured KNX RF line)
into unsecured group communication on the other side (e.g. unsecured KNX TP area) and vice
versa.

© 2022 WEINZIERL ENGINEERING GmbH Seite 11/22
6 ETS database
The ETS database (for ETS 5.7 or newer) can be downloaded from the product website of the KNX
RF/TP Coupler 673.1 secure (www.weinzierl.de) or from the ETS online catalogue.
The KNX RF/TP Coupler 673.1 secure supports KNX Data Security to protect the device against
unauthorized access from the KNX bus. If the device is programmed via the KNX bus, this is done
with encrypted telegrams.
6.1 ETS 5
The ETS 5 database supports only KNX Data Security. The functionality of Security Proxy and
Segment Coupler is not supported.
6.2 ETS 6
The ETS 6 database supports KNX Data Security as well as the functionality of Security Proxy and
Segment Coupler.
6.3 Secure commissioning
If the first product is inserted into a project with KNX Security, the ETS prompts you to enter a
project password.
This password protects the ETS project from unauthorized access. This password is not a key that
is used for KNX communication. The entry of the password can be bypassed with “Cancel”, but this
is not recommended for security reasons.

© 2022 WEINZIERL ENGINEERING GmbH Seite 12/22

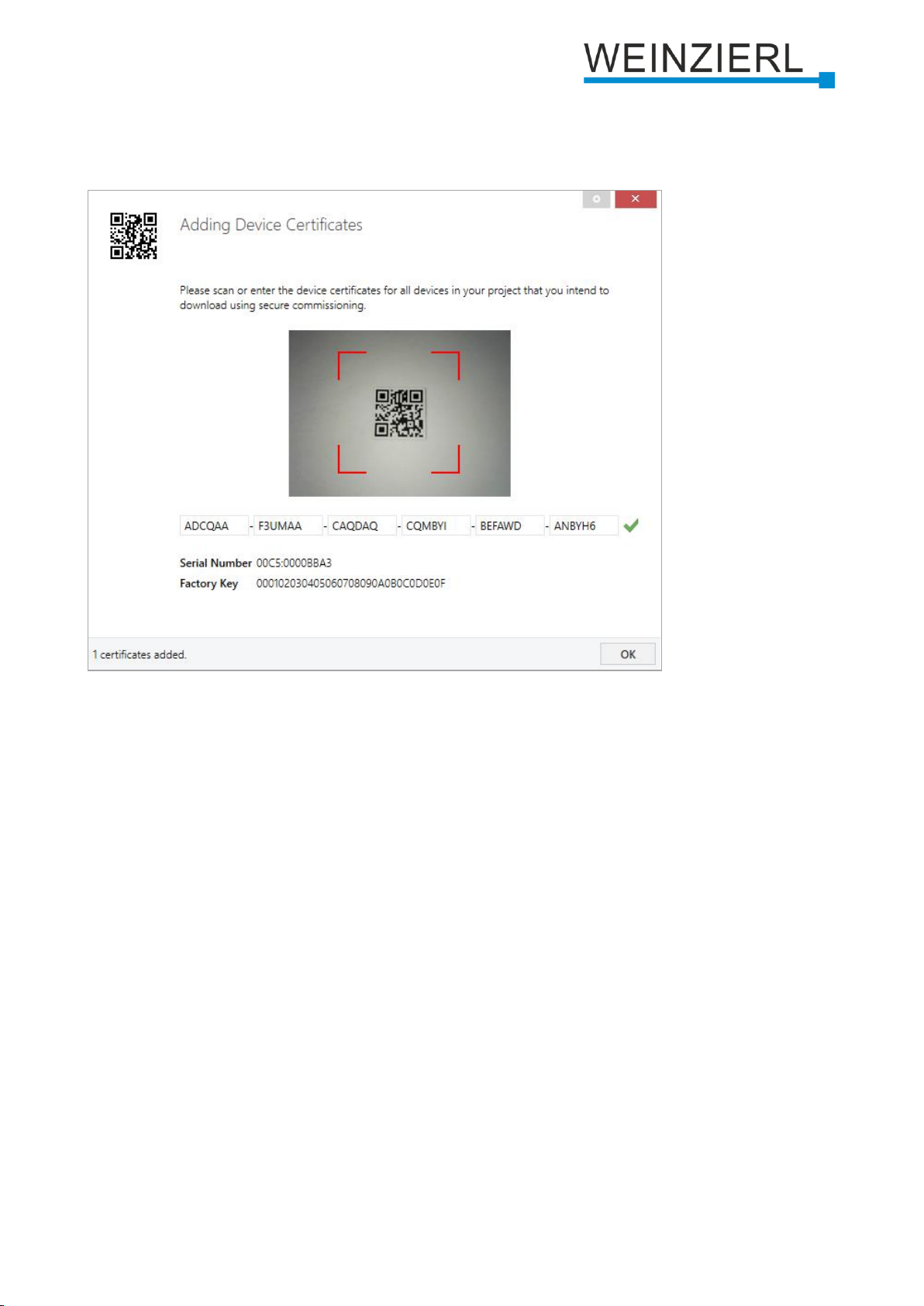

ETS requires a device certificate for each device with KNX Security that is created in the ETS. This
certificate contains the serial number of the device as well as an initial key (FDSK = Factory
Default Setup Key).
The certificate is printed as text on the device. It can also be scanned from the printed QR code via
a webcam.
The list of all device certificates can be managed in the ETS panel Reports –Project Security.
This initial key is required to safely put a device into operation from the start. Even if the ETS
download is recorded by a third party, the third party has no access to the secured devices
afterwards. During the first secure download, the initial key is replaced by the ETS with a new key
that is generated individually for each device. This prevents persons or devices who may know the
initial key from accessing the device. The initial key is reactivated after a reset to factory default
settings.
The serial number in the certificate enables the ETS to assign the correct key to a device during a
download.

© 2022 WEINZIERL ENGINEERING GmbH Seite 13/22

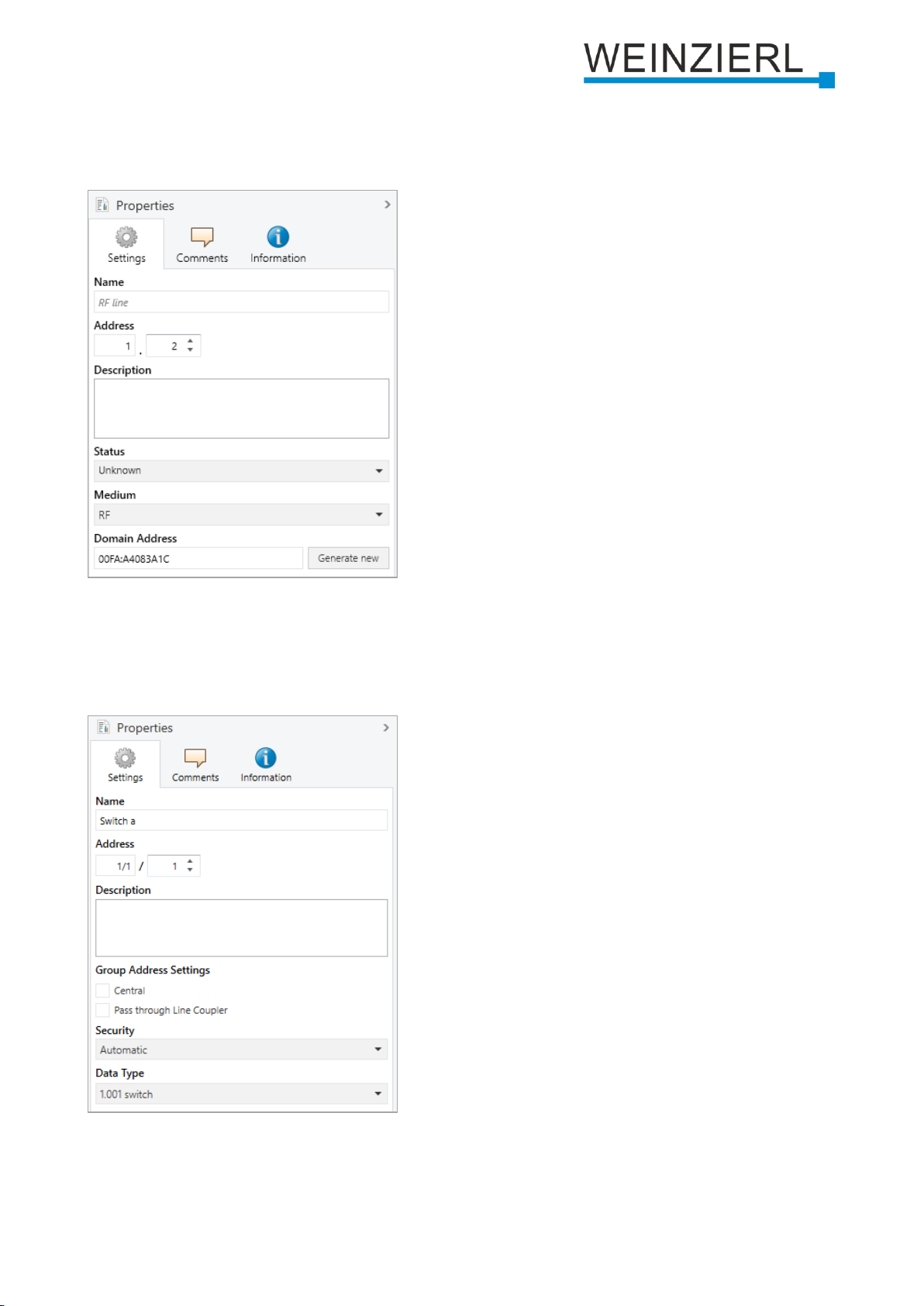

In the ETS project in the properties of the device, secure commissioning can be activated and the
device certificate can be added. Furthermore, the device name can be changed here, as well as
the retransmitter mode (repeater mode) can be de-/activated in the device. In this mode the
received telegrams are retransmitted to increase the RF range. With Subnet Isolation it can be set
whether transmission and point-to-point communication is allowed into the subnet. It is
recommended to set this to “Automatic”. Thus the telegrams are forwarded or filtered as configured
in the database.

© 2022 WEINZIERL ENGINEERING GmbH Seite 14/22
By marking the RF line in the tree structure of the topology view of the ETS project, the overview
“Properties”appears on the right side of the ETS window. Under Properties menu item “Settings”
the domain address of the line can be changed.
6.4 Secure group communication
Each object of the device can communicate either encrypted or unencrypted. The encryption is set
under “Security”in the properties of the used group address:

© 2022 WEINZIERL ENGINEERING GmbH Seite 15/22
The setting ”Automatic”activates encryption if both objects to be connected can communicate
encrypted. Otherwise encrypted communication between the objects is not possible.
In the overview of communication objects in the ETS project, secured objects can be recognized
by a shield symbol:
A separate key is automatically generated by the ETS for each secured group address. These
keys can also be checked in the ETS panel Reports –Project Security. To enable all devices to
communicate with a secure group address, the keys must be known to all. Therefore a download
must be made into all devices that use this group address when a key is created or changed. A key
is changed by the ETS e.g. when the encryption of a group address is switched off and on again.
Telegrams from the bus that do not address the KNX RF/TP Coupler 673.1 secure as a
device are forwarded or blocked according to the filter settings (parameters and filter
table). It does not matter whether the telegrams are unencrypted or encrypted. The
forwarding is done exclusively on the basis of the destination address. The security
properties are checked by the respective recipient.

© 2022 WEINZIERL ENGINEERING GmbH Seite 16/22
6.5 Description
This page shows the device description and the corresponding connection diagram.
6.6 General settings
Device name (30 characters)
Any name can be assigned to the KNX RF/TP Coupler 673.1 secure. The device name should be
meaningful, e.g. “Living room EG”. This helps the clarity in the ETS project.

© 2022 WEINZIERL ENGINEERING GmbH Seite 17/22
Manual control on the device
This parameter is used to configure manual operation on the device. The manual operation mode
can be blocked or activated (with or without time limit). The time limit defines the duration until the
automatic return from manual operation back to the normal operating mode.
The following configuration options are available:
Disabled
Enabled with time limit 1 min
Enabled with time limit 10 min
Enabled with time limit 30 min
Enabled without time limit
The activated manual operation can reduce the security of the installation.
6.7 Routing TP->RF
Group telegrams
The following settings are possible:
Block
No group telegram is forwarded to the RF line.
Route
All group telegrams are forwarded to the RF line regardless of the filter table.
Filter
The filter table is used to decide whether the received group telegram is to be forwarded to
the RF line.
The setting “Route” should only be used for test purposes.

© 2022 WEINZIERL ENGINEERING GmbH Seite 18/22
Individual addressed telegrams
The following settings are possible:
Block
No individual addressed telegram is forwarded to the RF line.
Route
All individual addressed telegrams are forwarded to the RF line.
Filter
The destination address is used to check whether the received individual addressed
telegram is forwarded to the RF line.
The setting “Route” should only be used for test purposes.
System broadcast telegrams
The following settings are possible:
Block
No received system broadcast telegram is forwarded to the RF line.
Route
All received system broadcast telegrams are forwarded to the RF line.
Broadcast telegrams
The following settings are possible:
Block
No received broadcast telegram is forwarded to the RF line.
Route
All received broadcast telegrams are forwarded to the RF line.
Acknowledge (ACK) of group telegrams
The following settings are possible:
Always
For received group telegrams (from the TP line) always send an acknowledge.
If routed
For received group telegrams (from the TP line) an acknowledge is sent only when telegram
is forwarded to the RF line.

© 2022 WEINZIERL ENGINEERING GmbH Seite 19/22
6.8 Routing RF->TP
Group telegrams
The following settings are possible:
Block
No group telegram is forwarded to the TP line.
Route
All group telegrams are forwarded to the TP line regardless of the filter table.
Filter
The filter table is used to decide whether the received group telegram is forwarded to the
TP line.
The setting “Route” should only be used for test purposes.
Individual addressed telegrams
The following settings are possible:
Block
No individual addressed telegram is forwarded to the TP line.
Route
All individual addressed telegrams are forwarded to the TP line.
Filter
The destination address is used to check whether the received individual addressed
telegram is forwarded to the TP line.
The setting “Route” should only be used for test purposes.

© 2022 WEINZIERL ENGINEERING GmbH Seite 20/22
System broadcast telegrams
The following settings are possible:
Block
No received system broadcast telegram is forwarded to the TP line.
Route
All received system broadcast telegrams are forwarded to the TP line.
Broadcast telegrams
The following settings are possible:
Block
No received broadcast telegram is forwarded to the TP line.
Route
All received broadcast telegrams are forwarded to the TP line.
Repetition of group telegrams
The following settings are possible:
Disabled
The forwarded group telegram will be not repeated in case of an error in the TP line.
Enabled
The forwarded group telegram will be repeated up to three times in case of an error.
Repetition of individual addressed telegrams
The following settings are possible:
Disabled
The forwarded individual addressed telegram will be not repeated in the TP line in case of
an error.
Enabled
The forwarded individual addressed telegram will be repeated up to three times in case of
an error.
Repetition of broadcast telegrams
The following settings are possible:
Disabled
The forwarded broadcast telegram will be not repeated in the TP line in case of an error.
Enabled
The forwarded broadcast telegram will be repeated up to three times in case of an error.
This manual suits for next models
1
Table of contents
Other Weinzierl Cables And Connectors manuals
Popular Cables And Connectors manuals by other brands

Projecta
Projecta EVCBT2T2-3P quick start guide

RFS
RFS SPINNER CELLFLEX LCF78-50 installation instructions

Amphenol
Amphenol AMPHE-EX L-2124 Assembly instructions

Spectrum
Spectrum 3661U product manual

Metz Connect
Metz Connect E-DAT Series Final assembly guide

Instantel
Instantel Micromate 721A1401 instruction sheet

HEIDENHAIN
HEIDENHAIN ROD 420 TTL Mounting instructions

Philips
Philips SWV2141W Specifications

EMTELLE
EMTELLE FIBREFLOW Installation And Maintenance Training Manual

J-Tech Digital
J-Tech Digital JTECH-18GSP12M operating instructions

Comprehensive
Comprehensive CDA-HD220EK user manual

CHICAGO
CHICAGO 66834 operating instructions
