ATEN VS0110HA User manual

VS0110HA
ϭϬͲWŽƌƚϰ<,D/^ƉůŝƩĞƌhƐĞƌDĂŶƵĂů

VS0110HA User Manual
ii
Compliance Statements
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC ules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
The device complies with Part 15 of the FCC ules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Warning
Operation of this equipment in a residential environment could cause radio
interference.
Achtung
Der Gebrauch dieses Geräts in Wohnumgebung kann Funkstörungen
verursachen.
KCC Statement

VS0110HA User Manual
iii
HDMI Trademar Statement
The terms HDMI, HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
RoHS
This product is oHS compliant.

VS0110HA User Manual
iv
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VE IFY THAT THE VOLTAGE SETTING IS
CO ECT BEFO E USE.
International http://eservice.aten.com
International 886- -869 -6959
China 86-400-810-0-810
Japan 81-3-5615-5811
Korea 8 - -467-6789
North America 1-888-999-ATEN ext 4988

VS0110HA User Manual
v
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
eseller. Visit ATEN on the Web for a list of locations and telephone numbers:
International http://www.aten.com
North America http://www.aten-usa.com

VS0110HA User Manual
vi
Package Contents
Check to make sure that all the components are in working order. If you
encounter any problem, please contact your dealer.
1 VS0110HA 10-Port 4K HDMI Splitter
1 Power Adapter
1 ack Mount Kit
1 User Instructions

VS0110HA User Manual
vii
Table of Contents
Compliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
1. Introduction
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Planning the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Required Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optional Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. Hardware Setup
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. Operation
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switching On/Off the Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
EDID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EDID Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ATEN Default EDID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Serial Control Protocol Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Configuring the Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
RS- 3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Verification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Restarting the VS0110HA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Appendix
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

VS0110HA User Manual
viii
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

VS0110HA User Manual
ix
About this Manual
This user manual is provided to help you get the most from the VS0110HA. It
covers all aspects of installation, configuration, and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction introduces you to the 10-Port 4K HDMI Splitter. Its
purpose, features, and installation considerations are described and discussed.
Chapter , Hardware Setup describes the panel components and the steps
to quickly and safely set up the VS0110HA.
Chapter 3, Operation provides details on how to operate and configure the
VS0110HA using the panel pushbuttons and S-232 commands.
Appendix provides a list of safety instructions and precautions, contact
information for ATEN technical support, product specifications, and other
technical information.
Note:
ead this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit or any connected
devices.
The product may be updated, with features and functions added, improved,
or removed since the release of this manual. For an up-to-date user
manual, visit http://www.aten.com/global/en/

VS0110HA User Manual
x
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
>Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start > Run means to
open the Start menu, and then select Run.
Indicates critical information.

1
Chapter 1
Introduction
Overview
The VS0110HA 4K HDMI Splitter is a perfect solution for applications that
require sending one source of high-definition 4K video to ten displays at the
same time. The HDMI interface caters to most mainstream sources and sinks,
such as DVD players, satellite set-top boxes, and any HDMI displays.
Featuring ATEN EDID technology, the VS0110HA guarantees continuous
EDID communication with connected devices and maintains correct video
outputs.
The VS0110HA 4K HDMI Splitter is HDCP (High-bandwidth Digital
Content Protection) compliant, making it effective for use with all HDMI
displays in home theater applications, as well as in corporate, educational and
commercial settings.

Chapter 1. Introduction
Features
Connects one HDMI source to up to ten HDMI displays at the same time
HDMI (3D, Deep color, 4K); HDCP 1.4 compliant
Superior video quality – up to 4K resolutions (4096 x 2160 @ 60Hz; 4:2:0)
Long distance transmission from source to output – up to 15 m
Built-in bi-directional S-232 serial port for high-end system control
Supports Dolby True HD and DTS HD Master Audio
Clear LED indication of device status
EDID Expert™ – Selects optimum EDID settings for smooth power- up,
high quality display, and use of the best resolution across different screens
Plug-and-play
ack-mountable (1U design)

VS0110HA User Manual
3
Planning the Installation
Required Equipment
1 source device equipped with an HDMI Type-A connector
1 ~ 10 display devices equipped with an HDMI Type-A connector
1 HDMI cable to connect the VS0110HA to source device
1 ~ 10 HDMI cables to connect the VS0110HA to the display devices
Note:
You can connect a DVI source to the VS0110HA via a DVI to HDMI
adapter.
ATEN strongly recommends that you use high-quality HDMI cables of
appropriate length since this will affect the quality of the audio and video
output. Contact your dealer to purchase the correct table sets.
Optional Equipment
To control the VS0110HA using S-232 serial commands, prepare the
following equipment:
1 S-232 controller, e.g. a PC
1 serial cable with a 9-pin male connector

Chapter 1. Introduction
4
This Page Intentionally Left Blank

5
Chapter
Hardware Setup
Components
Front View

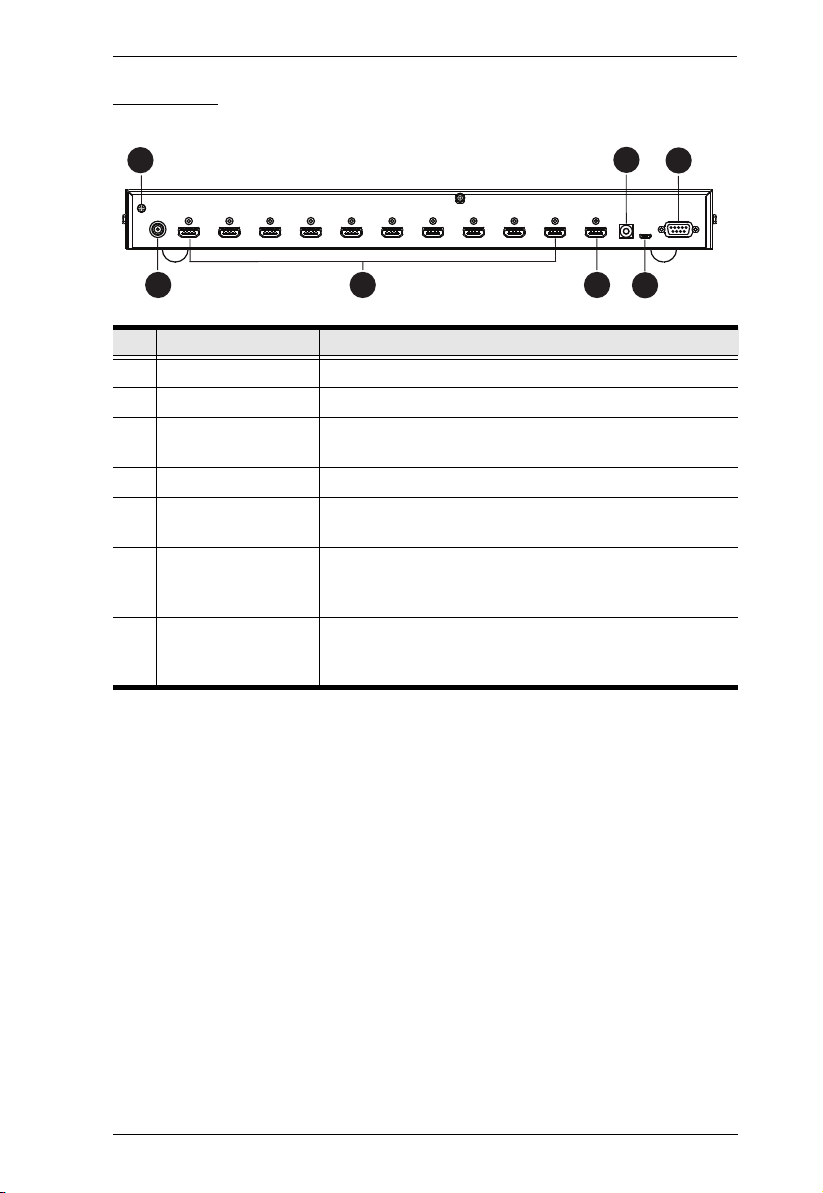

No. Component Description
1 output port LEDs
(1~10)
 Lights to indicate there is a working connection to the dis-
play device(s) connected to the corresponding HDMI out-
put port(s) and an available source device connected to
the HDMI input port.
 All output port LEDs light off to indicate there is no working
connection to the source device (e.g., computer).
input port LED Lights to indicate that there is a working connection to the
source device (e.g., computer).
3 power LED Lights to indicate that the VS0110HA is receiving power and
is up and running.
13 2

Chapter . Hardware Setup
6
Rear View
No. Component Description
1 grounding terminal The grounding wire connects here.
power jack The power adapter cable plugs in here.
3 HDMI output port
section
The cables from your HDMI display devices plug into
these ports.
4 HDMI input port The cable from your HDMI source device plugs in here.
5 EDID mode switch Turn this switch to select the EDID mode (0~7). See
“EDID Mode Selection” on page 10.
6 firmware upgrade
port
This port is reserved for ATEN Technical Support. If you
would like to do a firmware upgrade yourself, please
contact your dealer.
7 RS- 3 serial port This is the serial remote port for output source selection
and high-end system control, as well as for upgrading the
device firmware.
1
2 3 4
5
6
7

VS0110HA User Manual
7
Rack Mounting

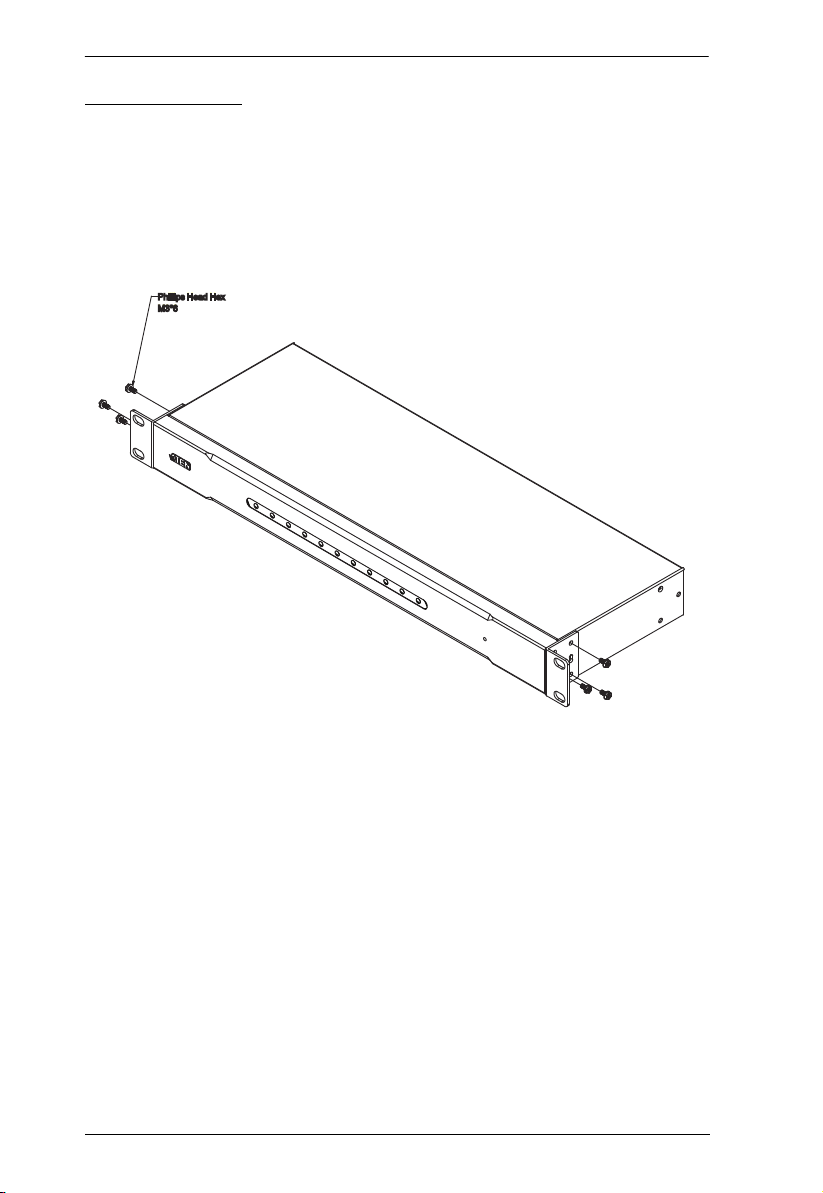

The VS0110HA can be mounted in a 19” (1U) system rack. For the most
convenient front panel pushbutton configuration and operation at the local site,
mount the unit at the front of the rack, as follows:
1. Use the M3 x 6 Phillips head hex screws supplied with the Mounting Kit
to screw the rack mounting brackets onto the front of the unit.
2. Screw the mounting brackets to the rack.
Phillips Head Hex
M3*6

Chapter . Hardware Setup
8
Installation
Follow the steps below to safely connect the required devices to the
VS0110HA.
1. Use a grounding wire to ground the unit by connecting one end of the wire
to the grounding terminal, and the other to a suitable grounded object.
Note: Do not omit this step. Proper grounding helps prevent damage to the
unit from surges or static electricity.
2. Use an HDMI cable to connect your source device to the HDMI Input Port
on the VS0110HA.
3. Use HDMI cables to connect up to 10 display devices to the HDMI Output
Ports on the VS0110HA.
4. (Optional) To configure the VS0110HA settings through the S-232 port,
connect a hardware/software controller to the VS0110HA.
5. Plug the provided power adapter into an appropriate AC power source, and
then plug the power adapter cable into the Power Jack on the VS0110HA.
1. Please review the safety information regarding the placement of
this device in Safety Instructions, page 15.
2. Do not power on the VS0110HA and the connected devices until
all the necessary hardware is connected.
4
5
2
3
1
0
1
2
3
4
5
6
7

9
Chapter 3
Operation
Overview
You can operate the VS0110HA using the panel pushbuttons or an RS-232
serial controller. The availability of actions with the two methods is
summarized in the table below.
Switching On/Off the Port
You can switch on/off one or all output ports using the S-232 command (see
RS-232 Commands, page 12).
Action
Operation Methods
Rotary Switch Serial Controller
Switch Port
Switch on/off one or all output port 
EDID
Select an EDID Mode  
Select the ATEN default EDID
configuration

Baud Rate
Set the baud rate 
Read Information
Read and display information from the
VS0110HA

Reset
Reset the VS0110HA to default factory
settings


Chapter 3. Operation
10
EDID
EDID is a data format that contains a display's basic information and is used to
communicate with the video source/system. The VS0110HA lets users select a
preset video configuration or EDID Mode, which utilizes the best resolution
across different screens.
EDID Mode Selection
The EDID Mode can be selected using the EDID Mode Switch located at the
VS0110HA unit’s rear panel or via an S-232 serial controller.
To select an EDID Mode, turn the EDID Mode Switch to toggle between the
Modes (0~7) as follows:
0 (Port 1) - Implements the EDID of the connected display to Port 1, and
passes it to the video source. The VS0110HA is able to copy the EDID of
any connected display to the input source.
1 (ATEN Default) - EDID is set to the ATEN default configuration. Users
can further choose between 10 ATEN default EDID settings available via
the S-232 command (see RS-232 Commands, page 12).
2 (Auto) - Implements the EDID of all connected displays. The
VS0110HA uses the best resolution for all displays.
3 (Switch) - Uses the EDID configuration defined through the S-232
command (see RS-232 Commands, page 12).
4 ~ 7- EDID is set to the ATEN default configuration. Users can further
choose between 10 ATEN default EDID settings available via the S-232
command (see RS-232 Commands, page 12).
