WeldCraft TTG Plus User manual

ESPAÑOL
OM-230 915D
2010−05
ENGLISH
File: TIG (GTAW)
Owner’s Manual
Manuel de L’utilisateur
Manual del Operador
Description
TIG (GTAW) Welding
Tungsten Grinder
Triad Tungsten Grinder
TTG Plus
FRANÇAIS

TABLE OF CONTENTS
SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING 1...................................
1-1. Symbol Usage 1........................................................................
1-2. Tungsten Grinding Hazards 1.............................................................
1-3. California Proposition 65 Warnings 2.......................................................
1-4. Principal Safety Standards 2.............................................................
SECTION 2 − DEFINITIONS 3...................................................................
2-1. Manufacturer’s Rating Label For CE Products 3.............................................
2-2. Symbols And Definitions 3...............................................................
SECTION 3 − SPECIFICATIONS 4................................................................
3-1. Description 4..........................................................................
3-2. Included With Your Unit 4................................................................
3-3. Specifications 4........................................................................
SECTION 4 − INSTALLATION 5..................................................................
4-1. Connecting Input Power 5................................................................
4-2. Connecting Grinder To Exhaust (Vacuum) Hose 5............................................
SECTION 5 − OPERATION 6....................................................................
5-1. Grinder Components 6..................................................................
5-2. Grinding And Cutting Electrodes 7.........................................................
5-3. Replacing Grinding Wheels 8.............................................................
5-4. Installing Optional Double-Decker Kit 9.....................................................
5-5. Installing Grinder Mounting Bracket 10......................................................
SECTION 6 − MAINTENANCE & TROUBLESHOOTING 11...........................................
6-1. Routine Maintenance 11..................................................................
6-2. Troubleshooting 11......................................................................
SECTION 7 − PARTS LIST 12.....................................................................

OM-230 915 Page 1
SECTION 1 − SAFETY PRECAUTIONS - READ BEFORE USING
Tung_Grind 2010−05
Protect yourself and others from injury — read and follow these precautions.
1-1. Symbol Usage
DANGER! − Indicates a hazardous situation which, if
not avoided, will result in death or serious injury. The
possible hazards are shown in the adjoining symbols
or explained in the text.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury. The possible
hazards are shown in the adjoining symbols or ex-
plainedin the text.
NOTICE − Indicates statements not related to personal injury.
Indicates special instructions.
This group of symbols means Warning! Watch Out! ELECTRIC
SHOCK, MOVING PARTS, and HOT PARTS hazards. Consult sym-
bols and related instructions below for necessary actions to avoid the
hazards.
1-2. Tungsten Grinding Hazards
The symbols shown below are used throughout this manual
to call attention to and identify possible hazards. When you
see the symbol, watch out, and follow the related instructions
to avoid the hazard. The safety information given below is
only a summary of the more complete safety information
found in the Safety Standards listed in Section 1-4. Read and
follow all Safety Standards.
Only qualified persons should install, operate, maintain, and
repair this unit.
During operation, keep everybody, especially children, away.
ELECTRIC SHOCK can kill.
Touchinglive electrical parts can cause fatal shocks
or severe burns. The input power circuit and
machineinternal circuits are also live when power is
on. Incorrectly installed or improperly grounded
equipmentis a hazard.
Do not touch live electrical parts.
Wear dry, hole-free insulating gloves and body protection.
Disconnect input power before installing or servicing this
equipment.
Properly install this equipment according to its Owner’s Manual
and national, state, and local codes.
Frequently inspect input power cord for damage or bare wiring −
replace cord immediately if damaged − bare wiring can kill.
Turn off all equipment when not in use.
Use only well-maintained equipment. Repair or replace damaged
parts at once. Maintain unit according to manual.
Keep all panels and covers securely in place.
Grinding produces dust. Breathing this dust can be
hazardous to your health.
GRINDING DUST can be hazardous.
Do not breathe the dust.
Use local exhaust (forced ventilation) to remove dust or wear an
approved respirator.
Grinding dust from thoriated electrodes contains low-level radio-
active material. Consider using tungsten containing ceria,
lanthana,or yttria instead of thoria.
Properly dispose of grinder dust in an environmentally safe way.
Read and understand the Material Safety Data Sheets (MSDSs)
and the manufacturer’s instructions for metals and consumables.
GRINDINGcan cause FIRE OR EXPLOSION.
Do not grind where flying sparks can strike
flammablematerial.
Protect yourself and others from flying sparks
and hot metal.
Be alert that sparks and hot materials from grinding can easily go
throughsmall cracks and openings to adjacent areas.
Watch for fire, and keep a fire extinguisher nearby.
FLYING SPARKS can injure.
Wear a face shield to protect eyes and face.
Shape tungsten electrode only on grinder with
properguards in a safe location wearing proper
face, hand, and body protection.
Sparks can cause fires — keep flammables away.
HOT PARTS can burn.
Do not touch hot parts bare handed.
Allow cooling period before working on equip-
ment.
To handle hot parts, use proper tools and/or
wear heavy, insulated welding gloves and
clothingto prevent burns.
OVERUSE can cause OVERHEATING
Allow cooling period; follow rated duty cycle.
Keepair holes free of dust; clean if necessary.
READ INSTRUCTIONS.
Read and follow all labels and the Owner’s
Manualcarefully before installing, operating, or
servicing unit. Read the safety information at
the beginning of the manual and in each
section.
Use only genuine replacement parts from the manufacturer.
Perform maintenance and service according to the Owner’s
Manuals, industry standards, and national, state, and local
codes.

OM-230 915 Page 2
MOVING PARTS can injure.
Keep away from moving parts.
Keep all doors, panels, covers, and guards
closed and securely in place.
Have only qualified persons remove doors, panels, covers, or
guards for maintenance and troubleshooting as necessary.
Reinstall doors, panels, covers, or guards when maintenance is
finishedand before reconnecting input power.
1-3. California Proposition 65 Warnings
Welding or cutting equipment produces fumes or gases
which contain chemicals known to the State of California to
cause birth defects and, in some cases, cancer. (California
Health & Safety Code Section 25249.5 et seq.)
This product contains chemicals, including lead, known to
the state of California to cause cancer, birth defects, or other
reproductiveharm. Wash hands after use.
This product contains or produces a chemical known to the
State of California to cause cancer or birth defects (or other
reproductiveharm). (California Health & Safety Code Section
25249.5et seq.)
1-4. Principal Safety Standards
SafePractice For Occupational And Educational Eye And Face Protec-
tion,ANSI Standard Z87.1, from American National Standards Institute,
25 West 43rd Street, New York, NY 10036 (phone: [phone], web-
site: www.ansi.org).
SafetyinWelding, Cutting, and Allied Processes, ANSI Standard Z49.1,
from Global Engineering Documents (phone: [phone], website:
www.global.ihs.com).
Safe Practices for the Preparation of Containers and Piping for Welding
and Cutting, American Welding Society Standard AWS F4.1, from Glob-
al Engineering Documents (phone: [phone], website:
www.global.ihs.com).
NationalElectrical Code, NFPA Standard 70, from National Fire Protec-
tion Association, Quincy, MA 02269 (phone: [phone], website:
www.nfpa.organd www. sparky.org).
SafeHandling of Compressed Gases in Cylinders, CGA Pamphlet P-1,
from Compressed Gas Association, 4221 Walney Road, 5th Floor,
Chantilly,VA 20151 (phone: [phone], website:www.cganet.com).
Safety in Welding, Cutting, and Allied Processes, CSA Standard
W117.2,from Canadian Standards Association, Standards Sales, 5060
Spectrum Way, Suite 100, Ontario, Canada L4W 5NS (phone:
800-463-6727,website: www.csa-international.org).
SafePractice For Occupational And Educational Eye And Face Protec-
tion,ANSI Standard Z87.1, from American National Standards Institute,
25 West 43rd Street, New York, NY 10036 (phone: [phone], web-
site: www.ansi.org).
Standardfor Fire Prevention During Welding, Cutting, and Other Hot
Work, NFPA Standard 51B, from National Fire Protection Association,
Quincy, MA 02269 (phone: [phone], website: www.nfpa.org.
OSHA, Occupational Safety and Health Standards for General Indus-
try, Title 29, Code of Federal Regulations (CFR), Part 1910, Subpart Q,
and Part 1926, Subpart J, from U.S. Government Printing Office, Super-
intendentof Documents, P.O. Box 371954, Pittsburgh, PA 15250-7954
(phone: [phone]) (there are 10 OSHA Regional Offices—
phone for Region 5, Chicago, is 312-353-2220, website:
www.osha.gov).
About Implanted Medical Devices:
ImplantedMedical Device wearers should consult their doctor and the
device manufacturer before performing or going near arc welding, spot
welding,gouging, plasma arc cutting, or induction heating operations.
If cleared by your doctor, then following the above procedures is recom-
mended.

ENGLISH
OM-230 915 Page 3
SECTION 2 − DEFINITIONS
2-1. Manufacturer’s Rating Label For CE Products
2-2. Symbols And Definitions
Some symbols are found only on CE products.
Output Alternating Current AAmperes VVolts
Single Phase Line Connection
Hz
Hertz Read Instructions
Double Insulated Recycle

OM-230 915 Page 4
SECTION 3 − SPECIFICATIONS
3-1. Description
The TTG Plus cuts, grinds, and faces tungsten electrodes used in the TIG (GTAW) welding process. Additional fea-
tures and benefits of this unit are:
•Electrodes are sharpened to conform to recognized standards.
•The replaceable grinding wheel is diamond-coated on both sides.
•The grinding wheel has an offset edge for easy cutting − an industry exclusive!
•The head assembly allows for different electrode angles and diameters.
•The unit can be hand operated, or bench-mounted using the supplied mounting bracket.
Grinding the tungsten electrode produces dust and flying sparks which can cause injury and start fires. Use local exhaust (forced
ventilation) at the grinder or wear an approved respirator.
Read MSDS for safety information. Consider using tungsten containing ceria, lanthana, or yttria instead of thoria. Grinding dust from
thoriatedelectrodes contains low-level radioactive material. Properly dispose of grinder dust in an environmentally safe way. Wear
proper face, hand, and body protection. Keep flammables away.
3-2. Included With Your Unit
1 TTG Plus Tungsten Grinder
With Diamond Grinding Wheel
2 Steel Carrying Case
3 Electrode Holder With
Clamping Collet
4 Torx Screwdriver
5 Mounting Bracket
804 716 / Ref 804 762
1
2
4
3
5
3-3. Specifications
Dimensions Weight Input Power Power-On Time Cord
Length Rotary Speed
2.6 x 13.8 in.(65 x 250
mm) 3 lb (1.4 kg) (w/Grinding Wheel)
110 V AC
50/60 Hz
(500 watt Rating) 100% 9.8 ft
(3 m) 30,000
RPM
(U/min)
Noise
Rating Vibration Level Electrode Material Electrode Angles Electrode Diameters
83 dBa
(per EN23741) 2.5 m/s2 (per EN28662, Part 1)
Tungsten electrodes alloyed with
zirconium, lanthanum, yttrium,
and cerium
Consultcountry-specific reg-
ulations for electrodes con-
tainingThorium.
15°
18°
22.5°
30°
0.04 in.(1 mm)
1/16 in.(1.6 mm)
3/32 in.(2.4 mm)
1/8 in.(3.2 mm)
5/32 in. (4 mm)

ENGLISH
OM-230 915 Page 5
SECTION 4 − INSTALLATION
Operation
4-1. Connecting Input Power
804 717
1 RatingLabel
2 Power Cord
3 110 Volt AC Plug
4 AC Receptacle
Connect plug to matching AC re-
ceptacle.See rating label for elec-
trical specifications.
2
3
4
1
4-2. Connecting Grinder To Exhaust (Vacuum) Hose
804 811
!Grinding the tungsten elec-
trode produces dust and fly-
ing sparks which can cause
injury and start fires. Use lo-
cal exhaust (forced ventila-
tion) at the grinder or wear an
approvedrespirator.
Read MSDS for safety infor-
mation. Consider using
tungsten containing ceria,
lanthana,or yttria instead of
thoria. Grinding dust from
thoriated electrodes con-
tains low-level radioactive
material. Properly dispose
of grinder dust in an environ-
mentally safe way. Wear
proper face, hand, and body
protection.Keep flammables
away.
1 Grinder
2 Exhaust (Vacuum) System
The grinding head is designed to
accept a 1−1/4 in. (32 mm) exhaust
(vacuum) hose.
Connect the grinder to the exhaust
(vacuum) hose as shown.
The optional protective cover/
adapter can also be used to con-
nect the exhaust (vacuum) hose to
the grinder.
1
2

OM-230 915 Page 6
SECTION 5 − OPERATION
Operation
5-1. Grinder Components
804 718
1 On/Off Switch
2 Identification Label
3 Grinding Head
4 Tungsten Sharpening Angle
5 Tungsten Sharpening
Diameters
6 Tungsten Sharpening Holes
7 Tungsten Surface Grinding
Holes
8 Tungsten Cutting Slot
1
2
3
4
5
6
87

ENGLISH
OM-230 915 Page 7
5-2. Grinding And Cutting Electrodes
804 719
!Grinding the tungsten electrode
producesdust and flying sparks
which can cause injury and start
fires. Use local exhaust (forced
ventilation)at the grinder or wear
an approved respirator.
Read MSDS for safety informa-
tion. Consider using tungsten
containingceria, lanthana, or yt-
tria instead of thoria. Grinding
dust from thoriated electrodes
contains low-level radioactive
material. Properly dispose of
grinder dust in an environmen-
tally safe way. Wear proper face,
hand, and body protection. Keep
flammablesaway.
Do not exert excessive pressure on
the grinding wheel or the life of the
wheel will be shortened.
Use a rough grinding wheel to
sharpenlarge electrodes.
Wait until grinding wheel stops be-
fore restarting grinder.
1 Tungsten Electrode
To Sharpen Electrode:
Determine diameter of electrode and
desiredsharpening angle.
Turn on grinder. Insert electrode in cor-
respondinghole in grinder.
Slowly turn the electrode until tip is
sharpenedevenly. If the electrode is not
turned the tip will be flat ground to the
selectedangle.
To Face Grind Electrode:
Determine diameter of electrode.
Turn on grinder. Insert electrode in cor-
responding hole at front of grinding
head. Grind the electrode tip until
square.
To Cut Electrode To Length:
(For Orbital Or Manual Welding):
2 Cutting Slot
Turn on grinder. Insert electrode in cut-
ting slot and turn electrode slowly until
cut.
An optional cutting device is avail-
ablefor larger electrodes. See Sec-
tion 7.
Turn grinder off.
Sharpening Electrode
Face Grinding Electrode
Cutting Electrode To Length
1
1
1
2

OM-230 915 Page 8
5-3. Replacing Grinding Wheels
804 720
!Turn off grinder and disconnect
power cord.
1 Head Screw
2 Head
3 Head Nut
4 1/8 in. (3 mm) rod
5 Grinding Wheel
6 Grinding Wheel Screw
Use Torx screwdriver to remove head
screw. Remove head. Do not remove
headnut.
Slide rod through cross hole and motor
shaft to prevent rotation of the grinding
wheel.
Removegrinding wheel screw. Remove
grinding wheel. Reverse or replace
grindingwheel.
To ensure correct installation, align
grindingwheel pilot hole with loca-
tor pin on shaft.
Reinstall grinding wheel screw and
washer, head, and head screw. Re-
move rod.
Tools Needed:
Torx
1/8 in.(3 mm) Diameter Rod
1
2
3
4
5
6

ENGLISH
OM-230 915 Page 9
5-4. Installing Optional Double-Decker Kit
804 720 / 804 721
!Turn off grinder and disconnect
power cord.
Items 7 − 10 are included in the kit.
1 Original Head Screw (M4 x 15)
2 Original Grinding Head
3 Head Nut
4 1/8 in. (3 mm) Rod
5 Standard Grinding Wheel
6 Grinding Wheel Screw
7 Shaft Extension
8 Rough Grinding Wheel
9 Additional Grinding Head
10 Additional Head Screw (M4 x 34)
Use Torx screwdriver to remove original
headscrew. Remove original head. Do not
removehead nut.
Slide rod through cross hole and motor
shaft to prevent rotation of the grinding
wheel.
Remove grinding wheel screw. Do not re-
move standard grinding wheel.
Screw shaft extension in shaft and tighten
with Torx screwdriver.
Reinstall original grinding head.
Installrough grinding wheel and secure with
grindingwheel screw.
Install new grinding head and head screw
.
Remove rod.
Tools Needed:
Torx
1/8 in.(3 mm) Diameter Rod
1
2
3
4
6
7
2
86
9
10
5

OM-230 915 Page 10
5-5. Installing Grinder Mounting Bracket
804 762
!Turn off grinder and disconnect
power cord.
Bracket and grinder can be
mountedhorizontally or vertically.
1 Bracket
2 1/4−20 x 1−/2 Mounting Screw
(Not Supplied)
3 Grinder Mounting Screws
(w/Collar)
Use bracket as a template to mark hole
location on mounting surface. Drill hole
where marked.
Loosen grinder mounting screws.
Alignmounting screws with grooves in
bracket opening. Insert grinder in
bracketand rotate until switch is easily
accessible.
Tightengrinder mounting screws.
Tools Needed:
1
3
2
Torx
1/4 in.

ENGLISH
OM-230 915 Page 11
SECTION 6 − MAINTENANCE & TROUBLESHOOTING
6-1. Routine Maintenance
!Disconnectpower before maintaining.
= Check = Clean Reference
Every
8
Hours
Section 5-1
Grinder Head Is Secure Power Cord For Damage Grinder Head Holes  Inside Of Housing
6-2. Troubleshooting
Trouble Remedy
Motor does not run. Have Factory Authorized Service Agent check power cable, and replace if necessary.
Have Factory Authorized Service Agent check motor, and replace if necessary.
Grinder head is loose. Tighten head screw.
Grinding wheel does not turn. Tighten grinding wheel screw.
Have Factory Authorized Service Agent check motor, and replace if necessary.
Grinding wheel wobbles. Tighten grinding wheel screw.
Replace grinding wheel.

OM-230 915 Page 12
SECTION 7 − PARTS LIST
Hardwareis common and
not available unless listed.
804 722
1
34
5
6
2

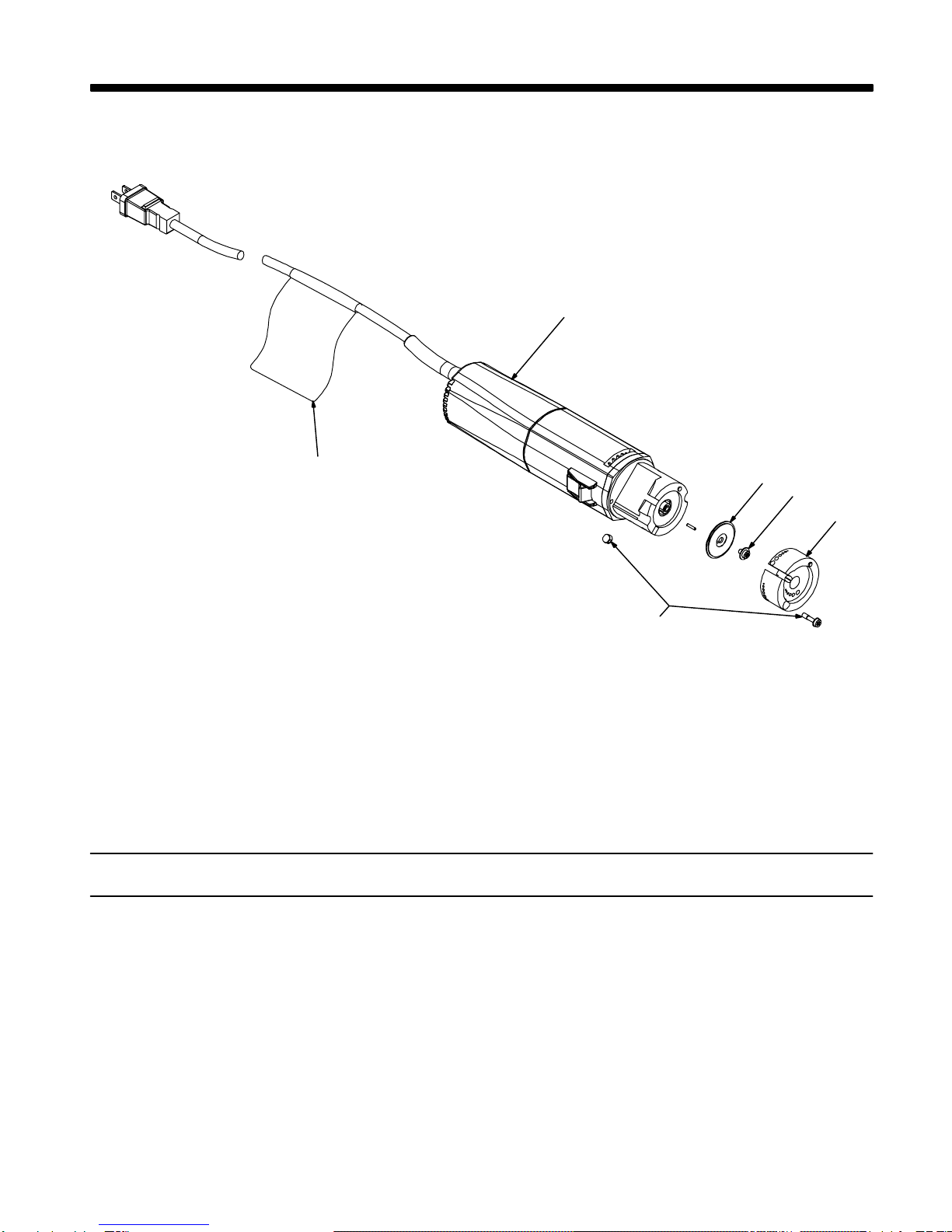

Figure 7-1. Complete Assembly
Description Quantit
y
Part
No.
Dia.
Mkgs.
Item
No.
Figure 7-1. Complete Assembly
1 WC232 143 Motor, Electric 120 V, 50/60 Hz (Includes Flange) 1... ......... .. .....................
2 Label, Warning 1... ....................... ...................................................
WC232 144 Brush, Carbon 2............... .. ....................................................
3 WC232 145 Wheel, Grinding (Standard) 1... ......... .. .........................................
4 WC232 146 Screw, Grinding Wheel M4 x 6 1... ......... .. ......................................
5 WC232 147 Head, Grinding 15°, 18°, 225°and 30°1... ......... .. ...............................
6 WC232 148 Screw. Head w/Collar M4 x 15 (Includes Head Nut) 2... ......... .. ....................
WC232 159 Label, Motor Flange 1............... .. ...............................................
WC232 160 Label, Rating 1............... .. .....................................................
WC232 161 Label, Product 1............... .. ....................................................
WC232 162 Label, Case 1............... .. ......................................................
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.

ENGLISH
OM-230 915 Page 13
1
2
3
4
5
6
804 996-A
7 8
9
8
10
11
Figure 7-2. Accessories
Description Quantit
y
Part
No.
Dia.
Mkgs.
Item
No.
Accessories
1 WC232 168 Gage, cutting, Fixed Length 1... ......... ... ....................................
2 WC232 153 Protective Cover (Protects Grinder Head) (Includes) 1... ......... .. ................
3 WC232 166... ......... ..
4 WC232 164... ......... ..
5 WC232 165... ......... ..
6 WC232 167... ......... ..
7 WC232 154 Double-Decker Kit (Includes)... ......... ..
8 WC232 155 Screw, Head w/Collar M4 x 34 1... ......... ... ....................................
9 WC232 147 Head, Grinding 15°, 18°, 225°and 30°1... ......... ... .............................
10 WC232 149 Wheel, Grinding (Rough) 1... ......... ... .........................................
11 WC232 156 Extension, Shaft 1... ......... ... ................................................
WC232 157 Case, Steel Carrying 1............... .. .............................................
WC232 158 Screwdriver, Torx 1............. .. ................................................
10 WC232 174 Wheel, Grinding Medium 1... ......... .. .........................................
10 WC232 149 Wheel, Grinding Rough 1... ......... .. ..........................................
WC232 173 Electrode Holder (With Clamping Collets) 1............... .. .........................
WC232 152 Wall/Table/Vice Mounting Plate (Includes Two Head Screws) 1............... .. ........
WC232 175 Grinding Head 15°, 30°, 45°and 60°............... ..
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.

ORIGINAL INSTRUCTIONS − PRINTED IN USA ©2010 Weldcraft Products Inc. 5/10
Model Name
Purchase Date (Date which equipment was delivered to original customer.)
Distributor
Address
City
State Zip
Please complete and retain with your personal records.
Always provide Model Number.
Contact a DISTRIBUTOR or SERVICE AGENCY near you.
Welding Supplies and Consumables
Options and Accessories
Personal Safety Equipment
Service and Repair
Replacement Parts
Welding Process Handbooks
Contact the Delivering Carrier to:
For Service
Owner’s Record
File a claim for loss or damage during
shipment.
For assistance in filing or settling claims, contact
your distributor and/or equipment manufacturer’s
Transportation Department.
Contact your Distributor for:
To locate a Distributor or Service Agency call 1-800-752-7620 or 920-882-6800
Weldcraft
An Illinois Tool Works Company
2741 N. Roemer Rd
Appleton, WI 54911 USA
1-800-752-7620 Toll Free
1-920-882-6800 Phone
1-920-882-6844 FAX
www.Weldcraft.com
