Wellington WBC142 User manual

- -
1
Wine Cooler
INSTRUCTION MANUAL
Model: WBC142

- -
2
Content
Hint for Castoff Disposal…………………………………………3
Hints on Safety & Warning………………………………………4
Know About Wine Cooler…………………………………..……6
Placement of Wine Cooler ………………………………………6
Level the Wine Cooler……………………………………….……7
Pay Attention to Room Temperature & Ventilation…………7
Ventilation……………………………………………………….… 7
Connect Wine Cooler with Power Source……………….……8
Set UP Temperature………………………………………………8
Placement of Beverage Bottle…………………………….…… 9
Use Temperature Area in Chilling Cabinet……………...……9
Practical Skills for Storage of Wine…………………….….…10
Drinking Temperature……………………………………...……10
Power-off & Stop Using of Wine Cooler……………….……11
Cleaning Wine Cooler ……………………………………….…11
Energy Saving……………………………………………………12
Operation Noise……………………………………………….…12
Troubleshooting By Yourself…………………………….……12

- -
3
Hint for Castoff Disposal
Disposal of Waste Package
The package is used to protect the wine cooler during the transportation. All
the materials are harmless to environment and reusable.
To know the current channel for disposal of castoff, please consult your
professional dealers or the local administrative authority.
Warning
For the discarded wine cooler:
1. Please pull out the plug of power source.
2. Please sever the electric cord and take it off with power plug.
The wine cooler contains cooling agent and the insulation layer contains gas.
The cooling agent and the insulated gas must be disposed by professional
personnel. Please do not damage the loop pipeline of the cooling agent before
it’s disposed by professional personnel.

- -
4
Hints on Safety & Warning
Before Operation of Wine Cooler
Please read the User Manual carefully!
It contains some important information on placement, use and maintenance of
wine cooler.
Please keep all the data for future use or the next user of the wine cooler.
Technical Safety
zThe wine cooler contains a little cooling agent - R134a, which is harmless
to the environment. Please pay attention not to damage the loop pipeline
of the cooling agent in the transportation or installation process. The
ejected cooling agent may cause injury to eyes or may ignite by itself.
When It’s Damaged
zThe flame or fire source should be kept away from the wine cooler.
zPlease ventilate the room thoroughly for several minutes.
zPull out the power plug.
zInform after-sales service personnel.
The more cooling agent the wine cooler has, the bigger the space to place the
wine cooler should be. For every 8g cooling agent, there must be at least 1m³
of space in the room. The quantity of wine cooler is marked on the nameplate
of the back-plate of the wine cooler.
zThe replacement of power cord and other repair activities can only be
carried out by the after-sales service personnel specified by the
manufacturers. Improper installation or repair may cause big dangers to
users.
During Use
zDo not use electric appliance (such as: heater, electric ice maker, etc.)
within the inside of the wine cooler.
Danger of Explosion!
zDo not use steam type cleaning equipment to clean the wine cooler or

- -
5
defrost! Steam may enter the electric elements and cause short circuit.
Danger of Electric Shock!
zDon’t remove frost or ice layers with sharp or keen-edged object.
Otherwise, the cooling agent pipeline may be damaged. The ejected
cooling agent may cause injury to eyes.
zDo not store products that contains combustible gas (such as: spray bottle)
or explosive materials in the wine cooler.
Danger of Explosion!
zDo not use the base or the door of the wine cooler as footplate or support.
zWhen you defrost or clean the wine cooler, please pull out the power plug
or disconnect the protective equipment. When you pull out power plug,
please hold the plug rather than pull the power cord.
zThe wines with high alcohol content must be sealed and stored vertically.
zAvoid contamination of grease to the plastic components and the door
sealing components of the wine cooler, or the plastic components and the
door sealing components of the wine cooler will appear small holes.
zDo not envelop or close the ventilation or exhaust holes.
Children
zDo not give the package or other components to children for play. The
folded paperboard and the plastic film may cause danger of suffocation!
zThe wine cooler is not toy of children!
General Regulation
The wine cooler is applicable for
zChilling storage of beverage
The wine cooler is only designed for household.
The series of wine cooler execute the following standards:
National Standard
GB 19606-2004 Noise limit value for household and similar electrical
appliances.

- -
6
GB-T 23777-2009 Wine Cooler
International or other national or regional standards:
UL 250 BULLETINS-2003 U.S.A. household fridge safety requirements
IEC 61000-3-4-1998 Electromagnetic compatibility (EMC) - Limits -
Limitation of emission of harmonic currents in low-voltage power supply
systems for equipment with rated current greater than 16 A
UL 250 BULLETINS2-2003 U.S.A. household fridge safety requirements
Enterprise Standard Q/MB 004-2007 Wine Cooler
Know About Wine Cooler
Fig.1
The illustration might be different from the actual products.
①Handle
②Control Panel
③Steel Wire Racks or Glass Shelves
④Glass Door
⑤Control Switch of Lamp
⑥Adjustment Leg
①
③
⑤
②
④
⑥

- -
7
Placement of Wine Cooler
The wine cooler should be placed in dry and ventilated room. The location of
the wine cooler should not be irradiated by direct sunshine. The wine cooler
should be far away from heating sources, such as: cooking stove or heating
radiator. If the wine cooler has to be placed near heating source, please adopt
proper heating insulation board for insulation or keep the wine cooler at least
the following minimum distances away from the heating sources:
For electric stove: 2 in (3 ㎝).
For oil or coal stove: 12 in (30 ㎝).
Replacement of Door Hinge
The door hinges of this wine cooler can be interchanged between the left and
right sides.

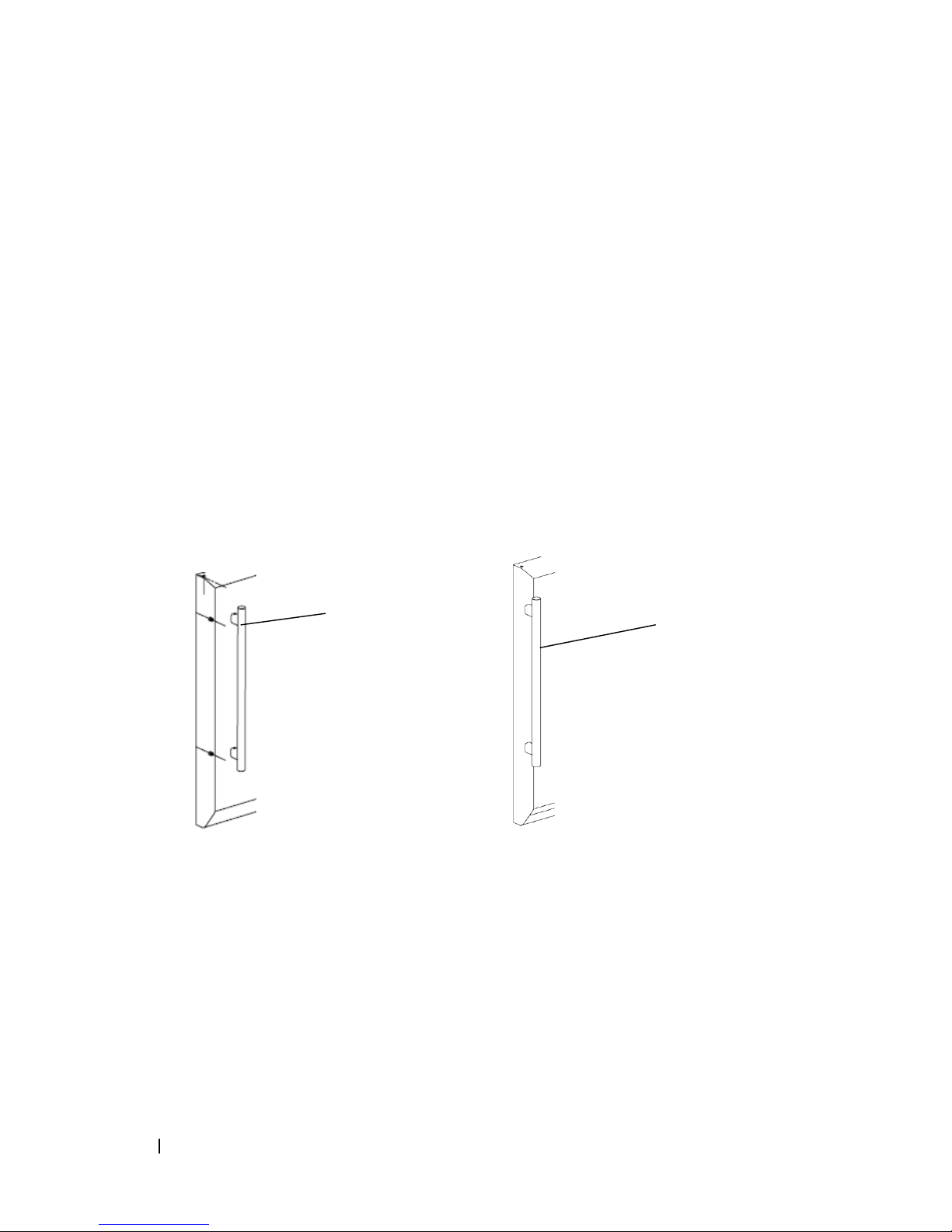

Installation of Handle
1. Set the handle on the fixation shaft.
2. Screw down the fixation pins of the handle with screw driver.
Fixation Shaft of Handle Set Handle

- -
8
Level the Wine Cooler
Place the wine cooler on the planned location and level it.
The front screw leg is adjustable.
Handle Fixation Pin
Screw Driver

- -
9
Pay Attention to Room Temperature & Ventilation
The climate type is marked on the model nameplate. It indicates the room
temperature range for operation of wine cooler.
Climate Type Indoor Temperature Range
N +61°F to 90°F (+16°C to 32°C)
ST +64°F to 100°F (+18°C to 38°C)
T +64°F to 109°F (+18°C to 43°C)
Notice
If the room temperature is lower than +61°F (+16°C), the wine cooler may not
be able to work normally, because if the room temperature is too low, the
temperature sensitive goods might be damaged.
If the room temperature is higher than +90°F (+32°C) and the humidity is
75%RT, the glass door of the wine cooler may have congealed dew.
Ventilation
The hot air on the side wall of the wine cooler must be exhausted freely, or the
power consumption will be increased to increase the power of the compressor.
Therefore, the distance between the wine cooler and the wall or the nearby
furniture should not be less than 4 ㎝.
This distance is the minimum requirement if you are to open the door to 90
degree.
Connect Wine Cooler with Power Source
After placing the wine cooler, please wait for at least half an hour before the
wine cooler can be operated. This is because the engine oil in the compressor
may flow into the cooling system during the transportation process.
Before the first running, please clean the inside chambers of the wine cooler
(Please see the section on cleaning).

- -
10
The power socket should be in such as place, where is reachable conveniently.
Please use a socket that’s installed according to the requirements. The wine
cooler should be connected with 115V/60Hz AC power.
Warning!
In any case, please do not connect the wine cooler to the electronic energy
saving power plug or the converter (such as: solar energy equipment, ship’s
electric grid) that convert DC into 115V AC.
Turn on the wine cooler and set up temperature

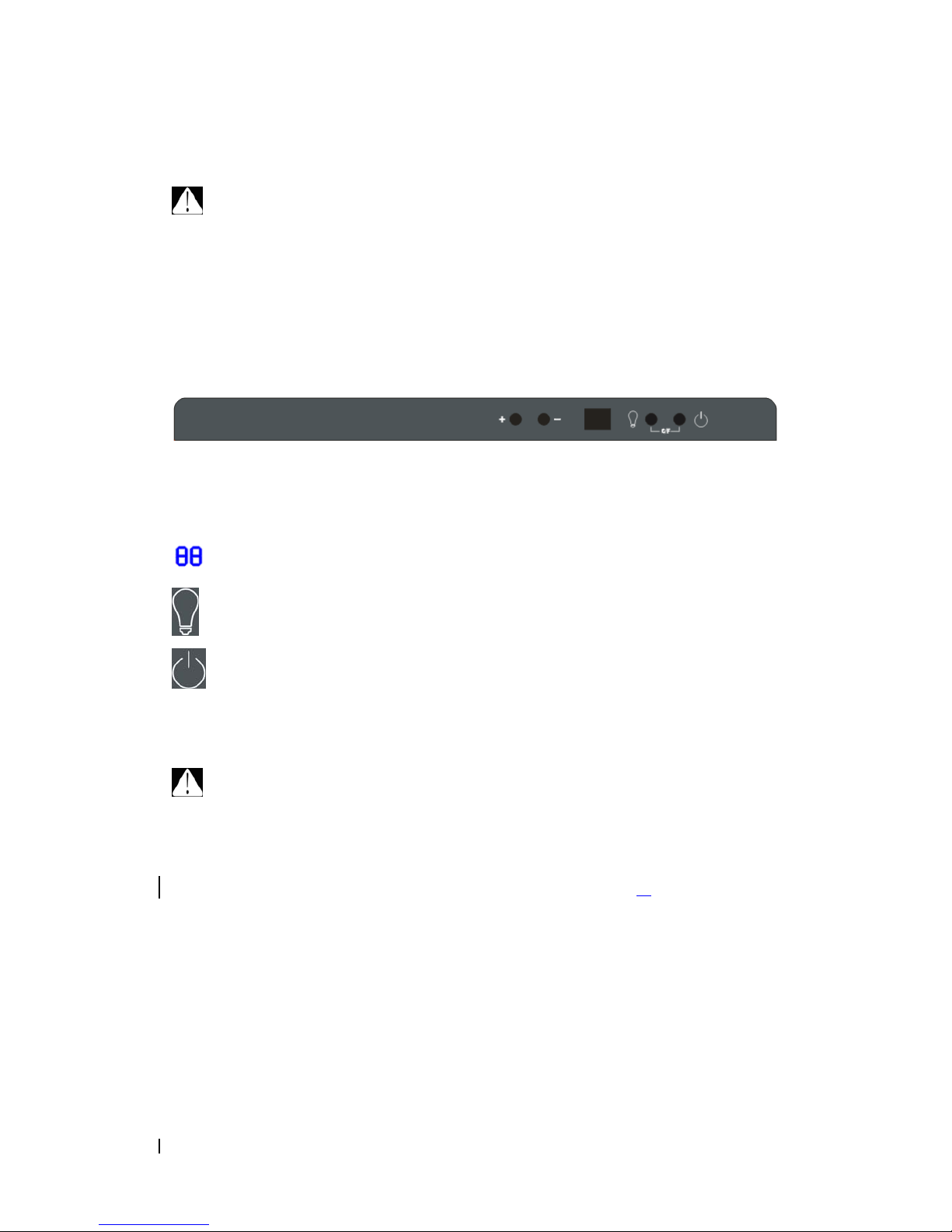

The screen is shown as the following picture:
+: Press this button once and the temperature increase 34°F (1°C).
-: Press this button once and the temperature decrease 34°F (1°C).
: Temperature display.
LIGHT: Lighting button for LED lamp; it controls the on/off of lamp.
POWER: On/off button used to turn on/off all load.
Press LIGHT and POWER together for 2 seconds and you can convert
between Fahrenheit temperature and Celsius temperature.
Notice!
zThe default temperature of UL-JC130GE is 50°F (10°C), and the
temperature after power failure will be the temperature set before the
power failure.
zThe default temperature of UL-LC130GE is 41°F (5°C), and the
temperature after power failure will be the temperature set before the
power failure.
zTo elongate the service life of compressor, please wait for at least 5
minutes before the wine cooler is restarted after power failure.
zFailure display
zIf there is failure on the sensor, the screen may display failure code, such
as: E and F. When the screen displays the above-mentioned errors, please
