Wellis TRIGLAV User manual

USER MANUAL
TRIGLAV
SPA SYSTEM
www.wellis.eu
Version: 01.2014
- 1x3HP Hydromassage pumps
- New GS100/VL260 control system
- 28 jets
- Chromotherapy lamp with 55 LEDs
- UV-C water sanitizer
- WPC frame

Standard Specification
Dimensions: 2000 x 2000 x 910 mm
Shell material: 6,3mm PU reinforced acrylic
Sitting places: 4persons
Reclining places:1 person
Water volume: 1100 l
Net weight: 280 kg
Power requirement:1x 32A (230V) optimum
1 x 16A(230V) minimum
Total number of jets: 28 pc
Hydromassage pump:1x3 HP (230V/50Hz)
Hot air blower pump:----
Energy-efficient LAING circulation
pump: ----
Diverter: 1pc
Chromotherapy lighting: 1 lamp with 55 LEDs
Exclusive colour therapy lighting: ----
Filter system:1 set
UV-C water sanitizer:1 pc
Heating unit: 1x3kW (230V/50 Hz)
1,5”drain: 1 pc
Air inlet regulator: 4pc
Balboa GS100 control sytem:1pc
Maintenance-free Synthetic Cabinet:1 set
WPC frame:1set
Thermo cover:1 pc

WARRANTY LETTER
Serial number:…………………………………
Model:.…………………………………………
Distributor
Date of buying:
_________________________
Signature:
(stamp)
Retailer
Date of buying:
_________________________
Signature:
(stamp)
2014 Wellis Spa Limited Warranty
WARRANTY FOR E PORT
Warranty; Limitations of Liability and Damages.
Company offers a limited warranty comprised of replacement of faulty parts and offers no
reimbursement for labor of repairs outside any abnormal failure rates to be determined by both parties.
5 year on spa shell: Wellis warrants the structure of the Pool Shell against defects in workmanship and
material for a period of 5 years, subject to the limitations and conditions listed in this Warranty.
3 years on spa shell surface: The acrylic spa shell is warranted against cracking, blistering or delaminat-
ing due to defects in materials or workmanship for three years from the original date of delivery.
2 years on spa plumbing: Spa fittings and plumbing are warranted against leaks due to defects in ma-
terials or workmanship for two years from the original date of delivery. There is no labor coverage on
internal jet parts replacement, cleaning or adjusting.
2 years on standard and optional spa equipment – Balboa Control Systems, Jet Pump(s), Laing Circula-
tion Pump, Heater, WiFi modul, IR receiver: The spa equipment systems are warranted against failure
due to defects in materials or workmanship for two years from the date of delivery. Fuses, bulbs, and
seals are not covered.
2 year on Pulsar hydrotherapy system: The factory installed Pulsal hydrotherapy systems are warranted
against failure due to defects in materials or workmanship for one year from the original date of delivery.

2 year on spa cabinets/skirts: The factory installed spa cabinets/skirts are warranted against failure due
to defects in materials or workmanship for one year from the original date of delivery.
2 year on ozone generator: The ozone generator is warranted against failure due to defects in materials
or workmanship for one year from the original date of delivery.
2 year on audio system components: The factory installed audio components (i.e. power supply,
speakers, wires, etc.) are warranted against failure due to defects in materials or workmanship for one
year from the original date of delivery. There is no in-field labor service on these items.
2 year on LED lights: The factory installed LED lights are warranted against failure due to defects in
materials or workmanship for one year from the original date of delivery.
2 year on UV-C sanitizer lamp: The factory installed UV-C sanitizer lamps are warranted against failure
due to defects in materials or workmanship for one year from the original date of delivery.
2 year on ISIS Genesis disinfection system: The factory installed ISIS Genesis disinfection systems are
warranted against failure due to defects in materials or workmanship for one year from the original date
of delivery.
1 year on blower: The blower is warranted against failure due to defects in materials or workmanship
for one year from the original date of delivery.
1 year on thermo cover: The thermo cover is warranted against failure due to defects in materials or
workmanship for one year from the original date of delivery.
1 year on Wellis Spa Umbrella: The factory installed Wellis Spa Umbrellas are warranted against failure
due to defects in materials or workmanship for one year from the original date of delivery.
1 year on LCD TV system: The factory installed LCD TV systems are warranted against failure due to
defects in materials or workmanship for one year from the original date of delivery.
90 days on skimmer house: Skimmer houses are subject to water chemistry variation and are warranted
for ninety days from the original date of delivery. NO warranty on filters, spa pillows and skimmer house
tops.

WARRANTY PERFORMANCE
1. This warranty does not cover cleaning or adjusting spa or for customer error in following correct
procedures.
2. Wellis Magyarország Kft. reserves the right to substitute a spa or component of equivalent value,
either new or factory reconditioned and any such repair or replacement shall assume as its warranty
only the remaining portion of the warranty on the original product.
3. Wellis Magyarország Kft. is not liable for any costs associated with in-ground, in-deck, or in-home
installations or removal. Costs associated with installations other than standard residential portable
spa use will be the sole responsibility of the spa owner. The spa owner is responsible for any freight
and/or delivery and set up charges for a replacement spa.
4. The radio reception is not covered under warranty due to the following: The radio signal reception
may be impaired by the positioning of the spa next to or near structures, high power lines, main
power lines or metallic towers. The signal reception may be impaired if the spa is located near hills or
it is in a valley or simply outside the broadcasting range of the radio stations. The position of the spa
and radio may be “out of phase with the bandwidth” or the radio frequency. External signal reception
assistance may be required and is not part of this warranty.
5. Wellis Magyarország Kft. shall not be liable for any incidental or consequential damages for breach of
any expressed or implied warranty, breach of contract, negligence, strict liability, or any other legal
theory related to this product. All consequential expenses including loss of use, damages, or
contingent liabilities arising out of any alleged deficiencies of the spa are specifically excluded from
this warranty.
6. Warranty coverage is only extended to the original buyer. Spas purchased from anyone other than a
current Wellis Spas Authorized Dealer are specifically excluded from any warranty coverage. To
obtain warranty service, please notify your Wellis Spas Authorized Dealer in writing within 14 days of
the problem (with problem details, original proof of purchase).
. The Authorized Dealer will repair or replace any component found defective under the terms of this
warranty – and permitted by Wellis Magyarország Kft. Travelling expenses may apply outside of every
European cities.
8. If the Authorized Dealer doesn`t supply the customer with proper service, please notify Wellis
Magyarország Kft. by mail within 10 days of the problem.
9. Electrical connection: All electrical connections are required to be done by a qualified electrician
solely. The spa has to be connected to separate current circuit equipped with suitable power switch
and life safety relay. Omission of these electrical conditions/requirements entails immediate loss of
the warranty.
10. Water connection: All water connections are required to be done by a qualified plumber solely. If the
spa is placed indoor make allowances for the following special requirements: The water accumulates
around the spa so the socket cover has to be in possession of a suitable drainage. This arrangement
hinders the water in collecting.
11. Wellis Magyarország Kft. offers a limited warranty as described in the Warranty Letter.

12. Warranty claim is enforceable with this warrant letter. Irregular establishing of this warrant letter
doesn`t affect to the validity of warranty obligation. If customer doesn`t get this warrant letter from
the Authorized Dealer, it doesn`t affect to the validity of warranty obligation.
SPA WARRANTY COVERAGE WILL BE VOID UNDER THE FOLLOWING CONDITIONS
1. If damages caused by inefficient maintance of water and/or chemical dosage.
Terms of water hardness (limits): between 6-10 German degrees.
2. If the spa surface or equipment has been damaged or discolored as a result of improper water
chemistry maintenance, including sanitizers such as trichlor type chlorine, calcium hypochlorite,
sodium hypochlorite, and any other chemicals or a chemical dispenser that may rest on the spa
surface. Some household cleaners can damage the spa shell or equipment and will void this warranty
completely. Use only products that are recommended for spas.
3. If damage to the spa has resulted from an Act of God, force majeure, moving of the spa, improper
installation, unstable power conditions, customer negligence, customer abuse, weather and sunlight
damage or damage caused in shipment.
4. If damage to the spa has resulted from operation outside – temperature exceed 45°C.
5. If the spa has been subjected to any alterations, after-market product installations, misuses, abuses,
or if any repairs are attempted by anyone other than its authorised dealers.
6. If damage to the spa has resulted from improper use of thermo cover.
. If damage to the spa has resulted from clogged, dirty and/or sclerosed filter. The spa warranty will be
void if the owner does not follow all the instructions in the owners manual regarding the proper use
and care of the spa. Warranty doesn`t apply to filters!
8. If damage to the spa has resulted from improper electrical installation, voltage drop, peak voltage
and/or operation is outside the pale of + / - 10% voltage range.
Electrical conditions:
For electrical installation it is required to build a 30mA circuit breaker (life safety relay), which is just
connected to the spa (not allowed to connect any other devices). This 30 mA circuit breaker is not
permitted to be installed in the same place as the spa.
Required to install IEC, RCCB system in spa`s common surroundings.
Length of cable is 3 meters at the place of spa installed.
It is obligatory to observe all information, details and requirements which are in the product`s
installation diagram regarding elelectricity demand and drain installation.
These information can be found in the user manual, or able to download from www.wellis.eu. If you
didn`t get the document from your dealer, please contact [email protected].
9. If damage to the spa has resulted from debris in jets (i.e. sand, dirty calcium, leaves etc.).
10. Warranty doesn`t extend to the waste water manifold (drain hose), pillows, filters, bulbs and/or
pump sealings.

LIMITATIONS
The Warranty expressions specified excludes any other implied or oral undertakings. Purchasers also
have current rights under statute which will be respected by Wellis Magyarország Kft. After a period
of 12 months, for the purpose of assessing Wellis Magyarország Kft. liability, all aspects covered by
this Warranty will be treated on a pro-rata basis. Wellis Magyarország Kft. or its agents will not be
liable for any incidental or consequential loss or injury. Nor will Wellis Magyarország Kft.be liable for
costs associated with but not limited to building alterations or finishes and under no circumstances
will be liable for greater expense than the amount paid for the product.
THE SPA OWNER MUST DO EVERYTHING STATED IN THE SPA OWNERS MANUAL AND WARRANTY
LETTER TO SAFEGUARD AND MAINTAIN THE SPA!
MANUFACTURER OF YOUR SPA:
Wellis Magyarország Kft.
Registered: ..................................................................... 1118 Budapest, Budaörsi út 31/c, Hungary;
Central premise: ............................................... 23 1 Dabas, Mánteleki út hrsz: 041 Pf: , Hungary
AUTHORIZED DEALER OF YOUR SPA
Company in charge of your spa
Company name: ..................................................................................................................................
Registered: ...........................................................................................................................................
Central premise: ..................................................................................................................................
Place of complaint: ..............................................................................................................................
E-mail address: ....................................................................................................................................
Website: ...............................................................................................................................................
Phone number: ....................................................................................................................................
Fax: .......................................................................................................................................................
Person in charge of installation: .........................................................................................................
Date of installation:.............................................................................................................................

SERVICE-WORK
The announcement date of damage: _____________________________
Date of received goods/parts for repair: _____________________________
Date of the return of repaired goods/parts: ____________________________
Date of site service: _____________________________ STAMP
Improved error: _____________________________
Mode of repair: _____________________________
Failed component: _____________________________
New deadline for the warranty: __________________________
The announcement date of damage: _____________________________
Date of received goods/parts for repair: _____________________________
Date of the return of repaired goods/parts: _____________________________
Date of site service: _____________________________ STAMP
Improved error: _____________________________
Mode of repair: _____________________________
Failed component: _____________________________
New deadline for the warranty: _____________________________
The announcement date of damage: _____________________________
Date of received goods/parts for repair: _____________________________
Date of the return of repaired goods/parts: _____________________________
Date of site service: _____________________________ STAMP
Improved error: _____________________________
Mode of repair: _____________________________
Failed component: _____________________________
New deadline for the warranty: _____________________________
The announcement date of damage: _____________________________
Date of received goods/parts for repair: _____________________________
Date of the return of repaired goods/parts: ____________________________
Date of site service: _____________________________ STAMP
Improved error: _____________________________
Mode of repair: _____________________________
Failed component: _____________________________
New deadline for the warranty: _____________________________

CLEANING
GENERAL INFORMATION:
Water recirculation-filtering
The basic conditions for keeping the water of the massage basin clean are the removal of mechanical dirt
and the blending of the chemicals in the water with continuous water recirculation. In all our basins
appliances comprising of a pump and a filter are used for this purpose. The filter removes the dirt floating
in the water or at the surface of the water. Filters with paper or textile filter medium are used for the
basins. The dirt settled at the bottom of the basin is filtered out with the aid of the suction and stirring
created by the massage pumps.
Don't leave the spa expose to the sun without water or the cover, Exposure to direct sunlight can cause
solar distress of the shell material. Use and cover spa cover when spa is not in use, whether it is empty or
full. Try to deep your spa away form rain, snow, if possible build a gazebo for your spa.
1. Don't attempt to open the electrical control box . There are no user serviceable parts inside.
2. Drain, clean and refill your spa with fresh water on a regular schedule.
3. Clean the filter cartridge at least once per month.
4. Have spa users bathe before entering the spa water, showering without soap prior to enter the
spa, and using only the rinse cycle when laundering your bathing suit, will help avoiding
detergent and soap residue in spa water.
FILTER CARTRIDGE RMOVAL AND CLEANING
You spa filter cartridge can become clogged with mineral
particles of calcification from hard water. Which may
result in reduced water flow. We recommended cleaning
you filter cartridge every month.
1.Remove filter lid.
2.Unscrew filter cartridge.
3.Clean with high pressure nozzle to remove all debris
clinging to the filter.
4.Soak filter in warm water and Wellis Alga-Sokk to
remove all body oils and grime. Never use chlorine to
clean the filter! If you use textile filter, you can wash it
int he washing machine too.

The chemical equilibrium of the water
The water of the whirlpool will be clean and clear if its chemical components are in equilibrium.
1. pH-values:
The first important indicator is the pH value of the water. pH is measured in a scale between 0-14 where 7
is the neutral value. Below this level the water is acid, above it alkaline. The pH value of the human eye is
around 7.5, below 7.2 and above 7.8 the water will sting the eyes of the bather. Experiences have shown
that most problems are caused by a too high pH value. An improper value reduces the effect of the
disinfectant.
2. Water hardness:
Water hardness is determined by the quantity of calcium and magnesium salts dissolved in the water.
Hard waters contain too much of these dissolved salts and thus, left alone, scale will form. Scales can
cause significant damage both to the walls of the basin, to the piping, filter and to the heating and
engineering units. In Hungary waters are medium hard. Water hardness cannot be reduced by the addition
of chemicals, but the formation of scales can be prevented.
3. Disinfection:
Disinfectant: is the chemical that eliminates or neutralises the microorganisms (bacteria, algae, fungi,
viruses) present in the water. Microorganisms are small, microscopic organisms, which cannot be
detected with the naked eye and are continuously getting into the water through rain, wind and the body
of the bathers. If they are not eliminated they pass from one person to the other through the water (and
may cause sickness, infection). Organic matter turns the water of the basin opaque and cloudy. Most often
– as we are dealing with warm water basins – bromine or active oxygen is used.
4. Frothing:
Froth is the smaller-bigger agglomeration of the bubbles and colloid contaminants found on the surface of
the water. It is mostly caused by the mixing of the dirt, cosmetics, body care lotions, etc. that soak out of
the human skin and the chemicals. It endangers the conservation of the aesthetic appearance and
cleanliness of the water.
5. Water analysers:
There are several different types of water analysers, which are mostly used to measure chemical and
disinfectant effect. Chemical (pH); Disinfectant (Br, O
3
)
Types:
-Box containing tablets and graduated measuring glass.
-Litmus paper indicators in a box.
Replacing underwater light
1. Turn off thepower on the spa.
2. Remove plastic panel behind where the underwater light is situated.
3. There is a plug with two wires going into the back of the light.
4. Remove this plug by turning anticlockwise.
5. Replace faulty light globe with a new one.
6. Replace parts and put the plastic panel back on.

TROUBLESHOOTING

Temp/Set (80°F - 104°F / 26°C - 40°C)
The start-up temperature is set at 100F°/37°C. The last
measured temperature is constantly displayed on the LCD.
Note that the last measured spa temperature displayed is
current only when the pump has been running for at least
2 minutes.
To display the set temperature, press the “Temp” or “Set”
pad once.
To change the set temperature, press the pad a second time
before the LCD stops flashing. Each press of the “Temp” or “Set”
pad will continue to either raise or lower the set temperature.
If the opposite direction is desired, release the pad and let the
display revert to the current water temperature. Press the pad to
display the set temperature, and again to make the temperature
change in the desired direction.
After three seconds, the LCD will stop flashing and display the
current spa temperature.
Note: If there is not a blower on the system, an alternate panel with
separate "Up" and "Down" buttons in place of a "Set" or "Temp" button
may be used. Simply press "Up" or "Down" where a "Temp" or "Set"
button press is indicated. (Ignore the "direction reversal paragraph.")
Jets
Touch the “Jets” button once to activate the low speed of the
pump and again for the high speed. Press the “Jets” button
again to turn off the pump. If left running, the low speed of
the pump will automatically turn off after 4 hours, and the high
speed will automatically turn off after 15 minutes. The low
speed of the pump runs when when the blower is on. It may
also activate for at least 2 minutes every 30 minutes to detect
the spa temperature and then to heat to the set temperature if
needed, depending upon mode. When the low speed turns on
automatically, it cannot be deactivated from the panel; however,
the high speed may be started.
Blower (optional)
This button is used to turn the blower on and off. If left on, the
blower automatically turns off after 15 minutes.
Jets 2 (optional)
If your system has a pump 2 installed instead of a blower, it
behaves exactly like a blower would.
(over)
MVP260 Control Reference Card
Non-Circ Operation
Initial Start-up
When your spa is first actuated, it will go into Priming mode, indicated by “ .” Please see the M-7 Installation Instruction Manual
for complete instructions on Power-up and Pump Priming. The Priming mode will last for less than 5 minutes (press "Temp" or
"Set" to skip Priming Mode) and then the spa will begin to heat the spa and maintain the water temperature in the Standard mode.
Light
Press the “Light” button to turn the light on and off. If left on,
the light automatically turns off after 4 hours.
Mode
Mode is changed by pressing the “Temp” or “Set” button, then
pressing the “Light” button.
Standard Mode is programmed to maintain the desired
temperature. Note that the last measured spa temperature
displayed is current only when the pump has been running for at
least 2 minutes. “ ” will be displayed momentarily when you
switch into Standard Mode.
Economy Mode heats the spa to the set temperature only
during filter cycles. “ ” will display solid when temperature
is not current, and will alternate with temperature when
temperature is current.
Sleep Mode heats the spa to within 20°F/10°C of the set
temperature only during filter cycles. “ ” will display solid
when temperature is not current, and will alternate with
temperature when temperature is current.
Preset Filter Cycles
The first filter cycle begins 6 minutes after the spa is energized.
The second filter cycle begins 12 hours later. Filter duration is
programmable for 2, 4, 6, 8 hours or for continuous filtration
(indicated by “ ”). The default filter time is 2 hours.
To program, press “Temp” or “Set,” then “Jets.” Press “Temp”
or “Set” to adjust. Press “Jets” to exit programming.
The blower purges for 30 seconds at the beginning of each filter
cycle. The low speed of the pump runs during filtration and the
ozone generator (if installed) will be enabled.
Freeze Protection
If the temperature sensors detect a drop to below 44°F/6.7°C
within the heater, the pump and blower will automatically
activate to provide freeze protection. The equipment stays on
until 4 minutes after the sensors detect that the spa temperature
has risen to 45°F/7.2°C or higher. In colder climates, an
optional additional freeze sensor may be added to protect against
freeze conditions that may not be sensed by the standard sensors.
Aux freeze sensor protection acts similarly except with the
temperature thresholds determined by the switch and without a
4-minute delay in turnoff. See your dealer for details.
JetsJets LightBlower Temp
JetsJets LightJets Temp

Warning! Shock Hazard! No User Serviceable Parts.
Do not attempt service of this control system. Contact your dealer or service organization for assistance. Follow all owner’s manual power
connection instructions. Installation must be performed by a licensed electrician and all grounding connections must be properly installed.
Message
No message on display.
Power has been cut off to the spa.
Temperature unknown.
“Overheat” - The spa has shut down. One of the
sensors has detected 118°F/48°C at the heater.
“Overheat” - The spa has shut down. One of
the sensors has detected that the spa water is
110°F/43°C.
“Ice” - Potential freeze condition detected.
Spa is shut down. The sensor that is plugged into
the Sensor “A” jack is not working.
Spa is shut down. The sensor that is plugged into
the Sensor “B” jack is not working.
Sensors are out of balance. If alternating with
spa temperature, it may just be a temporary
condition. If flashing by itself, spa is shut down.
A significant difference between temperature
sensors has been detected. This could indicate a
flow problem.
Persistent low flow problems. (Displays on the
fifth occurrence of “ ” message within 24 hours.)
Heater is shut down, but other spa functions
continue to run normally.
Possible inadequate water, poor flow, or air
bubbles in detected in the heater. Spa is shut
down for 15 minutes.
Inadequate water detected in heater. (Displays on
third occurrence of “ ” message.) Spa is
shut down.
The control panel will be disabled until power returns. Spa
settings will be preserved until next power up.
After the pump has been running for 2 minutes, the
temperature will be displayed.
DO NOT ENTER THE WATER. Remove the spa cover
and allow water to cool. Once the heater has cooled, reset by
pushing any button. If spa does not reset, shut off the power to
the spa and call your dealer or service organization.
DO NOT ENTER THE WATER. Remove the spa cover
and allow water to cool. At 107°F/42°C, the spa should
automatically reset. If spa does not reset, shut off the power to
the spa and call your dealer or service organization.
No action required. The pump and blower will automatically
activate regardless of spa status.
If the problem persists, contact your dealer or service
organization. (May appear temporarily in an overheat situation
and disappear when the heater cools.)
If the problem persists, contact your dealer or service
organization. (May appear temporarily in an overheat situation
and disappear when the heater cools.)
If the problem persists, contact your dealer or service
organization.
Check water level in spa. Refill if necessary. If the water level
is okay, make sure the pumps have been primed. If problem
persists, contact your dealer or service organization.
Follow action required for “ ” message. Heating capability of
the spa will not reset automatically; you may press any button
to reset.
Check water level in spa. Refill if necessary. If water level is
okay, make sure the pumps have been primed. Press any button
to reset, or this message will automatically reset within
15 minutes. If problem persists, contact your dealer or service
organization.
Follow action required for “ ” message. Spa will not
automatically reset. Press any button to reset.
Meaning Action Required
Diagnostic Messages

Basic Installation and Configuration Guidelines
Use minimum 6AWG copper conductors only.
Torque fi eld connections between 21 and 23 in lbs.
Readily accessible disconnecting means to be provided at time of installation.
Permanently connected power supply.
Connect only to a circuit protected by a Class A Ground Fault Circuit Interrupter (GFCI) or Residual
Current Device (RCD) mounted at least 5’ (1.52M) from the inside walls of the spa/hot tub and in line of
sight from the equipment compartment.
CSA enclosure: Type 2
Refer to Wiring Diagram inside the cover of the control enclosure.
Refer to Installation and Safety Instructions provided by the spa manufacturer.
Warning: People with infectious diseases should not use a spa or hot tub.
Warning: To avoid injury, exercise care when entering or exiting the spa or hot tub.
Warning: Do not use a spa or hot tub immediately following strenuous exercise.
Warning: Prolonged immersion in a spa or hot tub may be injurious to your health.
Warning: Maintain water chemistry in accordance with the Manufacturers instructions.
Warning: The equipment and controls shall be located not less than 1.5 meters horizontally from the spa
or hot tub. Warning! GFCI or RCD Protection.
The Owner should test and reset the GFCI or RCD on a regular basis to verify its function.
Warning! Shock Hazard!
No User Serviceable Parts.
Do not attempt service of this control system. Contact your dealer or service organization for assistance.
Follow all owner’s manual power connection instructions. Installation must be performed by a licensed
electrician and all grounding connections must be properly installed.
CSA Compliance
Caution:
• Test the ground fault circuit interrupter before each use of the spa.
• Read the instruction manual.
• Adequate drainage must be provided if the equipment is to be installed in a pit.
• For use only within an enclosure rated CSA Enclosure 3.
• Connect only to a circuit protected by a Class A ground fault circuit interrupter or residual current
device.
• To ensure continued protection against shock hazard, use only identical replacement parts when
servicing.
• Install a suitably rated suction guard to match the maximum fl ow rate marked.
Warning:
• Water temperature in excess of 38°C may be injurious to your health.
• Disconnect the electrical power before servicing.
Warning
• Disconnect the electric power before servicing. Keep access door closed.

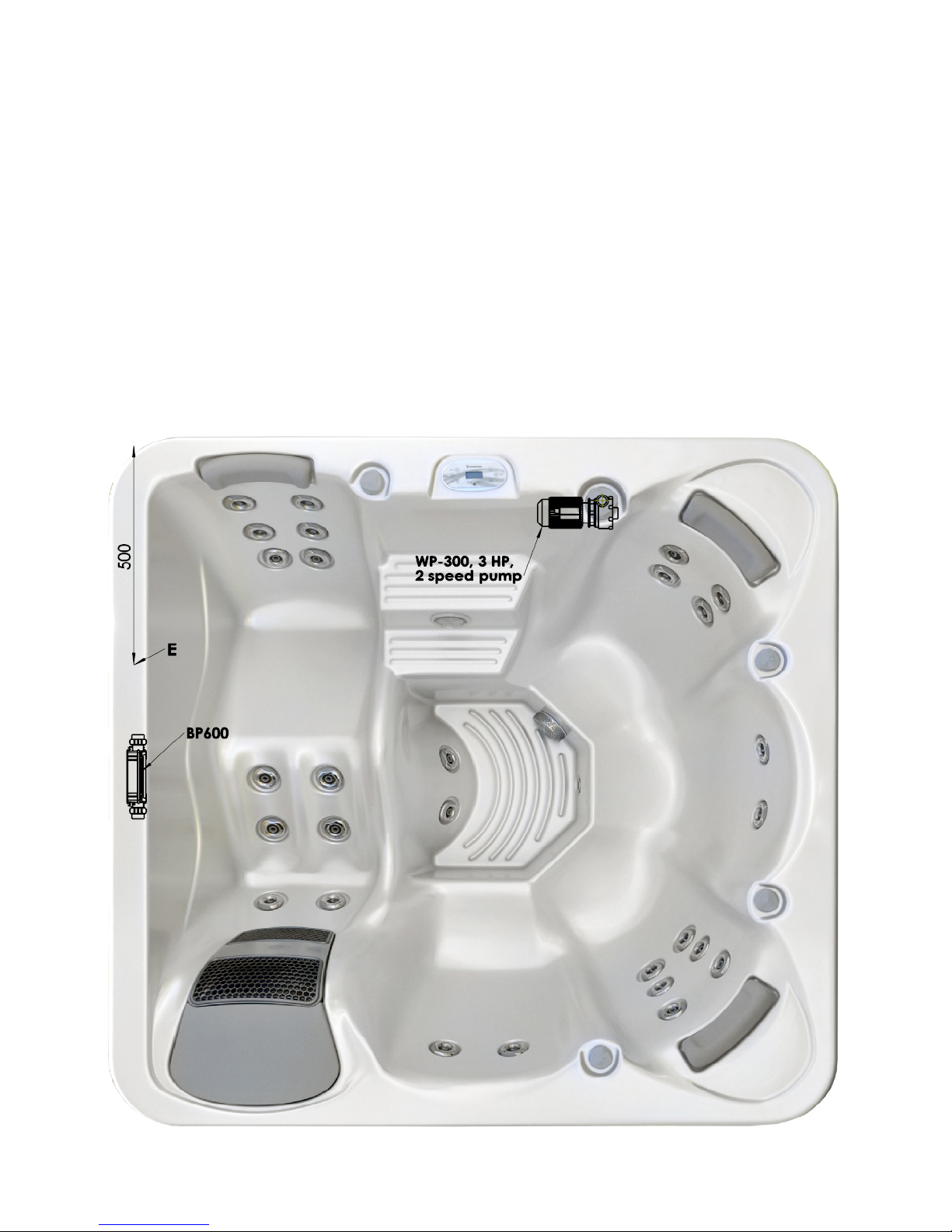

Piping instructions of TRIGLAV spa
30mA safety relay is need to be installed!
 E: Electric hole (500mm) to terminal facilities through spa cabinet. 3 m cabels are required!
In case of sinking just allowed to sinking part which is under the spa`s acrylic-flange. You have to make safe the
diversion of inlet water in the deepest point of the inspection pit. The inspection pit has to be aired accordingly
(proposal: building in an extractor fan).
The inspection pit`s minimum width is 60 cm around the spa.
If the spa is placed indoor please make allowances for the following special requirements: The water
accumulates around the spa so the socket cover has to be in possession of a suitable drainage. This arrangement
hinders the water in collecting.
Given sizes above are only information, there may be variant sizes on the grounds of the spa`s manufacturing
technique.
