Wellis PEAKLIFE User manual

USER MANUAL FOR SPA
PEAKLIFE
/CONTROL SYSTEMS /KEYPADS /ACCESSORIES /

Introduction … … … … … … … … … … … … … … … … … … … … … … … … 2
Safety instructions … … … … … … … … … … … … … … … … … … … … … … … 3
Basic Functions … … … … … … … … … … … … … … … … … … … … … … … … 5
Connection diagram
Everest Life… … … … … … … … … … … … … … … … … … … … … … … … 6
Kilimanjaro Life … … … … … … … … … … … … … … … … … … … … … … 7
Atlas Life … … … … … … … … … … … … … … … … … … … … … … … … 8
Makalu Life … … … … … … … … … … … … … … … … … … … … … … … 9
Teide Life … … … … … … … … … … … … … … … … … … … … … … … … 10
Initial installation … … … … … … … … … … … … … … … … … … … … … … … 11
Maintenance … … … … … … … … … … … … … … … … … … … … … … … … 15
Spa chemical treatment … … … … … … … … … … … … … … … … … … … … … 16
In line quickstart guide … … … … … … … … … … … … … … … … … … … … … … 19
Jet Directions
Everest Life… … … … … … … … … … … … … … … … … … … … … … … … 23
Kilimanjaro Life … … … … … … … … … … … … … … … … … … … … … … 24
Atlas Life … … … … … … … … … … … … … … … … … … … … … … … … 25
Makalu Life … … … … … … … … … … … … … … … … … … … … … … … 26
Teide Life … … … … … … … … … … … … … … … … … … … … … … … … 27
User interface
Smart Touch … … … … … … … … … … … … … … … … … … … … … … … 28
4 and 1 single button panel … … … … … … … … … … … … … … … … … … … 40
Other accessories
Electric water diverter for use … … … … … … … … … … … … … … … … … … … 41
The Heat Pump … … … … … … … … … … … … … … … … … … … … … … 42
Smart step manual … … … … … … … … … … … … … … … … … … … … … … … 46
Other accessories
Aquasoul Pro … … … … … … … … … … … … … … … … … … … … … … … 60
Ozone … … … … … … … … … … … … … … … … … … … … … … … … … 62
in.grid … … … … … … … … … … … … … … … … … … … … … … … … … 63
in.touch 2 … … … … … … … … … … … … … … … … … … … … … … … … 64
Wiring diagram - W3000 … … … … … … … … … … … … … … … … … … … … … … 88
Breaker setting … … … … … … … … … … … … … … … … … … … … … … … … 90
Common hardware issues … … … … … … … … … … … … … … … … … … … … … 92
TABLE OF CONTENTS

Congratulations on your new product!
Outside work and family the enjoyment of quality life and calm moments plays an important role in the life of a 21st century
man. An evening bath in the spa or tub alone or in company can give you the opportunity to lose track of time and your body
and soul can relax. From the world of rationality we get into the world of senses where the cosseting atmosphere of the water
provides the perfect conditions for relaxation.
Our design engineers utilised the experiences of the ancient Eastern massage culture and the modern findings of Western
hydrotherapy to create spas providing the perfect massage experience.
Develop a peaceful space for relaxation with your product in your home and join the group of the few who seek a positive
impact on their environment by establishing internal harmony.
Dive into your spa and enjoy the gently flowing water!
INTRODUCTION
Aeware®, Gecko®, and their respective logos are Registered Trademarks of Gecko Alliance Group.
in.yt™, in.ye™, in.yj™, in.touch™, in.stream 2™ , DJS ™, in.k110™, in.k120™, in.k361™, in.k1001™, in.clear™,
and their respective logos are Trademarks of Gecko Alliance Group.

All other product or company names that may be mentioned in this publication are tradenames, trademarks or registered trademarks
of their respective owners.
2

FOR YOUR SAFETY PLEASE ALWAYS PERFORM THE
FOLLOWING PRECAUTIONS. IF YOU DO NOT FOL-
LOW THE WARNINGS AND INSTRUCTIONS, ITEMS
MAY GET DAMAGED, YOU MAY GET INJURED,
OR YOU MAY SUFFER FATAL INJURY. IMPROPER
INSTALLATION AND OPERATION INVALIDATES THE
WARRANTY.
Initial safety warnings
The spa must be powered through a residual current device
(RCD) with a current release not exceeding 30mA.
The devices and parts which contain active parts – except
those which are powered from protective extralow voltage
not exceeding 12V – must be inaccessible from the spa.
ABOUT THE ENVIROMENTALLY SAFE WATER
DRAINING
The spa must be powered through a residual current device
(RCD) with a current release not exceeding 30mA.
The devices and parts which contain active parts – except
those which are powered from protective extralow voltage
not exceeding 12V – must be inaccessible from the spa.
About the enviromentally safe water draining
The water temperature in the spa should never exceed
40°C (104°F). The water temperature is considered safe for
a healthy adult at 36 to 38°C. Lower water temperature is
recommended for younger children or when the spa is used
for more than 10 minutes.
Spa heat can cause hyperthermia!
Symptoms: drowsiness, heaviness
Children under 14 years of age can only use and operate the
products mounted with hydromassage system under adult
supervision.
People with heart disease, low or high blood pressure,
circulatory disorders, diabetes, and excessive weight should
consult their physician prior to using the spa.
Consumption of alcohol or drugs while using the spa greatly
increases the chance of fatal overheating.
A person taking medications should consult a doctor before
using the spa as some medicines may cause drowsiness
while others may affect the heart rate, blood pressure, and
circulation.
Persons who suffer from infectious diseases should not use
the spa.
Because high water temperature poses a high risk to the
fetus and may cause serious fetal damage we advise that
(potentially) pregnant women do not use the spa at a water
temperature higher than 38°C. Wet surfaces can be slippery.
Note and warn your child about this when entering and
leaving the spa. To avoid injury carefully get into and out of
the spa.
Do not use the spa if the suction cover is damaged or missing.
Never place any electric device within a 2-meter radius of the
spa - it can cause electrical shock. Electric devices fallen into
water may cause death, electric shock, or serious personal
injuries.
It is prohibited to remove the panels while using the spa.
Water treatment should be carried out with caution. Improp-
erly chemically treated* water may cause skin irritation.
When the spa is not in use, cover the spa with the cover to
prevent ultraviolet radiation causing damage to the product.
Do not allow your child to climb on the thermo cover when it
is on the water-filled spa.
Do not remove any suction sealing. Do not operate the spa if
the suction sealing is broken or missing.
WARNING! The metallic parts of the pool may become hot
when exposed to sunlight and can cause injury!
Keep your clothes and jewellery away from rotating jets and
moving parts.
Test the residual current device before use.
Disconnect the spa from the power supply before servicing
its electrical parts. (This operation can only be performed by
qualified professionals).
It is strictly prohibited to use the spa in a not completely
assembled state (e.g. detached side panel)
Chemical treatment of water can only be performed by per-
sons under the age of 18 under parental supervision.
Maintenance can only be performed by trained professionals.
The user should check the electrical wiring every 3 months. It
is required to perform a check by a professional every 3 years.
Mains fuses / circuit breakers may be activated because of
power outages.
Installation and wiring of the spa, replacement of power cord,
and any repairs must be performed by qualified professionals.
It is required to build in an isolating device to the fixed wiring.
Plug’n’play safety warnings
Beyond the previous warnings, please also pay
attention to the undermentioned ones.
ATTENTION! The electrical receptacle must be located at least
2.5 meters from the spa so that bathers in a sitting position
cannot reach it from the water. The plug can only be connected
to a receptacle* equipped with 2.5mm 2 diameter cables
ATTENTION! RISK OF ELECTRIC SHOCK. The connector with
residual current device must be inspected before every use.
ATTENTION! Only place the RCD plug in a receptacle equipped
with RCD.
ATTENTION! Before you insert the plug into the socket ensure
that the current of the socket and the fixed wiring is appropriate
for the properties of the spa.
The spa must be equipped with an isolation transformer or
powered through a residual current device with a release
current not exceeding 30mA.
THIS PRODUCT IS EQUIPPED WITH A GROUND
FAULT CIRCUIT BREAKER (GFCI) IN THE CONNEC-
TOR. GFCI MUST BE TESTED BEFORE EACH USE.
If the power cable is damaged, it must immediately be re-
placed by the manufacturer or a service professional in order
to minimize danger.
To minimize the risk of electric shock do not use extension
leads to connect the product to the power supply.
Ensure that the receptacle is properly located.
Parts of the equipment cannot be placed above the spa
during usage.
SAFETY INSTRUCTIONS
3

Parts under electrical power – except those operating with
voltage not exceeding 12V - must be inaccessible for persons
in the spa. The grounded device must be connected to a
fixed socket with fixed wiring. Electrical parts – except
remote controllers – must be positioned so as not to fall into
the spa.
The electrical installation must meet the local standard
requirements.
To avoid electric shock do not use the spa in rain.
Water attracts children. Always place and lock the cover on
the spa after each usage.
Do not bury cables into the ground! Place the cables so that
lawnmowers, trimmers, and similar devices will not reach
them.
Do not force push the control panel up nor down and do not
place heavy objects on it after installation.
Keep pets away from the spa to avoid damage.
Do not use the device if there is the slightest chance of water
in the spa being frozen.
Only use accessories approved by us. The use of accessories
not approved by us may void the warranty.
Choking hazard. Particular attention need to be paid to
children during usage. To avoid accidents only allow children
to use this spa under adult supervision.
Never operate electrical devices in the spa or with wet body.
Do not place electrical devices (lamp, radio, television) within
a 1.5m radius of the spa.
Do not expose the spa to direct sunlight.
Only connect the spa to an earthed socket.
Risk of electric shock. Install the unit at least 1.5m (5 feet)
from any metal surfaces. You can install the unit 1.5m from
metal surfaces only if every metal surface is permanently
connected to a solid copper conductor
with a diameter of at least 6mm, which is connected to the
cable connector of a junction box reserved for that purpose.
To avoid injury never pour water warmer than 40°C directly
into the spa.
Effects of overheating: you cannot assess emergency situa-
tions, do not feel the temperature, do not feel the need to get
out of the spa, cannot get out of the spa; risk of fetal damage
in pregnant women, loss of consciousness, suffocation.
Do not use the spa alone.
Do not use the spa immediately after strenuous sport.
To prevent damage to the pump the spa can only be operat-
ed if it has been filled with water.
If you feel uncomfortably or sleepy, leave the spa immedi-
ately.
Never add water to the chemicals. Always be cautious when
adding chemicals to the spa water to avoid inhaling vapors
and possible effects of inhaling undiluted chemicals and
splatters.
Only place the spa on a surface that can support its weight.
INSPECT THE UNIT BEFORE USE. CONTACT THE SER-
VICE PROVIDER STATED IN THIS MANUAL IF ANY
OF THE PARTS WERE DAMAGED OR MISSING UPON
PURCHASE. ENSURE THAT THE PARTS OF THE UNIT
ARE THOSE WHICH YOU INTENDED TO BUY.
SAFETY INSTRUCTIONS
4

5
Keypads: The keypads make it possible to control and set up the spa. Available basic functions: pump(s), light and temperature
control. (For more information see the details later)
Valves
Diverter: Some spa are equipped with water diverter(s) that allows you to direct the waterflow to various sections of the spa.
The valve has three basic positions By turning the lever all the way to the left position will divert the water section A of the spa.
By turning the lever all the way to the right will shut off section A and divert the water to section B and by moving the lever to
the middle between A & B will divert the water to both A & B sections
Waterfall diverter: Some spas are equipped with a waterfall diverter which will turn the waterfalls/fountians either on or off
Air regulators: You can use it by turning the lever counter-clockwise, will open the Air Regulator to allow air to mix with the
water to create more pressure from the jets. Turning the lever to the left will cose the valve not allowing air to mix with the
water for the jets. These air regulators should remain closed when the spa is not in use to save energy.
Speakers (Optional): If your spa is equipped with an audio system, you can connect via Bluetooth and help your relaxing with
your favourite music. (AquaSoul™ pin: 5555)

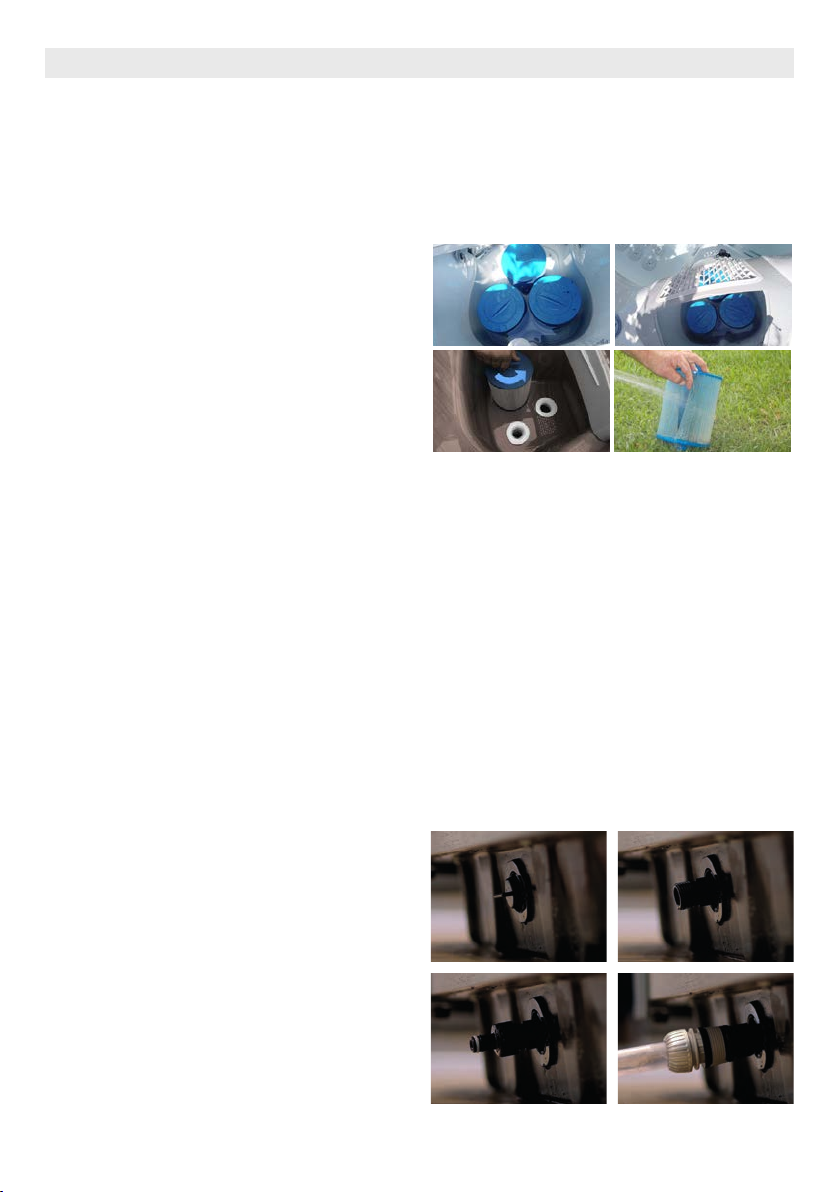

Filter house: Part of the recirculating system, it holds the paper filter.
Fountain: Some spas are equipped with fountians or waterfalls. If you open the waterfall diverter, the water will flow through
the fountains or waterfalls.

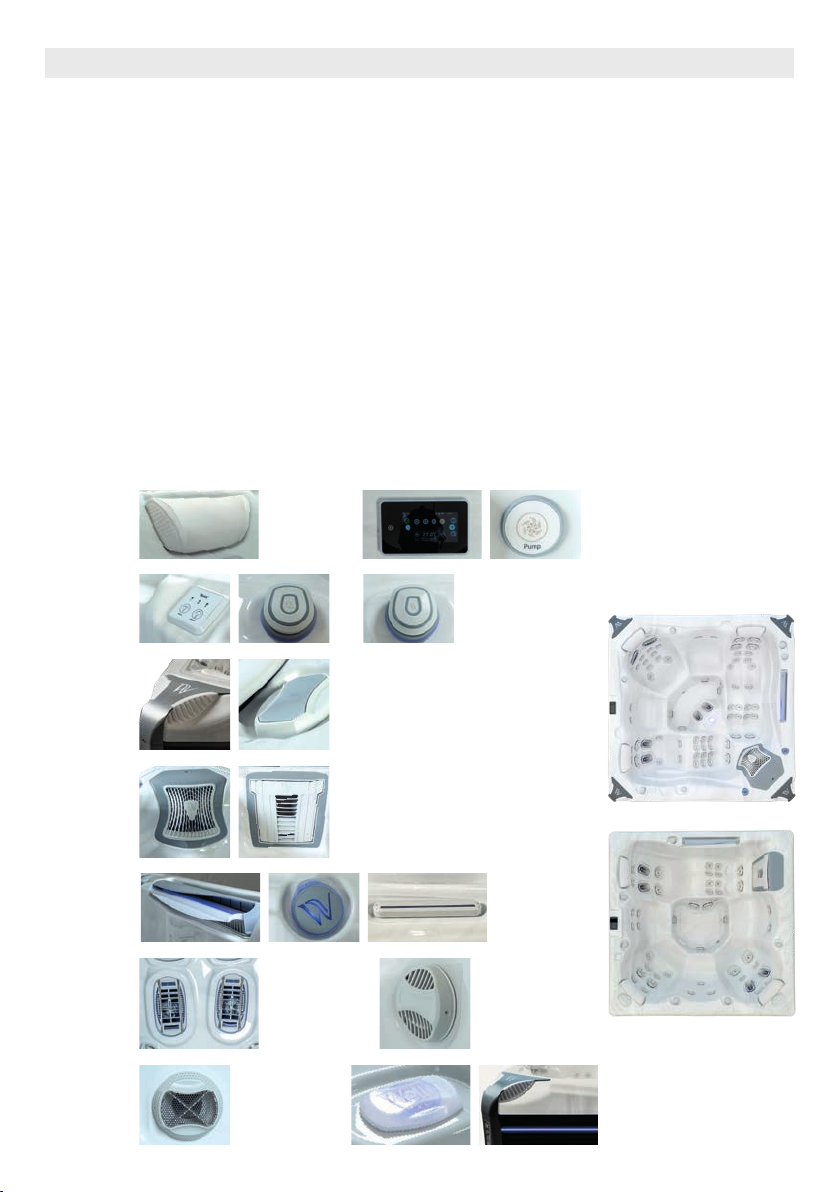

Jets: There are 2 sizes of normal jets: 3" and 5".
Infinity jet: The infinity jet makes the massage experience even more enjoyable by massaging a larger portion of the body and
doesn’t only move up and down, it draws an infinite figure eight as it turns.
Circulation jet: the new circulation jet has been designed to have 3 zones, where 2 zones are pointed downwards to stir up the
sand and dirt from the bottom of the hot tub.
Suction: The pumps suck the water through this element. Never block it, and keep your body and hair away from these units.
Head rests Keypads
Diverter,
Air regulator,
On/off valve
Speaker
cover
Filter house
Fountain
Jets (Infinity, Circulation
5”-direct, jet
3”-direct)
Suction Lights
BASIC FUNCTIONS

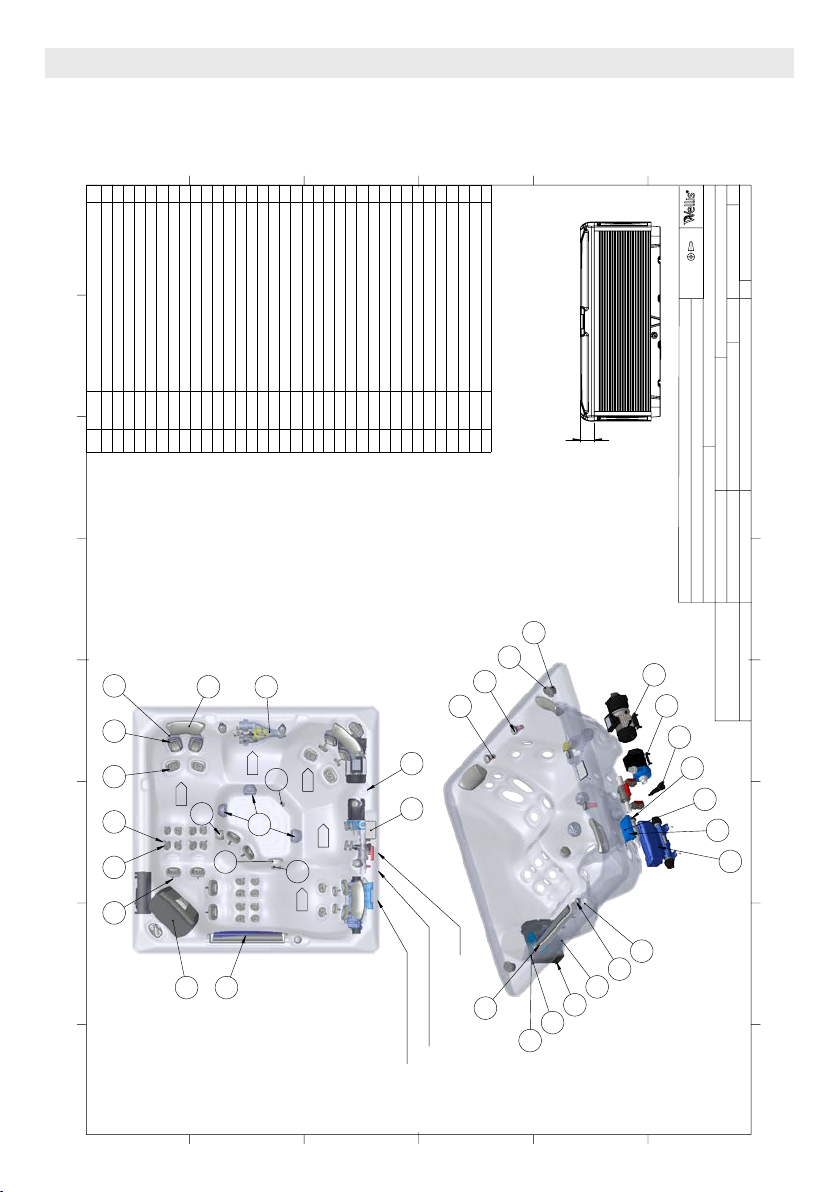

CONNECTION DIAGRAM
EVEREST LIFE
145
2
1
9
8
13
16
18
17
19
20
22
23
24
31
33
32
34
35
38
685
710
Electrical connection
suggested side
4 3 5 6
7
10
11
12
14 15
25
26 27
28
30 29
36
37
710
775
705
Drain pipe
Heat exchanger outlet
20
You must install a 30 mA residual-current device (RCD).
No.
Art. No.
IFS Name
Pcs
1
AKU2716
Air regulator house, Light gray Life
3
2
AKU2718
On-Off tap house 33 transparent V2
3
3
AKU2647
Led housing with seal
14
4
AKU2219
Nut for ledhouse
14
5
AKU2437
Cup Holder Light - lens wellis 2020
2
6
AKU2683
Waterfall 60 cm
1
7
AKU2680
Bushing for snap PeakLife
10
8
AJ00277
7" jet body oscillator 2020
6
9
AJ00278
7" jet fixation console 2020
6
10
ABE0525
Suction 2" with sealing Life
4
11
AJ00282
Jet water circulation self-levelling medium gray for life
1
12
AJ00291
Jet ozone with sealing V2
1
13
AKU1840
Filter holder - 48 mm
3
14
AKU2686
1
15
AKU2697
1
16
ACM0394
Spa Pump 3/0.6 HP - Two Speed
1
17
ACM0394
Spa Pump 3/0.6 HP - Two Speed
1
18
ACM0846
Circulation pump WTC50M 250 W 0.33 Hp
1
19
ACM0756
Control box In.YE-5
1
20
ACM0968
Electrical Waterdiverter
1
21
ABE0621
Ozon mixer - Housing
1
22
ABE0620
Mixer housing
1
23
ACM0999
Ozone - Generator P54 100 mA
1
24
AKU0084
Water Drain - 20 RB V2
1
25
ACM0969
Keypad for electrical water diverter
1
26
ACM0874
Speaker 3" (2 way)
4
27
ACM0912
Control Panel - IN.K1000 V2
1
28
ACM0763
Control Panel - AUX One Button IN.K110
2
29
AKU2717
Air regulator grip light gray Life Wellis
3
30
AKU2719
On-off tap grip light gray Life Wellis
3
31
AJ00266
3" jet face 2020
52
32
AJ00265
3" jet insert 2020
52
33
AJ00273
5" jet face 2020
10
34
AJ00272
5" jet insert swirling 2020
6
35
AJ00270
5" jet insert directional 2020
4
36
AF00066
Pillow 24x17 light gray
3
37
AKU0136
Spa Filter - 175 × 152 - Wellis Antimicrobial blue (fine Thread)
3
38
AKU2236
Skimmer with opening cover
1
A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4321
452 kg
FJ_WM00754_ENG_Everest_life_medence
Everest Life spa
Losteiner Sándor
A3
page 1 / 2
File path - - - - > C:\WELLIS_PDM\Belso_PDM_doksik\Uj_Dokumentum_rendezes\FJ_WM_100\
File name:
A
M
1:20
WM00754
Number:
Sheet name: Created:
2023. 02. 09.
Drawer:
losteiner.sandor - 2023. 02. 09. 16:40:00
Approved by:
Weight of the SPA:
Pr. No:
Wellis Magyarország Zrt.
Projection
Fe. No:
Dimension SPA:
2360x2360x950 mm
AE00897 - Raklap 2370x980
Rim height:
145 mm
Control box
:
Gecko IN.YE-5 + IN.K1000
Product family:
Wellis\PeakLife
Minimum water:
1382 liter 375 kg
Water disp.: 1 person ~75 kg
Min.El. nds:
230 V - 25A - 50Hz / Opt.El. needs: 230V - 35A - 50Hz
6

CONNECTION DIAGRAM
KILIMANJARO LIFE
145
1
2
17
3
16
4
18
20
19
21 24
32
36
34
33
14
35
39
40
15
775
38
28
27
Suggested electrical connection side
5
6
10 23
8
89
22
11 14
13 29
30 31 38 41
37
Drain
Heat exchanger outlet
25
You must install a 30 mA residual-current device (RCD).
710
710
710
775
705
No.
Art. No.
IFS Name
Pcs
1
AKU2647
Led housing with seal
14
2
AKU2219
Nut for ledhouse
14
3
AKU2716
Air regulator house, Light gray Life
3
4
AKU2718
On-Off tap house 33 transparent V2
3
5
ACM0969
Keypad for electrical water diverter
1
6
AKU2437
Cup Holder Light - lens wellis 2020
2
7
AKU2683
Waterfall 60 cm
1
8
AKU2686
1
9
AKU2697
1
10
AF00067
Pillow fixing brus Life
6
11
ABE0525
4
12
AJ00291
Jet ozone with sealing V2
1
13
AJ00294
1
14
AJ00270
5" jet insert directional 2020
3
15
AJ00277
7" jet body oscillator 2020
6
16
AJ00278
7" jet fixation console 2020
6
17
AKU1840
Filter holder - 48 mm
3
18
AKU0084
Water Drain - 20 RB V2
1
19
ACM0394
Spa Pump 3/0.6 HP - Two Speed
1
20
ACM0080
Spa Pump 3 HP - One Speed
1
21
ACM0756
Control box In.YE-5
1
22
AKU2680
Bushing for snap PeakLife
10
23
ASE0088
Pillow Holder - 17
6
24
ACM0846
Circulation pump WTC50M 250 W 0.33 Hp
1
25
ACM0968
Electrical Waterdiverter
1
26
ABE0621
Ozon mixer - Housing
1
27
ABE0620
Mixer housing
1
28
ACM0999
Ozone - Generator P54 100 mA
1
29
ACM0912
Control Panel - IN.K1000 V2
1
30
ACM0763
Control Panel - AUX One Button IN.K110
2
31
ACM0874
Speaker 3" (2 way)
4
32
ACM0849
Subwoofer 288W
1
33
AJ00273
5" jet face 2020
5
34
AJ00272
5" jet insert swirling 2020
2
35
AJ00266
3" jet face 2020
48
36
AJ00265
3" jet insert 2020
48
37
AKU2717
Air regulator grip light gray Life Wellis
3
38
AKU2719
On-off tap grip light gray Life Wellis
3
39
AKU2236
Skimmer with opening cover
1
40
AF00066
Pillow 24x17 light gray
3
41
AKU0136
Spa Filter - 175 × 152 - Wellis Antimicrobial blue (fine Thread)
3
A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4321
454 kg
FJ_WM00755_ENG_Kilimanjaro_life_medence
Kilimanjaro Life spa
Losteiner Sándor
A3
page 1 / 2
File path - - - - > C:\WELLIS_PDM\Belso_PDM_doksik\Uj_Dokumentum_rendezes\FJ_WM_100\
File name:
A
M
1:20
WM00755
Number:
Sheet name: Created:
2023. 02. 09.
Drawer:
losteiner.sandor - 2023. 02. 09. 16:15:26
Approved by:
Weight of the SPA:
Pr. No:
Wellis Magyarország Zrt.
Projection
Fe. No:
Dimension SPA:
2360x2360x950 mm
Raklap 2370x980 - AE00897
Rim height:
145 mm
Control box
:
Gecko IN.YE-5 + IN.K1000
Product family:
Wellis\PeakLife
Minimum water:
1450 liter 450 kg
Water disp.: 1 person ~75 kg
Min.El. nds:
230 V - 25A - 50Hz / Opt.El. needs: 230V - 35A - 50Hz
7

CONNECTION DIAGRAM
ATLAS LIFE
145
2
1
7
8
14
15
16
17
19
20
23
26
27
24
25
28
29
32
31
36
35
33
3
4
5 6
9
11
10 13
12
18
2122
30
605
690
600
695
Electrical connection suggested side
Drain
Heat exchanger outlet
33
740
590
You must install a 30 mA residual-current device (RCD).
No.
Art. No.
IFS Name
Pcs
1
AKU2716
Air regulator house, Light gray Life
4
2
AKU2718
On-Off tap house 33 transparent V2
2
3
AKU2683
Waterfall 60 cm
1
4
AF00067
Pillow fixing brus Life
6
5
AKU2647
Led housing with seal
2
6
AKU2219
Nut for ledhouse
2
7
AJ00277
7" jet body oscillator 2020
4
8
AJ00278
7" jet fixation console 2020
4
9
ABE0525
3
10
AJ00291
Jet ozone with sealing V2
1
11
AJ00294
Circulation jet Light gray 48 mm Life
1
12
AKU2697
1
13
AKU2692
1
14
AKU0084
Water Drain - 20 RB V2
1
15
ACM0846
Circulation pump WTC50M 250 W 0.33 Hp
1
16
ACM0394
Spa Pump 3/0.6 HP - Two Speed
1
17
ACM1051
Control box In.YE-3
1
18
ACM0972
Speaker grill Life
2
19
ACM0874
Speaker 3" (2 way)
2
20
ACM0849
Subwoofer 288W
1
21
ACM0969
Keypad for electrical water diverter
1
22
ACM0768
Keypad In.K1000
1
23
AJ00273
5" jet face 2020
10
24
AJ00271
5" jet insert spinning 2020
2
25
AJ00272
5" jet insert swirling 2020
8
26
AJ00266
3" jet face 2020
29
27
AJ00265
3" jet insert 2020
29
28
AF00066
Pillow 24x17 light gray
3
29
AKU2235
Schimmer with opening grid
1
30
AKU0136
Spa Filter - 175 × 152 - Wellis Antimicrobial blue (fine Thread)
2
31
AKU2717
Air regulator grip light gray Life Wellis
4
32
AKU2719
On-off tap grip light gray Life Wellis
2
33
ACM0968
Electrical Waterdiverter
1
34
ABE0621
Ozon mixer - Housing
1
35
ACM0999
Ozone - Generator P54 100 mA
1
36
ABE0620
Mixer housing
1
A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4321
391 kg
FJ_WM00756_ENG_Atlas_life_medence
Atlas Life spa
Losteiner Sándor
A3
page 1 / 2
File path - - - - > C:\WELLIS_PDM\Belso_PDM_doksik\Uj_Dokumentum_rendezes\FJ_WM_100\
File name:
B
M
1:20
WM00756
Number:
Sheet name: Created:
2023. 02. 10.
Drawer:
losteiner.sandor - 2023. 02. 10. 15:33:18
Approved by:
Weight of the SPA:
Pr. No:
Wellis Magyarország Zrt.
Projection
Fe. No:
Dimension SPA:
2150x2150x865 mm
Pallet 2200x950 - AE00362
Rim height:
145 mm
Control box
:
Gecko IN.YE-3 + IN.K1000
Product family:
Wellis\PeakLife
Minimum water:
1100 liter 450 kg
Water disp.: 1 person ~75 kg
Min.El. nds:
230 V - 16A - 50Hz / Opt.El. needs: 230V - 25A - 50Hz
8

CONNECTION DIAGRAM
MAKALU LIFE
145
34
33
2
1
5
12
14
17
18
15
18
22
21
23
24
31
32
13
Electrical connection suggested side
Drain
Heat exchanger outlet
5
4
8
7
11
8 9
10
20 19
25 272628
29
30
35
You must install a 30 mA residual-current device(RCD).
675
605
605
685
650
No.
Art. No.
IFS Name
Pcs
1
AKU2647
Led housing with seal
2
2
AKU2219
Nut for ledhouse
2
3
AKU2683
Waterfall 60 cm
1
4
ABE0525
3
5
AKU1840
Filter holder - 48 mm
2
6
AJ00291
Jet ozone with sealing V2
1
7
AJ00282
1
8
AJ00277
7" jet body oscillator 2020
4
9
AJ00278
7" jet fixation console 2020
4
10
AKU2697
1
11
AKU2692
1
12
AKU0084
Water Drain - 20 RB V2
1
13
ACM0394
Spa Pump 3/0.6 HP - Two Speed
1
14
ACM0937
Control box In.YF-3
1
15
ACM0846
Circulation pump WTC50M 250 W 0.33 Hp
1
16
ABE0621
Ozon mixer - Housing
1
17
ABE0620
Mixer housing
1
18
ACM0999
Ozone - Generator P54 100 mA
1
19
ACM0969
Keypad for electrical water diverter
1
20
ACM0860
Control Panel - IN.K1001
1
21
ACM0874
Speaker 3" (2 way)
2
22
ACM0972
Speaker grill Life
2
23
AKU2717
Air regulator grip light gray Life Wellis
3
24
AKU2719
On-off tap grip light gray Life Wellis
2
25
AJ00266
3" jet face 2020
34
26
AJ00265
3" jet insert 2020
34
27
AJ00273
5" jet face 2020
13
28
AJ00271
5" jet insert spinning 2020
13
29
AF00066
Pillow 24x17 light gray
3
30 1 31
AKU0136
Spa Filter - 175 × 152 - Wellis Antimicrobial blue (fine Thread)
2
32
ACM0849
Subwoofer 288W
1
33
AKU2718
On-Off tap house 33 transparent V2
2
34
AKU2716
Air regulator house, Light gray Life
3
35
ACM0968
Electrical Waterdiverter
1
A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4321
393 kg
FJ_WM00757_ENG_Makalu_life_medence
Makalu Life medence
Losteiner Sándor
A3
page 1 / 2
File path - - - - > C:\WELLIS_PDM\Belso_PDM_doksik\Uj_Dokumentum_rendezes\FJ_WM_100\
File name:
A
M
1:20
WM00757
Number:
Sheet name: Created:
2023. 02. 10.
Drawer:
losteiner.sandor - 2023. 02. 10. 15:32:56
Approved by:
Weight of the SPA:
Pr. No:
Wellis Magyarország Zrt.
Projection
Fe. No:
Dimension SPA:
2150x2150x865 mm
Raklap 2200x950 Rio2 - AE0362
Rim height:
145 mm
Control box
:
GECKO YE-3 + K1000
Product family:
Wellis\PeakLife
Minimum water:
1070 liter 375 kg
Water disp.: 1 person ~75 kg
Min.El. nds:
230 V - 16A - 50Hz / Opt.El. needs: 230V - 25A - 50Hz
9

CONNECTION DIAGRAM
TEIDE LIFE
145
2
1
3
4
5
11
12
13
14
15
16
17
18
20
21
26
28
Eletrical connection suggested side
Drain pipe
Heat exchanger outlet
6
7
10
19
27
30
29
You must install a 30 mA residual-current device (RCD).
640
680
No.
Art. No.
IFS Name
Pcs
1
AKU1893
On-Off tap house 33 transparent V2
2
2
AKU1892
Air Regulator - house led lighted V2
3
3
AKU2437
Cup Holder Light - lens wellis 2020
2
4
AKU2647
Led housing with seal
2
5
AKU2219
Nut for ledhouse
2
6
AJ00291
Jet ozone with sealing V2
1
7
AJ00282
1
8
AJ00277
7" jet body oscillator 2020
2
9
AJ00278
7" jet fixation console 2020
2
10
ABE0525
2
11
AKU1840
Filter holder - 48 mm
2
12
AKU0084
Water Drain - 20 RB V2
1
13
ACM1051
Control box In.YE-3
1
14
ACM0080
Spa Pump 3 HP - One Speed
1
15
ACM0846
Circulation pump WTC50M 250 W 0.33 Hp
1
16
ABE0621
Ozon mixer - Housing
1
17
ABE0620
Mixer housing
1
18
ACM0999
Ozone - Generator P54 100 mA
1
19
ACM0936
Control Panel - IN.K1001 V2
1
20
ACM0874
Speaker 3" (2 way)
2
21
ACM0972
Speaker grill Life
2
22
AJ00273
5" jet face 2020
14
23
AJ00271
5" jet insert spinning 2020
14
24
AJ00266
3" jet face 2020
16
25
AJ00265
3" jet insert 2020
16
26
AF00066
Pillow 24x17 light gray
3
27
AKU2235
1
28
AKU0136
Spa Filter - 175 × 152 - Wellis Antimicrobial blue (fine Thread)
2
29
AKU2719
On-off tap grip light gray Life Wellis
2
30
AKU2717
Air regulator grip light gray Life Wellis
3
A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4321
454 kg
FJ_WM00759_ENG_Teide_life_medence
Teide Life spa
Losteiner Sándor
A3
page 1 / 2
File path - - - - > C:\WELLIS_PDM\Belso_PDM_doksik\Uj_Dokumentum_rendezes\FJ_WM_100\
File name:
A
M
1:20
WM00755
Number:
Sheet name: Created:
2023. 02. 10.
Drawer:
losteiner.sandor - 2023. 02. 10. 15:36:29
Approved by:
Weight of the SPA:
Pr. No:
Wellis Magyarország Zrt.
Projection
Fe. No:
Dimension SPA:
2360x2360x950 mm
Raklap 2370x980 - AE00897
Rim height:
145 mm
Control box
:
Gecko IN.YE-5 + IN.K1000
Product family:
Wellis\PeakLife
Minimum water:
1450 liter 450 kg
Water disp.: 1 person ~75 kg
Min.El. nds:
230 V - 25A - 50Hz / Opt.El. needs: 230V - 35A - 50Hz
10

11
Item
number Spa name Requirements Heater
(w)
Water
quantity
(litre)
Dry
weight
(kg)
Filled
weight
(kg)
Dead
weight
(kg/m2)
Dimensions High Filter
(sqf)
WM00754 Everest Life Min:25A
Opt:..35A/230V/50Hz 3000 1382 452 1834 330 2360 mm 2360 mm 950 mm 3x30
WM00755 Kilimanjaro
Life
Min:25A
Opt:..35A/230V/50Hz 3000 1450 454 1904 342 2360 mm 2360 mm 950 mm 3x30
WM00756 Atlas Life Min:16A Opt:..
25A/230V/50Hz 3000 110 0 391 1491 323 2150 mm 2150 mm 865 mm 2x30
WM00757 Makalu Life Min:16A Opt:..
25A/230V/50Hz 3000 1070 393 1463 317 2150 mm 2150 mm 865 mm 2x30
WM00759 Teide Life min:16A
Opt:25A/230V/50Hz 3000 750 311 1061 309 1600 mm 2150 mm 865 mm 2x30
INITIAL INSTALLATION
Electrical preparations:
A clearly labeled emergency switch shall be provided as part of the installation. The switch shall be readily accessible to the
occupants and shall be installed at least 5 feet (1.52 m) away, adjacent to, and within sight of, the unit.
Before installation the hot tub, the ellectrical system has to be prepared, as detailed in the below table.

12
INITIAL INSTALLATION
SITE PREPARATION
When choosing a site for the hot tub take into account that
its maintenance and repair works must be carried out behind
the sidewalls, so accessibility and hot tubce to walk around
the hot tub must be ensured.
1. INDOOR/BASEMENT INSTALLATION
If you place your hot tub indoors, be aware of some special
requirements:
Water may accumulate around the hot tub, so the flooring
material must have a proper runoff to avoid accumulation of
water. When building a new room for the hot tub, construct-
ing a floor drain is required, or damages may occur due to
overflow, overfilling, or technical failure. Our company does
not take responsibility for any damage in absence of floor
drainage.Humidity will naturally increase in the room where
the hot tub is located and the evaporated water condenses.
For this reason ensure that the area has proper ventilation.
We recommend installing a dehumidifier in the room.
2. OUTROOR AND PATIO INSTALLATION
A solid horizontal foundation is necessary for installation of
the hot tub. We advise using a reinforced concrete founda-
tion at least 10-15cm thick.
Do not shim the spa, it may casuse not repairable damages.
The base to be even and horizontal.
Ensure that your deck or foundation will support your hot
tub. You must know the maximal load capacity of the foun-
dation. Consult a qualified building contractor or structural
engineer.
To find out the weight of your hot tub, its contents and
occupants please refer to the hot tub specification chart. This
weight must not exceed the structure’s rated capacity per
square meter, otherwise serious structural damages could
result. If you install the hot tub outdoors, we recommend a
reinforced horizontal concrete pad at least 10-15cm thick.
Install floor drains around your hot tub to lead water away
even in heavy rain.
When constructing the water drain it is advised to form a
10-15cm deep sloping ditch around the hot tub which directs
water to the drain. Water from the drain must be directed to
the canal or a drainage with enough capacity.
Warning: Do not expose the hot tub to direct sunlight (not
even empty) without proper coverage. The insulated hot tub
cover preserves the water temperature and provides protection
from sunlight and rain. When exposed to sunshine for a longer
period it may damage the surface of the hot tub and the hot tub
equipment.
Acrylic rapidly absorbs heat from sun rays, thus reaches a very
high surface temperature which may damage the hot tub.
In case of sealed design, if the hot tub was placed between
glass structures, prevent the sun rays from reaching the hot
tub directly through the glass as the temperature may get
too high.
3. IN-GROUND / SUNKEN HOT TUB
In case of sinking the hot tub into the ground you must
make sufficient space for walking around the hot tub. For
completion of maintenance works a minimum of 60cm wide
inspection pit must be built around the hot tub.
The inspection pit’s bottom must be under the bearing pont
of the hot tub so that water can flow into the pit in case of
water leakage. A floor drain or sump pump should be used at
the bottom of the pit to ensure continual water drainage.
In case of sinking the hot tub only the portion below the hot
tub’s acrylic edge can be sunk. The air of the inspection pit
steams up. To prevent unpleasant odors proper ventilation
must be provided (e.g. installing ventilators). The costs of
pulling the hot tub out of the ground are borne by the user.
If the aforementioned conditions are not present, setting up
the hot tub may fail.
First filling of the hot tub
Proper filling of the hot tub is an important task both tech-
nically and chemically. We advise installation and periodic
maintenance by the servicing professionals, which includes
inspection and refilling of hot tub water. Hot tubs do not con-
tain water softener and hard water damages the equipment.
Improper filling of the hot tub may bring air into the system,
which damages the heating wire and engines. Repairs after
such failures are not covered by warranty.

13
INITIAL INSTALLATION
Filling process
Remove the hot tub cover. First remove the cover staves,
then remove the side covers by unscrewing the bottom
screws. During transportation the flare fittings of engines
may dislocate. Check these connections before installation. If
necessary, tighten the flare fittings.
Before filling the hot tub check that the Slice valves are not
in a closed state (lever is pulled out and fixed with the safety
lock).
Next fill the hot tub with water to the sign indicated on its
sidewall.
Filling must be done through the filter housing. Improper
filling can damage the engines and heating element.
Insert the filter or filter cartridges when proper water level
is reached. Be cautious, because when replacing the filter
cartridge air bubbles may remain in the cartridge. To avoid
this the filter cartridges must be tilted in the water to remove
air from them, and only then fitted to their place.

IONIC EXCHANGE WATER SOFTENER AND
CARBON FILTER
For the optimal quality the following steps shall be followed
during the usage:
1.
Please check the required water volume in the manual of
the spa or contact our customer service for help. The exact
volume is needed for the precise filling.
2.
Please remove the covering caps from both ends to connect
the filling hose.
3.
Please connect the carbon filter to the water hose via the
screw thread gadget (included with the filter).
4.
Please run water through the filter into a separate vessel until
it becomes perfectly clear. This step allows the filter to rinse
from the remaining carbon powder. The rinse cycle lasts for
30 seconds at most with approx 10 litres of water.
0’-30’ >30’
5.
Through the clean filter fill up the spa with one third (1/3)
of the total volume (e.g.: with 1000 litres of total volume 1/3
is 300 litres). It is important to follow the instructions of the
filling for it is crutial to set the precise water hardness.
Insert the filter or filter cartridges when proper water level
is reached. Be cautious, because when replacing the filter
cartridge air bubbles may remain in the cartridge. To avoid
this the filter cartridges must be tilted in the water to remove
air from them, and only then fitted to their place.
6.
After the filling please remove the caps from the water soft-
ener cartridge too and connect it with the carbon filter. With
water softener the rinsing is significantly faster, so only this
first 1 liter needs to be drained separately!
7.
Please check the water hardness during the filling with the
softener. There are multiple choice of using a hardness tester.
Testers sold by Wellis are showing the hardness level on a
colour scale.
If the value shown is less than the optimal value the water will
create foam during the usage, if the value is more that will
cause limescaling.
8.
If the water hardness is extremely low during the filling
please remove the softener cartridge and continue the filling
with only the carbon filter as it shown at point 5.
INITIAL INSTALLATION
14

15
FILTER CARTRIDGE REMOVAL AND CLEANING
Cleaning mechanical contaminations via continuous water
circulation and chemical mixture is a basic requirement for
proper cleaning of the spa water. Every spa has an engine
designed for this purpose. The circulation engine circulates
the water through the filter(s). The filter protects against
contamination floating in the water.
Cleaning of the filter cartridges is recommended weekly.
Soaking the filter cartridges in water mixed with chlorine or
antialgae agents for 24 hours is recommended monthly.
Changing the filter cartridges is necessary every 3 months.
SURFACE MAINTENANCE
Wipe the surface with a wet cloth. Always use a neutral
cleaning product and a soft wiping cloth. Never scratch the
acrylic surface with an abrasive tool, blade, or knife, because
it may cause damage. Never use nail polish remover, acetone,
or paint stripper when cleaning the surface because it may
cause damage.
Maintenace manual for the control panel of the spa:
• Do not damage the control panel with anything hard. If
possible,
• Avoid exposing the control panel to direct sunlight.
• When not using the spa, always use a spa cover.
WINTERIZATION
Remember to correctly maintain the spa if you are not using
it in the winter. If you are not using your spa during the winter
months and want to put it out of service properly, call one of
our qualified professionals to winterize your spa at a prear-
ranged date and time.
The winterization encompasses the following:
• Drainage of used water
• Cleaning of the inner surface of the spa
• Dewatering of pipe and jet system
• Dewatering and disconnecting the engine’s interface
• Delivery - reception
If the spa is not winterized properly, the system can retain
water that can easily freeze during the winter months. This
can cause heavy irreparable damage to the pipes and the
engine. This will void the warranty.
Maintenance of the out-of-service spa:
When you are not using the spa, use the thermo cover and
fasten it with the buckles.Do not forget! If the spa is filled
with water and you are not using it, lift the cover at least once
a week to ensure proper ventilation. The thermo cover is
multipurpose. Most importantly it decreases the heating time
of the water to operational temperature and decreases the
energy needed to maintain water temperature, decreasing
the operational costs.
Using the cover you can avoid leaves, rain, snow, or other
contamination entering the spa water, effectively sealing it
off from environmental effects.
Fastening the cover with buckles prevents young children
from using it without parental supervision.
CLEAN THE FILTER CARTRIDGES WEEKLY AS FOL-
LOWS:
WARNING!
Changing the filter cartridges is recommended every 3 months!
Operating the spa without a filter cartridge is PROHIBITED
1. Remove the lid of the filter.
2. Take out the filter cartridge.
3. Clean contamination from the cartridge with water.
4. Soak the cartridge in lukewarm water mixed with chlorine
or antialgae agents for 1-2 hours, then rinse it.
Never use an alkaline detergent or a high-pressure cleaner to
clean the filter!

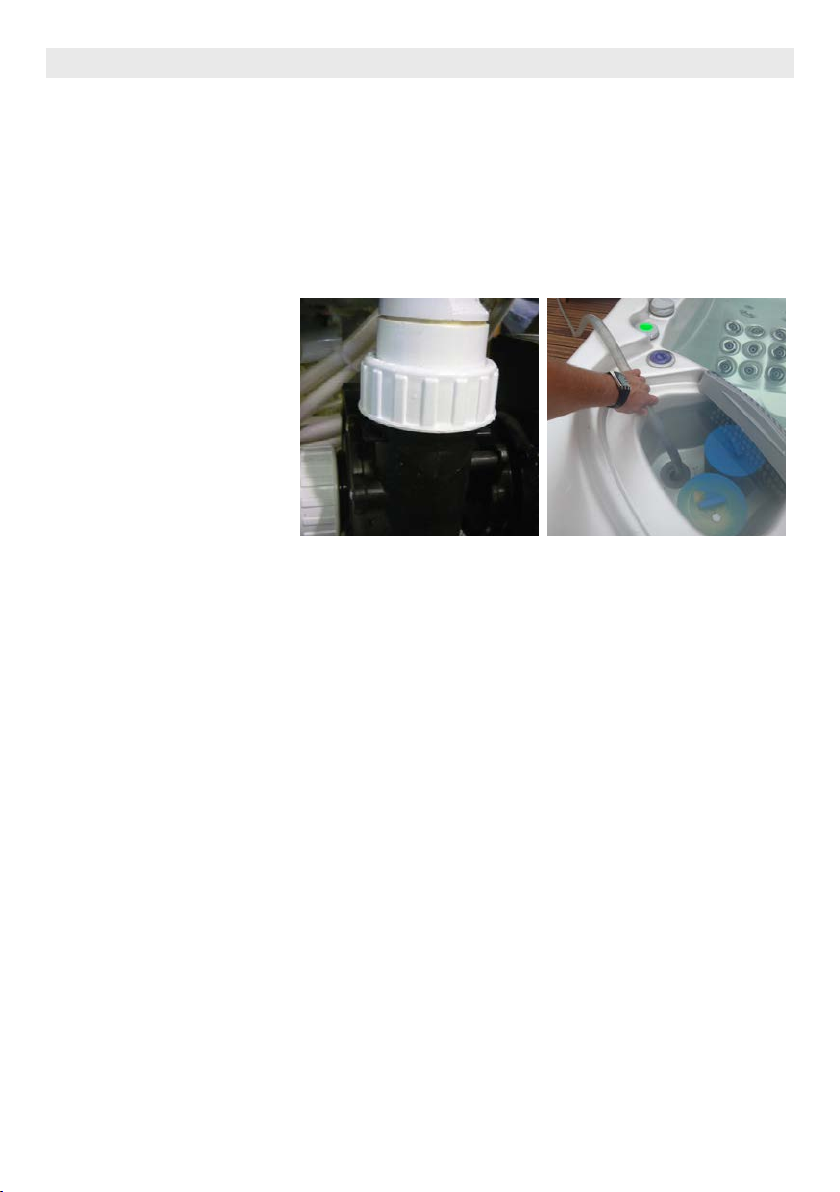

DRAINING THE WATER
You can drain the water via the drain outlet in accordance with
environmental standards.
1. You´ll need a hose a wet and dry vacuum cleaner and a
bottle of wellis crystal spa cleaner fluid.
2. Pour the cleaner fluid into the water one day before drain-
ing and run the open jets at maximum performance for 20
to 25 minutes. The cleaner will remove any lime scalce and
dirt from the spa and its pipe work.
3. Before draining the spa remove the filters, this is a good
time for cleaning or replacing them.
4. You don´t need a pump for draining the water pull out the
draining valve to the limit.
5. Remove the cap and attach the hose.
6. Push back the valve halfway then rotate and secure it in
this position, this will start the flow of water. We recom-
mend rinsing the tub while it drains
7. When the tub is empty remove the hose and close the
valve.
8. Use a wet and dry vacuum to clean up any remaining
water from the spa and the jet nozzles.
MAINTENANCE

16
SPA CLEANER WV00080
Spa Cleaner has been specially designed for cleaning your pipes and your spa pool. It dissolves calcium and remaining dirt in
your lines. We advise to use Spa Cleaner every time you change the water, we recommend to do this every three months. Spa
Cleaner is environmentally friendly and bio-degradable.
Instructions:
1. Add 250 ml of Spa Cleaner to your spa, 24 hours before changing the
water.
2. Make sure all jets and valves are open, and switch on the pumps at
full power for 15 minutes. Repeat this 3 times, with enough time in
between.
3. Remove the filter before you drain your spa water.
4. Clean the filter with Wellis Crystal Filter cleaner.
5. Rinse out the spa with clean water.
6. Fill your spa and place the clean filter back.
7. Resume your normal water treatment schedule with Wellis Crystal All
in one Water treatment.
ALKALINITY BALANCER WV00091
Increases total alkalinity and prevents fluctuating pH values. Alkalinity
is important to be able to check the pH value.
Instructions:
1. Shake well before use
2. Add 1 or 2 tablespoons of Alkalinity Balancer to the spa water
3. Put your pumps on circulation for at least 30 minutes
4. Test the alkalinity value again and repeat the treatment until the
alkalinity value is between 80 and 120 ppm
BRIGHT AND CLEAR WV00090
For neutralizing dirt, soap, oil in all spas. When added regularly, ensures
crystal clear water.
Instructions:
1. Add 100ml into the spa. Pour product directly into the spa and run the
filter system for 1 hour.
2. Rinse the filter unit.
3. Put the filter back and enjoy your spa!
SPA CHEMICAL TREATMENT

SPA CHEMICAL TREATMENT
FOAM DOWN WV00093
Anti-foam product for use in spas. Contains no oily substances. Designed
for hot water applications.
Instructions:
1. Shake well before use.
2. Spray undiluted to the foam.
3. Repeat step two if needed.
4. Enjoy your spa!
PH MINUS WV00096
The pH value of the water in your spa is very important. If the pH value is
good, the disinfection products can do their work in a good way. Wellis
Crystal pH Minus lowers the pH in your spa.
Instructions:
1. Test the pH of your spa
2. If the PH is too high, adjust it with pH Minus.
3. Add 2 ml pH- per 1000 liter water, in order to decrease the pH value with
0.1 point.
METAL CLEAR WV00094
Prevents the accumulation of deposits on the metal components of the spa’s nozzles. Interacts with metallic contamination
before it can cause invisible deposits in your spa. Neutralizes iron, copper, and other water-bound minerals and keeps them
from accumulating on the spa’s surfaces and causing damage there.
Use whenever you fill your spa to quickly neutralize metals and prevent
unsightly staining.
Features:
– Prevents iron, copper, and other minerals from accumulating in the spa.
– Use whenever you exchange the spa’s water to quickly neutralize metals
and prevent deposits.
– Only use when the entire spa water is being exchanges - the product is of
high concentration.
Instructions:
– Interval: whenever the spa is being (re-)filled.
– Evenly spread 250 ml of Metal Clear in the spa.
– Run the filter system for 30 minutes.
17

FILTER CLEANER WV00079
If you clean the filter once a week, is it easier to keep the water crystal clear.
Instructions:
1. Take the filter out of your spas filter housing.
2. Fill a bucket with 10 liter hot water, put 2 scoops of Filter cleaner in and
leave the filter in this solution for 1-1.5 hours (turn the filters during this
process).
3. Rinse the filter, and put it back in its place.
WELLIS CRYSTAL ALLINONE WV00081
Instructions:
– Shake the Wellis Crystal bottle well.
– Add the correct amount to your spa using the table below.
– Let the pump run at full power for 2 minutes.
– Add your disinfectant, for example 1 90/20 chlorine tablet.
– Repeat these steps weekly.
SPA CHEMICAL TREATMENT
18
