SERVICE BULLETIN
102.004
TO: Wells Authorized Service Agencies December 12, 2002
FROM: Hanju Lee, National Service Manager
SUBJECT: Magnetic Door Latch p/n 63946 - Replacement Parts

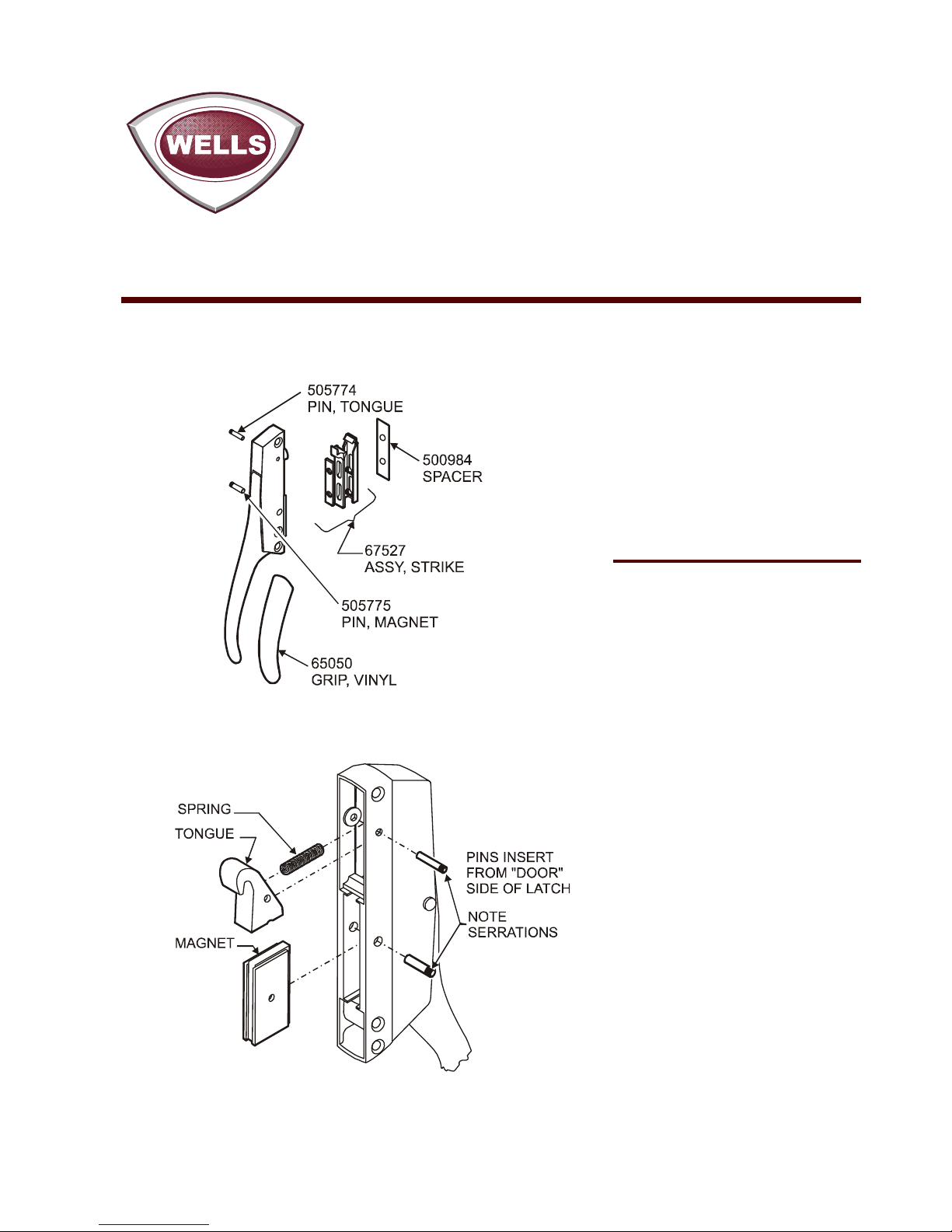

The following parts are available individually for the
Magnetic Door Latch Assembly (p/n 63946):
PIN INSTALLATION INSTRUCTIONS
SvcB 102.004 121202 cps
1 of 1
WELLS MANUFACTURING COMPAN
Y
2 ERIK CIRCLE, P. O. Box 280
Verdi, NV 89439
Customer Service [phone] Ext.502
fax: [phone]
www.wellsbloomfield.com
P/N Description
63946 Handle Assy Complete
65050 Grip, Vinyl
67527 Strike Assy
505774 Pin, Tongue
505775 Pin, Magnet
Pin Installation Instructions
1. Insert spring into recess in
handle.
2. Note orientation of tongue.
Press tongue against spring
until holes line up.
3. Insert tongue pin from door
side of handle.
Insert non-serrated end first.
Press in until flush.
4. Assemble magnet.
Note: Offset hole in rubber
section goes toward rear of
handle.
5. Insert magnet into handle until
holes line up.
6. Insert magnet pin from door
side of handle.
Insert non-serrated end first.
Press in until flush.
7. Remount handle on door.
