WENSHING®© TX-800-A
925MHz ~ 928MHz RFID Two-Way Remote Controller
Version History
Version
Date
Changes
V1.02
Oct. 6, 2008
1st Edition

http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-800 Instruction Manual P.2
Content
Important Event……………………………………………….……………………3
Declaration …………………………………………………………………………3
Warranty……………………………………………………………………………3
Un-warranty Scope Description…………………………………………………3
Contact Us…………………………………………………………………………3
Products Instruction ………………………………………………………………4
Feature ………………………………………………………………………………4
Application……………………………………………………………………………4
Family Garage Door Control……………………………………………………. 4
Auto-Door Control…………………………………………………………………4
Building, Store Rolling Door Control……………………………………………5
Place of Parking Lot Remote Control…………………………………………. 5
Community Access Into/Out Management……………………………………. 5
Motorcycle Anti-Thief Device……………………………………………………. 5
Industry System Control…………………………………………………………. 5
Specification Parameter………………………………………... …. ……………6
Dimension Diagram…………………………………………….... ……………6
Top View……………………………………………………………………………6
Side View……………………………………………………………………………6
Button View ………………………………………………………………………6
CE Caution Note (European Union)…………………………….... ……………7
FCC Consistent Declaration( U.S.A. Only)………………….... ………………7

http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-800 Instruction Manual P.3
Important Event
This product is in general use for the equipment on the premise of the development, design,
manufacture. Do not use that require high security purposes, such as machinery or medical,
aviation equipment, machinery and transport-related deaths are directly or indirectly related
to the system.
This product should be in this brochure by the instructions of the types and rated voltage
power under the current proper use. If violation of this statement by the safety records of the
supply operation, I am afraid our company cannot afford any of the responsibility.
Do not self-decomposition, alteration, repair of the products also will cause fire, electric shock,
fault, and dangerous. In addition, their decomposition, alteration, repair the product, failure is
not within the scope of warranty.
The products are not waterproof, so please do not use and touch water. Take off and on also
please note. Rain, spray, drinks, steam, sweat may be a failure.
Use of this product, please be sure to use according to the statement recorded by the use of
methods to operate. Please do not violate particular attention to the matter reminded to use.
Please respect this statement recorded by the note. When consumers in contravention of this
statement recorded note of the operation, I am afraid our company could not shoulder any
responsibility.
Products are defective, the Company will be responsible for free to amend the flaws, or to the
same flawless product or its equivalent products in exchange. However, the Company does
not assume based on the requirements of the flaw and loss responsibility.
The Company reserves the right to retain without notice to users of the cases, the product of
hardware / software (version upgrade) is with the right to edit.
Declaration
This product provides different frequency for user selection to meet different telecommunication
regulation and FCC/CE on different countries.
Warranty
The warranty time is within one year from purchased date. The warranty scope are used in
normal situation and none vandalism. (Some function harmful out of warranty scope and
Vandalism are Un-warranty).
Un-warranty Scope Description
Because the natural disaster, accident or human factor to cause the bad damage.
Violate the product instruction manual to cause the damage of the products.
The improper assemble causes damage.
The products used the unsanctioned accessory to cause damaged.
Overstep the allowed used environment to cause the products damaged.
Contact Us
WENSHING ELECTRONICS CO., LTD.
No.82, Chong De St. 11054 Shin Yi Dist, Taipei, Taiwan
Tel: [phone]
Fax: [phone]

http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-800 Instruction Manual P.4
Product Instruction

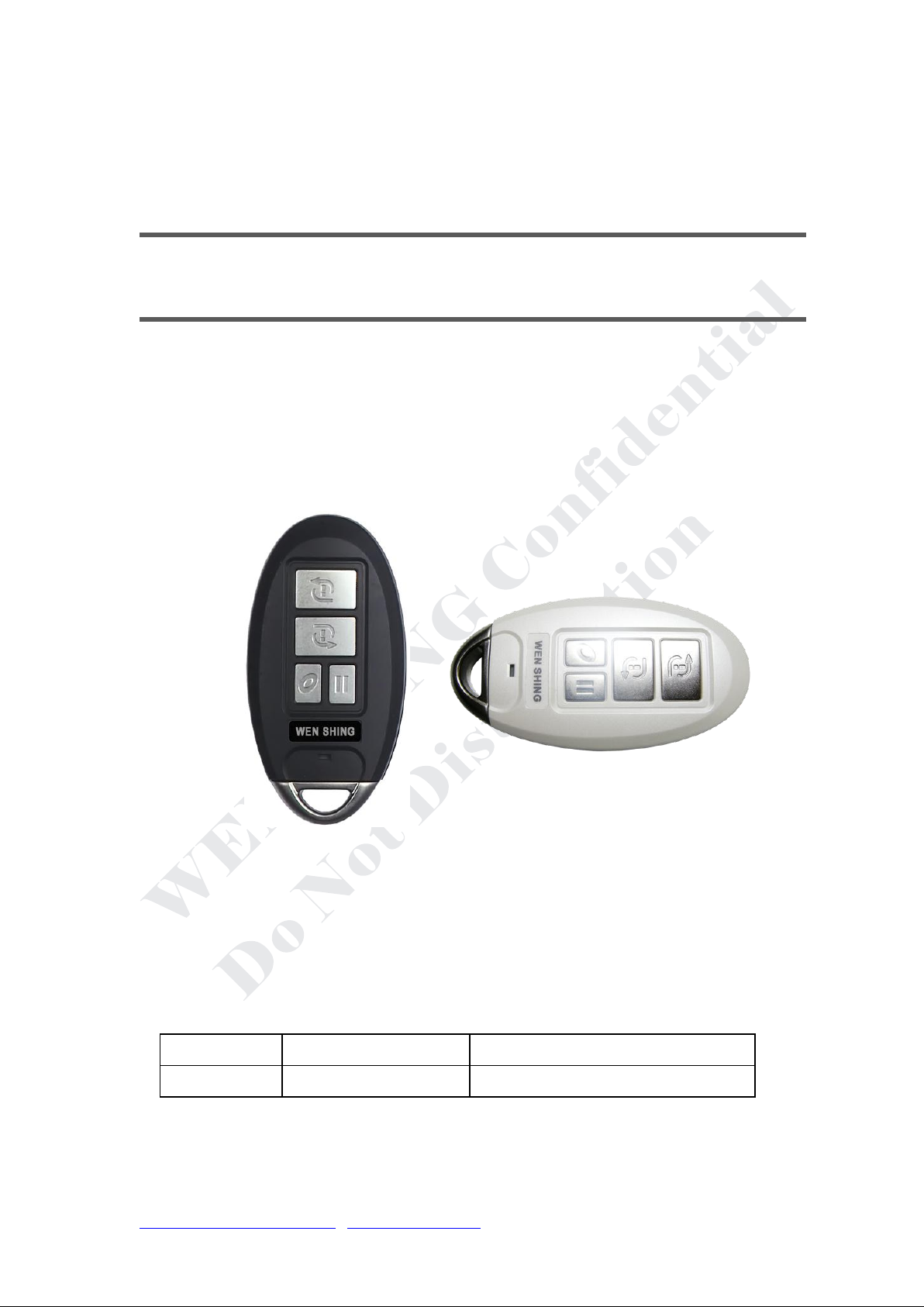

TX-800-A wireless remote control is a two-way RFID remote control and wide
applications; it can collocate with many types of host for different application.
Use in family garage door control, RFID auto-door, building, rolling door control,
place of parking lot control, access into/out of communitymanagement, industry
system control. Youcan set various functionand let it to be humanized facilities.
Feature
Two-way communication
Automatically feedback system
Low voltage search
Long standby time
Waterproof design
Application
Family Garage Door Control
TX-800-A wireless remote control pair with RD-747 active RFID garage door
control can use in family garage door control. There are two ways for your
best choices: one is touch and another is sensor. You canselect one of them
and start to step up according to our manual. It is not only cancontrol garage
door open and close, also can control garage door and light on/off
automatically during effective distance which you set. When the distance is
over effective distance, it will close garage door and light to save your times
for key finding also save the electronic power to achieve energy and carbon
saving for environmental protection.
Auto-Door Control
TX-800-A wireless remote control collocates with RD-747 active RFID garage
door control.
Use in auto-door control, it can set distance of TX-800-A to automatically
open and close.
Building, Store Rolling Door Control
TX-800-A wireless remote control pair with RD-747 active RFID garage door
control can use in building, store and rolling door of store control.
Place of Parking Lot Remote Control
TX-800-A wireless remote control pair with RD-747 active RFID garage door
control and use in parking lot under underground parking lot control.
It canreach the floor from elevator during the effective distance which you set
so that you can save much times.

http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-800 Instruction Manual P.5
Community Access Into/Out Management
TX-800-A wireless remote control pair collocate with RD-485 wireless modem
controller system, it can use in communicate access into/out management.
It can automatically open and close door during effective distance or use the
key to open and close the door.
Motorcycle Anti-Thief Device
TX-800-A wireless remote control pair with RD-747 can two-way
communicates. When person touch the anti-thief device, TX-800-A wireless
remote control will get the news back to RD-747 active RFID garage door
control to notice motorcycle owner.
Industry System Control
TX-800-A wireless remote control pair with RD-485 wireless modem
controller system can combine with PLC(programmable logic control) as
factory automatically control system. TX-800-A wireless remote control has
four keys to control four machines and identify function for every key. It also
has strong detected function; it can open or close the machine during
effective distance.
Specification Parameter
Frequency
925MHz ~ 928MHz
Battery
DC 3V CR2032
Key
4
Modulation mode
GFSK
Transmitting power
≦+10dBm
Current work
22mA
Standby current
10uA
Operating temperature
-10~+70℃

http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-800 Instruction Manual P.6
Dimension Diagram
Top View
SideView
Button View
33.5mm
66 mm
12.3 mm
Waterproof rubber design

http://www.wenshing.com.tw ; http://www.rf.net.tw
TX-800 Instruction Manual P.7
CE Caution Note (European Union)
Symbol of it accords with EMC regulation (89/336 / EEC) to represent this device,
and the low-voltage regulation of European Union (73/23/EEC). It represents to follow
the following standard regulations of European Union (The bracket is a reciprocal
international standard reciprocal international standard and regulation).
EN60950/A11: 1997/(IEC 60950/A4: 1996),The ones that includes information
scienceand technology of apparatus of e-commercesafe.
EN55024: 1998 (IEC 1000-4-2, 1000-4-3, 1000-4-4, 1000-4-5, 1000-4-6, 1000-4-8,
1000-4-11) -' scientific and technological apparatus of information - The
characteristic of interfere avoided - Restrain and test method '
Chapter 2 -Static release (ESD) Demand
Chapter 3 -Radiate the static field demand
Chapter 4 -The electron is transmitted/ produced and washed (EFT) fast
Demand.
Chapter 5 -surgedemand
Chapter 6 -Resistancedemandcausedin field of wireless frequency.
Chapter 8 -Magnetic field demand of electric frequency.
Chapter 11 –Shortly cut off the demand of making a variation with the voltage
transiently under the voltage.
EN 55022:1998/(CISPR 22:1997) ,Class B, ' “To assess information scientific and
technological apparatus wireless restriction and way of interfering with the
characteristic.”
FCC Consistent Declaration ( U.S.A. Only)
Attention: FCC rule regulation, modified and changed mustallowed by WENSHING
Electronics company,otherwise that would make you operate this apparatus invalid.
This apparatus adopted test, according to chapter 15 that FCC regulation, accordwith
Class B digital restrictions of device. These limits are designed to provide reasonable
protection, avoid to having harmful interference at home’s environment.
This device may have radiated wireless frequency energy. If don’t allow the instruction
manual, then may will interfere wireless communication.However, there is no any way
to guarantee, it will not be interfered in particular installed. If this device really causes
harmful interference, (It could be confirmed by turning on or off this device.) Advise
you to try to usethe following ways modifying the interference situation.
Relocation receiving antenna or altering its direction.
Increase the distancebetween device and receiver.
Please connectthis device to the outlet in the circuitdifferent from the receiver.
The following manuals is published by Federal Communications Commission,they
mustbe helpful to all users.
How to Identify and Resolve Radio-TV Interference Problems. (This manual can be
obtained by relevant departments of publication of the U.S. government.)
Government Printing Office,Washington D.C.,20402. Stock No. 004-00398-5
