USER'S MANUAL
CAUT ON
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. WLEVEX29840
Serial No.
QUEST ONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. f you
have questions, or if there are
missing or damaged parts,
please call:
Fax: [phone]
E-mail: serviciotecni-
[e-mail]
0034 91 661 02 10

2
TABLE OF CONTENTS
IMPORTANTPRECAUTIONS ................................................................2
BEFOREYOUBEGIN ......................................................................3
ASSEMBLY ...............................................................................4
HOWTOOPERATETHEEXERCISECYCLE....................................................8
MAINTENANCEANDTROUBLESHOOTING ...................................................12
CONDITIONINGGUIDELINES...............................................................13
PARTLIST ..............................................................................14
EXPLODEDDRAWING ....................................................................15
ORDERINGREPLACEMENTPARTS ..................................................BackCover
1. Read all instructions in this manual before
using the exercise cycle. Use the exercise
cycle only as described in this manual.
2. t is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions.
3. Place the exercise cycle on a level surface,
with a mat beneath it to protect the floor or
carpet. Keep the exercise cycle indoors, away
from moisture and dust.
4. nspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
6. Wear appropriate clothing when exercising;
do not wear loose clothing that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
7. The exercise cycle should not be used by
persons weighing more than 115 kg (250 lbs.).
8. Always keep your back straight whilst using
the exercise cycle; do not arch your back.
9. f you feel pain or dizziness whilst exercising,
stop immediately and cool down.
10 The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. The exercise cycle is intended for home use
only. Do not use the exercise cycle in
a commercial, rental, or institutional setting.
12. A warning decal has been placed on the exer-
cise cycle in the location shown on page 3.
Note that the text on the decal is in Spanish.
Find the decal in English and place it on the
exercise cycle so that it covers the Spanish
decal. f the decal is missing, or if it is not
legible, please call our Customer Service
Department and order a free replacement
decal (see the back cover of this manual).
Apply the decal in the location shown.
WARN NG: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. CON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
MPORTANT PRECAUT ONS
WARN NG: To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.

3
Congratulations for selecting the new BOOMERANG
403 exercise cycle. Cycling is one of the most effec-
tive exercises for increasing cardiovascular fitness,
building endurance, and toning the body. The
BOOMERANG 403 exercise cycle offers a selection of
features designed to let you enjoy this healthful exer-
cise in the convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please call our Customer
Service Department at 0034 91 661 02 10. To help us
assist you, please note the product model number
and serial number before calling. The model number
is WLEVEX29840. The serial number can be found on
a decal attached to the exercise cycle (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarise yourself with
the parts that are labelled in the drawing below.
Water Bottle Holder*
*No water bottle is included
Resistance Knob
Seat
Adjustment Knobs
Pedal/Strap
Console
Seat Knob
Handlebar
Adjustment Handle
Wheel
BEFORE YOU BEG N

4
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable spanner , Phillips screw-
driver , and pliers .
As you assemble the exercise cycle, use the part drawings below to identify small parts. The number in paren-
thesis below each drawing is the key number of the part, from the PART LIST on page 14. The number after the
key number is the quantity used in assembly. Note: Some small parts may have been preassembled for ship-
ping. f a part is not in the parts bag, check to see if it has been pre-assembled.
M8 Nylon
Locknut (10)–7 M8 Flat
Washer (51)–3
M
Earth Screw
(27)–1
M5 x 12mm
Screw (49)–4
M8 x 51mm Carriage Bolt (30)–4
1. Orient the Front Stabiliser (2) so the Wheels (23) are on
the side shown. Whilst another person lifts the front of
the Frame (1) slightly, attach the Front Stabiliser with
two M8 x 51mm Carriage Bolts (30) and two M8 Nylon
Locknuts (10).
2
23
23
10
30
1
1
2. Whilst another person lifts the rear of the Frame (1)
slightly, attach the Rear Stabiliser (6) with two M8 x
51mm Carriage Bolts (30) and two M8 Nylon Locknuts
(10). 30
61
2
10

5
3
53
42
15
13
3. Slide the two slots in the Handlebar Clamp (42) onto the
two indicated tabs on the Upright (13). Lift the bottom of
the Handlebar Clamp away from the Upright, and insert
the Handlebar (15) between the Handlebar Clamp and
the Upright. Centre the Handlebar and rotate it to the
desired position.
Insert the Adjustment Handle (53) into the Handlebar
Clamp (42) and tighten the Adjustment Handle into the
Upright (13). Note: The Adjustment Handle works like a
spanner. Turn the Handle clockwise, pull it away from
the Upright, turn it counterclockwise, push it toward the
upright, and then turn it clockwise again.
4
4. The Console (16) requires three “AA” batteries; alka-
line batteries are recommended. Insert three batteries
into the Console. Make sure that the batteries are
oriented as shown by the diagram inside the
Console.
16
Batteries
5. Hold the Console (16) near the Upright (13). Insert the
console cable and the console wire into the indicated
hole and down through the Upright. Attach the earth
wire to the Upright with the Earth Screw (27).
Insert the excess cable and wire into the Upright (13).
Attach the Console (16) to the Upright with four M5 x
12mm Screws (49). Be careful to avoid pinching the
wires.
16
5
Be careful to
avoid pinching
the wires.
13
49
49
27
Earth
Wire
Console
Wire
Console
Cable
Hole
Tabs

6
7. Attach the Seat (12) to the Seat Bracket (50) with three
M8 Nylon Locknuts (10) and three M8 Flat Washers
(51). Note: The Nylon Locknuts and Flat Washers may
be preattached to the underside of the Seat.
Orient the Seat (12) and the Seat Post (5) as shown.
Insert the pin on the bottom of the Seat Bracket (50)
into the indicated slot in the Seat Post. Insert the Seat
Knob (36) into the Seat Post and the Seat Bracket, and
turn the Knob clockwise until it is tight.
6. Whilst another person holds the Upright (13) in the
position shown, connect the console wire to the Reed
Switch Wire (43). Next, connect the console cable to
the Lower Cable (45) in the following way:
•See inset drawing A. Pull up on the metal bracket (A)
on the Lower Cable (45), and insert the tip of the
console cable (B) into the wire clip inside of the
metal bracket.
• See inset drawing B. Firmly pull the console cable
(B) and slide it into the metal bracket (A) on the
Lower Cable (45) as shown.
• See inset drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket (A)
together.
Carefully push the excess wire and cable down into the
Frame (1), and insert the Upright (13) into the Frame.
Be careful to avoid pinching the wires and cables.
Next, align one of the adjustment holes in the Upright
with the indicated hole in the Frame. Insert the
Adjustment Knob (9) into the Frame and the Upright,
and turn the Knob clockwise until it is tight. Make sure
that the Knob is inserted through one of the
adjustment holes in the Upright.
13
Console Wire
9
43
Hole
1
45
6
Console Cable
Adjustment
Holes
7
51
12
51
36
10
10
Pin
Slot
50
5
Be careful
to avoid
pinching the
wires.
AB C
45
B
B
A
A
A
45

7
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
9. Identify the Left Pedal (24), which is marked with an
“L.” Using an adjustable spanner, firmly tighten the
Left Pedal counterclockwise into the left arm of the
Crank (21). Tighten the Right Pedal (not shown) clock-
wise into the right arm of the Crank. mportant:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten the
Pedals. For best performance, the Pedals must be
kept tightened.
Adjust the left Pedal Strap (25) to the desired position,
and press the end of the Pedal Strap onto the tab on
the Left Pedal (24). Adjust the right Pedal Strap (not
shown) in the same way.
9
8. Turn the indicated Adjustment Knob (9) counterclock-
wise and remove it. Insert the Seat Post (5) into the
Frame (1). Align one of the adjustment holes in the
Seat Post with the indicated hole in the Frame. Insert
the Adjustment Knob into the Frame and the Seat Post,
and turn the Knob clockwise until it is tight. Make sure
that the Knob is inserted through one of the
adjustment holes in the Seat Post.
1
5
Hole
Adjustment
Holes
9
8
24
21
25
Tab

8
HOW TO OPERATE THE EXERC SE CYCLE
HOW TO ADJUST THE SEAT POST
For effective exer-
cise, the seat
should be at the
proper height. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the lowest
position. To adjust
the height of the
seat, first turn the indicated knob counterclockwise and
remove it. Next, slide the seat post up or down and
align one of the adjustment holes in the seat post with
the indicated hole in the frame. Insert the knob into the
frame and the seat post, and turn the knob clockwise
until it is tight. Make sure that the knob is inserted
through one of the adjustment holes in the seat
post.
HOW TO ADJUST THE SEAT
To adjust the seat,
first turn the indicat-
ed knob counter-
clockwise to loosen
it. Slide the seat to
the desired posi-
tion, and then turn
the knob clockwise
until it is tight.
HOW TO ADJUST THE UPR GHT
To adjust the
upright, first turn
the indicated knob
counterclockwise
and remove it.
Next, slide the
upright up or down
and align one of the
adjustment holes in
the upright with the
indicated hole in
the frame. Insert
the knob into the
frame and the upright, and turn the knob clockwise until
it is tight. Make sure that the knob is inserted
through one of the adjustment holes in the
upright.
HOW TO ADJUST THE PEDALL NG RES STANCE
To increase the
resistance of the
pedals, turn the
resistance knob
clockwise; to
decrease the resist-
ance, turn the knob
counterclockwise.
mportant: Stop
turning the knob
when turning becomes difficult, or damage may
result.
HOW TO ADJUST THE HANDLEBAR
To adjust the han-
dlebar, first turn the
indicated handle
counterclockwise to
loosen it. Note: The
adjustment handle
works like a span-
ner. Turn the handle
counterclockwise,
pull it away from the
handlebar, turn it
clockwise, push it
toward the handle-
bar, and then turn it
counterclockwise
again. Repeat until the handlebar is loose. Move the
handlebar up or down to the desired position and then
retighten the handle.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal straps, see step 9 on page 7.
Upright
Knob Hole
Seat Post
Knob
Hole
Seat
Seat
Knob
Resistance
Knob
Handle
Handlebar

9
FEATURES OF THE CONSOLE
The easy-to-use console is designed to help you get
the most from your workouts. As you exercise, the
console will display the following modes:
Time—This mode displays the elapsed time (or the
time remaining in a pace program). Note: If you stop
pedalling, the time will begin to flash.
Distance—This mode displays the distance that you
have pedalled.
Calories—This mode displays the approximate number
of calories you have burned.
Fat calories—This mode displays the approximate
number of fat calories you have burned (see FAT
BURNING on page 13).
Pulse—This mode displays your heart rate when you
use the pulse sensor.
Speed—This mode displays your pedalling speed.
Scan—When this mode is selected, the upper section
of the display will show both the speed mode and the
distance mode, and the lower left section of the display
will show both the calories mode and the fat calories
mode.
The console also offers four pace programs. Each pro-
gram automatically prompts you to increase or
decrease your pace as it guides you through an effec-
tive workout.
HOW TO USE THE MANUAL MODE
Turn on the console.
To turn on the console, press the On/Reset button
or begin pedalling. Note: If there is a sheet of clear
plastic on the console, remove it.
Select the manual mode.
Each time the
console is turned
on, the manual
mode will be
selected. If a
pace program
has been select-
ed, reselect the
manual mode by
pressing the Program button repeatedly until the
upper right corner of the display is blank.
Begin pedalling and adjust the resistance of
the exercise cycle.
As you exercise, adjust the resistance of the exer-
cise cycle as desired by turning the resistance
knob.
Follow your progress with the display.
When the con-
sole is turned on,
the scan mode
will be selected,
as shown by the
mode bar below
the word
“SCAN.” As you
exercise, the
upper section of
the display will
alternately show
the elapsed time and the distance that you have
pedalled; the lower left section of the display will
alternately show the number of calories you have
burned and the number of fat calories you have
burned; and the lower right section will show your
pedalling speed.
In addition, the pace indicator on the right side of
the display will provide a visual representation of
your pedalling pace. As you increase or decrease
your pace, the indicator will increase or decrease in
height.
4
3
2
1
4
2
This corner
should be blank
Pace Indicator
Mode Bar

10
To cancel the
scan mode,
press the Mode
button. The
mode bar
below the word
“SCAN” will dis-
appear. The
upper section
of the display will then show only the elapsed
time, and the lower left section of the display will
show only the number of calories you have
burned. Press the Mode button again. The upper
section of the display will then show only the dis-
tance pedalled, and the lower left section of the
display will show only the number of fat calories
you have burned. To select the scan mode again,
press the Mode button repeatedly until a mode
bar appears below the word “SCAN.”
To reset the display, press the On/Reset button.
Note: The console can show speed and dis-
tance in either miles or kilometers. To change
the unit of measurement, hold down the
On/Reset button for about six seconds. When
the batteries are replaced, it may be necessary
to reselect the desired unit of measurement.
Measure your heart rate if desired.
Note: f there
are thin sheets
of plastic on
the metal con-
tacts of the
pulse sensor,
peel off the
plastic.
To use the pulse sensor, hold the handle on the
console, with your right palm covering the two
right contacts and your left palm covering the two
left contacts. Avoid moving your hands. When
your pulse is detected, the heart-shaped indicator
in the display will flash each time your heart
beats and two dashes (– –) will appear. After a
moment, your heart rate will be shown. For the
most accurate heart rate reading, continue to hold
the handgrips for about 15 seconds.
When you are finished exercising, the console
will automatically turn off after a few minutes.
If the pedals are not moved and the console but-
tons are not pressed for a few minutes, the con-
sole will automatically turn off to conserve
the batteries.
HOW TO USE A PACE PROGRAM
Turn on the console.
See step 1 on page 9.
Select one of the four pace programs.
Each time the
console is
turned on, the
manual mode
will be selected.
To select a pace
program, press
the Program
button repeated-
ly until the number 1, 2, 3, or 4 appears in the
upper right corner of the display.
The four profiles on the right side of the console
show how the target pace will change during the
programs. For example, profile number 1 shows
that during program 1, the target pace will
increase near the beginning of the program, and
then decrease near the end.
Start the program.
To start the program, begin pedalling. Each pro-
gram consists of either 20 or 30 one-minute peri-
ods. One target pace is programmed for each
period. Note: The same target pace setting may
be programmed for two or more consecutive peri-
ods.
The target pace
settings for the
program will be
shown by the
target pace indi-
cator in the dis-
play. (The pace
indicator will
show your actu-
al pedalling
pace.) As the
target pace indi-
cator changes in height during the program,
adjust your pedalling pace so that both indicators
are at the same height. If your pedalling pace is
slower than the current target pace setting, an
arrow will appear next to the pace indicators to
prompt you to increase your pace; if your pace is
faster than the target pace, an arrow will prompt
you to decrease your pace.
3
2
1
6
5
Contacts
Pace Indicator
Target Pace Indicator
Handle

11
mportant: The target pace settings for the
program are intended only to provide a goal.
Your actual pace may be slower than the tar-
get pace settings, especially during the first
few months of your exercise program. Make
sure to exercise at a pace that is comfortable
for you.
During the program, adjust the resistance of the
exercise cycle as desired by turning the resist-
ance knob.
The display will show the time remaining in the
program. If you continue exercising after the pro-
gram is completed, the display will continue to
show your exercise feedback.
Follow your progress with the display.
See step 4 on page 9.
Measure your heart rate if desired.
See step 5 on page 10.
When you are finished exercising, the console
will automatically turn off after a few minutes.
See step 6 on page 10.
6
5
4

12
Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent. mportant: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
step 5 on page 5 and remove the console from the
handlebar. Next, see step 4 on page 5 and insert
three batteries into the console. Reattach the console
to the handlebar, being careful not to pinch the wires.
HOW TO ADJUST THE REED SW TCH
If the console does not display correct feedback, the
reed switch should be adjusted. In order to adjust the
reed switch, the left side shield must be removed.
Turn the Crank (21) to the position shown. Using an
adjustable spanner, turn the Left Pedal (24) clockwise
and remove it. Next, remove the five M4 x 25mm
Screws (52) and the M4 x 19mm Screw (54) from the
Left Side Shield (17). Carefully remove the Left Side
Shield.
Next, locate the Reed Switch (43). Turn the Crank
(21) until the Magnet (38) is aligned with the Reed
Switch. Loosen, but do not remove, the M4 x 12mm
Screw (46). Slide the Reed Switch slightly closer to or
away from the Magnet, and then retighten the Screw.
Turn the Crank for a moment. Repeat until the con-
sole displays correct feedback. When the Reed
Switch is correctly adjusted, reattach the left side
shield and the left pedal.
MA NTENANCE AND TROUBLESHOOT NG
52
54
17
21
38
43
52
24
21 46

13
COND T ON NG GU DEL NES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERC SE NTENS TY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.

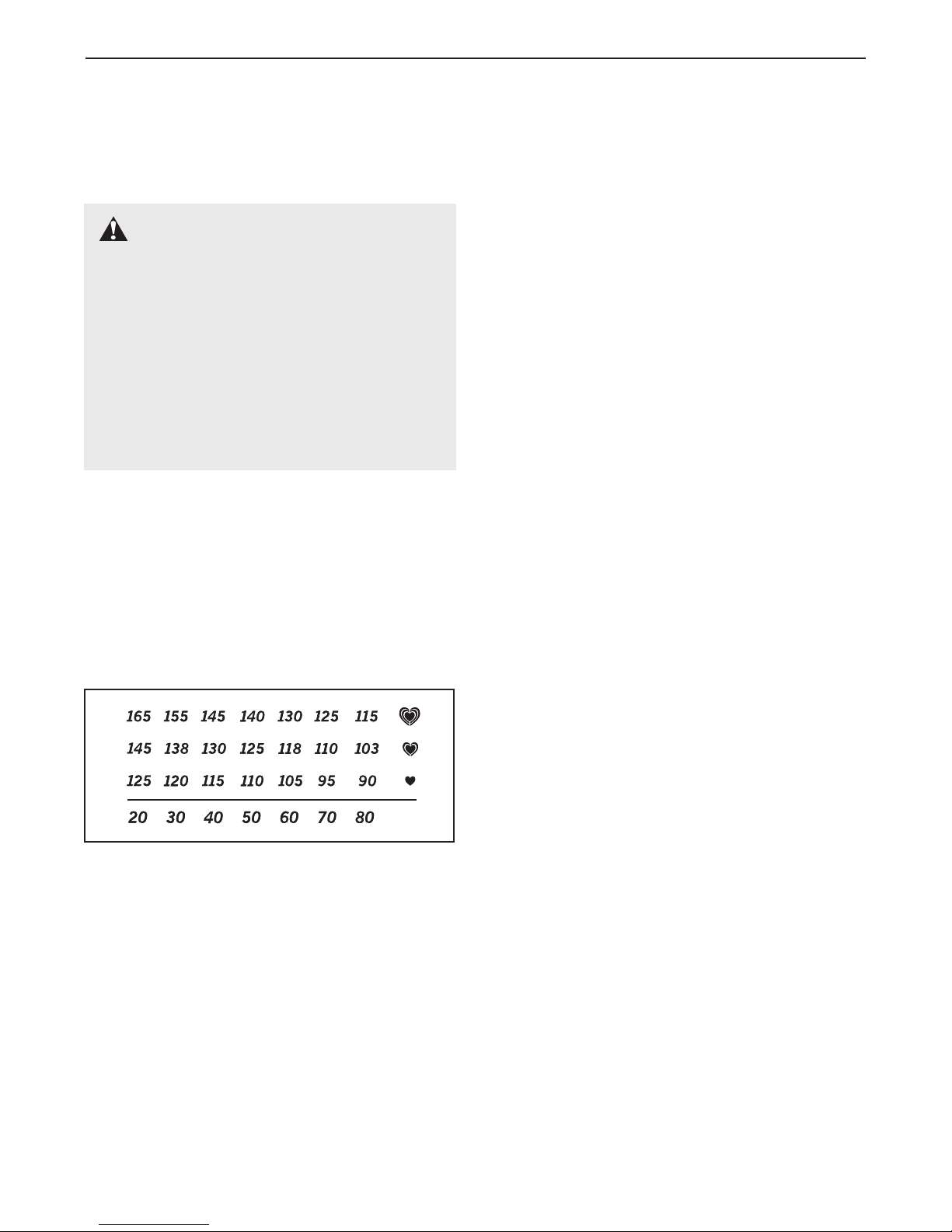

To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.” The lowest number is the recommended heart
rate for fat burning; the middle number is the recom-
mended heart rate for maximum fat burning; the high-
est number is the recommended heart rate for aerobic
exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber in your training zone as you exercise. For maxi-
mum fat burning, adjust the intensity of your exercise
until your heart rate is near the middle number in your
training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be “aerobic.” Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GU DEL NES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone. Note: During the first few weeks of your exer-
cise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERC SE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Remember, the key to success is make exer-
cise a regular and enjoyable part of your everyday life.
WARN NG:
• Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of
35 or persons with pre-existing health
problems.
• The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in deter-
mining heart rate trends in general.

14
11Frame
21Front Stabiliser
31 “C” Magnet Bracket
42Left Stabiliser Endcap
51Seat Post
61Rear Stabiliser
72Handlebar Endcap
82Foam Grip
92Adjustment Knob
10 10 M8 Nylon Locknut
11 2 M8 x 38mm Bolt
12 1 Seat
13 1 Upright
14 1 Left Front Shield
15 1 Handlebar
16 1 Console
17 1 Left Side Shield
18 1 Right Side Shield
19 1 Right Front Shield
20 1 M8 x 5mm Spacer
21 1 Crank/Pulley
22 1 Reed Switch Clamp
23 2 Wheel
24 1 Left Pedal
25 2 Pedal Strap
26 1 Right Pedal
27 1 Earth Screw
28 5 3/8” am Nut
29 2 U-bracket
30 4 M8 x 51mm Carriage Bolt
31 2 Eyebolt
32 1 3/8” Axle Nut
33 2 Right Stabiliser Endcap
34 2 M6 Nylon Locknut
35 1 M10 Flat Washer
36 1 Seat Knob
37 1 Flywheel
38 1 Magnet
39 1 Flywheel Axle
40 2 Flywheel Bearing
41 1 “C” Magnet
42 1 Handlebar Clamp
43 1 Reed Switch/Wire
44 1 Crank Bearing Set
45 1 Lower Cable
46 1 M4 x 12mm Screw
47 1 Return Spring
48 1 Belt
49 4 M5 x 12mm Screw
50 1 Seat Bracket
51 4 M8 Flat Washer
52 6 M4 x 25mm Screw
53 1 Adjustment Handle
54 6 M4 x 19mm Screw
55 1 M6 x 15mm Screw
56 2 Frame Collar
57 2 Knob Collar
#1Userʼs Manual
#2Assembly Wrench
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
PART L ST—Model No. WLEVEX29840 R0704A
No. Qty. Description No. Qty. Description

15
1
2
3
33
4
33
5
78
9
11
11
12
13
14
15
16 18
21
22
25
24
26
25
9
31
31
34
34
10
10
37
38
39
40
40
41
43
44
6
45 47
53
48
19
23
23
10
10
30
30
42
49
54
46
51
10
28
28
28
28
35
29
29
27
17
52
52
54
10
51
51 10
51
49
54
54
52
36
56
56
50
32
54
54
4
20
55
57
57
EXPLODED DRAW NG—Model No. WLEVEX29840 R0704A

Part No. 211157 R0704A Printed in China © 2004 ICON IP, Inc.
ORDER NG REPLACEMENT PARTS
To order replacement parts:
Tel:
Fax: [phone]
E-mail: [email protected]
When ordering parts, please be prepared to give the following information:
• the MODEL NUMBER of the product (WLEVEX29840)
• the NAME of the product (BOOMERANG 403 exercise cycle)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see page 14)
0034 91 661 02 10
Manufactured in China for ICON Health and Fitness, Inc.
