Weslo Pursuit 3.2 R Bike User manual

Serial Number Decal
(under frame)
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. WLCCEX61113.0
Serial No.
Write the serial number in the space
above for reference.
USER’S MANUAL
www.weslo.com
To register your product and
activate your warranty today,
contact Customer Service.
Call toll-free 1-888-936-4266
Mon.–Fri. 7:30 a.m.–4:30 p.m. ET
(excluding holidays)
or email us at
[email protected]
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER SERVICE

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
MAINTENANCE AND TROUBLESHOOTING.....................................................15
EXERCISE GUIDELINES ....................................................................17
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WESLO is a registered trademark of ICON IP, Inc.
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this manual
and request a free replacement decal. Apply
the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
166909 218557
218556
!
250085
• Not for therapeutic
use.
• Nicht für thera-
peutisch Gebrauch.
151249
259345
258865
258868 258869 258870 258871 258872
255569 258724 203572

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. Use the exercise bike only as described in
this manual.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 250 lbs.
(113 kg).
11. Be careful when mounting and dismounting
the exercise bike.
12. Always keep your back straight while using
the exercise bike; do not arch your back.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
14. This Class [B] digital apparatus complies
with Canadian ICES-003.
15. Dispose of batteries in accordance with all
local codes and ordinances.
IMPORTANT PRECAUTIONS

4
Your new tness equipment represents a signicant investment
in your health. Protect your investment now from unexpected
mechanical or electrical failures for up to ve years.
PLAN FEATURES
•Protection for one to ve years
•Over 100 authorized repair centers
•Highly trained repair technicians
•A national toll-free repair hotline
•Simple repair claim procedure
•No claim forms
•Easy enrollment
•Fast, ecient repair anywhere in Canada
•In-home repairs covered
•Parts and labour covered
•Mechanical and electrical failures covered
To protect your tness equipment today, please
call Customer Care at 1-888-936-4266
Or, email us at [email protected]
™

5

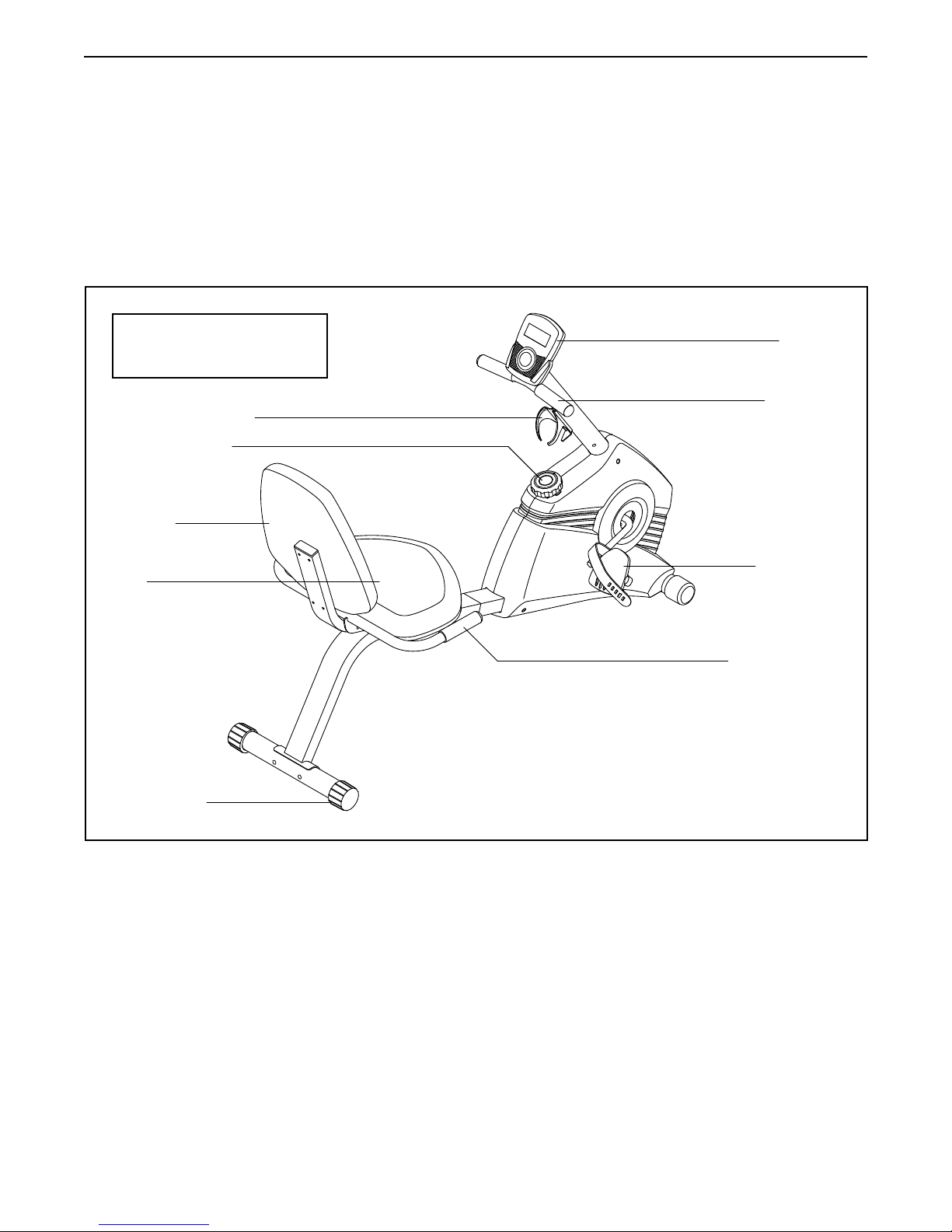

Seat
Resistance Knob
Seat Handlebar
*Water bottle is not included
Water Bottle Holder*
Pedal/Strap
Leveling Cap
Console
Handlebar
Backrest
Thank you for selecting the WESLO®PURSUIT 3.2
R exercise bike. The PURSUIT 3.2 R exercise bike
provides a selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Length: 4 ft. 4 in. (132 cm)
Width: 1 ft. 11 in. (58 cm)

6
M10 x 65mm Bolt (28)–4
M8 x 55mm Screw (46)–2 M8 x 80mm Bolt (39)–2
M8 x 20mm
Screw (40)–7
M6 x 20mm
Screw (47)–4
M6 x 40mm Screw (44)–4
M10 Locknut
(45)–2
M8 Locknut
(35)–2
M4 x 19mm
Screw (27)–2
M4 x 13mm
Screw (42)–4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

7

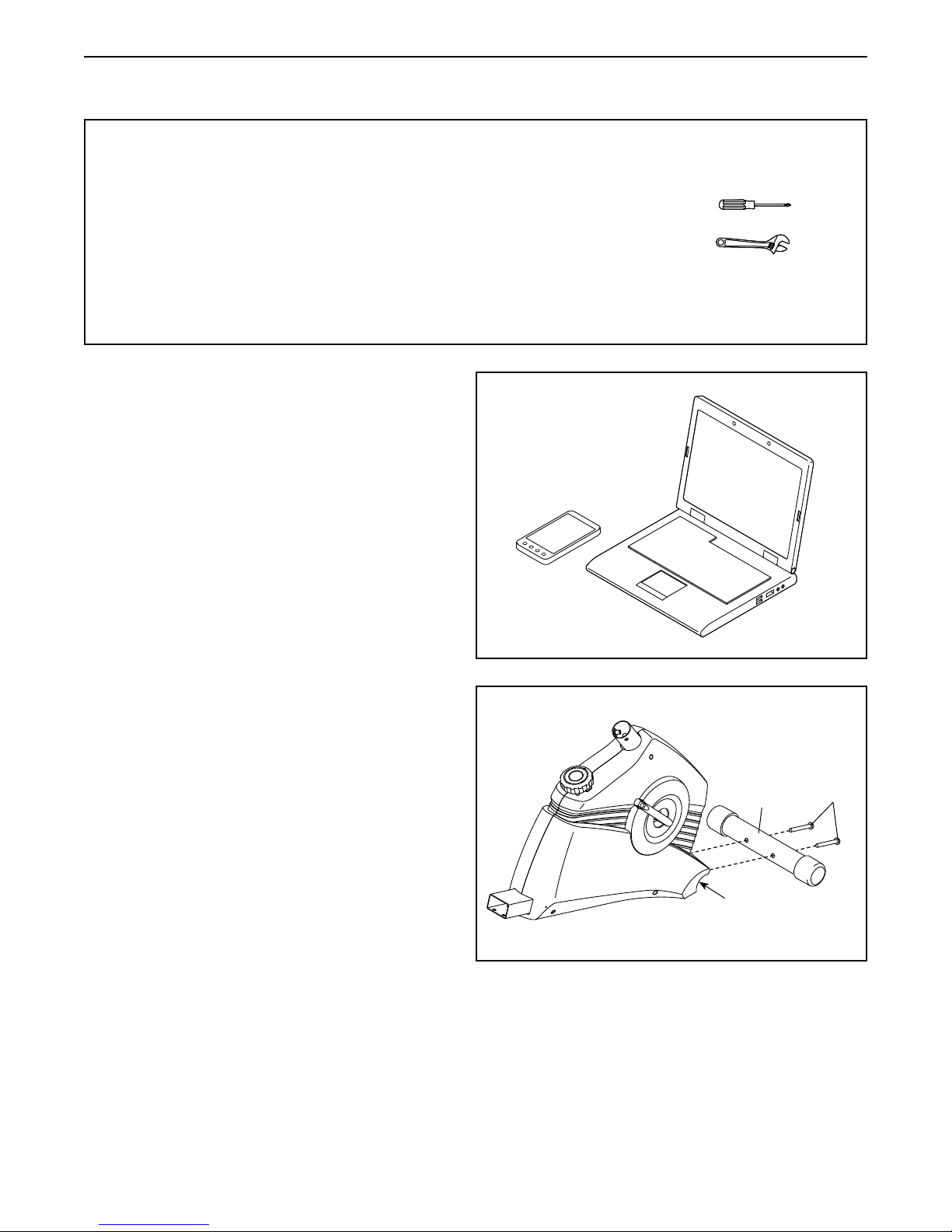

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
2. Identify the Front Stabilizer (16), which is shorter
than the Rear Stabilizer (not shown).
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (16) to the
Frame with two M10 x 65mm Bolts (28).
16
1
2
28
1. Call or email Customer Service (see the front
cover of this manual) today and register your
product.
 • activatesyourwarranty
 • savesyoutimeifyoueverneedtocontact
Customer Service
 • allowsustonotifyyouofupgradesandoffers
1

8

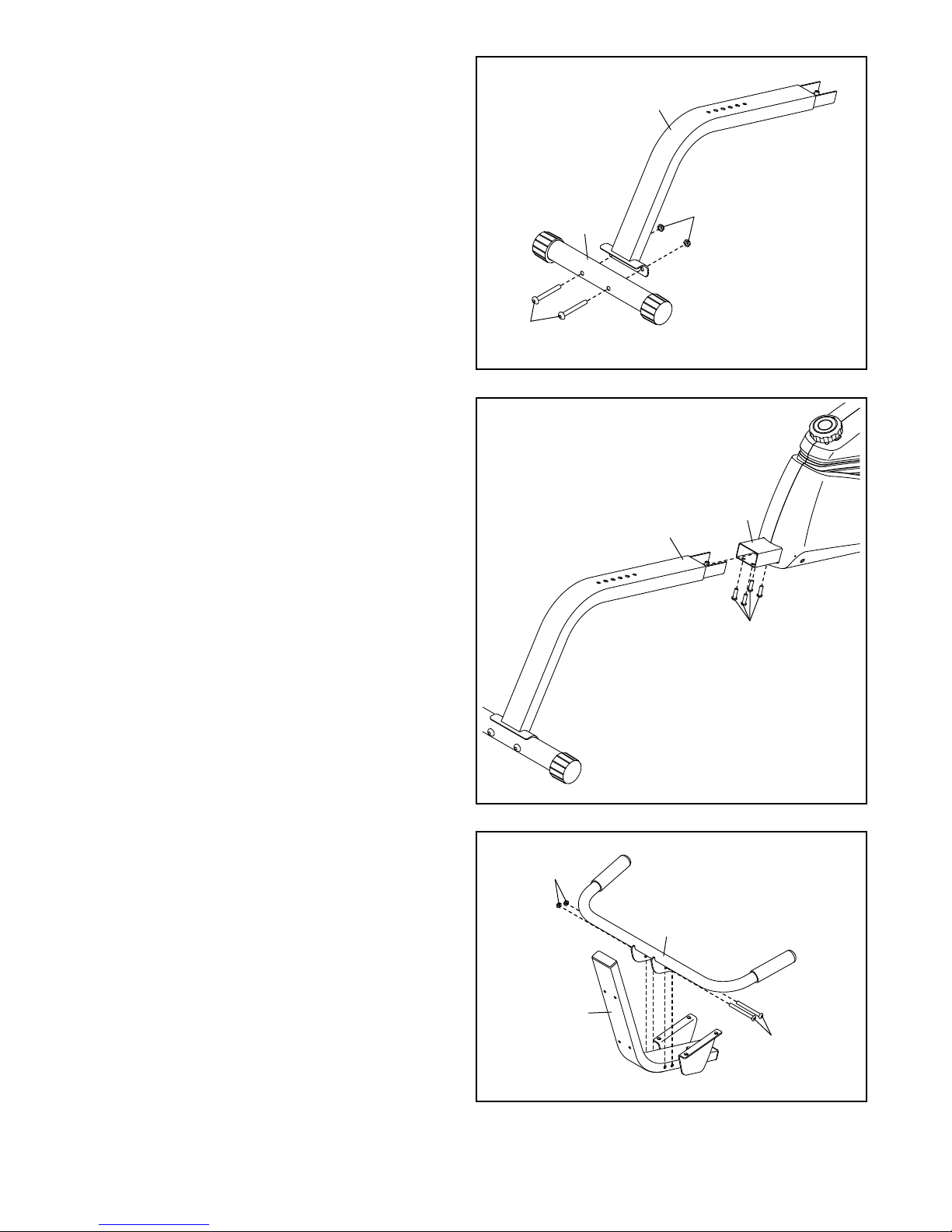

3. Attach the Rear Stabilizer (15) to the Seat Frame
(2) with two M10 x 65mm Bolts (28) and two M10
Locknuts (45).
15
45
28
2
3
4
4. Attach the Seat Frame (2) to the Frame (1) with
four M8 x 20mm Screws (40).
2
1
40
5. Orient the Seat Carriage (4) and the Handlebar
(5) as shown.
Attach the Handlebar (5) to the Seat Carriage
(4) with two M8 x 80mm Bolts (39) and two M8
Locknuts (35).
5
35
39
5
4

9
6. Attach the Seat (6) and the two Seat Supports
(48) to the Seat Carriage (4) with four M6 x
20mm Screws (47).
6
6
4
47
48
7. Insert the pin on the underside of the Seat
Carriage (4) into the desired adjustment hole in
the Seat Frame (2).
Attach the Seat Carriage (4) to the Seat Frame
(2) with the Carriage Plate (31) and two M8 x
55mm Screws (46).
7
31
4
2
46

10
8
8. Attach the Backrest (7) to the Seat Carriage (4)
with four M6 x 40mm Screws (44).
44
44
7
4
9
13
27
9. Attach the Water Bottle Holder (13) to the
Upright (3) with two M4 x 19mm Screws (27).
3

11
10
40
40
40
33
3
Wire Tie
Wire Tie
1

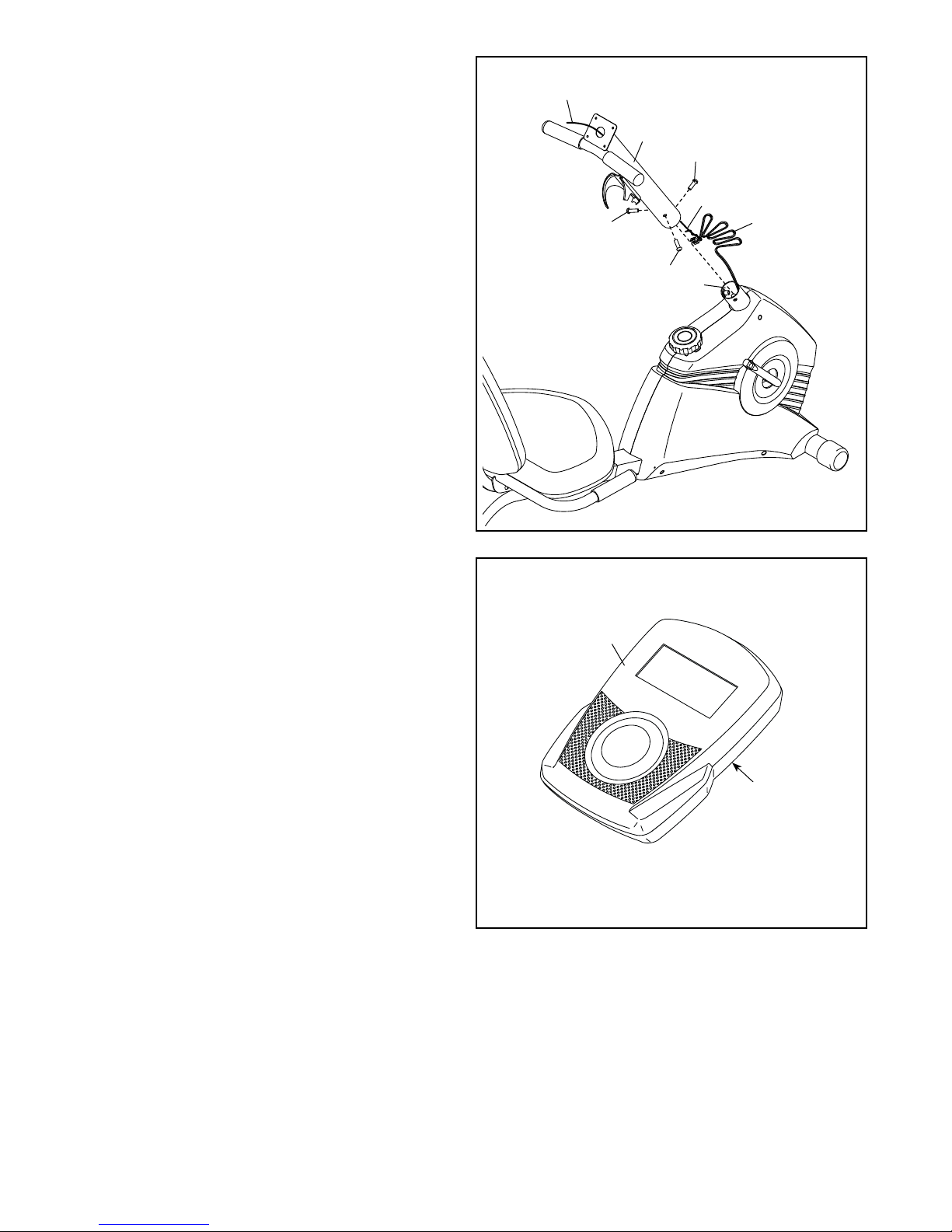

10. Have a second person hold the Upright (3) near
the Frame (1).
Locate the wire tie in the Upright (3). Tie the
lower end of the wire tie to the Reed Switch
Wire (33). Next, pull the upper end of the wire tie
upward out of the top of the Upright.
Tip: To prevent the Reed Switch Wire (33)
from falling into the Upright (3), secure the
Reed Switch Wire with the wire tie.
Tip: Avoid pinching the Reed Switch Wire
(33). Slide the Upright (3) onto the Frame (1).
Attach the Upright (3) with three M8 x 20mm
Screws (40).
11. The Console (8) can use four AA batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console or other electronic components.
Remove the battery cover from the back of the
Console (8), and insert batteries into the battery
compartment. Make sure to orient the bat-
teries as shown by the diagram inside the
battery compartment. Then, reattach the bat-
tery cover.
11
8
Battery
Compartment
Avoid pinching
the Reed Switch
Wire (33)

12
13
3
12
Strap
Tab
24
33
42
12. Untie and discard the wire tie on the Reed
Switch Wire (33).
While a second person holds the Console (8)
near the Upright (3), connect the wire on the
Console to the Reed Switch Wire (33).
Insert the excess wire into the Upright (3).
Tip: Avoid pinching the wires. Attach the
Console (8) to the Upright (3) with four M4 x
13mm Screws (42).
13. Identify the Right Pedal (12).
Using an adjustable wrench, firmly tighten the
Right Pedal (12) clockwise into the right side of
the Crank (24).
Firmly tighten the Left Pedal (not shown) coun-
terclockwise into the left side of the Crank (not
shown).
Adjust the strap on the Right Pedal (12) to the
desired position and press the end of the strap
onto the tab on the Right Pedal. Adjust the
strap on the Left Pedal (not shown) in the
same way.
14. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Note: After assembly is completed, some extra parts may be left over. Place a mat beneath the exercise bike
to protect the floor.
12
Avoid pinching
the wires
8

13

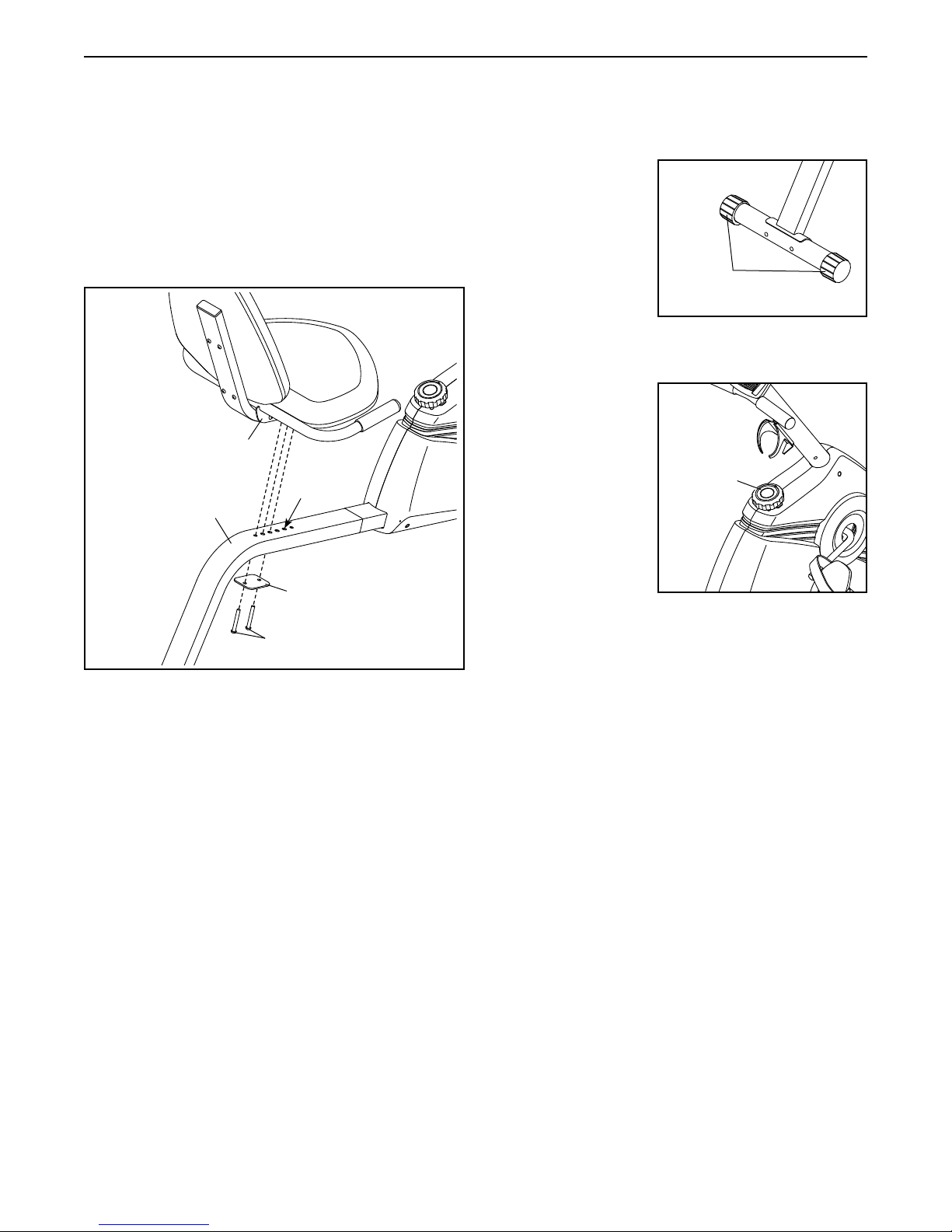

HOW TO ADJUST THE SEAT
The seat can be adjusted forward or backward to the
position that is the most comfortable for you.
To adjust the seat, first remove the two indicated
screws and the carriage plate from the seat frame and
the seat carriage.
Next, insert the pin on the underside of the seat car-
riage into the desired adjustment hole in the seat
frame. Then, attach the seat carriage with the screws
and the carriage plate.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on
your floor during
use, turn one or
both of the leveling
caps under the rear
stabilizer until the
rocking motion is
eliminated.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of
the pedals, turn
the resistance
knob clockwise;
to decrease the
resistance, turn the
resistance knob
counterclockwise.
HOW TO USE THE EXERCISE BIKE
Leveling
Caps
Resistance
Knob
Carriage Plate
Seat Frame
Seat Carriage
Screws
Holes

14
FEATURES OF THE CONSOLE
The console offers a selection of features designed to
make your workouts more effective. As you pedal, the
console will provide continuous exercise feedback.
Before using the console, make sure that batteries are
installed (see assembly step 11 on page 11). If there
is a sheet of plastic on the display, remove the plastic.

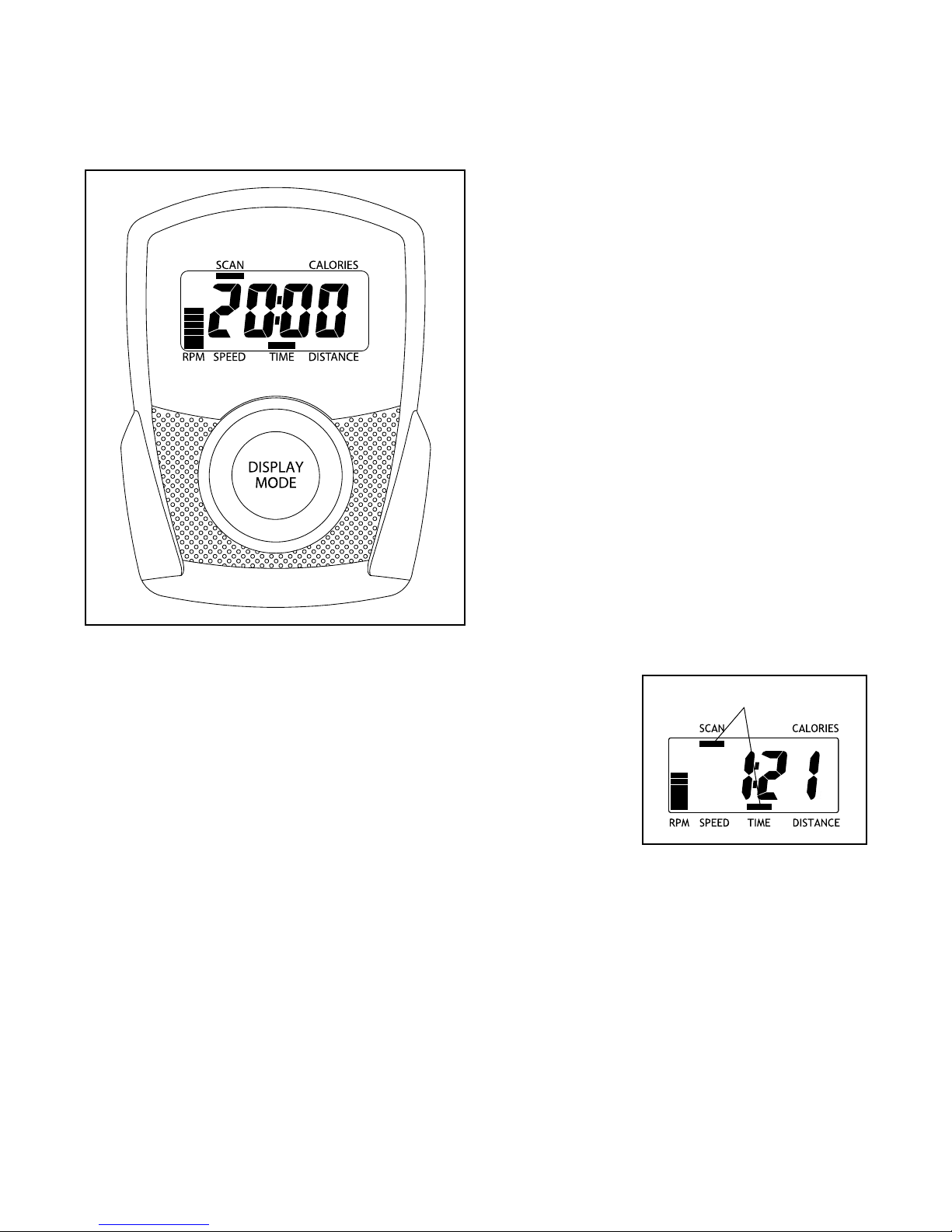

HOW TO USE THE CONSOLE
1. Turn on the console.
To turn on the console, press the Display Mode
button or begin pedaling. The display will turn on
for a moment; the console will then be ready for
use.
2. Follow your progress with the display.
The display can show the following workout
information:
RPM—The RPM meter on the left side of the dis-
play indicates your approximate pedaling pace in
revolutions per minute (rpm).
Speed—This mode shows your pedaling speed, in
miles per hour (mph) or kilometers per hour (km/h).
Time—This mode shows the elapsed time.
Distance—This mode shows the distance you
have pedaled, in miles or kilometers.
Calories—This mode shows the approximate num-
ber of calories you have burned.
Scan—This mode shows the speed, time, dis-
tance, and calories modes, for a few seconds each,
in a repeating cycle.
When you turn
on the con-
sole, the scan
mode will
be selected
automatically.
One indicator
will appear
below the
word Scan to
show that the
scan mode is selected, and a second indicator
will show which information is currently displayed.
Note: If you have selected a different mode, press
the Display Mode button repeatedly to reselect the
scan mode.
Wichita
EBWL69910
WLEX61211.0
WLEX61110.0
Wichita
EBWL69910
WLEX61211.0
WLEX61110.0
Indicators

15

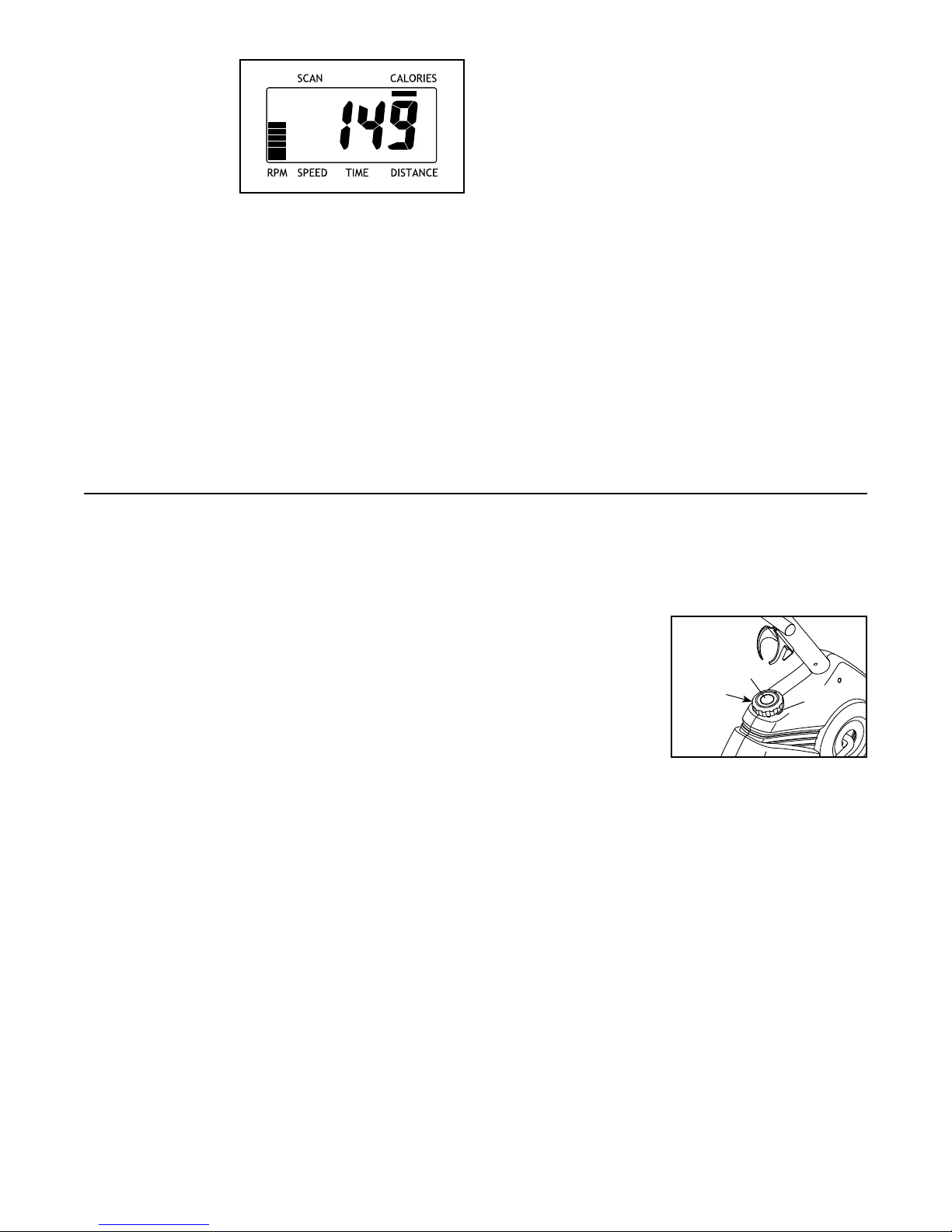

To select the
speed, time,
distance, or
calories mode
for continuous
display, press
the Display
Mode button
repeatedly. An
indicator will show which mode is selected. Make
sure that there is not an indicator below the word
Scan.
The console can show speed and distance in either
miles or kilometers. The letters “mph” or “km/h” will
appear in the display to show which unit of mea-
surement is selected.
To change the unit of measurement, first hold down
the Display Mode button for a few seconds. The
newly selected unit of measurement will appear in
the display. Repeat this action to change the unit of
measurement again.
Note: When the batteries are replaced, it may
be necessary to reselect the desired unit of
measurement.
To pause the console, stop pedaling. If the time is
displayed, it will flash. To continue your workout,
simply resume pedaling.
3. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
console will pause. If the pedals do not move for
a few minutes, the console will turn off and the
display will be reset.
Wichita
EBWL69910
WLEX61211.0
WLEX61110.0
Inspect and tighten all parts of the exercise bike regu-
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
Most console problems are the result of low batteries.
To replace the batteries, see assembly step 11 on page
11.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, you must remove the left
pedal, the resistance knob cover, and the left shield.
Using an adjustable wrench, turn the left pedal clock-
wise and remove it.
Press the tabs on the
sides of the resis-
tance control and pull
the Resistance Knob
(14) upward off the
resistance control.
See the EXPLODED DRAWING on page 19.
Remove the two M3.5 x 19mm Screws (43) and the
three M4 x 19mm Screws (27) from the Left Shield (9).
Then, remove the Left Shield.
MAINTENANCE AND TROUBLESHOOTING
Tab
Tab
14

16
Locate the Reed Switch (33). Rotate the Pulley (24)
until a Magnet (32) is aligned with the Reed Switch.
Loosen, but do not remove, the indicated M4 x 19mm
Screw (27). Slide the Reed Switch slightly toward or
away from the Magnet.
Then, retighten the M4 x 19mm Screw (27). Turn the
Pulley (24) for a moment. Repeat these actions until
the console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the left shield, the resistance knob, and the left pedal.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the
resistance is adjusted to the highest setting, the drive
belt may need to be adjusted.
To adjust the drive belt, you must remove the pedals,
the resistance knob cover, and the shields.
Using an adjustable wrench, turn the left pedal
clockwise and remove it. Then, turn the right pedal
counterclockwise and remove it.
Press the tabs on the
sides of the resistance
control and pull the
Resistance Knob (14)
upward off the resis-
tance control.
See the EXPLODED DRAWING on page 19.
Remove the four M3.5 x 19mm Screws (43) and the
six M4 x 19mm Screws (27) from the Left and Right
Shields (9, 10). Then, remove the Left and Right
Shields.
Loosen the two M10 Flange Locknuts (37)—one on
each side of the Eddy Mechanism (22). Then, tighten
the two M6 Nuts (38) until the Drive Belt (not shown)
is tight. When the Drive Belt is tight, tighten the M10
Flange Locknuts.
When the drive belt is correctly adjusted, reattach the
shields, the resistance knob, and the pedals.
37
22
Tab
Tab
14
32
24
33
27
38

17
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, exercise for at least
four minutes. Then, stop
exercising and place
two fingers on your
wrist as shown. Take a
six-second heartbeat
count, and multiply the
result by 10 to find your heart rate. For example, if your
six-second heartbeat count is 14, your heart rate is 140
beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
EXERCISE GUIDELINES

18
1 1 Frame
2 1 Seat Frame
3 1 Upright
4 1 Seat Carriage
5 1 Handlebar
6 1 Seat
7 1 Backrest
8 1 Console
9 1 Left Shield
10 1 Right Shield
11 1 Left Pedal/Strap
12 1 Right Pedal/Strap
13 1 Water Bottle Holder
14 1 Resistance Control/Knob
15 1 Rear Stabilizer
16 1 Front Stabilizer
17 2 Stabilizer Cap
18 2 Leveling Cap
19 4 Foam Grip
20 4 Handlebar Cap
21 2 Carriage Cap
22 1 Eddy Mechanism
23 1 Bearing Assembly
24 1 Crank/Pulley
25 1 Drive Belt
26 1 Axle
27 9 M4 x 19mm Screw
28 4 M10 x 65mm Bolt
29 2 Eyebolt
30 2 Tension Bracket
31 1 Carriage Plate
32 2 Magnet
33 1 Reed Switch/Wire
34 1 Clamp
35 2 M8 Locknut
36 1 Idler Pulley
37 2 M10 Flange Locknut
38 2 M6 Nut
39 2 M8 x 80mm Bolt
40 7 M8 x 20mm Screw
41 2 Snap Ring
42 4 M4 x 13mm Screw
43 4 M3.5 x 19mm Screw
44 4 M6 x 40mm Screw
45 2 M10 Locknut
46 2 M8 x 55mm Screw
47 4 M6 x 20mm Screw
48 2 Seat Support
* – Assembly Tool
* – User’s Manual
Key No. Qty. Description Key No. Qty. Description
PART LIST
Note:Specicationsaresubjecttochangewithoutnotice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
Model No. WLCCEX61113.0 R0713A

19
30
6
10
12
5
2
4
7
9
11
14
16
18
18
19
19
15
17
17
20
20
21
21
23
23
30
32
32
22
24
29
36
41 41
29
31
34
33
40
27
43
43
46
44
39
37
37
45
28
47
38
38
27
27
27
27
27
27
26
25
1
3
8
19
19
13
20
20
40
40
42
27
27
28
28
35
48
EXPLODED DRAWING Model No. WLCCEX61113.0 R0713A

Part No. 345958 R0713A Printed in China © 2013 ICON IP, Inc.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
•themodelnumberandserialnumberoftheproduct(seethefrontcoverofthismanual)
•thenameoftheproduct(seethefrontcoverofthismanual)
•thekeynumberanddescriptionofthereplacementpart(s)(seethePARTLISTandtheEXPLODED
DRAWING near the end of this manual)
ORDERING REPLACEMENT PARTS
ICON of Canada, Inc. (ICON) warrants this product to be free from defects in workmanship and material,
under normal use and service conditions. Parts and labor are warranted for ninety (90) days from the date
of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if all instructions in this manual are not followed, if the prod-
uct is abused or improperly or abnormally used, or if the product is used for commercial or rental purposes.
NootherwarrantybeyondthatspecicallysetforthaboveisauthorizedbyICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property,lossofrevenuesorprots,lossofenjoymentoruse,orcostsofremovalorinstallation;orother
consequential damages of any kind. Some provinces do not allow the exclusion or limitation of incidental
or consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantabilityortnessforaparticularpurposearelimitedintheirscopeanddurationtothetermsset
forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to the customer.
Thiswarrantyprovidesspeciclegalrights;thecustomermayhaveotherrightsthatvaryfromprovince
to province.
ICON of Canada, Inc., 900 de l’Industrie, St. Jérôme, QC J7Y 4B8
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.
