Weslo Pursuit 510 cs User manual

Model No. 831.283161
Serial No.
Serial
Number
Decal
=Assembly
= Operation
=Maintenance
=Part List and Drawing
,_CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
EXE
User's SE Manual
Patent Pending
Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................ 2
BEFORE YOU BEGIN ...................................................................... 3
ASSEMBLY ............................................................................... 4
HOW TO OPERATE THE EXERCISE CYCLE .................................................... 8
MAINTENANCE AND TROUBLESHOOTING ................................................... 10

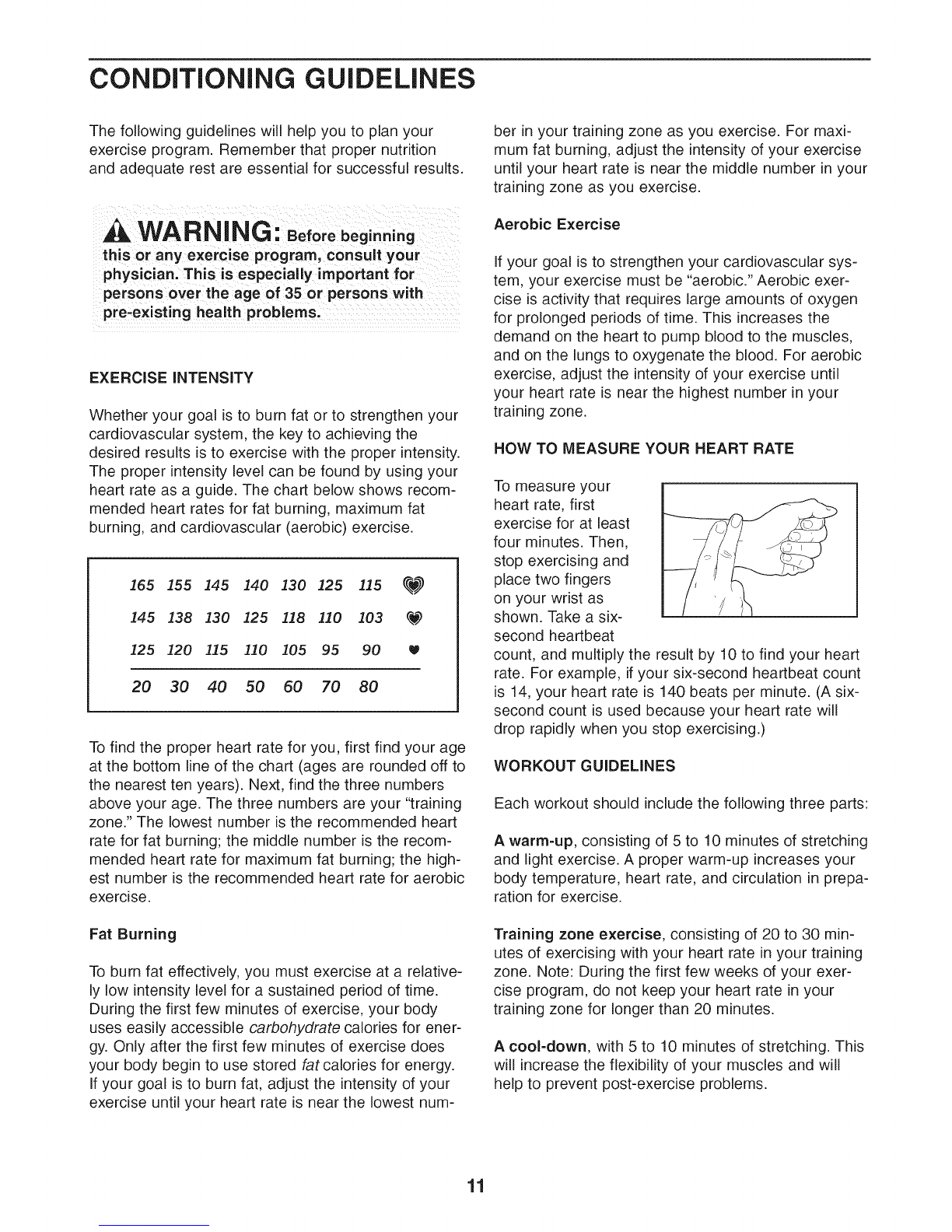

CONDITIONING GUIDELINES ............................................................... 11
PART LIST .............................................................................. 14
EXPLODED DRAWING .................................................................... 15
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover
IMPORTANT PRECAUTIONS
AWARNING: Toreducethe.s. ofse.ousnjury,readthefo,ow ngmportantprecau-
tionsbefore using the exercise cycle.
.
2. Use the exercise cycle only as described in
this manual.
Read all instructions in this manual before 7. Wear appropriate clothing when exercising;
using the exercise cycle, do not wear loose clothing that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
.
8. The exercise cycle should not be used by
it is the responsibility of the owner to ensure persons weighing more than 250 pounds.
that all users of the exercise cycle are ade-
quately informed of all precautions. 9. Always keep your back straight while using
the exercise cycle; do not arch your back.
4. Use the exercise cycle indoors on alevel sur-
face. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor.
.
10. if you feel pain or dizziness while exercising,
stop immediately and cool down.
11. The exercise cycle does not have a free
Inspect and properly tighten all parts regular- wheel; the pedals will continue to move until
ly. Replace any worn parts immediately, the flywheel stops.
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times. 12. The exercise cycle is intended for home use only. Do not use the exercise cycle in
acommercial, rental, or institutional setting.
_WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
2

BEFORE YOU BEGIN
Congratulations for selecting the new WESLO _
PURSUIT 510 CS exercise cycle. Cycling is one of
the most effective exercises for increasing cardiovas-
cular fitness, building endurance, and toning the body.
The PURSUIT 510 CS exercise cycle offers a selec-
tion of features designed to let you enjoy this healthful
exercise in the convenience and privacy of your
home.
For your benefit, read this manual carefully before
you use the exercise cycle, if you have questions
after reading this manual, please call 1-800-4-MY-
HOME _r_(1-800-469-4663). To help us assist you,
please note the product model number and serial
number before calling. The model number is
831.283161. The serial number can be found on a
decal attached to the exercise cycle (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Water Bottle Holder*
Handlebar
Console
Backrest
Resistance Knob
FRONT
Seat Frame
Pedal/Strap
Seat
Seat Handle
Adjustment Knob
RIGHT SIDE
REAR *No water bottle is included
3

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tools, assembly requires aPhillips screwdriver , two adjustable
wrenches , and pliers _o_ •
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been pre=attached for shipping. If a
part is not in the parts bag, check to see if it has been pre=attached.
Note: If a part is not in the parts bag, first check to see if it has been pre-assembled. If a part is missing,
call toll-free 1=866=699=3756.
\
M4 x 5mm M4 x 8mm M4 x 16mm M6 Washer M8 Split M8 Washer
Screw (65)-2 Screw (64)-2 Screw (49)-4 (61)-8 Washer (42)-5 (14)-4
M6 Nylon
Locknut (63)-4
M6 x 32mm Bolt
(62)-4
M8 Nylon
Locknut (10)-4 M10 Nylon
Locknut (33)-4
M6 x 38ram Screw
(60)-8
M8 x 15mm Button
Screw (34)-3
M8 x 48mm Button Bolt (59)-2
M10 x 65mm Carriage Bolt (30)-4
M8 x 125mm Bolt (57)-2
4

,
,
,
,
While another person lifts the front of the Frame (1)
slightly, attach a Stabilizer (2) with two M10 x 65mm
Carriage Bolts (30) and two M10 Nylon Locknuts (33).
Attach a Stabilizer (2) to the Seat Frame (5) with two
M10 x 65mm Carriage Bolts (30) and two M10 Nylon
Locknuts (33).
Insert the end of the Seat Frame (5) into the Frame
(1). Next, firmly press the Seat Frame Bushing (20)
into the Frame. Secure the Seat Frame Bushing to the
Frame with two M4 x 5mm Screws (65). Tighten the
Adjustment Knob (9) into the Frame.
Carefully tip the exercise cycle onto its side. Attach the
two Bumpers (66) to the Frame (1) with two M4 x
8mm Screws (64). Then, tip the exercise cycle back
onto the Stabilizers (2).
Attach the Left and Right Seat Brackets (52, 53) to the
Seat Frame (5) with two M8 x 125mm Bolts (57), four
M8 Washers (14), and two M8 Nylon Locknuts (10) as
shown. Do not tighten the Nylon Locknuts yet.
30 2
33 5
2
20
64 5
2
5\
14
14
57
53
5
