Weslo PURSUIT CT 3.8R User manual

Model No. 83t.2t8tt.0
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
• Assembly
•Operation
•Maintenance
•Part List and Drawing
BIKE EXERCISER
User's Manual
Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
HOW TO USE THE EXERCISE CYCLE ........................................................ 11
MAINTENANCE AND TROUBLESHOOTING ................................................... 14

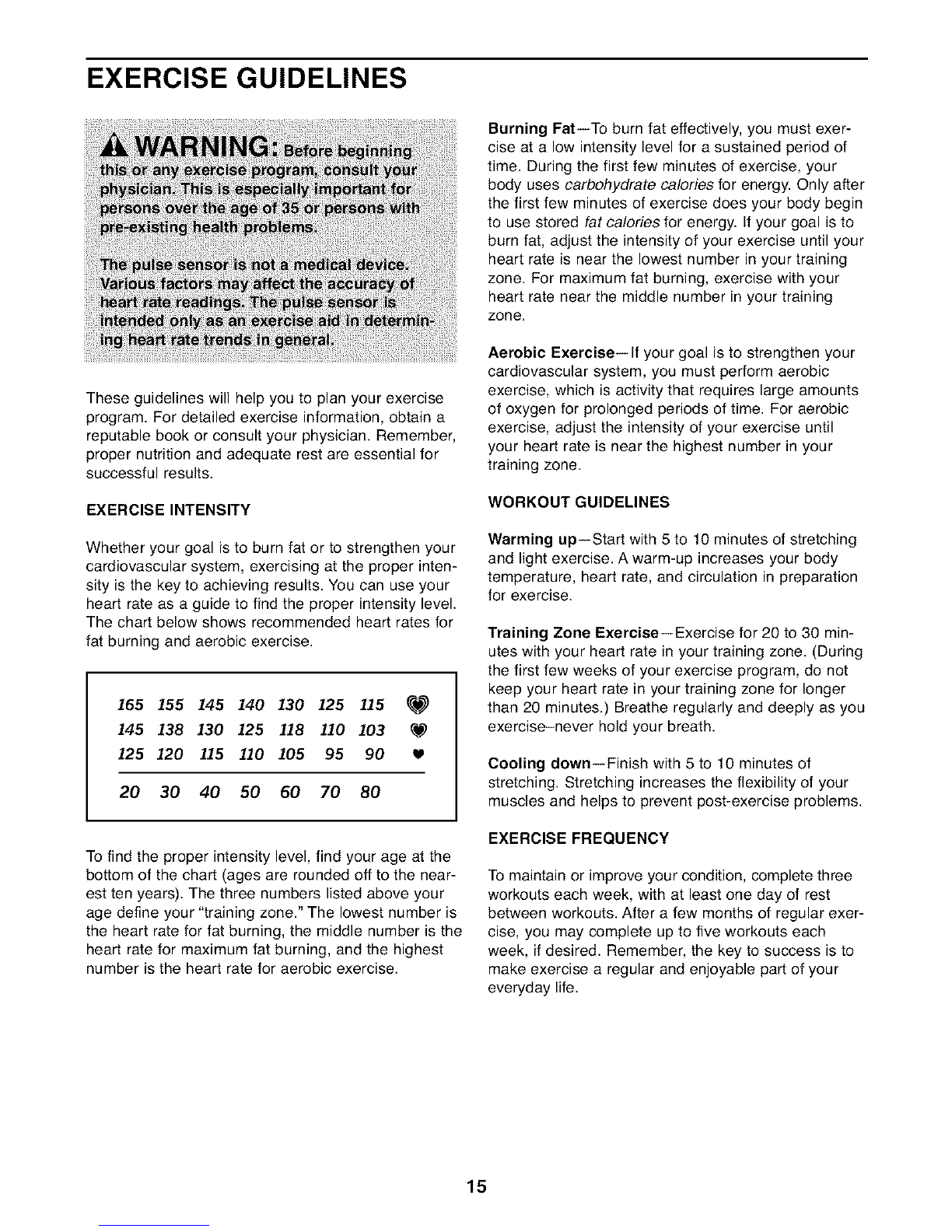

EXERCISE GUIDELINES ................................................................... 15
PART LIST .............................................................................. 18
EXPLODED DRAWING .................................................................... 19
ORDERING REPLACEMENT PARTS .................................................. Back Cover
90 DAY FULL WARRANTY .......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, call 1-866-699-3756 and
request a free replacement decal.
Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
•Msuse oft_is mach ne
may result in serious
injury,
•Read user's mLanLalu
prior to use andfoUow
all warnings and
instructions.
•Donot allow children
on oraround machine.
•Pedals continueto
spin when you stop
pedaling.
•Spinning pedals can
cause injury.
•Reduce pedal speed
in a controlledmanner.
•Userweight must not
exceed 250 pounds.
•Replacelabel if
damaged, illegible, or
removed. [_
2

IMPORTANT PRECAUTIONS
3

BEFORE YOU BEGIN
Congratulations for selecting the new WESLO ®
PURSUIT CT 3.8 R exercise cycle. Cycling is one of
the most effective exercises for increasing cardiovas-
cular fitness, building endurance, and toning the body.
The PURSUIT CT 3.8 R exercise cycle offers a selec-
tion of features designed to let you enjoy this healthful
exercise in the convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the back cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Handlebar Thumb Pulse Sensor
Resistance Knob
Backr,
Pedal/Strap
Seat
Adjustment Knob
Seat Frame Seat Handle
4

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tools, assembly requires a Phillips screwdriver _-_, two adjustable
wrenches Q_, and pliers _.
As you assemble the exercise cycle, use the drawings below to identify the small parts used in assembly. The
number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small
parts may have been preassembled. If a part is not in the hardware kit, check to see if it has been pre-
assembled. If a part is missing, call t-888-533-t333.
M4 Washer M6 Washer M6 Curved M8 Split M8 Washer M8 Curved
(70)-2 (68)-8 Washer (69)-4 Washer (42)-3 (54)-4 Washer (46)-2
M6 Locknut
(63)-4
M4x 5mm M4 x8mm M4x 15mm
M8 Locknut MIO Locknut Self-tapping Screw (29)-2 Self-tapping
(10)-4 (65)-2 Screw (66)-2 Screw (47)-4
M6 x 30ram Button
Bolt (64)-4 M6 x 35mm Button
Screw (61)-8 M8 x 65ram Button Bolt (72)-2
M8 x 20ram Button
Screw (34)-3 M8 x 125mm Bolt (62)-2
MIO x 60mm Button Screw (33)-2 MIO x 75mm Carriage Bolt (30)-2
5

Turn the Front Stabilizer (2) so that the large
holes are facing the Frame (1). Attach the Front
Stabilizer to the Frame with two M10 x 60mm
Button Screws (33).
Holes
2, Attach the Rear Stabilizer (6) to the Seat Frame
(5) with two M10 x 75ram Carriage Bolts (30)
and two M10 Locknuts (65).
2
30
,Insert the end of the Seat Frame (5) into the
Frame (1). Next, firmly press the Frame
Bushing (56) into the Frame. Attach the Frame
Bushing to the Frame with two M4 x 5mm Self-
tapping Screws (66). Then, tighten the
Adjustment Knob (9) into the Frame.
Carefully tip the exercise cycle onto its side.
Attach the two Bumpers (57) to the Frame (1)
with two M4 x 8mm Screws (29) and two M4
Washers (70). Then, tip the exercise cycle
upright.
56 5
6

4. Attach the Left and Right Seat Brackets (14, 15)
to the Seat Frame (5) with two M8 x 125mm
Bolts (62), four M8 Washers (54), and two M8
Locknuts (10) as shown. Do not tighten the
Locknuts yet.
54 10 54 10
15
5. Attach a Seat Handle (59) to the round tube on
the Left Seat Bracket (14) with two M6 x 30ram
Button Bolts (64), two M6 Curved Washers (69),
and two M6 Locknuts (63).
Attach the other Seat Handle (59) to the
Right Seat Bracket (t5) in the same way.
59
59
.Attach the Backrest (60) to the Seat Brackets
(14, 15) with four M6 x 35mm Button Screws
(61) and four M6 Washers (68).
See step 4. Tighten the two M8 Locknuts (10).
15
68
68
61
61
7

7. Attach the Seat (12) to the Seat Brackets (14,
15) with four M6 x 35mm Button Screws (61)
and four M6 Washers (68).
8. While another person holds the Upright (13) in
the position shown, connect the Extension Wire
(52) to the Reed Switch Wire (43). Next, con-
nect the Resistance Cable (19) to the Lower
Cable (45) in the following way:
• See drawing A. Pull upward on the metal
bracket on the Lower Cable (45), and insert
the tip of the Resistance Cable (19) into the
wire clip inside the metal bracket as shown.
• See drawing B. Firmly pull the Resistance
Cable (19) upward and slide it into the top of
the metal bracket as shown.
• See drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Push the excess wire and cable downward into
the Frame (1), and insert the Upright (13) into the
Frame.
Tip: Avoid pinching the wires and cables.
Attach the Upright (13) to the Frame (1) with
three M8 x 2Omm Button Screws (34) and three
M8 Split Washers (42).
8
Avoid pinching the
diurres; t disCablee; 13 /_
45 =,_'/" ._--34
34_2__
A
._ Metal
_ Bracket
1]-45 o
Metal j
Bracket
8

9. 9
Attach the Handlebar (53) to the Upright (13)
with two M8 x 65mm Button Bolts (72), two M8
Curved Washers (46), and two M8 Locknuts (10).
53
72
10. The Console (16) requires four "AA" batteries
(not included); alkaline batteries are recom-
mended. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components. Remove the screw, remove the
battery cover, and insert the batteries into the
battery compartment. Make sure to orient the
batteries as shown by the diagram inside
the battery compartment. Then, reattach the
battery cover.
10
16\
11. Tip: Avoid pinching the wires. While another
person holds the Console (16) near the Upright
(13), connect the console wire to the Extension
Wire (52). Then, insertthe wires downward into
the Upright. Attach the Console to the Upright
with four M4 x 15mm Self-tapping Screws (47).
11
Avoid pinching
the wires during
this step
47
52
Wire
9

12. Identify the Left Pedal (24), which is marked
with an "L" sticker. Using an adjustable wrench,
firmly tighten the Left Pedal counterclockwise
into the left arm of the Crank (21). Tighten the
Right Pedal (not shown) clockwise into the right
arm of the Crank. IMPORTANT: Tighten beth
Pedals as firmly as possible. After using the
exercise cycle for one week, retighten the
Pedals. For best performance, keep the
Pedals tightened.
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the Left Pedal (24). Adjust the
strap on the Right Pedal (not shown) in the
same way.
12
Tab _
Strap
13. Make sure that all parts are properly tightened before you use the exercise cycle. After assembly is com-
pleted, some extra parts may be left over. Place a mat under the exercise cycle to protect the floor.
