Westermo Pilot Wire RPW600M User manual

Pilot wire
modem
RPW600M / RPW600F
User Guide
6621-2260

26621-2260
Legal information
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document.
The manufacturer reserves the right to revise this document or withdraw it at
any time without prior notice.
Under no circumstances shall The manufacturer be responsible for any loss of data
or income or any special, incidental, and consequential or indirect damages howsoever
caused.

3
6621-2260
Safety
Before installation:
Read the user guide completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.
This unit uses convection cooling. To avoid obstructing the airflow around the unit,
follow the spacing recommendations.
Before mounting, using or removing this unit:
Prevent access to hazardous voltage by disconnecting the unit from power supply.
Warning! Do not open connected unit. Hazardous voltage may occur within this
unit when connected to power supply.
Care recommendations
Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.
This unit must not be operating with removed covers or lids.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling above the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not water-
proof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical
part may be damaged.
Fibre connectors are supplied with plugs to avoid contamination inside the optical port.
As long as no optical fibre is mounted on the connector, e.g. for storage, service or
transportation, should the plug be applied.
!
!

46621-2260
Note. Fibre Optic Handling
Fibre optic equipment needs special treatment. It is very sensitive to dust and dirt. If
the fibre will be disconnected from the modem the protective hood on the transmitter/
receiver must be connected. The protective hood must be kept on during transportation.
The fibre optic cable must also be handled the same way.
If this recommendation not will be followed it can jeopardise the warranty.
Cleaning of the optical connectors
In the event of contamination, the optical connectors should be cleaned by the use of
forced nitrogen and some kind of cleaning stick.
Recommended cleaning fluids:
• Methyl-, ethyl-, isopropyl- or isobutyl-alcohol
• Hexane
• Naphtha
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.

5
6621-2260
General
RPW600 Pilot Wire modems are used with RED615 line differential protection and
control IEDs to enable the galvanic protection communication connection over twisted
pair media, better known as Pilot Wire in the area of line differential protection
applications.
Two different variants of the RPW600 modems are available, a master (RPW600M) and
a follower (RPW600F) which always are needed to be used as counterparts in pilot wire
communication link. To enable ease of use, no setting or configuration is needed with
either of the RPW600 modem variants.
Pilot wire link lengths typically up to 8 km with 0.8 mm2 twisted pair cables can be
applied. With twisted pair cables in good condition even longer distances can be
achieved. The achieved link length also depends on the noise levels in installations.
As important part of the line differential protection scheme the RPW600 modems
fulfill the same EMC- and environmental standards as RED615 line differential protection
and control IEDs. The pilot wire connection in the RPW600 modem caters for 5 kVac
(RMS, 1 min) level insulation against earth potential as a standard.

66621-2260
Environmental conditions
Phenomena Test Description Test levels
Temperature Operating –20 to +55ºC
Storage & Transport –40 to +85C
Humidity Operating 5 to 95% relative humidity
Storage & Transport 5 to 95% relative humidity
Altitude Operating Up to 2 000 m / 70 kPa
Enclosure UL 94 Zink Flammability class V-1
Dimension W x H x D 52.5 x 100 x 101 mm
Weight 0.6 kg
Degree of protection IEC 529 Enclosure IP 40
Cooling Convection
Mounting Horizontal on 35 mm DIN-rail
Type tests immunity
Environmental
Phenomena
Basic
Standard
Level
Electrostatic discharge
Test
EN 61000-4-2 6kV/8kV (contact/air)
Performance Criteria B
RF field AM modulated EN 61000-4-3 20V/m 80–2700 MHz
Performance Criteria A
Electrical fast transient
Burst
EN 61000-4-4 ±4.0 kV (power ports)
±4.0kV (signal ports)
Performance Criteria A
Surge EN 61000-4-5 ±4.0 kV (L-E power)
±2.0 kV (L-L power)
±2.0 kV (L-E signal)
±1.0 kV (L-L signal)
Performance Criteria B
RF conducted EN 61000-4-6 10V/m 0,15 to 80MHz
(power & signal port)
Performance Criteria A
Power frequency
(50 Hz) magnetic field
EN 61000-4-8 300 A/m
Slow damped oscillatory wave
immunity test, 1 MHz burst
EN 61000-4-18 2.5 kV (CM)1.0 kV (DM)
Power frequency immunity test IEC 60255-22-7
Voltage dips, short interruptions
and voltage variations on d.c.
input power port immunity tests
EN 61000-4-29
(DC port)
Dips:
30 %, 60%
10, 30, 50, 100, 300, 1000 ms
Interruptions:
1, 3, 10, 30, 50, 100, 300, 1000, 5000 ms
Variations:
80%, 120%, 10 s
Performance Criteria A < 50ms
Performance Criteria B > 50ms

7
6621-2260
Type tests emission
Environmental
phenomena
Basic
Standard
Environment
Radiated emission
Enclosure
30 MHz – 230 MHz
230 MHz – 1000 MHz
EN 55022
Class A
EN 55022
Conducted emission
DC power port
0.15 – 30 MHz
EN 55022
Class A
EN 55022
Type tests temperature
Environmental
Phenomena
Standard Test values
Cold test IEC 60068-2-1
Test Ad
–25ºC; 96 h
–40ºC; 16 h
Dry heat test IEC 60068-2-2
Test Bd
+55ºC; 96 h
+85ºC; 16 h
Damped heat test, cyclic IEC 60068-2-30 6 cycles, 12+12 h
+25ºC ... +55ºC
Storage test IEC 60068-2-48 –40ºC; 96 h
+85ºC; 96 h
Type tests mechanical
Environmental
Phenomena
Standard Test values
Vibration response test IEC 60068-2-6
Test Fc
10 – 150 Hz
0.075 mm, 10 – 58 Hz
10m/s², 58 – 150 Hz
1 sweep cycles in each of the three directions
Vibration endurance test IEC 60068-2-6
Test Fc
10 – 150 Hz
20m/s², 58 – 150 Hz
20 sweep cycles in each of the three directions
Shock response test IEC 60068-2-27
Test Ea
Peak acc: 100 m/s²
Duration: 11 ms
3 pulses in each of the six directions
Shock withstand test IEC 60068-2-27
Test Ea
Peak acc: 300 m/s²
Duration: 11 ms
3 pulses in each of the six directions
Bump test IEC 60068-2-29
Test Eb
Peak acc: 200 m/s²
Duration: 16 ms
1000 pulses in each of the six directions
Type tests insulation
Test Standard Test values
Dielectric test EN 60255-5 5 kVac, Pilot Wire – Power
5 kVac, Pilot Wire – GND
2 kVac, Power – GND
Impulse voltageTest EN 60255-5 5 kV
Isolation resistance test EN 60255-5 0.5 kV, >100MΩ
Protective bonding resistance EN 60255-27 <0.1 Ω (60 s)

86621-2260
Interface specifications
Power
Rated voltage 24 to 110 VDC
Operating voltage 19,2 to 154 VDC
Rated current 200 mA @ 24 VDC
50 mA @ 110 VDC
Rated frequency DC
Inrush current, I2t 0.11 A²s @ 48 VDC
Startup current* 0.2 Apeak @ 24VDC
Polarity Reverse polarity protected
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm² (AWG 24 – 12)
Shielded cable Not required
* External supply current capability for proper startup.
Pilot Wire
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm² (AWG 24 – 12)
Shielded cable Not required
Number of ports 1
Ethernet FX
Isolation to All other
Connection LC
Fibre type Single-mode 9/125 or 10/125
Shielded cable Not required
Number of ports 1
Console
Electrical specification TTL-level
Data rate 115.2 kbit/s
Data format 8 data bits, none parity, 1 stop bit, no flow control
Transmission range 15 m
Isolation to All other
Connection 2.5 mm jack, use serial console cable

9
6621-2260
Power*
Position Description Product marking
1 Common COM
2 Common COM
3 + Voltage +DC
4 + Voltage +DC
* This unit is supplied with one power module and with
redundant power input connections.
Pilot wire
Position Direction* Description
1 In/Out 2-wire Receive/Transmit
2 In/Out 2-wire Receive/Transmit
* Direction relative this unit.
Console
(see more information
on page 8)
LED indicators
(see page 10)
Earth connection
Top view
Front view
+
–
1
2
3
4
Ethernet FX
Position Direction* Description
RX In Receiver
Optical input
TX Out Transmitter
Optical output
* Direction relative this unit.

10 6621-2260
LED indicators
LED Status Description
ON OFF Unit has no power
GREEN Internal power ok
RED The unit is booting
FX
Fibre link
indication
OFF Inactive link
GREEN Active link
GREEN FLASH Data is transmitted
PW
Pilot wire link
indication
OFF Inactive link
GREEN Active link
GREEN FLASH Link negotiation
QoS
Quality of
service, pilot
wire link
quality
indication
LED 1 LED 2 LED 3
1
2
3
GREEN GREEN GREEN Very good link (QoS-value above 15)
OFF GREEN GREEN Good link (QoS-value between 11-15)
OFF OFF GREEN Ok link (QoS-value between 6-10)
RED RED RED Weak link (QoS-value below 6)
OFF OFF OFF No link

11
6621-2260
Diagnostic
QoS indication
The QoS indication on the front of the unit gives an indication of the pilot wire link sta-
tus.
If indication shows weak link it is recommended to improve the pilot wire characteristic.
A weak link can be unstable and result in data transmission losses.
RPW-diagnostic tool connection
The RPW-diagnostic tool, which is part of the RPW-
diagnostic kit, can be used for more advanced diagnostic
and logging of diagnostic parameters. Connection to the
RPW-unit is possible via the
console port in the front of the unit using the serial con-
sole cable, also part of the diagnostic kit.
The following steps needs to be taken
1. Connect the serial diagnostic cable to the console port.
(Use only the cable provided in Diagnostic Kit).
2. Connect cable to your computer
(USB port, if drivers are needed they can be found on the CD in the RPW-diagnostic kit).
3. From RPW-diagnostic tool connect to the assigned port.

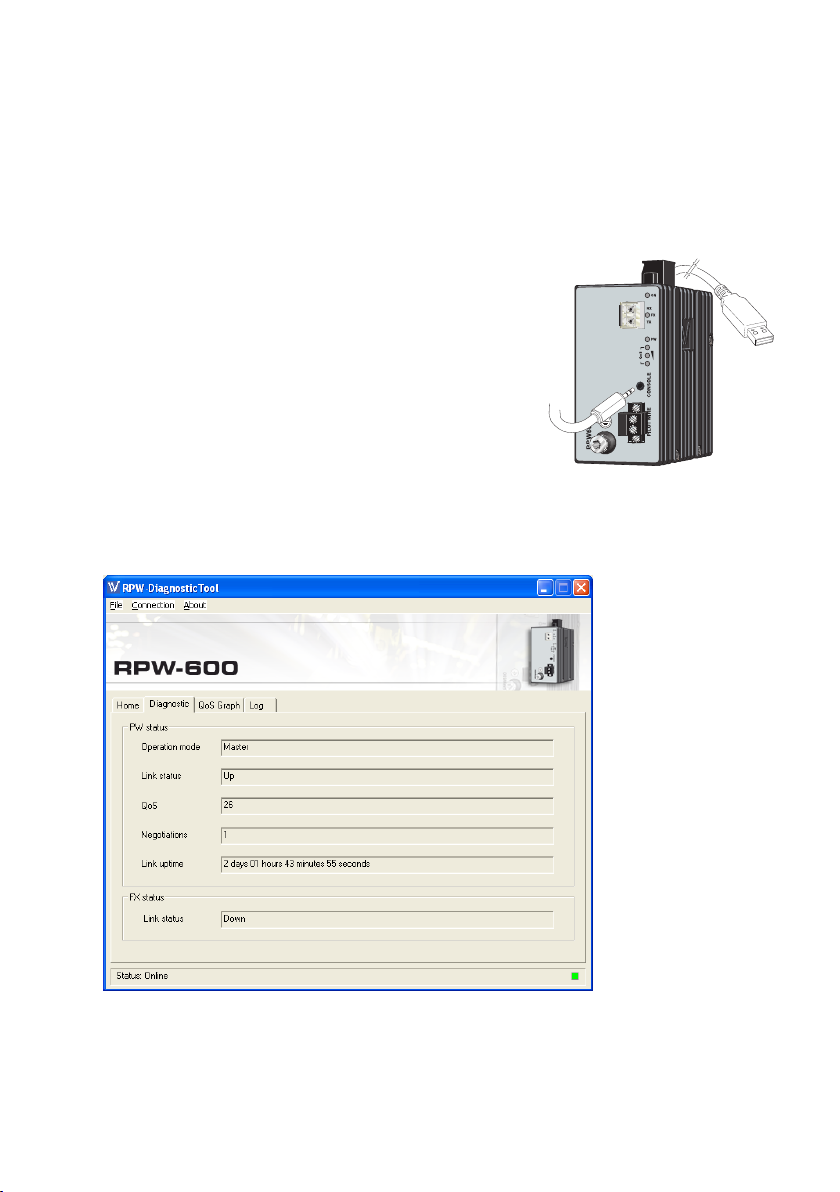

RPW-diagnostic tool
The RPW-diagnostic tool has a built in help. Set the pointer over a specific item and
information about that part will pop-up automatically.

12 6621-2260
Mounting
This unit should be mounted on 35 mm DIN-
rail, which is horizontally mounted inside an
apparatus cabinet or similar. Snap on mounting,
see figure.
Earth connection
For correct function the ground connection on
the unit needs to be properly connected to a solid
ground. See figure.
Removal
Press down the support at the back of the unit
using a screwdriver. See figure.
Cooling
This unit uses convection cooling. To avoid
obstructing the airflow around the unit, use the
following spacing rules. Minimum spacing 25 mm
(1.0 inch) above / below and 10 mm (0.4 inches)
left / right the unit. Spacing is recommended
for the use of unit in full operating temperature
range and service life.
10mm 10mm
8
ON
7
5
3
1
6
4
2
DC 1
DC 2
ST 1
ST 2
FRNT
Lynx
8
ON
7
5
3
1
6
4
2
DC 1
DC 2
ST 1
ST 2
FRNT
Lynx

REV.A 6621-2260 2010-07
Made for ABB by Westermo Teleindustri AB
ABB Oy
Distribution Automation
P.O. Box 699
FI-65101 VAASA, Finland
Phone [phone]
Fax [phone]
