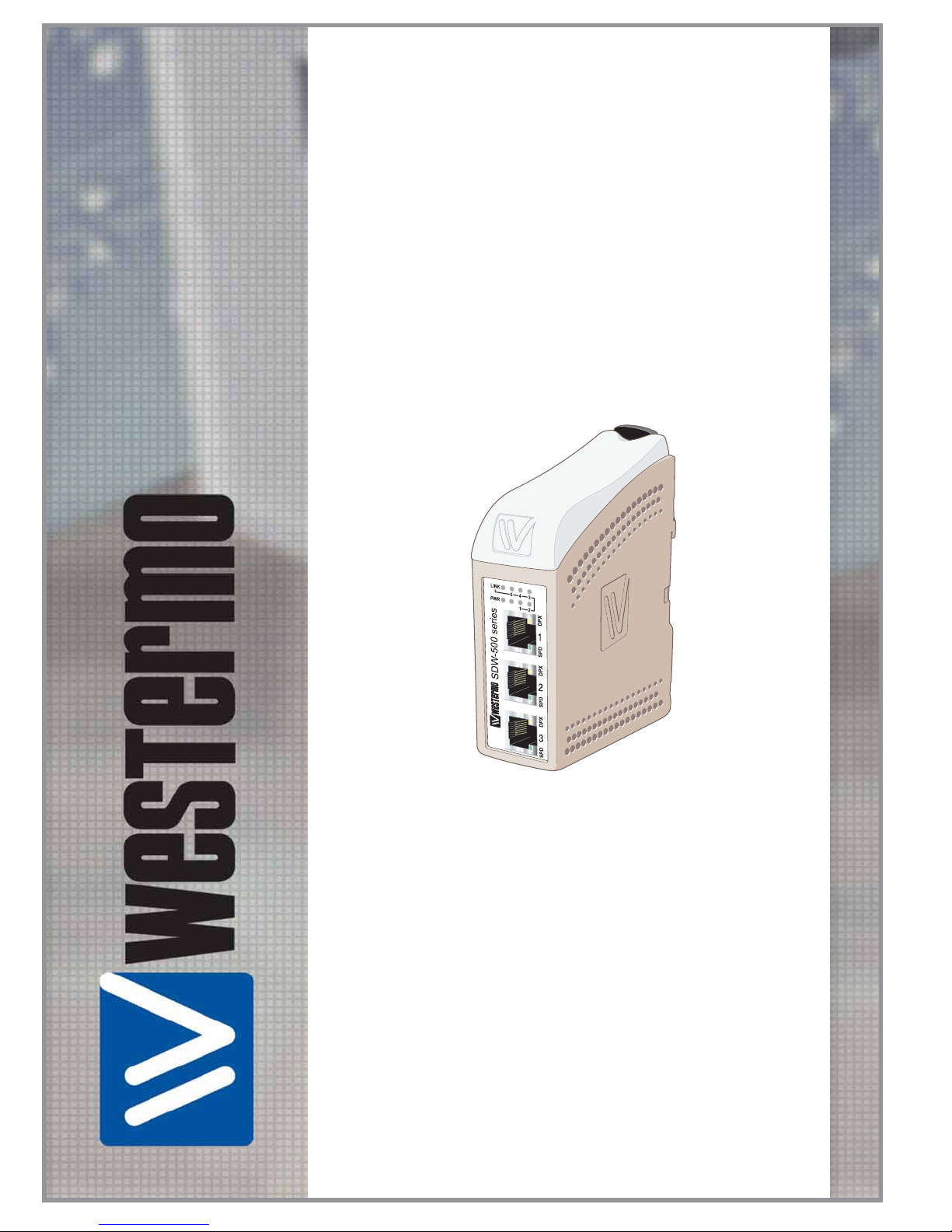

Westermo SDW-550 E-mark User manual

Industrial Ethernet
5-port Switch
www.westermo.com
©Westermo Teleindustri AB • 2005
User Guide
6644-2230
SDW-550

26644-2230
Contents
1. Description .................................................................................................................................................................................................... 3
2. Safety ................................................................................................................................................................................................................. 4–5
3. Approvals .......................................................................................................................................................................................................... 5
3.1 Declaration of Conformity ................................................................................................................................................... 6
4. Specification ................................................................................................................................................................................................ 7
5. Maintenance ................................................................................................................................................................................................ 8
6. Installation ...................................................................................................................................................................................................... 8
6.1 Mounting / Removal ....................................................................................................................................................................... 8
6.2 Connections ............................................................................................................................................................................................. 9
6.2.1 Power .............................................................................................................................................................................................. 10
6.2.2 TX ....................................................................................................................................................................................................... 10
6.3 DIP switch settings SDW-550 ........................................................................................................................... 11–13
6.5 LED indicators .................................................................................................................................................................................. 14

36644-2230
1. Description
The SDW-550 is an Industrial Ethernet 5-port switch.
All ports support auto-negotiation, but DIP-switches also allow speed and duplex
configuration of any individual TX port. It is also possible to set up one port to
monitor traffic to/from the switch.
The SDW-550 has been designed to meet high industrial specifications, providing
very high dependability in harsh environmental conditions.
Features:
… TX shields individually isolated
… Wide DC power range 12-48 VDC
… Wide temperature range
… Automatic MDI/MDI-X crossover
… LED indicators for Power, Speed, Duplex, Link and Traffic
… Port monitoring
… 35 mm DIN rail mounting
… Enable or disable of flow control
Example of applications are:
… 5-port switch
… Ethernet isolator, for STP networks

46644-2230
2. Safety
General:
Before using this unit, read this manual completely and gather all information on
the unit. Make sure that you understand it fully. Check that your application does
not exceed the safe operating specifications for this unit.
Before installation, maintenance or modification work:
Prevent damage to internal electronics from electrostatic discharges (ESD) by
discharging your body to a grounding point (e.g. use of wrist strap).
Prevent access to hazardous voltages by disconnecting the unit from DC mains
supply and all other electrical connections.
When installed, should the unit and it's wiring be separated from hazardous
voltage by double or reinforced insulation.
Installation:
This unit should only be installed by qualified personnel.
This unit should only be installed in a "restricted access area", for example a lock-
able cabinet where access is restricted to service personnel only.
This unit is intended for permanent connection to the DC mains supply.
The power supply wiring must be sufficiently fused, and if necessary must be pos-
sible to disconnect manually from the DC mains supply. Ensure compliance to
national installation regulations.
Prevent access to hazardous voltage by disconnecting the unit from power supply.
Warning! Do not open connected unit. Hazardous voltage may occur within this
unit when connected to power supply.
This unit uses convection cooling.To avoid obstructing the air flow around the
unit, follow the spacing recommendations (see Installation section).
!
!
!

56644-2230
3. Approvals
Conformity with the Directive 73/23/EEC Low Voltage Directive – LVD has been
assessed by application of the standard EN 60 950.
Conformity with the Directive 89/336/EEC Electromagnetic Compatibility (EMC)
has been assessed by application of standards EN 61000-6-2 (industrial immunity)
and EN 61000-6-3 (residential emission).
Care recommendations
Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.
This unit must not be operating with removed covers or lids.
Do not attempt to disassemble the unit.There are no user serviceable parts inside.
Do not drop,knock or shake the unit,rough handling above the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals,cleaning solvents or strong detergents to clean the unit.
Do not paint the unit.Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain,beverages,etc).The unit is not water-
proof.Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty,dirty areas,connectors as well as other mechanical
part may be damaged.
If the unit is not working properly,contact the place of purchase,nearestWestermo dis-
tributor office orWestermoTech support.

66644-2230
3.1 Declaration of Conformity
Westermo Teleindustri AB
Declaration of conformity
Org.nr/
Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp. identity number Registered office
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
The manufacturer Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
Herewith declares that the product(s)
Type of product Model Art no Installation manual
DIN-rail SDW-550 3644-0001 6644-2230
is in conformity with the following EC directive(s).
No Short name
89/336/EEG Electromagnetic Compatibility (EMC)
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 61000-6-2 Immunity for industrial environments 2 (2001)
EN 61000-6-3 Emission standard for residential, commercial and
light-industrial environments
1 (2001)
The last two digits of the year in which the CE marking was affixed: 05
Hans Levin
Technical Manager
15th December2004

76644-2230
4. Specification
SDW-550
Rated voltage 12–48 VDC, polarity protected
Operating voltage 9.6 – 57.6 VDC
Rated current @12 VDC power input
320 mA
Rated frequency DC
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2(AWG 24-12)
Power interface
Ethernet TX Interface
Electrical specification IEEE std 802.3. 2000 edition
Data rate 10 Mbit/s or 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Connection RJ-45, shielded
Transmission range 100 m
Mechanical
Dimension (W x H x D) 35 x 121 x 119 mm
Weight 0.2 kg
Mounting DIN-rail
Degree of protection IP21
Isolation between interfaces
Power Interface to all other 2.8 kV DC 2.0 kV RMS @ 50 Hz and 60 s duration
TX signal Interface to all other 2.1 kV DC 1.5 kV RMS @ 50 Hz and 60 s duration
TX shield Interface to all other 1.5 kV DC 1.0 kV RMS @ 50 Hz and 60 s duration
Environmental
Temperature, operating –25 to +70°C
Temperature,
storage and transportation –25 to +70°C
Relative humidity, operating 5 to 95% (non-condensing)
Relative humidity,
storage and transportation 5 to 95% (condensation allowed outside packaging)
Configuration
Auto configured (auto-negotiation) or manually setting of speed and duplex of individual TX port,
by DIP-switches.
Port mirror function is possible to set with DIP-switch. With the port mirror function active the
switch will copy all outgoing traffic to port 1. This can be used to monitor all traffic going out
from the switch. Packets may be discarded if the total throughput exceeds the port speed of port 1.
Flow control is possible to enable or disable with DIP-switch.

86644-2230
5. Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.
6. Installation
6.1 Mounting / Removal
Before mounting or removing the unit:
Prevent damage to internal electronics from electrostatic discharges (ESD)
by discharging your body to a grounding point (e.g. use of wrist strap).
Prevent access to hazardous voltages by disconnecting the unit from DC mains
supply and all other electrical connections.

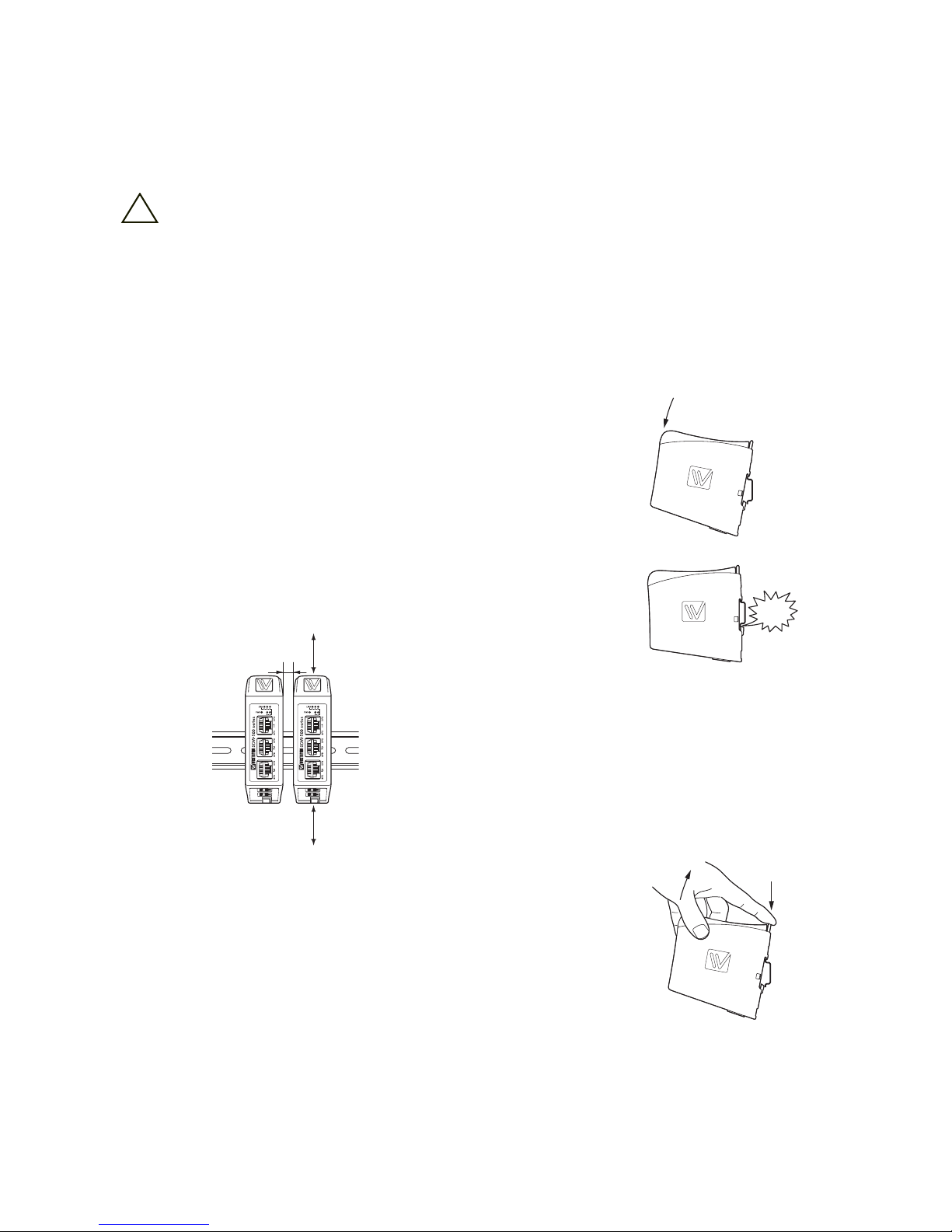

Mounting
This unit should be mounted on 35 mm DIN-rail which is horizon-
tally mounted on a wall or cabinet backplate.
This unit uses convection cooling.To avoid obstructing the airflow
around the unit, use the following spacing rules.
Recommended spacing 25 mm (1.0 inch) above/below and 10 mm
(0.4 inches) left/right the unit.
Snap on mounting, see figure
Removal
Press down the black support at the back of the unit, see figure.
10 mm *
(0.4 inches)
!
25 mm
25 mm
* Spacing (left/right) recommended for
full operating temperature range
CLICK!

96644-2230
6.2 Connections
Power connection
Network
RJ-45 connection
Network
RJ-45 connection
LED indicators
Available models:
… SDW-550 10/100Base-T/TX: 5 ports

10 6644-2230
6.2.1 Power
The SDW-550 supports
redundant power connection.
The positive input are +VA
and +VB, the negative input
for both supplies are COM.
The power is drawn from the input with the highest voltage.
6.2.2 TX

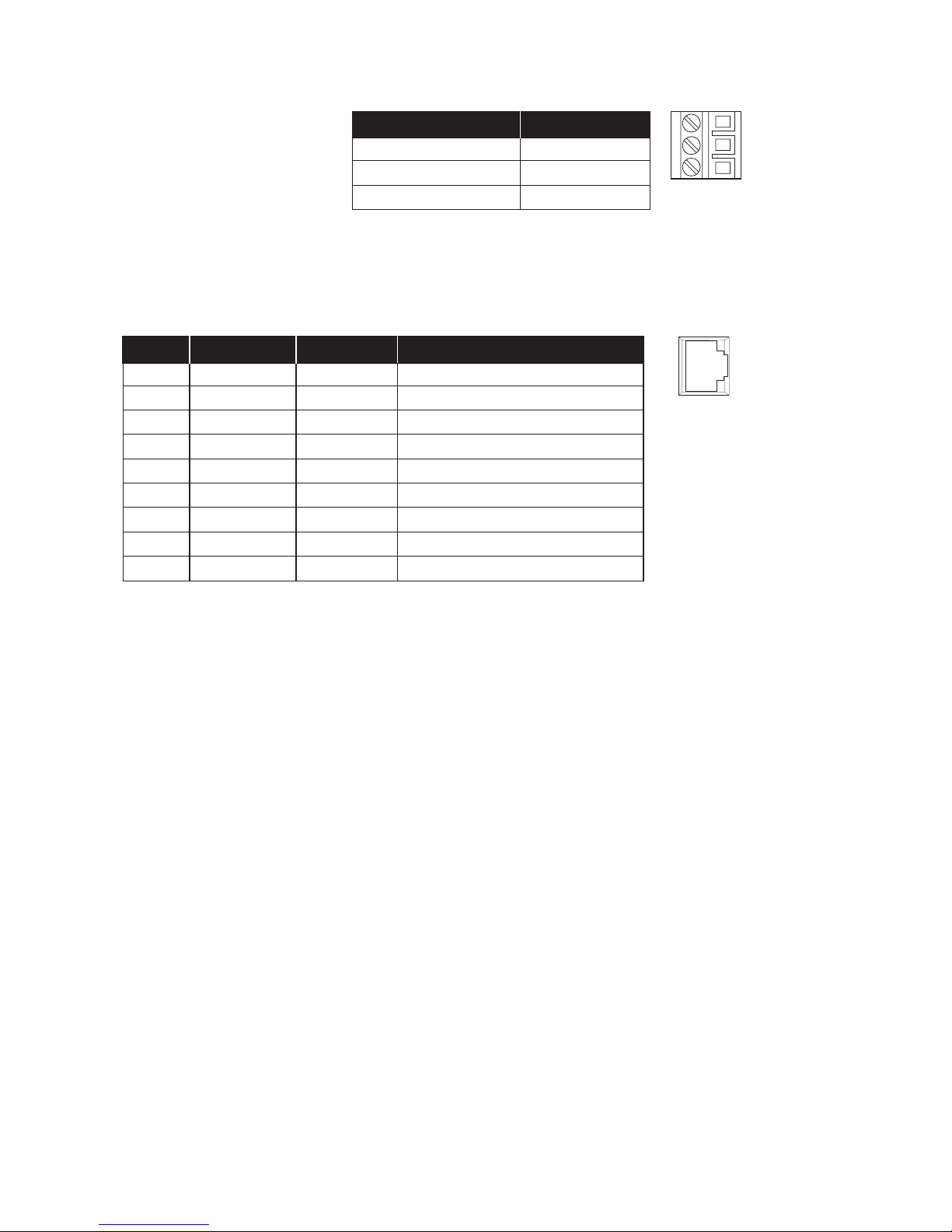

Ethernet TX connection (RJ-45 connector), automatic MDI/MDI-X crossover.
Contact Signal Name Direction Description/Remark
1 TD+ In/Out Transmitted/Received data
2 TD– In/Out Transmitted/Received data
3 RD+ In/Out Transmitted/Received data
4
5
6 RD– In/Out Transmitted/Received data
7
8
Shield HF-connected
CAT 5 cable is recommended.
Unshielded (UTP) or shielded (STP) connector might be used.
8
7
6
5
4
3
2
1
3-pos screw terminal Description
1 COM
2+VA
3 +VB
12 3

116644-2230

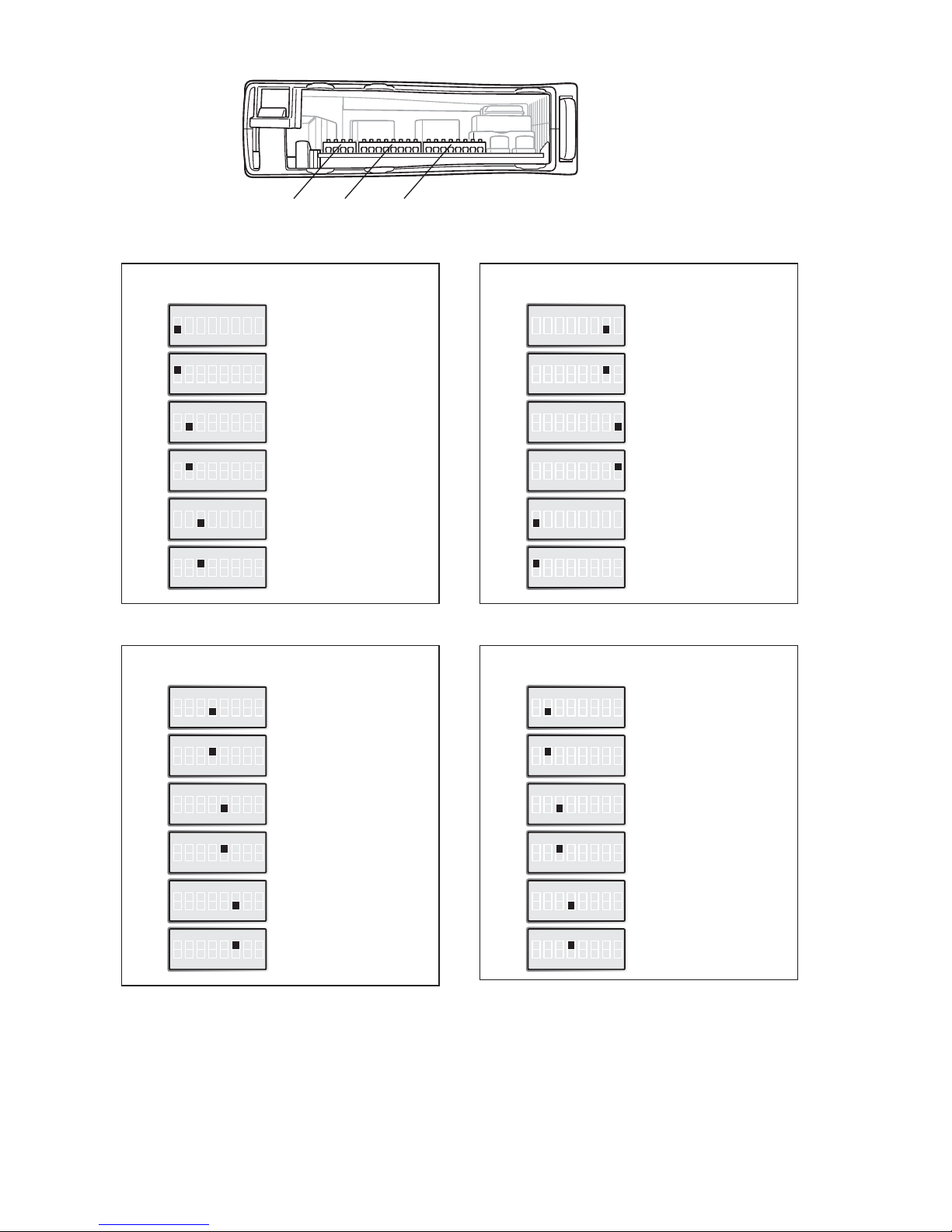

6.3 DIP switch settings SDW-550

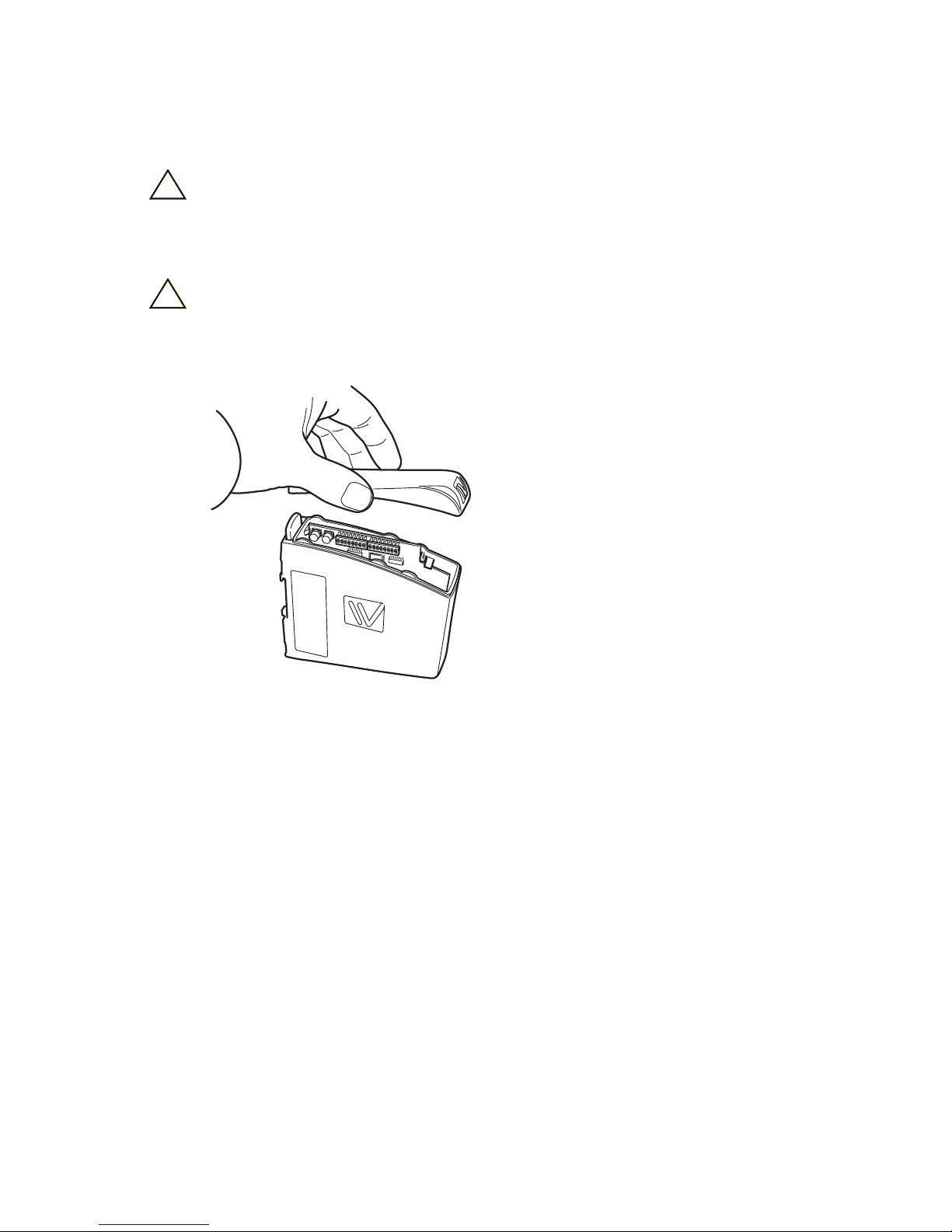

DIP-switches are accessible under the lid on top of the unit. DIP-switches are
used to configure the unit.
Warning!
Prevent damage to internal electronics from electrostatic discharges (ESD) by
discharging your body to a grounding point (e.g. use of wrist strap), before the
lid on top/front of the unit is removed.
Warning! Do not open connected equipment.
Prevent access to hazardous voltages by disconnecting the unit from DC mains
supply and all other electrical connections.
!
!
NOTE
When configuration via DIP-switches, the settings of DIP-switches configure the unit only
after a reboot (power off/on).
To be observe when the DIP-switches will be configured
… Speed and duplex setting only valid when auto-negotiation is disabled.
… When monitoring selected all outgoing packets from the switch is also copied to the
port 1.
… If auto-negotiation and auto MDI/MDI-X disabled all TX ports support MDI-X
configuration.

12 6644-2230

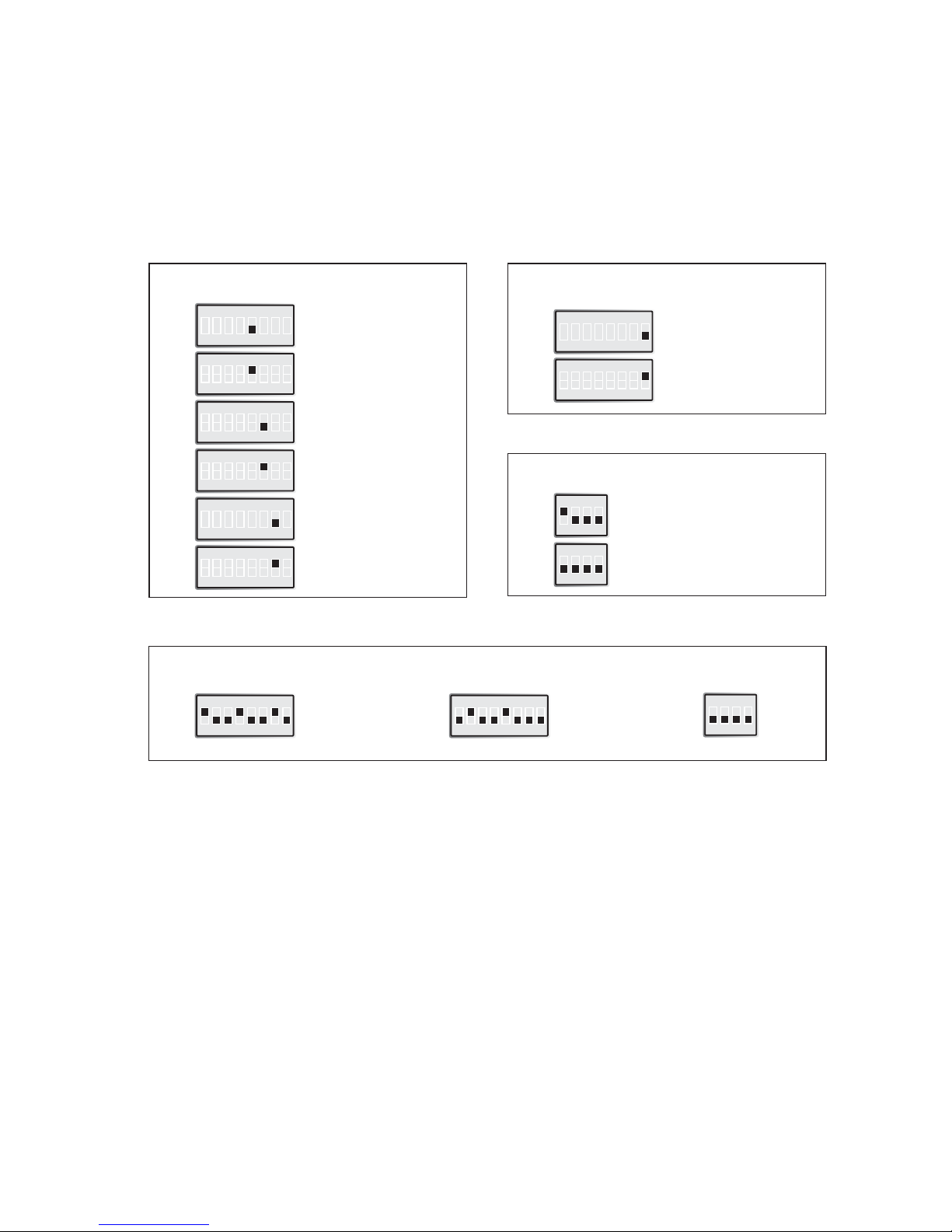

S3 S2
Port 3 settings
ON
12345678
S1 Auto-negotiation and
auto MDI/MDI-X disabled
ON
12345678
S1 Auto-negotiation and
auto MDI/MDI-X enabled
ON
12345678
S1 10 Mbit/s speed selected
ON
12345678
S1 100 Mbit/s speed selected
ON
12345678
S2 Half duplex selected
ON
12345678
S2 Full duplex selected
Port 1 settings
ON
12345678
S1 Auto-negotiation and
auto MDI/MDI-X disabled
ON
12345678
S1 Auto-negotiation and
auto MDI/MDI-X enabled
ON
12345678
S1 10 Mbit/s speed selected
ON
12345678
S1 100 Mbit/s speed selected
ON
12345678
S1 Half duplex selected
ON
12345678
S1 Full duplex selected
Port 2 settings
ON
12345678
S1 Auto-negotiation and
auto MDI/MDI-X disabled
ON
12345678
S1 Auto-negotiation and
auto MDI/MDI-X enabled
ON
12345678
S1 10 Mbit/s speed selected
ON
12345678
S1 100 Mbit/s speed selected
ON
12345678
S1 Half duplex selected
ON
12345678
S1 Full duplex selected
Port 4 settings
ON
12345678
S2 Auto-negotiation and
auto MDI/MDI-X disabled
ON
12345678
S2 Auto-negotiation and
auto MDI/MDI-X enabled
ON
12345678
S2 10 Mbit/s speed selected
ON
12345678
S2 100 Mbit/s speed selected
ON
12345678
S2 Half duplex selected
ON
12345678
S2 Full duplex selected
S1

136644-2230
Port 5 settings
ON
12345678
S2 Auto-negotiation and
auto MDI/MDI-X disabled
ON
12345678
S2 Auto-negotiation and
auto MDI/MDI-X enabled
ON
12345678
S2 10 Mbit/s speed selected
ON
12345678
S2 100 Mbit/s speed selected
ON
12345678
S2 Half duplex selected
ON
12345678
S2 Full duplex selected
Port mirroring settings
ON
12345678
S2 No monitoring selected
ON
12345678
S2 Monitoring selected
Flow control selected
S3 Flow control selected
S3 No flow control selected
Factory settings
ON
12345678
S1
ON
12345678
S2 S3
ON
1234
ON
1234
ON
1234

14 6644-2230
6.5 LED indicators
At power on the PWR flashes during initialising.
Indicators (LED) Power (PWR)
Link (LINK) of every port
Speed (SPD) and duplex (DPX) of TX ports
LED Status Indication of
PWR ON Internal power, initialising OK
Slow flash Initialisation progressing
Fast flash Initialisation error
LINK OFF No Ethernet link
ON Good Ethernet link
Flash Ethernet data is transmitted or received, traffic indication
SPD OFF 10 Mbit/s
(TX only) ON 100 Mbit/s
DPX OFF Half duplex
(TX only) ON Full duplex

REV.A • 6644-2230 2005.09 Mälartryck AB, Eskilstuna, Sweden
Application example
Westermo Teleindustri AB • SE-640 40 Stora Sundby, Sweden
Phone [phone] Fax [phone]
E-mail: [e-mail]
Westermo Web site: www.westermo.com
Westermo Teleindustri AB have distributors in several countries, contact us for further information.
Westermo OnTime AS
Gladsvei 20 0489 Oslo, Norway
Phone [phone] • Fax [phone]
E-mail: [email protected]
Westermo Data Communications Ltd
Talisman Business Centre • Duncan Road
Park Gate, Southampton • SO31 7GA
Phone: [phone] • Fax.:[phone]
E-Mail: [e-mail]
Westermo Data Communications GmbH
Goethestraße 67, 68753 Waghäusel
Tel.: [phone] • Fax.:[phone]
E-Mail: [e-mail]
Westermo Data Communications S.A.R.L.
9 Chemin de Chilly 91160 CHAMPLAN
Tél : [phone] • Fax : [phone]
E-mail : [e-mail]
Subsidiaries
