Westermo RedFox Series User manual

Industrial Routing Switch
www.westermo.com
©Westermo Teleindustri AB
User Guide
6641-22301
RedFox
SERIES
1
10/100 Base-TX
5
6
7
8
2
3
4
1
1000 Base-X
2
3
4
FRNT
+DC1
+DC2
COM
COM ST1
ST2
ON
DC1
DC2 1
2
POWER
CONSOLE
IO
FRNT
+DC1
+DC2
COM
COM ST1
ST2
ON
DC1
DC2 1
2
POWER
CONSOLE
IO
1000 Base-X

26641-22301
Legal information
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document.Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.
Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at the following Internet address:
http://www.westermo.com
License Information
This device contains public available software which is under the GPL license.
For more information see legal.pdf included with all firmware releases.
This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. http://www.openssl.org

3
6641-22301
Safety
Before installation:
Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.
This unit uses convection cooling. To avoid obstructing the airflow around the unit,
follow the spacing recommendations (see Cooling section).
Before mounting, using or removing this unit:
Prevent access to hazardous voltage by disconnecting the unit from power supply.
Warning! Do not open connected unit. Hazardous voltage may occur within this
unit when connected to power supply.
Class 1 Laser Product
Do not look directly into fibre optical fibre port or any connected fibre although
this unit is designed to meet the Class 1 Laser regulations.
Care recommendations
Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.
This unit must not be operating with removed covers or lids.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling above the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not water-
proof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical
part may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo dis-
tributor office or Westermo Tech support.
Fibre connectors are supplied with plugs to avoid contamination inside the optical port.
As soon as no optical fibre is mounted on the connector, e.g. for storage, service or
transportation, the plug should be applied.
!
!
!

46641-22301
Note. Fibre Optic Handling
Fibre optic equipment needs special treatment. It is very sensitive to dust and dirt.
If the fibre will be disconnected from the unit the protective hood on the transmitter/
receiver must be connected. The protective hood must be kept on during transportation.
The fibre optic cable must also be handle the same way.
If these recommendations are not followed the warranty might be jeopardized.
Cleaning of the optical connectors
In the event of contamination, the optical connectors should only be cleaned by the use
of recommended cleaning fluids and correct cleaning equipment.
Recommended cleaning fluids:
• Methyl-, ethyl-, isopropyl- or isobutyl-alcohol
• Hexane
• Naphtha
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.
Agency approvals and standards compliance
Type Approval / Compliance
EMC EN 55024, EN 55024 A1, EN 55024 A2, Electromagnetic compatibility –
Immunity IT equipment
EN 55022, EN 55022 A1, Information technology equipment.
Radio disturbance characteristics. Limits and methods of measurement
EN 61000-6-2, Electromagnetic compatibility –
Immunity for industrial environments
EN 61000-6-4, Electromagnetic compatibility –
Emission for industrial environments
EN 50121-4, Railway applications – Electromagnetic compatibility –
Emission and immunity of the signalling and telecommunications apparatus
FCC part 15 Class B
Safety EN 60950-1, IT equipment
FCC Part 15.105
Notice:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
… Reorient or relocate the receiving antenna
… Increase the separation between the equipment and receiver
… Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
… Consult the dealer or an experienced radio/TV technician for help.

5
6641-22301
Declaration of Conformity
Westermo Teleindustri AB
Declaration of conformity
Or
g
.nr/
Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp. identity number Registered office
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
The manufacturer
Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
Type of product Art no From serial no.
RedFox, Industrial routing switch, all models 3641-3xxx 1000
is in conformity with the following EC directive(s).
No Short name
2004/108/EC Electromagnetic Compatibility (EMC)
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 55024
EN 55024 A1
EN 55024 A2
Electromagnetic compatibility – Immunity IT
equipment
1998
2001
2003
EN 55022
EN 55022 A1
Information technology equipment. Radio disturbance
characteristics. Limits and methods of measurement.
2006
2007
EN 61000-6-2 Electromagnetic compatibility – Immunity for
industrial environments
2005
EN 61000-6-4 Electromagnetic compatibility – Emission for
industrial environments
2007
EN 50121-4 Railway applications – Electromagnetic compatibility
– Emission and immunity of the signalling and
telecommunications apparatus
2006
The last two digits of the year in which the CE marking was affixed: 09
Pierre Öberg
Technical Manager
3rd April 2009

66641-22301
Type tests and environmental conditions
Phenomena Test Description Test levels
ESD EN 61000-4-2 Enclosure contact ± 6 kV
Enclosure air ± 8 kV
RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 1000 MHz
20 V/m 80% AM (1 kHz), 800 – 1000 MHz
10 V/m 80% AM (1 kHz), 1400 – 2100 MHz
5 V/m 80% AM (1 kHz), 2100 – 2500 MHz
Fast transient EN 61000-4-4 Signal ports ± 2 kV
Power ports ± 2 kV
Surge EN 61000-4-5 Signal ports unbalanced ± 2 kV line to earth, ± 2 kV line to line
Signal ports balanced ± 2 kV line to earth, ± 1 kV line to line
Power ports ± 2 kV line to earth, ± 1 kV line to line
RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power frequency
magnetic field
EN 61000-4-8 Enclosure 300 A/m
Pulse magnetic field EN 61000-4-9 Enclosure 300 A/m
Mains freq. 50 Hz EN 61000-4-16 Signal ports 100 V 50 Hz line to earth
Mains freq. 50 Hz SS 436 15 03 Signal ports 250 V 50 Hz line to line
Voltage dips
and interruption
EN 61000-4-29 DC power ports 10 & 100 ms, interruption
10 ms, 30% reduction
10 ms, 60% reduction
+20% above & –20% below rated voltage
Radiated emission EN 61000-6-4 Enclosure Class A
FCC part 15 Enclosure Class A
Conducted emission EN 55022 DC power ports Class B
Dielectric strength EN 60950 Signal port to other
isolated ports
2 kVrms 50 Hz 1 min
Power port to other
isolated ports
2 kVrms 50 Hz 1 min
Temperature Operating –40 to +70ºC
(all rack modules / all configurations)
Storage & Transport –40 to +85ºC
(all rack modules / all configurations)
Humidity Operating 5 to 95% relative humidity
Storage & Transport 5 to 95% relative humidity
Altitude Operating 2 000 m / 70 kPa
Service life Operating 10 year
Vibration IEC 60068-2-6 Operating 7.5 mm, 5 – 8 Hz
2 g, 8 – 500 Hz
(Wall-mounted or DIN-rail mounted using TH
35-15 according to EN 60175)
Shock IEC 60068-2-27 Operating 15 g, 11 ms
(Wall-mounter or DIN-rail mounted using TH
35-15 according to EN 60175)
Enclosure UL 94 Aluminium / Zink Flammability class V-0 (all rack modules)

7
6641-22301
Description
Functional description
The RedFox Industrial is an industrial routing switch built based upon the specific
requirements received at order. RedFox is available with different configurations that may
vary in size and interface configuration depending on requirements given at order. This
user guide will simply describe the different housings and interfaces available. For an
exact description of your hardware configuration and interface combination, please refer
to the RedFox datasheet. For 'Getting Started' and management, please refer to the
RedFox management guide.
RedFox Industrial
The listed RedFox have different combinations of interface modules, on the power CPU
board two 100BaseTX Ethernet interfaces is available.
Westermo
article number
Denomination Description
3641-3110 RFI-10 2 slot RFI with power and CPU plus one 8x100BaseTX
copper ports
3641-3100 RFI-18 3 slot RFI with power and CPU plus two 8x100BaseTX
copper ports
3641-3200 RFI-14-F4G 3 slot RFI with power and CPU plus one 8x100BaseTX
copper ports and 4xSFP slots
3641-3300 RFI-18-F4G-T4G 3 slot RFI with power and CPU plus one 8x100BaseTX
copper ports, 4xSFP slots and 4X1000baseT

86641-22301
Housing
Description
The rack module is the aluminium housing that holds the interface modules.
The housing is available in two sizes – a two-slot version and a three-slot version.
Regardless of size and interface configuration, the slot on the left will always be occupied
by the power and CPU module. Other slots may vary depending on RedFox model.
The back end holds a casted DIN-clip for stable mounting on a DIN-rail. Direct wall-
mount is also possible using the four brackets in each corner. The back end also holds
the earth connection, for detailed ground connection information see section on Earth
Connection.

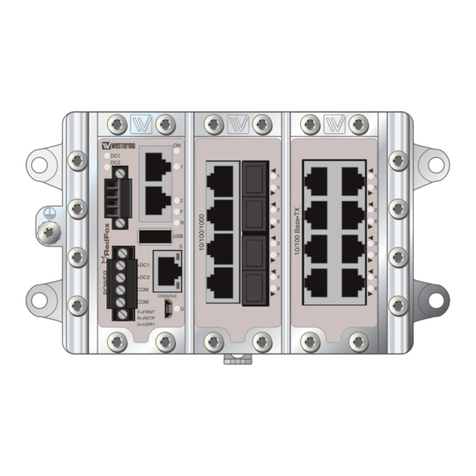

2 and 3 slot Rack Modules
The slot on the left must be a power and CPU module. Other slot may vary depending
on RedFox model.
Specification
2 slot rack module 3 slot rack module
Dimension W x H x D 134 x 105 x 122 mm
(without connectors)
175 x 105 x 122 mm
(without connectors)
Weight 1.5 kg (modules in all slots) 2.2 kg (modules in all slots)
Number of slots 2 (1 base module,
1 interface module)
3 (1 base module,
2 interface modules)
Degree of protection IP40 according to IEC 529 IP40 according to IEC 529
Cooling Convection Convection
Mounting Horizontal on 35 mm DIN-rail
or wall-mounted
Horizontal on 35 mm DIN-rail
or wall-mounted

9
6641-22301
Power and CPU module (RFI-BM-01)
Description
Regardless of RedFox model, all units will be delivered with a Power and CPU module in
the slot on the far left. The RFI-BM-01 power and CPU module consists of one power
board and one CPU board. The isolated power supply has redundant power inputs
and allows for an wide operating voltage range (see interface specification). The digital
IO-port can be used for monitoring the unit (see RedFox management guide).
The CPU board holds several interfaces. Two RJ-45 connectors with support for
Ethernet 100BaseTX, a USB port for easy save/load system configuration and a console
port for management through serial cable. Use SSH or the Westermo serial diagnostic
cable (1211-2027) when connecting to the console port.
For detailed information on LED indicators, see section on LED indicators Power/CPU.
Power and CPU
…Redundant power supply and alarm function
…Wide operating voltage range (16 VDC to 60 VDC)
…Digital IO for monitoring
…Console port for management using CLI
…USB port for easy save and load system configuration
…2 x RJ-45 Ethernet 100BaseTX connectors
…Status LED's
FRNT
+DC1
+DC2
COM
COM ST1
ST2
ON
DC1
DC2 1
2
POWER
CONSOLE
IO

10 6641-22301
Interface specifications
Power and CPU
Rated voltage 20 to 48 VDC
Operating voltage 16 to 60 VDC
Rated current 340 mA @ 24 VDC
150 mA @ 60 VDC
Rated frequency DC
Polarity Reverse polarity protected
Redundant power input Yes
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2(AWG 24 – 12)
Shielded cable Not required
Console
Electrical specification TTL-level
Data rate 115.2 kbit/s
Data format 8 data bits, none parity, 1 stop bit, no flow control
Circuit type SELV
Transmission range 15 m
Isolation to All other except USB
Galvanic connection to USB
Connection 2.5 mm jack, use Westermo cable 1211-2027
FRNT
+DC1
+DC2
COM
COM ST1
ST2
ON
DC1
DC2 1
2
POWER
CONSOLE
IO
Console port
Cable 1211-2027
Connection to console port
The console port can be used to connect to the CLI
(Command Line Interface) in the unit
The following steps needs to be taken
1. Connect the serial diagnostic cable 1211-2027 to the console
port.
2. Connect cable to your computer (USB port).
3. Use a terminal emulator and connect with correct speed and
format to the assigned port.
For more information about the CLI, see the RedFox management guide.

11
6641-22301
Ethernet TX
Electrical specification IEEE std 802.3. 2005 Edition
Data rate 10 Mbit/s or 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Circuit type TNV-1
Transmission range Up to 150 m with cat5e cable or better
Isolation to All other
Connection RJ-45 auto MDI/MDI-X
Shielded cable Not required, except when installed in Railway applications as
signalling and telecommunications apparatus and located close
to rails*
Conductive housing Yes
Number of ports 2
* NOTE! Railway installation close to the rails.
To minimise the risk of interference, a shielded cable is recommended when the cable is located
inside 3 m boundary to the rails and connected to this port.
The cable shield should be properly connected (360°) to an earthing point within 1 m from this
port. This earthing point should have a low impedance connection to the conductive enclosure of
the apparatus cabinet, or similar, where the unit is built-in. This conductive enclosure should be
connected to the earthing system of an installation and may be directly connected to the protective
earth.
IO / Relay output
Connect resistance 30 Ω
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2(AWG 24 – 12)
Maximum voltage/current 60 VDC / 80 mA
IO / Digital input
Voltage levels Logic one >12V, Logic zero <1V
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2(AWG 24 – 12)
USB
Electrical specification USB 2.0 host interface
Data rate Up to 12 Mbit/s (full-speed mode)
Circuit type SELV
Maximum supply current 500 mA
Isolation to All other except Console
Connection USB receptacle connector type A

12 6641-22301
Position Direction*Description Product marking
1 In +DC1 +DC1
2 In +DC2 +DC2
3 In COM COM
4 In COM COM
FRNT
+DC1
+DC2
COM
COM ST1
ST2
ON
DC1
DC2 1
2
POWER
CONSOLE
IO
Position Direction* Description
1 In/Out TD+
2 In/Out TD–
3 In/Out RD+
4 – Not connected
5 – Not connected
6 In/Out RD–
7 - Not connected
8 - Not connected
Shield In/Out Connected
to protective earth
Position Direction* Description
1 Out VBUS
2 In/Out D–
3 In/Out D+
4 Out GND
Shield In/Out Connected
to protective earth
Console
(see more information
on page 10)
Position Direction*Description
&
'
(
)
1 Out Relay output +
2 Out Relay output –
3 In Digital in +
4 In Digital in –
* Direction relative this unit

13
6641-22301
LED indicators Power/CPU
LED Status Description
ON OFF Unit has no power
GREEN DC1 and DC2 power ok
FRNT ok, if FRNT enabled
No port alarm
RED DC1 or DC2 power not ok
FRNT ring broken, if FRNT enabled
Port alarm
FLASH* Connected to IP Configuration tool
DC1 OFF Unit disconnected
GREEN Internal DC1 power ok
RED Unit has no power on DC1
DC2 OFF Unit disconnected
GREEN Internal DC2 power ok
RED Unit has no power on DC2
FRNT OFF FRNT not enabled
GREEN FRNT running and ok, switch configured as
member
RED FRNT error, switch configured as member
FLASH
GREEN*
FRNT running and ok, switch configured as
focal point
FLASH RED* FRNT error, switch configured as focal point
ST1 OFF STP/RSTP
GREEN STP/RSTP
FLASH
GREEN*
STP/RSTP enabled, unit is STP/RSTP root
ST2 No function
Copper
ports
1 – 2
OFF No link
GREEN Good link
FLASH GREEN Data transmitted / received
YELLOW
* Slow flash 1Hz
FRNT
+DC1
+DC2
COM
COM ST1
ST2
ON
DC1
DC2 1
2
POWER
CONSOLE
IO

14 6641-22301
Interface modules
8 Copper ports
The interface module with eight copper ports has eight RJ-45 connectors supporting
Ethernet 10/100BaseT/TX.
All ports can, with category 5e cable or better, handle cable lengths up to 150 m (492 ft).
Interfaces
RFI-IM-01
Rated current 120 mA @ 24 VDC
Electrical specification IEEE std 802.3. 2005 Edition
Data rate 10 Mbit/s or 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Circuit type TNV-1
Transmission range Up to 150 m with cat5e cable or better
Isolation to All other
Connection RJ-45 auto MDI/MDI-X
Shielded cable Not required, except when installed in Railway applications as
signalling and telecommunications apparatus and located close
to rails*
Conductive housing Yes
Number of ports 8
* NOTE! Railway installation close to the rails.
To minimise the risk of interference, a shielded cable is recommended when the cable is located
inside 3 m boundary to the rails and connected to this port.
The cable shield should be properly connected (360°) to an earthing point within 1 m from this
port. This earthing point should have a low impedance connection to the conductive enclosure of
the apparatus cabinet, or similar, where the unit is built-in. This conductive enclosure should be
connected to the earthing system of an installation and may be directly connected to the protective
earth.

15
6641-22301
1
10/100 Base-TX
5
6
7
8
2
3
4
Position Direction* Description
1 In/Out TD+
2 In/Out TD–
3 In/Out RD+
4 – Not connected
5 – Not connected
6 In/Out RD–
7 – Not connected
8 – Not connected
* Direction relative this unit
LED indicators Copper ports RFI-IM-01
LED Status Description
Copper ports 1 – 8 OFF No link
GREEN Good link
FLASH GREEN Data transmitted / received
YELLOW

16 6641-22301
F4G, 4 fibre ports
The F4G interface module has four SFP slots supporting Ethernet 100/1000BaseFX/X.
Each slot can hold one SFP transceiver for copper or fibre cable. Fibre transceiver dis-
tances range from 550 m (0.34 mi) to 120 km (74,6 mi). For supported transceivers see
section on SFP transceivers.
Interfaces
F4G
Rated current 300 mA @ 24 VDC (with mounted transceivers)
Optical/Electrical specification IEEE std 802.3. 2005 Edition
Data rate 100 or 1000 Mbit/s*
Duplex Full or half, manual or auto
Transmission range Depending on transceiver
Connection SFP slot holding fibre transceiver or copper transceiver
Number of ports 4
* 100 Mbit/s or 1000 Mbit/s transceiver supported.

17
6641-22301
Position Direction* Description
Rx In Receive port
Tx Out Transmit port
* Direction relative this unit 1
1000 Base-X
2
3
4
LED indicators on interface module F4G
LED Status Description
Fibre ports 1 – 4 OFF No link
GREEN Good link
FLASH GREEN Data transmitted / received
YELLOW Port larm and no link.
Or Port is blocked, If RSTP/FRNT mode is activated.

18 6641-22301
F4G-T4G
The F4g-T4G interface module has four SFP slots supporting Ethernet 100/1000BaseFX/X
and four RJ-45 connectors supporting Ethernet 10/100/1000BaseTX/T. Each SFP slot
can hold one SFP transceiver for copper or fibre cable. Fibre transceiver distances range
from 550 m (0.34 mi) to 120 km (74,6 mi).
For supported transceivers see section on SFP transceivers.
All ports can, with category 5e cable or better, handle cable lengths up to 150 m (492 ft).
Interfaces
RFI-IM-03
Rated current 660 mA @ 24 VDC (with mounted transceivers)
Fixed copper ports (RJ-45)
Electrical specification IEEE std 802.3. 2005 Edition
Data rate 10, 100 or 1000 Mbit/s
Duplex Full or half, manual or auto
Circuit type TNV-1
Transmisson range Up to 150 m with cat5e cable or better
Isolation to All other
Connection RJ-45 auto MDI/MDI-X
Shielded cable Not required, except when installed in Railway applications
assignalling and telecommunications apparatus and located
closeto rails*
Conductive housing Yes
Number of ports 4
* NOTE! Railway installation close to the rails.
To minimise the risk of interference, a shielded cable is recommended when the cable is located
inside 3 m boundary to the rails and connected to this port.
The cable shield should be properly connected (360°) to an earthing point within 1 m from this
port. This earthing point should have a low impedance connection to the conductive enclosure of
the apparatus cabinet, or similar, where the unit is built-in. This conductive enclosure should be
connected to the earthing system of an installation and may be directly connected to the protective
earth.
SFP ports
Optical/Electrical specification IEEE std 802.3. 2005 Edition
Data rate 100 or 1000 Mbit/s*
Duplex Full or half, manual or auto
Transmission range Depending on transceiver
Connection SFP slot holding fibre transceiver or copper transceiver
Number of ports 4
* 100 Mbit/s or 1000 Mbit/s transceiver supported.

19
6641-22301
Position Direction* Description
1 In/Out BI_DA+
2 In/Out BI_DA–
3 In/Out BI_DB+
4 In/Out BI_DC+
5 In/Out BI_DC–
6 In/Out BI_DB–
7 In/Out BI_DD+
8 In/Out BI_DD–
1000 Base-X1000 Base-T
1
5
6
7
8
2
3
4
Position Direction* Description
Rx In Receive port
Tx Out Transmit port
LED indicators on interface module F4G-T4G
LED Status Description
Copper ports 1 – 4
Fibre ports 5 – 8
OFF No link
GREEN Good link
FLASH GREEN Data transmitted / received
YELLOW Port larm and no link.
Or Port is blocked, If RSTP/FRNT mode is activated.
* Direction relative this unit
* Direction relative this unit
Current consumption calculation
Current consumption values described for each module is the current consumption for
that module only. To calculate total consumption values for the used modules shall be
added together.
For example a unit with the following configuration will be calculated as follows:
Used modules Consumption
Rack module no consumption
Power and CPU 340 mA @ 24 VDC
F4G 120 mA @ 24 VDC
F4G-T4G 300 mA @ 24 VDC
Adding the values will give a total consumption of 760 mA @ 24 VDC.
External power supply must be rated to meet the calculated current.
Westermo recommends external power supply to be rated for a startup current which
is at least twice the calculated in service consumption. In the example above an external
power supply must be rated for at least 1520 mA for startup current.

20 6641-22301
SFP Transceivers
Supported transceivers
The following transceivers are supported by the RedFox Industrial with SFP ports.
Note, the unit supports Westermo labelled transceivers only.
100 Mbit
Westermo article number Description Needs optical attenuator*
1100-0131 FX-MM-LC2
1100-0132 FX-SM-LC20
1100-0133 FX-SM-LC40
1100-0134 FX-SM-LC80
1100-0148 CX-RJ-45 copper (Gigabit)
Gbit
Westermo article number Description Needs optical attenuator*
1100-0144 SX-MM-LC0.55
1100-0147 SX+-MM-LC2
1100-0141 LX-SM-LC10
1100-0142 XD-SM-LC50
1100-0148 CX-RJ-45 copper
* Warning, to avoid damage on the receiver always use an optical attenuator
if a loop back test is made with patch cables.
Other transceivers will be available, please contact Westermo for more information.
