Westermo RedFox Industrial EX Series User manual

Industrial Routing Switch
www.westermo.com
©Westermo Teleindustri AB
User Guide
6641-22400
RedFox Industrial
EX-SERIES
WeOS

26641-22400
Legal information
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document. Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.
Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at the following Internet address:
http://www.westermo.com
Software tools
Related software tools are available in the folder software tools under
technical support on the Westermo website.

3
6641-22400
Safety
Before installation:
Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.
This unit uses convection cooling. To avoid obstructing the airflow around the unit,
follow the spacing recommendations (see Cooling section).
Before powering-up, a protective earthing conductor must be connected to the
protective earthing terminal and have a cross-sectional area of at least 1.5 mm².
Before mounting, using or removing this unit:
Prevent access to hazardous voltage by disconnecting the unit from power supply.
Warning! Do not open connected unit. Hazardous voltage may occur within this
unit when connected to power supply.
Class 1 Laser Product
Do not look directly into fibre optical fibre port or any connected fibre although
this unit is designed to meet the Class 1 Laser regulations.
Care recommendations
Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.
This unit must not be operating with removed covers or lids.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling above the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc). The unit is not
waterproof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical
part may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo
distributor office or Westermo Tech support.
Fibre connectors are supplied with plugs to avoid contamination inside the optical port.
As soon as no optical fibre is mounted on the connector, e.g. for storage, service or
transportation, the plug should be applied.
Warning:
When this unit is operated at an ambient temperature above 60 °C, the External Surface
of Equipment may exceed Touch Temperature Limit according to UL/IEC/EN 60950-1.
To reduce the risk of fire, use on No. 26 AWG or larger telecommunication line cord.
!
!
!

46641-22400
ATEX certification
ATEX certification number
Baseefa15ATEX0093X
Standards
EN 60079-0:2012, EN 60079-15:2010, EN 60079-28: 2007
Certification code
RFI-211-T3G, RFI-219-T3G: Ex nA IIC T4 Gc (–40°C ≤ Ta ≤ +70°C)
all other models: Ex nA [op is T4] IIC T3 Gc (–40°C ≤ Ta ≤ +70°C)
ATEX code
II 3G
Specific Conditions of Use
The equipment must be installed in an area of not more than pollution degree 2 in
accordance with EN 60664-1, and in an enclosure that provides a minimum degree of
protection of at least IP54 and complies with the relevant requirements of EN 60079-0
and EN 60079-15.
All external connections to the equipment and, where applicable, the SFP modules must
not be inserted or removed unless either the area in which the equipment is installed is
known to be non-hazardous, or the circuits connected have been de-energized.
The network cables once installed must be properly fixated by the use of cable ties or
similar to reduce the risk of accidently withdrawing the plugs.
Equipment input parameters
Power Connector: +DC1, +DC2 & –COM
Working Voltage Range = 20 V to 48 VDC.
I/O Connector: ‘Status +’ & ‘Status –’ and ‘Digital in +’ and ‘Digital in –’
Maximum I/P Voltage = 60 VDC.

5
6641-22400
SFP option approved transceivers
SFP Transceivers, 100 Mbit
1100-0131 MLC2, Multimode, LC-Connector, 2 km, 1310 nm
1100-0132 SLC20, Singlemode, LC-Connector, 20 km, 1310 nm
1100-0133 SLC40, Singlemode, LC-Connector, 40 km, 1310 nm
1100-0134 SLC80, Singlemode, LC-Connector, 80 km, 1550 nm
1100-0140 SLC120, Singlemode, LC-Connector, 120 km, 1550 nm
BiDi Transceivers, 100 Mbit
1100-0145 SLC15-BiDi-A, Singlemode, BiDi, 20 km, 1310 nm TX, 1550 nm RX
1100-0146 SLC15-BiDi-B, Singlemode, BiDi, 20 km, 1550 nm TX, 1310 nm RX
1100-0152 MLC2-BiDi-A, Multimode, BiDi, 2 km, 1310 nm TX, 1550 nm RX
1100-0153 MLC2-BiDi-B, Multimode, BiDi, 2 km, 1550 nm TX, 1310 nm RX
DDM SFP Transceivers, 100 Mbit
1100-0531 MLC2-DDM, Multimode, DDM, 2 km, 1310 nm
1100-0532 SLC20-DDM, Multimode, DDM, 20 km, 1310 nm
1100-0533 SLC40-DDM, Multimode, DDM, 40 km, 1310 nm
DDM SFP Transceivers, 1 Gbit
1100-0542 GSLC50-DDM, Singlemode, DDM, 50 km, 1550 nm
1100-0547 GMLC2-DDM, Multimode, DDM, 2 km, 1310 nm
SFP Transceivers, 1 Gbit
1100-0144 GMLC550-SX, Multimode, LC-Connector, 550 m, 850 nm, SX
1100-0147 GMLC2-SX+, Multimode, LC-Connector, 2 km, 1310 nm, SX+
1100-0141 GSLC10-LX, Singlemode, LC-Connector, 10 km, 1310 nm, LX
1100-0142 GSLC50-XD, Singlemode, LC-Connector, 50 km, 1550 nm, XD
1100-0143 GSLC80-ZX, Singlemode, LC-Connector, 80 km, 1550 nm, ZX
1100-0171 GSLC110-EZX, Singlemode, LC-Connector, 110 km, 1550 nm, EZX
BiDi Transceiver, 1 Gbit
1100-0156 GSLC20-BiDi-A, Singlemode, BiDi, 20 km, 1310 nm TX, 1490 nm RX
1100-0157 GSLC20-BiDi-B, Singlemode, BiDi, 20 km, 1490 nm TX, 1310 nm RX
Copper Transceiver, 1 Gbit
1100-0148 GC100, Copper, RJ45, 100 m, 1000BaseT

66641-22400
ATEX-Zertifizierung
ATEX-Zulassungsnummer
Baseefa15ATEX0093X
Standards
EN 60079-0:2012, EN 60079-15:2010, EN 60079-28:2007
Zertifizierungscode
RFI-211-T3G, RFI-219-T3G: Ex nA IIC T4 Gc (–40°C ≤ Ta ≤ +70°C)
alle anderen Modelle: Ex nA [op is T4] IIC T3 Gc (–40°C ≤ Ta ≤ +70°C)
ATEX-Code
II 3G
Spezifische Einsatzbedingungen
Die Geräte müssen in einem Bereich welcher einem maximalen Verschmutzungsgrad
der Stufe 2 gemäß EN 60664-1 entspricht und in einem Gehäuse, das einen Schutzgrad
von mindestens IP54 bietet und die relevanten Anforderungen von EN 60079-0 und EN
60079-15 erfüllt, installiert werden.
Alle äußeren Anschlüsse des Gerätes und auch die SFP-Module dürfen nur dann
verbunden oder getrennt werden, wenn entweder der Bereich, in dem das Gerät
installiert ist, nachweislich ungefährlich ist, oder die verbundenen Stromkreise
spannungsfrei sind.
Die Netzwerkkabel müssen nach der Installation mithilfe von Kabelbindern oder
ähnlichem Material ordnungsgemäß befestigt werden, um ein versehentliches Abziehen
der Stecker zu verhindern.
Eingangsparameter der Geräte
Stromversorgung: +DC1, +DC2 & –COM
Betriebsspannungsbereich = 20 V to 48 VDC.
I/O-Anschluss: ‘Status +’ & ‘Status –’ und ‘Digital in +’ und ‘Digital in –’
Maximale I/P-Spannung = 60 VDC.

7
6641-22400
Für SFP-Option zugelassene Transceiver
SFP-Transceiver, 100 Mbit
1100-0131 MLC2, Multimode, LC-Anschluss, 2 km, 1310 nm
1100-0132 SLC20, Singlemode, LC-Anschluss, 20 km, 1310 nm
1100-0133 SLC40, Singlemode, LC-Anschluss, 40 km, 1310 nm
1100-0134 SLC80, Singlemode, LC-Anschluss, 80 km, 1550 nm
1100-0140 SLC120, Singlemode, LC-Anschluss, 120 km, 1550 nm
BiDi-Transceiver, 100 Mbit
1100-0145 SLC15-BiDi-A, Singlemode, BiDi, 20 km, 1310 nm TX, 1550 nm RX
1100-0146 SLC15-BiDi-B, Singlemode, BiDi, 20 km, 1550 nm TX, 1310 nm RX
1100-0152 MLC2-BiDi-A, Multimode, BiDi, 2 km, 1310 nm TX, 1550 nm RX
1100-0153 MLC2-BiDi-B, Multimode, BiDi, 2 km, 1550 nm TX, 1310 nm RX
DDM SFP-Transceiver, 100 Mbit
1100-0531 MLC2-DDM, Multimode, DDM, 2 km, 1310 nm
1100-0532 SLC20-DDM, Multimode, DDM, 20 km, 1310 nm
1100-0533 SLC40-DDM, Multimode, DDM, 40 km, 1310 nm
DDM SFP-Transceiver, 1 Gbit
1100-0542 GSLC50-DDM, Singlemode, DDM, 50 km, 1550 nm
1100-0547 GMLC2-DDM, Multimode, DDM, 2 km, 1310 nm
SFP-Transceiver, 1 Gbit
1100-0144 GMLC550-SX, Multimode, LC-Anschluss, 550 m, 850 nm, SX
1100-0147 GMLC2-SX+, Multimode, LC-Anschluss, 2 km, 1310 nm, SX+
1100-0141 GSLC10-LX, Singlemode, LC-Anschluss, 10 km, 1310 nm, LX
1100-0142 GSLC50-XD, Singlemode, LC-Anschluss, 50 km, 1550 nm, XD
1100-0143 GSLC80-ZX, Singlemode, LC-Anschluss, 80 km, 1550 nm, ZX
1100-0171 GSLC110-EZX, Singlemode, LC-Anschluss, 110 km, 1550 nm, EZX
BiDi-Transceiver, 1 Gbit
1100-0156 GSLC20-BiDi-A, Singlemode, BiDi, 20 km, 1310 nm TX, 1490 nm RX
1100-0157 GSLC20-BiDi-B, Singlemode, BiDi, 20 km, 1490 nm TX, 1310 nm RX
Kupfer-Transceiver, 1 Gbit
1100-0148 GC100, Kupfer, RJ45, 100 m, 1000BaseT

86641-22400
Certification ATEX
Numéro de certification ATEX
Baseefa15ATEX0093X
Normes
EN 60079-0:2012, EN 60079-15:2010, EN 60079-28:2007
Code de certification
RFI-211-T3G, RFI-219-T3G: Ex nA IIC T4 Gc (–40°C ≤ Ta ≤ +70°C)
tous les autres modèles: Ex nA [op is T4] IIC T3 Gc (–40°C ≤ Ta ≤ +70°C)
Code ATEX
II 3G
Conditions spéciales d'utilisation
L'équipement doit être installé dans une zone où le degré de pollution ne dépasse pas
le degré 2 conformément à l'EN 60664-1, et dans un boîtier qui fournit un niveau de
protection au moins égal à IP54 et conforme aux exigences applicables à EN 60079-0 et
EN 60079-15
Toutes les connexions externes à l'équipement et, le cas échéant, les modules SFP ne
doivent pas être insérés ou retirés sauf si la zone dans laquelle l'équipement est installé
est reconnue comme non dangereuse, ou si les circuits raccordés sont hors-tension.
Une fois les câbles réseau installés, ils doivent être correctement fixé grâce à des attaches
de câbles ou autre élément semblable afin de réduire le risque de débranchement
accidentel.
Paramètres d'entrée des équipements
Connecteur d'alimentation : +DC1, +DC2 & –COM
Double entrée d'alimentation 20 V à 48 VCC
Connecteur E/S : « Statut + » et « Statut – » et « Entrée digitale + » et « Entrée digitale – »
Tension maximale I/P = 60 VCC.

9
6641-22400
Transmetteurs optionnels SFP certifiés
Transmetteurs SFP, 100 Mbit
1100-0131 MLC2, multimode, connecteur LC, 2 km, 1310 nm
1100-0132 SLC20, monomode, connecteur LC, 20 km, 1310 nm
1100-0133 SLC40, monomode, connecteur LC, 40 km, 1310 nm
1100-0134 SLC80, monomode, connecteur LC, 80 km, 1550 nm
1100-0140 SLC120, monomode, connecteur LC, 120 km, 1550 nm
Transmetteurs Bi-Di, 100 Mbit
1100-0145 SLC15 Bi-Di A, monomode, Bi-Di, 20 km, 1310 nm TX, 1550 nm, RX
1100-0146 SLC15-Bi-Di-B, monomode, Bi-Di, 20 km, 1550 nm TX, 1310 nm RX
1100-0152 MLC2-BiDi-A, multimode, Bi-Di, 2 km, 1310 nm TX, 1550 nm RX
1100-0153 MLC2-BiDi-B, multimode, Bi-Di, 2 km, 1550 nm TX, 1310 nm RX
Transmetteurs DDM SFP, 100 Mbit
1100-0531 MLC2-DDM, multimode, DDM, 2 km, 1310 nm
1100-0532 SLC20-DDM, multimode, DDM, 20 km, 1310 nm
1100-0533 SLC40-DDM, multimode, DDM, 40 km, 1310 nm
Transmetteurs DDM SFP, 1 Gbit
1100-0542 GSLC50-DDM, monomode, DDM, 50 km, 1550 nm
1100-0547 GMLC2-DDM, multimode, DDM, 2 km, 1310 nm
Transmetteurs SFP, 1 Gbit
1100-0144 GMLC550-SX, multimode, connecteur LC, 550 m, 850 nm, SX
1100-0147 GMLC2-SX+, multimode, connecteur LC, 2 km, 1310 nm, SX+
1100-0141 GSLC10-LX, monomode, connecteur LC, 10 km, 1310 nm, LX
1100-0142 GSLC50-XD, monomode, connecteur LC, 50 km, 1550 nm, XD
1100-0143 SLC80, monomode, connecteur LC, 80 km, 1550 nm, ZX
1100-0171 GSLC110, monomode, connecteur LC, 110 km, 1550 nm, EZX
Transmetteurs Bi-Di, 1 Gbit
1100-0156 GSLC20-BiDi-A, monomode, Bi-Di, 20 km, 1310 nm TX, 1490 nm RX
1100-0157 GSLC20-BiDi-B, monomode, Bi-Di, 20 km, 1490 nm TX, 1310 nm RX
Transmetteurs cuivre, 1 Gbit
1100-0148 GC100, cuivre, RJ45, 100 m, 1000BaseT

10 6641-22400
IECEx certification
IECEx certification number
IECExBAS15.0066X
Standards
IEC 60079-0:2011, IEC 60079-15:2010, IEC 60079-28: 2006
Certification code
RFI-211-T3G, RFI-219-T3G: Ex nA IIC T4 Gc (–40°C ≤ Ta ≤ +70°C)
all other models: Ex nA [op is T4] IIC T3 Gc (–40°C ≤ Ta ≤ +70°C)
Specific Conditions of Use
The equipment must be installed in an area of not more than pollution degree 2 in
accordance with IEC 60664-1, and in an enclosure that provides a minimum degree of
protection of at least IP54 and complies with the relevant requirements of IEC 60079-0
and IEC 60079-15.
All external connections to the equipment and, where applicable, the SFP modules must
not be inserted or removed unless either the area in which the equipment is installed is
known to be non-hazardous, or the circuits connected have been de-energized.
The network cables once installed must be properly fixated by the use of cable ties or
similar to reduce the risk of accidently withdrawing the plugs.
Equipment input parameters
Power Connector: +DC1, +DC2 & –COM
Working Voltage Range = 20 V to 48 VDC.
I/O Connector: ‘Status +’ & ‘Status –’ and ‘Digital in +’ and ‘Digital in –’
Maximum I/P Voltage = 60 VDC.

11
6641-22400
SFP option approved transceivers
SFP Transceivers, 100 Mbit
1100-0131 MLC2, Multimode, LC-Connector, 2 km, 1310 nm
1100-0132 SLC20, Singlemode, LC-Connector, 20 km, 1310 nm
1100-0133 SLC40, Singlemode, LC-Connector, 40 km, 1310 nm
1100-0134 SLC80, Singlemode, LC-Connector, 80 km, 1550 nm
1100-0140 SLC120, Singlemode, LC-Connector, 120 km, 1550 nm
BiDi Transceivers, 100 Mbit
1100-0145 SLC15-BiDi-A, Singlemode, BiDi, 20 km, 1310 nm TX, 1550 nm RX
1100-0146 SLC15-BiDi-B, Singlemode, BiDi, 20 km, 1550 nm TX, 1310 nm RX
1100-0152 MLC2-BiDi-A, Multimode, BiDi, 2 km, 1310 nm TX, 1550 nm RX
1100-0153 MLC2-BiDi-B, Multimode, BiDi, 2 km, 1550 nm TX, 1310 nm RX
DDM SFP Transceivers, 100 Mbit
1100-0531 MLC2-DDM, Multimode, DDM, 2 km, 1310 nm
1100-0532 SLC20-DDM, Multimode, DDM, 20 km, 1310 nm
1100-0533 SLC40-DDM, Multimode, DDM, 40 km, 1310 nm
DDM SFP Transceivers, 1 Gbit
1100-0542 GSLC50-DDM, Singlemode, DDM, 50 km, 1550 nm
1100-0547 GMLC2-DDM, Multimode, DDM, 2 km, 1310 nm
SFP Transceivers, 1 Gbit
1100-0144 GMLC550-SX, Multimode, LC-Connector, 550 m, 850 nm, SX
1100-0147 GMLC2-SX+, Multimode, LC-Connector, 2 km, 1310 nm, SX+
1100-0141 GSLC10-LX, Singlemode, LC-Connector, 10 km, 1310 nm, LX
1100-0142 GSLC50-XD, Singlemode, LC-Connector, 50 km, 1550 nm, XD
1100-0143 GSLC80-ZX, Singlemode, LC-Connector, 80 km, 1550 nm, ZX
1100-0171 GSLC110-EZX, Singlemode, LC-Connector, 110 km, 1550 nm, EZX
BiDi Transceiver, 1 Gbit
1100-0156 GSLC20-BiDi-A, Singlemode, BiDi, 20 km, 1310 nm TX, 1490 nm RX
1100-0157 GSLC20-BiDi-B, Singlemode, BiDi, 20 km, 1490 nm TX, 1310 nm RX
Copper Transceiver, 1 Gbit
1100-0148 GC100, Copper, RJ45, 100 m, 1000BaseT

12 6641-22400
Note. Fibre Optic Handling
Fibre optic equipment needs special treatment. It is very sensitive to dust and dirt.
If the fibre will be disconnected from the unit the protective hood on the transmitter/
receiver must be connected. The protective hood must be kept on during transportation.
The fibre optic cable must also be handle the same way.
If these recommendations are not followed the warranty might be jeopardized.
Cleaning of the optical connectors
In the event of contamination, the optical connectors should only be cleaned by the use
of recommended cleaning fluids and correct cleaning equipment.
Recommended cleaning fluids:
• Methyl-, ethyl-, isopropyl- or isobutyl-alcohol
• Hexane
• Naphtha
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.

13
6641-22400
FCC Part 15.105
Notice:
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Agency approvals and standards compliance
Art.no Denomination Type Approval/compliance
3641-5100
3641-5110
3641-5200
3641-5210
3641-5300
3641-5310
3641-5320
RFI-219-T3G-EX
RFI-211-T3G-EX
RFI-215-F4G-T3G-EX
RFI-207-F4G-T3G-EX
RFI-219-F4G-T7G-EX
RFI-211-F4G-T7G-EX
RFI-219-F4G-T7G-F8-EX
EMC EN 50121-4, Railway applications – Electromagnetic
compatibility – Emission and immunity of the signalling and
telecommunications apparatus
EN 61000-6-1, Electromagnetic compatibility – Immunity
for residential environments
EN 61000-6-2, Electromagnetic compatibility – Immunity
for industrial environments
EN 61000-6-3, Electromagnetic compatibiliy – Emission
standards for residential, commercial and light-industrial
environments
EN 61000-6-4, Electromagnetic compatibility – Emission
for industrial environments
Safety UL/IEC/EN 60950-1, IT equipment
Marine DNV GL rules for classification – Ships and offshore units
IECEx Explosive atmosphere
IEC 60079-0, General requirements
IEC 60079-15, Equipment protected by type of protection “n”
IEC 60079-28, Protection of equipment and transmission
systems using optical radiation
ATEX Explosive atmosphere
EN 60079-0, General requirements
EN 60079-15, Equipment protected by type of protection “n”
EN 60079-28, Protection of equipment and transmission
systems using optical radiation
Corrosive
environment
Notice:
This product has been successfully tested in a corrosion test according to IEC 60068-
2-60, method 3 This means that the product meets the requirements to be placed in
an environment classified as ISA-S71.04 class G3.
Note! If the product is placed in a corrosive environment, it is important that all
unused connector sockets are protected with a suitable plug in order to avoid
corrosion attacks on the gold plated pins in connectors.

14 6641-22400
M5 threaded hole
for PE connection
Safety control drawing
Position Direction /
description Input / Output values
1
2
3
4
1 IO / Status + Uin = 60 VDC max
2 IO / Status – Iin = 80 mA max
3 IO / Digital in + Uin = 60 VDC max
4 IO / Digital in – Iin = 2.9 mA max
Position Direction /
description Output values
1 Out / VBUS
Uout = 5 VDC max
Iout = 500 mA max
2 In/out / D–
3 In/out / D+
4 GND
Shield PE
Position Direction /
description Input values
1 In / +DC1
Uin = (16 – 60) VDC
Iin = 2.0 A @ 16 VDC
PIn = 31.5 W @ 16 VDC
2 In / +DC2
3 In / COM
4 In / COM
Position Direction /
description Input/output values
1 In/Vbus
U = 5V VDC max
I = 100 mA max
2 In/Out D-
3 In/Out D+
4 Not connected
5 GND
Degree of protection: IP 40
Ambient temperature: –40 °C to +70 °C.
Installation spacing: Minimum 25 mm above/below
Minimum 10 mm left/right
Position Direction /
description Input/output values
1 In/out / BI_DA+
Per port:
U = ± 1 V (4V/us)
I = ± 20 mA
Data rate:
10/100/1000 Mbit/s
2 In/out / BI_DA–
3 In/out / BI_DB+
4 In/out / BI_DC+
5 In/out / BI_DC–
6 In/out / BI_DB–
7 In/out / BI_DD+
8 In/out / BI_DD–
Shield PE
Galvanically isolated via signal transformers and
capacitively isolated to GND/PE through a 2kV
1000pF capacitor.
See user manual for proven transient protection.

15
6641-22400

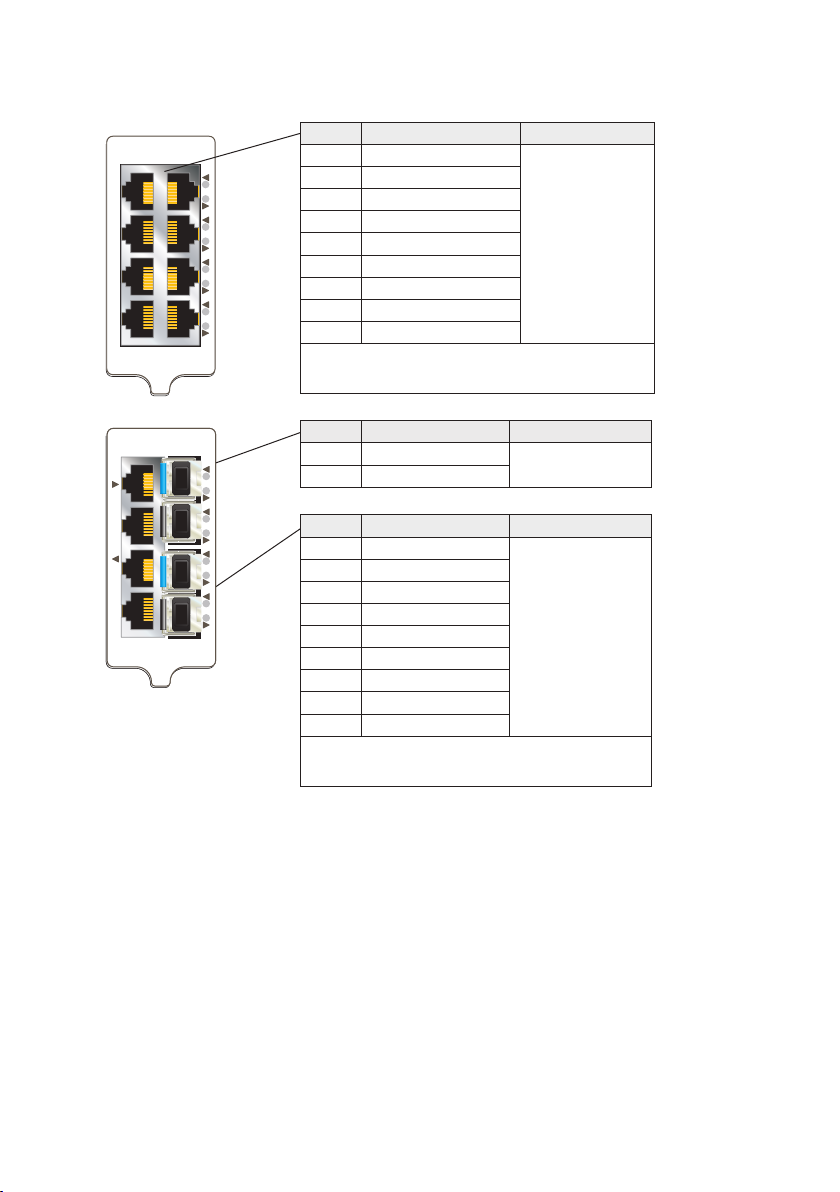

Safety control drawing
Position Direction* / description Input/output values
Rx In / Receive port Max 5 dBm
Tx Out / Transmit port
Position Direction* / description Input/output values
1 In/out / BI_DA+
Per port:
U = ± 1 V (4V/us)
I = ± 20 mA
Data rate:
100/1000 Mbit/s
2 In/out / BI_DA–
3 In/out / BI_DB+
4 In/out / BI_DC+
5 In/out / BI_DC–
6 In/out / BI_DB–
7 In/out / BI_DD+
8 In/out / BI_DD–
Shield PE
Galvanically isolated via signal transformers and capacitively
isolated to GND/PE through a 2kV 1000pF capacitor.
See user manual for proven transient protection.
* Direction relative this unit!
1
10/100 Base-TX
5
6
7
8
2
3
4
1000 Base-X1000 Base-T
1
5
6
7
8
2
3
4
Position Direction* / description Input/output values
1 In/out / TD+
Per port:
U = ± 1 V (4V/us)
I = ± 20 mA
Data rate:
10/100 Mbit/s
2 In/out / TD–
3 In/out / RD+
4 Not connected
5 Not connected
6 In/out / RD–
7 Not connected
8 Not connected
Shield PE
Galvanically isolated via signal transformers and capacitively
isolated to GND/PE through a 2kV 1000pF capacitor.
See user manual for proven transient protection.
1000 Base-X1000 Base-T
1
5
6
7
8
2
3
4

16 6641-22400
Declaration of Conformity
Westermo Teleindustri AB
Declaration of Conformity
Org.nr/
Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp. identity number Registered office
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
The manufacturer
Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
Herewith declares that the product(s)
Type of product Models
1
Industrial Ethernet Switch RFI-x19-T3G-y, RFI-x03-T3G , RFI-x11-T3G-y, RFI-x15-F4G-T3G-y,
RFI-x07-F4G-T3G-y, RFI-x19-F4G-T7G-y,
RFI-x11-F4G-T7G-y, RFI-x19-F4G-T7G-F8-y
is in conformity with the following EU directive(s).
No Short name
2014/30/EU Electromagnetic Compatibility (EMC)
2014/35/EU Low Voltage Directive (LVD)
2014/34/EU Equipment for explosive atmospheres (ATEX)
2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS)
1
Model Differences: x = 1 or 2 and indicates Software Class, y = optional and may indicate customer specific models.
2
Only valid for y = EX model(s). Certificate: Baseefa15ATEX0093X. Issued by: SGS Baseefa Limited, Rockhead Business Park, Staden
Lane, Buxton, Derbyshire, SK17 9RZ, United Kingdom.
References of standards applied for this EU declaration of conformity.
No Title Issue
EN 50121-4 Railway applications – Electromagnetic compatibility – Emission and immunity of the
signalling and telecommunications apparatus
2015
EN 61000-6-1 Electromagnetic compatibility – Immunity for residential environments 2007
EN 61000-6-2 Electromagnetic compatibility – Immunity for industrial environments 2005
EN 61000-6-3 Electromagnetic compatibility – Emission for residential environments 2007
+A1:2011
EN 61000-6-4 Electromagnetic compatibility – Emission for industrial environments 2007
+A1:2011
EN 50581 Technical documentation for the assessment of electrical and electronic products with
respect to the restriction of hazardous substances
2012
EN 60950-1 Information technology equipment -- Safety -- General requirements 2006
+A11:2009
+A1: 2010
+A12:2011
+A2: 2013
EN 60079-0
2
Explosive atmospheres - Equipment - General requirements 2012
+A11: 2013
EN 60079-15
2
Electrical apparatus for explosive gas atmospheres -Construction, test and marking of
type of protection"n" electrical apparatus
2010
EN 60079-28
2
Explosive atmospheres - Protection of equipment and transmission systems using optical
radiation
2007
Pierre Öberg
Technical Manager
9
th
March 2017

17
6641-22400
Type tests and environmental conditions
Phenomena Test Description Test levels
ESD EN 61000-4-2 Enclosure contact ± 6 kV
Enclosure air ± 8 kV
RF field AM modulated IEC 61000-4-3 Enclosure 20 V/m 80% AM (1 kHz), 80 – 2700 MHz
10 V/m 80% AM (1 kHz), 2700 – 6000 MHz
Fast transient EN 61000-4-4 Signal ports ± 2 kV
Power ports ± 2 kV
Surge EN 61000-4-5 Signal ports ± 2 kV line to earth, ± 1 kV line to line
Power ports ± 2 kV line to earth, ± 1 kV line to line
RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power frequency
magnetic field
EN 61000-4-8 Enclosure 300 A/m 0, 16.7, 50, 60 Hz
Pulse magnetic field EN 61000-4-9 Enclosure 300 A/m
Radiated emission CISPR 16-2-3 Enclosure Class B
ANSI C63.4
(FCC part 15)
Enclosure Class B, 30 – 6500 MHz
Conducted emission CISPR 16-2-1 DC power ports
Telecommunication
ports
Class B
Dielectric strength EN 60950 Signal port to other
isolated ports
1.5 kVrms 50 Hz 1 min
Power port to other
isolated ports
1.5 kVrms 50 Hz 1 min
Temperature EN 60068-2-1
EN 60068-2-2
Operating –40 to +70ºC (all models)
Storage & Transport –40 to +85ºC (all models)
Maximum surface
temperature
135 °C (temperature class T4)
Humidity EN 60068-2-30 Operating 5 to 95% relative humidity
Storage & Transport 5 to 95% relative humidity
Altitude Operating 2 000 m / 70 kPa
Service life Operating 10 years
Vibration IEC 60068-2-6 Operating 7.5 mm, 5 – 8 Hz
2 g, 8 – 500 Hz
(Wall-mounted or DIN-rail mounted using TH
35-15 according to EN 60175)
Shock IEC 60068-2-27 Operating 15 g, 11 ms
(Wall-mounter or DIN-rail mounted using TH
35-15 according to EN 60175)
Enclosure UL 94 Aluminium / Zink Flammability class V-0 (all models)

18 6641-22400
Description
The RedFox Industrial includes a collection of high performance industrial Ethernet
switches with enhanced routing functionality designed to build cost effective, secure and
reliable networks. The product range offers a number of Ethernet interface combinations,
which gives you the ability to select the perfect routing switch for your application
providing optimum functionality at the best value.
Advanced routing functions and firewall settings allow the RedFox to segregate networks
and ensure that mission critical industrial networks are protected. The RedFox is also
able to provide secure remote access to these networks across insecure connections by
acting as a VPN endpoint.
RedFox Industrial models
Westermo
article number
Denomination Description
3641-5100 RFI-219-T3G-EX 3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
3641-5110 RFI-211-T3G-EX 3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
3641-5200 RFI-215-F4G-T3G-EX
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s, pluggable connections
tranceivers supported, Ethernet FX or TX SFP
3641-5210 RFI-207-F4G-T3G-EX
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45.
4 x 100/1000 Mbit/s, pluggable connections
transceivers supported, Ethernet FX or TX SFP.
3641-5300 RFI-219-F4G-T7G-EX
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s, pluggable connections
transceivers supported, Ethernet FX or TX SFP.
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
3641-5310 RFI-211-F4G-T7G-EX
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s, pluggable connections
transceivers supported, Ethernet FX or TX SFP.
3641-5320 RFI-219-F4G-T7G-F8-EX
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s, pluggable connections
transceivers supported, Ethernet FX or TX SFP.
8 x 100 Mbit/s, pluggable connections transceivers
supported, Ethernet FX or TX SFP.

19
6641-22400
Housing
Description
Depending on RedFox model, the size of the enclosure may vary. There are two sizes
available, a two-slot housing and a three-slot housing.
Regardless of RedFox model, the slot on the far left will always be occupied by the
power and CPU interface. Other slots vary depending on RedFox model.
The back end holds a casted DIN-clip for stable mounting on a DIN-rail. Direct wall-
mount is also possible using the four brackets in each corner. The back end also holds
the earth connection. For detailed ground connection information see section on Earth
Connection.

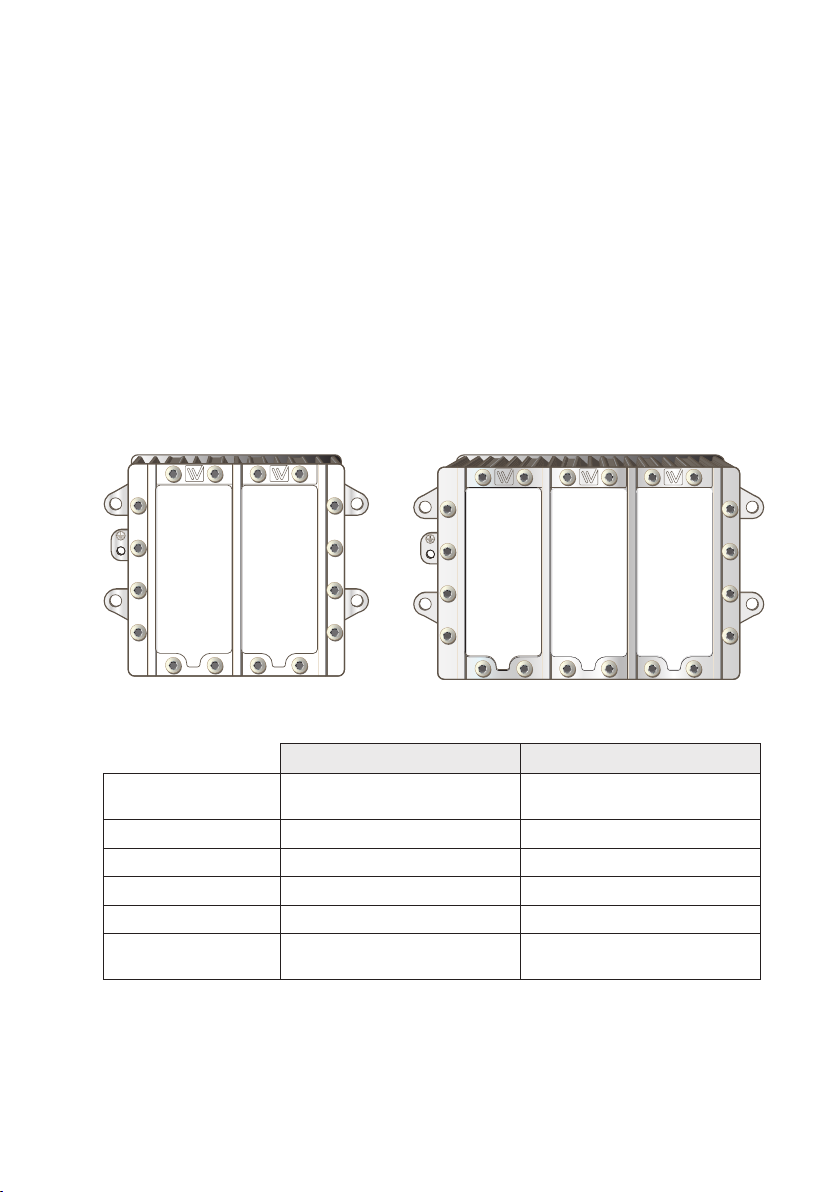

2 and 3 slot enclosure
The slot on the left will always be occupied by the power and CPU. Other slots may vary
depending on RedFox model.
Specification
2 slot enclosure 3 slot enclosure
Dimension W x H x D 134 x 105 x 122 mm
(without connectors)
175 x 105 x 122 mm
(without connectors)
Weight 1.5 kg 2.2 kg
Number of slots 2 3
Degree of protection IP40 according to EN 60529 IP40 according to EN 60529
Cooling Convection Convection
Mounting Horizontal on 35 mm DIN-rail
or wall-mounted
Horizontal on 35 mm DIN-rail
or wall-mounted

20 6641-22400
Power and CPU module
Description
Regardless of RedFox model, all units will be delivered with the power and CPU interface
in the slot on the far left. The power and CPU module holds a power board and a CPU
board. The isolated power supply has redundant power inputs and allows for a wide
operating voltage range (see interface specification). The digital IO-port can be used for
monitoring the unit (see Westermo OS management guide).
The CPU module holds several interfaces. Three RJ-45 connectors with support for
Ethernet 1000BaseTX, a USB port for easy save/load of system configuration and a
console port. The console connector is a micro USB cable that connects to a FTDI
FT232R USB to serial converter internally. For drivers please see www.ftdichip.com and
download the appropriate VCP driver.
For detailed information on LED indicators, see section on LED indicators Power/CPU.
Power and CPU
… Redundant power supply and alarm function
… Wide operating voltage range (16 VDC to 60 VDC)
… Digital IO for monitoring
… Console port for management using CLI
… USB port for easy save and load system configuration
… 3 x RJ-45 Ethernet 1000BaseTX connectors
… Status LED's
