Westermo SDW-500 User manual

www.westermo.com
SDW-500 series
Industrial Ethernet 5-port Switch

26644-2214

3
6644-2214
General information
Legal information
The contents of this document are provided “as is”. Except as required by applicable law,
no warranties of any kind, either express or implied, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose, are made in
relation to the accuracy and reliability or contents of this document. Westermo reserves
the right to revise this document or withdraw it at any time without prior notice.
Under no circumstances shall Westermo be responsible for any loss of data or income or
any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at www.westermo.com
About This Guide
This guide is intended for installation engineers and users of the Westermo products.
It includes information on safety and regulations, a product description, installation
instructions and technical specifications.

46644-2214
Safety and Regulations
Warning signs are provided to prevent personal injuries and/or damages to the product.
The following levels are used:
Level of warning Description Consequence
personal injury
Consequence
material damage
WARNING
Indicates a potentially
hazardous situation
Possible death or
major injury
Major damage to the
product
CAUTION
Indicates a potentially
hazardous situation
Minor or moderate
injury
Moderate damage to
the product
NOTICE
Provides information
in order to avoid
misuse of the
product, confusion or
misunderstanding
No personal injury Minor damage to the
product
NOTE
Used for highlighting
general, but important
information
No personal injury Minor damage to the
product

5
6644-2214
Safety Information
Before installation:
Read this manual completely and gather all information on the product. Make sure that
you understand it fully. Check that your application does not exceed the safe operating
specifications for this product.
WARNING - SAFETY DURING INSTALLATION
The product must be installed and operated by qualified service
personnel and installed into an apparatus cabinet or similar, where
access is restricted to service personnel only.
During installation, ensure a protective earthing conductor is
first connected to the protective earthing terminal (only valid for
metallic housings). Westermo recommends a crosssectional area
of at least 4 mm2.
If the product does not have a protective earthing terminal,
then the DIN-rail must be connected to protective earth. Upon
removal of the product, ensure that the protective earthing
conductor, or the connection to earth via the DIN-rail, is
disconnected last.
WARNING - HAZARDOUS VOLTAGE
Do not open an energized product. Hazardous voltage may occur
when connected to a power supply.
WARNING - PROTECTIVE FUSE
The power supply wiring must be sufficiently fused. It must be
possible to disconnect manually from the power supply. Ensure
compliance to national installation regulations.
Replacing the internal fuse must only be performed by Westermo
qualified personell.

66644-2214
WARNING - REDUCE THE RISK OF FIRE
To reduce the risk of fire, use only telecommunication line cords
with a cable diameter of AWG 26 or larger. Regarding power
cable dimensions, see Interface Specifications.
CAUTION - CORROSIVE GASES
If the product is placed in a corrosive environment, it is important
that all unused connector sockets are protected with a suitable
plug, in order to avoid corrosion attacks on the gold plated
connector pins.
CAUTION - CLASS 1 LASER PRODUCT
Do not look directly info a fibre optical port or any connected
fibre, although the product is designed to meed the Class 1 Laser
regulations and complies with 21 CFR 1040.10 and 1040.11.
CAUTION - ELECTROSTATIC DISCHARGE (ESD)
Prevent electrostatic discharge damages to internal electronic
parts by discharging your body to a grounding point (e.g. use a
wrist strap).
CAUTION - FIBRE OPTIC HANDLING
Fibre optic equipment need special treatment. It is very sensitive
to dust and dirt. If the fibre is disconnected from the product, the
protective plugs on the transmitter/receiver must be connected.
The protective plugs must be kept on during transportation. The
fibre optics cables must be handled the same way.

7
6644-2214
Care recommendations
Follow the care recommendations below to maintain full operation of product and to
fulfil the warranty obligations:
• Do not drop, knock or shake the product. Rough handling above the specification may
cause damage to internal circuit boards.
• Use a dry or slightly water-damp cloth to clean the product. Do not use harsh
chemicals, cleaning solvents or strong detergents.
• Do not paint the product. Paint can clog the product and prevent proper operation.
If the product is used in a manner not according to specification, the protection provided
by the equipment may be impaired.
If the product is not working properly, contact the place of purchase, nearest Westermo
distributor office or Westermo technical support.
Cleaning of the optical connectors
In the event of contamination, the optical connectors should be cleaned by the use of
forced nitrogen and some kind of cleaning stick.
Recommended cleaning fluids:
• Methyl-, ethyl-, isopropyl- or isobutyl-alcohol
• Hexane
• Naphtha
Product disposal
This symbol means that the product shall not be treated
as unsorted municipal waste when disposing of it. It needs
to be handed over to an applicable collection point for
recycling electrical and electronic equipment.
By ensuring the product is disposed of correctly, you will
help to reduce hazardous substances and prevent potential
negative consequences to both environment and human
health, which could be caused by inappropriate disposal.

86644-2214
Article number, model and description
Article Model Description
3644-0001 SDW-550 10/100Base-T/TX: 5 ports
3644-6001 SDW-550 E-mark 10/100Base-T/TX: 5 ports
3644-0020 SDW-541-MM-SC2 10/100Base-T/TX: 4 ports 100Base-FX: 1 port
3644-0022 SDW-541-SM-LC15 10/100Base-T/TX: 4 ports 100Base-FX: 1 port
3644-0023 SDW-541-MM-LC2 10/100Base-T/TX: 4 ports 100Base-FX: 1 port
3644-0024 SDW-541-SM-SC15 10/100Base-T/TX: 4 ports 100Base-FX: 1 port
3644-0030 SDW-532-MM-SC2 10/100Base-T/TX: 3 ports 100Base-FX: 2 port
3644-0032 SDW-532-SM-LC15 10/100Base-T/TX: 3 ports 100Base-FX: 2 port
3644-0033 SDW-532-MM-LC2 10/100Base-T/TX: 3 ports 100Base-FX: 2 port
3644-0034 SDW-532-SM-SC15 10/100Base-T/TX: 3 ports 100Base-FX: 2 port
3644-0035 SDW-532-SM-LC40 10/100Base-T/TX: 3 ports 100Base-FX: 2 port
Simplified EU declaration of conformity
Hereby, Westermo declares that the equipment is in compliance with EU directives.
The full EU declaration of conformity and other detailed information are available at the
respective product page at www.westermo.com.

9
6644-2214
Agency approvals and standards compliance
Type Approval / Compliance
EMC EN 61000-6-2, Immproducty industrial environments
EN 61000-6-31, Emission residential environments
EN 61000-6-42, Emission industrial environments
E-Mark, Road Vehicles, 10R-04 72163
Safety UL 60950-1, IT Equipment
Marine DNV GL rules for classification – Ships and offshore products4
Note 1 _ Applicable only for 3644-x001
2 _ Applicable only for 3644-0019, 3644-002x and 3644-003x
3_ Applicable only for 3644-6001
4– Applicable only for 3644-0001, 3644-0022 , 3644-0023, 3644-0025,
3644-0032, 3644-0033, 3644-0035
CAUTION - CORROSIVE GASES
If the product is placed in a corrosive environment, it is important
that all unused connector sockets are protected with a suitable
plug, in order to avoid corrosion attacks on the gold plated
connector pins.
Corrosive
environment:
This product has been successfully tested in a corrosion test according to
IEC 60068-2-60, method 3. This means that the product meets the requirements
to be placed in an environment classified as ISA-S71.04 class G3.

10 6644-2214
Environmental conditions
Isolation between interfaces
Power Interface to all other 2.8 kV DC 2.0 kV RMS @ 50 Hz and 60 s duration
TX signal Interface to all other 2.1 kV DC 1.5 kV RMS @ 50 Hz and 60 s duration
TX shield Interface to all other 1.5 kV DC 1.0 kV RMS @ 50 Hz and 60 s duration
Environmental
Temperature, operating –25 to +70°C (SDW-550),
–25 to +65°C (SDW-541)
–25 to +60°C (SDW-532)
Temperature, storage and transportation –25 to +70°C
Relative humidity, operating 5 to 95% (non-condensing)
Relative humidity,
storage and transportation
5 to 95% (condensation allowed outside packaging)
Altitude, operating 2000 m/70 kPa
Mechanical
Dimension (W x H x D) 35 x 121 x 119 mm
Weight 0.2 kg
Mounting DIN-rail
Degree of protection IP21
Configuration
Auto configured (auto-negotiation) or manually setting of speed and duplex of individual TX port,
by DIP-switches.
Port mirror function is possible to set with DIP-switch. With the port mirror function active the
switch will copy all outgoing traffic to port 1. This can be used to monitor all traffic going out
from the switch. Packets may be discarded if the total throughput exceeds the port speed of port
1.
Fibre optic power budget
Model Multimode
MM-xx2
Singlemode
SM-SC15
Singlemode
SM-LC15
Singlemode
SM-LC40
Transmitted wavelength 1310 nm 1310 nm 1310 nm 1310 nm
Min. output power, transmitter –19 dBm –15 dBm –15 dBm –5 dBm
Max. output power, transmitter –12 dBm –8 dBm -8 dBm 0 dBm
Input sensitivity, receiver –31 dBm –34 dBm –31 dBm –34 dBm
Min. power budget 12 dBm 19 dBm 16 dBm 29 dBm
Max. power budget 19 dBm 26 dBm 23 dBm 34 dBm
Recommended fibre cable and
core / cladding diameter
50/125
62.5/125
9/125
10/125
9/125
10/125
9/125
10/125
Attenuation in connectors / splices
Type Normal attenuation
Connector 0.2 - 0.4 dBm
Fusion splice 0.1 dBm
Mechanical splice 0.2 dBm

11
6644-2214
Description
The SDW-550 is an Industrial Ethernet 5-port switch.
All ports support auto-negotiation, but DIP-switches also allow speed and duplex
configuration of any individual TX port. It is also possible to set up one port to monitor
traffic to/from the switch.
The SDW-550 has been designed to meet high industrial specifications, providing very
high dependability in harsh environmental conditions.
Features:
… TX shields individually isolated
… Wide DC power range 12 – 48 VDC
… Wide temperature range
… Automatic MDI/MDI-X crossover
… LED indicators for Power, Speed, Duplex, Link and Traffic
… Port monitoring
… 35 mm DIN rail mounting
… Enable or disable of flow control
Example of applications are:
… 5-port switch
… Ethernet isolator, for STP networks

12 6644-2214
Interface specifications
Power SDW-500 series
Rated voltage 12 –48 VDC, polarity protected
Operating voltage 9.6 – 57.6 VDC
Rated current @12 VDC power input
SDW-550 320 mA
SDW-541-MM-SC2 450 mA
SDW-541-SM-LC15 450 mA
SDW-541-SM-SC15 350 mA
SDW-541-MM-LC2 350 mA
SDW-532-MM-SC2 600 mA
SDW-532-SM-LC15 450 mA
SDW-532-SM-SC15 450 mA
SDW-532-SM-LC40 450 mA
SDW-532-MM-LC2 450 mA
Rated frequency DC
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm² (AWG 24-12)
Ethernet TX
Electrical specification IEEE std 802.3. 2000 edition
Data rate 10 Mbit/s or 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Connection SC, ST or LC
Circuit type Optical
Transmission range 100 m
Ethernet FX
Electrical specification IEEE std 802.3. 2000 edition
Data rate 10 Mbit/s or 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Connection SC, ST or LC
Circuit type Optical
Transmission range 100 m

13
6644-2214

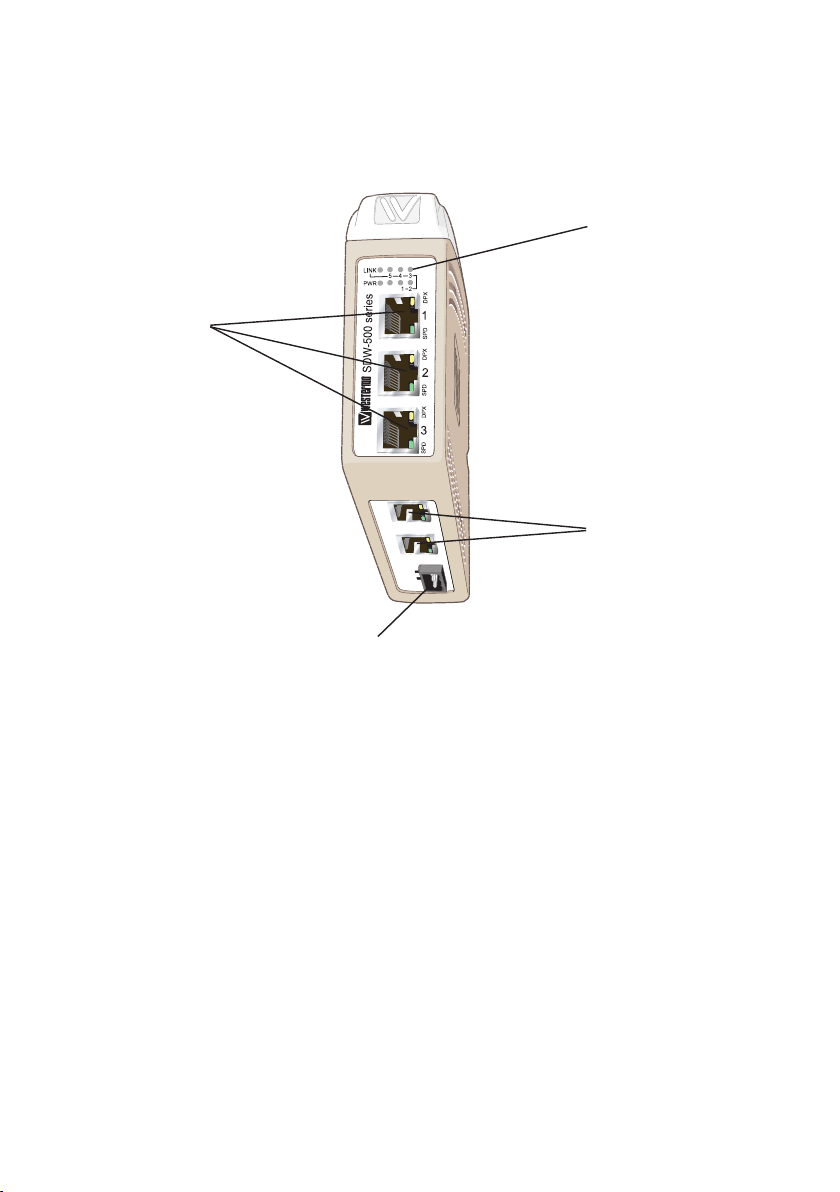

Connections
Power connection
Network
Fibre connection
or RJ-45 connection
Network
RJ-45 connection
LED indicators
Available models:
… SDW-550 10/100Base-T/TX: 5 ports
… SDW-541 10/100Base-T/TX: 4 ports 100Base-FX: 1 port
… SDW-532 10/100Base-T/TX: 3 ports 100Base-FX: 2 ports

14 6644-2214
Power
The SDW-500 series supports redundant power connection.
The positive input are +VA and +VB, the negative input
for both supplies are COM.
The power is drawn from
the input with the highest
voltage.
FX SC Multi- or single mode (optional)
Ethernet FX connection.
1300 nm multi- or singlemode fibre tranceiver with SC-connector.
The dust protection plug shall be mounted when no fibre is connected.
TX
Ethernet TX connection (RJ-45 connector), automatic MDI/MDI-X crossover.
CAT 5 cable is recommended.
Unshielded (UTP) or shielded (STP) connector might be used.
8
7
6
5
4
3
2
1
FX LC Multi- or single mode (optional)
Ethernet FX connection.
1300 nm singlemode fibre transceiver with LC-connector.
The dust protection plug shall be mounted when no fibre is connected.
FX ST Multi mode (optional)
Ethernet FX connection.
1300 nm multi mode fibre tranceiver with ST-connector.
The dust protection plugs shall be mounted when no fibre is connected.
12 3
3-pos screw terminal Description Power
1 COM 0 V
2+VA A: 9.6 – 57.6 VDC
3 +VB B: 9.6 – 57.6 VDC
Contact Signal Name Direction Description/Remark
1 TD+ In/Out Transmitted/Received data
2 TD– In/Out Transmitted/Received data
3 RD+ In/Out Transmitted/Received data
4 – – –
5 – – –
6 RD– In/Out Transmitted/Received data
7 – – –
8 – – –
Shield – – HF-connected

15
6644-2214
LED indicators
At power on the PWR flashes during initialising.
Indicators (LED) Power (PWR)
Link (LINK) of every port
Speed (SPD) and duplex (DPX) of TX ports
LED Status Indication of
PWR ON Internal power, initialising OK
Slow flash Initialisation progressing
Fast flash Initialisation error
LINK OFF No Ethernet link
ON Good Ethernet link
Flash Ethernet data is transmitted or received, traffic indication
SPD OFF 10 Mbit/s
(TX only) ON 100 Mbit/s
DPX OFF Half duplex
(TX only) ON Full duplex

16 6644-2214
Installation
Mounting / Removal
Mounting
This product should be mounted on
35 mm DIN-rail which is horizontally
mounted on a wall or cabinet
backplate.
CLICK!
CLICK!
CAUTION - ELECTROSTATIC DISCHARGE (ESD)
Prevent electrostatic discharge damages to internal electronic
parts by discharging your body to a grounding point (e.g. use a
wrist strap).
WARNING - HAZARDOUS VOLTAGE
Do not open an energized product. Hazardous voltage may occur
when connected to a power supply.
Cooling
This product uses convection cooling.
To avoid obstructing the airflow around the
product, use the following spacing rules.
Minimum spacing 25 mm (1.0 inch) above /
below and 10 mm (0.4 inches) left / right the
product.
Spacing is recommended for the use of prod-
uct in full operating temperature range and
service life.
10 mm *
(0.4 inches)
25 mm
25 mm
* Spacing (left/right) recommended for
full operating temperature range
Removal Press down the black support at the back of the product,
see figure.

17
6644-2214
DIP switch settings SDW-550
DIP-switches are accessible under the lid on top of the product. DIP-switches are used
to configure the product.
NOTE
When configuration via DIP-switches, the settings of DIP-switches configure the product
only after a reboot (power off/on).
Observe this when the DIP-switches are configured:
… Speed and duplex setting only valid when auto-negotiation is disabled.
… When monitoring selected all outgoing packets from the switch is also copied to the
port 1.
… Speed and duplex switch settings are ignored for FX ports.
… If auto-negotiation and auto MDI/MDI-X disabled all TX ports support MDI-X
configuration.
CAUTION - ELECTROSTATIC DISCHARGE (ESD)
Prevent electrostatic discharge damages to internal electronic
parts by discharging your body to a grounding point (e.g. use a
wrist strap).
WARNING - HAZARDOUS VOLTAGE
Do not open an energized product. Hazardous voltage may occur
when connected to a power supply.

18 6644-2214
S3 S2
Port 3 settings
ON
1 2 3 4 5 6 7 8
S1
Auto-negotiation and
auto MDI/MDI-X disabled
ON
1 2 3 4 5 6 7 8
S1
Auto-negotiation and
auto MDI/MDI-X enabled
ON
1 2 3 4 5 6 7 8
S1
10 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S1
100 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S2
Half duplex selected
ON
1 2 3 4 5 6 7 8
S2
Full duplex selected
Port 1 settings
ON
1 2 3 4 5 6 7 8
S1
Auto-negotiation and
auto MDI/MDI-X disabled
ON
1 2 3 4 5 6 7 8
S1
Auto-negotiation and
auto MDI/MDI-X enabled
ON
1 2 3 4 5 6 7 8
S1
10 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S1
100 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S1
Half duplex selected
ON
1 2 3 4 5 6 7 8
S1
Full duplex selected
Port 2 settings
ON
1 2 3 4 5 6 7 8
S1
Auto-negotiation and
auto MDI/MDI-X disabled
ON
1 2 3 4 5 6 7 8
S1
Auto-negotiation and
auto MDI/MDI-X enabled
ON
1 2 3 4 5 6 7 8
S1
10 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S1
100 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S1
Half duplex selected
ON
1 2 3 4 5 6 7 8
S1
Full duplex selected
Port 4 settings
ON
1 2 3 4 5 6 7 8
S2
Auto-negotiation and
auto MDI/MDI-X disabled
ON
1 2 3 4 5 6 7 8
S2
Auto-negotiation and
auto MDI/MDI-X enabled
ON
1 2 3 4 5 6 7 8
S2
10 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S2
100 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S2
Half duplex selected
ON
1 2 3 4 5 6 7 8
S2
Full duplex selected
S1

19
6644-2214
Port 5 settings
ON
1 2 3 4 5 6 7 8
S2
Auto-negotiation and
auto MDI/MDI-X disabled
ON
1 2 3 4 5 6 7 8
S2
Auto-negotiation and
auto MDI/MDI-X enabled
ON
1 2 3 4 5 6 7 8
S2
10 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S2
100 Mbit/s speed selected
ON
1 2 3 4 5 6 7 8
S2
Half duplex selected
ON
1 2 3 4 5 6 7 8
S2
Full duplex selected
Port mirroring settings
ON
1 2 3 4 5 6 7 8
S2
No monitoring selected
ON
1 2 3 4 5 6 7 8
S2
Monitoring selected
Flow control selected
S3
Flow control selected
S3
No flow control selected
Factory settings
ON
1 2 3 4 5 6 7 8
S1
ON
1 2 3 4 5 6 7 8
S2 S3
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4

20 6644-2214
DIP switch settings SDW-541 and SDW-532
DIP-switches are accessible under the lid on top of the product. DIP-switches are used
to configure the product.
NOTE
When configuration via DIP-switches, the settings of DIP-switches configure the product
only after a reboot (power off/on).
Observe this when the DIP-switches are configured:
… Speed and duplex setting only valid when auto-negotiation is disabled.
… When monitoring selected all outgoing packets from the switch is also copied to the
port 1.
… Speed and duplex switch settings are ignored for FX ports.
… If auto-negotiation and auto MDI/MDI-X disabled all TX ports support MDI-X
configuration.
CAUTION - ELECTROSTATIC DISCHARGE (ESD)
Prevent electrostatic discharge damages to internal electronic
parts by discharging your body to a grounding point (e.g. use a
wrist strap).
WARNING - HAZARDOUS VOLTAGE
Do not open an energized product. Hazardous voltage may occur
when connected to a power supply.
