Western Digital Ultrastar Data102 User manual

Installation
Guide
Ultrastar Data102
Regulatory Model H4102-J
Document D018-000236-000
Revision 02
March 2022

Installation Guide Table of Contents
Table of Contents
Revision History.....................................................................................................................................iii
Notices...................................................................................................................................................vi
Points of Contact................................................................................................................................. vii
Product Label Information.............................................................................................................vii
Chapter 1. Overview.........................................................................................................1
Ultrastar Data102 Description..............................................................................................................2

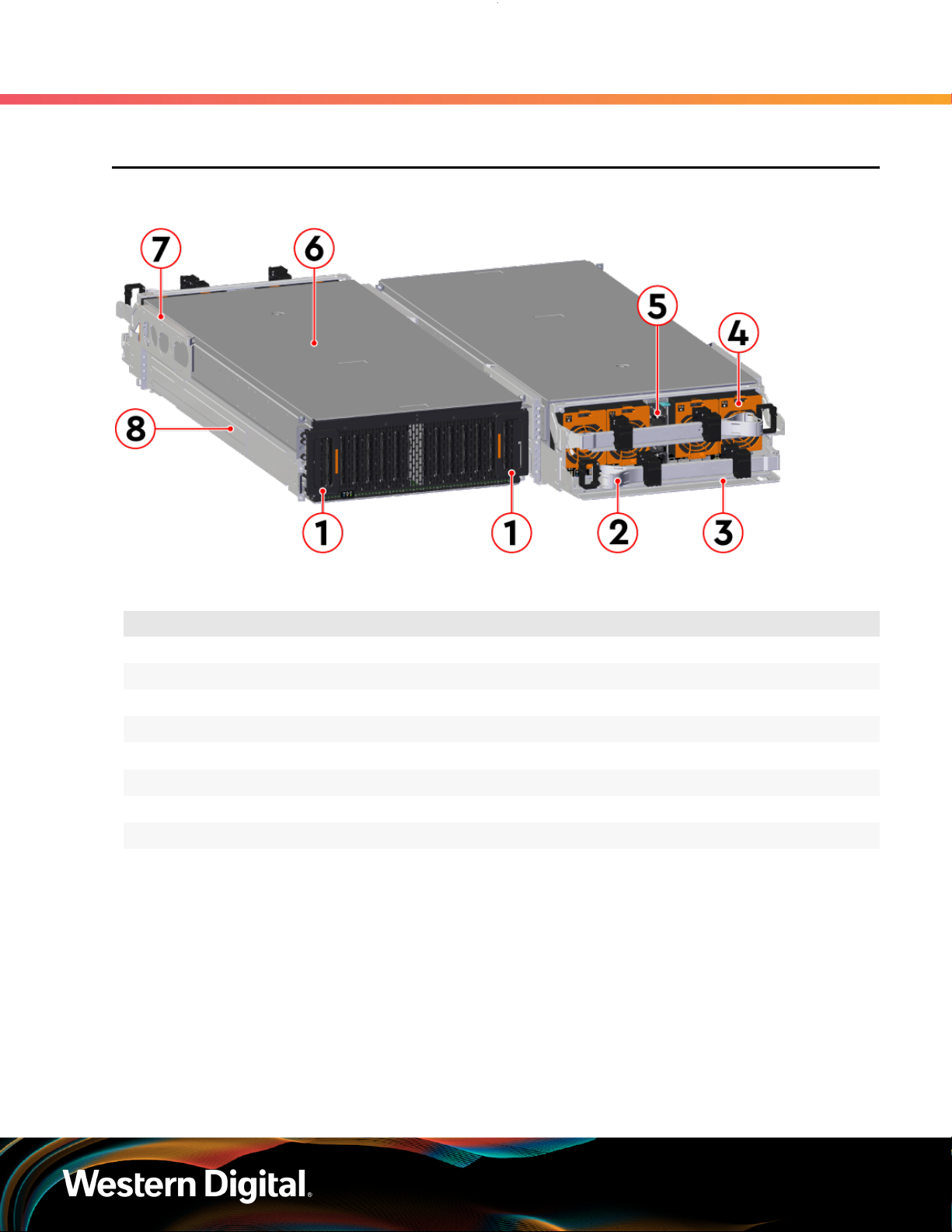

Ultrastar Data102 Layout......................................................................................................................2
Environmental Specifications...............................................................................................................4
Electrical Specifications....................................................................................................................... 4
Mechanical Specifications....................................................................................................................5
Performance Specifications................................................................................................................. 6
Ultrastar Data102 Rack Requirements.................................................................................................6
Compatible Rack Hardware Configuration................................................................................. 7
List of Compatible Drives....................................................................................................................9
Chapter 2. Disclaimers...................................................................................................21
Restricted Access Location...............................................................................................................22
Safety Compliance............................................................................................................................. 22
Electromagnetic Compatibility (EMC) Class A Compliance........................................................... 22
Country Certifications........................................................................................................................ 23
Chapter 3. Safety...........................................................................................................24
Safety Warnings and Cautions..........................................................................................................25
Electrostatic Discharge......................................................................................................................25
Optimizing Location...........................................................................................................................25
Power Connections............................................................................................................................26
Power Cords.......................................................................................................................................26
Rackmountable Systems....................................................................................................................26
i

Installation Guide Table of Contents
Safety and Service............................................................................................................................. 27
Chapter 4. Packaging....................................................................................................28
Ultrastar Data102 Packaging Overview.............................................................................................29
Ultrastar Data102 Unpacking Procedure...........................................................................................32
Chapter 5. Installation...................................................................................................35
Installation Overview..........................................................................................................................36
Cable Tray Installation (Optional)......................................................................................................37
Rails Installation.................................................................................................................................. 38
Chassis Installation............................................................................................................................. 49
CMA Installation..................................................................................................................................52
Cable Installation................................................................................................................................55
SAS Cabling.................................................................................................................................62
Special Considerations for Cable Routing................................................................................63
Cabling for CMA Standard and CMA Lite.................................................................................65
Top Cover Installation and Extension Test.......................................................................................68
Drive Installation................................................................................................................................. 70
Operating the 2.5" Drive Carrier............................................................................................... 75
Shipping Screws Installation..............................................................................................................77
Enclosure Power On.......................................................................................................................... 78
ii

Installation Guide Revision History
Revision History
Date Revision Comment
November 2017 1.0 Initial release
November 2017 1.1 •The crossbar on the CMA was changed. See the installation
instructions for details.
•Changed required rack depth, see Required Rack Depth (page
5).
•Changed typical power consumption, see Typical Power
Consumption (page 4).
December 2017 1.2 •Added active cable support
•Added a note regarding single IOMs in SATA TLAs. See Ultrastar
Data102 Description (page 2)
•Updated the Non-Op altitude specification. See Non-Operational
Altitude (page 4).
•Correct the packaging images to show the two CMA boxes that
come in the accessory tray. See Packaging Layout (page 29).
January 2018 1.2.1 Updated the product name
January 2018 1.2.2 Added an image for cage nut positioning in the installation procedure.
January 2018 1.3 •Updated information on the 2.5" drive carrier option. (topic
removed)
•Added torque requirements for all screws used in the enclosure.
•Updated the IOM replacement section to account for the possibility
of a firmware mismatch. (topic removed)
•Updated the drive assembly installation instructions to clarify the
orientation of the drive assemblies. See Installation (page 35).
April 2018 1.4 •Updated Compatible Drives List. See List of Compatible Drives
(page 9).
•Updated the Rack Requirements. See Ultrastar Data102 Rack
Requirements (page 6).
June 2018 1.5 •Updated the Compatible Drives List. See List of Compatible Drives
(page 9)
December 2018 1.6 •Updated Compatible Drives List. See List of Compatible Drives
(page 9)
March 2019 1.7 Updated Installation (page 35)
May 2019 1.8 Updated Installation (page 35)
July 2019 1.9
iii

Installation Guide Revision History
Date Revision Comment
•Updated servicing image to correct length values and rail servicing
extension in Ultrastar Data102 Rack Requirements (page 6)
section.
•Updated Installation Overview (page 36) section to include
options for cable management.
•Updated Installation (page 35) section to combine CMA
Standard and CMA Lite instructions where applicable.
•Updated Cable Configuration for CMA Lite (page 67)section to
correct instructions.
•Updated revision history to remove broken links to topics no longer
in this document.
November 2019 1.10 •Replaced references to He12 drives with Ultrastrar DC HC520 in List
of Compatible Drives (page 9)
•Updated images of chassis cover screws throughout
December 2019 1.11 •Rebranded document to WD design
•Updated the List of Compatible Drives (page 9)
April 2020 1.12 •Updated drive installation order in the Installation (page 35)
•Added SAS Cabling (page 62)
•Added note about minimum time between removing and
reapplying power in Power Connections (page 26)
August 2020 1.13 Updated SAS Cabling (page 62)
October 2020 1.14 •Updated images and text in Ultrastar Data102 Packaging Overview
(page 29) and Ultrastar Data102 Unpacking Procedure (page
32)
•Added the following to Installation (page 35):
◦Note about input voltage at plug-in step
◦Reference to User Guide after installation instructions
◦Note about installation of 2.5in SSD Assembly
•Added Operating the 2.5" Drive Carrier
•Updated table of approved SAS cables in SAS Cabling (page 62)
•Reordered cabling topics in Installation (page 35) section
December 2020 1.15 •Added UK Import Representation Contact
•Removed Formerica cables from SAS Cabling (page 62)
February 2021 1.16 •Added Ultrastar DC HC650 drives to List of Compatible Drives
(page 9)
•Updated Electrical Specifications (page 4) with Artesyn PSU info
iv

Installation Guide Revision History
Date Revision Comment
•Updated Installation (page 35) to include instructions for screw
plate
August 2021 1.17 •Removed Mexico from Country Certifications (page 23)
•Separated installation procedure into individual tasks by component
in Installation (page 35)
September 2021 01 Changed document number from 1ET1098 to D018-000236-000
March 2022 02 •Added drive model numbers to List of Compatible Drives (page
9)
•Reorganized SAS Cabling (page 62) section, added note
about compatibility between AOCs and 9300-, 9302-, and 9305-
series HBAs, and removed Amphenol ICC (FCI) passive cables
10112041-2010LF, -2020LF, and -2030LF
•Updated logo for detachable power cord in Safety Warnings and
Cautions (page 25)
•Updated drive installation instructions in Drive Installation (page
70)
v

Installation Guide Notices
Notices
Western Digital Technologies, Inc. or its affiliates' (collectively “Western Digital”) general policy does not
recommend the use of its products in life support applications wherein a failure or malfunction of the product
may directly threaten life or injury. Per Western Digital Terms and Conditions of Sale, the user of Western
Digital products in life support applications assumes all risk of such use and indemnifies Western Digital
against all damages.
This document is for information use only and is subject to change without prior notice. Western Digital
assumes no responsibility for any errors that may appear in this document, nor for incidental or consequential
damages resulting from the furnishing, performance or use of this material.
Absent a written agreement signed by Western Digital or its authorized representative to the contrary,
Western Digital explicitly disclaims any express and implied warranties and indemnities of any kind that may,
or could, be associated with this document and related material, and any user of this document or related
material agrees to such disclaimer as a precondition to receipt and usage hereof.
Each user of this document or any product referred to herein expressly waives all guaranties and warranties
of any kind associated with this document any related materials or such product, whether expressed or
implied, including without limitation, any implied warranty of merchantability or fitness for a particular
purpose or non-infringement. Each user of this document or any product referred to herein also expressly
agrees Western Digital shall not be liable for any incidental, punitive, indirect, special, or consequential
damages, including without limitation physical injury or death, property damage, lost data, loss of profits or
costs of procurement of substitute goods, technology, or services, arising out of or related to this document,
any related materials or any product referred to herein, regardless of whether such damages are based on
tort, warranty, contract, or any other legal theory, even if advised of the possibility of such damages.
This document and its contents, including diagrams, schematics, methodology, work product, and
intellectual property rights described in, associated with, or implied by this document, are the sole and
exclusive property of Western Digital. No intellectual property license, express or implied, is granted by
Western Digital associated with the document recipient's receipt, access and/or use of this document or the
products referred to herein; Western Digital retains all rights hereto.
Western Digital, the Western Digital logo, and Ultrastar are registered trademarks or trademarks of Western
Digital Corporation or its affiliates in the US and/or other countries. All other marks are the property of their
respective owners. Product specifications subject to change without notice. Pictures shown may vary from
actual products. Not all products are available in all regions of the world.
Western Digital
5601 Great Oaks Parkway
San Jose, CA 95119
© 2022 Western Digital Corporation or its affiliates. All Rights Reserved.
vi

Installation Guide Points of Contact
Points of Contact
For further assistance with a Western Digital product, contact Western Digital Datacenter Platforms technical
support. Please be prepared to provide the following information, as applicable: part number (P/N), serial
number (S/N), product name and/or model number, software version, and a brief description of the issue.
Email:
[e-mail]
Website:
https://portal.wdc.com/Support/s/
UK Import Representation Contact
Western Digital UK Limited
PO Box 471
Leatherhead KT22 2LU
UK
Telephone: [phone]
EU Import Representation Contact
Western Digital EU Limited
PO Box 13379
Swords, Co
Dublin, Ireland
1.1 Product Label Information
The following product information is required for technical support requests:
•Part Number (P/N)
•Serial Number (S/N)
•Product Name and/or Model Number (MODEL)
This information may be found on the product label, which is affixed to an exterior, non-removable surface of
the chassis. The following is an example label with the applicable information fields highlighted:
vii

Installation Guide Points of Contact
viii

Western Digital
Overview
This section provides a high level overview of the features of the
Ultrastar Data102 .
In This Chapter:
- Ultrastar Data102 Description.......................2
- Ultrastar Data102 Layout............................... 2
- Environmental Specifications........................4
- Electrical Specifications................................ 4
- Mechanical Specifications............................. 5
- Performance Specifications...........................6
- Ultrastar Data102 Rack Requirements..........6
- List of Compatible Drives..............................9
1

Installation Guide 1. Overview
1.1 Ultrastar Data102 Description
1.1 Ultrastar Data102 Description

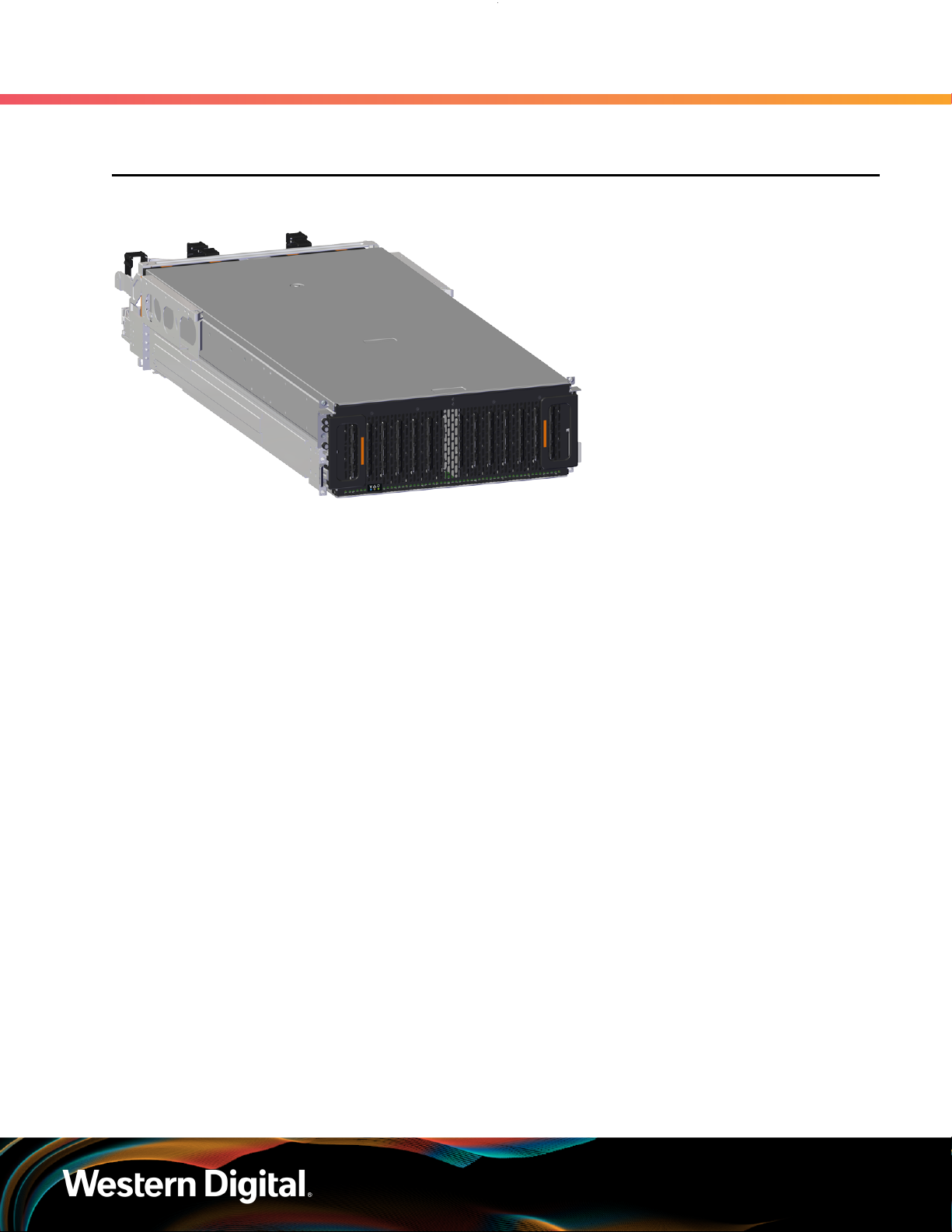

Figure 2: Ultrastar Data102
The Ultrastar Data102 is a 4U form factor, high availability, high density, rack-mounted storage enclosure. It
is capable of hosting up to 102 HDD drives (SAS or SATA), or hybrid support with up to 24 SSDs (SAS or
SATA) for a data acceleration tier. The maximum data storage capacity of the Ultrastar Data102 is 2.0PB
using 20TB Ultrastar® HC650 drives . (For a full list of compatible drives and total storage capacities, see
the List of Compatible Drives (page 9).) The enclosure runs on an input voltage of 200-240 VAC and
consumes ~1300W of power under typical conditions. It requires a maximum of ~1600W (Delta PSU) /
~1800W (Artesyn PSU) at full load.
It is designed to fit within a 4U rack space and requires 1181-1197 mm (46.5in. - 47.13in.) of usable rack space,
frame to frame . A fully loaded system will add 118.8 kg / 262 lbs. of static load when fully loaded with
drives.
•4U Storage Enclosure
•Supports up to 102 Drives
•Can support 3.5” drives and 2.5” SSD drives (2.5" requires an adapter) in the 102 available drive bays.
•Up to 12W per drive slot for the 102 data storage drives (Cannot exceed 85A on the 5V rail)
•House and control four (4) N+1 redundant 80mm rear fans
•House and control a dual rotor 40mm internal IOM Fan
•Controlled by two (2) redundant I/O Modules1
•Powered by two (2) redundant 1600W PSUs
•Supports High Line (220-240 VAC) Input Power
•Full high availability with independent dual paths to all HDDs
•Toolless replacement of all Customer Replaceable Units (CRUs)
•Fits within a standard EIA-310 rack including all necessary cable management (see Compatible Rack
Hardware Configuration (page 7))
•Supports up to 3m passive SAS cables (limited to 3m or less) or active cables (any length) (see SAS
Cabling (page 62))
1. SATA based models will only include 1 IOM
2

Installation Guide 1. Overview
1.2 Ultrastar Data102 Layout
1.2 Ultrastar Data102 Layout
Figure 3: Front and Rear Product Layout
Table 1: Front and Rear Component Identification
Number Component
1 Enclosure Handles
2 CMAs
3 CMA Tray
4 Rear Fans
5 PSUs (Delta PSUs shown)
6 Chassis Cover
7 Rear Cover Alignment Brackets
8 Rails
The following is an image of the layout of the major system components inside the Ultrastar Data102 .
3

Installation Guide 1. Overview
1.3 Environmental Specifications
Figure 4: Component Layout
1.3 Environmental Specifications
Table 2: Environmental Specification
Specification Non-Operational Operational
Temperature -40°C to 70°C 5°C to 35°C
Temperature Gradient 30°C per hour max 20°C per hour max
Temperature De-rating 1°C per 300m above 3000m 1°C per 300m above 900m
Relative Humidity 8-90% Non-Condensing 8-90% Non-Condensing
Relative Humidity Gradient 30% per hour maximum 30% per hour maximum
Altitude -300m to 12,000m /
-984 ft. to 39,370 ft
-300m to 3048m /
-984 ft. to 10,000 ft.
1.4 Electrical Specifications
Table 3: Electrical Specifications
Specification Value
Max Power Consumption ~1600W (Delta PSU) / ~1800W (Artesyn PSU)
4

Installation Guide 1. Overview
1.5 Mechanical Specifications
Specification Value
Typical Power Consumption2~1300W
Input Voltage 200-240 VAC
PSU Connector Type C14
PSU Efficiency 80 PLUS Platinum
Inrush Current Maximum (per
PSU)
AC line inrush current shall not exceed 40A peak, for up to
one-quarter of the AC cycle after which, the input current
should be no more than the specified maximum input current.
Caution: The Ultrastar Data102 can only be plugged into high line (200-240 VAC) power. If
the unit is plugged into low line (110-127 VAC), the PSU will report a "Critical" state when status
pages are queried using SES. In this case, the enclosure will power up, but the drives will not.
The enclosure will remain in low-power mode.
1.5 Mechanical Specifications
Table 4: Mechanical Specifications
Specification Non-Operational Operational
Shock 10G, 0 - peak,11ms half sine;
3 positive and 3 negative
pulses in each axis Shock
5G, 0 - peak, 11ms half sine; 3 positive
and 3 negative pulses in each axis-
minimum 6 seconds between shocks
to allow for write/read recovery
Vibration 0.75G, 0 - peak swept sine;
5 -500Hz; 1 complete sweep
@ 1/2 octave per minute
0.10G, 0 - peak swept sine;
5 -500Hz; 1 complete sweep
@ 1/2 octave per minute
Weight 118.8 kg / 262 lbs. 3
Enclosure Dimensions W: 447 mm x L: 1048.5 mm x H: 175 mm
/ W: 17.67 in. x L: 41.28 in. x H: 6.89 in.
CMA Standard: 1183mm / 46.57in.Length of Enclosure w/
CMA CMA Lite: 1148mm / 45.19in.
Required Rack Width 450 mm (17.72 in.) minimum width, with 465 mm (18.31 in.) ±
1.5 mm nominal hole spacing. See EIA-310 Rack Standard.
Required Rack Depth 1181-1197 mm (46.5in. - 47.13in.) of usable rack space, frame to frame
Rack Units (U) 4U
2. Max and typical power consumption values represent the output power to the system. Input power will vary depending
on the PSU efficiency and load sharing between PSUs.
3. Listed weight is for a dual-IOM enclosure, fully populated with 102 drives. It does not include the CMA, cable tray,
accessories, or packaging/shipping materials.
5

Installation Guide 1. Overview
1.6 Performance Specifications
Specification Non-Operational Operational
Vertical Rack Rail
Spacing
812.8 - 914.4 mm / 32 - 36 in.
1.6 Performance Specifications
Table 5: Performance Specifications
Specification Value
Number of Drive Slots 102
Data Transfer Rates 12Gbps SAS / 6Gbps SATA
Max Raw Data Storage Capacity 2.0PB using 20TB Ultrastar® HC650 drives
SAS Ports 12 x Mini-SAS HD (6 per IOM)
2 x 10/100/1G Ethernet
1.7 Ultrastar Data102 Rack Requirements
The Ultrastar Data102 is designed to be installed into a rack that meets the EIA-310 standard at a minimum
1181-1197 mm (46.5in. - 47.13in.) of usable rack space, frame to frame . The vertical rack rails must be set
between 812.8 - 914.4 mm / 32 - 36 in. to support the enclosure. It requires 4U of rack space, and it should
be installed into the rack at the lowest possible U height to keep the load on the rack balanced.
Table 6: Required Rack Specifications
Parameter Requirement
Rack Depth 1181-1197 mm (46.5in. - 47.13in.) of usable rack space, frame to frame
Rack Width 450 mm (17.72 in.) minimum width, with 465 mm (18.31 in.) ±
1.5 mm nominal hole spacing. See EIA-310 Rack Standard.
Rack Units (U) 4U
Vertical Rack Rail Spacing 812.8 - 914.4 mm / 32 - 36 in.
Static Load Rating 1360.7 kg. / 3000 lbs.
Dynamic Load Rating 1020.5 kg. / 2250 lbs.
Warning: When extended out of the rack on the rail system, the Ultrastar Data102 will be
~950 mm / 37.4in. extended outward. This may be a potential tipping hazard depending on
the configuration of the rack. Ensure that leveling feet, anti-tilt, and any other safety features
recommended by the specific rack manufacturers have been deployed before servicing.
The following section provides specific information necessary to install, service, and remove the Ultrastar
Data102 . The installation of the Ultrastar Data102 requires two people and a space of 1524mm / 60in.
in front of the installation space. The servicing of the enclosure requires one person and a minimum of
1219.2mm / 48in. of space in front of the installation space. The removal of the enclosure requires two
people, 1371mm / 54in. of space in front of the installation space, and 24in. on either side of the enclosure
for two people to remove the enclosure.
6

Installation Guide 1. Overview
1.7 Ultrastar Data102 Rack Requirements
Warning: The handles on the front of the chassis are not intended to be used to support the
weight of the Ultrastar Data102 . Lifting the unit by the chassis handles or trying to support the
unit on the handles can cause them to fail. This can cause serious damage to the unit or serious
bodily harm to those handling the unit. Always team lift the chassis by gripping the underside
of the unit, and never try to lift a chassis that is filled with drives.
Figure 5: Installation, Servicing, and Removal
Attention: Do not install or remove the enclosure while it is populated with drives. The fully
populated enclosure exceeds the amount of weight that a team of two should lift.
1.7.1 Compatible Rack Hardware Configuration
The following table(s) list the approved rack hardware configurations for the Ultrastar Data102 :
Table 7: Compatible Hardware Configuration 1
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor CRENLO/EMCOR Server Technology Server Technology Various
Part
Number
AS-160099-03
(Drawing
Number EMCOR
526121 Rev 5)
412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MBVPT-1B
(one kit per PDU) 4 x M6 x 16 Hex
Cap Screws
8 x M6 Fender
Washers
4 x M6 Hex Nut
with Nylon Lock
Quantity 1 2 2 Varies
7

Installation Guide 1. Overview
1.7 Ultrastar Data102 Rack Requirements
Table 8: Compatible Hardware Configuration 2
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor AFCO/Legrand Server Technology Server Technology Various
Part
Number
Options:
42RU –
WEDIT605
45RU –
WEDIT604
48RU –
WEDIT603
51RU –
WEDIT606
412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MB-40 None
Quantity 1 rack 2 1 N/A
Table 9: Compatible Hardware Configuration 3
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor TRIPP LITE Server Technology Server Technology Various
Part
Number
Options:
SR42UBDP (Rack)
SREXTENDER
25U (Rack
Extension)
SREXTENDER
42U (Rack
Extension)
SREXTENDER
48U (Rack
Extension)
412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MBVPT-1B None
Quantity 1 rack 2 1 N/A
Table 10: Compatible Hardware Configuration 4
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor APC/Schneider Server Technology Server Technology Various
Part
Number
AR3300W 412-0761-11_STV-4501
412-0761-20_STV-4502
KIT-MBVPT-1B
(one kit per PDU) 4 x M6 x 16 Hex
Cap Screws
8

Installation Guide 1. Overview
1.8 List of Compatible Drives
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
412-0761-23_STV-4503 8 x M6 Fender
Washers
4 x M6 Hex Nut
with Nylon Lock
Quantity 1 rack 2 2 Varies
1.8 List of Compatible Drives
HDD with 3.5-inch Drive Carrier
Table 11: Western Digital Ultrastar DC HC310
Drive Type Interface Sector
Size Encryption Volume Part Number / Model Number
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 6TB 1EX1189 / HUS726T6TALE604
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e TCG 6TB 1EX1188 / HUS726T6TALE601
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 6TB 1EX1187 / HUS726T6TALN604
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn TCG 6TB 1EX1186 / HUS726T6TALN601
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 6TB 1EX1185 / HUS726T6TAL5204
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 6TB 1EX1184 / HUS726T6TAL5201
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 6TB 1EX1853 / HUS726T6TAL5205
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 6TB 1EX1183 / HUS726T6TAL4204
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 6TB 1EX1182 / HUS726T6TAL4201
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 6TB 1EX1852 / HUS726T6TAL4205
Table 12: Western Digital Ultrastar DC HC320
Drive Type Interface Sector
Size Encryption Volume Part Number / Model Number
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 8TB 1EX1227 / HUS728T8TALE604
9

Installation Guide 1. Overview
1.8 List of Compatible Drives
Drive Type Interface Sector
Size Encryption Volume Part Number / Model Number
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 8TB 1EX1226 / HUS728T8TALE601
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 8TB 1EX1225 / HUS728T8TALN604
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn TCG 8TB 1EX1224/ HUS728T8TALN601
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 8TB 1EX1223 / HUS728T8TAL5204
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 8TB 1EX1222 / HUS728T8TAL5201
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 8TB 1EX1343 / HUS728T8TAL5205
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 8TB 1EX1221 / HUS728T8TAL4204
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 8TB 1EX1220 / HUS728T8TAL4201
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 8TB 1EX1342 / HUS728T8TAL4205
Table 13: Western Digital Ultrastar DC HC330
Drive Type Interface Sector
Size Encryption Volume Part Number / Model Number
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 10TB 1EX2440 / WUS721010ALE604
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 10TB 1EX2441 / WUS721010ALE601
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 10TB 1EX2438 / WUS721010ALN604
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SED 10TB 1EX2439 / WUS721010ALN601
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 10TB 1EX2435 / WUS721010AL5204
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 10TB 1EX2436 / WUS721010AL5201
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 10TB 1EX2437 / WUS721010AL5205
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 10TB 1EX2433 / WUS721010AL4201
Ultrastar DC HC330
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 10TB 1EX2434 / WUS721010AL4205
10

Installation Guide 1. Overview
1.8 List of Compatible Drives
Table 14: Western Digital Ultrastar DC HC510
Drive Type Interface Sector
Size Encryption Volume Part Number / Model Number
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 10TB 1EX0499 / HUH721010ALE604
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e ISE 10TB 1EX0497 / HUH721010ALE600
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 10TB 1EX0498 / HUH721010ALE601
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 10TB 1EX0496 / HUH721010ALN604
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn ISE 10TB 1EX0494 / HUH721010ALN600
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SED 10TB 1EX0495 / HUH721010ALN601
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 10TB 1EX0487 / HUH721010AL5204
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e ISE 10TB 1EX0485 / HUH721010AL5200
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 10TB 1EX0486 / HUH721010AL5201
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 10TB 1EX1341 / HUH721010AL5205
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 10TB 1EX0484 / HUH721010AL4204
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn ISE 10TB 1EX0482 / HUH721010AL4200
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 10TB 1EX0483 / HUH721010AL4201
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 10TB 1EX1340 / HUH721010AL4205
Table 15: Western Digital Ultrastar DC HC520
Drive Type Interface Sector
Size Encryption Volume Part Number / Model Number
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 12TB 1EX1015 / HUH721212ALE604
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e ISE 12TB 1EX1013 / HUH721212ALE600
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 12TB 1EX1014 / HUH721212ALE601
Ultrastar DC HC520 HDD SATA 6Gb/s 4Kn SE 12TB 1EX1012 /
