Westinghouse WB55F1D1 User manual
USER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
WB55F1D1
WB65F1D1
WB70F1D1
Interactive White Board
Owner’s Operating Manual
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
Contents
Safety Warning
Installation
Setting and Connections
Menu Operation
Troubleshooting
Care and Maintenance
Display Mode
Safety Warning
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
Placement
Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf.
Do not expose the unit to direct sunlight and other sources of heat.
Do not place the unit near appliances that create magnetic fields.
Do not handle liquids near or on the unit.
Never spill liquid of any kind into the unit
Do not put heavy objects on top of the unit.
Power Supply
Check that the unit’s operating voltage is identical with your local power supply.
Please unplug power supply and aerial plug during a thunder (lightening) storm.
Please unplug power supply, when there is nobody at home or not using over a long period
of time.
Please protect power cord from any physical or mechanical damage.
Please use power cord provided, don't modify or lengthen it.
Please check and ensure AC source is grounded.
For 55/65/70/84 inch Display equipment: Fuse rating in inlet is 6.3A, 250 VAC.
LCD Screen
Never use any other tough or sharp object to replace with the original touch-write pen.
Unplug the power supply before cleaning.
Clean the screen with a soft dustless dry cloth.
Never use water or detergent to clean the unit.
For deep clean, contact an authorized service center.
Please don't display the high brightness image on the screen for a long time.
Observation Distance
The best distance between audience and screen is 5-7 times that of screen size diagonally.
The best watching angle between audience and screen is within 176 degrees.
Temperature
Do not place the unit near a radiator or heater.
If your unit is suddenly moved from a cold to a warm place, unplug the power cord for
at least two hours allowing the moisture that may have formed inside the unit to dry.
Normal operating temperature is 0~40℃, storage temperature is -20~60℃
Humidity
Do not expose machine to rain, damp area or place near water.
Ensure the indoor operating humidity is 10~90%, storage humidity is 10~95%.
Ventilation
Keep all ventilation openings clear.
Ensure that the unit has enough space for ventilation around: left, right and back >10cm,
top> 20cm.
Earphone
Prolonged use of earphone with louder sound can affects your hearing.
Before using earphone, please turn down the sound volume.
Standby
Standby mode will not turn off the unit.
Double click standby key in order to activate standby mode.
Battery
Properly maintain the batteries and recycle the used batteries.
CAUTION
This is a Class A product, there may be a possibility to cause radio interference.
Installations
Open your package
1) Checking parts:
Warranty Card, Quick Use, Remote Control, Power Cord, VGA/USB/Audio/AV/YPBPR cables,
Batteries, hand-write-touch-pen and CD
2).The mobile bracket (matched) takes material object as the standard
3).The wall bracket (matched) takes material object as the standard
2) Installation
1).Please read “Mobile Bracket Installing Instruction” while installing.
2).Please read “Wall Bracket Installing Instruction” while installing.
Control Panel (located at the Front panel)
①powerDisplaypoweron/off
②VOL+/‐ Sound Volume adjustment
③P+/‐ MenuPositionup/down
④MENUTodisplayMENUimage
⑤SourceTo switch INPUT source
⑥
Poweron/off1(one):ON,0(zero):OFF
Input/Output Terminals
○
1 YPbPrYPbPrsignalinput(DVD,set‐top‐boxwithYPbProutputetc)
○
2 AUDIO OUT Earphone or to another external Audio equipment
○
3 AV-1 INComposite video and Audio signals (R-L)
○
4 AV-2 IN Composite Video and Audio signals (R-L) by RCA terminals
○
5 SPDIF-audioDigitalsoundsignalinterface
○
6 RS232Serial interface, Used for transfer data/commands
○
7 USB USB terminal (Touch panel) the same to #16
○
8 POWERPowerInlet
○
9 POWER PC Turn ON/OFF the internal PC power (if installed)
○
10 RESET PC Suspendallprogramscurrentlyrunning,thesystemre‐start
○
11 VGA-1 IN Analog RGB-1 input
○
12 VGA-2 INAnalog RGB-2 Input
○
13 VGA OUT VGAoutput
○
14 Audio-1 IN Audio‐1input(relatedtoVGA‐1input)
15 Audio-2 IN Audio‐2input(relatedtoVGA‐2input)
16 Mic IN Microphoneinput
17 USB USBterminal(touchpanel)thesameto#7
18 USB USBterminalforotherperipheralsuchasmouse,hard‐disk
19 HDMI-1 IN HighDefinitionMultimediaInterface‐1
20 HDMI-2 IN HighDefinitionMultimediaInterface‐2
5 Remote control
Remote Control Buttons` Function Description
1POWERPower supply switch, Turn on and off the AC source
2MUTEMute ON/OFF.
3P. M O D E Picture mode selection
4S.MODESound Mode selection.
5
Play/Pause
6FECClosetheLCDscreenonlylistentothecurrentsound
7
Stopthecurrentplayback
8RETURNReturn to previous channel
9
Previous/reverse
10
Fast forward
11
Next track
12
Fast reverse
13INFOShowsthecurrentsignalsourceinformation
14ASPECTTheimagedisplayisswitchedbetween16:9and4:3picturemodes
15▲Direction button ,press to move up
16◄Direction button, press to move left
17►Direction button, press to move right
18▼Direction button, press to move down
19ENTEREnter button, press to select status
20MENUDisplay MENU screen
21EXITESC/EXIT, Press to exit current status; DVD menu button.
22VGAAnalogRGB,VGAinput
23HDMIHDMIinputselection,alsobeswitchedbetweenHDMI1andHDMI2
24VIDEOVideoinputselection,alsobeswitchedbetweenvideo1andvideo2
25USBUSBterminal
26SOURCESourceinputsignalselection
27 VOL+、VOL-Sound Volume, increase and decrease
28ZOOMIncreaseordecreasethepicturezoomsize
29SLEEPSet the sleep time
NOTE: Functions related to PC will only work if internal PC is installed.
Functions related to DVD will only work if DVD module is installed.
2 Remote Control Instruction
Insert the Batteries
1 Remove the cover on the rear of the remote control
2 Insert two “AAA” batteries
3 Place the cover
Remote control area
Therangeofremotecontrolreceiverasshown
CAUTION
RISK OF DAMAGE IF BATTERY IS REPLACED WITH AN INCORRECT TYPE
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Connecting and Setting
For the safety of you and your unit, please do not connect any power source before the
external device is installed
1 External Computer and Touch Connecting
(1) Connect a VGA cable (15pin) between the PC-VGA Input and Output of external PC.
Connect an audio cable between the PC and display.
(2) Connect a USB cable between the external PC and USB terminal
(3) Plug-in the POWER cord and switch the display on.
(4) Start the external computer (Setup the touch driver).
(5) Press 1 (one) to turn the power on.
(6) Press INPUT and change source to PC.

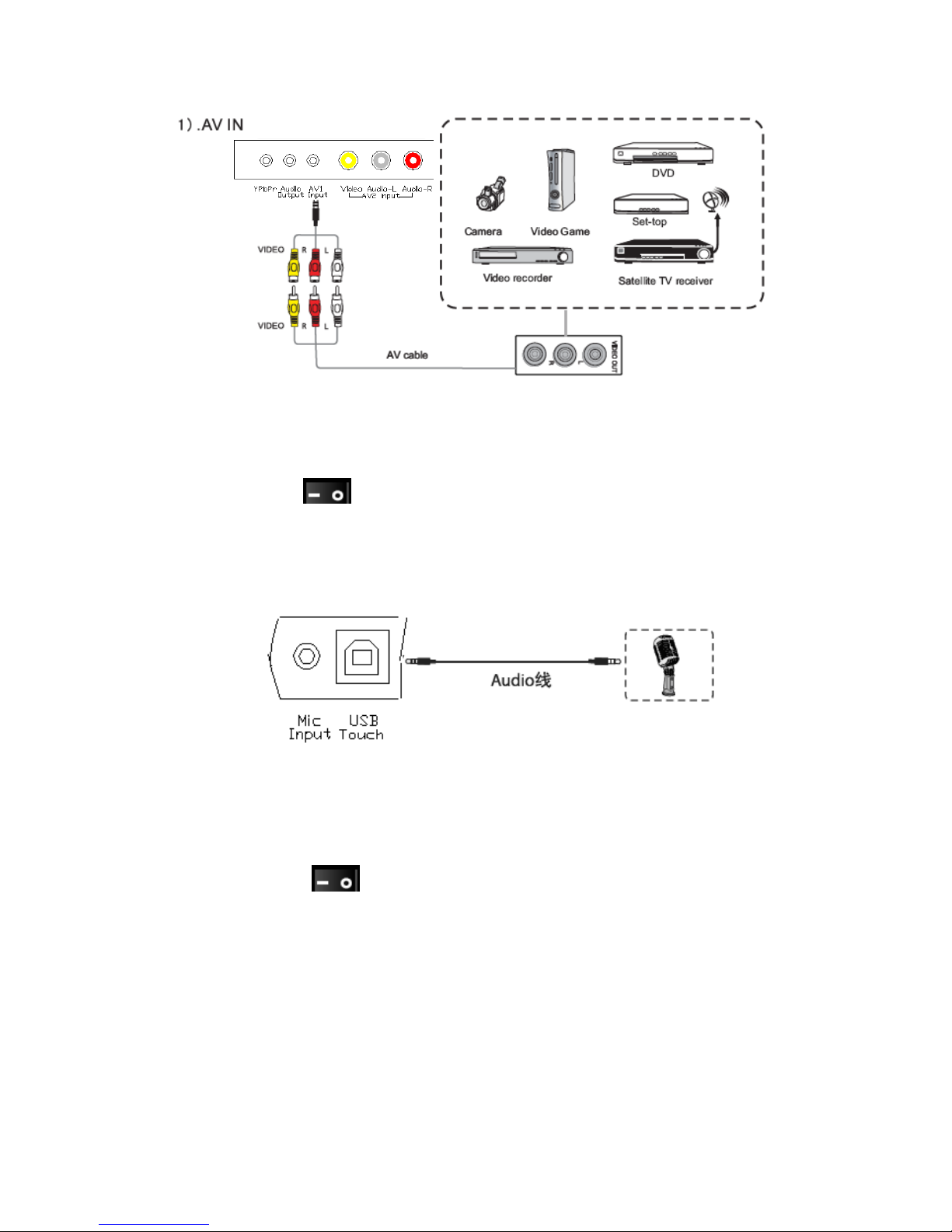

2 A/V Connection
(1) Connect an AV cable between display and external device through the AV out().
Yellow is Video, Red is Audio-R, White is Audio-L .
(2) Plug-in the POWER cord and turn ON the display.
(3) Press 1 (one) to turn the power on located on the front of the display.
(4) Press INPUT to change source to AV.
2）.MIC IN
(1).Connect microphone to the MIC IN jack.
(2).Plug-in the POWER cord and switch it on from the rear panel.
(3).Press 1 (one) to turn the power on.

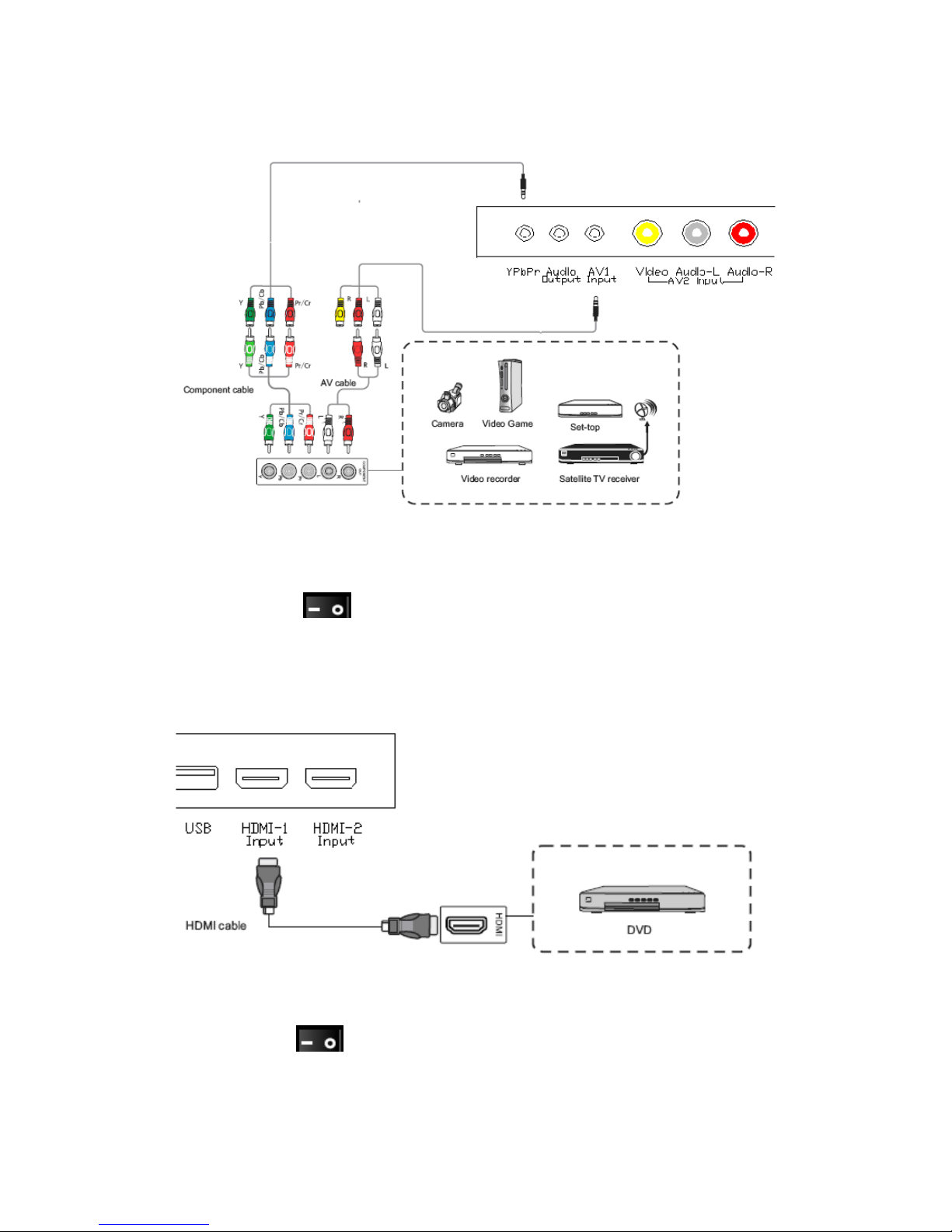

3). Y-Pb-Pr
(1). Connect the Y-Pb-Pr cable between the display and an external device.
(2). Plug-in the POWER cord and switch it on from the rear panel.
(3). Press 1 (one) to turn the power on.
(4). Press INPUT to change source to YPbPr.
4). HDMI1/ HDMI2
(1) Connect a HDMI cable from the display to an external device.
(2).Plug-in the POWER cord and switch it on from the rear panel.
(3) Press 1 (one) to turn the power on.
(4)Press INPUT to change source to HDMI.
3 Coaxial Connecting
(1) Connect a Coaxial cable from display to an external device.
(2) Plug-in the POWER cord and switch it on from the rear panel.
(3) Press 1 (one) to turn the power on
4 Video-OUT
1) VGA -OUT
(1) Connect a VGA cable from the display to an external device, Connect a Earphone cable
from the display’s audio-out to an external device.
(2) Plug-in the POWER cord and switch it on from the rear panel.
(3) Press 1 (one) to turn power ON.
(4) Press INPUT to change source input to PC.
(5) Setup the VGA-OUT or Multi-Screen in the internal computer.
Note: VGA-OUT can only output the image from an internal computer
Connections to Internal PC
1 Network cable 2 Microphone Cable 3 USB Device

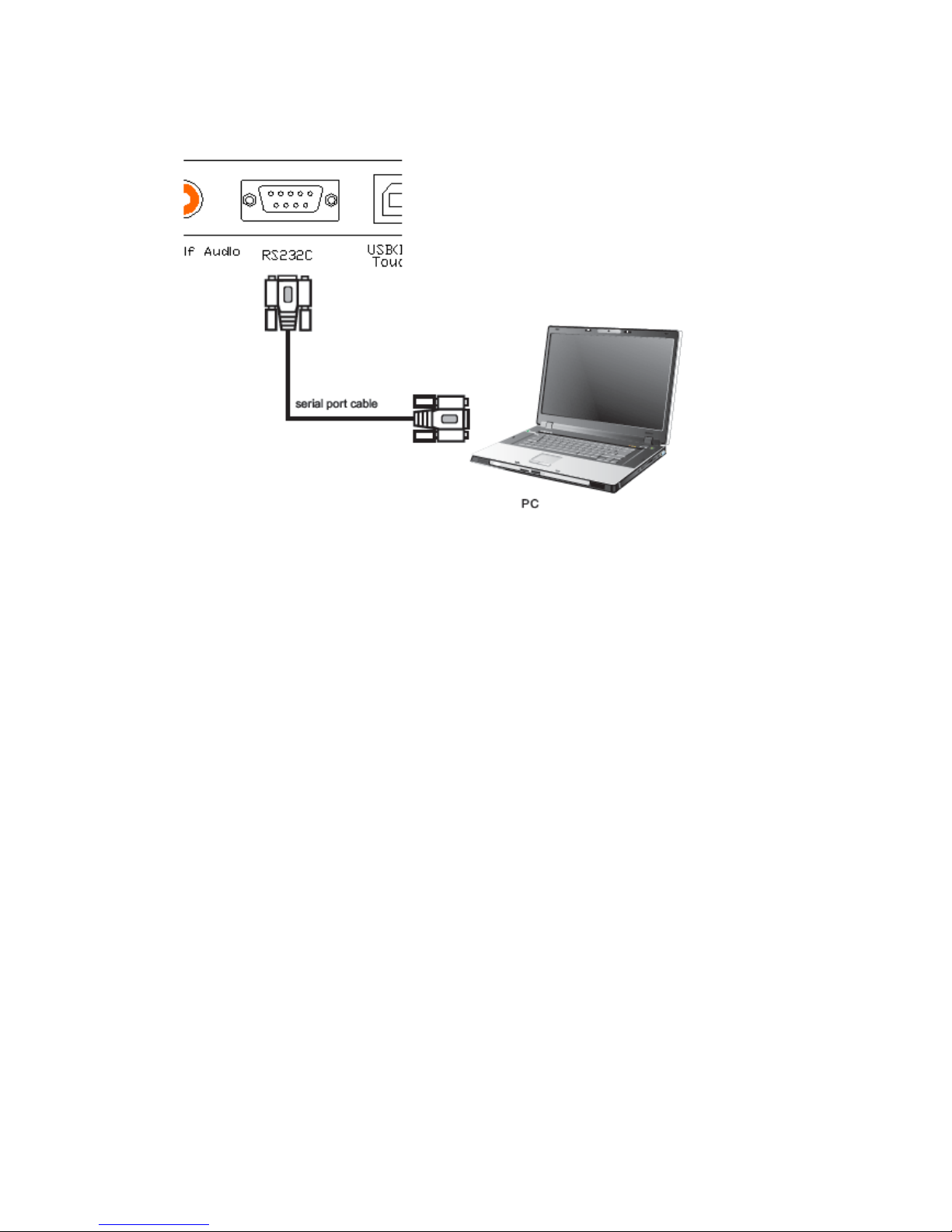

RS232 connection
After connecting the central control system and unit, you can use some
of the function, such as power on/off or adjust the volume etc.
Internal PC basic operations:
1. Wait about 30 seconds after installing PC to back of the display, press
POWER to turn on the TV and PC together;
2. While booting, press the POWER button, wait for 2 to 3 seconds and then
press the power button again to turn off the TV and PC together;
3. Turn on the PC source, select "WINDOWS" on the lower left corner of
the desktop or press the "WINDOWS" button on the remote control, and
then select the "off", then, turn off the PC but keep the TV on.
4. Turn on TV, the state of the PC is off, it is possible to turn on the
PC by pressing the INPUT button to select PC.

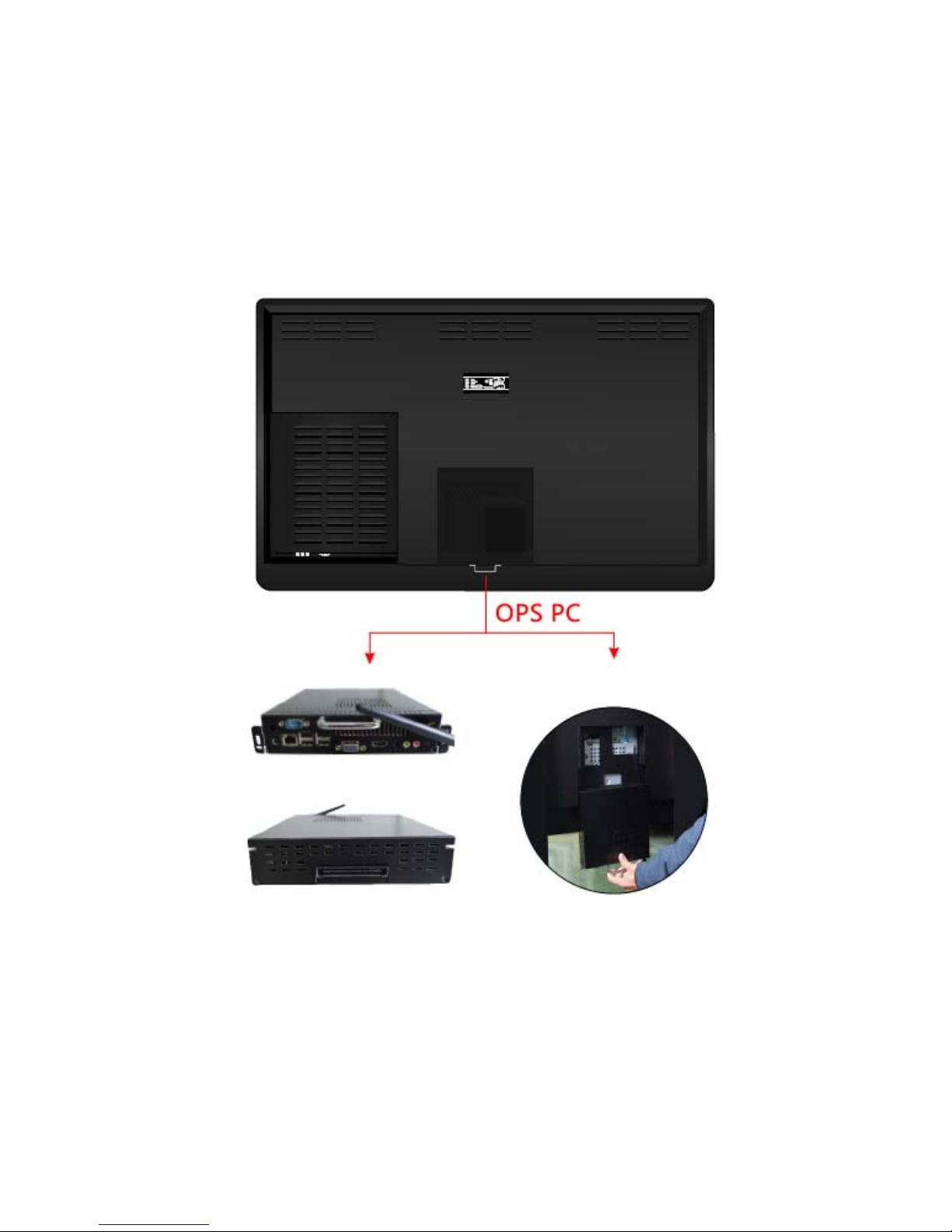

Internal PC unit (option) location
With the model which included the PC unit inside, the location of PC dock located at
behind of the set.
OSDOperation
1.Pressmenutodisplaythemainmenu.
2.Use"/"keytonavigatethroughthemenu.

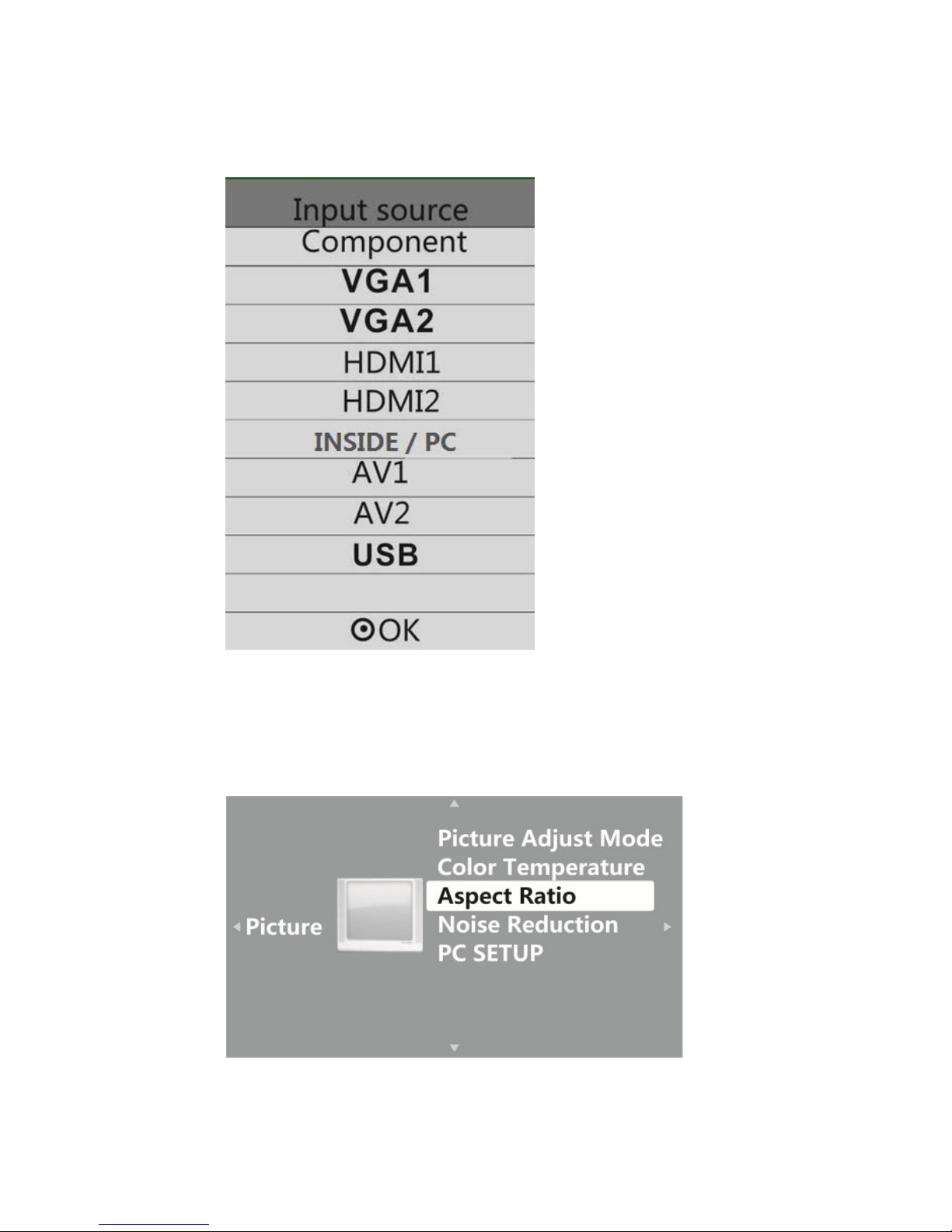

SourceMenu
Select"SourceMenu",use"▲
/▼
"tonavigateofeachfeaturepress"OK"tomaketheselection.
1.Press"Menu"keyaccessOSDmenu,use"/"toselect"Picture"menu.
2.Use"▲
/▼
"toselect"PictureMode",accessby"Enter"key,use"/"toselectthepicture
mode.
3.Use"▲
/▼
"toselect"ColorTem perature",accessby"Enter"key,use"/"toselect.
4.Use"▲
/▼
"toselect"AspectRatio16:9",accessby"Enter"key,use"/"toselect.
5.Use"▲
/▼
"toselect"NoiseReduction",accessby"Enter"key,use"/"toselect.
6.Use"▲
/▼
"toselect"PCSETUP",accessby"Enter"key,use"/"toselect.
Pressthe"Menu"keytoreturn.

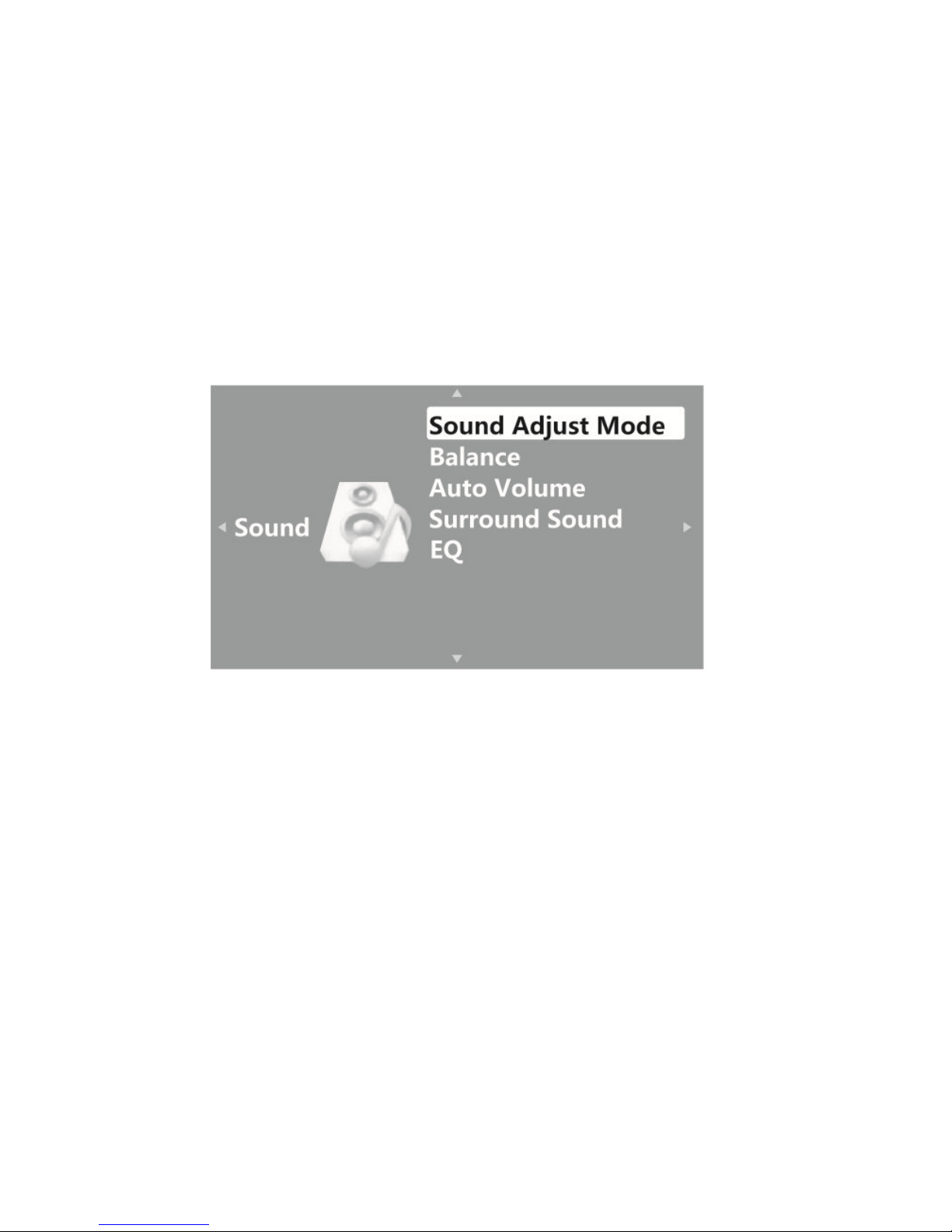

Sound
1.Press"Menu"keytoaccessOSDmenu,use"/"toselect"Sound"menu.
2.Use"▲
/▼
"toselect"SoundMode",accessby"Enter"key,use"/"tochoosetheselection.
3.Use"▲
/▼
"toselect"Balance",accessby"Enter"key,use"/"tochoosetheselection.
4.Use"▲
/▼
"toselect"AutoVolume",accessby"Enter"key,use"/"tochoosetheselection.
5.Use"▲
/▼
"toselect"SurroundSound",accessby"Enter"key,use"/"tochoosetheselection.
6.Use"▲
/▼
"toselect"SPDIFMODE",accessby"Enter"key,use"/"tochoosetheselection.
7.Use"▲
/▼
"toselect"EQ",accessby"Enter"key,use"▲
/▼
//"tochoosetheselection.Pressthe
"Menu"keytoreturn.
Time
