westrup LA-H User manual

Small Scale Brushing
Machine –LA-H
Machine No. LAH-2205
VERY IMPORTANT INFORMATION
This manual rank as the
“ORIGINAL INSTRUCTION”
according to directive 2006/42/EC
Instruction Manual
Manual number: INSTRUCTION MANUAL LAH-2205-W-EN-V01

Table of contents
Page 2
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
1Table of contents
Chapter Title Pages
1Table of contents 2
2EU Declaration of Conformity 4
2.1 Nameplate and Nomenclature.................................................................................................................................. 5
3General information 6
3.1 Introduction..................................................................................................................................................................... 6
3.2 Safety symbols & markings ....................................................................................................................................... 6
3.3 Warranty ........................................................................................................................................................................... 7
3.4 Disclaimer ........................................................................................................................................................................ 7
3.5 Operating conditions.................................................................................................................................................... 7
3.6 CE marking & approvals ............................................................................................................................................. 7
3.7 Consignment receipt & unpacking.......................................................................................................................... 8
3.8 Handling ........................................................................................................................................................................... 8
3.9 Storage............................................................................................................................................................................10
3.10 Standard color specification ....................................................................................................................................11
3.11 Recycling & end of product life .............................................................................................................................11
4Installation Guide 12
4.1 Placement of the machine .......................................................................................................................................12
4.2 Foundation.....................................................................................................................................................................12
4.3 Anchoring of the machine ........................................................................................................................................13
4.4 Electrical Connections ...............................................................................................................................................14
5Machine description 16
5.1 Introduction...................................................................................................................................................................16
5.2 LA-H Machine ...............................................................................................................................................................16
5.3 LA-HO Machine ............................................................................................................................................................17
5.4 Technical data ..............................................................................................................................................................17
5.5 Configuration of the LA-H machine ......................................................................................................................18
5.6 Configuration of the LA-HO machine...................................................................................................................18
5.7 Mantle .............................................................................................................................................................................20
6Operation Guide 22
6.1 Machine start-up & running-in...............................................................................................................................22
6.2 LA-H Process description..........................................................................................................................................24
6.3 LA-HO Process description.......................................................................................................................................25
6.4 Adjustment of the vibrator (Optional) ..................................................................................................................26
6.5 Trouble shooting list ..................................................................................................................................................27
7Maintenance Guide 28
7.1 General maintenance .................................................................................................................................................28
7.2 Maintenance schedule...............................................................................................................................................29
7.3 Mantle and Brushes ....................................................................................................................................................30
7.4 Cleaning the machine for change of product ....................................................................................................32
7.5 Cleaning of the entire plant.....................................................................................................................................33
7.6 Lubrication instructions ............................................................................................................................................34

Table of contents
Page 3
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
Chapter Title Pages
8Spare parts 35
8.1 Various parts .................................................................................................................................................................35
8.2 Drive assembly .............................................................................................................................................................36
8.3 LA-H machine parts ....................................................................................................................................................37
8.4 Electrical system..........................................................................................................................................................38
COPYRIGHT
All information included in this Instruction Manual is based on the latest information available at the time of
printing. We reserve the right to make changes at any time without prior notice and without incurring any obligation
whatsoever. Photocopying of this publication is allowed for internal operational and educational purposes only.
Otherwise, all copyright protection applies.

EU Declaration of Conformity
Page 4
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
2EU Declaration of Conformity
We at
Westrup A/S
Sorøvej 21, DK-4200 Slagelse, Denmark
Phone: [phone]
Fax: [phone]
Declare, under our own responsibility, that the following product is covered by this declaration:
Machine
LA-H
Serial Number
LAH-2205
The machine complies with the following HARMONIZED STANDARDS:
EN ISO 12100
EN ISO 13857
EN ISO 13854
EN 60204:1-2018
Safety of machinery –General principles for design –Risk assessment and risk
reduction
-Safety distances to prevent hazard zones being reached by upper and lower
limbs
-Minimum gaps to avoid crushing of parts of the human body
-Electrical equipment of machines
And is in conformity with the COUNCIL DIRECTIVES:
2006/42/EC
2014/30/EU
2014/34/EU
Machinery Directive
EMC Directive
ATEX Directive
Signed at Westrup on 14.07.2022
Flemming Dam
Technical Manager
The content of the EU Declaration of Conformity complies with Directive 2006/42/EC, Section 1.7.4.2. (c)

EU Declaration of Conformity
Page 5
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
2.1 Nameplate and Nomenclature
The nomenclature characteristics shown on the
nameplate fixed on your machine are shown below:

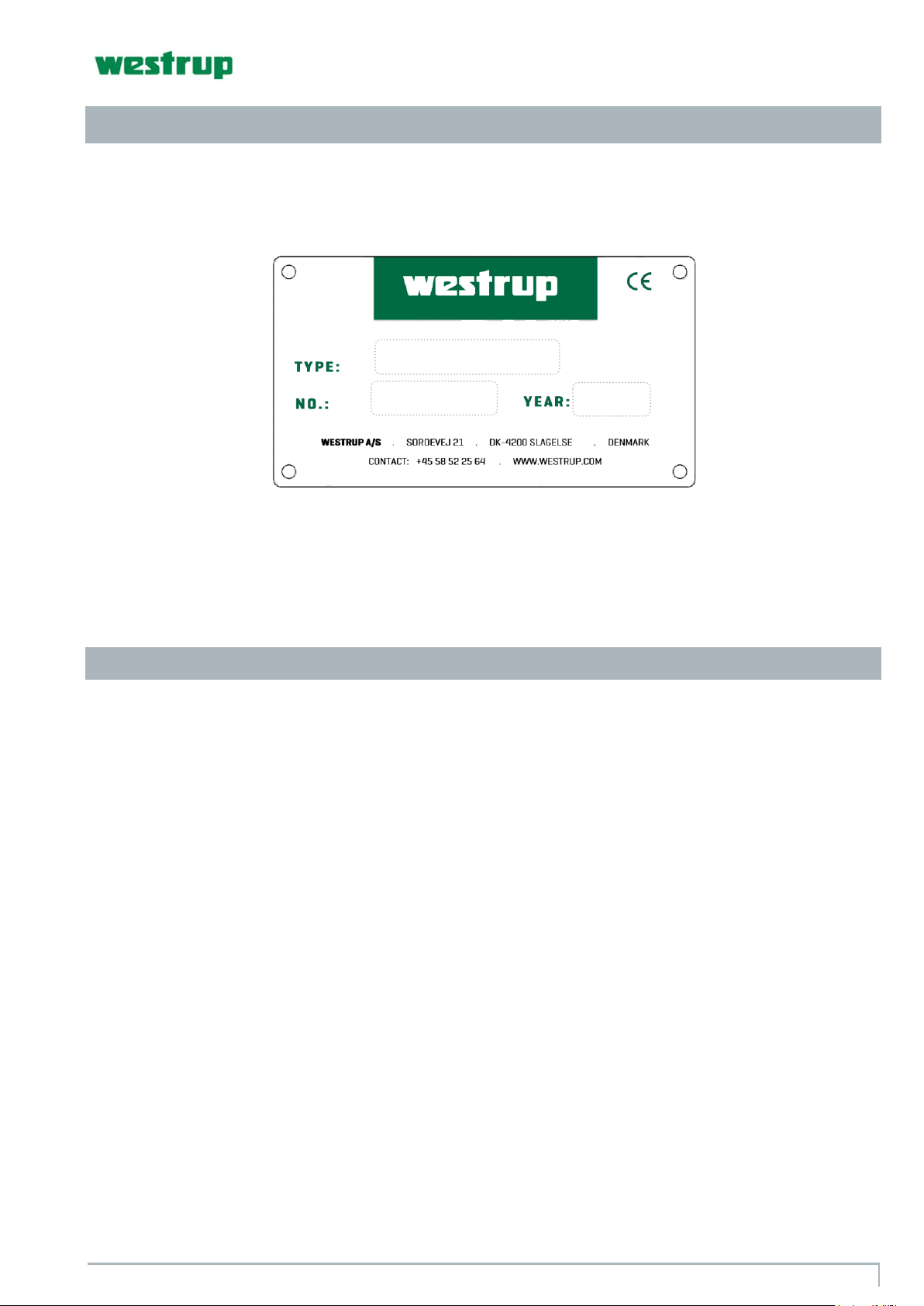

Figure 2-1: Nameplate
Label on the machine, punched or marked with:
1. Type of machine.
2. Production serial number.
3. Manufacturing year.
For any communication with us on your machine or
for ordering spares parts, the production serial
number must be used.
2.1.1 Type of machine
Example: LA-X/XX
LA-H- is the short name of the machine
1
2
3

General information
Page 6
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
3General information
3.1 Introduction
This instruction manual applies to LA-H small-scale
brushing machines. It explains all features,
accessories, and options. Therefore, you may find
explanations for equipment not part of your machine.
By reading the manual carefully, you learn about
features, important safety information and operation
under various conditions.
ALL OPTIONAL FEATURES ARE MARKED
AS "OPTIONAL" THROUGHOUT THE
MANUAL.
Operating the machine in compliance with these
instructions is very important to help ensure reliability
of the machine and avoid risks.
DAMAGE CAUSED BY INCORRECT
HANDLING, INSTALLATION OR
OPERATION WILL AFFECT THE
WARRANTY ADVERSELY.
YOUR MACHINE MAY HAVE ANY OF THE
OPTIONAL SUBASSEMBLIES BASED ON
YOUR ORDER AND REQUIREMENT.
3.2 Safety symbols & markings
The below attention signs indicate very important
messages. Non-observance will cause a hazard.
Table 3-1: Symbols
Symbol
Description
Explanation
Electric hazard
Electrical safety instructions where non-compliance will involve a high
risk to personal safety or loss of life.
Warning / Take notice
Advice, tips or information helpful for safe operation of the machine.
Caution
Caution notes for operators.
Safety instructions
Safety instructions where non-compliance will involve some risk to safe
operation and personal safety and could damage the equipment or
property.
Do not reach
Guards must not be removed when the machine is ON.

General information
Page 7
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
3.3 Warranty
IMPORTANT
The machine has been assembled and tested at the
factory.
Handling and installation should be carried out by
skilled personnel familiar with machines of this type.
If installation is carried out by unskilled personnel, we
cannot give any warranty of function and durability.
The warranty will lapse if installation has not been
done correctly as per this manual.
3.4 Disclaimer
We manufacture our equipment according to
international quality standards as certified and
audited by external quality assurance organizations.
Damage or failure caused by misuse is not covered by
the warranty.
Note that any modification of the machine or removal
of original components may impair the function and
safety of the equipment.
All pipe connections - customer delivery - must be
mounted according to local safety regulations.
3.5 Operating conditions
The machine must not be operated beyond the
parameters specified for the application.
If there is any doubt as to the suitability of the
machine for the application intended, contact us for
advice, quoting the serial number.
IF THE OPERATING CONDITIONS FOR
YOUR MACHINE ARE CHANGED, IT IS
REQUESTED THAT YOU SEEK OUR
WRITTEN AGREEMENT BEFORE START-
UP.
3.6 CE marking & approvals
We conform to the legal requirement that machinery
and equipment put into service within certain regions
of the world shall conform to the applicable CE
marking directives covering machinery and, where
applicable, high voltage equipment and equipment
for potentially explosive atmospheres (ATEX).
Where applicable, the manual incorporates
information relevant to these directives and
approvals.
To confirm the approvals applying, and whether the
machine is CE marked, check the serial number plate
markings and the certification.

General information
Page 8
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
3.7 Consignment receipt & unpacking
IMPORTANT
Immediately after receipt of the equipment, it must be
checked against the delivery and shipping documents
for its completeness and that there has been no
damage in transportation. Later claims are not
accepted..0
Check crates, boxes, and wrappings for accessories or
spare parts that may be packed separately with the
equipment or attached to sidewalls of the box or
equipment.
Each machine has a unique production serial number.
Check that this number corresponds with that printed
on the invoice and always quote this number in
correspondence and when ordering spare parts or
further accessories.
3.8 Handling
Proper handling of the machine, done by skilled
personnel familiar with this kind of equipment, is
essential for safe and long service life of the machine.
The guidelines should be followed carefully. However,
they do not relieve the purchaser from full
responsibility or proper inspection and handling.
Damage due to improper handling or installation is
the sole responsibility of the purchaser.
THE MACHINE IS EXTREMELY HEAVY
AND SHOULD BE HANDLED AND MOVED
CAREFULLY, SO THAT NO EXTERNAL
DAMAGE IS DONE TO THE MACHINE
AND ITS PARTS.
A PALLET TRUCK/FORKLIFT SHOULD BE
USED FOR UNLOADING AND LIFTING
THE MACHINE AND ITS PARTS. MANUAL
HANDLING OF THE MACHINE HAS A
HIGH RISK FOR PARTS DAMAGE AND
SAFETY HAZARDS.
Unloading the machine from the container:
Before using a forklift to handle the machine, pad the
forks to lessen the chance of damaging the machine
frame.
Using a suitable forklift, insert the forks below the
pallet.
Lift the machine slightly above ground level and with
a slow speed pull the machine from the container or a
truck.
When pulling the machine out of the container,
ensure there is sufficient space between the machine
and the container wall so that the machine is not
damaged or scratched as this can result in failure of
the machine.

General information
Page 9
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
3.8.1 Unpacking the crates
IMPORTANT
When the crate with the machine and subassemblies
has been moved to the final location, the machine
and parts should be unloaded from the crate.
Balance the crate uniformly in equilibrium while
unloading the parts from the crate.
Break the straps holding the parts together - one at a
time.
This process needs to be carried out very carefully by
cutting the metal straps with a sheet metal cutter.
When the top saddle is freed, proceed with freeing the
side straps.
Please call our service department for advice, if in
doubt.
PLEASE ALSO READ CHAPTERS 4 & 5
FOR INSTALLATION ADVICE AND
MACHINE DESCRIPTION BEFORE YOU
PLACE THE MACHINE IN ITS FINAL
POSITION.
3.8.2 Lifting
To increase the safety and efficiency of the lifting
device, all lifting elements must be as perpendicular
as possible. If necessary, a wooden padding be placed
between the pallet truck/forklift and the load. See
Figure 3-1.
When heavy items are lifted up, never stay or work
under the load or in the area, in case it should fall
down.
NEVER LEAVE A LOAD IN LIFTED STATE
ON A PALLET TRUCK. THE
ACCELERATION OR THE DECELERATION
OF LIFTING EQUIPMENT MUST STAY
WITHIN THE SAFETY LIMITS FOR THE
STAFF.
WHEN HANDLING, ALWAYS WEAR
GLOVES, SAFETY BOOTS AND AN
INDUSTRIAL SAFETY HELMET.
Lifting instructions:
Use handling means in accordance with the weight of
the machine –for weight values see dimensional
drawing
To avoid distortion, the unit should be lifted as shown in
below figure.
Figure 3-1: Lifting of machine

General information
Page 10
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
3.8.3 Noise level for machine
After installation, during the running in of the
machine, a noise measurement should be made and, if
necessary, further noise attenuation should be
affected around the machine.
The effective sound pressure level depends on
mounting and the product to be handled.
The correct level can therefore not be stated here,
however, our measurements without product have
shown below values (when tested as per DIRECTIVE
2006/42/EC 1.7.4.2. u) on airborne noise emissions:
Without fan:
With fan:
approx. 78 dB (A)
approx. 83 dB (A)
3.9 Storage
In case the machine needs to be stored for later
installation, we recommend storing the machine and
its parts in the received packaging.
The guidelines for storage Table 3-2 should be
followed as well as below information:
Place the machine on a level surface.
Do not place any objects on the machine.
Table 3-2: Storage guidelines
Product
Storage
Unpacked equipment
Packed in wooden box
Packed in container
A
Machine with wooden parts
Inside dry room with
low humidity and
covered with tarpaulins
Inside dry room with
low humidity
Inside dry room with
low humidity
B
Equipment of steel construction
Inside dry room with
normal humidity and
covered with tarpaulins
Inside dry room with
normal humidity
Outside under roof
C
Control panel and other
electronic equipment
Inside dry room with
temperature above
10°C (50°F) and
covered with tarpaulins
Inside dry room with
temperature above
10°C (50°F)
Inside dry room with
temperature above
10°C (50°F)

General information
Page 11
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
3.10 Standard color specification
All standard machines will be in White color with
Shade RAL 9010.
The international codes for our standard paint are:
The machine could be painted in a different color as
per requirement.
YOUR MACHINE MIGHT BE WITH
ANOTHER COLOR.
Table 3-3: Standard color
COLORS
RAL NUMBER
Sherwin Williams Paints for USA / CANADA
WHITE:
RAL 9010
Pure White B 54 W 101 (7907-99993)
Yellow -1/128
3.11 Recycling & end of product life
At the end of the product life of the machine or its
parts, the materials and parts should be recycled or
disposed of using an environmentally acceptable
method complying with local regulations.
If the machine contains substances, which are harmful
to the environment, these should be removed and
disposed of in accordance with current regulations.
The machine is dismounted, and the entire unit is
taken to a place with forklift/pallet truck capacity and
adequate space for sorting the different parts as they
are being removed.
The single machine sections should be split so that
the all-machine parts can be dismounted.
The machine frame is split so that it can be easily
scrapped.
Below is a list of how the single parts should be
handled:
•Cables are recycled.
•Electronic parts are scrapped according to
directive (96/2002 CEE) and sent to a
collection place or recycling contractor.
•Glass fittings etc. are sent for separate
recycling.
•Motors are sent for dismantling and final
scrapping.
•V-belts are put up for incineration.
•Metal parts are considered as ordinary scrap.
•Wood, rubber, and fiberglass springs are put
up for incineration.

Installation Guide
Page 12
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
4Installation Guide
4.1 Placement of the machine
The machine should be placed so that there is
sufficient space for preventive maintenance and
replacement or cleaning of screens.
This means that there should be a free distance from
the screen removal end to the nearest wall or other
obstacle; see information on the dimensional drawing.
4.2 Foundation
The correct foundation depends on the size of the
machine and the actual static and dynamic loads.
Use anchor bolts of accepted standards and of
sufficient size in accordance with the size of bolt
holes to ensure safe fitting of the machine to the
foundation.
IN CASE YOU HAVE ANY QUESTIONS,
YOU MAY CONTACT US.
NON-COMPLIANCE WITH THE
PROVISION OF A SUITABLE AND
CORRECT FOUNDATION MAY LEAD TO
FAILURE OF THE MACHINE AND WILL
AFFECT THE WARRANTY ADVERSELY.

Installation Guide
Page 13
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
4.3 Anchoring of the machine

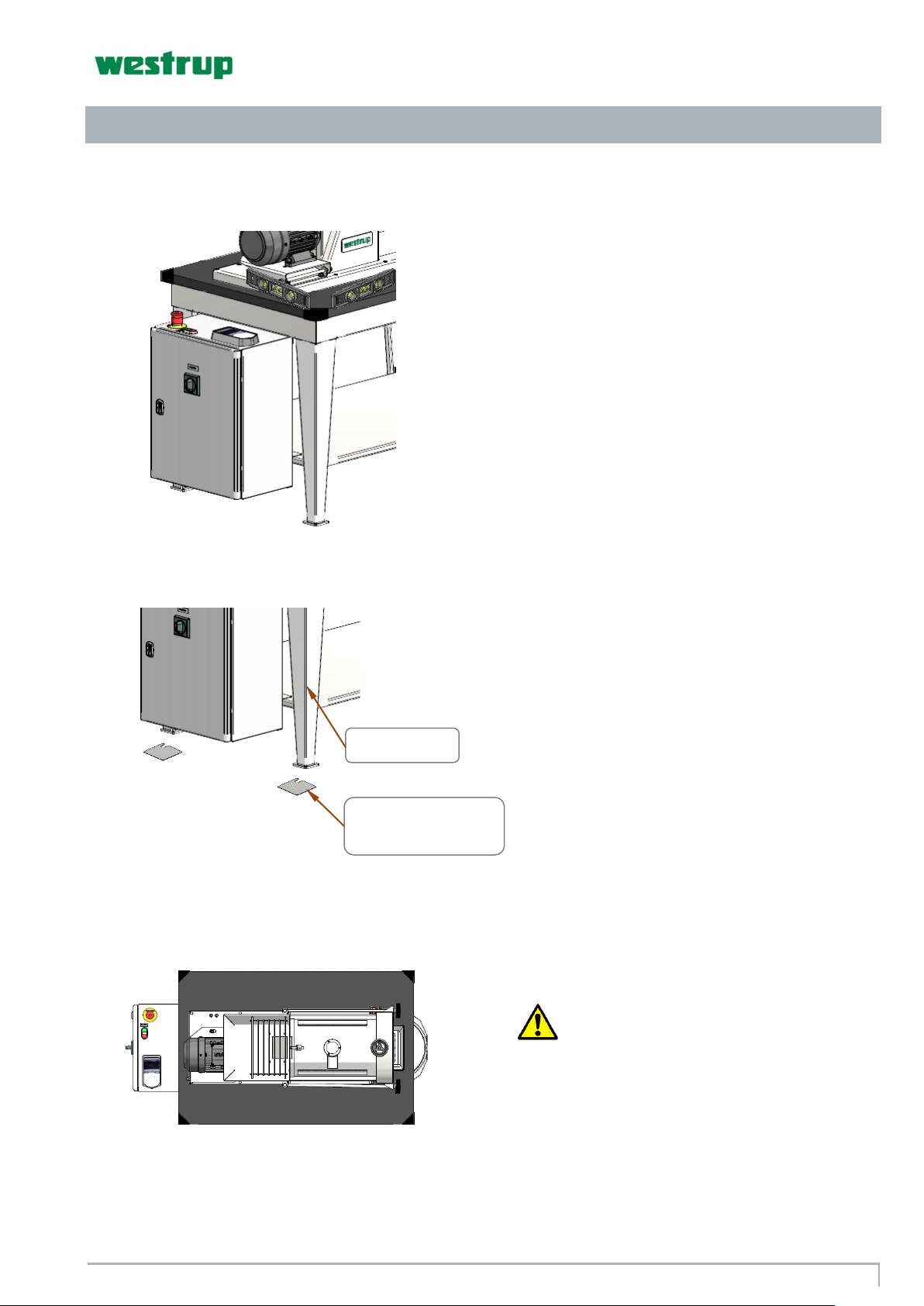

Figure 4-1: Levelling of machine
Figure 4-2: Shim plate
Figure 4-3: Anchoring
Step 1:
•Clean the foundation surface thoroughly
before bringing the machine to the place
selected for anchoring.
•Place the machine in its final position.
•Use spirit levels (See Fig. 4-1) to check
whether the machine is level or needs to be
aligned with shim plates.
•If alignment is needed, lift one end of the
machine and place full width shim plates (Fig
4-2 customer delivery) on the foundation
surface at the two anchoring points.
•Repeat the above for the other end.
Step 2:
•Use additional full width shim plates (See Fig:
4-2) to level the machine in both width and
length direction with the use of a spirit level.
Step 3:
•Fit nuts on the anchoring bolts (customer
delivery) at all four corners A1, A2, B1, and
B2, and tighten the bolts (Fig 4-2).
•Loosen the anchor bolts in points A1 and B2.
•Start the machine and measure the gap
between the bottom of the machine frame
and the shim plates on the floor at points A1
and B2.
•Pack the gap at points A1 and B2 with
suitable thickness shim plates.
•After ensuring that there are no gaps at
points A1 and B2, tighten the anchoring bolts
at these points.
•Follow the same steps for points A2 and B1.
THE MACHINE MUST NOT BE DISTORTED
OR PULLED DOWN TO THE FOUNDATION
DURING ANCHORING.
B1
B2
A1
A2
Machine frame
Full width shim plate
(65 x 65 mm)

Installation Guide
Page 14
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
4.4 Electrical Connections
THE CUSTOMER IS RESPONSIBLE FOR
ENSURING CORRECT ELECTRICAL WORKS
ARE PROPERLY COMPLETED.
An authorized electrician should make the electrical
connections to the electrical cabinet from the mains,
as per the attached electrical circuit drawings (See
Page 15).
ELECTRICAL REGULATIONS EN 60204-1
ALONG WITH ALL LOCAL REGULATIONS
FOR ELECTRICAL SECURITY SHOULD BE
OBSERVED.
THE MACHINE IS PROVIDED WITH ALL
REQUIRED CONNECTIONS FROM
ELECTRICAL CABINET TO THE MOTORS,
EMERGENCY STOP AND SWITCHES.
ALL ELECTRICAL WORKS ARE TO BE
PERFORMED BY A QUALIFIED
ELECTRICAL PRACTITIONER.

Installation Guide
Page 15
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01

Machine description
Page 16
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
5Machine description
5.1 Introduction
The LA-H small-scale brushing machine is designed
for batch or continuous processing of small volumes
of seeds or grain prior to cleaning and grading
processes.
The LA-H brushing machine is in standard
construction delivered with feeding tray, one mantle
with two brushes, two collection bins/drawers/boxes,
inspection window, drive system with control panel
and frequency converter, 1 x 240 V, 50 Hz.
The LA-H is mainly used for separation of grass seeds
sticking together as well as polishing, de-hulling or
peeling of different seed and grain products.
The LA-H0 brushing machine is mainly used for
brushing the surface on different seeds and grain
products (e.g. bunt on wheat, saponin from quinoa,
and oats for horse feed).
5.2 LA-H Machine
The LA-H brushing machine offers the below features:
•Feeding tray with open/close shutter.
•One-section exchangeable standard mantle.
•Rotating shaft with two internally adjustable
brushes or steel beaters.
•Manually adjustable brushing degree.
•Collecting drawers for prime product and
removed product.
•Dust suction unit for connection to aspiration
spout on top of the machine.
The machine can also be delivered with:
•Inlet with vibrator feeder (instead of feeding
tray)
•Outlet pipes for transport of product to floor
level
•Vacuum cleaner with collecting bucket
•Extension for inlet hopper (25 l)
•Autotransformer and switch 110 V, 60 Hz
Figure 5-1: LA-H standard machine

Machine description
Page 17
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
5.3 LA-HO Machine
The LA-H0 brushing machine offers the below
features:
•Inlet with capacity shutter and vibrator feeder
in place of feeding tray.
•Air intake for aspiration in full length of the
mantle with filter.
•Outlet with rotary valve for prime product
from the end of the mantle.
•Connection pipe for external aspiration
system.
The machine can also be delivered with:
•Vacuum cleaner with collecting bucket
•Extension for inlet hopper (25 l)
•Autotransformer and switch 110 V, 60 Hz
Figure 5-2: LA-HO standard machine
5.4 Technical data
Table 5-1: LA-H Technical data
Description
LA-H
Motor, Mantle kW
0.75
Motor, vibrator feeder kW (Optional)
0.05
Dust suction unit/extractor kW (Optional)
1.20
Table 5-2 : LA-HO Technical data
Description
LA-HO
Motor, Mantle kW
0.75
Motor, vibrator feeder kW
0.05
Motor rotary valve W
6.0
Dust suction unit/extractor kW (Optional)
1.20

Machine description
Page 18
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
5.5 Configuration of the LA-H machine
Figure 5-3: LA-H Standard machine configuration
5.6 Configuration of the LA-HO machine
Figure 5-4: LA-HO Standard machine configuration with Optional bucket.
ALSO SEE PROCESS DESCRIPTION.
ALSO SEE PROCESS DESCRIPTION.
Feeding tray
Electrical cabinet
Waste collection box
Dust extraction pipe
Outlet gate
Drive motor
Outlet end
Vibrator feeder
Electrical cabinet
Prime product collection
bin/bucket
Waste collection trough
with dust extraction pipe
Air filter
Mantle angle adjuster
Drive motor
Outlet end
Outlet with rotary valve
with 6 W motor

Machine description
Page 19
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
5.6.1 LA-H/LA-HO Extended Inlet Hopper (25 l) (Optional
Figure 5-5: LA-H/LA-HO extended inlet hopper (Optional)
5.6.2 LA-H/LA-HO 20L Bucket (Optional)
5.6.3 LA-H with dust suction unit/extractor (Optional)
Figure 5-6: LA-H with dust suction unit/extractor (Optional)
Figure 5-6 : LA-H/LA-HO 20L Bucket (Optional)

Machine description
Page 20
Manual number:
INSTRUCTION MANUAL LAH-2205-W-EN-V01
5.6.4 Observation windows
Figure 5-7: Observation window
5.7 Mantle
5.7.1 LA-H/LA-HO mantle-Standard
Mantle mesh according to order requirement
-Available in various wire mesh/clipper wire
mesh options.
-Proper mantle selection is important for the
most efficient operation of the machine.
Figure 5-8: Mantle assembly
5.7.2 Mantle access doors
Figure 5-9: Mantle door clamps
Observation window
Hand wheels for mantle
access/Outlet section door
Mantle access/Outlet
section door
