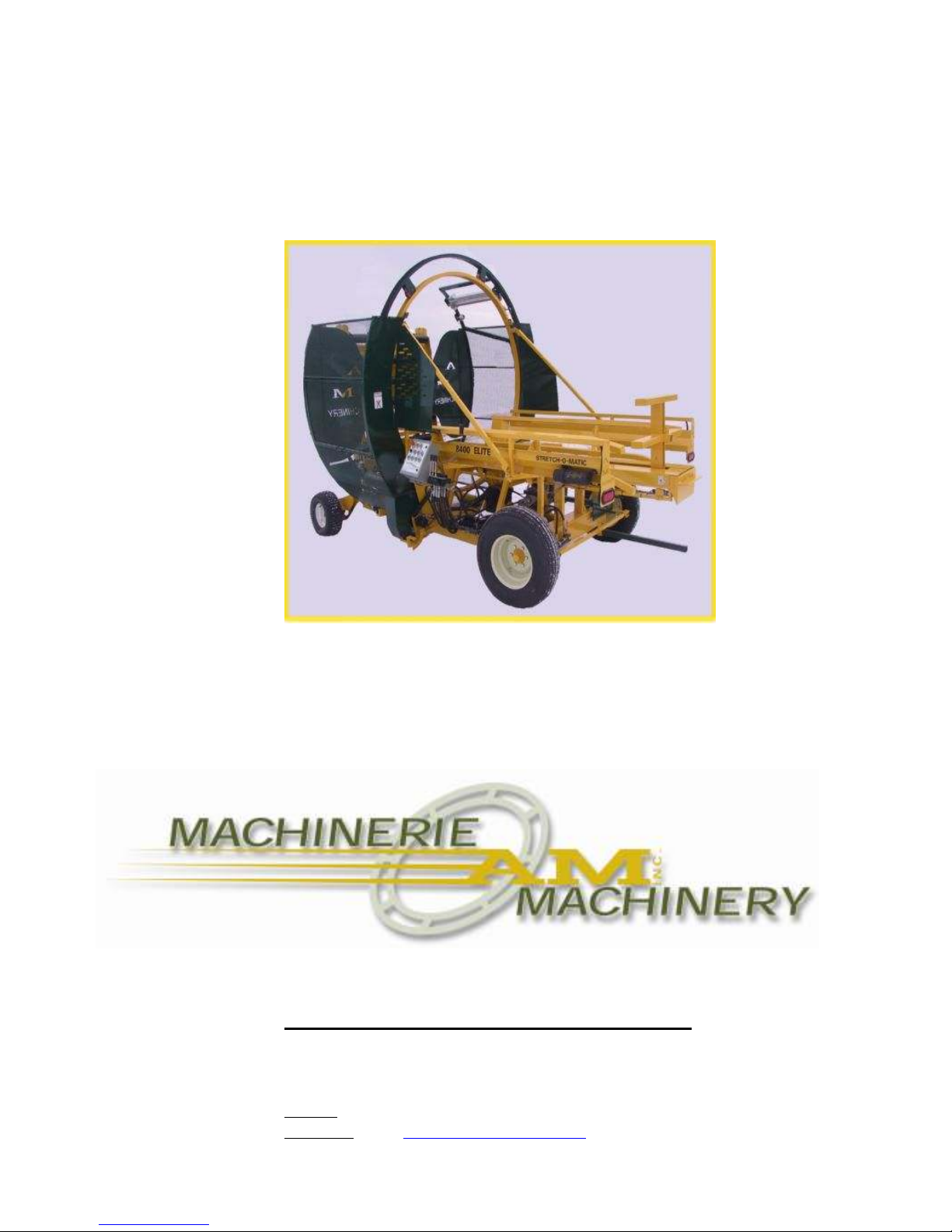

AM Machinery Stretch-O-Matic 7500 User manual

Stretch-O-Matic®
Models
7500 , 8400,
8400 Elite and 9600 Elite
OPERATOR’S
MANUAL
MANUFACTURED IN CANADA BY :
9, Rue des Industries
L'Islet ( uébec) G0R 1X0 CANADA
Customer’s English Service: 418) 247-7709
Service français : [phone]
Télécopieur : [phone]
E-Mail : [e-mail]
Web Site : www.ammachinery.com

Apr-17
2

Apr-17
3
_______
Manufacturer of agricultural and industrial machinery
CERTIFICATE OF QUA ITY
As a manufacturer of quality goods we, hereby, certify that our bale wrappers Stretch-O-Matic® are made of
the best materials, brand new and unused, by first class workmanship. We manufacture our Stretch-O-Matic®
since 1990. After inspection of the merchandise we, Jacques Bernier, can confirm that it complies in all
aspects with our high quality standards of performance.
SNA Certification
AM Machinery Inc. is proud to announce that his bale wrapper has been awarded the SNA Certification
«because it answers well to the needs of the producers that desire a reliable, performance and offering a good
versatility of operation.»
That certification have been given by Agricultural Mechanism Analyst Station, in collaboration with the ITA
(Agricultural Technology Institute) of a Pocatière, Québec, Canada.
Declaration of CE MARK
WE :
Manufacturer : Machinery AM Inc.
Address : 9 des Industries
’Islet (Québec) Canada
Phone : [phone]
Fax : [phone]
Web Site : www.ammachinery.com
DECLARE UNDER OUR OWN RESPONSABILITY T AT OUR PRODUCT,
Product : Tubular Rotary Wrapper Stretch-O-Matic®
Models : 7500, 8400 and 9600
REFERING TO T IS PRESENT DECLARATION, IS CONFORM TO T E NORMS :
Number Title Date
Machines Security 2004 NF EN 12100 1
NF EN 12100 2 Fondamentals Notions 2003
NF EN 982 Security Prescription, hydraulic 1996
NF EN 45 014 Declaration Security Criteria 1998
OF T E EUROPEAN COMMUNITY DISPOSITIONS OF T E DIRECTIVE :
Number Title Date
98/37/CEE Machines Directive 1998
Made in Saint Eugène (Québec) Canada, le 20 juillet 2005, Mr Jacques Bernier, president

Apr-17
4
Table of Content
Certificate of quality 3
Your Stretch-O-Matic ® bale wrapper 5
Stretch-O-Matic ® Twelve Months Warranty 6
Warranty coverage 6
Exclusion 6
Disclaimer of consequential damage 6
Warranty registration 7
Safety Guides ines 8
ocking 9
General information 9
ighting and marking 9
Safety sign care 9
Preparing to wrap 10
Bale wrapper transportation 10
How to start the motor 11
How to install the plastic 12
Making Silage 13
Bales quality 13
Moisture 13
Wrapping dry hay or straw 13
Wrapping Site Recommendation 14
Recommended Operating Procedures 15
Manual model 15
Automatic model 16
Electronic box and remote control 17-18
Plastic Application 18
Unloading the ast Bales 18
After Wrapping 19
Performing Maintenance 20-21
Maintenance procedures 18
Engine oil level 18
Pressure relief valve adjustment 20-21
General Troubleshooting 22
Plastic Troubleshooting 23
Revising for CE Mark July 21
th
2005.
Note : the French version has precedence over others versions in other languages.

Apr-17
5
Your Stretch-O-Matic ® Models 7500, 8400, 8400Elite &
9600Elite
AM Machinery Inc. built the Stretch-O-Matic for wrapping big silage, round or square,
1 Bale pusher for silage
2 Hoop rotating
3 Plastic roller
4 Stretcher
5 Roller table
6 Jack
7 Pole
8

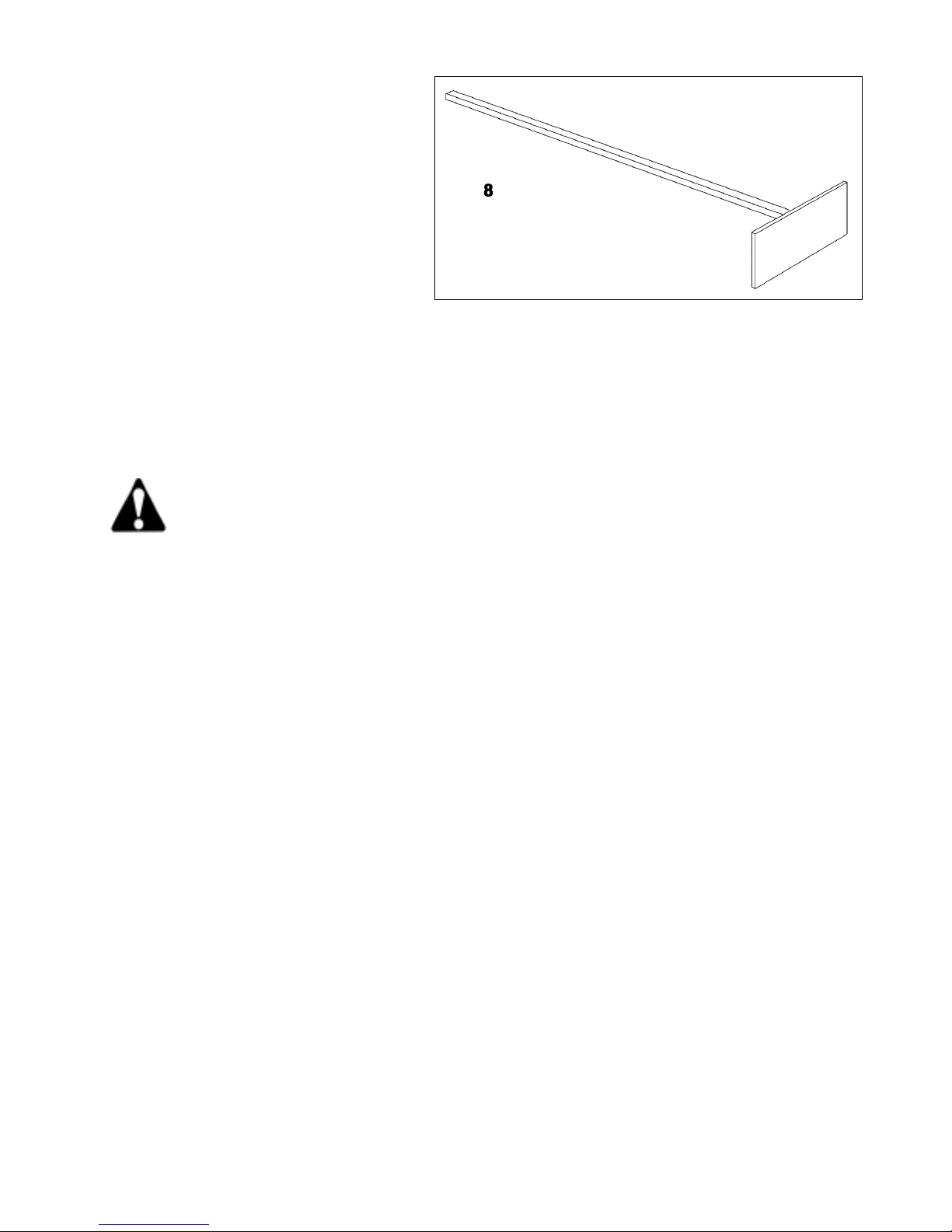

8 Unloading bar

Apr-17
6
Strech-O-Matic ® Twelve Months Warranty*
Congratulations ! You are now the proud owner of the best wrapper on the market,
the Stretch-O-Matic ® Models 7500, 8400, 8400 Elite or 9600 Elite. We are convinced
that you will enjoy the trouble free experience of working with the Stretch-O-Matic.
CAUTION !
For your safety and to get the best out of your investment, please read
the operator’s manual carefully before operation.
The design of the Stretch-O-Matic ® bale wrappers are protected under Canadian Patent 1285862
and USA patent 4793124.
 IMPORTANT
Warranty registration form (page 5) must be completed and returned
to A.M. Machinery within ten days of ownership to validate warranty.
Warranty coverage
AM Machinery Inc. warranties that the Strech-O-Matic ® bale wrapper Models 7500 & 8400 is
manufactured under high quality standards and agrees to replace or repair at seller’s place of
business all parts (**except : tires, battery, film tensionners and the motor), which are defective
in material or workmanship without charge for parts and labor if a defect appears within 12
months from the date of the purchase by the original purchaser.
The warranty is only valid if the fault is reported to us or our distributors by the dealer submitting
a complete warranty claim form within 15 days of the breakdown. The purchaser shall pay any
charge for making service call and for transporting the machine to the place where the warranty
work is to be performed.
Exclusion
This warranty covers only defective material or workmanship. It does not cover depreciation or
damage caused under normal wear, accidents, improper maintenance, and improper protection
in storage or improper use.
The cost of normal maintenance and normal replacement of service items such as air filters, oil
filters, etc. shall be paid by the purchaser.

Apr-17
7
Disclaimer of consequential damage
The warranty exclude any secondary damage, for example consequential losses caused as a
result of machine breakdown or non-availability of spare parts.
As for the final product, high quality forage depends on many factors (example : the quality of
forage being put up, the quality of the plastic used etc.)
A.M. Machinery accepts no liability for forage losses or poor quality forage conservation.
* If used and maintained according to the owner’s manual instructions.
** Tires, battery, film tensionners and motor are under the warranty of their respective manufacturer.

Apr-17
8
Warranty Registration
Must be completed and returned to
A.M. Machinery, 9, Rue des Industries, L’Islet Québec) G0R 1X0 Canada
within 10 days of ownership to validated warranty.
Model : ______________________ Serial number :_____________________________
Date of purchase : _________________________ Machine built in : _______________
Dealer Information :
Name ____________________________________
Address ____________________________________
City ____________________________________
State _________________Zip Code ___________
Country ____________________________________
Telephone _________________
Fax _________________
_____________________________________________
Dealer’s signature
Owner Information :
Name ____________________________________
Address ____________________________________
City ____________________________________
State _________________Zip Code ___________
Country ____________________________________
Telephone _________________
Fax _________________
Occupation _________________
The above machine has been received by me in accordance with the foregoing and I have a
thorough knowledge of its care adjustment and operation.
I am aware that the dealer as inspected the wrapper. The wrapper seems assembled correctly
and in good working order. I accept the warranty terms stated in this book.
_____________________________________________
Owner’s signature
Returned to :
A.M. Machinery,
9, Rue des Industries, ’Islet (Québec) CANADA G0R 1X0

Apr-17
9
Safety Guides ines
Take note : this safety alert symbol found throughout this manual is used to call your attention
to instructions involving your personal safety and the safety of others.
Failure to follow these instructions can result in injury or death.
These symbol means :
ATTENTION !
BECOME ALERT !
YOUR SAFETY IS INVOLVED
Important Signal Words
DANGER : indicates an imminently hazardous situation that, if not avoids, will result in death or
serious injury. This signal word is to be limited to the most extreme situations, typically for
machine components which, for functional purposes, cannot be guarded.
WARNING : indicates a potentially hazardous situation that, if not avoided, could result in death
or serious injury and include hazard that are exposed when guards are removed. It may also be
used to alert against unsafe practices.
CAUTION : indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
Picture # 2 safety guards dangerous zone
Warning ! Always stop the engine and remove the key and lock the electric
switch before entering inside the zone, open the security guards, adjust the
photocells, fill-up the oil or gas tanks or remove a bale that became undone in the
hoop or in the front of the push bar. Do not climb on the machine or enter the
inside zone when the motor is operating.

Apr-17
10
If you have any questions not answered in this manual or require additional
copies or, if your copy of this manual is damaged, please contact your local
dealer .
Security is everyone’s business
At AM Machinery, safety of the operator is one of the main concerns in designing and
developing a new piece of equipment. Designers and manufacturers build in as many
safety features as possible. However, every year many accidents occurs which could
have been avoided by a few seconds of thought and a more careful approach to
handling equipment. You, the operator, can avoid many accidents by observing the
following precautions. To avoid personal injury, study the following precautions and
insist that those working with you, or for you, follow them.
General information
 This equipment is dangerous to children and persons unfamiliar with its operation. The
operator should be a responsible adult familiar with farm machinery and trained in
this equipment’s operation. Do not allow anyone to operate or assemble this unit
until they have read this manual and have developed a thorough understanding of
the safety precautions and how it works.
 Review the safety instructions with all users annually.
 Never exceed the limits of a piece of machinery. If its ability to do a job or to do so
safely is in question, DON’T TRY IT.
 Do not attempt to operate this equipment under the influence of drugs or alcohol.
 Replace any «CAUTION», «WARNING», «DANGER» or instruction safety decal that is
not readable or is missing. ocation of such decal is indicated in the figures numbers
6, 7, 8, 10 and 13 in Parts Manual at the end of this manual.
Lighting, marking, National Road Rules
It is the responsibility of the customer to know the lighting and marking requirements of
the local highway authorities and to install and maintain the equipment to provide
compliance with the regulations.
Add extra lights when transporting at night or during periods of limited visibility.
ighting kits are available from your dealer or from the manufacturer.
Safety sign care
Keep safety signs clean and legible at all times.
Replace safety signs that are missing or have become illegible.
Replaced parts that displayed a safety sign should also display the current sign.
Safety signs are available form your Dealer Parts Department or Distributor
or directly from AM Machinery.

Apr-17
11
Remember
 Your best insurance against accidents is a careful and responsible
operator.
 If there is any portion of this manual or function you do not understand,
contact your local authorized dealer or the manufacturer.
Prepare to wrap
Do not wear loose-fitting clothing, which may catch in moving parts. Always wear
protective clothing and substantial shoes.
We strongly recommend that you make certain that there is no non implicated people on
the wrapping site. This is particularly important for the owner of an automatic model
operated from the tractor. Never let the machine operated without superintendence.
Before starting to work with your Stretch-O-Matic ® , we strongly suggested tha
you:
 Carefully study and understand this manual.
 Give the unit a visual inspection for any loose bolts, worn parts or cracked welds, and
make the necessary repairs.
Follow the maintenance safety instructions included in this manual.
 Be sure there are no lying tools on/or in the equipment.
 Do not use the unit until your are sure the area is clear, especially from visitors,
children and animals.
 Because it is possible that this equipment may be used in dry areas or in presence of
combustibles, special care should be taken to prevent fires and fire-fighting
equipment should be readily available.
Instructions before towing your Stretch-O-Matic ®
It is possible to tow your bale wrapper but the recommended maximum speed is 40
kilometer per hour. And, certain precautions allow to avoid disastrous situations.
Therefore we recommend that you :
 Check that the roller table is safely locked into the upward position with the bar
locked into place with both pins.
 Check that the draw pole is safely locked with the hitch pin locked into place.
 Attach a safety chain to the draw pole if the unit is to be towed on public road.
 Check that the wheels are straight.
 Close the steering cylinder’s valve to lock wheels.
 Comply with state and local laws governing highway safety and movement of
farm machinery on public roads.
 Use approved accessories, lighting, flags and necessary warning device to
protect operators of other vehicles on public roads during daytime and nighttime
transport. Various safety lights and devices are available from your local dealer.
 Make sure all parked machines are on a hard, level surface; use wheel chocks to
prevent machine from rolling if necessary.
Wrapper’s weight : model 7500 : 1 248 kg, model 8400 : 1 250 kg

Apr-17
12
How to start the motor, automatic model
Put the safety switch at ON
Pull the emergency button if is pushed
Press the reset button, the motor is ready to start (picture 5 p.17)
If the reset button is not press, the motor will not start.
picture #3 door security limit switch picture #4 plastic limit switch

Apr-17
13
Plastic Installation
For security reason, the motor will be stop when you open the side door to install the
plastic roller, ( photo #3 p. 11)
Need to reset to restart (reset button picture #5 p.17)
The plastic must be treaded over the slave roller and then through the two red rollers on
the tensionner as shown on the diagram.
The two black stretcher rollers rotate at different speeds. This induce the plastic to be
stretched. It is very important that the plastic go over the slow roller first and the faster
roller second. The faster roller should be marked by a red dot opposite it on gear case.
If there is any question of which is the fast roller (For the serial numbers up to 345.)
1) Place a pen mark on each roller and rotate one roller one turn.
2) Check the location of the marks on the other roller.
● If it has advanced further then, it is the fast roller.
● If it has advanced less, it is the slow roller.
When the plastic is installed properly, it should stretch film tight on the bale to form a
smooth linear tube.

Apr-17
14
Making Silage
Bale quality
Well shaped firm bales are necessary for successful wrapping.
Bales are best wrapped as soon as possible after baling.
If bales are left unwrapped they will sag and lose shape.
Heating will start soon after baling and the protein quality will be lost. It is desirable to
wrap within four hours of bailing.
The Stretch-O-Matic ® can operate even under rainy condition.
Moisture
There is a considerable moisture range over which successful silage can be made.
In general, 40 to 50 % moisture is satisfactory for dairy cows. Some beef farmers prefer
60 to 70 % moisture as it limits intake. A good rule of thumb is «Half way to Hay».
The ideal being 55% moisture.
Dryer silage gives you :
1. ighter bales to handle
2. ess freezing in the winter
Wrapping dry hay or straw
The Stretch-O-Matic wrapper can be used to weather protect dry hay and straw.

Apr-17
15
Wrapping Site Recommendations
Select a site, which will allow for making adequate length rows of bales. The Stretch-O-
Matic ® is a very fast wrapper but requires time to set up and move to a new row. There
should be space for at least fifty bales in a row.
Select a site that is accessible all year round and which does not flood in the spring.
A firm surface is preferable for the successful operation of the Stretch-O-Matic ® . Wrap
on a level or up a slight grade. If you must wrap along a slope, optional guide wheels
are available.
A site that is free from grass and debris will be less likely to attract rodents that can
damage the plastic.
Marking lay-out for best efficiency
If bales are brought to the site
before wrapping, arrange them
to allow easy access to bales
and allow the wrapper and tractor
plenty of room to move.
Note : initially takes 3 to 4 bales
before bale wrapper moves.
A guide bale is first placed
on the machine to protect
the end of the line.
Once the row is well under way,
it is picked up.

Apr-17
16
Recommended Operating Procedure
WARNING !
Always switch engine off and remove ignition key
before installing or changing plastic rolls, doing maintenance or
climbing on the wrapper.
We suggest the following method
of operating the Stretch-O-Matic ® models 7500 & 8400
Manual and automatic models first steps
• Park the wrapper where you want the end of the row, facing in the right way.
• ower the wrapper to the ground using the draw pole jack. Remove the jack.
If your wrapper has hydraulic front wheel, use the up/down lever to lower the machine.
Be certain that the forward-backward lever is in the « FLOATING POSITION »
before starting to wrap bales.
• Attach the chain from the folding roller table to the bale pusher with the bale pusher in
the open position.
• Stop the motor before installing plastic rolls. Open security guards, install plastic rolls
according to diagram on page 9 in this manual. Properly close the security guards
before starting the engine.
• Remove the transport lock bar.
• Open the steering lock valve.
Manual model (Automatic model see next page)
 Use the bale pusher valve to close bale pusher, lowering roller table.
 Install roll of plastic according to Plastic installation diagram on page 9.
 Open bale pusher and place the first guide bale on the table. Push this bale through
the hoop. This gives a stable end for the line. This bale is picked up and placed on
the wrapper later when the line is well under way.
 Next, place a single bagged bale on the wrapper and push it to the hoop to form the
end seal. Alternatively a bale of straw or a special plastic cap can be used to form a
tight end seal.
 From the outside, pull out some plastic through the stretcher closest to you and tie it
to the stabilization bar of the fix hoop. Push hoop lever forward to apply one and a
half layer of plastic. Untie plastic and repeat with the other plastic roll.
 As the bale is pushed through the hoop, start the plastic dispenser rotating to apply
plastic. Keep your plastic overlapping six inches, this will apply four layers. By
adjusting the flow divider you will control the speed of the rotating hoop, thus
controlling how many layers of plastic is applied on the bales.
 We recommend an extra layer of plastic on this first joint. This will compensate for
the stress when the first bale touches the ground. The same recommendation is
valid for the last joint of your line.

Apr-17
17
Automatic model
 Start the engine, make certain it is free of hay or combustible material.
 Start as recommended at top of page above and after starting the engine put the
machine in manual mode.
 Press forward button to close bale pusher, lowering roller table then install roll of
plastic according to the Plastic Installation iagram on page 12.
 Open bale pusher and place the first guide bale on the table. Push this bale through
the hoop. This gives a stable end for the line. This bale is picked up and placed on
the wrapper later when the line is well under way.
 Next, place a single bagged bale on the wrapper and push it to the hoop to form the
end seal. Alternatively a bale of straw or a special plastic cap can be used to form a
tight end seal.
 Pull out some plastic through the stretcher closest to you and tie it to the stabilization
bar of the fix hoop. Push on hoop button to apply one and a half layer of plastic.
Untie plastic and repeat with the other plastic roll.
 As the bale is pushed through the hoop, start the plastic dispenser rotating to apply
plastic. Keep your plastic overlapping six inches, this will apply four layers. By
adjusting the flow divider you will control the speed of the rotating hoop, thus
controlling how many layers of plastic is applied on the bales.
 We recommend an extra layer of plastic on this first joint. This will compensate for
the stress when the first bale touches the ground. The same recommendation is valid
for the last joint of your line.
 After enough bales have been wrapped manually for the machine to start moving
forward, it is put on the automatic mode.

Apr-17
18
Picture #5 electronic box picture #6 remote control
We pass in automatic form when it has enough wrapped bales so the bale wrapper back
off by itself. At this moment it doesn’t need an operator.
Passing in automatic form
Turn the switch at automatic
Press the start button i twill activate the photocell
For the automatic form work, the plastic limit switch need to be in
fonction
Remote control fonctions
The remote have differents colors buttons
Red : stop
Grey : don’t use or start the wrapping
Green : steering :turn the wheels on the left
Yellow : steering :turn the wheels on the right
When the operator press the RED button, the wrapping system stop.the
operator need to press the reset on the control box and star. If the operation
is STOP is press during the wrapping, it suggested to put the swith in
manual mode and finish the bale manually after put back in automatic form
and restart the processus automatic- reset- start

Apr-17
19
 The photocell located on the bale cradle is activated when the bale is placed on the
wrapper. This switch starts the bale pusher (ram) moving the bale towards the hoop.
 The moment the bale pusher (ram) hits the second limit switch should correspond to
the front of the bale entering the hoop. This switch will signal the hoop to start
wrapping.
 When the pusher has fully advanced, it hits the third limit switch. This one will signal
the hoop to stop turning and the ram to retract.
 As the ram retracts fully it will hit the first limit switch which will signal it to stop and
wait for the next bale.
CAUTION !
Before switching engine off, always have the machine in « MANUAL MODE »
and the electronic control panel switch should be moved in « OFF
POSITION ». The remote control is used only when the button on the
control box is in «Automatic mode». The operator must keep in mind
that a visitor might not realize that he is operating with the remote control.
Always keep a safe distance from the moving parts.

Apr-17
20
Plastic Application
Careful application of an adequate amount of plastic is critical to gives good quality
product. Careless application of plastic will result in losses.
Continually watch for «dark windows» indicating that not enough plastic has been
applied.
• You can adjust the sliding limit switches positions to get a customized plastic
application.
The 1
st
limit switch gives the ram its starting position.
The 2
nd
limit switch gives the hoop its starting command.
The 3
rd
limit switch gives the ram its retracting signal and the hoop its stop signal.
By changing the position of the limit switches 2 and 3, it is possible to automatically apply
extra plastic layers on bale joints. You also can change the position of the limit switches
when your bale length varies, thus you are not wasting any time or plastic.
• Use steering valve to keep row straight if necessary or « LEFT / RIG T » buttons on
automatic models.
• When the desired length of row has been reached, place a bale bag or cap on the
last bale to seal the end.
To Unload the Rolls
A special bar is provided for the unloading. She is placed on the right side of the machine.
• Insert the end of the bar in the pusher and attach the plate.
• Advance the pusher while finishing covering the last bale with plastic.
• Repeat this operation until the bale is fully at the end of the table with rollers.
• Put the bar back at it’s place.
• Using the chain fixed at the back of the frame, remove the machine from the line of the
bales, so you can put the tow bar. Or, if your wrapper is equipped with a traction, use the
proper lever to move it.
• Do the opposite than the starting motion, raise the table, attach it with the locking bar for
transport and install the hitch.
