CASE IH PRO VISION OPERATING SYSTEM GUIDE
4
A-Post Instrumentation Cluster – CVXDrive™Tractors
1The left turn signal arrow
2The brake warning light
3Tractor’s MFD is engaged – Illuminates when the MFD is engaged, the
automatic MFD engages, or when both brake pedals are applied
4Front Diff-lock is engaged – Illuminates when the Diff-lock is turned on
by the operator, the Auto Diff-lock is turned on and the tractor is going
in a straight line (N/A on Magnum)
5The right turn signal arrow
6The STOP warning light – Illuminates when there is a fault that
requires immediate attention
7Low engine oil pressure
8Not applicable in North America
9Trailer brakes are active – If equipped, this light will come on when the
trailer brakes are active
10 Front axle suspension is locked out – This light will come on when the
front suspension system is turned off by the operator, or the tractor is
in Park
11 Rear axle Diff-lock is engaged – Illuminates when the Diff-lock is
turned on by the operator, the Auto Diff-lock is turned on and the
tractor is going in a straight line.
12 Not Available in North America
13 Fuel level
14 DEF level
15 Coolant temperature
16 Air pressure, if present – If not, then engine oil pressure
(Air pressure shown)
17 Tractor Direction – Indicates tractor direction of travel (reverse shown)
18 Anti-Jack Knife Feature is shown when activated (see page 16)
19 Transmission mode – AUTO or MANUAL (Manual shown)
20 R3 target speed (F3 forward)
21 R2 target speed (F2 forward)
22 R1 target speed (F1 forward)
23 Front Hitch position in percent
24 Front PTO RPM
25 Front PTO engaged
26 Rear PTO engaged
27 Rear PTO speed
28 Rear Hitch position in percent
29 Engine RPM
30 Constant Engine Speed
31 In this location one of the following icons will appear:
Engine Power Boost, Engine Compression Brake, or Engine Grid Heater
32 Ground Speed
33 Low temperature warning – for hydraulic oil
34 Yellow Warning Light – Warns operator that a fault exists that
needs to be serviced
35 Park break applied light. Illuminates when the tractor is
placed in “Park”
36 Not applicable in North America
37 Not applicable in North America
38 Guidance On – Guidance system has control of the tractor’s
steering system
39 Red Battery – Alternator not charging the battery
40 Road Lights On – Road lights are on
41 Bright Lights On – High beam road light are on
42 Work Lights On – Work lights are on
43 Guidance Inactive – Guidance is on but not engaged
44 Hydraulic Valve Activated – Illuminates as long there is ow from at
least one remote in either direction
45 Not applicable in North America

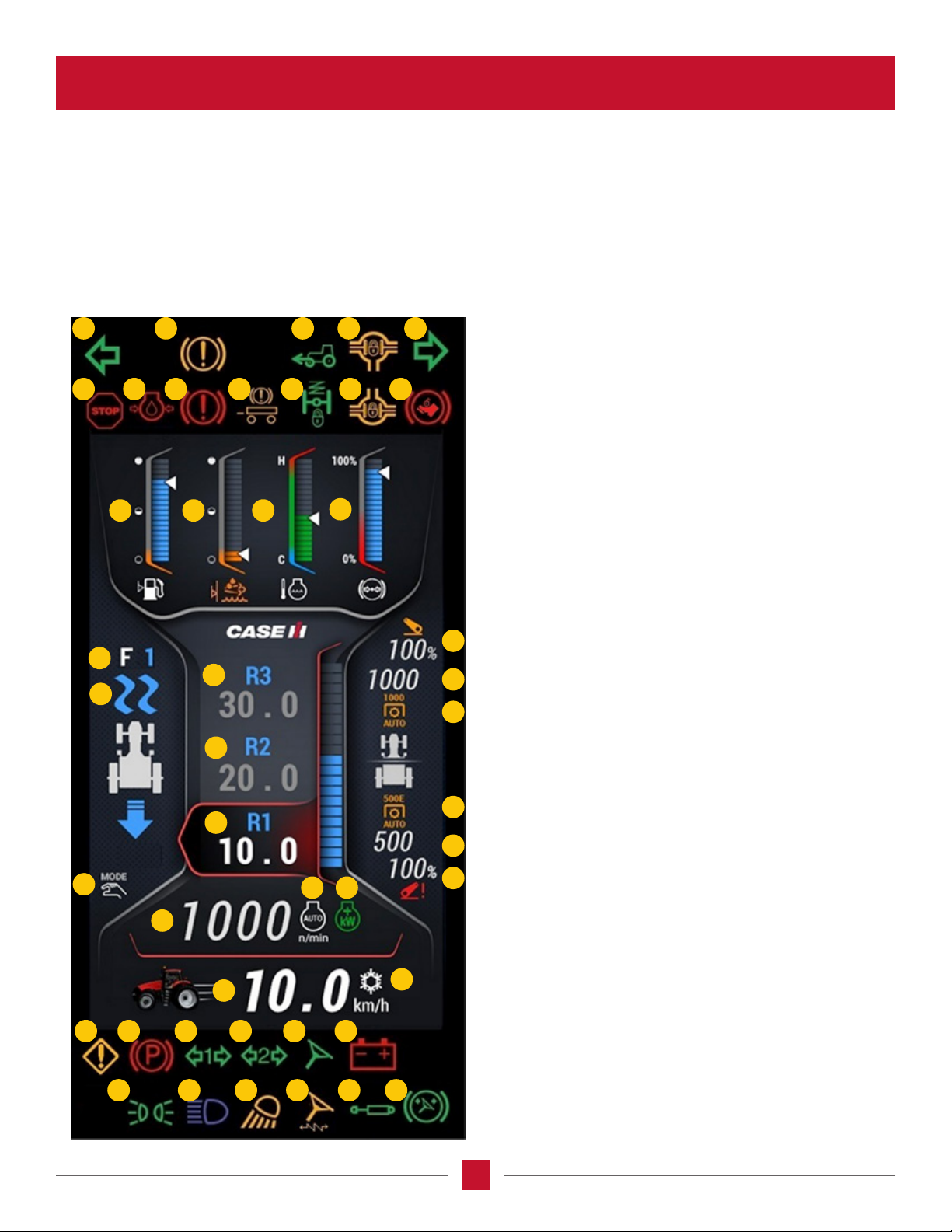

The A-Post Instrumentation Cluster is basically
a single location where the tractor functions are
displayed in one location. With a combination of
numbers, graphs, and icon lights the operator gets
a quick look at what is going on with the tractor.
1
6 7
13 14 15 16
17
20
18
19
23
26
24
27
21
22
29
32
34
40 41 42 43 44 45
35 36 37 38 39
33
30 31
25
28
8 9 10 11 12
2 3 4 5

5
A-Post Instrumentation Cluster – Power Drive Tractors
1The left turn signal arrow
2The brake warning light
3Tractor’s MFD is engaged – Illuminates when the MFD is engaged, the
automatic MFD engages, or when both brake pedals are applied
4Front Diff-lock is engaged – Illuminates when the Diff-lock is turned on
by the operator, the Auto Diff-lock is turned on and the tractor is going
in a straight line (N/A on Magnum)
5The right turn signal arrow
6The STOP warning light – Illuminates when there is a fault that
requires immediate attention
7Low engine oil pressure
8Not applicable in North America
9Trailer brakes are active – If equipped, this light will come on when the
trailer brakes are active
10 Front axle suspension is locked out – This light will come on when the
front suspension system is turned off by the operator, or the tractor is
in Park
11 Rear axle Diff-lock is engaged – Illuminates when the Diff-lock is
turned on by the operator, the Auto Diff-lock is turned on and the
tractor is going in a straight line.
12 Not Available in North America
13 Fuel level
14 DEF level
15 Coolant temperature
16 Air pressure, if present – If not, then engine oil pressure
(Engine oil pressure shown)
17 Tractor Direction – Indicates tractor direction of travel (forward shown)
18 Anti-Jack Knife Feature is shown when activated (see page 16)
19 Forward Target Speed
20 Reverse Target Speed
21 Front Hitch position in percent
22 Front PTO RPM
23 Front PTO engaged
24 Rear PTO engaged
25 Rear PTO speed
26 Rear Hitch position in percent
27 Engine RPM
28 Constant Engine Speed
29 In this location one of the following icons will appear:
Engine Power Boost, Engine Compression Brake, or Engine Grid Heater
30 Ground Speed
31 Low temperature warning – for hydraulic oil
32 Yellow Warning Light – Warns operator that a fault exists that needs to
be serviced
33 Park break applied light. Comes on when the tractor is
placed in “Park”
34 Not applicable in North America
35 Not applicable in North America
36 Guidance On – Guidance system has control of the tractor’s
steering system
37 Red Battery – Alternator not charging the battery
38 Road Lights On – Road lights are on
39 Bright Lights On – High beam road light are on
40 Work Lights On – Work lights are on
41 Guidance Inactive – Guidance is on but not engaged
42 Hydraulic Valve Activated – Illuminates as long there is ow from at
least one remote in either direction
43 Not applicable in North America
The A-Post Instrumentation Cluster is basically a single
location where the tractor functions are displayed in
one location. With a combination of numbers, graphs,
and icon lights the operator gets a quick look at what
is going on with the tractor.
1
6 7
13 14 15 16
17
19
18
21
24
22
25
20
27
30
32
38 39 40 41 42 43
33 34 35 36 37
31
28 29
23
26
8 9 10 11 12
2 3 4 5

CASE IH PRO VISION OPERATING SYSTEM GUIDE
6
AFS Connect Magnum Armrest and
AFS Pro 1200™Display

7
Introduction to the AFS Pro 1200™Display
INTRODUCING AUTOGUIDANCE ICONS
Onscreen Icons
Landmarks – Press to access the functions to
create and manage landmarks (obstacles).
Layers – Press to activate or deactivate coverage layers.
The coverage layers can be congured to display yield
data, seed applied rates, and perscription rates.
Widget – Allows the operator to “pin” to the
guidance screen for easy use. An example would
be AccuTurn controls.
Zoom Control to Field – Displays the eld boundaries
fully on the screen.
Zoom In – Increases the view by one implement width
of the Heading Symbol (tractor and implement icon)
for each time the icon is pressed. The maximum zoom
is limited to one implement width.
Zoom Out – Decreases the view by one implement width
of the Heading Symbol (tractor and implement icon)
for each time the icon is pressed.
Swath Adjust Operations – Press to access nudge,
GNSS trim and GNSS remark operations.
Boundaries – Press to access functions to
create and manage boundaries.
Swath Management – Press to access the
functions to create and manage swaths.
Compass – The compass icon consists of two sections. The
top of the needle tells the operator the direction.
The bottom of the needle shows the heading of the
compass as to the numerical heading in degrees.
When the needle of the compass is red, it will be locked
to the north and by pressing the icon will unlock it.
When the compass needle is blue it will be unlocked and
will be pointing to the vehicle heading and the degrees.
Arial/Operator View – The operator can zoom in and
rotate the view around the Heading Symbol (tractor
and implement icon) in any direction and see what is
happening at all times.
Re-center – The Re-center icon allows the operator to
bring the vehicle symbol back to the center of the map.
The zoom level does not change.
Map customer view 1 & Map customer view 2 –
The operator has the ability to save up to two custom
map congurations which can be viewed at any angle,
zoom level, and relative orientation to the vehicle and to
the heading. Hold and press a custom view icon to save
the map conguration.
Heading Symbol –
The tractor and implement
icon displayed on the screen

CASE IH PRO VISION OPERATING SYSTEM GUIDE
8
AFS® Pro 1200
Precision Farming & Guidance
Quick Reference Card
© 2018 CNH Industrial America LLC
12345678-1A
EN
No Position
Guidance Engage
Operations Screen
Vehicle Settings
Vehicle Parameters
User Proles
Clock
Help and Manuals
Application Manager
Connectivity Status
GNSS Status
Work Condition
Faults and Warnings
Information
Yellow Warning
Stop Sign
10
9
8
7
5
4
3
2
1
Introduction to the AFS Pro 1200™Display
1
5
3
7
10
12
2
6
9
4
8
11
14
13
The GNSS Status indicator displays
position accuracy and the number of
satellites being tracked.
The Connectivity Status displays current signal
strength of Wi-Fi and cellular connection.
The Application Manager Screen allows access
to individual applications on the display like:
Update Manager, Remote Assistance Service,
Gallery, Radio and Phone.
Help and Manuals Screen provides access to
manuals and videos on the display.
Create or modify user proles.
The Vehicle Parameters Screen
screen displays input and output
values for sensors on your machine.
The Vehicle and Implement Settings Screen
provides setup and diagnostics for your
vehicle, implement, guidance, ISOBUS,
connectivity, and work condition.
The Operations Screen allows you to view
eld information, as well as select your
vehicle and product conguration.
The Guidance Engage function acts as a
guidance status indicator and a button
to engage and disengage autoguidance.
Wi-Fi
Degraded Position
Cellular
Good Position
GETTING TO KNOW THE ICONS
WHAT THE ICONS MEAN
13 12 11 10 9 8 7 6 5 123414
Left-Hand Area
Top Bar
Run Screens Status Area

9
Vehicle Settings
Vehicle Settings
Vehicle Settings
Vehicle Settings
Vehicle SettingsVehicle Settings
Vehicle SettingsVehicle Settings
Vehicle SettingsVehicle Settings
Vehicle SettingsVehicle Settings
Vehicle SettingsVehicle Settings
Vehicle SettingsVehicle Settings
Vehicle SettingsVehicle Settings
Introduction to the AFS Pro 1200™Display
Press the Operations Screen
and select your Grower,
Farm, Field, Crop, and
Task; select your vehicle,
implement, and vehicle
implement conguration.
Select the Run Screen
that contains your
3D Map User Dened
Windows (UDW).
Press the Engage Autoguidance
button on the Top Bar, or
press the Engage Autoguidance
button on the MultiFunction
handle, to begin operation.
Autoguidance conditions
met; Autoguidance is
ready to engage.
Autoguidance is
currently active and
steering the vehicle.
Manual control of steering.
One or more reasons that
guidance cannot
be engaged.
Autoguidance
has not yet
been activated.
Guidance Engage Button Status
Record your vehicle path information:
Boundary
PAN
ZOOM IN
ROTATE
ZOOM OUT
Swath
Management
Press the Vehicle and Implement Settings button on
the top tool bar and select one of the menu cards –
Settings, Diagnostics or Productivity to observe and
set the tractor functions.
To create implement congurations, go to:
Select your guidance and
GNSS conguration.
To create implement
congurations, go to:
GETTING STARTED WITH AUTOGUIDANCE
1. Setup your Field Information and Vehicle / Implement.
2. Record your eld boundary and swath type.
3. Engage Autoguidance.
Compass
Center on Vehicle
Active Swath
Boundary Line

CASE IH PRO VISION OPERATING SYSTEM GUIDE
10
Introduction to the AFS Pro 1200™Display
DEFAULT RUN SCREENS
The AFS Pro 1200 display has seven Run Screens preset into the unit. Access the Run Screens by pressing the buttons
labeled at the bottom of the screen on the display. (May want to discuss customization, if that is available to alter the Run
Screen or set up your own)
Each Run Screen displays a different set of information to the operator. The items shown on each screen are illustrated on
the next page.

11
RUN SCREEN 1
RUN SCREEN 5
RUN SCREEN 3
RUN SCREEN 7
RUN SCREEN 2
RUN SCREEN 6
RUN SCREEN 4
Left-Hand Area Run Screen
Engine Power Eng Speed System Speed
Slip % CERPM –1 x 2 EHR – 1 x 2
MFH
Levers Work Lights Levers
Cross Track Area counter Trip Fuel Used (Counter)
Fuel Rate (gal/ac) HVAC Steering Rate
Left-Hand Area Run Screen
Engine Power
Map – 2 x 6
Slip %
MFH
Levers
Cross Track
Fuel Rate (gal/ac)
Left-Hand Area Run Screen
Engine Power
Camera – 2 x 6
Slip %
MFH
Levers
Cross Track
Fuel Rate (gal/ac)
Left-Hand Area Run Screen
Engine Power
UT/VT – Phase 2
(NA in Phase 1)
Slip %
MFH
Levers
Cross Track
Fuel Rate (gal/ac)
Left-Hand Area Run Screen
Engine Power Eng Hrs EHR – 1 x 2
Slip % Avg Work rate
MFH Total Fuel Used Remote Status
Levers Fuel used eld
Cross Track Fuel used area eld average Camera – 1 x 3
Fuel Rate (gal/ac) Time in work
Left-Hand Area Run Screen
Engine Power
Map – 1 x 6
Coverage Logging
Slip % Cross Track error
MFH Remark
Levers Nudge
Cross Track On-Line Agress
Fuel Rate (gal/ac) Swath Acq
Left-Hand Area Run Screen
Engine Power Ride Control Field Distance
Slip % Road Distance
MFH Area Remaining
Levers Hitch Position – 1 x 5 Area counter
Cross Track Coverage Area
Fuel Rate (gal/ac) Current Fld Area
Introduction to the AFS Pro 1200™Display

CASE IH PRO VISION OPERATING SYSTEM GUIDE
12
1
2
3
4
5
6
7
8
9
MULTIFUNCTION HANDLE
10
INTRODUCTION TO THE NEW MULTIFUNCTION HANDLE

13
* Function is limited by system conditions, see system notes for this function.
REF NAME FUNCTION
1Autoguidance Engages autoguidance if the system is calibrated, and set up for the eld conditions.
2Congurable Function #5
May be assigned to different functions using the display. By default, pressing this
button will prompt the congurable button menu screen in the display. If there is
already something assigned to this button it can be changed in the vehicle settings
screen by clicking on the armrest wizard on the right side of the screen.
3Congurable Function #6
4Congurable Function #7
5Congurable Function #8
6Gear / Speed Target Up
Power Drive: Pushing this button up and releasing will shift the transmission up on
gear. Pushing the button up and holding it will continue to shift the transmission up
until it is released.
CVXDrive™:Pushing this button up will move the speed target to the next highest
preset target (F1, F2, F3 / R1, R2, R3).
7Gear / Speed Target Down
Power Drive: Pushing the button down will down shift the transmission one gear.
Pushing the button down and holding it will continue to shift the transmission down
until released.
CVXDrive: Pushing the button down will move the target speed down to the next
slowest speed (F1, F2, F3 / R1, R2, R3).
8Shuttle Shift Forward Commands the shuttle shift from reverse to forward.
9Shuttle Shift Reverse Commands the shuttle shift from forward to reverse.
10 Step Switch or Headland
Management Control
Press this button to trigger the Headland Management Control function. “Record” and
“Play” must be commanded through the display. The button can be used to turn on
Autoguidance or can be used to toggle between Constant Engine Speed 1 and 2.
If a congurable button is not set to a function, pressing the button will prompt the conguration screen in the display.

CASE IH PRO VISION OPERATING SYSTEM GUIDE
14
11
12
13 15
14 16 17
19
20
MULTIFUNCTION HANDLE (continued)
18
INTRODUCTION TO THE NEW MULTIFUNCTION HANDLE

15
If a congurable button is not set to a function, pressing the button will prompt the conguration screen in the display.
REF NAME FUNCTION
11 Hitch Express Raise
Raises hitch to upper limit. Holding the “2nd Function” button on the back of the
MultiFunction handle while pressing this button will command the front hitch to
express raise. Pressing again while linkage is raising will pause the lift.
12 Hitch Express Lower
Lowers hitch to working depth. Press and hold this button lowers to the lower limit
until released. Holding the 2nd function button on the back of the MultiFunction
handle while pressing this button will command the front hitch to express lower.
13 1st Remote valve extend Extend ow as long as the button is pressed or starts the timer
if the button is pressed and released, and the timer function is set up and “ON”.
14 1st Remote valve retract Retract ow as long as the button is pressed or starts the timer
if the button is pressed and released, and the time function is set up and “ON”.
15 2nd Remote valve extend Extend ow as long as the button is pressed or starts the timer
if the button is pressed and released, and the timer function is set up and “ON”.
16 2nd Remote valve retract Retract ow as long as the button is pressed or starts the timer
if the button is pressed and released, and the time function is set up and “ON”.
17 Thumb wheel
Power Drive: Adjust the Automatic Productivity Management (APM) Field
maximum speed set point when APM “Field” is activated. Adjusts the APM
Transport mode lowest gear when APM “Transport” is activated.
CVXDrive: Changes the maximum speed of the current Target Speed (target speeds
F1, F2, F3 or R1, R2, R3).
18 Second Function Enables secondary function of some buttons. Enables calibration if pressed for
2 seconds within 20 seconds after Key-on/crank.
19 Headland Engage /
Step Switch
Power Drive / CVXDrive: Press this button will engage the Headland Management
Control (HMC) function which will activate the recorded sequence. The record
and play functions can also be activated on the throttle panel. See page 49 more
details and explanation.
20 Neutral
The Neutral button on the left hand shuttle will place the transmission in a neutral
position for stopping and parking. The left-hand shuttle is also the forward and
reverse placement of the tractor to move and is the tractors park brake.
* Function is limited by system conditions, see system notes for this function.

CASE IH PRO VISION OPERATING SYSTEM GUIDE
16
ARMREST WALKAROUND
ELECTRO-HYDRAULIC REMOTE LEVERS
1
7
8910 11 12 13
2 3 456
**

17
REF NAME FUNCTION
1EHR Lever #1 • Electro Hydraulic Remote (EHR) levers are numbered from left to right for the number
of rear remote valves up to a total of 6.
• Any EHR lever can be assigned to any EHR valve installed. Each lever will light up
with the respective color of the EHR valve (see chart below). EHR levers do not light
up if the have not been assigned an EHR valve.
• Levers no longer latch into the Maximum Expend or Maximum Retract detent
positions therefore they will have to be held in the desired position until no longer
needed and when released they will go to the neutral position and ow will stop. If
the lever is moved to the max extend or max retract position with a timer set for that
valve then the ow will stop when the time limit is reached, or the lever is moved out
of the neutral position.
• There is no longer timer learn buttons at the bottom of the levers. Navigate to the
EHR settings screen to manual adjust timer values, turn on the timer, and/or arm
timer learning mode of extend or retract.
NOTE: For the remote that is on constant ow, the timer should be set to innity.
2EHR Lever #2
3 EHR Lever #3
4EHR Lever #4
5EHR Lever #5
6EHR Lever #6
7Congurable
display shortcut
Sets up the conguration screen for congurable buttons, EHR levers, EHR pairs,
and joystick (if equipped).
8Congurable functions #1
By default, pressing these buttons will prompt the congurable button setting screen.
Buttons can be assigned to various functions using the display.
9 Congurable functions #2
10 Congurable functions #3
11 Congurable functions #4
12 Rear hitch lower inching Lowers the hitch at a slow rate as long as the button is pushed.
13 Rear hitch raise inching Raises the hitch at a slow rate as long as the button is pushed.
RAL NAME COLOR VALVE
Tomato Red R1
Signal Blue R2
Sulfur Yellow R3
Emerald Green R4
Dalhia Yellow R5
Blue Lilac R6 / F4
Signal White F1 / R7
Tele Magenta F2 / R8
Turquoise Blue F3
Sky Blue ISOBUS
*
*

CASE IH PRO VISION OPERATING SYSTEM GUIDE
18
ARMREST WALKAROUND
THROTTLE PANEL
14
15
16
17
18
Power Drive
REF NAME FUNCTION
14
Constant
RPM (CRPM)
Set point 1
Enables engine RPM set point 1.Press and hold
to store current engine RPM as set point 1.
15
Constant
RPM (CRPM)
Set point 2
Enable engine RPM set point 2.Press and hold
to store current engine RPM as set point 2.
16 APM
road mode
Enables Automatic Productivity Management
(APM) road/transport mode, APM eld
mode must be off.
17 APM
eld mode
Enables Automatic Productivity Management
(APM) Field mode, APM road mode must be off.
18 Not Used This button is currently not assigned
to a function.
19 Left RPM
Control
• Manually sets engine RPM.
• Limits lower engine RPM.
20 Right RPM
Control
• Limits engine RPM used in automatic mode.
• Allows operator to set engine droop or when
ground speed reduction will occur.
When a transmission auto function is active, the display-of-gear area resizes to also show target speed and maximum
speed information for APM eld or APM road. The icons indicate which mode is active by changing color.
The normal transmission icon is grayed out when an auto function is active.
The auto transmission icon is blue when APM eld or APM road are active.
The APM eld icon is blue when APM eld is active and grayed out when APM road is active.
The APM road icon is blue when APM road is active and grayed out when APM eld is active.
Automatic Productivity Management (APM) Display
APM Field Sensitivity
Field sensitivity determines how frequently the transmission responds to load changes
during eld work. A high setting increases shift frequency. A lower setting decreases shift
frequency. If the transmission is shifting too frequently, decrease the sensitivity setting.
The changes are made by adjusting the slider to change the setting.
APM Road Sensitivity
Road sensitivity determines how frequently the transmission responds to load changes
while roading. A high setting increases shift frequency. A lower setting decreases shift
frequency. If the load is mostly constant and the transmission is not always choosing the
most efcient gear, increase the sensitivity setting. The changes are made by adjusting
the slider to change the setting.

19
CVXDrive™
REF NAME FUNCTION
14
Constant RPM
(CRPM)
Set point 1
Enables engine RPM set point 1.
Press and hold to store current
engine RPM as set point 1.
15
Constant RPM
(CRPM)
Set point 2
Enable engine RPM set point 2.
Press and hold to store current
engine RPM as set point 2.
16 Transmission
Aggressiveness
Cycles through gear transition rate (CVXDrive):
Low – slow gear up to match target speed.
Medium – medium gear up to match
target speed.
High – Fast gear up to match target speed.
17 Not Used This button is currently not assigned to a
function.
18 Not Used This button is currently not assigned to a
function.
19 Left RPM
Control
The left-hand throttle is the primary engine
throttle and functions like any other tractor
throttle: it controls engine speed from idle
to the rated engine speed. Move the lever
forward to increase engine speed, move the
lever rearward to decrease engine speed.
20 Right RPM
Control
Use the right-hand throttle to select the
maximum engine RPM when the engine is
fully loaded. In most circumstances select
the maximum permitted growth point in
engine RPM, or select the maximum drop
point in engine RPM.
In automatic mode, the throttles work
together to set engine speed parameters
for various applications.
18
16
17
15
14
20
19

CASE IH PRO VISION OPERATING SYSTEM GUIDE
20
ADDITIONAL TRANSMISSION CONTROLS
CVXDRIVE™AUTOMATIC AND MANUAL MODES
The transmission is an electronically controlled continuously variable speed transmission. The transmission does not operate in
xed ratios, but allows the operator to combine the desired engine speed with the desired transmission ratio:
• to maximize the power available for the current application,
• or to operate in the most economical fashion.
The transmission always operates in one of two modes: automatic or manual. In automatic mode, engine speed is
automatically controlled, and the transmission selects the appropriate ratios to achieve the target speed for the given load.
In manual mode, reaching the target speed depends on the engine speed selected. The maximum speed for three speed
ranges, for example, 16 km/h (10 mph), 32 km/h (20 mph) or 50 km/h (30 mph), can only be achieved at the rated engine
speed of the tractor – 2000 RPM.
The instrument cluster and the display show the current mode.
For most applications, the operator should choose the default
automatic mode to allow the transmission to deliver the required
power for the application while maintaining the desired ground speed.
Throughout this discussion of the hand and foot controls,
operating and driving the tractor with a CVXDrive™transmission,
pay attention to the differences between automatic and manual
mode to choose the best tools for the application at hand.
On a CVXDrive tractor the operator can see the RPM
settings of the double throttles. As the throttles are
moved the RPM level will reect the RPM change.
The screen will also show if the manual mode is
turned on and if CPRM (constant engine RPM speed)
is turned on.
1 the engine speed setting for the left-hand throttle – 900 RPM in this example,
2 the current speed setting for the right-hand throttle – 2200 RPM in this example,
3the working speed range,
4 the current mode of operation – Automatic or Manual,
5and constant engine RPM speed status.
The transmission screen reports the relative position
of the throttles to one another as well as:
