WEXSTAR F-350WA User manual

- 1 -
INFRARED PANEL HEATER
INSTRUCTIONS MANUAL
Congratulations on purchasing WEXSTAR Infrared Heater. WEXSTAR focuses on reaching the highest quality
standards and optimal heating performance with the lowest possible energy consumption. With the
WEXSTAR infrared heater you will witness the heat being distributed uniformly in the room and absorbed
by objects and walls that release the warmth back into the room. This creates an overall cozy and
comfortable feeling of heat.
By: Spacio Innovations Inc.
PLEASE READ AND SAVE THESE USE AND CARE INSTRUCTIONS

- 2 -
SYMBOLS
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Symbols
Meaning
This symbol located on the device indicates that it is
prohibited to place objects (such as towels, clothes etc.)
above or directly in front of the device.
To avoid overheating and fire hazards, the device
must not be covered.

- 3 -
CONTENT
1┃WARNINGS & PRECAUTIONS
2┃FEATURES
3┃TECHNICAL INFORMATION
4┃SCOPE OF SUPPLY
5┃DEVICE STRUCTURE
6┃INSTALLATION
7┃TROUBLESHOOTING
8┃MAINTENANCE & SERVICING
9┃STORAGE
10┃WARRANTY
11┃DISPOSAL
12┃ACCESSORIES SOLD SEPARATELY

- 4 -
1┃WARNINGS & PRECAUTIONS
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
In this manual there is important information for the installation of your
infrared heater. You have acquired an ecologic, economic heater and
are thereby making an effective contribution towards saving the
environment. This heater can be used with a thermostat.
The infrared heating system proves itself through simple installation,
flexibility in the assembling and freedom from maintenance. So, you can
enjoy long use of your infrared heater and to assure your safety. The
infrared heating element does not work on the principle of convection
heat but is rather a radiant heater. Therefore, it is possible at the
start-up that cold areas (furniture, walls, ceiling and floors) need to be
warmed up first. If you don’t immediately have a comfortable feeling of
warmth, then let the heater run for several hours, or even several days
if necessary, until a comfortable indoor climate has been reached. As
soon as the solid areas have warmed up, comfortable warmth will
spread throughout the room and then you can pare down the running
time of your heater to the minimum.
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and / or serious injury. Save all warnings
and instructions for future reference.
Warning
Do not mount those panels designed for wall only, to ceiling!
Do not mount those panels designed for ceiling only, to wall!
Or else it might cause overheat and burning.
Warning
This appliance can be used by children aged from

- 5 -
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
Warning
Children of less than 3 years should be kept away
unless continuously supervised.
Children aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that it has
been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or
perform user maintenance.
Warning
Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children
and vulnerable people are present. It is dangerous the
installation close to curtains and other combustible
materials. To avoid the possibility of burns, the following
people should be much more careful when using the
heaters: infants and kids, people with sensitive skin,
old people, sick people, people who is drunk, people who
takes sleeping pills.

- 6 -
• Remove all the protective films (both on the front and on the back)
before using.
• Be sure the input voltage is between 120V, 60Hz.
• Do not use the device in potentially explosive rooms.
• Set the device up in an upright and stable position.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device directly to squirting water.
• Never insert any objects or limbs into the device.
• Do not cover the device during operation.
• Do not sit on the device.
• This appliance is not a toy! Keep away from children and animals. Do
not leave the device unattended during operation.
• Check accessories and connection parts for possible damage prior to
every use of the device. Do not use any defective devices or device
parts.
• Ensure that all electric cables outside of the device are protected from
damage (e.g. caused by animals). Never use the device if electric cables
or the power connection are damaged!

- 7 -
• Insert the mains plug into a properly secured mains socket.
• Do not use the device when the socket or wire is overloaded.
• Observe the device's power input, cable length and intended use when
selecting extensions to the power cable. Completely unroll extension
cables. Avoid electrical overload.
• Before carrying out maintenance, care or repair work on the device,
remove the mains plug from the mains socket.
• Switch the device off and disconnect the power cable from the mains
socket when the device is not in use.
• Do not under any circumstances use the device if you detect damages
on the mains plug or power cable. If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard. Defective power cables pose a
serious health risk.
• Never drill into the heating device.
• Do not use the device in immediate proximity to curtains.
• Do not place the device on combustible ground.
• Do not transport the device during operation.
• Do not touch the surface during the device working to avoid burns.
• Allow the device to cool down before transport and / or maintenance
work.

- 8 -
• Do not use this device near bathtubs, shower trays, swimming pools or
other water containers that can cause a risk of electric shock!
• The device must be placed where the switches and controllers cannot
be touched by a person in a bathtub or shower.
IMPORTANT INSTRUCTIONS WHEN THE HEATER IS USED AS A
MOVABLE HEATER WITH THE STAND SUPPORT
•Read all instructions before using this heater as a movable
heater.
•This heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. If provided, use handles when moving
this heater. Keep combustible materials, such as furniture,
pillows, bedding, paper, clothes, and curtains at least 3 feet (0.9
m) from the front of the heater.
•Extreme caution is necessary when any heater is used by or near
children or invalids and whenever the heater is left operating and
unattended.
•Always unplug heater when not in use.
•Do not operate any heater with a damaged cord or plug or after
the heater malfunctions, has been dropped or damaged in any
manner. Discard heater or return to authorized service facility for
examination and/or repair.
•Do not use outdoors.
•This heater when used as movable with the stand feet in
bathrooms, laundry areas and similar indoor locations; never

- 9 -
locate heater where it may fall into a bathtub or other water
container.
•Do not run the cord under carpeting. Do not cover the cord with
throw rugs, runners, or similar coverings. Do not route cord
under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
•To disconnect the heater, turn controls to off, then remove plug
from outlet.
•Connect to properly grounded outlets only.
•A heater has hot and arcing or sparking parts inside. Do not use it
in areas where gasoline, paint, or flammable liquids are used or
stored.
•Use this heater only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electric
shock, or injury to people.
•Hyperthermia can result in death. Symptoms of hyperthermia
include high body temperature, headache, nausea, vomiting,
tiredness, dizziness, fainting, and rapid pulse. If you begin to
experience symptoms related to hyperthermia, turn off the
heater and seek medical attention.
•To avoid excessive room temperatures which can cause
hyperthermia: DO NOT leave product running unattended in a
confined space around infants, or individuals with reduced
physical, sensory, or mental capabilities.
SAVE THESE INSTRUCTIONS

- 10 -
2┃FEATURES
• The device is designed to provide an efficient, comfortable and
healthy heating system for any domestic users.
• These devices do not require air circulation to transmit the heat and help to
maintain a clean, silent, dust free environment.
• A wide range of devices available in a huge choice of sizes and styles.
3┃TECHNICAL INFORMATION
Heating element
Carbon (square shape)
NiCr heating wire（round shape）
Heating way
Far infrared heating
Voltage
120V/60Hz
Surface temperature
Wall Heater 85-95 degree C
Ceiling heater 90-105 degree C
Frame
Aluminum
IP grade
IP54 (exclude plug)
Over heating protection
Yes
Power cord length
1.9m

- 11 -
Model
NO.
Size(mm)
Power
(W)
Voltage
Freque
ncy
Rated
Curre
nt
Mounting
way
F-350WA
595*595*25
350W
120V/
60Hz
2.92A
Wall only
F-450WA
705*605*25
450W
3.75A
Wall only
F-580WA
1005*605*25
580W
4.83A
Wall only
F-700WA
1195*595*25
700W
5.83A
Wall only
F-900WA
1205*755*25
900W
7.50A
Wall only
F-1100W
A
1205*905*25
1100W
9.17A
Wall only
F-270CE
595*595*25
270W
2.25A
Ceiling only
F-320CE
705*605*25
320W
2.67A
Ceiling only
F-450CE
1005*605*25
450W
3.75A
Ceiling only
F-550CE
1195*595*25
550W
4.58A
Ceiling only
F-700CE
1205*755*25
700W
5.83A
Ceiling only
F-800CE
1205*905*25
800W
6.67A
Ceiling only
Warning!
Do not mount those panels designed for wall only, to ceiling!
Do not mount those panels designed for ceiling only, to wall!

- 12 -
4┃SCOPE OF SUPPLY
• 1 x Heating device
• 4 x Screws
• 4 x Anchors
• 1 x Manual
• 1 x Drilling template
These kits can be used for wall mounting only, special kits shall be used
for ceiling mounting, please consult the supplier before installation.
5┃DEVICE STRUCTURE
Designation
1 Frameless shell
2 Heating element
3 Insulation layer
4 Rear metal sheet
5 Power cable
6 Junction box
7 Mounting bars

- 13 -

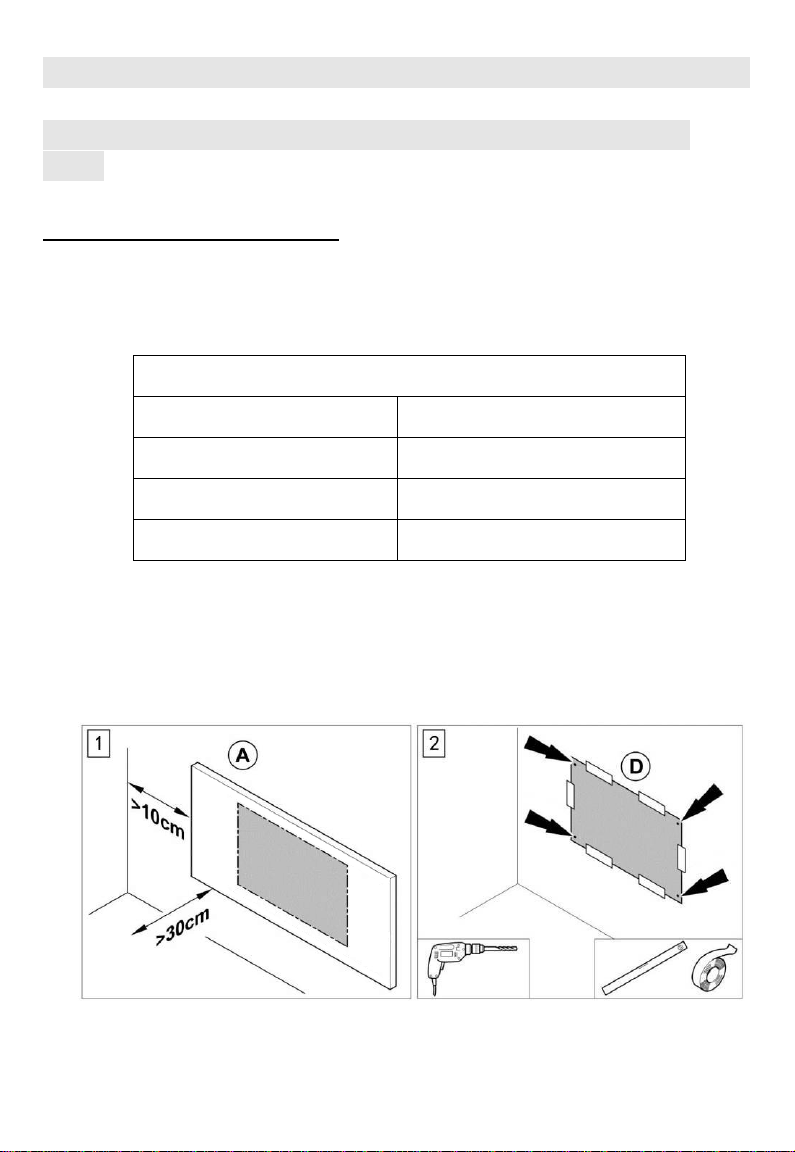

6┃INSTALLATION
Make sure remove all the protective films (both on the front and
back)!
Instruction for Wall Mounting
IMPORTANT: this way is for wall mounting only!
1. Choose the mounting position, keep the required minimum
distances.
Distances required for device mounting
front
Minimum 30cm / 12”
left
Minimum 10cm / 4”
right
Minimum 10cm / 4”
top
Minimum 50cm /20”
2. Mark the positions for the bore holes onto the drilling template (D)
if there are no existing marks. Stick the drilling template on the wall.
Drill the holes with an 8mm drill bit.

- 14 -
3. Insert the screws into the anchors and fasten the screws. The
screws should protrude approx. 0.5 cm / 0.2”from the dowels.
4. Hang the infrared heating device (A) in.
5. Slid the device to make the screws into the correct positions as
showing in below drawing.
6. Plug in to start using the heating device.
Do pull out the plug when not in use.

- 15 -
Instruction for Ceiling Mounting Way A:
The below ceiling mounting set is included with the ceiling mounting
heaters models only.
X 2 SETS
1. Drill two holes on the ceiling with correct distance A and distance
B.
Panel Size/mm
Hole Distances
of Screws/mm
595*595
A310*B240mm
705*605
A360*B240mm
1005*605
A480*B240mm
1195*595
A660*B240mm
1205*755
A660*B390mm
1205*905
A660*B470mm

- 16 -
2. Mount the two hanging units onto ceiling with screws, and turn
the screws to the end tightly, this is very important.
3. Take off all the four plastic caps from the rear of the panel.
4. Slide the panel to make ceiling hanging units into one side of the
panel rear bracket first, then push the whole panel close to ceiling
and slide the panel back, to make the other end of the ceiling
hanging unit enters the other side.

- 17 -
(View after mounting finished)
Instruction for Ceiling Mounting Way B:
The below ceiling mounting set is not included, and it is sold as a
separate accessory.

- 18 -
1.Drill four 2mm diameter holes on the rear of the panel if there are no
such small holes exists. Insert short screws G into B and screw them into
the holes.
2. Tighten wires I to B by screwing C.

- 19 -
3. Drill four 6mm holes on the ceiling and fix the plastic expansion
tubes H on the ceiling.
4.Insert the long screws F into the expansion tubes H through the top
lock metal head E, then tighten up the screws into the tubes.

- 20 -
5.screw D which is at the other end of the wire into E tight.
6.Press the automatic locking extractor to adjust the desired length of
the steel wire.
Release the locking extractor, then it will lock the wire automatically.
