Whalen Santa Fe SFKCWWR-T User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2017-03-07 Rev. 0001-C Factory: FOCIDI
Santa Fe Kitchen Cart with Wine Rack
Stock # SFKCWWR-T
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions and
parts list ready to provide the model name, part name or factory number:
866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASE
D
:
/
/

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Santa Fe Kitchen Cart with Wine Rack (SFKCWWR-T)
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling the unit.
2. To avoid damage, assemble the unit on a sturdy, level and non-abrasive surface.
3. Keep all hardware part out of reach of children.
4. Please wait until all steps are completed before fully tightening bolts.
5. Make sure all bolts are tightly fastened before the unit is used.
MAXIMUM RECOMMENDED WEIGHT LOADS
GENERAL INFORMATION, TIPS
and
TRICKS
MAXIMUM LOAD 50 lb. (22.6 kg)
PLACE TV BEHIND THE STOPPER
FITS UP TO MOST 45"FLAT PANEL TVs
MAXIMUM LOAD 100 lb. (45.3 kg)
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH
FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND
WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL
TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF
THE UNIT; THE BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING
SURFACE OF THE UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED
FLAT PANEL TVS, OR FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED
RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT,
CAUSING POSSIBLE SERIOUS INJURY.

3
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (Qty. 1) B- Middle Shelf (Qty. 2)
C- Bottom Shelf with Wine Bottle Holder (Qty. 1) D- Side Frame (Qty. 2 )
E- Bottom Stretcher (Qty. 1) F- Stop Rail (Qty. 1)
(1) 1/4" x 3/4" Bolt (2) 1/4" x 1-1/2" Bolt
(Qty. 8+1 extra) (Qty. 14+1 extra)
4 mm Hex Wrench Touch-up Pen Tipping Restraint Hardware Kit (2 sets)
(Qty. 1) (Qty. 1) (Included in plastic bag)
Tools required: Hex wrench (provided), Phillips screwdriver and hammer (not provided).

4
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back
and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or empty carton to avoid any scratch.
2. Position the Top Panel (A) upside down with the threaded inserts facing up.
3. Align and attach the Side Frames (D) to the Top Panel (A) with eight 3/4" bolts (1). DO NOT fully
tighten the bolts in this step.
A
D
D
1
1
11
1/4" x 3/4" Bolt
(8 used in this step)
①

5
Assembly Instructions
4. Attach the Bottom Stretcher (E) between the bottom rails of both Side Frames (D) with two 1-1/2” Bolts
(2). Tighten the bolts with the enclosed hex wrench. As shown.
2
2
A
D
D
E
1/4" x 1-1/2" Bolt
(2 used in this step)
②

6
Assembly Instructions
5. Flip over the assembled unit at its long edge.
6. Depend on the desired configuration, insert and fit the Bottom Shelf (C) onto the bottom rails of both
Side Frames (D) making sure the threaded inserts on Bottom Shelf align with the drilled holes on Side
Frames properly.
NOTE: The Bottom Shelf (C) is designed to be reversed as a Wine Rack.
D
D
C
D
D
C
D
CD
C
D
D
C
OR

7
Assembly Instructions
7. Fasten the Bottom Shelf (C) to the bottom rails of both Side Frames (D) with four 1-1/2" Bolts (2).
C
D
D
2
2
1/4" x 1-1/2" Bolt
(4 used in this step)
②

8
Assembly Instructions
8. Repeat the same procedure to attach the Middle Shelves (B) to the middle rails of Side Frames (D).
9. Ask for assistance to stand the assembled unit upright.
1/4" x 1-1/2" Bolt
(8 used in this step)
②
D
D
B
B
B
D
B
B
D
D
B
D
B
B
D
D
B
D
2

9
Assembly Instructions
NOTE: You must install the Strip Stopper to prevent the TV from tipping when placing your flat panel
television directly on the top panel.
10. Remove the paper backing from the Stop Rail (F), then properly align the Stop Rail with the top edge of the
stopper template on Top Panel (A). Press down on the Stop Rail to help adhesion.
11. Carefully remove the stopper template from the Top Panel (A).
F
F
F
A
A

10
Assembly Instructions
Tools required: Phillips screwdriver, power drill, 3/8” drill bit and rubber mallet.
12. Ask for assistance to position the unit at the desired location against a wall. Now, follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the tip-over
restraints to the unit and the wall.
NOTE: Young children can be seriously injured by tipping furniture. You must install the Tipping
Restraint Hardware with the unit to prevent the unit from tipping, causing any accidents or damage. The
tipping restraint is intended only as a deterrent, they are not a substitute for proper adult supervision.
The tipping restraint is not an earthquake restraint. If you wish to add the extra security of earthquake
restraints, they must be purchased and installed separately.
13. The unit is now ready for use. Be sure to position your Flat Panel TV in the center of the Top Panel (A),
behind the Stop Rail (F).

11
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
Using solvents of any kind on your furniture may damage your furniture’s finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
Stains or marks from crayons or ink markers will be difficult to remove.
In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
A touch-up pen has been provided to repair any small nicks or scratches that may occur during
assembly or shipping.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state
or province to province.
Customer Service: 866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenstyle.com

ESTE INSTRUCTIVO CONTIENE INFORMACION IMPORTANTE DE SEGURIDAD.
POR FAVOR LEA Y MANTENGA PARA USO FUTURO.
Fecha 2017-03-07 Rev. 0001-C Fábrica: FOCIDI
Carro para cocina Santa Fe con raca para botellasde vino
Serie # SFKCWWR-T
ENSAMBLE REQUERIDO POR ADULTO
Si tienen alguna pregunta acerca del ensamble o si alguna parte está faltante, no retorne este producto a
la tienda que lo compró. Por favor llame a nuestro departamento de ayuda al cliente teniendo su
instructivo y lista de partes para proveer el modelo, nombre de parte o el número de fábrica:
866-942-5362
Hora Estándar del Pacífico: 8:30 a.m. - 4:30 p.m., Lunes a Viernes
O visite nuestra página 24 horas al dia, 7 días a la semana para la asistencia
www.whalenstyle.com
O por correo [e-mail]
LOTE NÚMERO:
FECHA DE COMPRA: / /_____

2
FABRICANTE: Whalen Furniture Manufacturing
CATALOGO: Carro para cocina Santa Fe con raca para botellas de vino (SFKCWWR-T)
HECHO EN CHINA
1. Por favor, lea las instrucciones de ensamble antes de montar este producto.
2. Para evitar daños, monte el producto sobre una superficie plana y firme y protector.
3. Mantenga el herraje separado del alcance de los niños.
4. Por favor, espera hasta que todos los pasos sean completados antes de apretar los tornillos.
5. Asegúrese de que todos los tornillos estén bien apretados antes de que la unidad se utiliza.

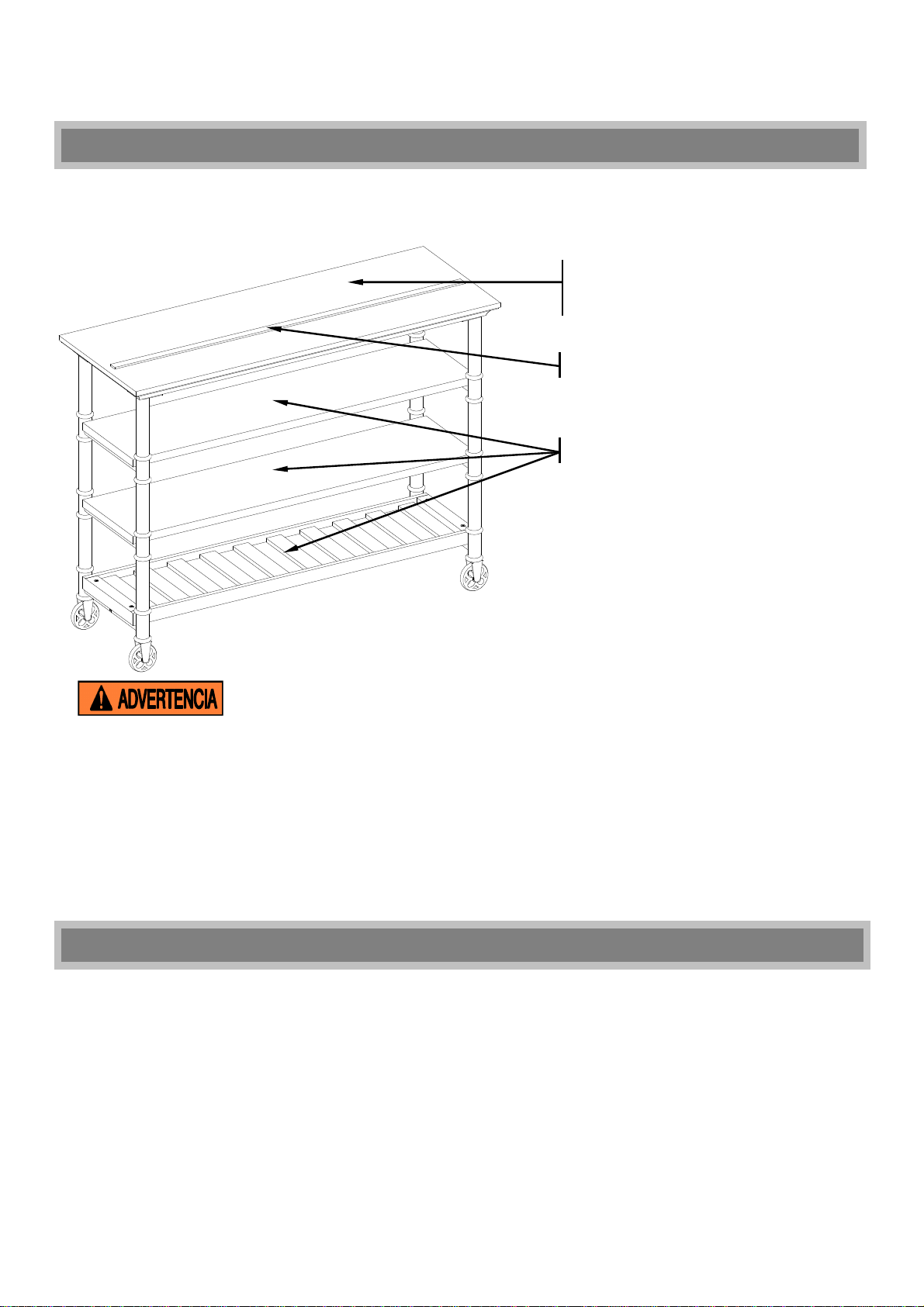

MÁXIMAS CARGAS RECOMENDADAS
CARGA MÁXIMA 50 lb. (22.6 kg)
INFORMACION GENERAL, RECOMENDACIONES Y TRUCOS
PONER
LA
TV DETRÁS DEL TOPE
PARA LA MAYORÍA DE TELEVISIONES
PANTALLA PLANA DE 45"
CARGA MÁXIMA
1
00
lb. (
45
.
3
kg)
ESTA UNIDAD NO DEBE UTILIZARSE CON TELEVISIONES CRT O DE TUBO.
UTILIZARSE ÚNICAMENTE CON TELEVISIONES DE PANTALLA PLANA Y EQUIPO DE
AUDIO/VIDEO QUE TENGA LA MEDIDA/PESO RECOMENDADO. NUNCA UTILIZAR CON
TELEVISIONES MÁS GRANDES/PESADAS DE LAS RECOMENDADAS. PARA EVITAR
INESTABILIDAD COLÓQUELA EN EL CENTRO DE LA UNIDAD; LA BASE DE LA TELEVISIÓN
DEBE DE REPOSAR SOBRE LA SUPERFICIE DE SOPORTE DE LA UNIDAD SIN REBASAR LAS
ORILLAS. LAS TELEVISIONES DE PANTALLA PLANA COLOCADAS INAPROPIADAMENTE, O
LAS TELEVISIONES DE PANTALLA PLANA INCLUYENDO EQUIPO QUE SOBREPASA LAS
MEDIDAS Y PESOS RECOMENDADOS PUEDEN CAERSE Y/O ROMPER LA UNIDAD, CAUSANDO
POSIBLES DAÑOS O LESIONES.

3
Lista de Partes y Artículos de Ferretería
Por favor lea completamente las instrucciones y verifique que estén todas las partes antes de
iniciar el ensamblado .
A- Panel superior (Cant. 1) B- Repisa media (Cant. 2)
C- Repisa inferior con raca para botella (Cant. 1) D- Marco lateral (Cant. 2 )
E- Soporte inferior (Cant. 1) F- Riel tope (Cant. 1)
(1) Tornillo de 1/4" x 3/4" (2) Tornillo de 1/4" x 1-1/2"
(Cant. 8+1 extra) (Cant. 14+1 extra)
Llave hexagonal 4 mm Plumón de retoque Juego de restricción de movimiento (2 juegos)
(Cant. 1) (Cant. 1) (Incluido en la bolsa plástico)
Herramienta requerida: Llave hexagonal (proveida), desarmador estrella y mazo (no incluidos)

4
Instrucciones de ensamble
NOTA: Por favor, no apriete completamente todos los pernos hasta que termine el montaje de todas las
piezas. Una vez montado, volver atrás y apriete completamente todos los pernos. Esto hará que el montaje
sea más fácil.
1. Desempaque la unidad y confirmar que tiene todo el herraje y las piezas necesarias. Ensamble la unidad
en un lugar o de la caja de cartón vacía para evitar cualquier rasguño.
2. Coloque la sección superior (A) sobre una superficie plana y protegida.
3. Alinear y unir los marcos laterales (D) al panel superior (A) con ocho tornillos de 3/4" (1). No apretar los
tornillos en este paso.
A
D
D
1
1
11
Tornillo de 1/4" x 3/4"
(8 usados en este paso)
①

5
Instrucciones de ensamble
4. Coloque el soporte inferior (E) entre los rieles inferiores de ambos marcos laterales (D) mediante dos
tornillos de 1-1/2" (2). Apriete los tornillos con la llave hexagonal incluida. Como se muestra.
2
2
A
D
D
E
Tornillo de 1/4" x 1-1/2"
(2 usados en este paso)
②

6
Instrucciones de ensamble
5. Girar y colocar la unidad sobre su borde largo.
6. Dependiendo de la configuración deseada, insertar y colocar la repisa inferior (C) en los rieles inferiores
de ambos marcos laterales (D) asegurándose de que los insertos roscados en la parte inferior de la repisa
se alinean con los agujeros perforados en el marco lateral en forma correcta.
NOTA: La repisa inferior (C) es diseñada para ser usada como raca para botellas de vino o normal.
D
D
C
D
D
C
D
CD
C
D
D
C
OR

7
Instrucciones de ensamble
7. Fijar la repisa inferior (C) a la parte baja de los riles de ambos marcos laterales (D) con cuatro tornillos de
1-1/2" (2).
C
D
D
2
2
Tornillo de 1/4" x 1-1/2"
(4 usados en este paso)
②

8
Instrucciones de ensamble
8. Repita el mismo procedimiento para colocar las repisas medias (B) a los carriles centrales del marco
lateral (D).
9. Pida ayuda para colocar la unidad ensamblada en posición vertical.
Tornillo de 1/4" x 1-1/2"
(8 usados en este paso)
②
D
D
B
B
B
D
B
B
D
D
B
D
B
B
D
D
B
D
2
