Wharfedale Pro WLA-25 Guide

www.wharfedalepro.com
OPERATING MANUAL AND USER GUIDE
WLA-25 & WLA-25SUB
WLA-25&25SUB MANUAL.indd 1 2017-6-20 9:23:17

Contents
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS..................................................................................................... 1
INTRODUCTION ................................................................................................................................................................. 2
FEATURES.......................................................................................................................................................................... 3
SPLAY ANGLES.................................................................................................................................................................. 4
LEVEL TAPERING .............................................................................................................................................................. 4
FLEXIBLE ARRAYS ............................................................................................................................................................ 5
OPTIMISED GROUND STACKING..................................................................................................................................... 6
AIR ABSORPTION .............................................................................................................................................................. 6
AIR ABSORPTION .............................................................................................................................................................. 7

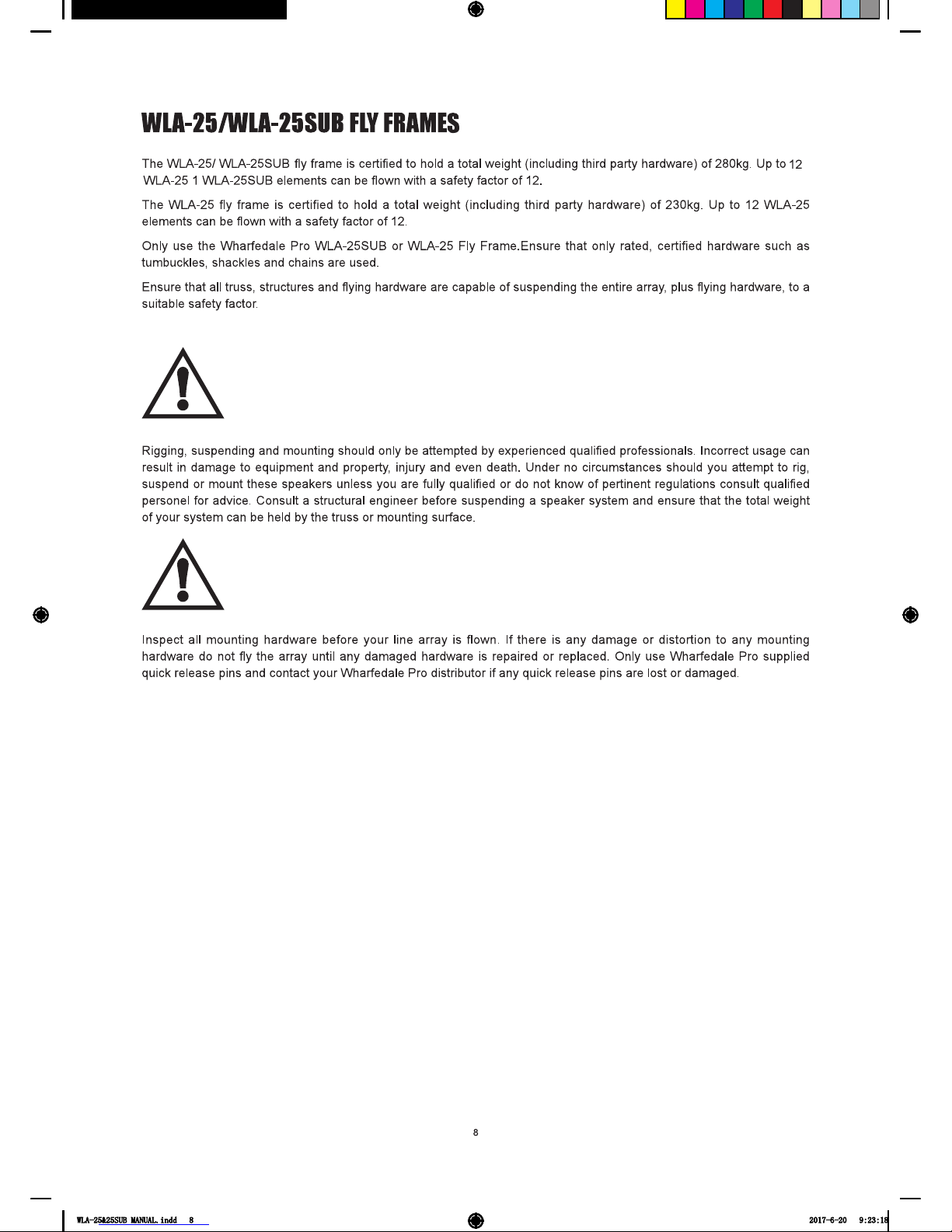

WLA-25/WLA25SUB FLY FRAME ...................................................................................................................................... 8
DIMENSIONAL DRAWINGS-WLA-25 ................................................................................................................................. 9
DIMENSIONAL DRAWINGS-WLA-25SUB........................................................................................................................ 10
DIMENSIONAL DRAWINGS-WLA-25 FLYFRAME ........................................................................................................... 11
DIMENSIONAL DRAWINGS-WLA-25SUB FLYFRAME.................................................................................................... 12
SPECIFICATION ............................................................................................................................................................... 13
WHARFEDALE PRO LIMITED WARRANTY .................................................................................................................... 14
WLA-25&25SUB MANUAL.indd 1 2017-6-20 9:23:17

1
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS
• Read these instructions
• Follow these instructions
• Keep these instructions for future reference
• Heed all warnings
• Do not use this system near moisture or water
• Clean only with a dry cloth
• Install in accordance with these Wharfedale Pro operating instructions
• Followthemanufacturer’soperatinginstructionsforallperipheraldevicessuchasampliersandprocessors
• Do not install near heat sources such as radiators, heat registers, stoves or any other apparatus that produces heat (for
examplelightingsystemsandampliers)
• UseonlyaccessoriesspeciedorsuppliedbyWharfedalePro
• Donotuseshieldedmicrophone/instrumentcablestoconnectampliersandspeakers,useonlyapprovedspeaker
cableswithproperconnectors
• Usecautionwithplacementandoperationofthisspeakersystem,permanenthearingdamagecanbecausedby
prolonged exposure to excessive sound pressure levels
• Referallservicingtoqualiedprofessionals.Servicingisrequiredwhentheloudspeakerhasbeen damagedinany
way,suchasimpactdamage,liquidingressorforeignobjectdamage.Inadditiontheloudspeakershouldbereferred
toqualiedservicepersonnelifthereisanykindofmalfunction.
Rigging,suspendingandmountingshouldonlybeattemptedbyexperiencequaliedprofessionals.Incorrectusagecan
resultindamagetoequipmentandproperty,injuryandevendeath.Undernocircumstancesshouldyouattempttorig,
suspendormountthesespeakersunlessyouarefullyqualiedandcertiedtodosobyrelevantlocal,stateandnational
authorities.Ifyouarenotproperlyqualiedordonotknowofpertinentregulationsconsultqualiedpersonnelforadvice.
Consultastructuralengineerbeforesuspendingaspeakersystemandensurethatthetotalweightofyoursystemcan
beheldbythetrussormountingsurface.
Inspectallmountinghardwarebeforeyourlinearrayisflown.Ifthereisanydamageordistortiontoanymounting
hardwaredonotythearrayuntilanydamagedhardwareisrepairedorreplaced.OnlyuseWharfedaleProsupplied
QuickreleasePins,contactyourWharfedaleProDistributorifanyquickreleasepinsarelostordamaged.
WLA-25&25SUB MANUAL.indd 1 2017-6-20 9:23:17

2
Designed for the most demanding concert and installation audio professionals, the WLA-25 system sets new standards
for astonishing acoustical performance in a compact size.
Line arrays are increasingly employed in a wider range of venues and applications. Frequently these venues have height
or sightline restrictions that limit the placement and size of the array. Rising fuel costs are putting pressure on touring
system providers to downsize their transportation requirements. At the same time, client and audience expectations for
audioperformancehasneverbeenhigher.Tomeettheseneeds,WharfedaleProembarkedonaprogramtodevelopthe
mostcompact,highestoutputlinearrayspeakersystemavailable.
Each WLA-25 element uses a pair of high-power, 5” low-frequency drivers. Both cover low frequencies while only one
extends into the mid range, thus maintaining horizontal dispersion control at a crossover. High frequencies are handled
byapremium1.7”diaphragm,neodymiumcompressiondriver,100°x10°multipleaperturediffractionwaveguide.This
createsawidecoveragewithasuperbstereoimageandallowsformorediverseplacement.
Thewaveguideexitextendsnearlytothetopandbottomoftheenclosuretocreateacontinuousacousticalsourcewith
minimaldiscontinuitiesbetweenadjacentelementsresultingingreatlyreduceddestructiveinteraction.
Premiummaterialsareusedthroughoutthesystem.The enclosureisconstructedofBalticbirchplywoodandcoated
inanenvironmentallyfriendly, waterbornepolymernishthatiseldrepairable.Tokeep the weighttoaminimumand
preventrust,suspensionttingsaremadeofaluminium.
Anelegantlysimple3-pointsuspensionsystemcombinedwithlightweight,compactsizeandexcellenthandling
ergonomicsmeanthataonepersoncrewcaneasilydeployanarray.AsingleWLA-25arrayyframesuspendsupto
twelvelinearrayelementsoruptotwelvelinearrayelements plus onesubwoofer.TheWLA-25systemisequallyat
homeintheairorground-stacked.
INTRODUCTION
WLA-25&25SUB MANUAL.indd 2 2017-6-20 9:23:17

3
WLA-25
High sensitivity, Full Horn Loaded design
120WRMS/240WProgram/480WPeakPowerHandling
Dual 5” woofer, 1.5” voice coils
1x1” exit HF compression driver
1.7 “ Titanium diaphragm, neodymium magnet compression driver
100°x10°degreeconstant-directivityhorn
NominalPassiveCrossoverNetwork
Front hinged rigging system
Captiverigginghardwarewithtetheredquickreleasepins
Comprehensiveadjustablesplayangles
Integral,sideplateadjustableriggingsystem,verticalsplayadjustablein1°incrementsfrom0°-10°
TrapezoidBalticbirchplywoodenclosure
2xParallelSpeakonInputs
Constant directivity waveguides
Blackandwhitepaintnish
WLA-25SUB
700WRMS/1400WProgram/2800WPeakpowerhandling
Roadtoughmodularsubwoofersystem
Dual 10” woofer, 2.5” voice coil
Nominal Impedance 4 Ohm
Stronginternalbracingpreventsbasslossanddistortionfromenclosure,vibrationandresonance
2xParallelSpeakonInputs
Blackandwhitepaintnish
FEATURES
WLA-25&25SUB MANUAL.indd 3 2017-6-20 9:23:17

4
TheWLAcanbeconfiguredwithseveraldifferentsplayangles.Thesplayanglesdeterminetheamountofoverlap
betweentheindividualunits.Thisisusedtodeterminetheamountofsummationor‘throw’forseparatesectionsof
thearray.Asthesplayanglebetweenboxesincreasesthesummationdecreasesbutthespectralvariancedueto
interactionsbetweentheelementsisalsodecreased.
Formanyvenuesagoodcompromisebetweenthrowandspectralvariancecanbereachedbyvaryingthesplayangle
acrossthelengthofthearray.Byvaryingtheangularseparationalongthelengthofthearray,abalancecanbemetfor
therequiredcoverage.Smallersplayanglesprovidehigher summationtocovermoredistantseatingandbleachers.
Larger splay angles provide lower summation with reduced spectral variance for close seating. Used correctly this can
provide even coverage over long distances.
EachgroupofloudspeakerswithdifferentsplayanglewillrequireaseparatechannelofamplicationanddifferentEQ
settings.Thisisduetothedifferentsummationeffectsbydifferingsplayangles.
SPLAY ANGLES
Taperingthelevelofenclosureshasabeamsteeringeffectwhichcanbeusedintheconjunctionwithangularseparation
betweenelements.Thebeamwillbesteeredawayfromthe‘on-axis’centrelineofarraytowardthecabsbeingdriven
atthehighestlevel.Theextentofthebeamsteeringeffectdependsonthelengthofthearrayandtheleveldifference
betweenthetopandthebottomofthearray.Thistechniqueallowsyoutofurthertailortheverticalcoveragetodifferently
shapedvenues,reducingthelevelvariancebetweenthefrontandrearofthevenue.
Ideallythelevelofeachenclosureistaperedgradually(e.g.0.5dBor1dBperelement).Thismeansyouwillrequire
anamplierchannelperelementinpassive mode,ortwoamplierchannelsperelementin bi-ampmode.Groupsof
elementscanbetaperedinpairsormore,althoughamoregradualtaperwillgiveyousmootherverticalpatterncontrol.
LEVEL TAPERING
WLA-25&25SUB MANUAL.indd 4 2017-6-20 9:23:17

5
FLEXIBLE ARRAYS
ArrayscanbeassembledusingonlyWLA-25linearraymodulesorwithWLA-25SUBSubwoofersatthetopofthearray.
TheWLA-25SUBFlyFrameallowsforaWLA-25SUBsubwoofertobeusedatthetopofthearray.TheWLA-25SUBFly
Frame supports up to 12 x WLA-25 modules and 1 x WLA-25SUB with a safety factor of 12.
ArrayscanbeassembledusingonlyWLA-25linearraymodules.ThesmallerWLA-25FlyFramesupportsupto12x
WLA-25 modules with a safety factor of 12.
WLA-25&25SUB MANUAL.indd 5 2017-6-20 9:23:17

6
Thehighfrequencyperformanceofthemediumandlongthrowsectionsofthelinearraywillbelimitedbyairabsorption.
Asthedistancefromthesourceincreases,themidandhighfrequencieswillbereduced.Theamountofabsorptionata
given frequency is function of pressure, temperature and relative humidity. By far the most important factor is the relative
humidity,althoughtemperaturedoeshaveasignicanteffect.
Toachieveminimalspectralvarianceacrossthecoverageofthearray,thegroupsofloudspeakerscoveringthemiddleto
rearofthevenuewillrequireequalizationtocompensateforthiseffect.Airabsorptionisdifculttopredictwithanygreat
accuracy,andinanycasetherelativehumidityofthevenueislikelytochangewhentheaudiencearriveortheweather
changes. It is important that the venue is monitored during the event as the equalization applied during the design stage
withanemptyvenuemaynotbesuitableduringtheevent.
Asageneralguide,boostabove8kHzforalongthrowgroupofloudspeakersand12kHzforamediumthrowgroupof
loudspeakers.
The chart overleaf shows attenuation in dB/m for a given frequency and humidity. It is important to note that the effects of
airattenuationarelinear,unlikethelevelofattenuationfromdistancefromtheinversesquarelaw.Forexample,at100m
asourcewouldbe40dBdowncomparedtoit’sSPLat1m.Assuming50%relativehumidityand20°thelevelat10kHz
willbeanadditional16dBbelowthis(approximately56dBdown).
AIR ABSORPTION
OPTIMISED GROUND STACKING
WLA-25riggingdoublesupasanoptimizedgroundstackingsystem,usingtheWLA-25SUBsubwooferasabase.Arrays
ofWLA-25linearrayelementscanbeaimeddownwardsbyasmuchas10°tocoveraudienceareasclosetoastage,as
wellasupwardbyasmuchas10°inordertobettercoverdistantbalconyseatingareas.
WLA-25&25SUB MANUAL.indd 6 2017-6-20 9:23:18

7
AIR ABSORPTION
TheWLA-25hasinternalcrossovers.TheinternalcrossoveroftheWLA-25loudspeakerdividestheaudiosignalintothe
separate frequency ranges for each driver.
TheWLA-25SUBsubwoofersdonothaveinternalcrossovers.Thisfunctionmustbesuppliedbyexternalelectronic
devices such as the Wharfedale Pro Versadrive series or LMX-204.
WLA-25&25SUB MANUAL.indd 7 2017-6-20 9:23:18

9
DIMENSIONAL DRAWINGS-WLA-25
WLA-25&25SUB MANUAL.indd 9 2017-6-20 9:23:18

10
DIMENSIONAL DRAWINGS-WLA-25SUB
WLA-25&25SUB MANUAL.indd 10 2017-6-20 9:23:18

11
DIMENSIONAL DRAWINGS-WLA-25 FLY FRAME
TheWLA-25ly frame is certifiedto holdatotal weight(includingthird party hardware) of 230kg. Up to 12 WLA-25
elementscanbeownwithasafetyfactorof12.
543.0
462.5
50.0
95.0
WLA-25&25SUB MANUAL.indd 11 2017-6-20 9:23:18

12
DIMENSIONAL DRAWINGS-WLA-25SUB FLYF RAME
543.0
650.0
50.0
95.0
TheWLA-25/WLA-25SUBlyframeiscertiedtoholdatotalweight(includingthirdpartyhardware)of280kg.Upto12
WLA-25and1WLA-25SUBelementscanbeownwithasafetyfactorof12.
WLA-25&25SUB MANUAL.indd 12 2017-6-20 9:23:18

13
SPECIFICATION
Model Name WLA-25 WLA-25SUB
System Type Passive Passive
Conguration two-way Subwoofer
FrequencyResponse(+/-3dB) 108-18kHz 56-1.5kHz
FrequencyRange(-10dB) 108-20kHz 56-2.0kHz
Sensitivity 2.83v/1m HF:108dB/LF:100dB 107dB
Calculated Maximum SPL @1m HF:135dB/LF:127dB 141dB
System Rated Impedance 16Ω 4Ω
Low Frequency Transducer
LFSize(mm/inches) 130mm / 5'' 254mm / 10''
LFVoice-CoilSize(mm/inches) 35.0mm / 1.4'' 65.5mm / 2.5''
LF Magnet Material ferrite ferrite
LF Frame Material aluminium aluminium
Rated Impedance 16Ω 8Ω
LF Power re:AES2-2012 2X60W 2X350W
High Frequency Transducer
HF Driver Type: Compression Driver
CoilSize(mm/inches) 44mm / 1.75''
ExitSize(mm/inches) 1"
HF Magnet Material NdFeB
Diaphragm Material Titanium
Rated Impedance 16Ω
HF Power re:AES2-2012 40W
Waveguide Type square
NominalCoverage(HxV) 100°x10°
Power
SystemContinuousPower(w) HF:40W/LF:120W 700W
SystemProgrammePower(w) HF:80W/LF:240W 1400W
SystemPeakPower(w) HF:160W/LF:480W 2800W
Crossover frequency 3.7kHz
Input Connector 2xSpeakon 2xSpeakon
Rigging Intergralsideplateadjustablerigging0°-10° Integral,non-adjustable
pole mount NO NO
handles yes yes
Enclosure
cabinettype Trapezoid square
EnclosureMaterialandnish 15mm,18mm plywood 15mm,18mm plywood
Colour Options blackorwhitepaint blackorwhitepaint
Grille Material & Finish steel steel
Dimensions - Unpacked (mm / inches):
Height 536mm/21.1" 536mm/21.1"
Width 363mm/14.3" 400mm/15.7"
Depth 164.5mm/6.45" 550mm/21.7"
Dimensions - Packed (mm / inches):
Height 606mm/23.9" 610mm/24.0"
Width 430mm/16.9" 470mm/18.5"
Depth 235mm/9.3" 596mm/23.5"
Weight
NetWeight(kg/lbs) 13kg/28.6lbs 37kg/81.4lbs
GrossWeight(kg/lbs) 15kg/33lbs 39.5kg/86.9lbs
WLA-25&25SUB MANUAL.indd 13 2017-6-20 9:23:18

14
Wharfedale Pro products are warranted of manufacturing or material defects for a period of one
year from the original date of purchase. In the event of malfunction, contact your authorized
WharfedaleProdealerordistributorforinformation.
*Be aware that warranty details may differ from country to country. Contact your dealer or
distributorforinformation.Thesetermsdonotinfringeyourstatutoryrights.
WHARFEDALE PRO LIMITED WARRANTY
WLA-25&25SUB MANUAL.indd 14 2017-6-20 9:23:18

15
WLA-25&25SUB MANUAL.indd 15 2017-6-20 9:23:18

Wharfedale Professional
IAGHouse13/14GlebeRoadHuntingdonCambridgeshirePE297DLUK
www.wharfedalepro.com
WharfedaleProfessionalreservestherighttoalterorimprovespecicationswithoutnotice.
Allrightsreserved©2017WharfedalePro.WharfedaleProisamemberoftheIAGGroup.
WLA-25&25SUB MANUAL.indd 16 2017-6-20 9:23:22
