Wharfedale Pro WLA-218BXF User manual

OVERVIEW
WLA-218BXF
QUICK START GUIDE
Your full user manual can also be downloaded from
www.wharfedalepro.com
Note : Specifications may be subject to change without notice.
SPECIFICATIONS
Model Name WLA-218BXF
System Type Passive
Configuration 2 x 18" Subwoofer
Frequency Response (+/- 3 dB) 30-800 Hz
Frequency Range (- 10 dB) 25-1.0 KHz
(Passive)Sensitivity 2.83 v / 1 m 109 dB
(Passive)Calculated Maximum SPL @1 m 148 dB
System Rated Impedance 4 Ω
Low Frequency Transducer
Size (mm / inches) 470 mm / 18''
Voice coil size (mm / inches) 102 mm / 4.0''
LF Magnet Material ferrite
LF Frame Material aluminium
Rated Impedance 8 Ωx 2
LF Power re:AES2-2012 1000 W x 2
Nominal Coverage (H x V)
System Continuous Power (w) 2000 W
System Programme Power (w) 4000 W
System Peak Power (w) 8000 W
Crossover frequency
Input Connector 1XWY-24K4Z (waterproof)
Rigging
pole mount NO
handles yes
Enclosure
cabinet type square
Enclosure Material and finish 18 mm plywood/3.0 mm Aluminium
Colour Options Water proof black paint
Grille Material & Finish 3.0 mm Black Aluminium
Dimensions - Unpacked (mm / inches):
Height front 568 mm / 22.4"
Height Rear 568 mm / 22.4"
Width 1073 mm / 42.24"
Depth 757 mm / 29.8"
Dimensions - Packed (mm / inches):
Height 644 mm / 25.4"
Width Front 1143 mm / 45.0"
Width Rear 1143 mm / 45.0"
Depth 827 mm / 32.6"
Weight
Net Weight (kg / lbs) 97.0 kg / 213.4 lbs
Gross Weight (kg / lbs) 111.0 kg / 244.2 lbs
757.0
1073.0
568.0
• Dual 18” Passive subwoofer
• IPX6 Waterproof certification
• Wax wrapped components
• Anti-corrosion stainless steel hardware
• Waterproof input connector
• System Continuous Power 2000 W
• System Programme Power 4000 W
• System Peak Power 8000 W
• Impedance 4 Ω
• 18 mm Plywood construction
3.0 mm Aluminium
KEY FEATURES

April 2023

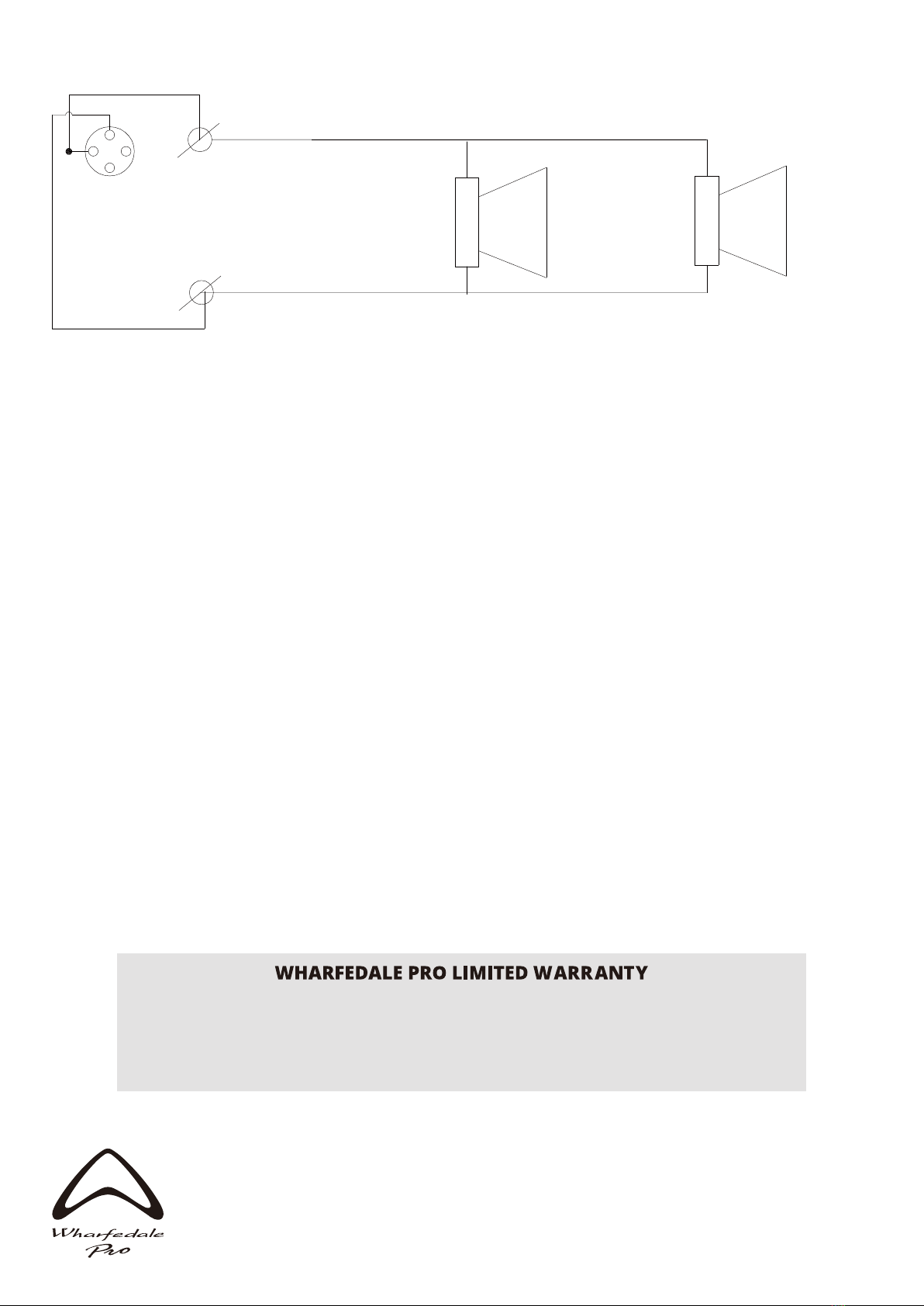

SYSTEM WIRING CONNECTION
WHARFEDALE PROFESSIONAL
IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK
www.wharfedalepro.com
Wharfedale Professional reserves the right to alter or improve specifications without notice.
All rights reserved © 2023 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
Wharfedale Pro products are warranted of manufacturing or material defects for a period of
three years from the original date of purchase. In the event of malfunction, contact your
authorised Wharfedale Pro dealer or distributor for information.
Please be aware that the warranty details may differ from country to country. Contact your dealer or distributor for
information (available at www.wharfedalepro.com). These terms do not infringe your statutory rights.
2 x 18”
2+ 3-
1-
4+
+
-
+
-
+
-
