WhatsGPS S102A User manual

User Manual
GPS Tracker Model:S102A

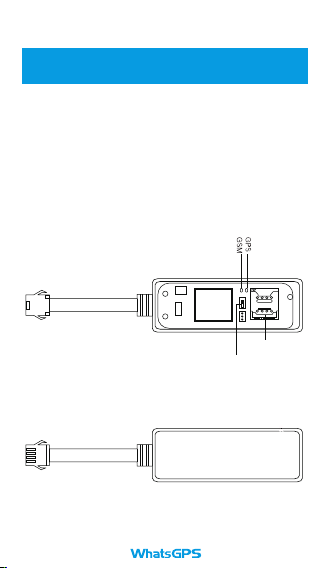

Chapter 1 Product Composition
and Interface Definition
Light sensor
Sim Card Slot
Switch
Red Yellow
1. Product Overview
Product Name: GPS Tracker Product Model: S102AProduct Size: L77mm*W27mm*H12mm
2. The Schematic Of Product

3. The Product Configuration List
4. Interface Definition Of Product
Name Quantity Unit
Unit
Unit
Unit
Remark
S102T
3-In-1
1
1
1Power Cable
User Manual; Warranty Card;
Certificate Of Approval
Colour Interface definition
Yellow Oil -
ACC
Power GND
Power +
Orange
Black
Red
Note: The Above Is a List Of Standard Configurations
For The Entire Set Of Products,And Accessories
Outside The Above Range Are Subject To Additional
Fees.
S102A

Chapter II Parameters Of Device
And Function Instructions
Indicator
GSM (Red)
GPS(Yellow)
Fast Flash: GSM In The
Initialization
Slow Flash: GSM Signals
Is Normal
Long Bright: GPRS On
Line
)DVW)ODVK*366LJQDO,Qc
The Search
Long Bright: GPS Has Been
Positioning
Not Light: GPS Dormancy/
Not Working
5. Definition Of Product Indicator
1. Parameter List Of The Device
Item Specifications Remark
Working Voltage DC9V-36V
25ma @12V(Static
Current10mA) Not Charge
Test Data
Working Current
Size L78.5mm *W23mm*H12mm
Located Way
Location Accuracy
GPS+LBS
<10 Meters
Not Light: Not Yet Received
The GSM Signal/Not Insert
Sim Card/GSM Dormancy
90V

Communication
Network GPRS
TCP
§a§
§a§
Communication
Way
Standby Battery
Working
Temperature
Storage
Temperature
Gsm Frequency 850/900/1800/1900MHz
Warranty
0.5 Hours
1 Year
Functions Function Details Description
Location Data
Report
Vehicle Status
Detection
Real-Time
Tracking
Car Acc On/Off
Status.
Power Down
Alarm
Low Power Alarm
Over Speed Alarm
Oil Checking
2. Function List Of The Device
Upload The Longitude And
Latitude Information According
To The Time Interval Setted
Uploaded Data Include The
Acc On/Off Status Each Time
Turn On Backup Battery,
When The Vehicle Voltage Is
Lower Than 5v, The Device
Upload a Alarm To The Server
When The Voltage Is 5v-10v,
The Device Will Upload a Alarm
To The Server
Set The Maximum Speed Limit
Value On The Platform, When
The Gps Speed Is More The
Setted Value, The Device Will
Upload a Alarm To The Server
Cut Off/Supply Fuel Remotely
Through Server And Message

3. Installation Process Of Product
Other
Functions
Low Power
Consumption Static Mode
Illegal Dismantling
Alarm
Blind Area
Uploading Data
Epo Located For
Assistance
Inflexion Upload
Upgrade Remotely
The Power Down Alarm And
Light Sensor Alarm Triggered
Of The Device In 2 Minutes,
Then The Illegal Dismantling
Alarm Will Be Reported To The
Server
The Data Is Stored Up To
300pcs If The Terminal Is
Located And Not Online,
Upload When The Signal Is
Good
The Terminal Supports The Epo
Assisted Positioning Function
To Enhance The Positioning
Effect.
When The Angle That Vehicle
Turned Is More Than a Normal
Scale It Will Send a Location
Data Soon To Optimize The
Playback
The 3D Triaxial Accelerometer
Senses The Vibration State Of
The Vehicle In Real Time,
When The Car Is Moving, The
Device Is In Motion Mode; The
Device Will Change To Static
Mode After 5 Minutes Without
Vibration, Close The Gps
Module, When Vibration Is
Detected, The Device
Automatically Changes To
Motion Mode.
Need Assistance Of Factory
Device installation
1) Check Device
Check whether the appearance of the device is good
and whether the related accessories are complete

2) Install the SIM card
Open the bottom cover of the device and insert the
SIM card into the card holder. Do not use excessive
force to damage the card holder. Do not insert or
remove the SIM card while the device is power on.
Make sure the SIM card has Internet access.
3) Select installation location
A. Waterproof: Should choose a position that does not
easily enter the water to ensure the drying of the
terminal; Pay attention to keep away from the outlet of
the air conditioner to prevent condensation water from
accumulating inside the terminal and seriously
affecting the service life of the product when the
temperature difference changes.
B. Shockproof: The terminal cannot be suspended
and installed in a long-term vibration0.
C. Anti-interference: The terminal should be far away
from the electronic equipment such as audio and
intercom in the car to prevent conduction interference
and radiation interference.
4) Connect GPS Antenna
A.Please notice that the GPS Antenna signal receiving
side should up to sky and no metal block. Bottom
keep flat, tilt should not be more than45°

B.Wires should be concealed;
C.Please make sure the GPS antenna is connected to
the right connector and fixed tightening to avoid
vibrated.
Exactly format:
Set IP Online:
<SPBSJ*P:BSJGPS*T:120.025.232.237,7788*A:CMN
ET*N:IMEI number*C:0030>
Set The Domain Name Online:
<SPBSJ*P:BSJGPS*Q:s3.gps18.com:7700*A:CMNE
T*N:IMEI number>
SPBSJ: Header
P: Password (Default Password: BSJGPS)
T: TCP IP and Port
Q: Domain Name And Port
A: APN
N: Device Number
C: Time Interval (Seconds)
SMS Command for Online Tracking Setup

Chapter III Analysis of Common
Problems and After-sales Service
1. Analysis Of Common Problems
2. Attention
Problem Reason Solution
Center Monitor
Cannot
Wrong Light
Alarm
Cannot Locate
Sim Card No Money
Sim Card Connect
Good Or Not
Online Parameter
Setting Error
Installation Location
Is In Light Area
Vehicle In
Underground Car
Parks Or Tunnels
GPS Antenna Side
Is Not Up To Sky
Make The Gps Antenna
Side Up To Sky
Recharge Money
Please Install Sim Card
Again
Reset Parameters With
Correct Format According
To User Manual
Leave Off The District
With Weak Signal
Install The Device In
Area Without Light
Leave That Area
Vehicles Are In
Underground
Parking Lots,
Tunnels, Weak
Signals
1) Stay away from water
2) Please keep the car battery fully charged
3) Device working current is 9-36V, recommended
12V and 24V. Tracker will damage
if the current is over this range.
9-90V

3. After-sale service
4) Working temperature is -25to 75centigrade, Please
cut off power if the temperature
is over this range.
5) When vehicle is in underground parks, tunnels or
garage, maybe GPS signal will not
very good. Communication network blind area will be
caused and cannot monitor
vehicle. When the car is out of that area, it will working
good automatically.
6) Please not repair by yourself when the d1evice not
working properly.III.After-sale
service
1) This product enjoys one year of warranty service g
the warranty period, due to non-human factors or
equipment damage caused by product quality, please
contact the agent in time or call the Shenzhen Boshijie
Technology Co., Ltd. after-sales service department to
deal with it.
2) The damage caused by the customer's private
revocation or force majeure (such as floods, vehicle
accidents) will not be repaired.
3) After the warranty period expires, due to product
damage or malfunction caused by the use , the

maintenance material cost fee will be charged.
4) Free to provide customers with product purchase,
use, installation and other consulting and technical
services.

FCCCaution
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
Note: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass
Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto
radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff
andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
-Reorientorrelocatethereceivingantenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance20cmbetweentheradiator&yourbody.

Warranty card
Maintenance record
Maintenance shop
Fault description
Maintenance situation
IMEI number
Maintenance
person
Sending date
Maintenance record
Maintenance shop
Fault description
Maintenance situation
IMEI number
Maintenance
person
Sending date
