WHEELSWING VOLT 1 User manual

Product specification and C/S
● [Contactless] Product specifications
Product Name Contactless battery built-in type bike generator Contactless direct charging type bike generator
WHEELSWING VOLT1-NCB
148X134X67.5mm (5.8X5.2X2.6X in)
390g (0.85lb)
Li-ion battery 1,000mAh
Model Name
Size
Weight
Material
Capacity
Battery
1
Product failure occurring within the warranty period under normal use, as outlined in the user manual,
makes you eligible for free repair.
Even within the warranty period, repair fees are still incurred in the following cases.
1) Breakdown and damage due to misuse, improper repair, disassembly, or modification
2) Failure or damage due to transportation or dropping the product after purchase
3) Failure and damage due to natural factors such as fire, earthquakes, floods, lightning, and pollution
4) Damage caused by external factors when used in a manner not described in the user manual
5) Breakdown and damage caused when used for purposes that it was not made for
2
3
If you would like to make a request for repair, please contact the customer center.
4
This warranty is only valid in the country and region of purchase.
● [Contact] Product specifications
● Common
● C/S regulation
Contact battery built-in type bike generator Contact direct charging type bike generator
WHEELSWING VOLT1-CB
148X134X67.5mm (5.8X5.2X2.6X in)
345g (0.76lb)
PC, rubber, silicone, etc.
USB2.0 (5V,500mAh output)
Li-ion battery 1,000mAh
WHEELSWING VOLT1-CD
148X134X67.5mm (5.8X5.2X2.6X in)
320g (0.7lb)
PC, rubber, silicone, etc.
USB2.0 (5V,500mAh output)
-
Product Name
Model Name
Size
Weight
Material
Capacity
Battery
Manufacturer
Country of Origin
Manufacturing date
Warranty period
Customer Center
WITHUS & EARTH Co., Ltd. within 1 year after purchase
Tel : [phone]
E-mail : [email protected]
Republic of Korea
Separately indicated
WHEELSWING VOLT1 consists of the generator body, bracket, crescent, rubber ring,
rubber pad, bolt/nut, and installation guide.
The Generator thats right for your bike.
For more information on the installation method
and other details, visit our website.
Product composition
Website YouTube Customer Center
Generator body Bracket Crescent P Crescent R
Filler gauge
Bumper ring Booster ring N Booster ring W Booster ring N
Contactless Contact
Rubber pad S Rubber pad R Bolt/Nut Installation guide
- 5 -- 4 -
PC, rubber, silicone, etc.
USB2.0 (5V,500mAh output)
WHEELSWING VOLT1-NCD
148X134X67.5mm (5.8X5.2X2.6X in)
365g (0.8lb)
-
PC, rubber, silicone, etc.
USB2.0 (5V,500mAh output)
WHEELSWING VOLT 1
User Manual
For Users

Important safety and product information
To obtain information on installation and adjustment of products not included in the user manual, Please
contact the customer center. (Refer to Page 5 “Product specification and C/S”)
For safety, please read the user manual carefully before using the product and follow it for correct use.
Caution and Prohibition: Users of pacemakers and implantable cardiac defibrillators should not move
or use this bicycle generator near the heart as the magnetic field of the bicycle generator can cause the
failure of these medical devices.
●
●
Be sure to read all instructions carefully before installing any part.
Do not leave the product in a hot place such as a heat source or a vehicle parked under direct
sunlight. To avoid damage to the product, remove it from the vehicle or store it out of direct
sunlight.
●
●
Do not drop the product from high places. It may cause problems with product functionality. Before
boarding, please check whether the alignment between the body and the wheels is correct. If the
alignment is not correct, the amount of power generation may be small or not possible.
●
●
We do not guarantee the loss of functionality due to normal wear and tear of the product over time and
daily use.
This product has a waterproof function (IPx5), but damage caused by flooding is not guaranteed. Do not
immerse the product in water or wash it with high pressure water.
●This product can be used even on rainy days but be careful not to get water into the USB terminal.
●If you have any problems with maintenance or use, please contact the customer center.
●Do not disassemble, modify, reassemble, break, or damage this product.
●Before boarding, make sure that the product is securely fixed to the side of the wheel and
that the bolts are fully tightened. If the product becomes loose and is caught between the spokes or the
frame and the wheels, serious injury may occur.
●After reading the user manual, keep it in a safe place for future reference.
●Do not overtighten the screws during the installation process. The bracket or product connection
may be damaged.
●This product is a 5V, 500mAh output product. Do not connect products with high voltage and current
to the input or output USB ports. It may cause a malfunction.
Failure to pay attention to the following may result in
unexpected damage due to incorrect usage.
Warning
Failure to pay attention to the following may result in personal
injury, property damage, or adversely affect the function of the
device.
Warning
- 2 -
Would you like to know the detailed
installation method of WITHUS&EARTH
WHEELSWING?
Scan the QR code right now!
Online manual QR code
[ Installation vehicle model information ]
[ Please read before using the product! ]
WHEELSWING VOLT 1
User Manual
This manual has been produced as of the present, and there may be technical
or editorial errors or omissions.
1
For product performance improvement, product changes may be made
without notice to the user.
2
Electricity production may vary depending on the driving speed and driving
conditions of the bike. Please note this.
3
Rim brake bikes
spinning / fitness bikes
All bikes
spinning / fitness bikes
Contactless Contact
- 3 -
* Product model name
* Product code
WUSVOLT1
* Customer name
* Address
* Email or phone number
* Purchase date (year/month/day)
* Where to buy
Quality assurance certificate
Product Registration
- Free C/S for 1 year after purchase
- Notify when new information is updated
- Provide customer convenience service
Customer benefits upon product registration
Within two weeks after purchasing the product, scan the QR code on the
customer center in the manual, add KakaoTalk Plus Friend
[WHEELSWING] as a friend, and then register the product.
Take the above [Quality assurance certificate] and send the picture
once completed.
NCB NCD CB CD

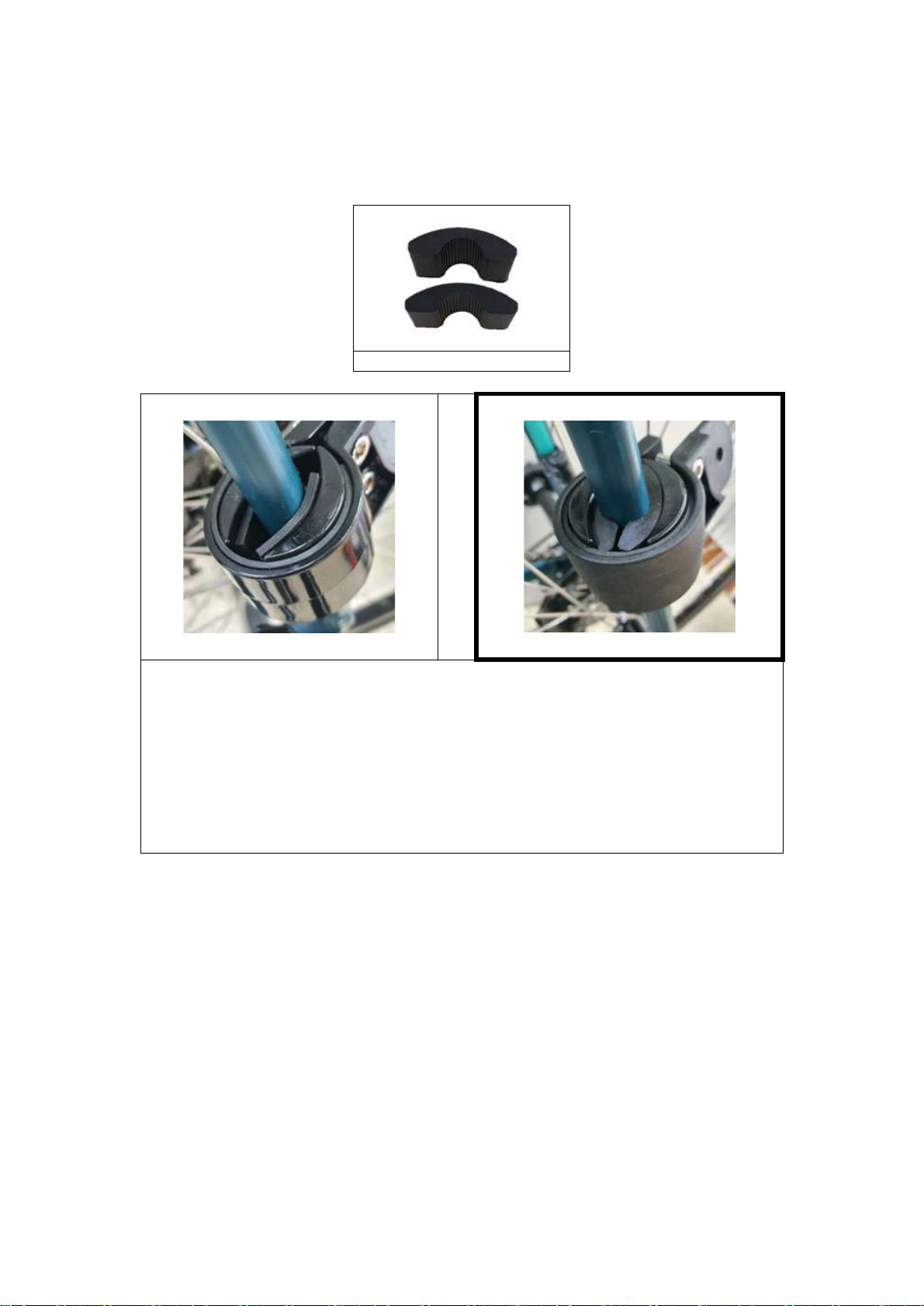

[Crescent Rubber Usage]
Crescent Rubber
>
>
●Install the crescent rubber between the seat-stay and the bracket as shown in the
picture on the right.
●The crescent rubber is used to install the product on rear wheel seat stays
●The rectangular rubber pads improve the absorption of friction and vibration
●The rubber prevents the product from becoming loose through severe road vibration
or sudden impacts

[How to use the Gap Gauge]
1. Preparing to use the gauge
>
>
Mount the bracket and attach the product to the bracket ▶ Align the
gauge from the rim and tire boundary
3. Close contactless head to gauge
>
>
Follow the installation guide and use the gauge as shown in the picture.
2. Product and rim distance is gauge thickness
>
>
Place the gauge between the product and the rim. ▶ Put the product in
close contact with the gauge
4. Precise positioning
>
>
Align the gauge and head as shown in the picture.
