WHEELSWING VOLT 1 User manual

WHEELSWING VOLT 1
User Manual

[ Please read before using the product! ]
WHEELSWING VOLT 1
User Manual
This manual has been produced as of the present, and there may be technical or editorial errors or omissions.
1
For product performance improvement, product changes may be made without notice to the user.
2
Electricity production may vary depending on the driving speed and driving conditions of the bike. Please note this.
3
A contactless rim dynamo : it can be mounted on rim brake bikes, spin bikes, and stationary bikes.
4
A contact rim dynamo : it can be mounted on all types of bikes, spin bikes, and stationary bikes.
5

To obtain information on installation and adjustment of products not included in the user manual,
Please contact customer center. (Refer to Page 9 “Product specification and C/S”)
For safety, please read the user manual carefully before using the product and follow it for correct use.
Caution and Prohibition: Users of pacemakers and implantable cardiac defibrillators should not move
or use this bicycle generator near the heart as the magnetic field of the bicycle generator can cause
the failure of these medical devices.
● Be sure to read all instructions carefully before installing any part.
● Do not leave the product in a hot place, such as a heat source or a vehicle parked under
direct sunlight. To avoid damage to the product, remove it from the vehicle or store it out of
direct sunlight.
● Do not drop the product from high places. It may cause problems with product functionality.
● Before boarding, please check whether the alignment between the body and the wheels is correct
If the alignment is not correct, the amount of power generation may be small, or power generation
may not be possible.
● We do not guarantee the loss of functionality due to normal wear and tear of the product over time
and daily use.
● This product has waterproof function (IPx5), but damage caused by flooding is not guaranteed.
Do not immerse the product in water or wash it with high pressure water.
● This product can be used even on rainy days but be careful not to get water into the USB terminal.
● If you have any problems with maintenance or use, please contact the customer center.
● Do not disassemble, modify, reassemble, break, or damage this product.
● Before boarding, make sure that the product is securely fixed to the side of the wheel and
that the bolts are fully tightened. If the product becomes loose and the product is caught between
the spokes or the frame and the wheels, serious injury may result.
● After reading the user manual, keep it in a safe place for future reference.
● Do not overtighten the screws during the installation process. The bracket or product connection
may be damaged.
● This product is a 5V, 500mAh output product. Do not connect products with high voltage and
current to the input or output USB ports. It may cause malfunction.
Failure to pay attention to the following may result in
unexpected damage due to incorrect usage.
Warning
Failure to pay attention to the following may result in personal injury
or property damage, or adversely affect the function of the device.
Important safety and product information
Warning

WHEELSWING VOLT 1

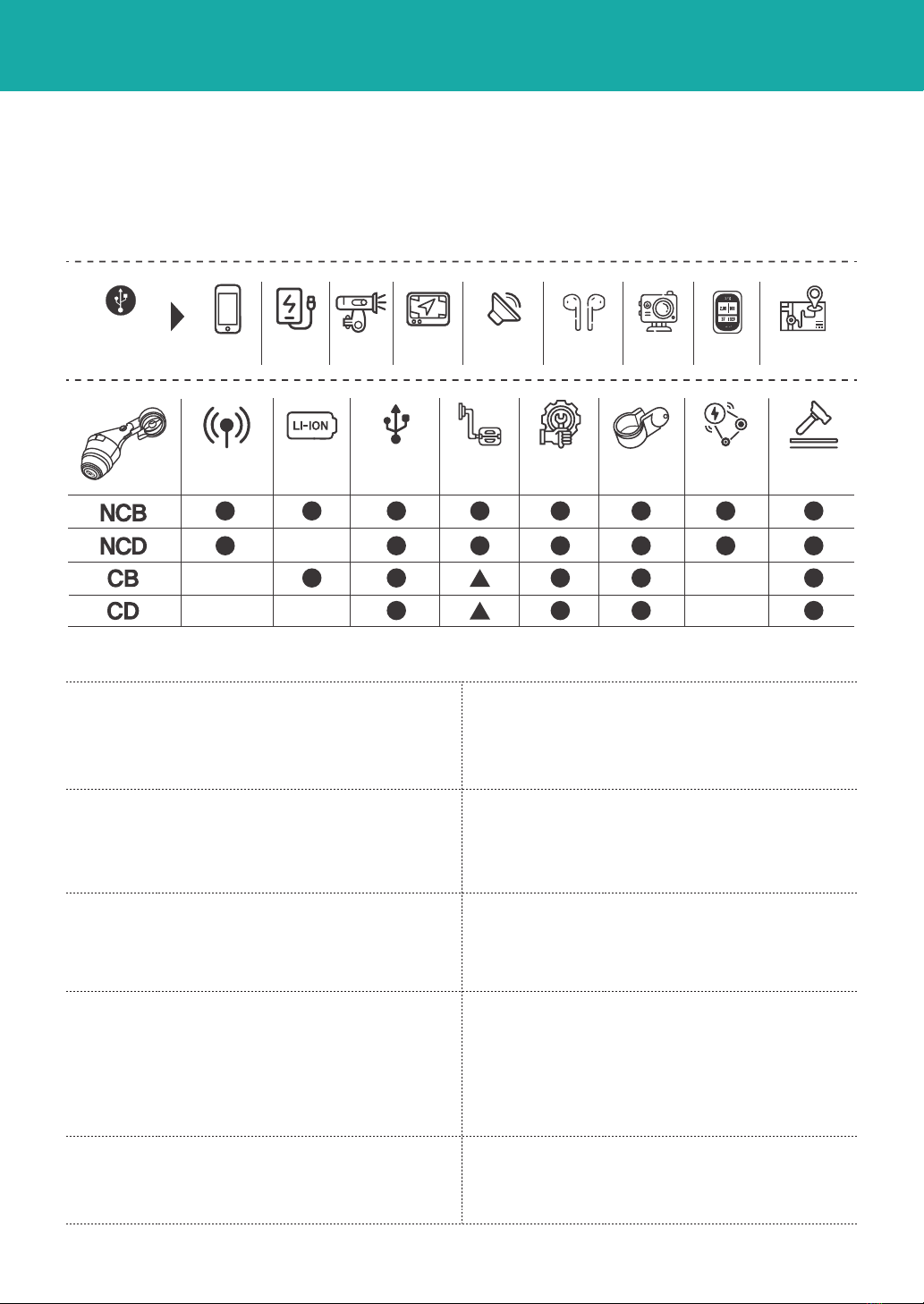

Key features
Non-contact drive system
The world's first and the world's only bike generator
powered by a magnetic field. (VOLT1-NCB / NCD)
Self-generation
Charge with homemade electricity!
You can continue to create and use electricity
while riding.
Built-in battery
Built-in 1A Li-ion battery allows you to charge with
stored electricity even while your bike is at a standstill.
(VOLT1-NCB / CB)
USB charging method
You can easily and conveniently charge all devices
connected by USB.
Simple installation
Self-installation is possible
without expert assistance.
Universal bracket
It mitigates vibration in two steps and can be installed
anywhere on the front/rear wheel.
Hybrid method
By simply replacing the rubber ring, you can quickly
change the driving method to a contact type.
(VOLT1-NCB / NCD)
The contact type is driven by mounting two types of
self-developed rubber rings (booster rings).
Light pedaling
Unlike ordinary bicycle generators,
the pedaling is light and the driving feel is smooth.
Reliability test
This product has undergone rigorous testing for safety.
Waterproof design
IPX5 waterproof design makes life waterproof.
WHEELSWING
Contactless
System
Battery
built-in
USB
Recharging
Light
pedaling
Simple
Install
Universal
bracket
Hybrid
generator
Durability
test
USB
Charger Phone Bettery Light GPS Earphone Action
camera Cycling computer NavigationSpeaker

Product composition
01
Contactless generator
(NCB/NCD)
Equipped with thin bumper ring
02
Contact generator (CB/CD)
Equipped with thick booster ring
WHEELSWING VOLT1 consists of the generator body, bracket, crescent, rubber ring, rubber pad,
bolt/nut, and installation guide.
Filler gaugeBumper ring Booster ring N Booster ring W Booster ring N
Contactless Contact
Rubber pad S Rubber pad R Bolt/Nut Installation
Generator body Bracket Crescent P Crescent R

● How to assemble the bracket (for both a contactless/contact rim dynamo)
Installation of a contactless/contact rim dynamo
1
What you will need is the bracket, crescents,
and rubber pads
2
Assemble the bracket by combining rubber pads and
crescents according to how thick forks and seat stays are
● How to secure the bracket and generator body
(for both a contactless/contact rim dynamo)
1
What you will need is the assembled bracket,
generator body, bolts, and nuts
2
Using an installation guide, check whether the end of
the generator’s head sits near the rim’s end side
3
Insert the bracket into either forks or seat stray,
and secure it with bolts and nuts
(Don’t secure it tight; you will need to
adjust the position later)
4
Insert the generator body to the bracket,
and secure it with bolts and nuts

Installation of a contactless/contact rim dynamo

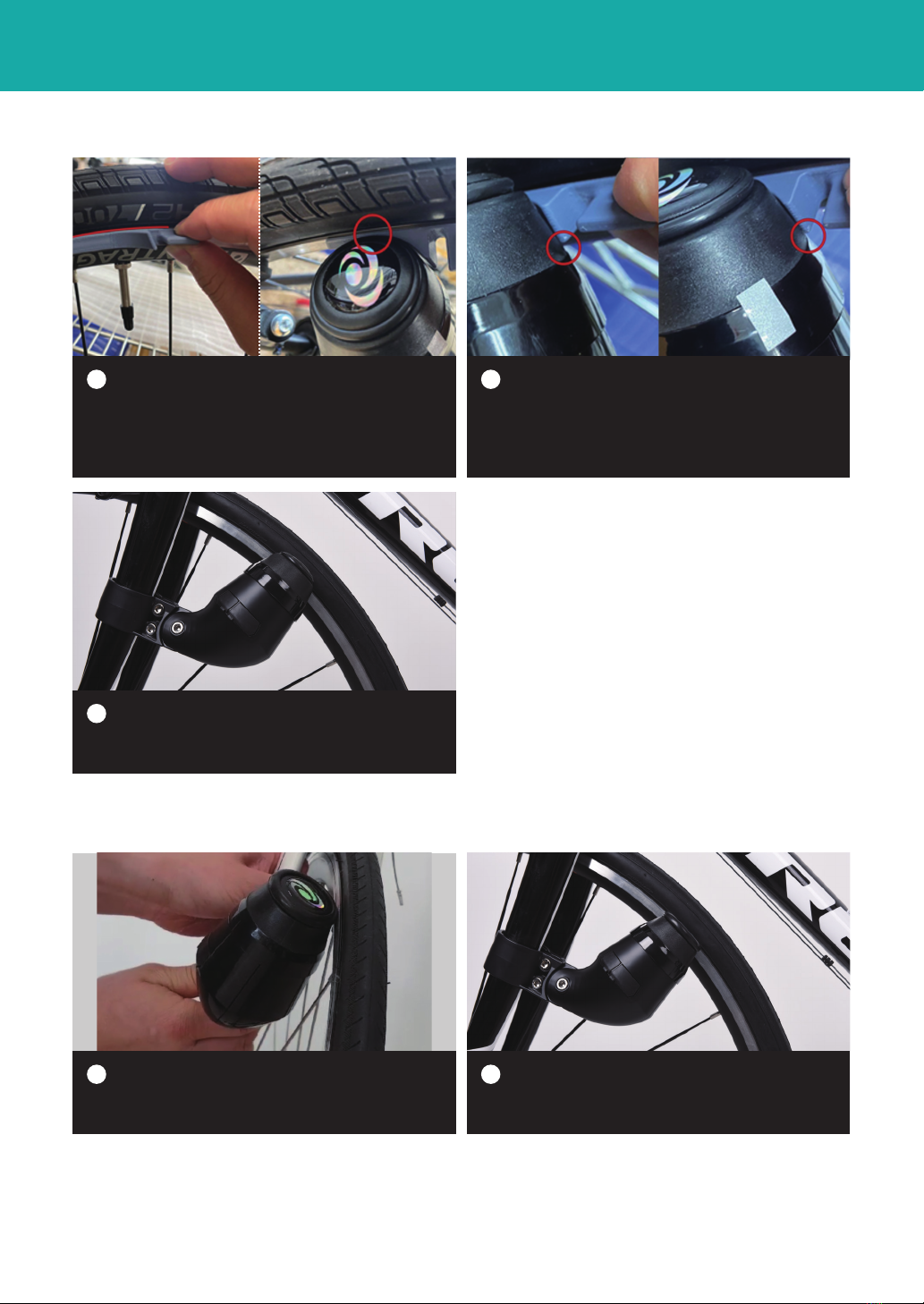

● Installation of a contactless rim dynamo
1
Insert the gauge into the gap of the rim
Move the tire forward so that the gauge is placed
between the head of the generator body and the tire
2
Slightly adjust the bracket and generator body
left/right or up/down so that there is no empty space
between the gauge and the body
Make sure that the marked point on the picture has
no crack or gap between the gauge and the body
3
Firmly tighten the bracket
and bracket-generator body fixing bolts and nuts
Installation finished
● Installation of a contact rim dynamo
1
Slightly adjust the bracket and generator body
left/right or up/down so that the booster ring
touches the rim
2
Firmly tighten the bracket and bracket-generator
body fixing bolts and nuts
Installation finished

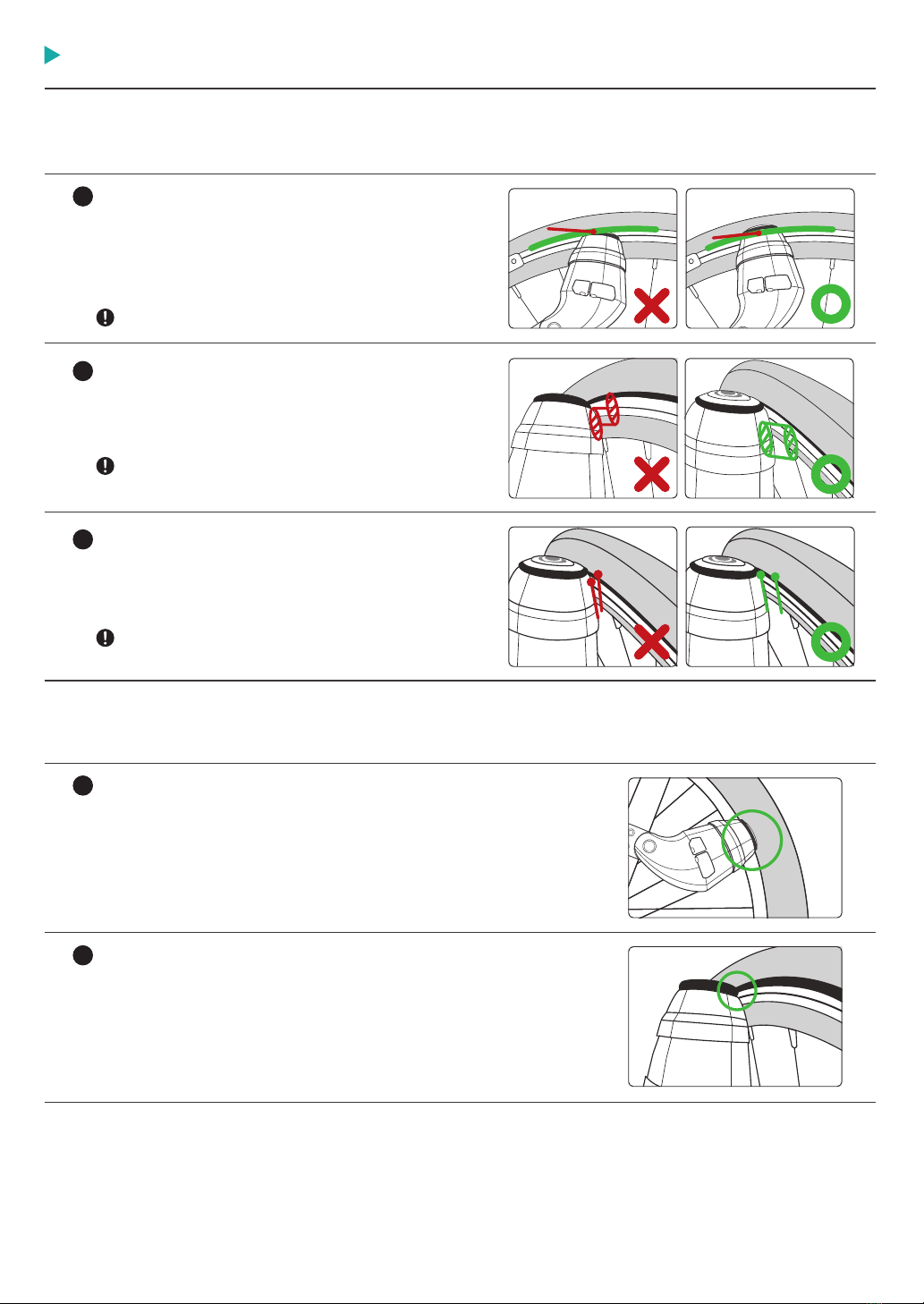

● How to use a contactless rim dynamo
When installed incorrectly, it can cause vibration and noise.
It might fail to generate an adequate amount of electricity
or do not work at all.
Check the angle of the generator body
Place the bumper ring on the border of the rim.
How to use properly
*What you need to check before every ride
● How to use a contact rim dynamo
*What you need to check before every ride
1
Use a tweezer to slightly lift the rubber ring and remove it,
when it is difficult to replace it using hands.
Replace rubber rings
1
Be sure to install the booster ring sitting near the bicycle tire,
but not touching it. It can cause extra wear on tires.
Contact of the rubber rings
2
It is important for the magnet inside the generator head and
the rim to work properly. Therefore, the larger the surface area is,
the more electricity the dynamo would generate.
When the surface area is small, the dynamo might produce a
different amount of electricity or do not work at all.
Check the surface area where the rim and
generator head faces
2
Put the head as close to the rim as possible without touching the rim.
(Keep a distance of 1-2mm between the head and the rim)
If they are too far or too close, the dynamo might produce a
different amount of electricity or do not work at all.
Check the distance between the rim and
the generator head
3

Product specification and C/S
Product Registration
Failure occurred within the warranty period under normal use according to the precautions in the user manual.
In this case, you can get free repair.
1
Even within the warranty period, repair fees are incurred in the following cases.
1) Breakdown and damage due to misuse or improper repair, disassembly, or modification
2) Failure or damage due to transportation or dropping after purchase
3) Failure and damage due to natural disasters such as fire, earthquake, flood, lightning, and pollution
4) Damage caused by external factors when used in a manner not described in the user manual
5) Breakdown and damage caused when used for purposes other than general bike generators
2
If you would like to make a request for repair, please contact the customer center.
3
This warranty is only valid in the country and region of purchase.
4
● [Contactless] Product specifications
Product Name Contactless battery built-in type bike generator
WHEELSWING VOLT1-NCB
148X134X67.5mm (5.8X5.2X2.6X in)
390g (0.85lb)
Li-ion battery 1,000mAh
Model Name
Size
Weight
Material
Capacity
Battery
● [Contact] Product specifications
● Common
● C/S regulation
Contact battery built-in type bike generator Contact direct charging type bike generator
WHEELSWING VOLT1-CB
148X134X67.5mm (5.8X5.2X2.6X in)
345g (0.76lb)
PC, rubber, silicone, etc.
USB2.0 (5V,500mAh output)
Li-ion battery 1,000mAh
WHEELSWING VOLT1-CD
148X134X67.5mm (5.8X5.2X2.6X in)
320g (0.7lb)
PC, rubber, silicone, etc.
USB2.0 (5V,500mAh output)
-
Manufacturer
Country of Origin
Manufacturing date
Warranty period
Customer Center
WITHUS & EARTH Co., Ltd. within 1 year after purchase
Tel : [phone]
E-mail : [email protected]o.kr
Republic of Korea
Separately indicated
PC, rubber, silicone, etc.
USB2.0 (5V,500mAh output)
Contactless direct charging type bike generator
WHEELSWING VOLT1-NCD
148X134X67.5mm (5.8X5.2X2.6X in)
365g (0.8lb)
-
PC, rubber, silicone, etc.
USB2.0 (5V,500mAh output)
Within two weeks after purchasing the product, scan the QR code on the customer center in
the manual, add KakaoTalk Plus Friend [WHEELSWING] as a friend, and then register the
product. Please take a picture of the [Quality assurance certificate] in the black and white
manual enclosed with the product and send it to us.
Customer benefits upon product registration
Product Name
Model Name
Size
Weight
Material
Capacity
Battery
- Free C/S for 1 year after purchase
- Notify when new information is updated
- Provide customer convenience service

For more details and installation method, you can check the website and YouTube video.
The Generator for all bike in the world
Website YouTube Customer Center
WHEELSWING VOLT 1
User Manual
For users
