Installation Guide:
WeCanX™ Inner Edge® RST Interior Lightbar
©2019 Whelen Engineering Company Inc.
Form No.14C73A (111419)
Automotive: Lightbars
For warranty information regarding this product, visit www.whelen.com/warranty
• Proper installation of this product requires the installer to have a good understanding of automotive electronics, systems and procedures.
• Whelen Engineering requires the use of waterproof butt splices and/or connectors if that connector could be exposed to moisture.
• Any holes, either created or utilized by this product, should be made both air- and watertight using a sealant recommended by your vehicle
manufacturer.
• Failure to use specified installation parts and/or hardware will void the product warranty.
• If mounting this product requires drilling holes, the installer MUST be sure that no vehicle components or other vital parts could be damaged
by the drilling process. Check both sides of the mounting surface before drilling begins. Also de-burr the holes and remove any metal shards
or remnants. Install grommets into all wire passage holes.
• If this manual states that this product may be mounted with suction cups, magnets, tape or Velcro®, clean the mounting surface with a 50/50
mix of isopropyl alcohol and water and dry thoroughly.
• Do not install this product or route any wires in the deployment area of your air bag. Equipment mounted or located in the air bag deployment
area will damage or reduce the effectiveness of the air bag, or become a projectile that could cause serious personal injury or death. Refer to
your vehicle owner’s manual for the air bag deployment area. The User/Installer assumes full responsibility to determine proper mounting
location, based on providing ultimate safety to all passengers inside the vehicle.
• For this product to operate at optimum efficiency, a good electrical connection to chassis ground must be made. The recommended
procedure requires the product ground wire to be connected directly to the NEGATIVE (-) battery post (this does not include products that use
cigar power cords).
• If this product uses a remote device for activation or control, make sure that this device is located in an area that allows both the vehicle and
the device to be operated safely in any driving condition.
• Do not attempt to activate or control this device in a hazardous driving situation.
• This product contains either strobe light(s), halogen light(s), high-intensity LEDs or a combination of these lights. Do not stare directly into
these lights. Momentary blindness and/or eye damage could result.
• Use only soap and water to clean the outer lens. Use of other chemicals could result in premature lens cracking (crazing) and discoloration.
Lenses in this condition have significantly reduced effectiveness and should be replaced immediately. Inspect and operate this product
regularly to confirm its proper operation and mounting condition. Do not use a pressure washer to clean this product.
• It is recommended that these instructions be stored in a safe place and referred to when performing maintenance and/or reinstallation of this
product.
• FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS AND INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT OR VEHICLE
AND/OR SERIOUS INJURY TO YOU AND YOUR PASSENGERS!
Warnings to Installers
Whelen’s emergency vehicle warning devices must be properly mounted and wired in order to be effective and safe. Read and follow all of Whelen’s written
instructions when installing or using this device. Emergency vehicles are often operated under high speed stressful conditions which must be accounted for
when installing all emergency warning devices. Controls should be placed within convenient reach of the operator so that they can operate the system without
taking their eyes off the roadway. Emergency warning devices can require high electrical voltages and/or currents. Properly protect and use caution around
live electrical connections.Grounding or shorting of electrical connections can cause high current arcing, which can cause personal injury and/or vehicle
damage, including fire. Many electronic devices used in emergency vehicles can create or be affected by electromagnetic interference. Therefore, after
installation of any electronic device it is necessary to test all electronic equipment simultaneously to insure that they operate free of interference from other
components within the vehicle. Never power emergency warning equipment from the same circuit or share the same grounding circuit with radio
communication equipment. All devices should be mounted in accordance with the manufacturer’s instructions and securely fastened to vehicle elements of
sufficient strength to withstand the forces applied to the device. Driver and/or passenger air bags (SRS) will affect the way equipment should be mounted. This
device should be mounted by permanent installation and within the zones specified by the vehicle manufacturer, if any. Any device mounted in the deployment
area of an air bag will damage or reduce the effectiveness of the air bag and may damage or dislodge the device. Installer must be sure that this device, its
mounting hardware and electrical supply wiring does not interfere with the air bag or the SRS wiring or sensors. Mounting the unit inside the vehicle by a
method other than permanent installation is not recommended as unit may become dislodged during swerving; sudden braking or collision. Failure to follow
instructions can result in personal injury. Whelen assumes no liability for any loss resulting from the use of this warning device. PROPER INSTALLATION
COMBINED WITH OPERATOR TRAINING IN THE PROPER USE OF EMERGENCY WARNING DEVICES IS ESSENTIAL TO INSURE THE SAFETY OF
EMERGENCY PERSONNEL AND THE PUBLIC.
Warnings to Users
Whelen’s emergency vehicle warning devices are intended to alert other operators and pedestrians to the presence and operation of emergency vehicles and
personnel. However, the use of this or any other Whelen emergency warning device does not guarantee that you will have the right-of-way or that other
drivers and pedestrians will properly heed an emergency warning signal. Never assume you have the right-of-way. It is your responsibility to proceed safely
before entering an intersection, driving against traffic, responding at a high rate of speed, or walking on or around traffic lanes. Emergency vehicle warning
devices should be tested on a daily basis to ensure that they operate properly. When in actual use, the operator must ensure that both visual and audible
warnings are not blocked by vehicle components (i.e.: open trunks or compartment doors), people, vehicles, or other obstructions. It is the user’s responsibility
to understand and obey all laws regarding emergency warning devices. The user should be familiar with all applicable laws and regulations prior to the use of
any emergency vehicle warning device. Whelen’s audible warning devices are designed to project sound in a forward direction away from the vehicle
occupants. However, because sustained periodic exposure to loud sounds can cause hearing loss, all audible warning devices should be installed and
operated in accordance with the standards established by the National Fire Protection Association.
Safety First
This document provides all the necessary information to allow your Whelen product to be properly and safely installed. Before beginning the installation and/or
operation of your new product, the installation technician and operator must read this manual completely. Important information is contained herein that could
prevent serious injury or damage.
WARNING: This product can expose you to chemicals including Methylene Chloride which is known to the State of California to cause cancer, and
Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
51 Winthrop Road
Chester, Connecticut 06412-0684
Phone: [phone]
Internet: www.whelen.com
Sales e-mail: [e-mail]
Customer Service e-mail: [email protected]
®
ENGINEERING COMPANY INC.

Page 2
8-32 X 3/8"
PAN HEAD
TORX SCREW
(QTY 4)
PASSENGER
SIDE BRACKET
DRIVER SIDE
BRACKET
FRONT OF
VEHICLE
Fig. 2
Mounting
Bracket
Cut slot
in trim
RUBBER SEAL
Lightbar
Side View
Lightbar
Side View
Lightbar
Side View
ROOF
TRIM
Lightbar
Side View
Lightbar
Side View
Lightbar
Side View
ROOF
TRIM
2017 EXPLORER
2017 Ford Explorer
SUV Interceptor:
1. Install the rubber seal supplied with the mounting
kit onto the front edge of the lightbar, where it
comes in contact with the vehicle window.
(Some lightbars are shipped with the seal already
mounted.)
2. Hold the lightbar up against the vehicle window in
the exact position it will be mounted. (The seal
that comes in contact with the window must fully
engage the window.) With the lightbar in position
and centered, use masking tape to mark the
exact position of the two outside ends of the
lightbar onto the vehicle window (See Fig. 1 of 2017 Tahoe).
3. Remove the lightbar then remove the moulding
from the vehicle that covers the lightbar
bracket mounting area.
4. Secure the mounting brackets
to the lightbar using the
provided #8 - 32 X 3/8”
Pan Head Torx
Screws.
5. Position the lightbar in its exact mounting position lining it up with the tape you installed
and mark the mounting holes onto the vehicle.
6. Remove the lightbar and remove the mounting brackets from the lightbar.
7. With the lightbar brackets positioned to line up with the mounting hole locations marked off in step 5, mount the lightbar brackets to the vehicle using the
self tapping screws included in the mounting kit (Figs. 2 & 3).
8. Hold the vehicle moulding (removed in step3) up to the vehicle and mark the places it will have to be cut to accommodate the lightbar mounting
brackets. Trim the molding just enough to clear the brackets and reinstall the moulding to the vehicle.
9. Mount the lightbar to the mounting brackets and extend the control cable to power following the vehicles factory wiring harness. (See Wiring)
IMPORTANT! The lightbar should be located a minimum of 16" from any radio antennas!
IMPORTANT NOTE: A WeCanX lightbar is only compatible with the Whelen Core Command System and can not be used alone or with any other
control system.

Page 3
8-32 X 3/8" PAN HEAD
TORX SCREW (QTY 4)
PASSENGER
SIDE BRACKET
DRIVER
SIDE BRACKET
Fig. 3
1. Install the rubber seal onto the front edge of the lightbar where it contacts the window (Fig. 1).
2. Remove the molding from the vehicle that covers the lightbar bracket mounting area. Insert the passenger side doubler plate alignment pin through the
passenger side of the vehicle frame (Fig. 2).
3. Secure the mounting brackets to the lightbar using the provided #8-32 x ⅜” Pan Head Torx screws (Fig. 3).
4. Hold the lightbar up against the vehicle window in the exact position that it will be mounted. The alignment pin from the
doubler bracket should fit into the open slot in the mounting bracket, and should be used to locate the lightbar (Fig. 4).
Make sure the gap between the window and
the front of the lightbar is the same
distance on both sides bar. With
the lightbar still in position,
mark the mounting hole
locations inside the
two mounting
slots
indicated
in figure 4 at the top of the slot in the bracket as shown. This will allow for
adjustment in later steps (Fig. 4).
5. Remove the lightbar and the doubler
plate. Drill clearance holes for a #10
screw in the two locations marked in
Step 4.
6. With the lightbar in position, re-insert
the passenger side doubler plate into
the vehicle frame. Using the provided
#10 screws, attach the brackets to
the vehicle frame, and thread into the
doubler bracket. Tighten screws until
snug. Repeat this process for the
drivers side.
7. Adjust the lightbar so that rubber seal
is fully engaging the rear window,
then tighten mounting screws.
8. Hold the vehicle molding (removed in
Step 2) up to the vehicle and mark
the places it will have to be cut to accommodate the lightbar mounting brackets. Trim the molding just enough to clear the brackets, and reinstall the
molding onto the vehicle.
9. Extend the control cable to power following the vehicles factory wiring harness (See Wiring)
Mounting
Bracket
Cut slot
in trim
RUBBER SEAL
Lightbar
Side View
ROOF
TRIM
Fig.1
2017 Chevy Tahoe

Page 4
PASSENGER
SIDE BRACKET
DRIVER SIDE
BRACKET
8-32 X 3/8"
PAN HEAD
TORX SCREW
(QTY 2)
REAR OF
VEHICLE
REAR OF
VEHICLE
REAR OF
VEHICLE
INSIDE
TRUNK
Fig. 1
REAR DECK
5/16 - 18 X 1
HEX HD BOLT
(QTY 2)
5/16 - 18 X 1
HEX HD BOLT
(QTY 2)
5/16 EXTERNAL
TOOTH LOCK
WASHER
(QTY 2)
5/16 EXTERNAL
TOOTH LOCK
WASHER
(QTY 2)
5/16 - 18 X 1
HEX HD BOLT
(QTY 2)
5/16 EXTERNAL
TOOTH LOCK
WASHER
(QTY 2)
REAR DECK
DRIVER SIDE SHOWN
8-32 X 3/8"
PAN HEAD
TORX SCREW
(QTY 2)
8-32 X 3/8"
PAN HEAD
TORX SCREW
(QTY 2)
LIGHTBAR
8-32 X 3/8"
PAN HEAD
TORX SCREW
(QTY 2)
Fig. 1
5/16 FLAT WASHER
(QTY 2)
5/16 - 18
ELASTIC
STOP NUT
(QTY 2)
Installation 2017 Dodge Charger:
1. Locate the rubber seal supplied with the mounting kit and install it onto the front
edge of the lightbar where it contacts the window.
2. On the rear deck, remove the driver-side outboard cap covering the child
restraint strap holder to access the tether strap holder.
3. Remove the plastic panel located inside the trunk to access the bottom side of
the child restraint brackets. This panel is held on with christmas tree plugs and
magnets.
4. Locate the driver-side lightbar mounting bracket included with the mounting
kit. Secure the mounting bracket onto the strap holder using the hardware
shown (Fig. 1). Tighten the hardware firmly.
5. Repeat
steps 1 thru 3
for Passenger-
side bracket then
replace the plastic
panel removed in step 2.
6. Position the lightbar onto the
rear deck. Secure the lightbar to
the mounting brackets. Do not tighten
this hardware yet. Make sure the rubber
window seal on the lightbar housing fully
engages the rear window. To ensure this, hold the lightbar housing firmly against the
glass while tightening the hardware securing lightbar to mounting bracket.
While still maintaining pressure on lightbar, tighten hardware used to
secure lightbar mounting bracket to the child restraint holder. The lightbar
should maintain the seal against the windshield when the pressure is
released. If not, loosen the appropriate hardware and repeat this tightening
procedure until properly mounted.
7. Extend the wires to the control box and to power. It is recommended you follow the
vehicles wire harness when extending the wires (See Wiring).
8 - 32 X 3/8"
Pan Head
Torx Screw
RUBBER SEAL
Driver side
bracket
Passenger
side bracket
Fig. 1
Installation 2017 Ford Fusion:
1. Locate the rubber seal supplied with the mounting
kit and install it onto the front edge of the
lightbar where it contacts the window
and secure the mounting brackets
to the lightbar with the
supplied hardware
(Fig. 1).
2. Center the lightbar on the rear deck with the front edge sitting against
the window.
3. Open the trunk and locate the holes indicated in Fig. 2. Drill these holes
out to clear them for the 1/4 - 20 X 2-1/2” Phillips Pan Head Machine
Screws using a 1/4” drill bit.
4. Line the mounting brackets up with the holes that were created in step
3. Insert the two mounting screws and washers through the holes and
brackets so the head of the screw is inside the vehicle (Fig. 3).
5. Slide the screw through the 1-3/4” Spacer so that the spacer is between
the rear deck and factory frame as shown in figure 3.
6. Tighten the mounting hardware until snug. Make sure the rubber seal
sits firmly against the rear window then tighten all mounting hardware to
secure the lightbar.
7. Extend the wires to the control box and power (See wiring) and
installation is complete.
BRACKET
INNER EDGE
REAR
DECK
FACTORY
FRAME
SPACER
1/4" Flat Washer
1/4 - 20 X 2-1/2
Phillips Pan Head
Machine Screw
RUBBER SEAL
1/4" External
Tooth Lock
Washer
1/4 - 20 Elastic Stop Nut
Fig. 3

Page 5
5/16 - 18
Elastic Stop
Nut (2)
LOWER
BRACKET
UPPER
BRACKET
UPPER
BRACKET
5/16 Flat
Washer (2)
REAR DECK
Ins
t
all
ru
b
b
e
rlo
sea
n
to
lig
htb
ar
he
re
Ins
t
all
ru
b
b
e
rlo
sea
n
to
lig
htb
ar
he
re
Ins
t
all
ru
b
b
e
rlo
sea
n
to
lig
htb
ar
he
re
SEAL
Fig. 1
UPPER
BRACKET
REAR DECK
8 - 32 X 3/8"
Pan Head
Torx Screw (2)
8 - 32 X 3/8"
Pan Head
Torx Screw (2)
8 - 32 X 3/8"
Pan Head
Torx Screw (2)
5/16 - 18 X 4" Phillips
Round Head Machine
Screw (2)
5/16 - 18 X 4" Phillips
Round Head Machine
Screw (2)
5/16 - 18 X 4" Phillips
Round Head Machine
Screw (2)
Speaker Cut-Out
Use second hole in,
from outer edge of lightbar
CHILD RESTRAINT TETHER
ADJUSTABLE BUCK
MOUNT BRACKET
LIGHTBAR
HOUSING
DECK
MOUNT
BRACKET
DECK
MOUNT
BRACKET
DECK
MOUNT
BRACKET
REAR
DECK
REAR
DECK
REAR
DECK
Installation 2017 Ford Taurus:
1. Locate the rubber seal supplied with the mounting kit and install it onto the front edge of the lightbar which comes in contact with the
vehicle window.On the rear deck (passenger side) locate the cap covering the child restraint strap holder. Snap the cover open to access
the bolt, then remove
the bolt and lift off the
cap.
2. Locate the passenger
side adjustable buck
mount bracket and a
deck mount bracket
included with the
mounting kit. NOTE:
Driver and passenger
side is indicated with
“D” or “P” at the end
of the serial number
stamped into bracket.
Secure the deck mount
bracket onto the strap
holder using the 1/4 -
20 X 3/4 inch Hex Head Machine Screw, 1/4 inch External Tooth
Lock Washer and 1/4 inch Flat Washer provided. and tighten
hardware firmly.
3. Next, loosely secure the adjustable buck mount bracket to
the deck mount bracket using the supplied 1/4 - 20 X 5/8 inch
Phillips Pan Head Machine Screws, 1/4 inch External Tooth
Lock Washers and 1/4 inch Flat Washer.
4. Repeat steps 1 - 3 for the Driver-side mounting bracket.
5. Position the lightbar onto the rear deck and secure the lightbar to
the two buck mount brackets using the hardware shown.
6. Hold the lightbar housing firmly against the glass as you tighten the
hardware securing the buck mount brackets to the deck mount
brackets. Make sure that the rubber window seal on the lightbar
housing fully engages the rear window. The lightbar should
maintain the seal against the windshield when the pressure is
released.
7. Extend the wires to the control box and to power. It is
recommended you follow the vehicles wire harness when
extending the wires (See Wiring).
Installation 2017-18 Chevy Impala:
1. Locate the rubber seal supplied with the mounting
kit and install it onto the front edge of the lightbar where it contacts the window.
2. Secure the upper mounting bracket to the lightbar with the supplied hardware
(Fig. 1).
3. Center the lightbar on the rear deck with the front edge of the
lightbar sitting securely against the window and make 2 holes
in the rear deck for the two 5/16 - 18 X 4” Phillips Round
Head Machine Screws.
4. Open the trunk and locate the speaker hole
(centered toward the inside of the trunk). The
retainer bracket will mount here.
5. Insert the two mounting screws into the
two holes you made in step 3. Line the
lower mounting bracket up with the
screws. The lower bracket will mount up against the
speaker hole as shown.
6. Make sure the rubber seal sits properly against the rear window
then tighten all mounting hardware firmly.
7. Extend the wires to the control box and to power. (See Wiring).
INSIDE
TRUNK
REAR
DECK
REAR
DECK
MOUNT
ADJUSTABLE
BUCK MOUNT
#10 FLAT WASHER
10 - 32 X ½ INCH
PHILLIPS PAN HD
METAL SCREW
1/4 - 20 X 5/8 INCH
PHILLIPS PAN HD
MACHINE SCREW
1/4 - 20 X 3/4 INCH HEX HD MACHINE SCREW
#10 EXTERNAL TOOTH
LOCK WASHER
1/4” FLAT WASHER
1/4” FLAT WASHER
1/4 INCH EXTERNAL TOOTH LOCK WASHER
1/4 INCH EXTERNAL
TOOTH LOCK WASHER
LIGHTBAR
REAR
WINDOW
NOTE: The 2017 Inner Edge is shown here for example.
The 2018 Inner Edge will mount the same.

Page 6
8-32 X 3/8"
PAN HEAD
TORX SCREW
(QTY 4)
PASSENGER
SIDE BRACKET
REAR
WINDOW
Seal Mounts Here
DRIVER SIDE
BRACKET
SIDE VIEW
Installation 2017 Dodge Durango:
1. Remove the center plastic trim piece (Fig. 1).
2. Mount the brackets to the lightbar as shown above using the four
supplied 8 - 32 X 3/8” Pan Head Torx screws.
3. The tabs on the mounting brackets go into two of the slots the wire
harness clips snap into. Remove the harness clips from the slots
indicated and move the harness aside to access the slots (Fig. 2).
4. Put the lightbar onto the vehicle inserting the two tabs on the mounting
brackets into the two slots in the vehicle (Fig. 3).
5. Mark the four mounting hole locations for each bracket onto the
mounting surface, then remove the lightbar and drill the mounting holes
using a drill sized for the supplied mounting hardware (Fig. 3).
6. Return the lightbar to it’s
mounting position and
secure loosely with
supplied 10 X 5/8” Hex
Head Screws.
7. Mount the rubber seal to
the lower front of the
lightbar making sure the
rubber seal sits properly
against the rear window
then tighten all mounting
hardware firmly.
8. Extend the wires to the control box and to power.
Installation 2018 Expedition SSV / 2017:
1. Remove the center plastic trim piece (Fig. 1).
2. Locate the mounting areas for the
two brackets. Each mounting
bracket will mount next to
the rubber plug
indicated
(Fig. 1-A).
3. The tab on the mounting
bracket slides into an
existing slot in the frame
(Fig. 1 A-B).
4. Mount the two brackets to the vehicle using the supplied self tapping
screws.
5. Mount the rubber seal to the lower front of the lightbar and secure the
lightbar to the brackets you installed in step 3. The lightbar may need
some adjustment so the rubber seal fully engages the window.
6. When the lightbar is in position, tighten all mounting hardware. Extend
the wires to the control box and to power. It is recommended you follow
the vehicles wire harness when extending the wires (See Wiring).

Page 7
8-32 X 3/8"
PAN HEAD
TORX SCREW
(QTY 4)
PASSENGER
SIDE BRACKET
DRIVER SIDE
BRACKET
FRONT OF
VEHICLE
Fig. 2
Mounting
Bracket
Cut slot
in trim
RUBBER SEAL
Lightbar
Side View
Lightbar
Side View
Lightbar
Side View
ROOF
TRIM
Lightbar
Side View
Lightbar
Side View
Lightbar
Side View
ROOF
TRIM
2017 EXPLORER
2017 Ford Explorer
SUV Interceptor:
1. Install the rubber seal supplied with the mounting
kit onto the front edge of the lightbar, where it
comes in contact with the vehicle window.
(Some lightbars are shipped with the seal already
mounted.)
2. Hold the lightbar up against the vehicle window in
the exact position it will be mounted. (The seal
that comes in contact with the window must fully
engage the window.) With the lightbar in position
and centered, use masking tape to mark the
exact position of the two outside ends of the
lightbar onto the vehicle window (See Fig. 1 of 2017 Tahoe).
3. Remove the lightbar then remove the moulding
from the vehicle that covers the lightbar
bracket mounting area.
4. Secure the mounting brackets
to the lightbar using the
provided #8 - 32 X 3/8”
Pan Head Torx
Screws.
5. Position the lightbar in its exact mounting position lining it up with the tape you installed
and mark the mounting holes onto the vehicle.
6. Remove the lightbar and remove the mounting brackets from the lightbar.
7. With the lightbar brackets positioned to line up with the mounting hole locations marked off in step 5, mount the lightbar brackets to the vehicle using the
self tapping screws included in the mounting kit (Figs. 2 & 3).
8. Hold the vehicle moulding (removed in step3) up to the vehicle and mark the places it will have to be cut to accommodate the lightbar mounting
brackets. Trim the molding just enough to clear the brackets and reinstall the moulding to the vehicle.
9. Mount the lightbar to the mounting brackets and extend the control cable to power following the vehicles factory wiring harness. (See Wiring)
Installation: IMPORTANT! The lightbar should be located a minimum of 16" from any radio antennas!
Wiring and Operation WeCanX Lightbar:
Connecting the Power Cable:
WARNING! All customer supplied wires that connect to the positive terminal
of the battery must be sized to supply at least 125% of the maximum operating
current and FUSED at the battery to carry that load. DO NOT USE CIRCUIT
BREAKERS WITH THIS PRODUCT!
1. Follow the factory wiring harness through the fire wall. It may be necessary to drill
a hole in the fire wall. Make sure that there are no components that could be
damaged by drilling. After the hole has been drilled, insert a grommet to protect
the cable.
2. Route the cable along the factory wiring harness towards the battery. Install a 25
amp fuse block (customer supplied) on the end of the RED wire in the power
cable. NOTE: Remove the fuse from the fuse block before connecting any
wires to the battery.
3. Connect the BLACK wire to Chassis Ground.
Connecting the Communication Cable:
Splice the GREEN and GREY wires from the lightbar to the GREEN and GREY wires
from the Whelen WeCanX Controller.
POWER CABLE
RED (+)12VDC
Chassis GroundBLACK
Fuse @ 25 Amps
COMMUNICATIONS CABLE
GREEN / CAN H
SHIELD WIRE
GREY / CAN L

Page 8

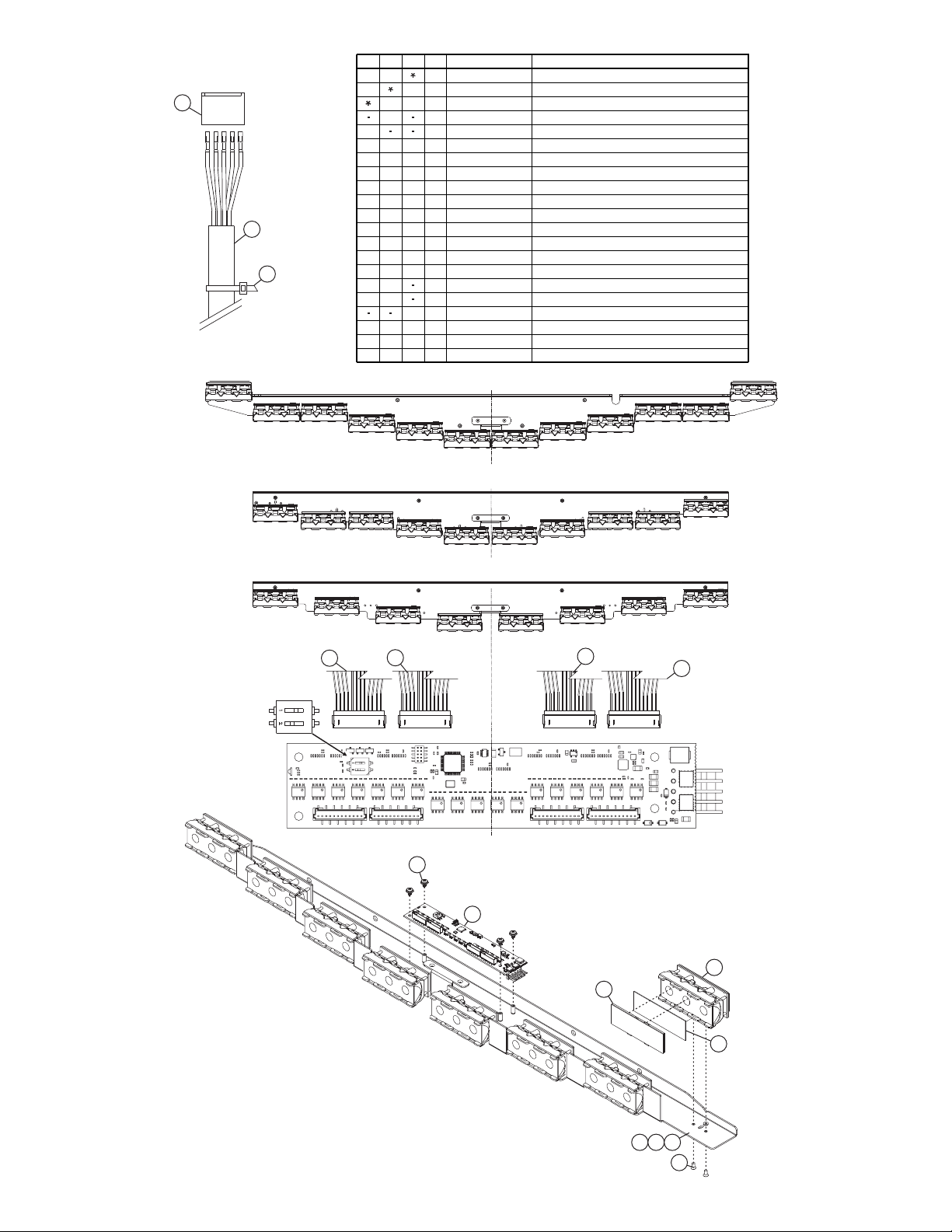

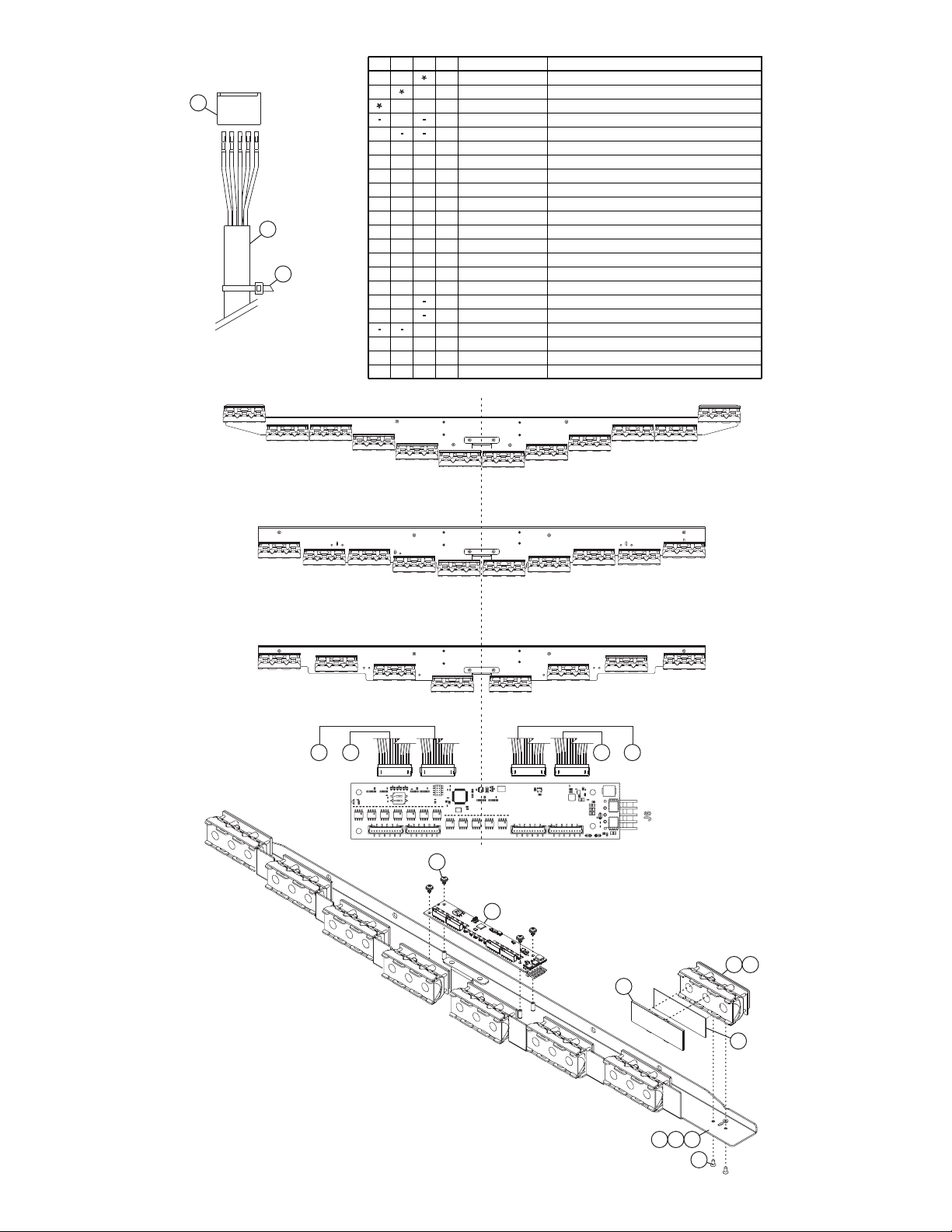

FRONT
4
12
8
3
13
1215
5
J6
BA DC
8-LT (-*00)
A-YEL B-ORG
B-RED B-BRN C-BRN C-RED
C-ORG D-YEL
12-LT (-*02)
A-BLU A-GRN A-YEL
B-ORG B-RED B-BRN C-BRN
C-RED C-ORG
D-YEL D-GRN D-BLU
10-LT(-*01)
A-GRN A-YEL B-ORG B-RED
B-BRN C-BRN
C-RED C-ORG D-YEL
D-GRN
AB CD
7
16 17 6
A
DIP switch
settings
1 - off 2 - on
4
5
J6
231
PINOUT J1
RED - +12VDC1 -
BLACK - GND2 -
GREY - CAN L3 -
GREEN - CAN H4 -
SHIELD - SHIELD5 -
9
11
10
01-0688593-_0
INNER EDGE RST TRIO WCX 8 LT
01-0688593-_1
INNER EDGE RST TRIO WCX 10 LT
01-0688593-_2
INNER EDGE RST TRIO WCX 12 LT
07-788295-023
PLATE, FRAME 10-LT BLACK INNER EDGE RST
1
07-788301-023
PLATE, FRAME 12-LT BLACK INNER-EDGE RST
1
14-040216-041
SCREW, 4-40 X 1/4 PPHMS SEMS W/IT LOCK WASHER, SS
444
02-016J197-00
PCB CONTROL BD 36 OUTPUT INNER EDGE WeCanX SMT
111
14-040115-04D
SCREW, 4-40 X 1/4 PFHMS TAPTITE, BLACK OXIDE
1620
24
46-0788264-00
HARNESS "C" INNER EDGE FST/RST
111
46-0788625-01
HARNESS "D" WeCanX INNER EDGE FST/RST
111
OPT
OPTOPT
111
01-026H214___
SUB ASSY, LTHEAD TRIO INNER EDGE FST
111
46-0746909-00
CABLE INPUT 4/C 20' SL-156
111
39-1M18534-05
HOUSING, PLUG 5 POS SL-156 W/LOCKING RAMP, LID
810
12
26-0215001-06
TY WRAP, 6" BLACK
A/RA/R
68-196H348-31
LENS, CLEAR OPTIC PLATE INNER EDGE RST
A/RA/R
09-0647873-__
PANEL, GRAPHIC INNER EDGE
1
111
01-026H702___
SUB ASSY, LIGHTED SIGN TRIO INNER EDGE FST
111
07-788626-023
PLATE, FRAME 8-LT SEDAN BLACK RST INNER EDGE
46-0788625-02
HARNESS "A" WeCanX INNER EDGE RST
46-0788625-03
HARNESS "B" WeCanX INNER EDGE RST
111
10-0548202-__
LABEL, P/N M/N WCX INNER EDGE RST
2
3
ITEM PART NUMBER DESCRIPTION
QTY QTY QTY
11
12
13
14
15
16
17
18
4
5
6
7
8
9
10
1

Page 9
12-LT (0*2) PASSENGER
C-RED C-ORG D-YEL D-GRN D-BLU
DRIVER
A-BLU A-GRN A-YEL
B-ORG B-RED B-BRN C-BRN
10-LT(0*1) PASSENGERDRIVER
A-GRN A-YEL B-ORG B-RED B-BRN C-BRN C-RED C-ORG D-YEL D-GRN
8-LT (0*0) PASSENGERDRIVER
D-YEL
C-ORG
C-BRN
C-REDB-RED
B-BRN
A-YEL B-ORG
B
A
D
C
AB CD
FRONT
4
13
89
3
14
1216
5
01-06885930_0
INNER EDGE RST SOLO/DUO WCX 8 LT
01-06885930_1
INNER EDGE RST SOLO/DUO WCX 10 LT
01-06885930_2
INNER EDGE RST SOLO/DUO WCX 12 LT
07-788295-023
PLATE, FRAME 10-LT BLACK INNER EDGE RST
1
07-788301-023
PLATE, FRAME 12-LT BLACK INNER-EDGE RST
1
14-040216-041
SCREW, 4-40 X 1/4 PPHMS SEMS W/IT LOCK WASHER, SS
444
02-016J531-00
PCB CONTROL BD 24 OUTPUT INNER EDGE WeCanX SMT
111
14-040115-04D
SCREW, 4-40 X 1/4 PFHMS TAPTITE, BLACK OXIDE
1620
24
46-0788264-00
HARNESS "C" INNER EDGE FST/RST
111
46-0788625-01
HARNESS "D" WeCanX INNER EDGE FST/RST
111
OPTOPTOPT
OPTOPTOPT
01-026H214-_0
SUB ASSY, LTHEAD SOLO INNER EDGE FST
01-026H214-__
SUB ASSY, LTHEAD DUO INNER EDGE FST
111
111
46-0788625-02
HARNESS "A" WeCanX INNER EDGE RST
46-0788625-03
HARNESS "B" WeCanX INNER EDGE RST
111 46-0746909-00
CABLE INPUT 4/C 20' SL-156
111 39-1M18534-05
HOUSING, PLUG 5 POS SL-156 W/LOCKING RAMP, LID
111 26-0215001-06
TY WRAP, 6" BLACK
810
12 68-196H348-31
LENS, CLEAR OPTIC PLATE INNER EDGE RST
A/RA/R 09-0647873-__
PANEL, GRAPHIC INNER EDGE
A/RA/R 01-026H702-__
SUB ASSY, LIGHTED SIGN DUO INNER EDGE FST
107-788626-023
PLATE, FRAME 8-LT SEDAN BLACK RST INNER EDGE
111 10-0548202-__
LABEL, P/N M/N WCX INNER EDGE RST
2
3
ITEM PART NUMBER DESCRIPTION
QTY QTY QTY
11
12
13
14
15
16
17
18
19
4
5
6
7
8
9
10
1
4
5
J6
231
PINOUT J1
RED - +12VDC1 -
BLACK - GND2 -
GREY - CAN L3 -
GREEN - CAN H4 -
SHIELD - SHIELD5 -
10
12
11
6 7
17 18

Page 10
SUV
H
E
AB
I
F
F
E
CD
DRIVER
PASSNGR
R
FORD
2017 - EXPLORER/INTERCEPTOR
01-0688593_3_
11-288296-007 14-08228C-06D 11-288297-007
1
9
1
6
COVER,LOWER 8 & 10 '17 EXPLORER BLACK INNER EDGE RST COVER,UPPER 8 & 10 '17 EXPLORER BLACK INNER EDGE RST
SCREW, 8-32 X 3/8" PAN TORX HD ROLOK SS BLACK OXIDE
21-3718425-05
1 1
PLUG, DOME, 1/2" HOLE DIA DP 500, BLK NYLON, 94V-2
1 1
8
07-247337-023
BRACKET, MTG DRVR EXPLORER BLK 3-COLOR REAR INNER-EDGE
07-247337-123
BRACKET, MTG PASS EXPLORER BLK 3-COLOR REAR INNER-EDGE
15-107036-100
SCREW, 10 X 5/8" HEXHEAD SELF DRILLING/SS
138-0546827-31
TRIM, SEAL HOUSING/WINDSHIELD INNER-EDGE RTX
REAR INNER EDGE, 8/10 LIGHT
14-04028C-04D
SCREW, 4-40 X 1/4 TXPH TAPTITE SS 18-8 BLK
21-11121602-00
GROMMET, 3/8 ID X 1/2 HOLE
C
E
ITEM PART NUMBER DESCRIPTION
QTY
F
G
H
I
K
L
M
A
2020 - EXPLORER/INTERCEPTOR
01-0688593_8_
11-288610-007 14-08228C-06D 11-288611-007
1
9
1
6
COVER, LOWER 8 & 10 '20 EXPLORER BLACK INNER EDGE RST COVER, UPPER 8 & 10 '20 EXPLORER BLACK INNER EDGE RST
SCREW, 8-32 X 3/8" PAN TORX HD ROLOK SS BLACK OXIDE
21-3718425-05
1 1
PLUG, DOME, 1/2" HOLE DIA DP 500, BLK NYLON, 94V-2
1 1
8
07-26J432-023
BRACKET, MTG DRVR 2020 EXPLORER BLACK INNER EDGE RST
07-26J432-123
BRACKET, MTG PASS 2020 EXPLORER BLACK INNER EDGE RST
15-107036-100
SCREW, 10 X 5/8" HEXHEAD SELF DRILLING/SS
138-0546827-31
TRIM, SEAL HOUSING/WINDSHIELD INNER-EDGE RTX
REAR INNER EDGE, 8/10 LIGHT
14-04028C-04D
SCREW, 4-40 X 1/4 TXPH TAPTITE SS 18-8 BLK
21-11121602-00
GROMMET, 3/8 ID X 1/2 HOLE
C
E
ITEM PART NUMBER DESCRIPTION
QTY
F
G
H
I
K
L
M
A
2018 - EXPEDITION
01-0688593_6_
11-288435-007 14-08228C-06D 11-288436-007
1
9
1
8
COVER,LOWER 8 & 10 '18 EXPEDITION BLACK INNER EDGE RST COVER,UPPER 8 & 10 '18 EXPEDITION BLACK INNER EDGE RST
SCREW, 8-32 X 3/8" PAN TORX HD ROLOK SS BLACK OXIDE
21-3718425-05
1 1
PLUG, DOME, 1/2" HOLE DIA DP 500, BLK NYLON, 94V-2
1 1
4
07-26H803-023
BRACKET, MTG DRVR EXPEDITION BLK INNER EDGE RST
07-26H803-123
BRACKET, MTG PASS EXPEDITION BLK INNER EDGE RST
15-107036-100
SCREW, 10 X 5/8" HEXHEAD SELF DRILLING SS
138-0546827-31
TRIM, SEAL HOUSING/WINDSHIELD INNER-EDGE RTX
REAR INNER EDGE, 8/10 LIGHT
14-04028C-04D
SCREW, 4-40 X 1/4 TXPH TAPTITE SS 18-8 BLK
21-11121602-00
GROMMET, 3/8 ID X 1/2 HOLE
C
E
ITEM PART NUMBER DESCRIPTION
QTY
F
G
H
I
K
L
M
A
2017 - FUSION
01-0688593_5_
11-288305-007 14-08228C-06D 11-288306-007
1
9
1
4
COVER,LOWER 8 & 10 '17 FUSION BLACK INNER EDGE RST COVER,UPPER 8 & 10 '17 FUSION BLACK INNER EDGE RST
SCREW, 8-32 X 3/8" PAN TORX HD ROLOK SS BLACK OXIDE
21-3718425-05
1 1
PLUG, DOME, 1/2" HOLE DIA DP 500, BLK NYLON, 94V-2
1 1
2
07-247875-023
BRACKET, MTG DRVR FUSION BLK INNER EDGE RST
07-247875-123
BRACKET, MTG PASS FUSION BLK INNER EDGE RST
14-13021C-400
SCREW, 1/4-20 X 2-1/2, PPHMS 18-8 SS, BLK OX
138-0546827-31
TRIM, SEAL HOUSING/WINDSHIELD INNER-EDGE RTX
REAR INNER EDGE, 8/10 LIGHT
14-04028C-04D
SCREW, 4-40 X 1/4 TXPH TAPTITE SS 18-8 BLK
216-1310820-02
WASHER, 1/4" EXTRNL TOOTH LOCK STAINLESS STEEL
220-5624129H00
SPACER,1-3.4 L 3/4 D 1/4" LPDE PLASTIC MCMASTER #92825A151
216-1302008-00
WASHER, 1/4" FLAT 5/8" OD ZN CHRM STEEL GR8 MC#98023A029
213-130130-072
NUT, 1/4-20 ELASTIC STOP BRASS
21-11121602-00
GROMMET, 3/8 ID X 1/2 HOLE
C
E
ITEM PART NUMBER DESCRIPTION
QTY
N
O
P
Q
F
G
H
I
K
L
M
A
2017 - TAURUS/INTERCEPTOR
01-0688593_0_
11-288299-007 11-288311-007 14-04028C-04D 14-08228C-06D 11-288312-007 11-288300-007
1
9
1
4
COVER, LOWER 8 & 10-LT RST 17 TAURUS REAR INNER-EDGE
COVER, UPPER 8 & 10 '17 TAURUS BLACK INNER EDGE RST COVER, UPPER 12-LT 2017 TAURUS INNER EDGE RST
COVER, LOWER 12-LT 2017 TAURUS REAR INNER EDGE RST
SCREW, 4-40 X 1/4 TXPH TAPTITE SS 18-8 BLK SCREW, 8-32 X 3/8" PAN TORX HD ROLOK SS BLACK OXIDE
REAR INNER EDGE, 8/10 LIGHT
1 1
10
4
01-0688593_02
REAR INNER EDGE, 12 LIGHT
21-3718425-05
1 1
PLUG, DOME, 1/2" HOLE DIA DP 500, BLK NYLON, 94V-2
11 11
2
4
2
4
66 66
22
07-247292-023
BRACKET, MTG DRVR TAURUS REAR INNER EDGE
07-247292-123
BRACKET, MTG PASS TAURUS REAR INNER EDGE
14-130436-120
SCREW, 1/4-20 X 3/4" HEX HD MS SS
14-130216-100
SCREW, 1/4-20 X 5/8 PPHMS SS
16-1310820-02
WASHER, 1/4" EXTRNL TOOTH LOCK STAINLESS STEEL
16-1301827-60
WASHER, 1/4 FLAT 1/4" ID X 5/8" ODX .040 THK SS BLK OXIDE
07-26D684-023
BRACKET, ADJ MTG DECK MOUNT BLACK
TRIM, SEAL HOUSING/WINDSHIELD INNER-EDGE RTX
38-0546827-__
11
121-11101610-0
GROMMET, 5/16 ID X 1/2 HOLE
21-11121602-00
GROMMET, 3/8 ID X 1/2 HOLE
B
C
ITEM PART NUMBER DESCRIPTION
QTY QTY
L
M
N
O
P
Q
R
D
E
F
G
H
I
K
A
F
E
H
I
AB
CD
SEDAN
DRIVER
PASSNGR
R
E
Listings continued on next page

Page 11
2017 - TAHOE
01-0688593_4_
11-288309-007
14-08228C-06D
11-288310-007
1
9
1
6
COVER,LOWER 8 & 10-LT 17 TAHOE REAR INNER EDGE BLK
COVER,UPPER 8 & 10-LT 17 TAHOE REAR INNER EDGE BLK
SCREW, 8-32 X 3/8" PAN TORX HD ROLOK SS BLACK OXIDE
21-11121602-00
21-3718425-05
1
1
GROMMET, 3/8 ID X 1/2 HOLE
PLUG, DOME, 1/2" HOLE DIA DP 500, BLK NYLON, 94V-2
1
1
4
07-247338-023
BRACKET, MTG DRVR TAHOE BLK 3-COLOR REAR INNER-EDGE
07-247338-123
BRACKET, MTG PASS TAHOE BLK 3-COLOR REAR INNER-EDGE
14-104436-120
SCREW, 10 X 3/4" HHMS SS
138-0546827-31
TRIM, SEAL HOUSING/WINDSHIELD INNER-EDGE RTX
REAR INNER EDGE, 8/10 LIGHT
14-04028C-04D
SCREW, 4-40 X 1/4 TXPH TAPTITE SS 18-8 BLK
07-724017-000
PLATE, DOUBLER TAHOE DRIVER REAR INNER EDGE
1
107-724017-100
PLATE, DOUBLER TAHOE PASS REAR INNER EDGE
C
E
ITEM PART NUMBER DESCRIPTION
QTY
N
O
F
G
H
I
K
L
M
A
CHEVROLET
2018 - IMPALA
01-0688593_2_
11-288599-007
11-288596-007
14-08228C-06D
11-288597-007
11-288600-007
1
9
1
4
COVER, LOWER 8/10-LT 18 IMPALA BLK REAR INNER EDGE
COVER, UPPER 8/10-LT 18 IMPALA BLK REAR INNER EDGE
COVER, UPPER 12-LT 2018 IMPALA BLK REAR INNER EDGE
COVER, LOWER 12-LT 2018 IMPALA BLK REAR INNER EDGE
SCREW, 8-32 X 3/8" PAN TORX HD ROLOK SS BLACK OXIDE
1
1
10
4
01-0688593_22
21-3718425-05
1
1
PLUG, DOME, 1/2" HOLE DIA DP 500, BLK NYLON, 94V-2
11
11
2
2
2
2
22
07-248165-023
BRACKET, MTG TOP 2018 IMPALA BLACK REAR INNER EDGE
07-247478-023
BRACKET, MTG BOTTOM IMPALA BLK 3-COLOR REAR INNER-EDGE
14-146016-640
SCREW, 5/16-18 X 4" PHIL RHMS FULL THREAD
13-148132-082
NUT, 5/16-18 ELASTIC STOP NICKEL PLATED BRASS
16-1402420-05
WASHER, 5/16" FLAT SS 3/4" OD
11 38-0546827-__
TRIM, SEAL HOUSING/WINDSHIELD INNER-EDGE RTX
REAR INNER EDGE, 8/10 LIGHT
REAR INNER EDGE, 12 LIGHT
14-04028C-04D
SCREW, 4-40 X 1/4 TXPH TAPTITE SS 18-8 BLK
-
1
GROMMET, 5/16 ID X 1/2 HOLE
21-11101610-0
21-11121602-00
GROMMET, 3/8 ID X 1/2 HOLE
B
C
ITEM PART NUMBER DESCRIPTION
QTY QTY
L
M
N
O
R
D
E
F
G
H
I
K
A
2017 - DURANGO
01-0688593_7_
11-288472-007
14-08228C-06D
11-288473-007
1
9
1
6
COVER,LOWER 8 & 10 '17 DURANGO BLACK INNER EDGE RST
COVER,UPPER 8 & 10 '17 DURANGO BLACK INNER EDGE RST
SCREW, 8-32 X 3/8" PAN TORX HD ROLOK SS BLACK OXIDE
21-3718425-05
1
1
PLUG, DOME, 1/2" HOLE DIA DP 500, BLK NYLON, 94V-2
1
1
8
07-247989-023
BRACKET, MTG DRVR DURANGO BLK REAR INNER-EDGE
07-247989-123
BRACKET, MTG PASS DURANGO BLK REAR INNER-EDGE
15-107036-100
SCREW, 10 X 5/8" HEXHEAD SELF DRILLING/SS
138-0546827-31
TRIM, SEAL HOUSING/WINDSHIELD INNER-EDGE RTX
REAR INNER EDGE, 8/10 LIGHT
14-04028C-04D
SCREW, 4-40 X 1/4 TXPH TAPTITE SS 18-8 BLK
21-11121602-00
GROMMET, 3/8 ID X 1/2 HOLE
C
E
ITEM PART NUMBER DESCRIPTION
QTY
F
G
H
I
K
L
M
A
DODGE
2017 - CHARGER
01-0688593_1_
11-288303-007
11-288313-007
14-08228C-06D
11-288314-007
11-288304-007
1
9
1
4
COVER,LOWER 8 & 10-LT RST 17 CHARGER REAR INNER EDGE BLK
COVER,UPPER 8 & 10-LT RST 17 CHARGER REAR INNER EDGE BLK
COVER, UPPER 12-LT '17 CHARGER REAR INNER EDGE RST
COVER, LOWER 12-LT '17 CHARGER REAR INNER EDGE RST
SCREW, 8-32 X 3/8" PAN TORX HD ROLOK SS BLACK OXIDE
1
1
10
4
01-0688593_12
21-3718425-05
1
1
PLUG, DOME, 1/2" HOLE DIA DP 500, BLK NYLON, 94V-2
11
11
2
2
2
2
22
22
07-247294-023
BRACKET, MTG DRVR CHARGER 3-COLOR REAR INNER EDGE
07-247294-123
BRACKET, MTG PASS CHARGER 3-COLOR REAR INNER EDGE
14-148436-160
BOLT, 5/16-18 X 1 HEX HEAD SS
13-148132-082
NUT, 5/16-18 ELASTIC STOP NICKEL PLATED BRASS
16-1402420-05
WASHER, 5/16" FLAT SS 3/4" OD
16-1412420-05
WASHER, 5/16 EXTRNALTOOTH LOCK PLATED
11 38-0546827-__
TRIM, SEAL HOUSING/WINDSHIELD INNER-EDGE RTX
REAR INNER EDGE, 8/10 LIGHT
REAR INNER EDGE, 12 LIGHT
14-04028C-04D
SCREW, 4-40 X 1/4 TXPH TAPTITE SS 18-8 BLK
1
GROMMET, 5/16 ID X 1/2 HOLE
21-11101610-0
21-11121602-00
GROMMET, 3/8 ID X 1/2 HOLE
B
C
ITEM PART NUMBER DESCRIPTION
QTY QTY
L
M
N
O
P
R
D
E
F
G
H
I
K
A
