Whirlpool AMD 084 User manual

Gebrauchsanweisung
Instructions for use
Mode d’emploi
Gebruiksaanwijzing
Istruzioni per l’uso
Brugsanvisning
Bruksanvisning
Käyttöohje
Manual de utilização
Instrucciones para el uso
Instrukcje użytkowania
Használati utasítás
ИнструкциЯза употреба
Návod k použití
Návod na použitie
Instruc∑iuni de utilizare
Инструкции по эксплуатации

3
ENGLISH Instructions for use Page 4
РУCCКИЙ Инcтpyкции по экcплyaтaции Cтpaницa 17
AMD 081 - 082 - 084

4
SAFETY PRECAUTIONS
• Do not install the appliance if it is connected to
the power supply.
• The Installation and service/repair must be
performed by a qualified technician, in
compliance with the producer's instructions and
following local safety norms. Do not repair or
replace any parts of the appliance unless it is
specifically written in the user instructions.
• The grounding of this appliance is compulsory.
• Make sure that the power supply cord is long
enough to allow the right connection. Do not
use any extension cord for power supply.
• Do not pull the power supply cord to remove it
from the socket.
• Do not twist or press the power supply cord,
and make sure it is not broken.
• Once installation is completed, the electric
components must not be accessible to the users.
• Do not touch the operation buttons when your
hands are wet and don't use the appliance when
you are barefoot.
• Physically or mentally disabled people, children
and people without any experience with the
product are only allowed to use the appliance if
they have had specific training on how to
operate the appliance by a person responsible
for their security and well-being. The appliance
is not intended for use by disabled people and
very young children without supervision.
AIR CONDITIONER PRECAUTIONS
Please strictly follow the below instructions:
• Long and direct exposure to cool air might be
harmful to health. It is advisable to set the
louvers in order to avoid direct cool air and
deflect it within the room.
• Prevent the air flow from reaching the gas
burners and stoves.
• Upon malfunctioning first turn the appliance off
by pressing the ON/OFF button on the remote
control, then disconnect it from the mains.
• This product contains Fluorinated Greenhouse
Gases covered by the Kyoto Protocol, the
refrigerant gas being in a hermetically sealed
system. Refrigerant gas: R410a has a Global
Warming Potential (GWP) 1975.
• This appliance has been made of recyclable or
re-usable material. Scrapping must be carried
out in compliance with local waste disposal
regulations. Before scrapping it, make sure to
cut off the mains cord so that the appliance
cannot be re-used.
• For more detailed information on handling and
recycling of this product, contact your local
authorities who deal with the separate collection
of rubbish or the shop where you bought the
appliance.
SCRAPPING OF PACKAGING
• The packaging can be 100% recycled as
confirmed by the recycling symbol . The
various parts of the packaging must not be
dispersed in the environment, but must be
scrapped in line with local authority regulations.
SCRAPPING OF APPLIANCE
• This appliance is marked according to the
European Directive 2002/96/EC, Waste
Electrical and Electronic Equipment (WEEE).
• By ensuring that this product is disposed of
correctly, you will help to prevent potentially
negative consequences for the environment and
for human health.
• The symbol on the product or on the
documents accompanying the product indicates
that this appliance should not be treated as
household waste, but must be given to the
appropriate local gathering place where electric
and electronic appliances are stored and
recycled.
SAFEGUARDING THE ENVIRONMENT

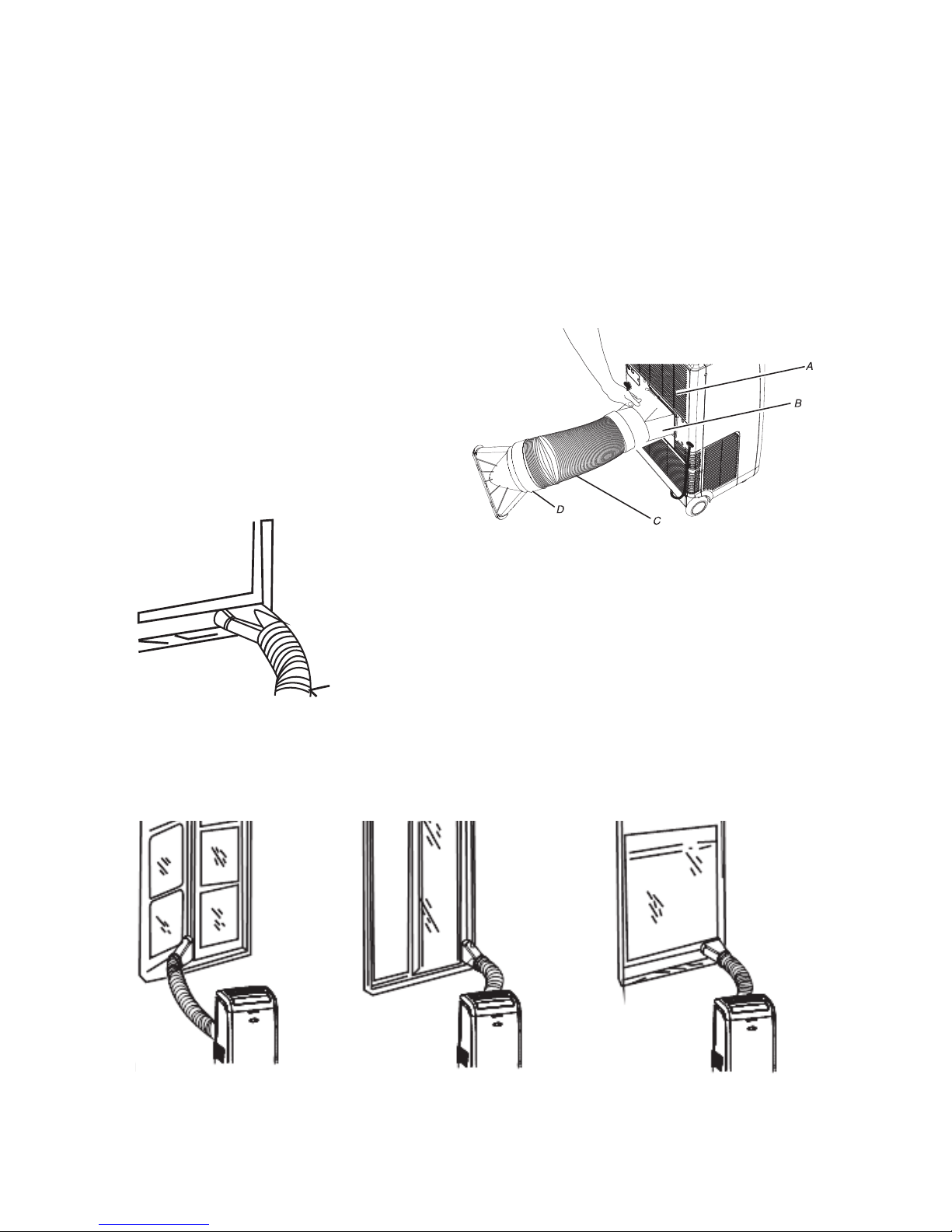

STARTING YOUR PORTABLE
AIR CONDITIONER
This section explains proper portable air
conditioner operation.
IMPORTANT:
• The air conditioner display shows the current
room temperature and 24-hour clock.
• When changing modes while the air conditioner
is operating, the compressor will stop for 3 to 5
minutes before restarting.
If a button is pressed during this time, the
compressor will not restart for another 3 to 5
minutes.
• In Cooling or Dry mode, the compressor and
condenser fan will stop when the room
temperature reaches the set temperature.
NOTE: In the event of a power failure, your air
conditioner will operate at the previous settings
when the power is restored.
1. Select the mode. See "Mode."
2. Select the fan speed. See "Fan Speed."
3. Set the temperature. See "Temperature."
4. Press ON/OFF button to start the air
conditioner.
NOTE: When the air conditioner is turned on for
the first time after it is plugged in, it will run in the
6th Sense Mode control.
When the air conditioner is turned on at all other
times, it will run according to the previous settings.
6th Sense Mode can be selected with the remote
control only.
5. When WATER FULL indicator light glows red,
air conditioner will turn off automatically. See
"Portable Air Conditioner Care" for directions
on draining the air conditioner.
Timer
Swing RapidCool
Adjust
Fan
Speed
Mode
On/Off Filter
Reset
Water
Full
On
Off
5

6

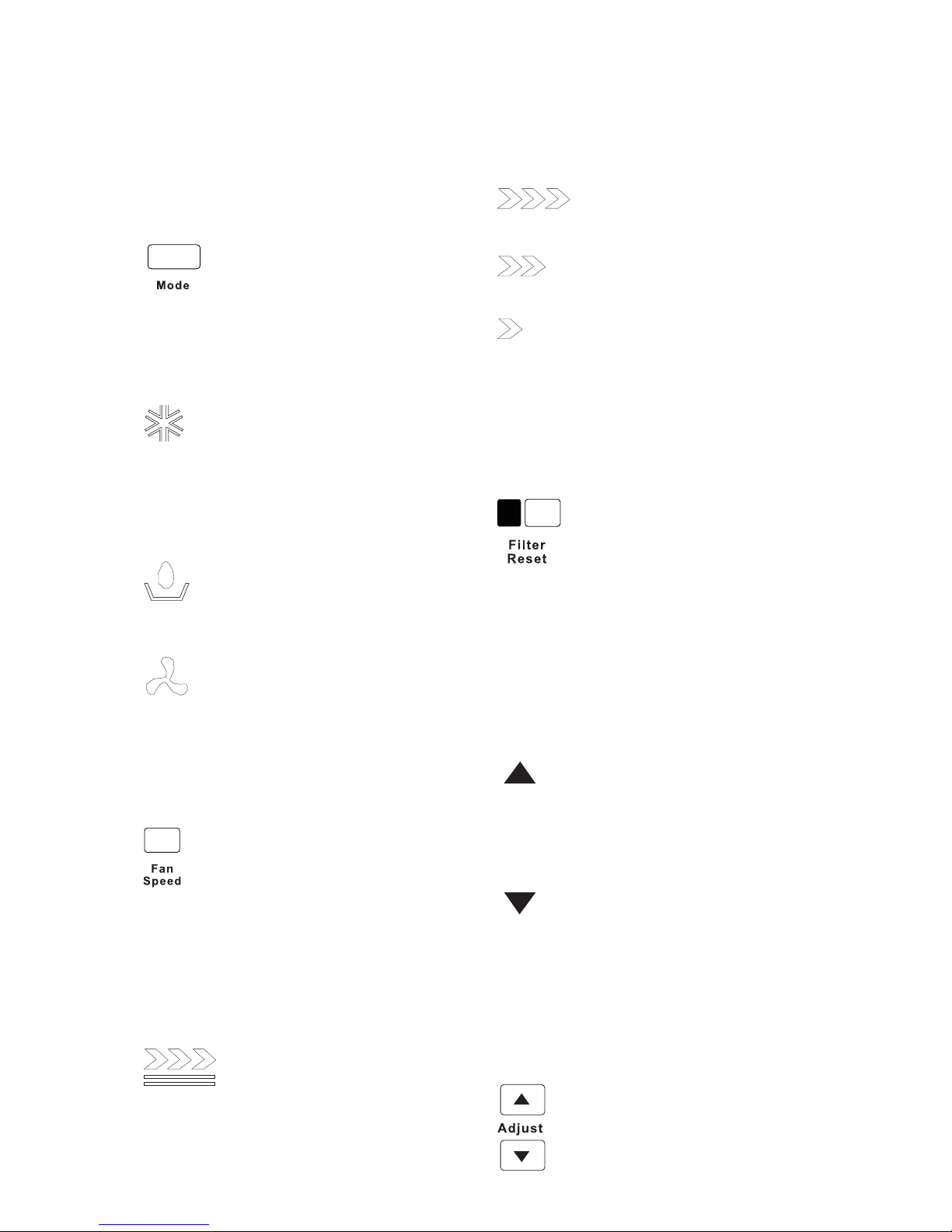

OPERATING MODE DESCRIPTION
Operating modes:
1. Press and release MODE until you see the
symbol glow for the desired setting
2. Choose Cooling, Dry or Fan Only.
• Cooling-Cools the room. Press FAN SPEED to
select Auto, High, Mid or Low. Press the up or
down Adjust button to adjust the temperature.
• Dry-Dries the room. The air conditioner
automatically selects the temperature. The fan
runs on Low speed only.
NOTE: Dry mode should not be used to cool the
room.
• Fan Only-Only the fan runs. Press FAN SPEED
to select High, Mid or Low.
NOTE: Auto fan speed cannot be selected in Fan
Only mode.
Fan Speed
1. Press and release FAN SPEED to choose the
desired fan speed.
2. Choose Auto, High, Mid or Low.
• Auto-automatically controls the fan speed
depending on the current room temperature
and temperature control setting.
NOTE: Auto fan speed cannot be selected in Fan
Only mode.
• High-for maximum cooling
• Mid-for normal cooling
• Low-for minimum cooling
Filter Reset
1. When the Filter Reset indicator light is lit,
remove, clean and replace the air filter. See
"Cleaning the Air Filter."
2. Press and release FILTER RESET after replacing
the air filter.
NOTE: After 360 hours of fan operating time, the
Filter indicator light will turn on. It will remain on
for 180 hours or until you press FILTER RESET.
After 180 hours, it will turn off automatically.
Temperature
• Press the up Adjust button to raise the
temperature. Press the up Adjust button once to
increase the set temperature by 1°C or press
twice to increase the set temperature by 2ºC.
• Press the down Adjust button to lower the
temperature. Press the down Adjust button
once to decrease the set temperature by 1ºC,
or press twice to decrease the set temperature
by 2ºC.
NOTES:
• In the Cooling mode, the temperature can be
set between 18ºC and 32ºC.
• In Fan Only mode, the temperature cannot be
set.
• To change the temperature display between ºC
and ºF, press both the up and down Adjust
buttons at the same time.

Clock function
You can adjust real time clock by pressing Timer
On and Timer Off buttons at same time on control
panel or Clock button on the remote. Press up or
down Adjusting button to get the correct time.
Press Timer On and Timer Off at the same time
again, and then the real time is set.
Timer On/Off
Set the real time to turn on the conditioner.
1. Press Timer On, Timer "On 12:00" indicator will
flash.
2. Press the up or down Adjust button to get your
desired time to turn on the appliance.
• Press the up or down Adjust button once to
increase or decrease the time setting by 1
minute.
• Press and hold the up or down Adjust button
for one and a half seconds to increase or
decrease the time setting by 10 minutes.
• Press and hold the up or down Adjust button
for a longer time to increase or decrease the
time setting by 1 hour.
3. When your desired time displayed on LCD,
press the TIMER ON button and confirm it,
then Timer "ON" indicator stops flashing and
your desired time remains on.
4. After your desired time displayed for 5 seconds,
the clock will be displayed on the LCD.
NOTE: If you don't set the time in 10 seconds
after you press TIMER ON button, the controller
will exit the TIMER ON mode automatically.
How to cancel Timer On
Press Timer On again, the indicator disappears and
the Timer On is canceled.
NOTE: It is similar to set Timer Off, you can make
the appliance unit switch off automatically at your
desired time.
Rapid Cool mode
Used for fast cooling. The air conditioner
automatically sets the fan speed to High and the
temperature to 18ºC.
NOTE: 6th Sense mode button does not operate
when Rapid Cool function is selected.
1. Press Rapid Cool. The air conditioner
automatically sets the fan speed to High and the
temperature to 18ºC.
2. To exit Rapid Cool mode press any button
except Timer On/Off and Swing button.
7

8
STORAGE AND TIPS FOR USING THE RC
How to insert the batteries
Remove the battery cover in the direction of the
arrow.
Insert new batteries making sure that the (+) and
(-) of battery are matched correctly.
Refit the cover by sliding it back into position.
Note:
• Use 2 LR03 AAA (1.5volt) batteries. Do not use
rechargeable batteries.
Replace batteries with new ones of the same
type when the display becomes dim.
• If the replacement is done within 1 minute, the
remote control will keep original presetting.
However, if you replace batteries taking more
than 3 minutes, all presetting will be cancelled
and timer will display Zero.
How to remove the batteries
Remove the battery cover in the direction of the
arrow.
Press the positive pole of the battery softly with
your fingers, then draw the batteries out of the
compartment.
All this should be done by adults, children are
forbidden to remove the batteries from the
remote control in order to avoid danger of
swallow.
Disposal of the batteries
Please discard the batteries as sorted municipal
waste at the accessible collection point.

USING THE REMOTE CONTROL
NOTE: Remote control may vary in appearance.
NOTES:
• Two AAA batteries (included) power the remote
control. Replace batteries after 6 months of use,
or when the remote control starts to lose
power.
• To operate the air conditioner with the remote
control, aim the remote control at the signal
receptor from no more than 23 ft (7 m) away.
Power On or Off
Press POWER.

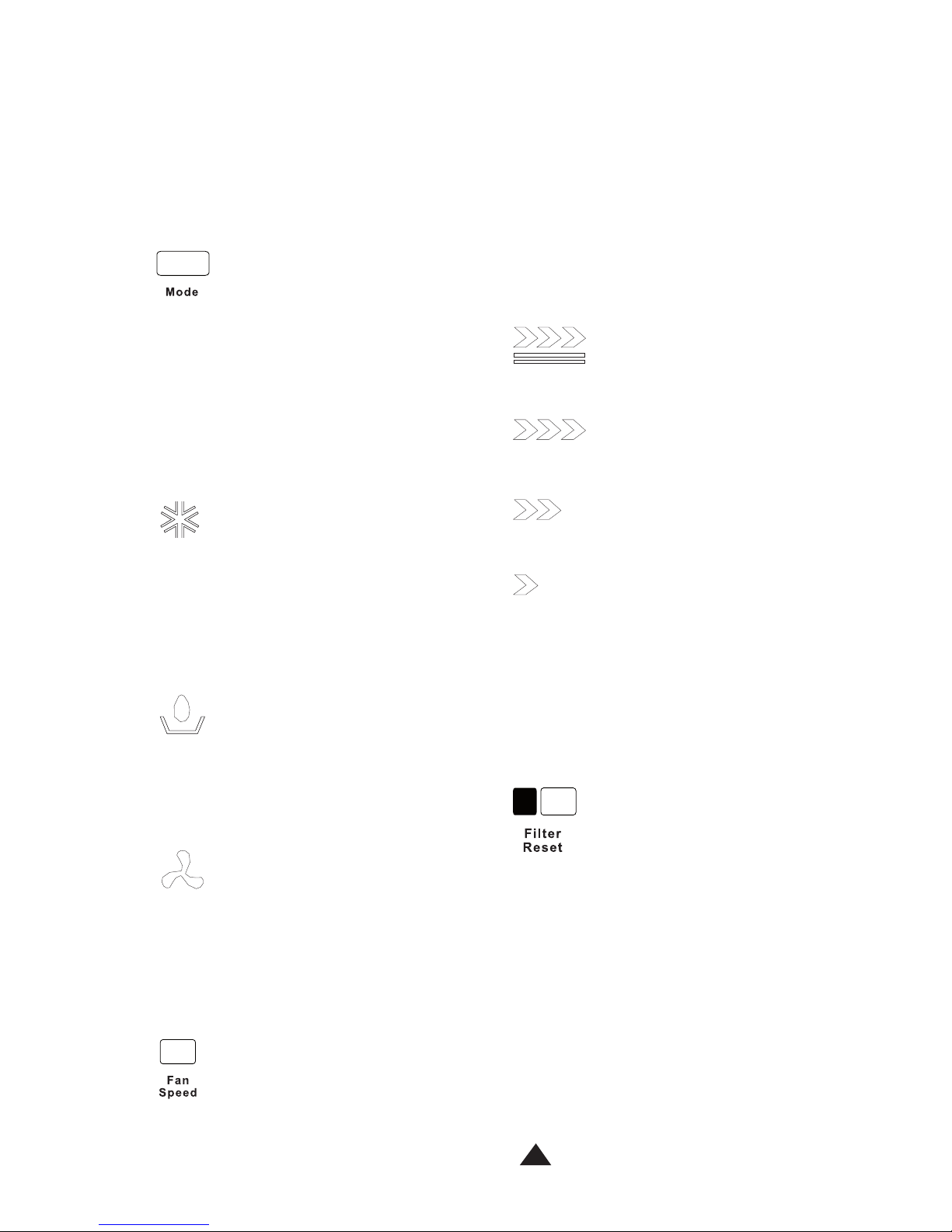

Selecting mode
1. Press and release MODE until you see the
symbol glow for the desired setting.
2. Choose Cooling, Dry or Fan Only.
• Cooling-Cools the room. Press Fan to select
Auto, High, Mid or Low. Press the up or down
Adjust button to adjust the temperature.
• Dry-Dries the room. The air conditioner
automatically selects the temperature. Fan
runs on Low speed only.
NOTE: Dry mode should not be used to cool the
room.
• Fan Only-Only the fan runs. Press FAN to
select High, Mid or Low.
NOTE: Auto fan speed cannot be selected in Fan
Only mode.
9

FUNCTION DESCRIPTIONS
6th Sense mode
The air conditioner automatically selects Cooling
or Dry mode,depending on room temperature and
sets the target temperature.
Operation mode and temperature are determined
by indoor temperature.
Cooling only models
NOTE: Temperature, airflow and direction are
controlled automatically in 6th Sense mode.
However, a decrease or rise of up to 2°C can be
set with the remote control if you still feel
uncomfortable.
1. Press 6th Sense button.
2. In Fan Only mode, press Fan to select High, Mid
or Low.
Rapid Cool
Used for fast cooling. The air conditioner
automatically sets the fan speed to High and the
temperature to 18ºC.
NOTE: 6th Sense mode button does not operate
when Rapid Cool function is selected.
1. Press Rapid Cool. The air conditioner
automatically sets the fan speed to High and the
temperature to 18°C.
2. To exit Rapid Cool mode, press any button
except Timer On/Off and Swing button.
Fan Speed
1. Choose desired fan speed.
• Auto-automatically controls fan speed
depending on current room temperature and
temperature control setting.
NOTE: Auto fan speed cannot be selected in Fan
Only mode.
• High - for maximum cooling
• Mid - for normal cooling
• Low - for minimum cooling
Temperature
• Press the plus button to raise the temperature.
Press the plus button once to increase the set
temperature by 1ºC, or press twice to increase
the set temperature by 2ºC.
• Press the minus button to lower the
temperature. Press the minus button to
decrease the set temperature by 1ºC, or
press twice to decrease the set temperature
by 2ºC.
NOTES:
• In the Cooling mode, the temperature can be
set between 18ºC and 32ºC.
• In Fan Only mode, the temperature cannot be
set.
Indoor
temperature
Operation
mode
Target
temperature
26°C or below DRY
Room
temperature
decrease 1.5°C
after operating
for 3 minutes
Over 26°C COOLING 26°C
10
