Whirlpool PORTABLE AIR CONDITIONER User manual

AIRCONDITIONER
This guide contains useful information.
Read it carefully before using your room air conditioner.
For questions about features, operation/performance,
parts, accessories or service, call: f-800-253-1301 in the U.S.A.
ACONDICIONADOR
Esta gufa contiene informacion t_til. Leala cuidadosamente antes de
usar su acondicionador de aire de habitaci6n.
Para consultas respecto a caracterfsticas, operaci6n/desempefio,
pares, accesorios o servicio t_cnico, Ilame al 1-800-253-1301
en los EE. UU.
Table of Contents/lndice ..................................... 2
1188081

TABLEOF CONTENTS
AIR CONDITIONER SAFETY ......................................................... 2
INSTALLATION REQUIREMENTS ................................................ 3
Tools and Parts ............................................................................ 3
Location Requirements ................................................................ 3
Electrical Requirements ............................................................... 4
INSTALLATION INSTRUCTIONS .................................................. 5
Unpacking .................................................................................... 5
Installing Air Conditioner .............................................................. 6
Position the Air Conditioner Cabinet ........................................... 8
Complete Installation ................................................................... 9
AIR CONDITIONER USE.............................................................. 10
Starting Your Air Conditioner ..................................................... 10
Changing Air Direction ............................................................... 13
Normal Sounds ........................................................................... 13
AIR CONDITIONER CARE ........................................................... 13
Cleaning the Air Filter ................................................................. 13
Cleaning the Front Panel ............................................................ 13
Repairing Paint Damage ............................................................ 14
Annual Maintenance ................................................................... 14

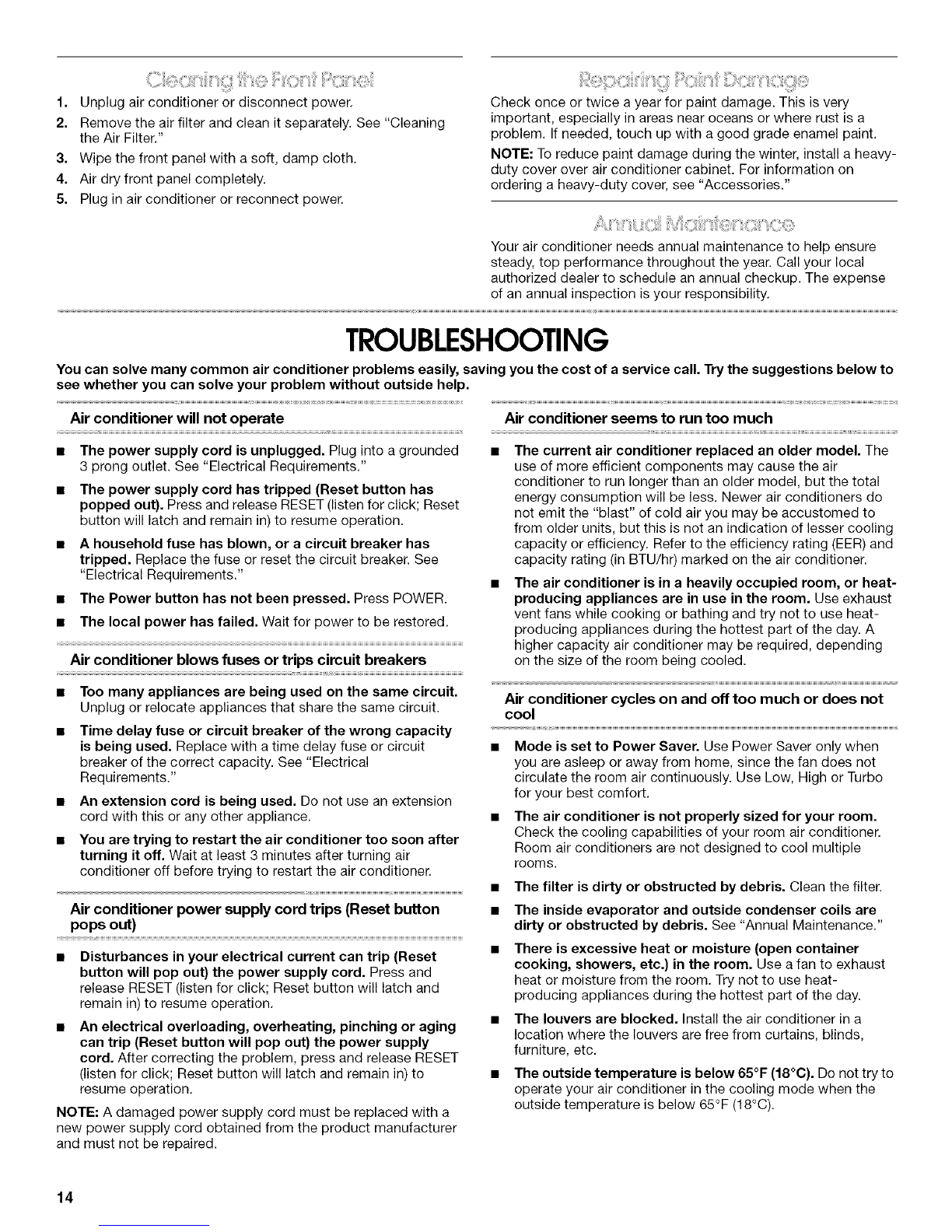

TROUBLESHOOTING .................................................................. 14
ASSISTANCE OR SERVICE ......................................................... 15
Accessories ................................................................................ 15
iNDICE
SEGURIDAD DEL ACONDICIONADOR DE AIRE ...................... 16
REQUISITOS DE INSTALACION ................................................. 16
Herramientas y piezas ................................................................ 16
Requisites de ubicaci6n ............................................................. 17
Requisites electricos .................................................................. 18
INSTRUCCIONES DE INSTALACION ......................................... 19
Desempaque .............................................................................. 19
Instalaci6n del acondicionador de aire...................................... 20
Colocaci6n del gabinete del acondicionador de aire................ 21
Complete la instalaci6n .............................................................. 23
COMO USAR SU ACONDICIONADOR DE AIRE ....................... 24
C6mo poner en marcha su acondicionador de aire .................. 25
C6mo cambiar la direcci6n del aire ........................................... 28
Sonidos normales ....................................................................... 28
CUlDADO DE SU ACONDICIONADOR DE AIRE ....................... 29
Limpieza del filtro de aire ........................................................... 29
Limpieza del panel delantero ..................................................... 29
Reparaci6n de la pintura da_ada ............................................... 29
Mantenimiento anual .................................................................. 29
SOLUCION DE PROBLEMAS ...................................................... 29
AYUDA O SERVICIO TECNICO ................................................... 31
Accesorios .................................................................................. 31
AIRCONDITIONERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.

iNPORTANTSAFETYiNSTRUCTiONS
WARNING:Toreducetheriskoffire,electricalshockorinjurywhenusingyourairconditioner,foilowthesebasicprecautions:
• Plug into a grounded 3 prong outlet.
[] Do not remove ground prong.
[] Do not use an adapter.
[] Do not use an extension cord.
[] Unplug air conditioner before servicing.
[] Use two or more people to move and install air conditioner.
SAVE THESE INSTRUCTIONS
INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools Needed
Flat-blade and Phillips • Scissors
screwdrivers • Tape measure
Level • Drill and %2" or smaller bit
Through-the-wall installation
In addition to the tools listed above, the following tools are
needed for through-the-wall installation.
• Saw • 1" (2.5 cm) or heavier
lumber
• Wood preservative
• Caulk • #8 x 1/2"wood screws (6)
Parts supplied (on some models)
Check that all parts are included in parts package.
IMPORTANT: Observe all governing codes and ordinances.
Check the location where air conditioner will be installed. Proper
installation is your responsibility. Make sure you have everything
necessary for correct installation.
The location should provide:
• Grounded electrical outlet within 4 ft (122 cm) of where the
power cord exits the air conditioner.
NOTE: Do not use an extension cord.
• Free movement of air in room to be cooled.
• A large enough opening for the air conditioner.
• Adequate wall support for weight of air conditioner. Air
conditioner weighs between 80 and 110 Ibs (36.3 to 49.9 kg).
NOTE: Cabinet louvers must not be obstructed. Air must be able
to pass freely through the cabinet louvers.
C D E F
A. Cabinet louvers
A. Foam seals (2)
B. Window-lock bracket
C. #6 - 32 x ½" pan-head
screws (2)
D. #8 x_" round-head
screws (3)
E. #10 - 12 x _" pan-head
Phillips screws (3)
F. #8- 18x _" pan-head Phillips
screws (6)
G. Top channel
H. Side curtains (2)
NOTE: Installation parts are supplied for double-hung windows
up to 40" (101.6 cm) wide. A special Wide Window Kit is available
from your dealer or service center. See "Accessories."

Window installation (on some models)
Window opening measurements:
• Width: 27" (68.6 cm) minimum to 40" (101.6 cm) maximum.
• Height: 161/4'' (41.3 cm) minimum.
r-
L
B
I
iF -1
A. 27" (68.6 cm) minimum to 40" (101.6 cm) maximum
B. 16_" (41.3 cm) minimum
Through-the-wall installation
The wall opening measurements should be:
• Height: 16" (40.6 cm) plus twice the thickness of wood used
to build frame.
• Width: 22%" (57.5 cm) plus twice the thickness of wood used
to build frame.
C
tC
A. 16" (40.6 cm) C. Wood thickness
B.22_" (57.5 cm)
E_ectrica_ Shock Hazard
Plug into a grounded 3prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can resutt in
death, fire, or etectrica_ shock.
Ground wire must be connected to ground screw located in lower
right corner of air conditioner when air conditioner is in cabinet.
The electrical ratings for your air conditioner are listed on the
model and serial number label. The model and serial number
label is located behind the front panel on the front flange above
the coil area.
Specific electrical requirements are listed in the chart below.
Follow the requirements for the type of plug on the power supply
cord.
Power supply cord Wiring requirements
• 115 volt (103.5 min. -
126.5 max.)
• 0-12 amps
• 15-amp time-delay fuse or
circuit breaker
• Use on single outlet circuit only.
• 230 volt (207 min. - 253 max.)
1/4"
(0,6cm) • 0-12 amps
_ _ • 15-amptime-delayfuseor
circuit breaker
• Use on single outlet circuit only.

Recommended ground method
For your personal safety, this air conditioner must be grounded.
This air conditioner is equipped with a power supply cord having
a grounded 3 prong plug. To minimize possible shock hazard, the
cord must be plugged into a mating, grounded 3 prong outlet,
grounded in accordance with all local codes and ordinances. If a
mating outlet is not available, it is the customer's responsibility to
have a properly grounded 3 prong outlet installed by a qualified
electrical installer.
It is the customer's responsibility:
• To contact a qualified electrical installer.
• To assure that the electrical installation is adequate and in
conformance with National Electrical Code, ANSl/NFPA 70 -
latest edition, and all local codes and ordinances.
Copies of the standards listed may be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, Massachusetts 02269
Power Supply Cord
NOTE: Your unit's device may differ from the one shown.
E_ectrica_ Shock Hazard
Plug into a grounded 3prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or etectrica_ shock.
To test your power supply cord:
1. Plug power supply cord into a grounded 3 prong outlet.
2. Press RESET.
B3. Press TEST (listen for click; Reset button will trip and pop
out).
__ IU_ 4. Press and release RESET (listen for click; Reset button will
latch and remain in). The power supply cord is ready for
operation.
NOTES:
• The Reset button must be pushed in for proper operation.
-_-_--C_ _ _ • The power supply cord must be replaced if it fails to trip when
the test button is pressed or fails to reset.
A. Reset button
B. Test button
This room air conditioner is equipped with a power supply cord
required by UL. This power supply cord contains state-of-the-art
electronics that sense leakage current. If the cord is crushed, the
electronics detect leakage current and power will be
disconnected in a fraction of a second.
• Do not use the power supply cord as an off/on switch. The
power supply cord is designed as a protective device.
• A damaged power supply cord must be replaced with a new
power supply cord obtained from the product manufacturer
and must not be repaired.
• The power supply cord contains no user serviceable parts.
Opening the tamper-resistant case voids all warranty and
performance claims.
INSTALLATIONINSTRUCTIONS
Excessive Weight Hazard
Use two or more people to move and install
air conditioner.
Failure to do so can result in back or other injury.
Remove packaging materials
• Remove and properly dispose of packaging materials.
Remove tape and glue residue from surfaces before turning
on the air conditioner. Rub a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.
1.
2.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your air conditioner.
Handle air conditioner with care.
Remove air conditioner from carton and place on cardboard.
Remove shipping screw from side wall of cabinet.
A\A. Shipping screw
