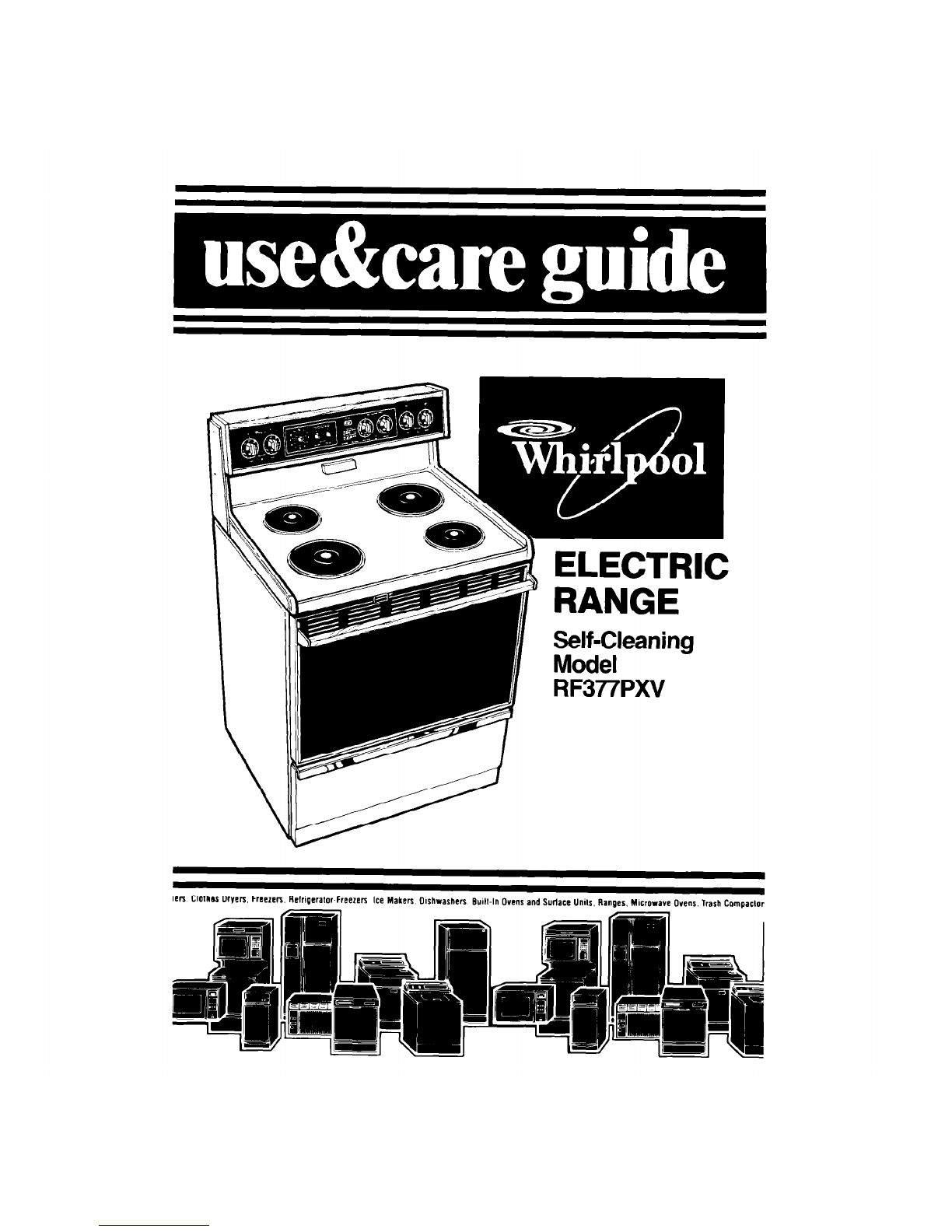

Whirlpool RF377PXV User manual

ELECTRIC
RANGE
Self-Cleaning
Model
RF377PXV

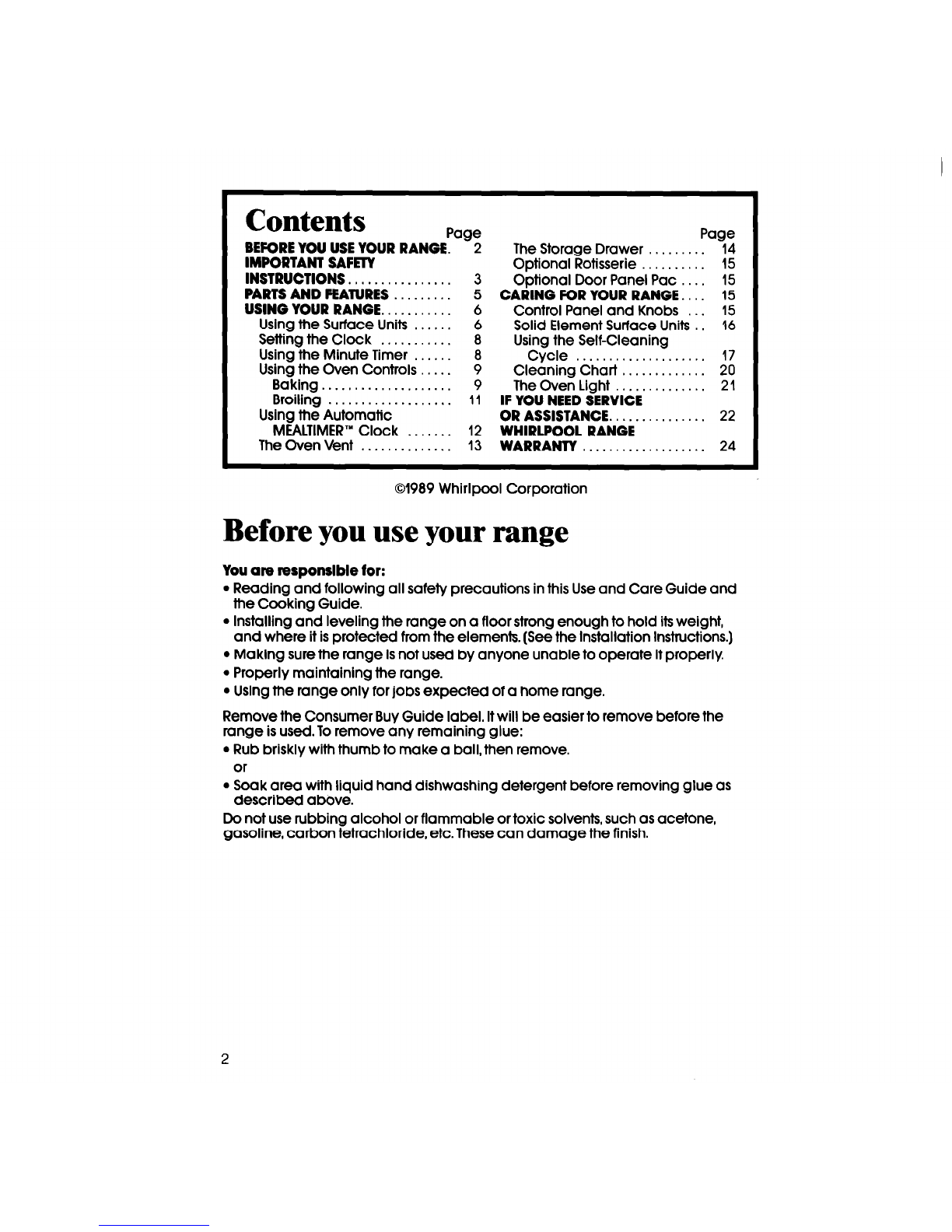

Contents
Paae
BEFOREYOU USEYOUR RANGE.
IMPORTANT SAFElV
INSTRUCTIONS . . . . . . . . . . , . . . . .
PARTSAND FEATURES. . . . . . . . .
USING YOUR RANGE.. . . . , . . . . .
Using the Surface Units . . . . . .
Setting the Clock . . . . . . . . . .
Using the Minute Timer . . . .

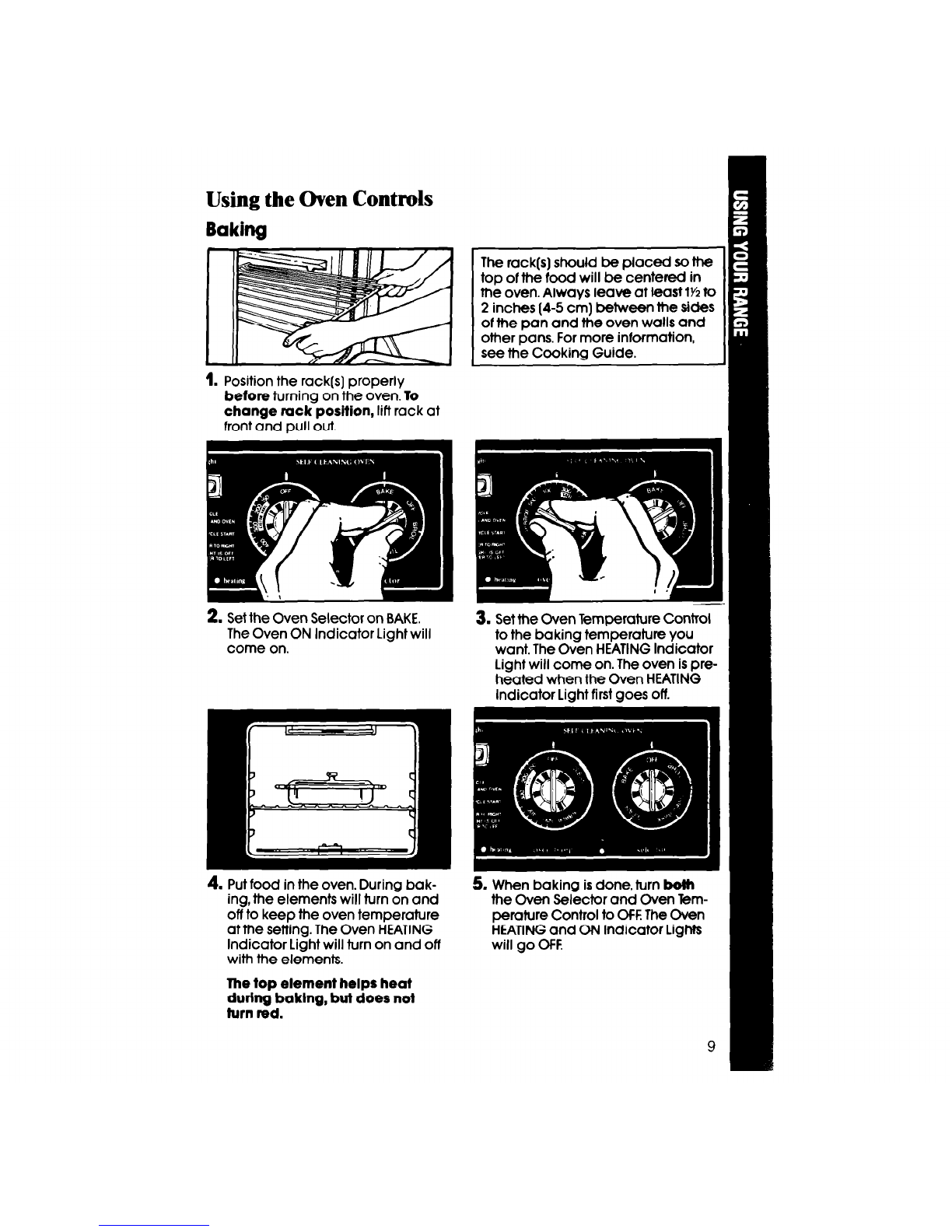

Using the Oven Controls . . . .
Baking . . . . . . . . . . . . . . . . . . . .
Broiling . . . . . . . . . . . . . . . . . .
Using the Automatic
MEALTIMER’” Clock . . . , . . .
The Oven Vent . . . . . . . . , . . . . .
“2
3
5
6
ii
8
9
9
11
12
13
Page
The Storage Drawer . . . . . . . 14

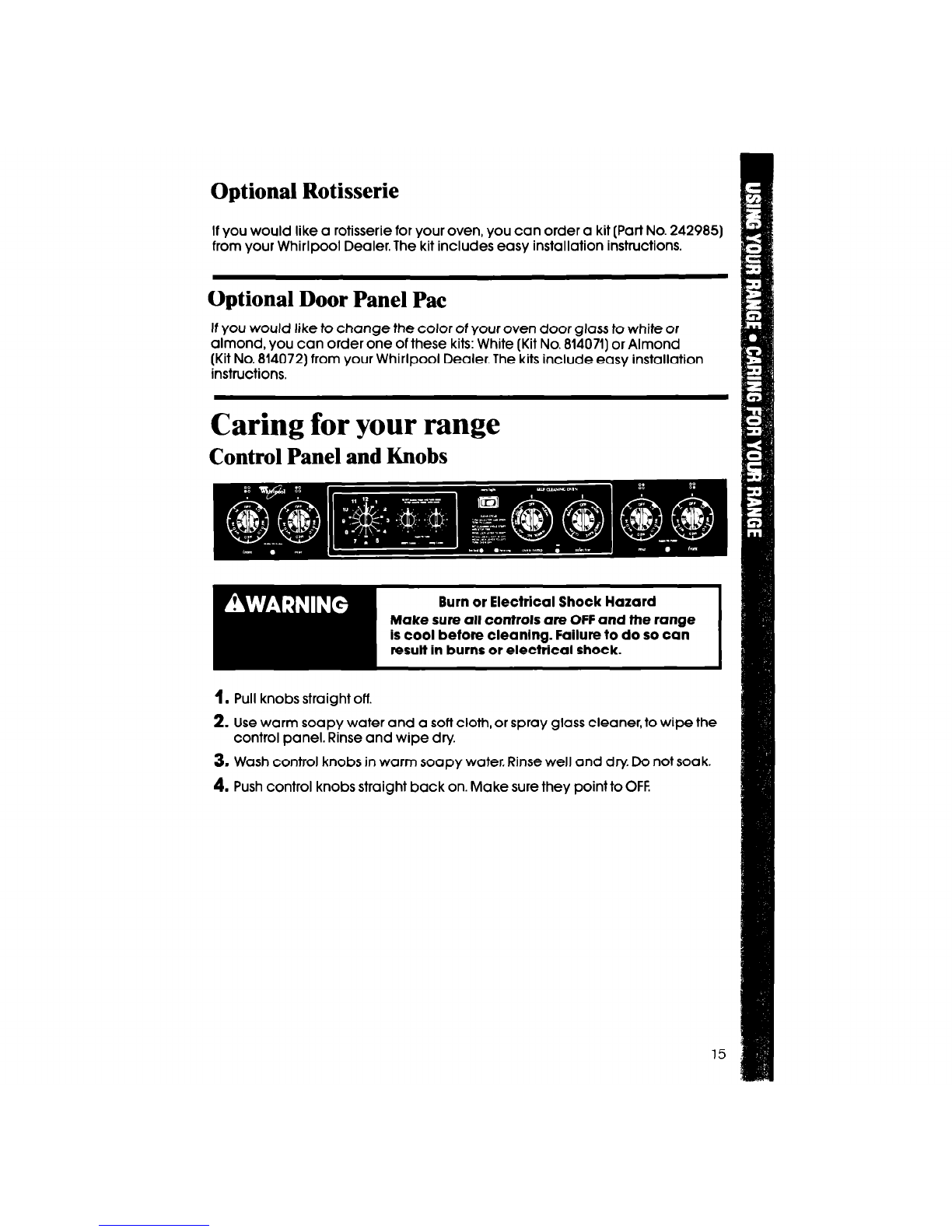

Optional Rotisserie . . . . . . . . 15
Optional Door Panel Pat . . . . 15
CARING FOR YOUR RANGE. . . . 15
Control Panel and Knobs . . . 15
Solid Element Surface Units . . 16

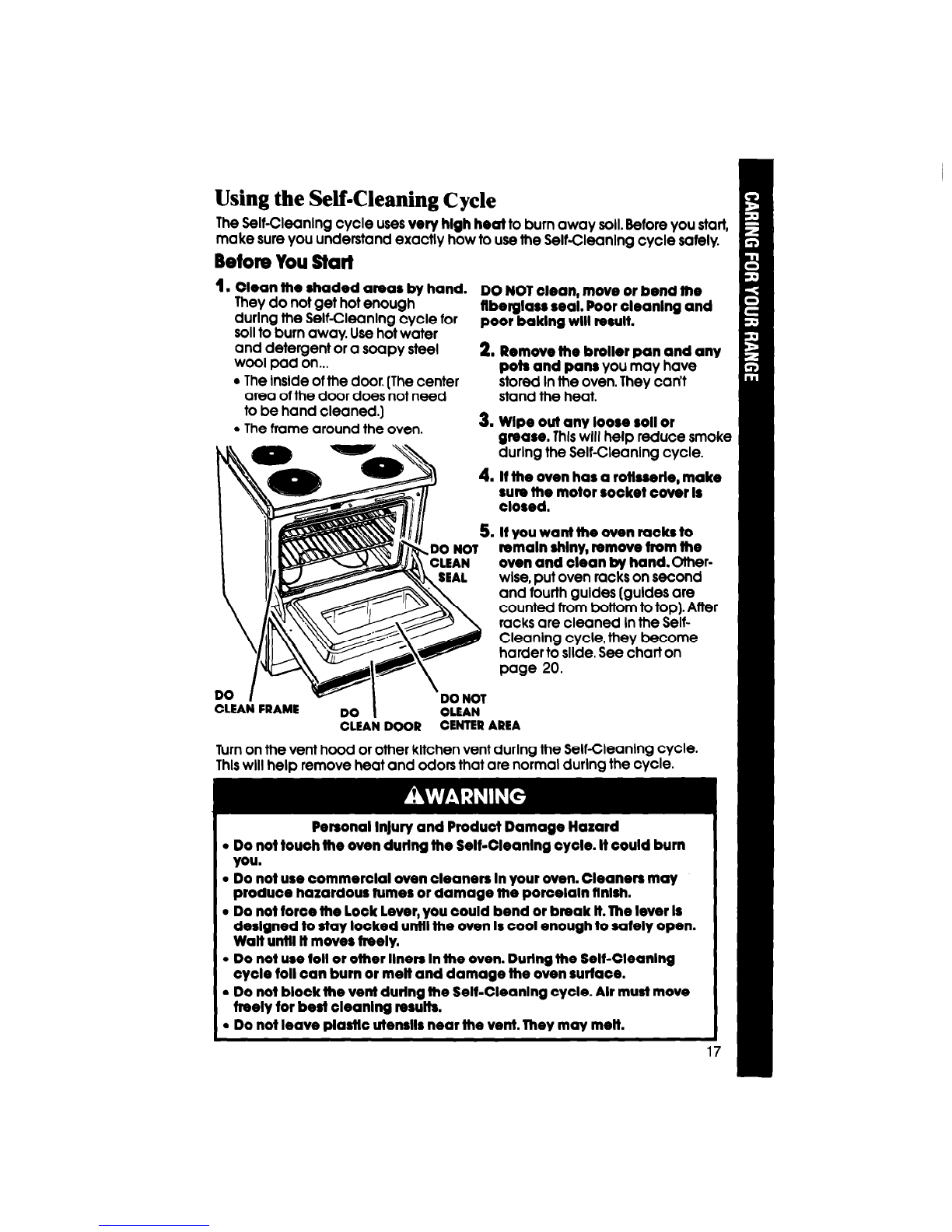

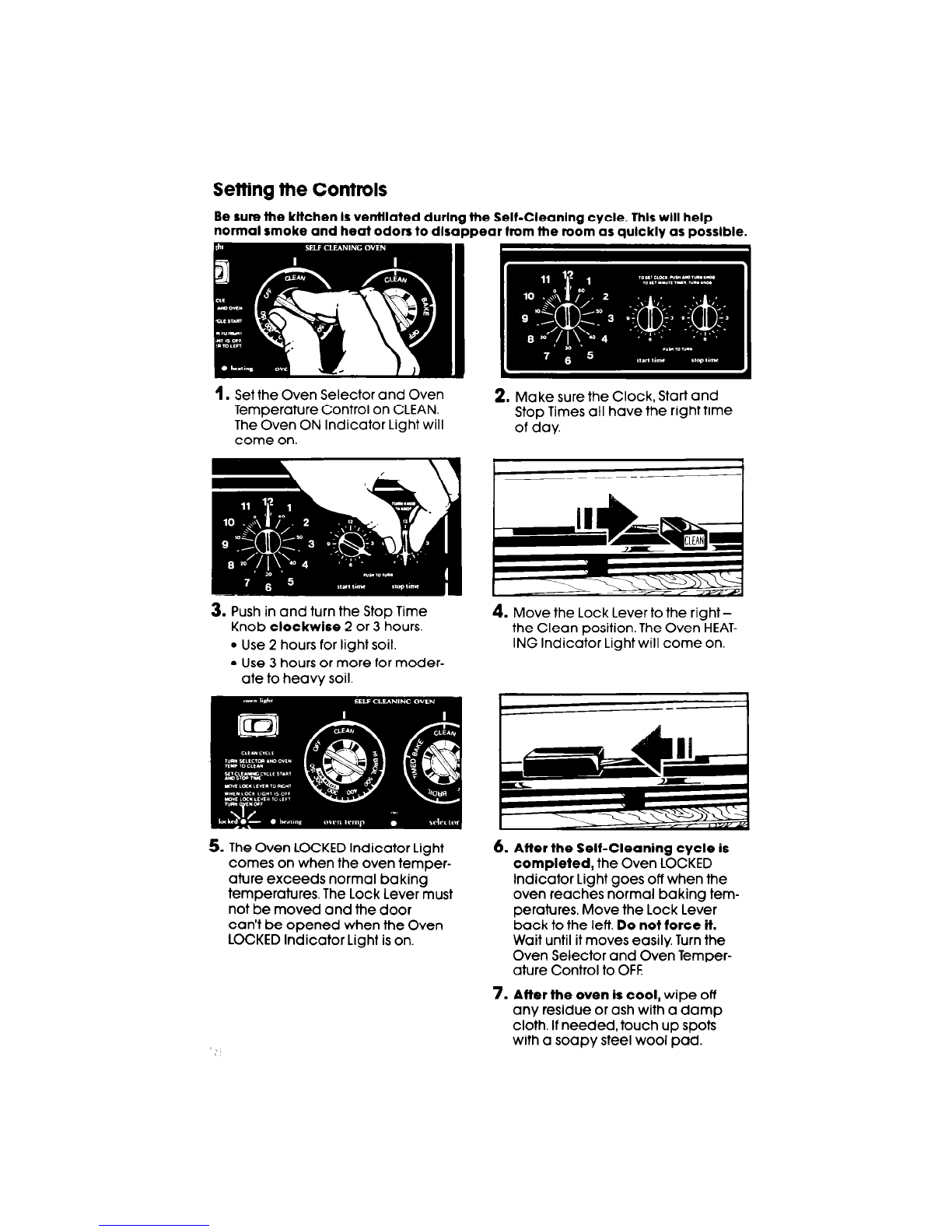

Using the Self-Cleaning
Cycle . . . . . . . . . . . . . . . . . . . . 17
Cleaning Chart . . . . . . . . . . . . . 20
The Oven Light . . . . . . . . . . . . 21
IF YOU NEEDSERVICE
OR ASSISTANCE.. . . . . . . . . . . 22
WHIRLPOOL RANGE
WARRANTY . . . . . . . . . . . . . . . . 24
01989 Whirlpool Corporation
Before you use your range
You are responsible for:
l Reading and following ail safety precautions in this Use and Care Guide and
the Cooking Guide.
l installing and leveling the range on a floor strong enough to hold itsweight,
and where it is protected from the elements. (See the installation instructions.)
l Making sure the range is not used by anyone unable to operate it properly.
l Properly maintaining the range.
l Using the range only for jobs expected of a home range.
Remove the Consumer Buy Guide label. it will be easier to remove before the
range is used. To remove any remaining glue:
l Rub briskly with thumb to make a bail, then remove.
or
l Soak area with liquid hand dishwashing detergent before removing glue as
described above.
Do not use rubbing alcohol or flammable or toxic solvents, such as acetone,
gasoline, carbon tetrachioride, etc. These can damage the finish.

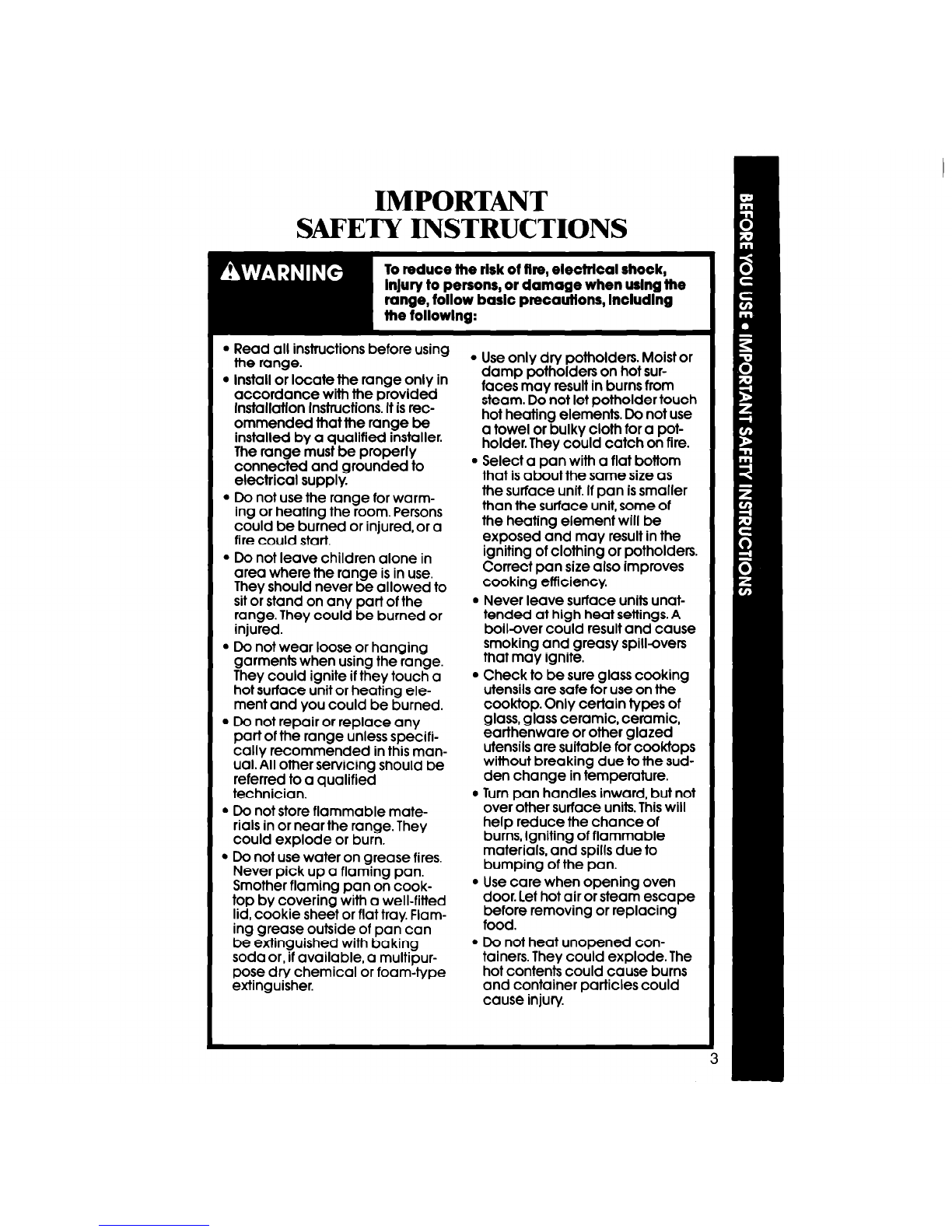

IMPORTANT
SAFETY INSTRUCTIONS
l Read ail instructions before using
the range.
l install or locate the range only in
accordance with the provided
installation Instructions. It is rec-
ommended that the range be
installed by a qualified installer.
The range must be properly
connected and grounded to
electrical supply.
l Do not use the range for warm-
ing or heating the room. Persons
could be burned or injured, or a
fire could start.
l Do not leave children alone in
area where the range is in use.
They should never be allowed to
sit or stand on any part of the
range. They could be burned or
injured.
l Do not wear loose or hanging
garments when using the range.
They could ignite if they touch a
hot surface unit or heating eie-
ment and you could be burned.
l Do not repair or replace any
part of the range unless specifi-
cally recommended in this man-
ual. Ail other servicing should be
referred to a qualified
technician.
l Do not store flammable mate-
rials in or near the range. They
could explode or burn.
l Do not use water on grease fires.
Never pick up a flaming pan.
Smother flaming pan on cook-
top by covering with a well-fitted
lid, cookie sheet or fiat tray. Fiam-
ing grease outside of pan can
be extinguished with baking
soda or, if available, a muitipur-
pose dry chemical or foam-type
extinguisher.
l Use only dry potholders. Moist or
damp potholders on hot sur-
faces may result in burns from
steam. Do not let potholder touch
hot heating elements. Do not use
a towel or bulky cloth for a pot-
holder. They could catch on fire.
l Select a pan with a fiat bottom
that is about the same size as
the surface unit. if pan issmaller
than the surface unit, some of
the heating element will be
exposed and may result in the
igniting of clothing or potholders.
Correct pan size also improves
cooking efficiency.
l Never leave surface units unat-
tended at high heat settings. A
boiiover could result and cause
smoking and greasy spiiiovers
that may ignite.
l Check to be sure glass cooking
utensils are safe for use on the
cooktop. Only certain types of
glass, glass ceramic, ceramic,
earthenware or other glazed
utensils are suitable for cooktops
without breaking due to the sud-
den change in temperature.
l Turn pan handles inward, but not
over other surface units. Thiswill
help reduce the chance of
burns, igniting of flammable
materials, and spills due to
bumping of the pan.
l Use care when opening oven
door. Let hot air or steam escape
before removing or replacing
food.
l Do not heat unopened con-
tainers. They could explode. The
hot contents could cause burns
and container particles could
cause injury.

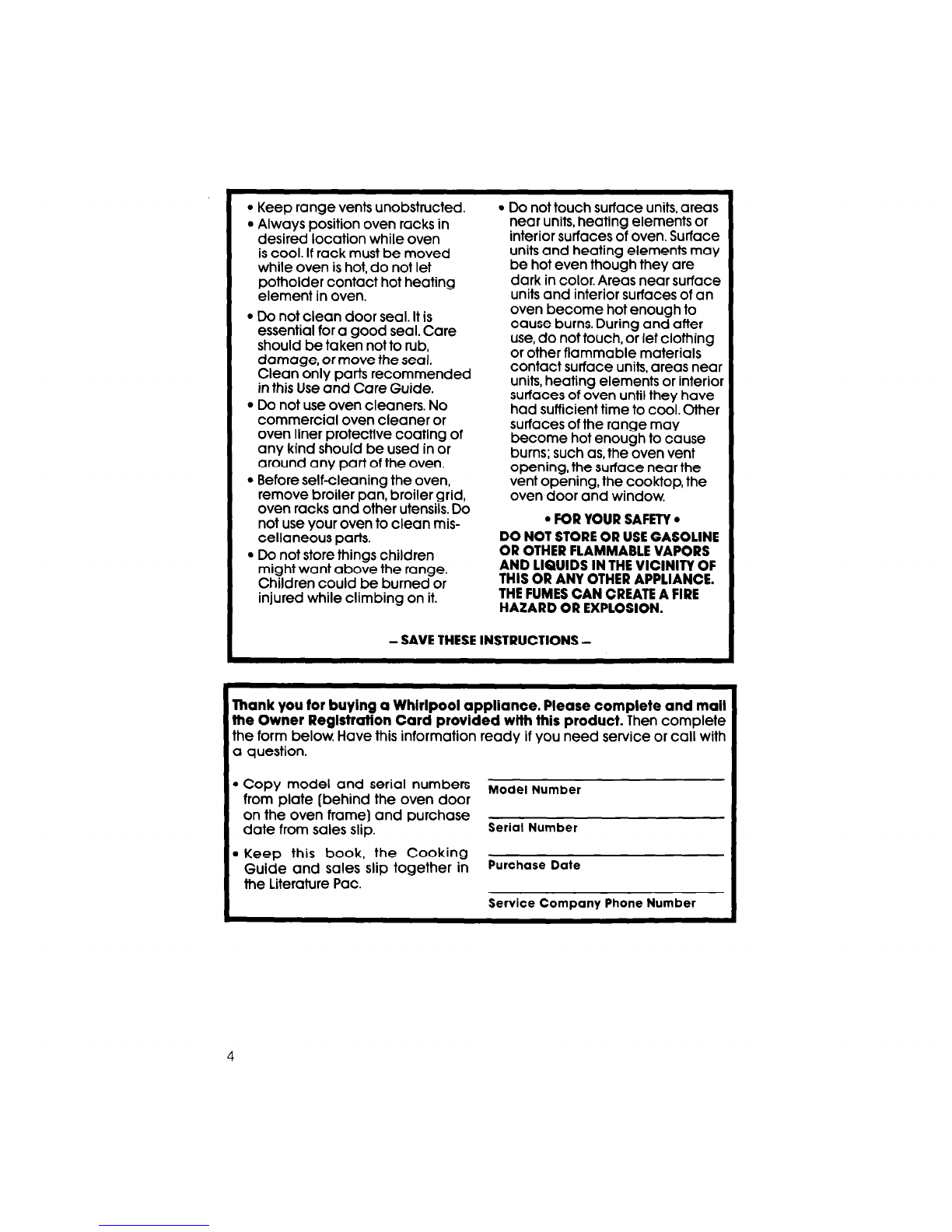

l Keep range vents unobstructed. 9 Do not touch surface units, areas
l Always position oven racks in near units, heating elements or
desired location while oven interior surfaces of oven. Surface
is cool. if rack must be moved units and heating elements may
while oven is hot, do not let be hot even though they are
potholder contact hot heating dark in color. Areas near surface
element in oven. units and interior surfaces of an
l Do not clean door seal. it is oven become hot enough to
essential for a good seal. Care cause burns. During and after
should be taken not to rub, use, do not touch, or let clothing
damage, or move the seal. or other flammable materials
Clean only parts recommended contact surface units, areas near
in this Use and Care Guide. units, heating elements or interior
surfaces of oven until they have
l Do not use oven cleaners. No had sufficient time to cool. Other
commercial oven cleaner or surfaces of the range may
oven liner protective coating of become hot enough to cause
any kind should be used in or burns; such as,the oven vent
around any part of the oven. opening, the surface near the
l Before self-cleaning the oven, vent opening, the cooktop, the
remove broiler pan, broiler grid, oven door and window.
oven racks and other utensils. Do
not use your oven to clean mis- l FORYOUR SAFETY.
ceiianeous parts. DO NOT STOREOR USEGASOLINE
l Do not store things children OR OTHERFLAMMABLE VAPORS
might want above the range. AND LIQUIDS IN THEVICINITY OF
Children could be burned or THIS OR ANY OTHERAPPLIANCE.
injured while climbing on it. THEFUMESCAN CREATEA FIRE
HAZARD OR EXPLOSION.
- SAVETHESEINSTRUCTIONS -
rhank you for buying a Whlrlpool appliance. Please complete and mall
the Owner Reglstratlon Card provided with this product. Then complete
the form below. Have this information ready if you need service or call with
3 question.
) Copy model and serial numbers
from plate [behind the oven door
Model Number
on the oven frame) and purchase
date from sales slip.
Serial Number
DKeep this book, the Cooking
Guide and sales slip together in Purchase Date
the Literature Pac.
Service Company Phone Number

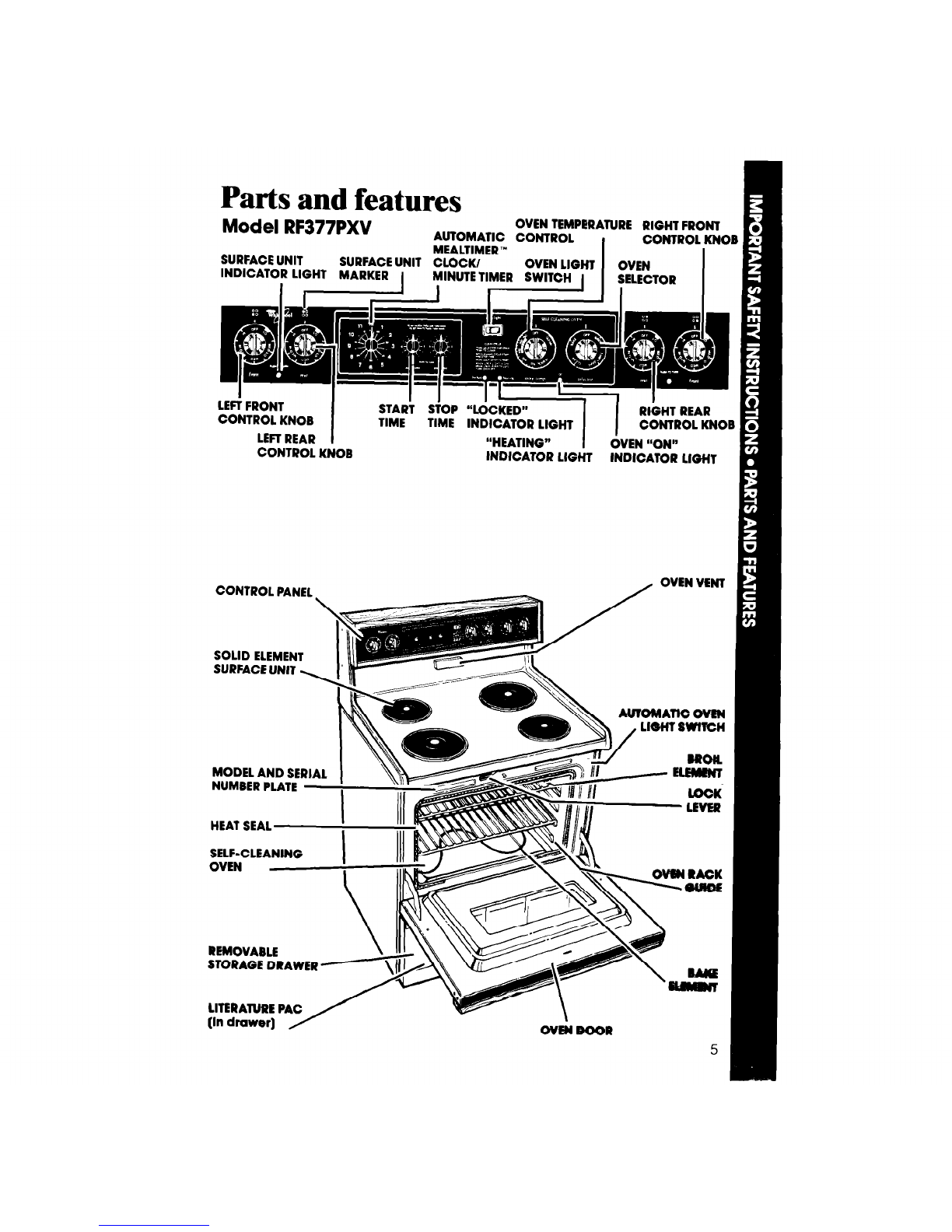

Parts and features
Model RF377PXV
AUTOMATIC OVEN TEMPERATURE
CONTROL I
RIGHT FRONT
LEFi FRONT STAR;
CONTROL KNOB I
StOP “&KED”
TIME TII.., ...-m--.“m hl”“,
““RI mv.
LEFT REAR
CONTROL KNOB “HEATING” I OVEN “ON” Ihln,~rT*a I ,e-
...“m”II”m Ll”“, I”mLIAI--- mma.*-
I”YI~~I”I Llum,
CONTROL PANEL
MEALTIMER’”
SOLID ELEMENT
SURFACE UNIT \
AUTOMAT’C OWN
LIGHT swi?CH
MODEL AND SERIAL
NUMBER PLATE
SELF-CLEANING
OVEN
REMOVABLE
STORAGE DRAWER

Using your range
Using the Surface Units
00 PUSH IN
00 AND TURN I
Control knobs must be pushed In
before tumlng them to a setting. They
can be set anywhere between HI
and OFF.
Surface Unit Markers
The solid dot in the surface unit
marker shows which surface unit is
turned on by that knob.
Surface Unit
Indicator lights
One of the surface unit indicator
lights on the control panel will glow
when a surface unit is on.
Burn or Flre Hazard
Be sure all control knobs are
turned to OFFand all lndlcator
lights are OFFwhen you are not
cooking. Someone could be
burned or a fire could starl If a
surface unit is accidentally
I left ON.
Until you get used to the settings, use the following as a guide. For best
results, start cooking at the high settings; then turn the control knob down to
continue cooking.
Use HI to start Use MED-HI Use MED for Use MED-LO Use LO to
foods cook- to hold a gravy, pud- to keep food keep food
ing; to bring rapid boil; to dings and cooking after warm until
liquids to a fry chicken or icing; to starting it ready to
boil. pancakes. cook large on a higher serve. Set the
amounts of setting. heat higher
vegetables. or lower
within the LO
band to keep
food at the
temperature
you want.

I
Solld elements stay hot for a long time. Do nc,t use the HI setting for long
periods of time or leave pans on hot elements when cooking Is done.
Burned food and damage to the cookware could result. I

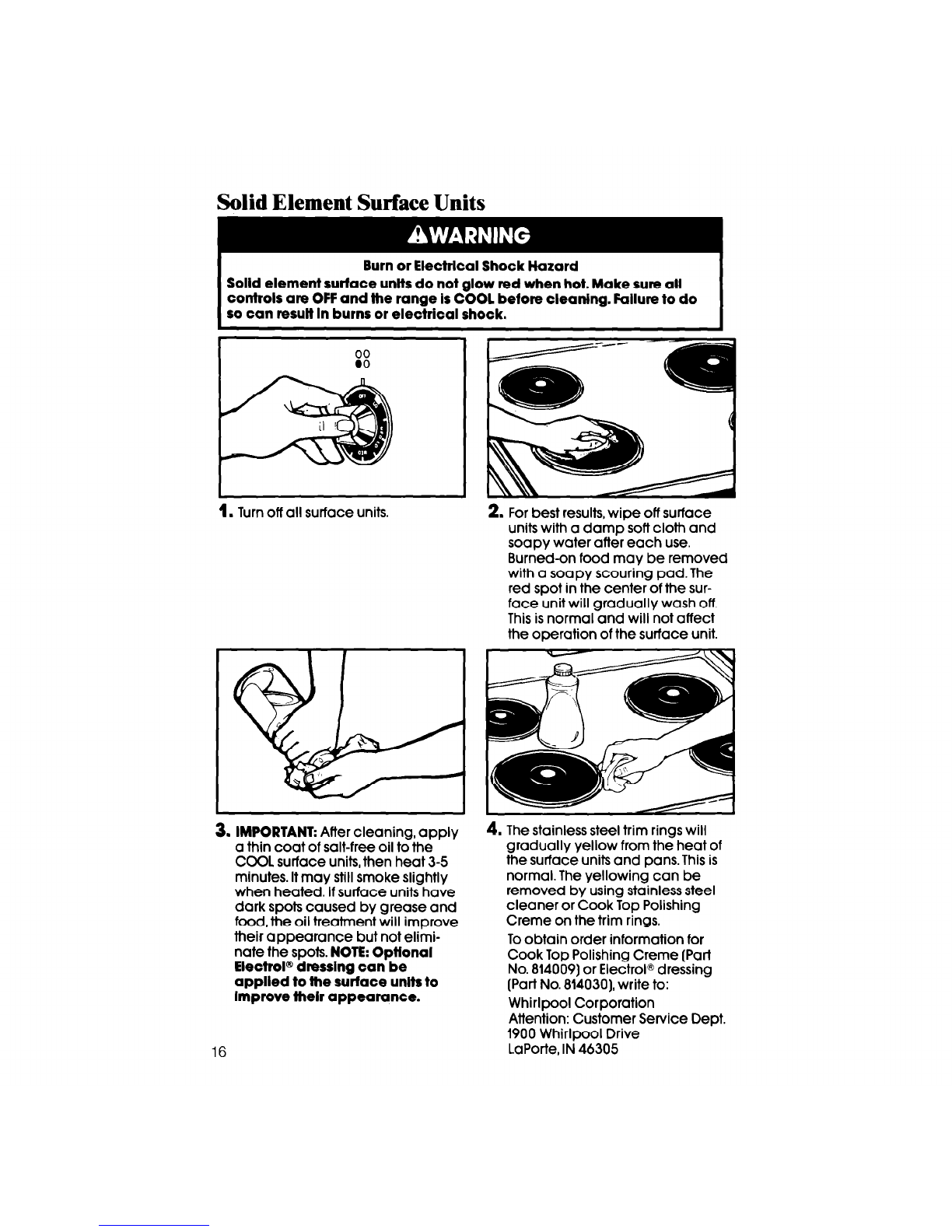

Solid element surface units
Before placing a pan on solid element surface units for the firsttime, heat on HI
setting for five minutes. The surface units will give off smoke as the protective
coating, applied at the factory, finishes bonding to the surface.
Solid element surface units are made of heavy cast-iron to provide even
cooking. Each surface unit has a built-in protective limiter as a safety feature.
The limiter senses uneven cooking temperatures and automatically reduces
the heat level. The limiter will sense uneven heat when a pan boils dry or when
a pan is removed and the surface unit is left on. The heat level may also be
reduced automatically if the bottom of the pan is not flat or if the pan istoo
large or too small for the element. Thiswill result in longer cooking times.
Solid elements hold heat longer than conventional surface units. For best
cooking results, use a high setting for only a short period of time. Then use
a lower setting to complete the cooking. You may want to turn the solid
element surface unit OFFa few minutes before you finish cooking.
Cookware
Pans should be the same size or larger than the surface unit to prevent boil-
overs and hot handles.
Use only flat-bottomed utensils. Flat bottoms allow maximum contact between
the pans and surface units for fast, even cooking. Pans with uneven bottoms or
with raised patterns on the bottoms are not suitable. Do not use trivets, woks
wlth skirts, or canners wlth concave or ridged bottoms.
Tocheck your cookware for flatness, place a straight-edge across the bottom
of each piece. Move the straight-edge around. If light shows anywhere
between the pan and the straight-edge, the pan is not flat. Do not use it.
See the Cooking Guide for additional cookware information.

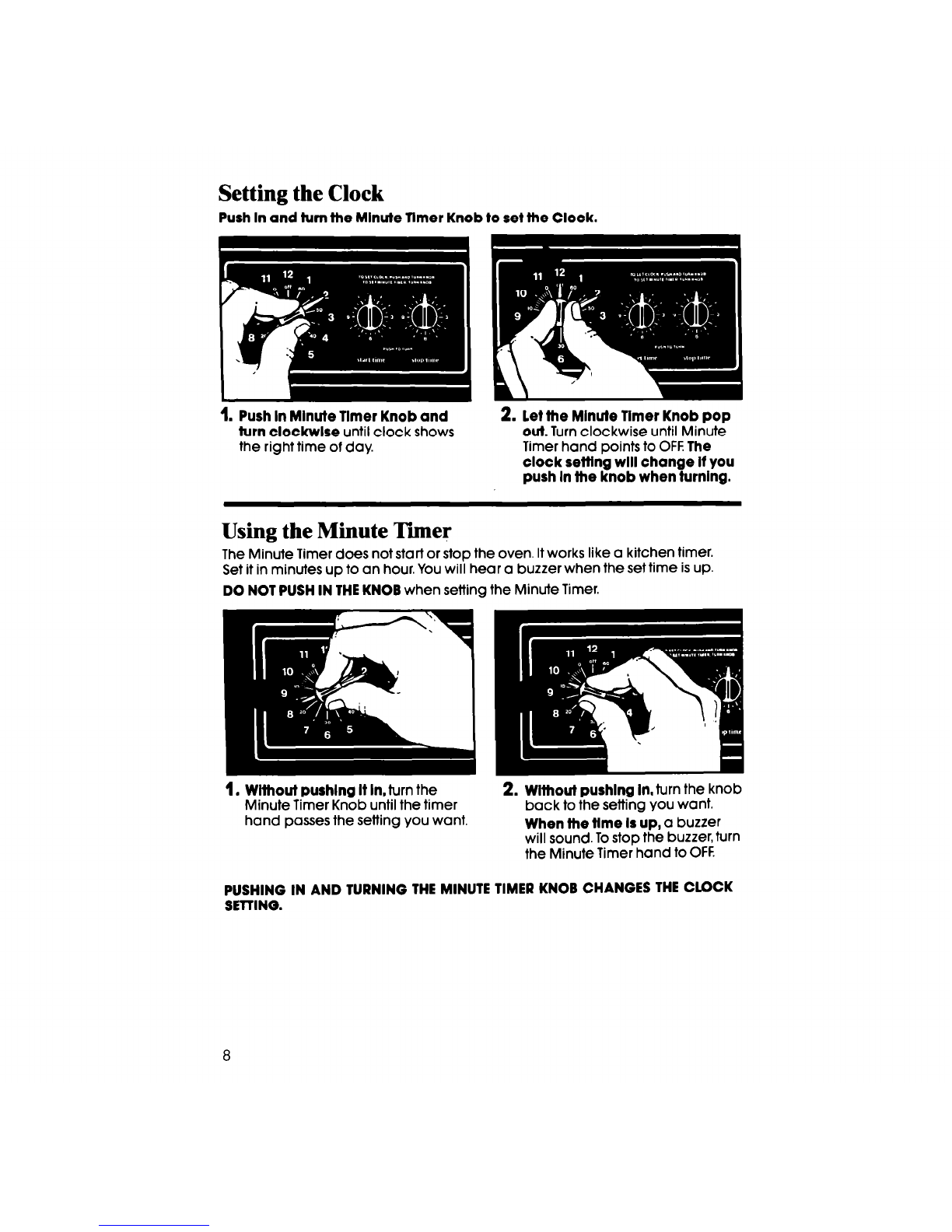

Setting the Clock
Push In and turn the Mlnute Timer Knob to set the Clock.
1. Push In Mlnute Tlmer Knob and
turn clockwlse until clock shows
the right time of day.
2. let the Minute Timer Knob pop
out. Turn clockwise until Minute
Timer hand points to OFF.The
clock sefflng will change If you
push In the knob when turning.
Using the Minute Timer
The Minute Timer does not start or stop the oven. Itworks like a kitchen timer.
Set it in minutes up to an hour. You will hear a buzzer when the set time is up.
DO NOT PUSH IN THEKNOB when setting the Minute Timer.
1. Without pushlng It In, turn the
Minute Timer Knob until the timer
hand passes the setting you want.
2. Without pushlng In, turn the knob
back to the setting you want.
When the tlme Is up, a buzzer
will sound. Tostop the buzzer, turn
the Minute Timer hand to OFF.
PUSHING IN AND TURNING THE MINUTE TIMER KNOB CHANGES THECLOCK
SETTING.
8

Using the Oven Controls
Baking
1. Position the rack(s) properly
before turning on the oven. To
change rack position, lift rack at
front and pull out.
I
The rack(s) should be placed so the
top of the food will be centered in
the oven. Always leave at least 1Yzto
2 inches (4-5 cm) between the sides
I
of the pan and the oven waHs and
other pans. For more information,
see the Cookina Guide.
2. Setthe Oven Selector on BAKE.
The Oven ON Indicator Light will
come on.
3. Setthe Oven Temperature Control
to the baking temperature you
want. The Oven HEATINGIndicator
Light will come on. The oven is pre-
heated when the Oven HEATING
Indicator Light first goes off.
L I
B
4. Putfood in the oven. During bak-
ing, the elements will turn on and
off to keep the oven temperature
at the setting. The Oven HEATING
Indicator Light will turn on and off
with the elements.
The top element helps heat
during baklng, but does not
turn red.
5. When baking is done, turn b&h
the Oven Selector and Oven Tern-
perature Control to OFF.The Oven
HEATINGand ON Indicator Lights
will go OFF.

Adjusting the Oven Temperature Control
Does your oven seem hotter or colder than your old oven? The temperature of
your old oven may have shifted gradually without your noticing the change.
Your new oven is properly adjusted to provide accurate temperatures. But
when compared to your old oven, the new design may give you different
results.
If after using the oven for a period of time, you are not satisfied with the
temperature settings, they can be adjusted by following these steps:
LOCKING
1. Pull the Oven Temperature Control
Knob straight off.
NOTCHES TOOTH
I To lower the temperature, move
the tooth a notch closer to LO.
Each notch equals about 10°F
(5°C).
2. Loosen the locking screws inside
the control knob. Note the posl-
tion of the notches.
TOOTH NOTCHES
4. To raise the temperature, move
the tooth a notch closer to HI.Each
notch equals about 10°F(5°C).
Tighten the locking screws and
replace the control knob.
10

Broiling
I
t
I L Ill 1
1. Position the rack before turning
the oven on. See “Broil Chart” in
the Cooking Guide or a reliable
cookbook for recommended
rack positions.
2. Putthe broiler pan and food on
the rack.
3. Close the door to the Broil Stop
position (open about 4 inches,
10.2cm]. The door will stay open
by itself.
4. Setthe Oven Selector and Oven
Temperature Control to BROIL.The
Oven ON and HEATINGIndicator
Lights will come on.
5. When broiling is done, turn both
the Oven Selector and Oven
Temperature Control to OFF.The
Oven ON and HEATINGIndicator
Lights will go off.
Custom Broil
l If food is cooking too fast,turn the Oven Temperature Control counterclock-
wise until the Oven HEATINGIndicator Light goes off.
l If you want the food to broil slower from the start, set the Oven Temperature
Control between 150”and 325°F (65.5” and 162.7%). The lower the tempera-
ture, the slower the cooking.
The Oven Selector must be on BROIL for all broiling temperatures.
NOTE:me door must be partly open whenever the oven is set to BROIL.
leaving the door open allows the oven to malntaln proper temperatures.

Using The Automatic MEALTIMER’” Clock
The automatic MEALTIMER’”Clock isdesigned to turn the oven on and off at
times you set,even when you are not around.
Automatic baking is ideal for foods which do not require a preheated oven,
such as meats and casseroles. Do not use the automatic cycle for cakes,
cookies, etc...undercooking will result.
To delay start and stop automatically:
I. Position the oven rack(s) properly
and place the food in the oven.
3. Push in and turn the Start Time
Knob clockwise to the time you
want baking to start.
2. Make sure the clock is set to the
right time of day.
4. Push in and turn the Stop Time
Knob clockwise to the time you
want the oven to shut off.
5. Setthe Oven Selector on TIMED
BAKE.The Oven ON Indicator Light
will come on.
6. Setthe Oven Temperature Control
on the baking temperature you
want. The oven will now start and
stop automatically. The Oven
HEATINGIndicator Light will come
on.
7. After baking is done or to stop
the oven before preset time, turn
both the Oven Selector and the
Oven Temperature Control to OFF.
12

To start baking now and stop automatically:
1. Position rack(s) properly and place the food in the oven,
2. Make sure the clock is set to the right time of day.
3. Push in and turn the Stop Time Knob clockwise to the time you want the over
to shut off.
4. Set the Oven Selector on TIMEDBAKE.
5. Setthe Oven Temperature Control on the baking temperature you want.
6. Atter baking is done or to stop the oven before the preset time,
turn both the Oven Selector and the Oven Temperature Control to OFF
To avoid sickness and food waste when using the MEALTIMER’” control:
l Do not use foods that will spoil while waiting for cooking to start, such
as dishes with milk or eggs, cream soups, and cooked meats or fish.
Any food that has to wait for cooking to start should be very cold
or frozen before it is put in the oven. MOST UNFROZENFOODS SHOULD
NEVERSTAND MORE THAN TWO HOURS BEFORECOOKING STARTS.
l Do not use foods containing baking powder or yeast when using
delay start. They will not rise properly.
l Do not allow food to remain in oven for more than two hours after
end of cooking cycle.
The OvenVent
Hot air and moisture escape from the
oven through a vent on the back-
guard below the control panel. The
vent is needed for air circulation. Do
not block the vent. Poor baking
can result.
Burn Hazard
When the oven is ON, pans and
pan handles iefi near the oven
vent can become hot enough to
burn the user and to melt pias-
tics. Use potholders to move
pans. Never store plastics, paper
or other items that could melt or
burn near the oven vent, or any
of the surface units.

The Storage Drawer
The storage drawer is for storing pots and pans.
Use care when handling the drawer.
Removing the Storage Drawer
1. Pull drawer straight out to the
first stop. Liftfront and pull out to
the second stop. 2. Lift back slightly and slide drawer
all the way out.
Replacing the Storage Drawer
1. Fitends of drawer slide rails into
me drawer guides on both sides
of opening.
2. Lift drawer front and push in until
metal stops on drawer slide
rails clear white stops on drawer
guides. Lift drawer front again
to clear second stop and slide
drawer closed.
Use and Care Guide storage
Store this booklet, along with your
Cooking Guide and sales slip in the
Literature Pat, inside the storage
drawer.

Optional Rotisserie
If you would like a rotisserie for your oven, you can order a kit [Part No. 242985)
from your Whirlpool Dealer. The kit includes easy installation instructions.
Optional Door Panel Pat
If you would like to change the color of your oven door glass to white or
almond, you can order one of these kits: White (Kit No. 814071)or Almond
(Kit No. 814072) from your Whirlpool Dealer. The kits include easy installation
instructions.
Caring for your range
Control Panel and Knobs
iiectricai Shock Hazard
Make sure ail controls are OFFand the range
is cool before cleaning. Failure to do so can
result in burns or electrical shock.
1. Pull knobs straight off.
2. Usewarm soapy water and a soft cloth, or spray glass cleaner, to wipe the
control panel. Rinse and wipe dry.
3. Wash control knobs in warm soapy water, Rinse well and dry Do not soak.
4. Push control knobs straight back on. Make sure they point to OFF.

Solid Element Surface Units
Burn or Electrical Shock Hazard
Solid element surface units do not glow red when hot. Make sure aU
controls are OFFand the range is COOL before cleaning. Failure to do
so can msuit in burns or electrical shock.
1. Turn oft all surface units.
3. IMPORTANT: After cleaning, apply
a thin coat of salt-free oil to the
CCCL surface units, then heat 3-5
minutes. It may still smoke slightly
when heated. Ifsurface units have
dark spots caused by grease and
food,the oil treatment will improve
their appearance but not elimi-
nate the spots. NOTE:Optfonai
ElecttoP dressing can be
applied to the surface units to
improve their appearance.
16
2. For best results, wipe off surface
units with a damp soft cloth and
soapy water afler each use.
Burned-on food may be removed
with a soapy scouring pad. The
red spot in the center of the sur-
face unit will gradually wash off.
This is normal and will not affect
the operation of the surface unit.
4. The stainless steel trim rings will
gradually yellow from the heat of
the surface units and pans. This is
normal. The yellowing can be
removed by using stainless steel
cleaner or Cook Top Polishing
Creme on the trim rings.
Toobtain order information for
Cook Top Polishing Creme (Part
No. 814009) or Electrol@dressing
(Part No. 814030),write to:
Whirlpool Corporation
Attention: Customer Service Dept.
1900 Whirlpool Drive
LaPorte, IN 46305

Using the Self-Cleaning Cycle
The Self-Cleaning cycle uses very high heat to burn away soll. Before you start,
make sure you understand exactly how to use the Seif-Cleanlng cycle safely.
Befom You &art
1 - Clean the shaded areas by hand.
They do not get hot enough DO NOT Clean, move or bend the
durlng the Self-Cleaning cycle for flbergiass seal. Poor cleaning and
soil to burn away. Use hot water poor baking will result.
and detergent or a soapy steel
wool pad on... 2. Remove the broiler pan and any
pots and pans you may have
l The lnslde of the door. (The center stored In the oven. They can’t
area of the door does not need stand the heat.
to be hand cleaned.)
l The fmme around the oven.
3. Wipe out any loose soil or
grease. Thls will help reduce smoke
durlng the SelfCleanIng cycle.
if the oven has a rotisserle, make
sure the motor socket cover is
closed.
if you want the oven racks to
remain shiny, remove from the
oven and olean by hand. other-
wlse, put oven racks on second
and fourth guldes (guldes are
counted from bottom to top). After
racks are cleaned In the Self-
Cleanlng cycle, they become
harder to slide. See chart on
page 20.
CLEANDOOR CENTERAREA
Turn on the vent hood or other kitchen vent durlng the Self-Cleaning cycle.
Thls wlli help remove heat and odors that are normal durlng the cycle.
Personal InJury and Product Damage Hazard
l Do not touch the oven during the Self-Cieanlng cycle. It could burn
you.
l Do not use commercial oven cleaners in your oven. Cleaners may
produce hazardous fumes or damage the porcelain flnish.
l Do not force the Lock lever, you could bend or break it. The lever is
designed to stay locked until the oven is cool enough to safely open.
Walt until it moves freely.
l Do not use foil or other liners in the oven. During the Self-Cleaning
cycle foil can burn or meit and damage the oven surface.
l Do not block the vent during the Self-Cleaning cycle. Air must move
freely for best cleaning resuits.
l Do not leave piastto utensils near the vent. They may meft.

Setting the Controls
Be sure the kitchen Is venttlated durlng the Self-Cleaning cycle. Thls will help
normal smoke and heat odors to dlsappear from the room as quickly as possible.
1. Setthe Oven Selector and Oven
Temperature Control on CLEAN.
The Oven ON Indicator Light will
come on.
2. Make sure the Clock, Start and
Stop Times all have the right time
of day.
3. Push in and turn the Stop Time
Knob clockwise 2 or 3 hours.
l Use 2 hours for light soil.
l Use 3 hours or more for moder-
ate to heavy soil.
5. The Oven LOCKEDIndicator Light
comes on when the oven temper-
ature exceeds normal baking
temperatures. The Lock Lever must
not be moved and the door
can’t be opened when the Oven
LOCKEDIndicator Light is on.
4. Move the Lock Lever to the right -
the Clean position. The Oven HEAT-
ING Indicator Light will come on.
t I
6. After the Self-Cleaning cycle is
completed, the Oven LOCKED
tndicator Light goes off when the
oven reaches normal baking tem-
peratures. Move the Lock Lever
back to the left. Do not force if.
Wait until it moves easily. Turn the
Oven Selector and Oven Temper-
ature Control to OFF.
7. After the oven is cool, wipe off
any residue or ash with a damp
cloth. If needed, touch up spots
with a soapy steel wool pad.

Special Tips
l Keep the kitchen well ventilated during the Self-Cleaning cycle to help
get rid of normal heat, odors and smoke.
l Clean the oven before it gets heavily soiled. Cleaning a very soiled oven
takes longer and results in more smoke than usual.
l Ifthe Self-Cleaning cycle doesn’t get the oven as clean as you expected,
the cycle may not have been set long enough or you may not have pre-
pared the oven properly. Set the Self-Cleaning cycle longer the next time
and hand clean areas noted on page17.
To stop the Sell-Cleanlng cycle
at anytime:
1. Push in and turn the Stop Time
Knob clockwlse until it points to
the righttime of day.
2. Turn the Oven Selector and Oven
Temperature Control to OFF.When
the Oven LOCKEDlndlcator Llght
goes off, move the Lock Lever
back fo the left. DO NOT FORCEIT.
Wait until it moves easily.
How It Works
During the Self-Cleaning cycle, the oven gets much hotter than it does for
baking or broiling...approximately 875°F (468”C).This heat breaks up grease
and soil and burns it off.
This graph shows approximate temperatures and times during a Self-
Cleaning cycle for 3 hours.
SELF-CLEANING CYCLE -THREE HOUR SEITING
[Approximate Temperatures and limes]
1OOO'F 535%
427%
6Oo'F 316%
START K hr. t hr. t Vz hrs. 2 hrs. 2V1 hrs. 3 hn. 3nlln. STOP
Notice that the heating stops when the j-hour setting is up, but that it takes longer
for the oven to cool down enough to unlock.
19

Cleaning Chart
PART WHAT TO USE HOW TO CLEAN
Exterlor
surfaces Warm soapy water and a soft cloth.
Plastic scrubbing pad
for stubborn spots.
l Wipe off regularly when oven is
cool.
l Do not allow food containing
acids (such as vinegar, tomato,
lemon juice or milk) to remain
on surface. Acids will remove
the glossy flnlsh.
l Do not use abraslve or harsh
cleansers.
Surface units
(Solld
elements)
Warm soapy water on
a soft cloth.
Soapy scouring pad or
scouring powder.
l Make sure the cooktop and the
suriace unlts are cool.
l Wipe off the surface units after each
use.
l Atter each cleaning, heat surface
units until dry.
(Trim rlngs)
To darken surface units or to remove rust spots:
l Make sure surface units are cool.
Salt-free oil on a
l After each cleaning, apply thin coat
sofl cloth. of oil to surface units, then heat for
3-5 minutes. Slight smoking of oil will
occur.
Electrol” dressing
l Follow the directions on the
(Part No. 814030)’ dressing.
NOTE: Thls will Improve surface
unlt appearance, but not ellmlnate
dark spots.
Stainless steel cleaner
l Make sure surface units are cool.
or Cook Top Polishing
Creme. (Part No. 814009)*
l Follow directions provided with
cleaner or polishing creme.
NOTE: Yellowlng of trim rings Is normal from heat of the
surface units and pans.
Control knobs Warm soapy water and
a soft cloth.
l Wash, rinse and dry well.
l Do not soak.
Control panel Warm soapy water or
spray glass cleaner
and a soft cloth.
l Wash, rinse and dry well.
l Follow directions provided with
the cleaner.
Broiler pan Warm soapy water or a
and grid soapy steel wool pad.
l Clean atter each use.
l Wash, rinse and dry well.
l Do not clean In Self-Cleanlna cvcle.
Oven racks Self-Cleaning cycle. l Leave in oven during Self-Cleaning
cycle.
OR
Warm soapy water or
l Wash, rinse and dry. Use soapy steel
soapy steel wool pads. wool pads for stubborn areas.
NOTE: The oven racks will dlscdor and be harder to slide when
left In the Self-Cleaning cycle. tf you want them to stay shiny,
remove from the oven and clean bv hand.
*See page 46 for re-order Information.
20
