Whirlpool LE6605XP User manual

\
&&k!dL’ SERIES
AUTOMATIC
DRYERS
Electric Model
LE6605XP
and
Gas Model
LG6606XP
.:ix; / _ :T$&&&$ I && a.;,&Aki;~9.1Y.~~ 63,.1 I IliJL? .ar’P-F9 -
tave Ovens, Trash Compactors, Room AN Condltloners. Oehumldltiers, Aulomallc Washers, Clothes Dryers, Freezers, RefrlgeralOr-freeZei

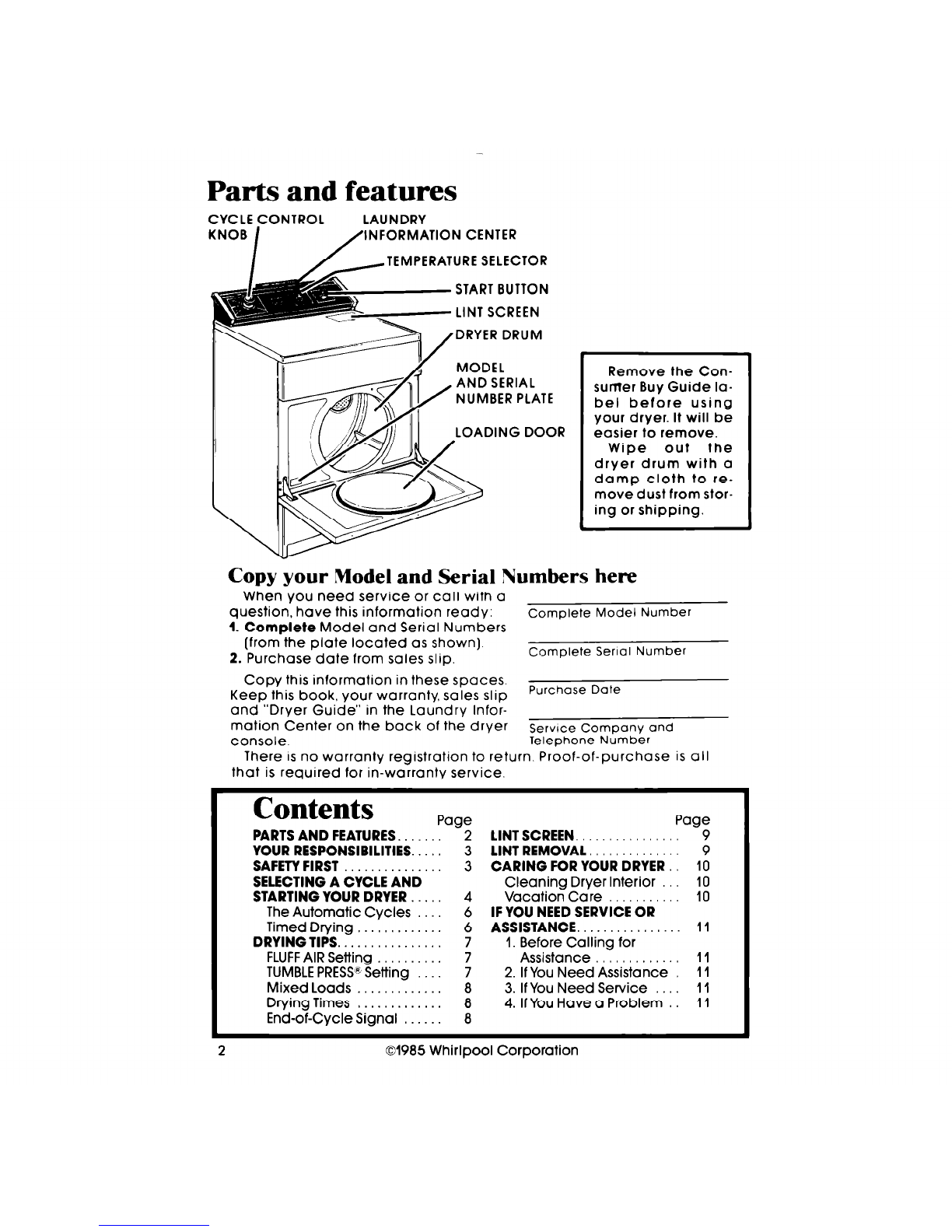

Parts and features
CYCLE CONTROL LAUNDRY
START BUTTON
LINT SCREEN
DRYER DRUM
NUMBER PLATE
LOADING DOOR
Remove the Con-
sumer Buy Guide IQ-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
Copy your Model and Serial Numbers here
When You need service or call with a
question, have this information ready:
Complete Model Number
1. Complete Model and Serial Numbers
(from-the plate located as shown)
2. Purchase date from sales slip.
Complete Serial Number
Copy this information in these spaces.
Keep this book, your warranty, sales slip Purchase Date
and “Dryer Guide” in the Laundry Infor-
mation Center on the back of the dryer
Serwce Company and
console. Telephone Number
There is no warranty registration to return. Proof-of-purchase is all
that is required for in-warranty service.
Contents
Page
PARTS AND FEATURES.. 2
YOUR RESPONSIBILITIES.. 3
SAFETY FIRST 3
SELECTING A CYCLE AND
STARTING YOUR DRYER 4
The Automatic Cycles 6
Timed Drying . 6
DRYING TIPS. . . . 7
FLUFFAIR Setting 7
TUMBLE PRESS” Setting 7
Mixed Loads 8
Drying Times , . . . . . . . . . . . 8
End-of-Cycle Signal 8
Page
LINT SCREEN. 9
LINT REMOVAL. 9
CARING FOR YOUR DRYER 10
Cleaning Dryer Interior 10
Vacation Care 10
IF YOU NEED SERVICE OR
ASSISTANCE. 11
1. Before Calling for
Assistance . . . 11
2. If You Need Assistance 11
3. If You Need Service 11
4. If You Have a Problem . . 11
2 01985 Whirlpool Corporation

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l is installed by a qualified installer
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled in
a well ventilated room’ on a floor
that can support the weight.
l is located in an area where the tem-
perature is above 45°F (7.2’C).
l is connected to the right kind of out-
let, electric supply and grounding.’
l is properly connected to fuel and
exhaust systems.*
l is used only for jobs normally ex-
pected of home clothes dryers
l is not run where there may be explo-
sive fumes.
l is not used by children or anyone
unable to operate it properly.
‘See the “Installation Instructions” for
complete information.
OPEN WINDOWS.
DON’T TOUCH ELECTRI- :
CAL SWITCHES.
EXTINGUISH ANY OPEN ;
FLAME. $
IMMEDIATELY CALL :
YOUR GAS SUPPLIER. i
: l FOR YOUR SAFETY l
!
DO NOT STORE OR USE
‘; GASOLINE OR OTHER :
; FLAMMABLE VAPORS AND!
: LIQUIDS IN THEVICINITY i
~OFTHlSORAbiYOTHER :
i APPLIANCE.

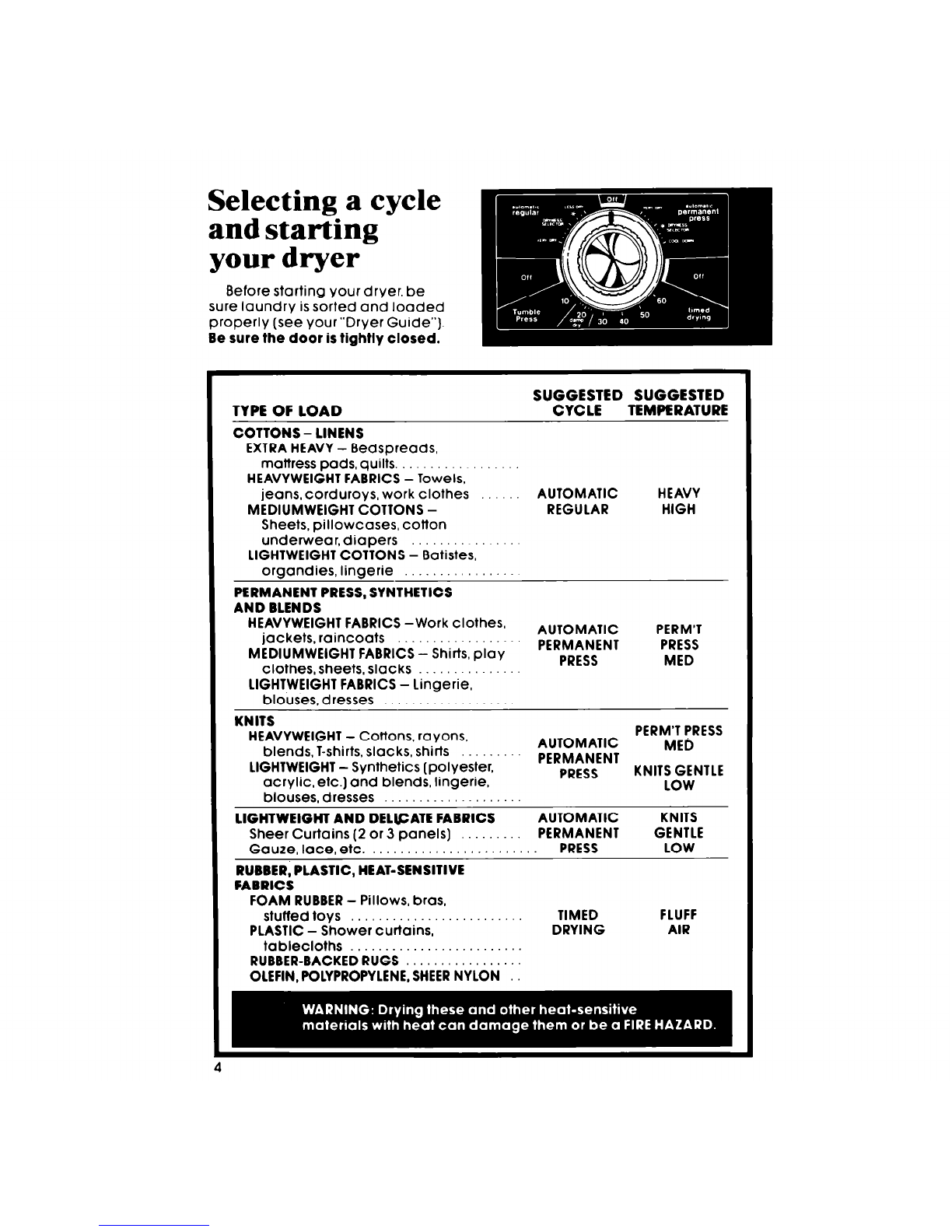

Selecting a cycle
and starting
your dryer
Before starting your dryer, be
sure laundry is sorted and loaded
properly (see your”Dryer Guide”).
Be sure the door is tightly closed.
SUGGESTED SUGGESTED
TYPE OF LOAD CYCLE TEMPERATURE
COTTONS - LINENS
EXTRA HEAVY - Bedspreads,
mattress padsquilts.
HEAVYWEIGHT FABRICS - Towels,
jeanscorduroys, work clothes AUTOMATIC HEAVY
MEDIUMWEIGHT COTTONS - REGULAR HIGH
Sheets, pillowcases, cotton
underwear, diapers
LIGHTWEIGHT COTTONS - Batistes,
organdies, lingerie
PERMANENT PRESS, SYNTHETICS
AND BLENDS
HEAVYWEIGHT FABRICS -Work clothes,
jackets, raincoats AUTOMATIC PERM’I
MEDIUMWEIGHT FABRICS - Shirts, play PERMANENT PRESS
clothessheets. slacks PRESS MED
LIGHTWEIGHT FABRICS - Lingerie,
blousesdresses y.
KNITS
HEAVYWEIGHT - Cottons, rayons, PERM’T PRESS
blends, T-shirtsslacks. shirts AUTOMATIC MEb
LIGHTWEIGHT - Synthetics (polyester, PERMANENT
PRESS KNITS GENTLE
acrylic. etc.) and blends, lingerie, LOW
blousesdresses
LIGHTWEIGHT AND DEL&ATE FABRICS AUTOMATIC
Sheer Curtains (2 or 3 panels] PERMANENT
Gauze,lace,etc. . ..___.._.__..._........ PRESS
KNITS
GENTLE
LOW
RUBBER, PLASTIC, HEAT-SENSITIVE
FABRICS
FOAM RUBBER - Pillows, bras,
stuffed toys
PLASTIC - Shower curtains,
tablecloths . . . . . . . . . . . . . . . . . . . . . . . .
RUBBER-BACKED RUGS
OLEFIN. POLYPROPYLENE, SHEERNYLON
TIMED FLUFF
DRYING AIR

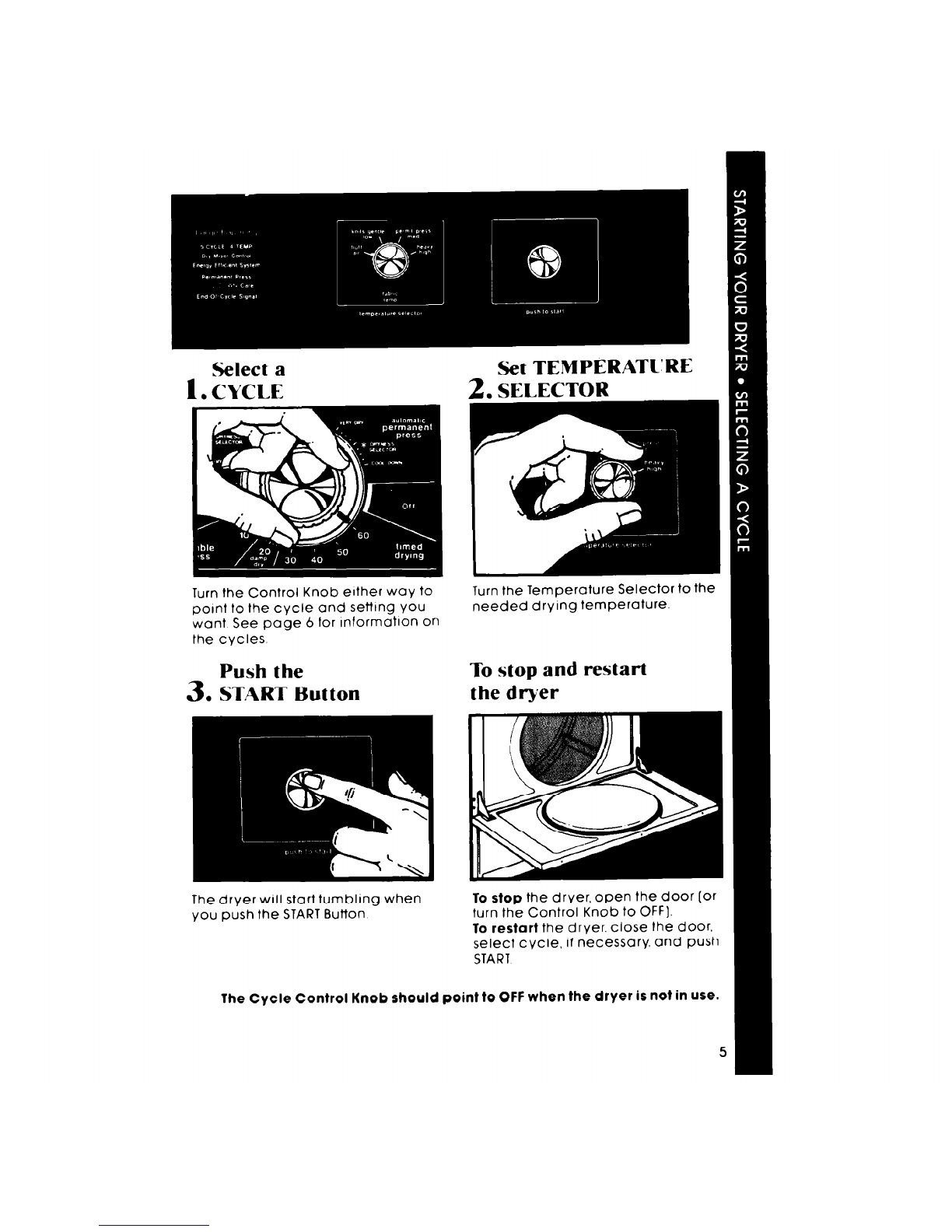

Set TEMPERATL’RE
Select a
1. CYCLE 2. SELECTOR
Turn the Control Knob either way to
point to the cycle and setttng you
want See page 6 for lnformatlon on
the cycles
Push the
3. START Button
The dryer WIII start tumbling when
you push the START Button
Turn the Temperature Selector to the
needed drying temperature.
To stop and restart
the dryer
To stop the dryer. open the door [or
turn the Control Knob to OFF].
To restart the dryer. close Ihe door.
select cycle. if necessary, and push
START
The Cycle Control Knob should point to OFF when the dryer is not in use.

Operating instructions
The automatic cycles
The automatic cycles allow you
to select the degree of dryness you
prefer for the clothes being dried.
The Control Knob moves and stops
several times until the load reaches
the dryness setting you selected. Then
the knob automatically moves to
OFF and tumbling stops.
weight cotton items. The load tum-
bles without heat during the last 5
minutes. This helps make the load
easier to handle.
Use
AUTOMATIC
PERMANENT
PRESSto dry
permanent
press, knits and other synthetic fab-
rics. The load tumbles without heat
during the last 10 minutes. This helps
keep wrinkles from setting in.
For the first few loads, set the Control
Knob to point to an* in either auto-
matic cycle. When the dryer stops,
feel the dried items.
l If items are drier than you like, use
a setting to the right of the * the next
time you dry a similar load.
l If items are not as dry as you like.
use a setting to the left of the *the
next time you dry a similar load.
Timed drying
Use the TIMED DRYING Cycle for
any load you want to dry by time. For
example: small loads, large bulky
items, items to be fluffed or dusted
with the FLUFFAIR heat setting.
. Turn the Control Knob to the number
of minutes you want - from 10 to 60.
l The last 5 minutes of this cycle are
without heat - a cool-down time. This
helps make the load easier to
handle.
6

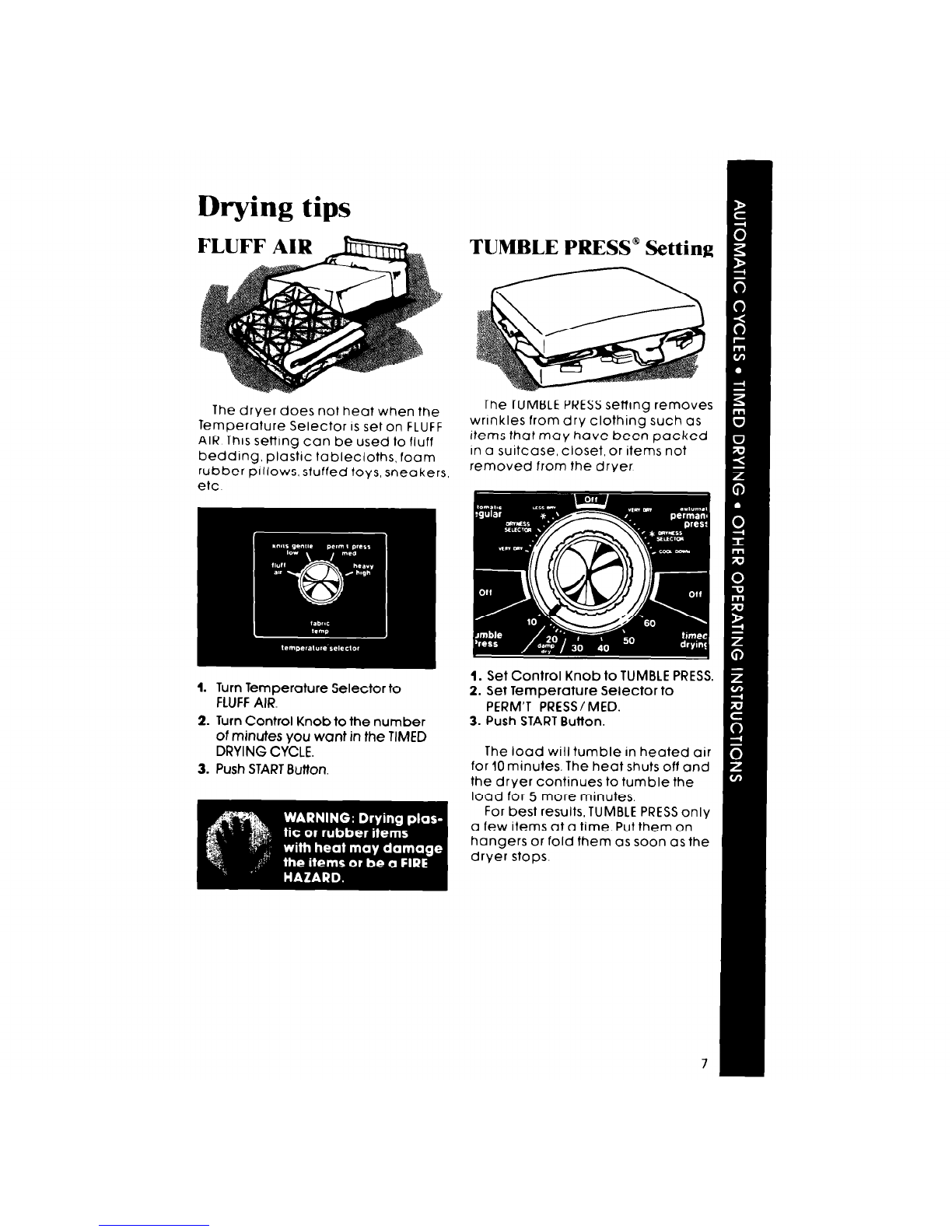

Drying tips
The dryer does not heat when the
Temperature Selector IS set on FLUFF
AIR This setting can be used to fluff
beddlng. plastic tablecloths, foam
rubber pillows. stuffed toys, sneakers,
etc
1. Turn Temperature Selector to
FLUFFAIR.
2. Turn Control Knob to the number
of minutes you want in the TIMED
DRYING CYCLE.
3. Push STARTButton.
TUMBLEPRESS@ Setting
The TUMBLE PRESS setting removes
wrinkles from dry clothing such as
items that may have been packed
in a suitcase, closet, or items not
removed from the dryer
1. Set Control Knob to TUMBLE PRESS.
2. Set Temperature Selector to
PERM’T PRESS/ MED.
3. Push START Button.
The load will tumble in heated air
for IO minutes. The heat shuts off ond
the dryer continues to tumble the
load for 5 more minutes.
For best results, TUMBLE PRESSonly
a few items at a time. Put them on
hangers or fold them as soon as the
dryer stops.

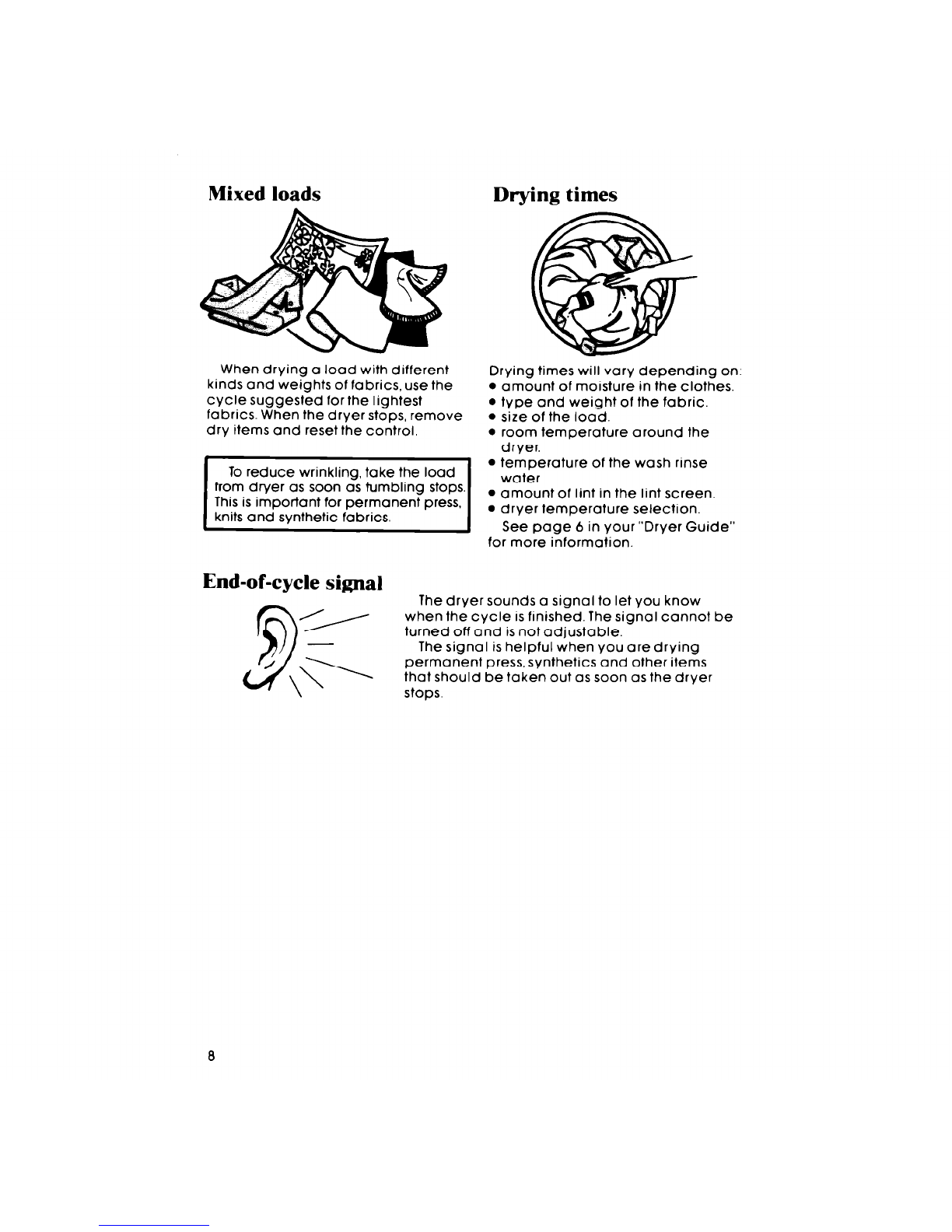

Mixed loads Drying times
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest
fabrics. When the dryer stops, remove
dry items and reset the control.
To reduce wrinkling, take the load
from dryer as soon as tumbling stops
This is important for permanent press,
knits and synthetic fabrics.
Drying times will vary depending on:
0 amount of morsture in the clothes.
0 type and weight of the fabric.
l size of the load.
0 room temperature around the
dryer.
l temperature of the wash rinse
water.
0 amount of lint in the lint screen.
0 dryer temperature selection.
See page 6 in your “Dryer Guide”
for more information.
End-of-cycle signal The dryer sounds a signal to let you know
when the cycle ISfrnished. The signal cannot be
turned off and is not adjustable.
The signal is helpful when you are drying
permanent press, synthetics and other items
that should be taken out as soon as the dryer
stops.
8

Lint screen
Clean the lint screen before each load. A screen blocked by lint can
nd may be a FIRE HAZARD.
Open the lid and pull the lint screen
straight out. ROLL the lint off the screen
with your fingers.
DO NOT rinse or wash the screen.
Push the screen firmly back into
place.
Lint removal
Lint can gather inside the dryer and create a fire hazard.Thislint
should be removed every 2 to 3 years, or more otten, depending on
dryer usage.
Heat Element
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
WARNING:
l Avold electrical shock
hazard - unplug power
supply cord or turn off
electrical p&tier.
l Avold injury or damage -do not
put hands inside cabinet.
l Make sure dryer is cool.
J.
4.
Remove back panel (electric)
or lower access panel (gas].
Avoid damaging wires,
thermostats, funnel or igniter.
Remove lint from shaded area -
see art-with a soft brush or
vacuum cleaner.
Replace panel; reconnect and
re-level dryer.
9

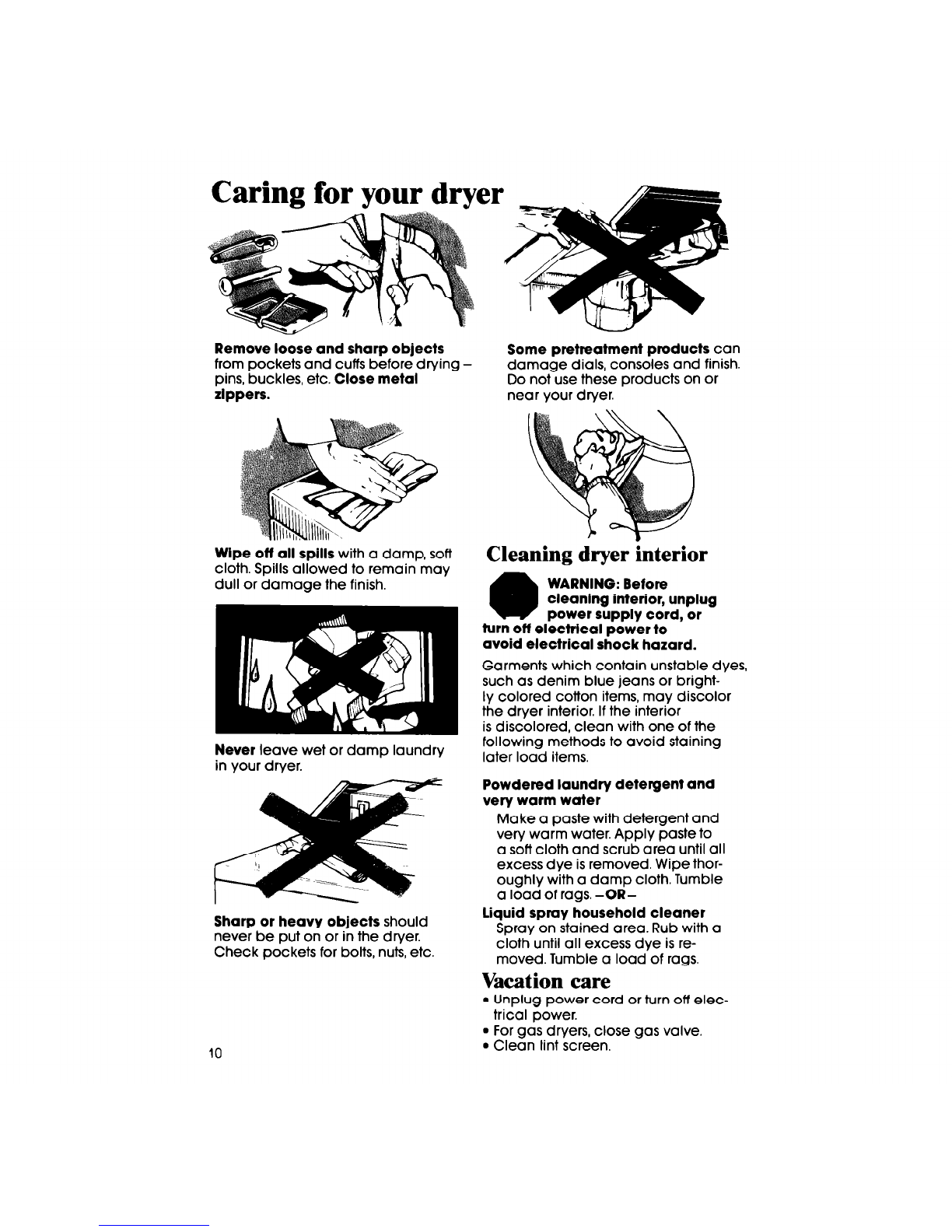

Remove loose and sharp objects Some pretreatment products can
from DOCketS and cuffs before dryina - damaae dials, consoles and finish.
pins, buckles, etc. Close metal -
zippers.
Wipe off all spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc.
10
Do not%se these products on or
near your dryer.
Cleaning dryer interior
0
WARNING: Before
cleaning interior, unplug
power supply cord, or
turn off electrical power to
avoid electrical shock hazard.
Garments which contain unstable dyes,
such as denim blue jeans or bright-
ly colored cotton items, may discolor
the dryer interior. If the interior
is discolored, clean with one of the
following methods to avoid staining
later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to
a soft cloth and scrub area until all
excess dye is removed. Wipe thor-
oughly with a damp cloth. Tumble
a load of rags. -OR-
liquid spray household cleaner
Spray on stained area. Rub with a
cloth until all excess dye is re-
moved. Tumble a load of rags.
Vacation care
l Unplug power cord or turn off elec-
trical power.
l For gas dryers, close gas valve.
l Clean lint screen,

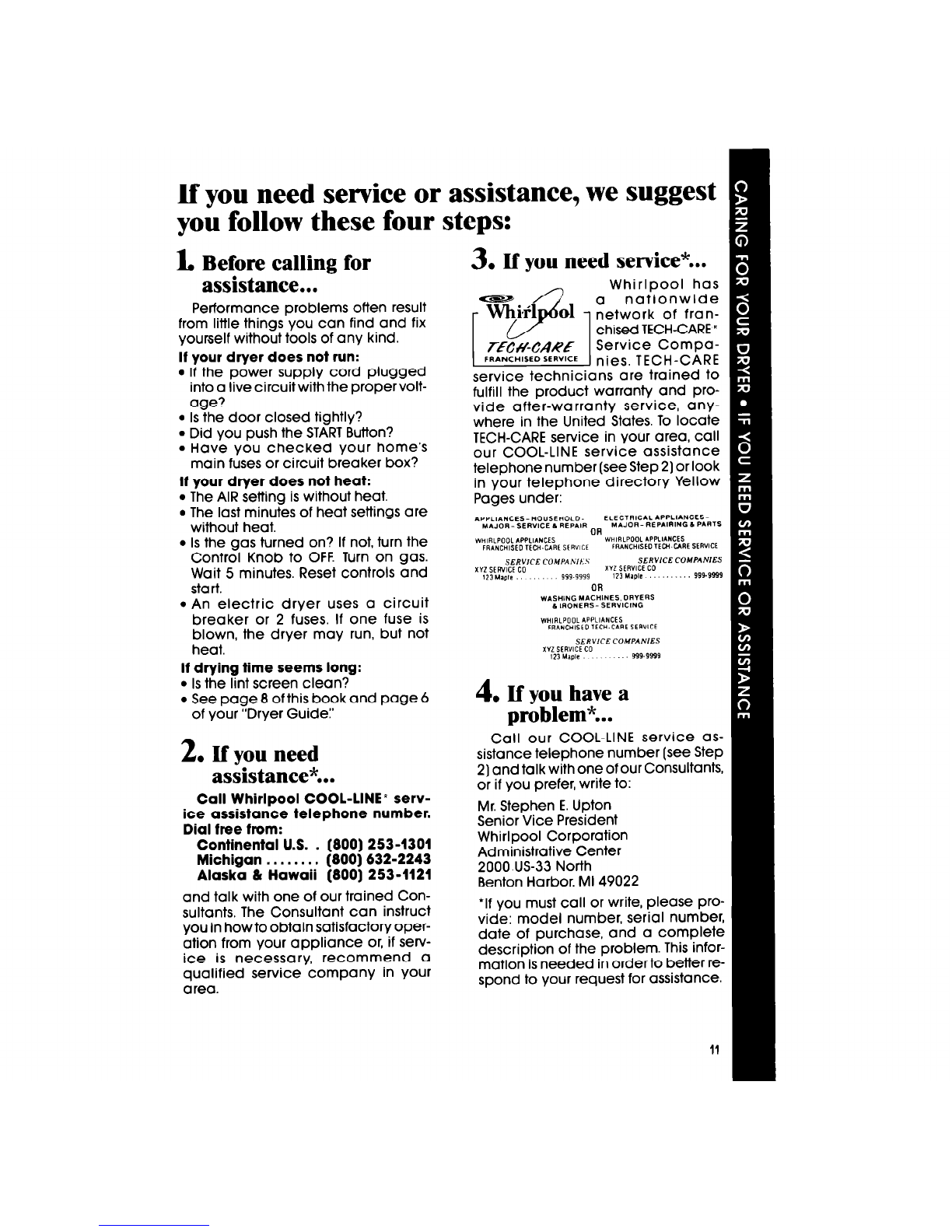

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your dryer does not run:
l If the power supply cord plugged
into a live circuit with the propervolt-
age?
l Is the door closed tightly?
l Did you push the STARTButton?
l Have you checked your home’s
main fuses or circuit breaker box?
If your dryer does not heat:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
l Is the gas turned on? If not, turn the
Control Knob to OFF. Turn on gas.
Wait 5 minutes. Reset controls and
start.
l An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
If drying time seems long:
l Is the lint screen clean?
l See page 8 of this book and page 6
of your “Dryer Guide:’
2. If you need
a&stance*...
Call Whirlpool COOL-LINER serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . (BOO) 253-1301
Michigan . . . . . . . . (BOO) 632-2243
Alaska & Hawaii (BOO] 253-1121
and talk with one of our trained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
3. If you need service*...
Whirlpool has
a nationwide
network of fran-
chised TECH-CARE ’
Service Compa-
nies, TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CARE service in your area, call
our COOL-LINE service assistance
telephone number (see Step 2) or look
in your telephone directory Yellow
Pages under:
4. If you have a
problem*...
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2OOO.US33 North
Benton Harbor, Ml 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better re-
spond to your request for assistance.

Home .P Appliances
Making your world a ltttle easier.
Part No. 696746
01985 Whirlpool Corporatien Printed in U.S.A.
,. 1. , -, .,.*. A, ,,b y.:; L,;* w. .y <,.’ L I *. ,+rm..* * ;L-.:. 1 .
matlc Washers, Clothes Dryers, Freezers, Refrigerator-Freezers, Ice Makers, DIshwashers. Built-In Ovens and Surface Un~ls. Ranges. MN
