Whirlpool LE6660XP User manual

&tdU!L’ SERIES
AUTOMATIC
DRYERS
Electric Model
LE6660XP
and
Gas Model
LG6661XP
I -8 a+&-Lf%%-.L- .I&~-- WY. ._ s _. * - ..: ,_ r .>d& ..;. 7 ~:.‘!.a&%.-::
owave Ovens. Trash Compactors, Room Air Conditioners, Dehumidifiers. Automatic Washers, Clothes OrYerS. FreeZerS. Refrigerator-Freeze

Parts and features
CYCLE CONTROL KNOB
\ TEMPERATURE SELECTOR
-- LAUNDRY
INFORMATION CENTER
\
\.
‘\
-Lv START BUTTON
-/, LINT SCREEN
Remove the Con-
sumer Buy Guide la-
bel before using
your dryer. It will be
easier to remove.
Wipe out the
dryer drum with a
damp cloth to re-
move dust from stor-
ing or shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Complete Model Number
1. Complete Model and Serial Numbers
(from the plate located as shown].
2. Purchase date from sales slip.
Complete Sertal Number
Copy this information in these spaces.
Keep this book, your warranty, sales slip
Purchase Date
and “Dryer Guide” in the laundry Infor-
mation Center on the back of the dryer
Serwce Company and
console.
Telephone Number
There is no warranty registration to return. Proof-of-purchase IS all
that is required for in-warranty service.
Contents
Page
PARTS AND FEATURES.. . . . . . 2
YOUR RESPONSIBILITIES . 3
SAFETY FIRST . . . 3
SELECTING A CYCLE AND
STARTING YOUR DRYER. 4
OPERATING INSTRUCTIONS. 6
Automatic Cycles . . . . 6
Timed Drying 6
DRYING TIPS . . 7
FLUFFAIR Setting . . 7
TUMBLE PRESS@Setting 7
Drying Times . 8
Mixed Loads . . . . . . . . 8
End-of-Cycle Signal 8
LINT SCREEN.
LINT REMOVAL.
CARING FOR YOUR DRYER.
Vacation Care
Changing the Drum Light
IF YOU NEED SERVICE OR
ASSISTANCE. . . . . . .
1. Before Calling for
Assistance . . . . . . . . . .
2. If You Need Assistance
3. If You Need Service . . . .
4. If You Have a Problem
9
9
10
10
11
12
12
13
::
2 01985 Whirlpool Corporation

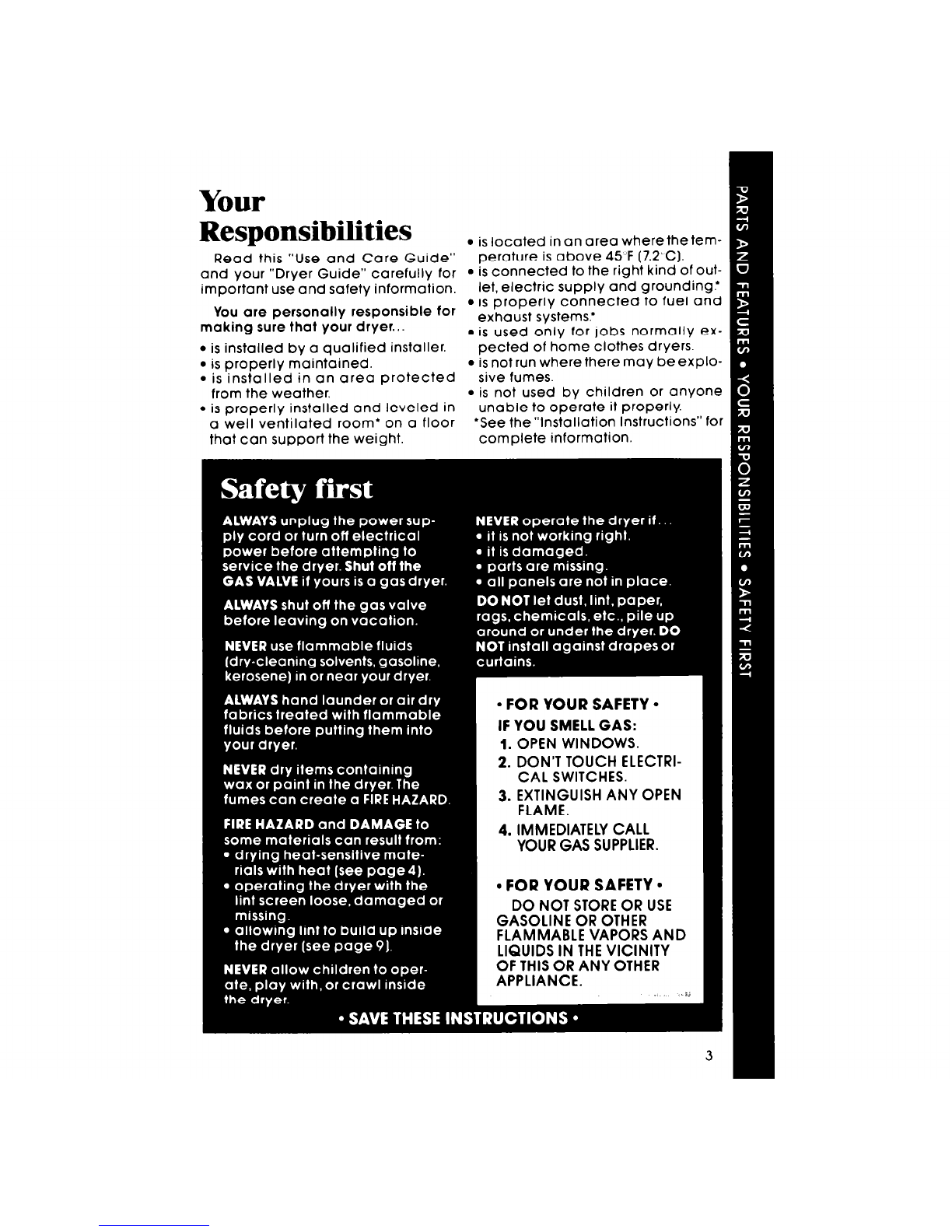

Your
Responsibilities
Read this “Use and Care Guide”
and your “Dryer Guide” carefully for
important use and safety information.
You are personally responsible for
making sure that your dryer...
l is installed by a qualified installer.
l is properly maintained.
l is installed in an area protected
from the weather.
l is properly installed and leveled in
a well ventilated room’ on a floor
l is located in an area where the tem-
perature is above 45°F (7.2&C).
l is connected to the right kind of out-
let, electric supply and grounding.*
l is properly connected to fuel and
exhaust systems.*
l is used only for fobs normally ex-
pected of home clothes dryers.
l is not run where there may beexplo-
sive fumes.
l is not used by children or anyone
unable to operate it properly.
‘See the “Installation Instructions” for
that can support the weight.
C
. FOR YOUR SAFETY l
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRI-
CAL SWITCHES.
3. ;;T&dFUlSH ANY OPEN
4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.
9FOR YOUR SAFETY.
DO NOT STOREOR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THEVICINITY
OF THIS OR ANY OTHER
APPLIANCE.

TYPE OF LOAD
COllONS - LINENS
SUGGESTED SUGGESTED
CYCLE TEMPERATURE
EXTRA HEAVY - Bedspreads,
mattress pads, quilts. HEAVY
HEAVYWEIGHT FABRICS - Towels. HIGH
jeans, corduroys, work clothes AUTOMATIC
MEDIUMWEIGHT COTTONS - REGULAR
Sheets, pillowcases, cotton PERM’T PRESS
underwear, diapers MED
LIGHTWEIGHT COTTONS - Batistes.
organdies, lingerie
PERMANENT PRESS, SYNTHETICS
AND BLENDS
KNITS GENTLE
LOW
HEAVYWEIGHT FABRICS -Work clothes, AUTOMATIC PERMIT PRESS
jackets. raincoats _, _. PERMANENT MED
MEDIUMWEIGHT FABRICS - Shirts, play PRESS
clothes, sheets, slacks
LIGHTWEIGHT FABRICS - Lingerie, KNITS GENTLE
blouses, dresses , LOW
KNITS
HEAVYWEIGHT - Cottons, rayons, AUTOMATIC PERMIT PRESS
blends, T-shirts, slacks, shirts PERMANENT MED
LIGHTWEIGHT - Synthetics (polyester,
acrylic, etc.) and blends, lingerie, PRESS KNITS GENTLE
blouses, dresses LOW
LIGHTWEIGHT AND DELICATE FABRICS
Sheer Curtains (2 or 3 panels] ;;;;F;$ KNITS GENTLE
Gauze,lace,etc. .._ . . . . . . PRESS LOW
RUBBER, PLASTIC, HEAT-SENSITIVE TIMED
FABRICS DRYING
FOAM RUBBER - Pillows, bras,
stuffed toys
PLASTIC - Shower curtains,
tablecloths .._.._.. _.._ .._ .
RUBBER-BACKED RUGS
OLEFIN. POLYPROPYLENE. SHEERNYLON
20-30 MINS. FLUFF
AIR
20-30 MINS.
40-50 MtNS.
15-20 MINS.

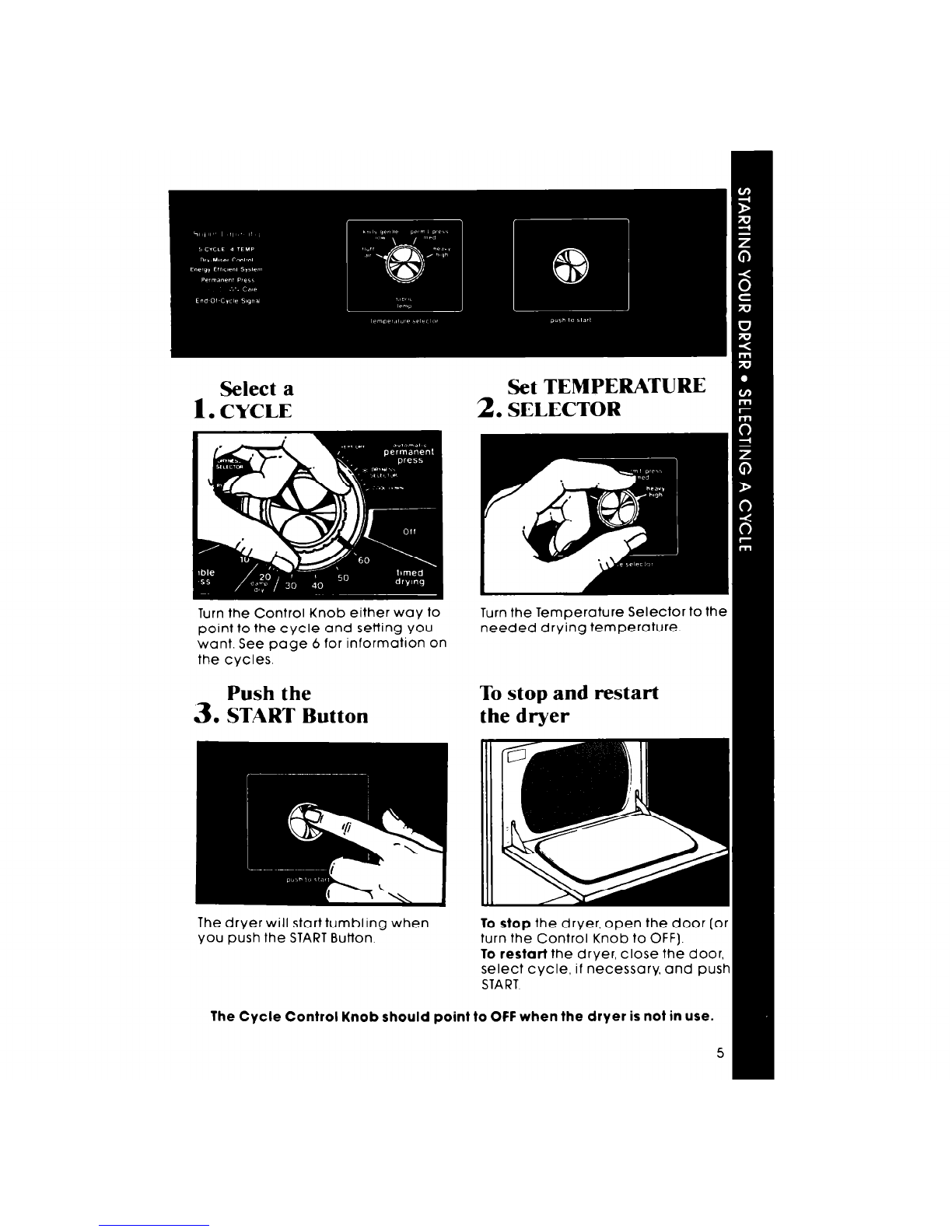

Select a
1. CYCLE
Turn the Control Knob either way to
point to the cycle and setting you
want. See page 6 for information on
the cycles.
Push the
3. START Button
The dryer will start tumbling when
you push the START Button.
The Cycle Contl ,ol Knob should poinl
Set TEMPERATURE
2. SELECTOR
Turn the Temoerature Selector tn +ha
To stop and restart
the dryer
To stop the dryer, open the door [or
turn the Control Knob to OFF).
To restart the dryer, close the door,
select cycle. if necessary, and push
START.

The automatic cycles
The automatic cycles allow you
to select the degree of dryness you
prefer for the clothes being dried.
The Control Knob moves and stops
several times until the load reaches
the dryness setting you selected. Then
the knob automatically moves to
OFF and tumbling stops,
I
Operating instructions
weight cotton items. The load tum-
bles without heat during the last 5
minutes. This helps make the load
easier to handle
Use
AUTOMATIC
PERMANENT
PRESSto dry
permanent
press, knits and other synthetic fab-
rics The load tumbles without heat
during the last 10 minutes. This helps
keep wrinkles from setting in.
For the first few loads, set the Control
Knob to point to an* in either auto-
matic cycle. When the dryer stops,
feel the dried items.
l If items are drier than You like, use
a setting to the right of the* the next
time You dry a similar load.
l If items are not as dry as you like,
use a setting to the left of the *the
next time you dry a similar load.
Timeddrying
Use the TIMED DRYING Cycle for
any load You want to dry by time. For
example: small loads, large bulky
items, items to be fluffed or dusted
with the FLUFFAIR heat setting.
l Turn the Control Knob to the number
of minutes Yqu want - from 10 to 60.
l The last 5 minutes of this cycle are
without heat - a cool-down time. This
helps make the load easier to
handle.
6

Drying tips
The dryer does not heat when the
Temperature Selector is set on FLUFF
AIR. This setting can be used to fluff
bedding, plastic tablecloths, foam
rubber pillows, stuffed toys, sneakers,
etc.
1. Turn the Temperature Selector to
FLUFFAIR.
2. Turn the Control Knob to the num-
ber of minutes you want in the
TIMED DRYING Cycle.
3. Push the STARTButton.
TUMBLE PRESS@ Settingl
The TUMBLE PRESSsetting removes
wrinkles from dry clothing such as
items that may have been packed
1. Set Control Knob to TUMBLE PRESS.
2. Set Temperature Selector to PERM’T
PRESS/ MED.
3. Push STARTButton.
The load will tumble in heated air
for 10 minutes. The heat shuts off and
the dryer continues to tumble the
load for 5 more minutes.
For best results, TUMBLE PRESSonly
, .. 1 >.~~ - *.L ~~. -
in a suitcase, closet, or items not
removed from the dryer.
a rew trems or a rime. rur rnem on
hangers or fold them as soon as the
dryer stops.
7

Drying times Mixed loads
Drying times will vary dependtng on
. amount of moisture in the clothes.
l type and weight of the fabric.
l size of the load.
l room temperature around the
dryer.
l temperature of the wash rinse
water.
l amount of lint in the lent screen.
l dryer temperature selection.
See page 6 in your”Dryer Guide”
for more information.
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest fab-
rics. When the dryer stops, remove
dry items and reset the control.
To reduce wrinkling, take the load
from dryer as soon as tumbling stops.
This is important for permanent press,
knits and synthetic fabrics.
End-of-cycle signal The dryer sounds a signal to let you know
wnen the cycle ISfrnrshed. The signal cannot be
turned off and is not adjustable.
The signal is helpful when you are drying
permanent press, synthetics and other items
that should be taken out as soon as the dryer
stops.
8

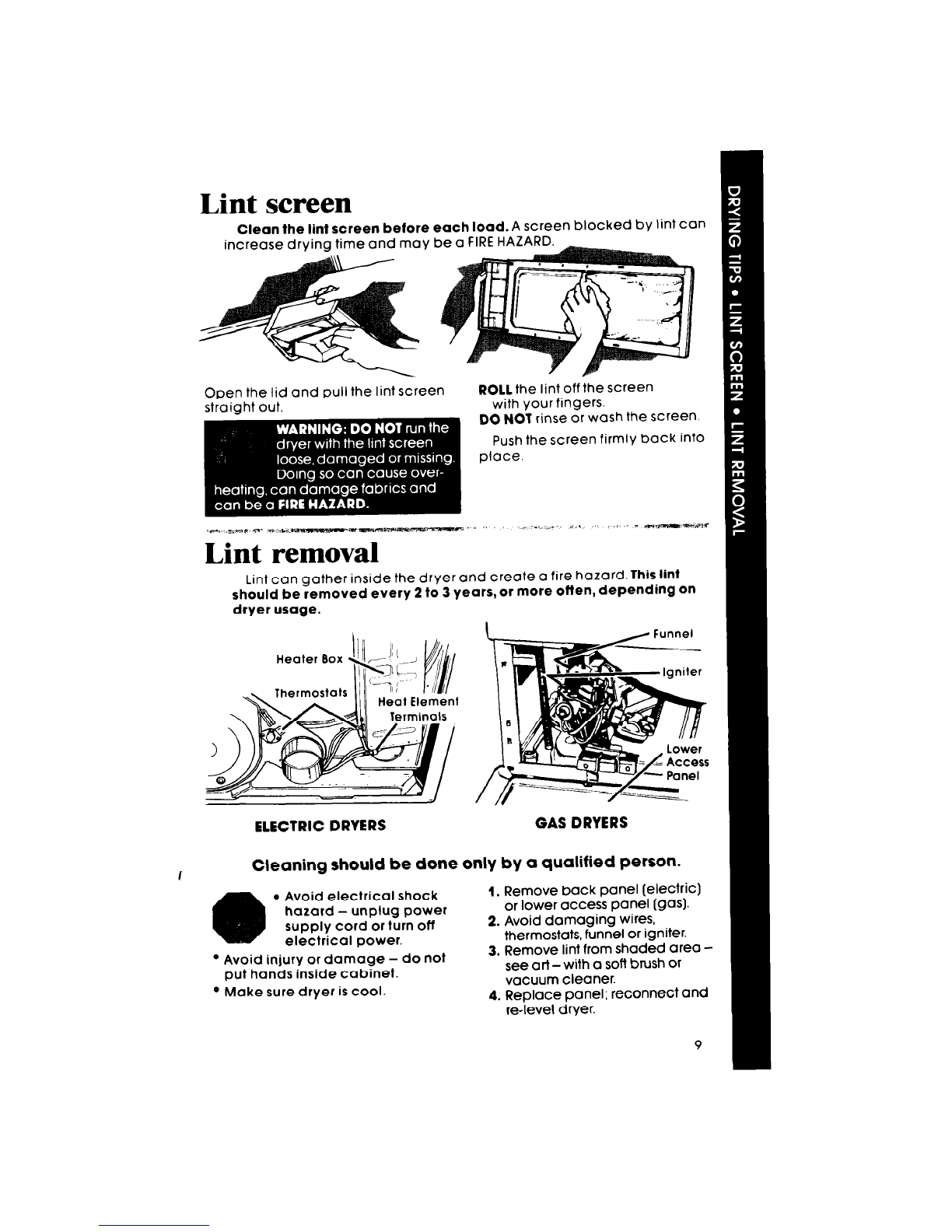

Lint screen
Clean the lint screen before each load. A screen blocked by lint can
increase drying time and may be a FIRE HAZARD. _
\\ /
Lint removal
Lint can gather inside the dryer and create a fire hazard.This lint
should be removed every 2 to 3 years, or more otten, depending on
dryer usage.
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
l Avoid electrical shock
hazard - unplug power
supply cord or turn off
electrical power.
’ Avoid injury or damage - do not
put hands inside cabinet.
l Make sure dryer is cool.
1. Remove back panel (electric)
or lower access panel (gas].
2. Avoid damaging wires,
thermostats, funnel or igniter.
3. Remove lint from shaded area -
see art-with a soft brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer.
9

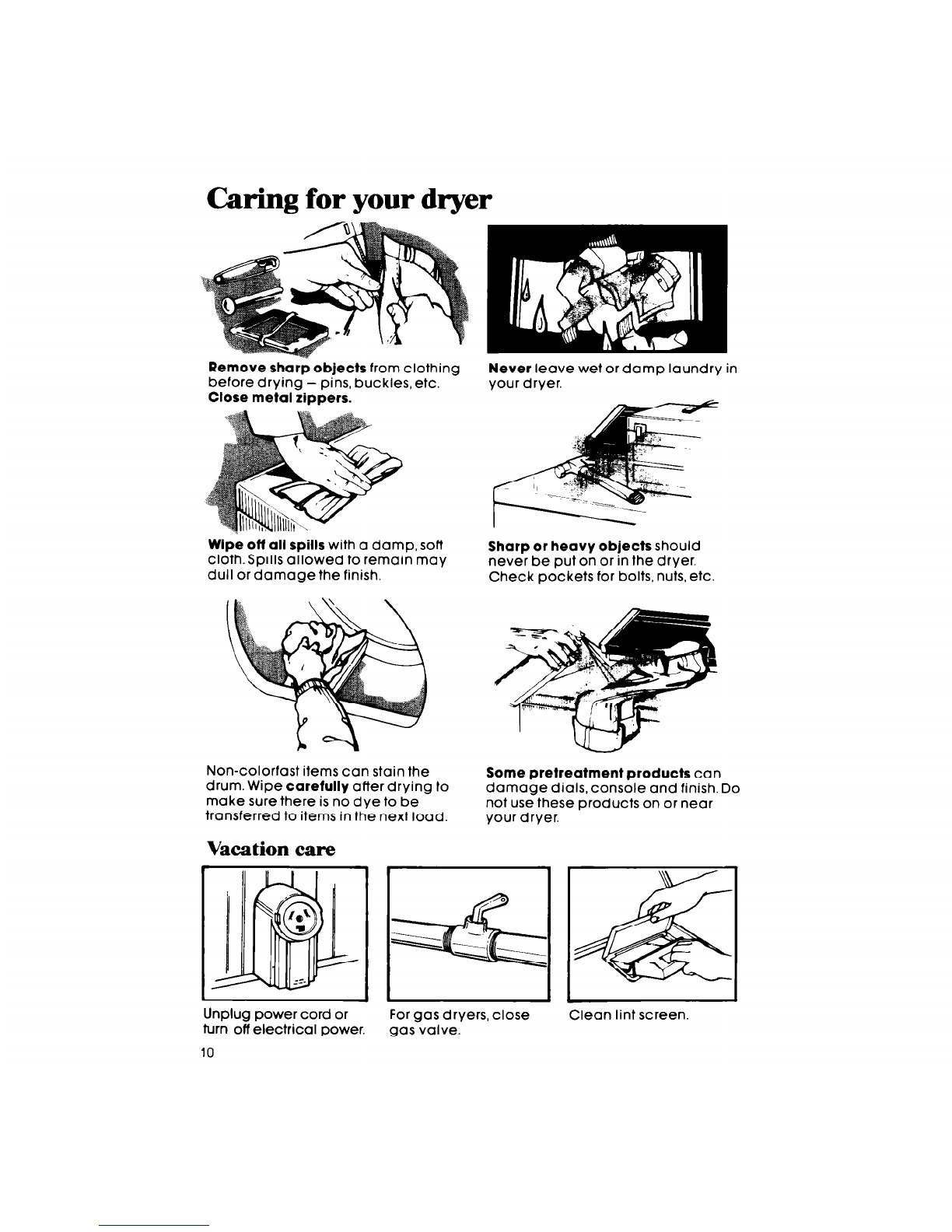

Caring for your dryer
Remove sharp objects from clothing
before drying - pins, buckles, etc.
Close metal zippers.
Wipe off ail spills with a damp, soft
cloth.Spills allowed to remain may
dull or damage the finish.
Non-colorfast items can stain the
drum. Wipe carefully after drying to
make sure there is no dye to be
transferred to items in the next load.
Vacation care
Never leave wet or damp laundry in
your dryer.
Sharp or heavy objects should
never be put on or in the dryer.
Check pockets for bolts, nuts, etc.
Some pretreatment products can
damage dials, console and finish. Do
not use these products on or near
your dryer.
Unplug power cord or For gas dryers, close Clean lint screen.
turn off electrical power. gas valve.
10

1. Open the dryer door and remove
light bulb cover by turning it
clockwise.
II n
2. Remove the light bulb by turning
it counterclockwise.
I
create a FIREHAZARD.
3. Replace the bulb only with a
UO-watt appliance bulb from most
hardware, grocery or variety stores.
4. Replace the light bulb cover
and lock it in place by turning
counterclockwise.
CAUTION: The bulb cover must be securely in place durtng dryer opera-
tton to prevent overheating and possible damage to fabrics. Operating
the dryer with the bulb cover removed can cause the dryer to I

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling for assistance.. .
Performance problems often re-
sult from little things you can find
and fix yourself without tools of any
kind
DRYER DOES NOT RUN:
9 Is power supply cord plugged in?
l Is door closed tightly?
l Did you push START Button?
DRYER DOES NOT HEAT:
l The AIR setting is without heat.
l The last minutes of heat settings are
without heat.
Is gas turned on? If not,turn Control
Knob to OFF.Turn on gas. Wait 5
minutes. Reset controls and start
An electric dryer uses a circuit
breaker or 2 fuses. If one fuse is
blown, the dryer may run, but not
heat.
DRYING TIME SEEMS LONG:
l Is the lint screen clean?
l See page 6 in your”Dryer Guide:’
l Are fuses blown or a circuit-breaker
tripped?
12

2. If you need assistance*...
Call Whirlpool COOL-LINE@ serv-
ice assistance telephone number.
Dial tree from:
Continental U.S. . [phone]
Michigan . . . . . . . [phone]
Alaska 81Hawaii [phone]
and talk with one of our trained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory op-
eration from your appliance or, if
service is necessary, recommend a
qualified service company in Your
area.
3. If you need service*...
Whirlpool has
a nationwide net-
work of franchised
TECH-CARE@ Serv-
ice Companies.
TECH-CARE serv-
ice technicians are trained to fulfill
the product warranty ancj provide
after-warranty service, anywhere in
the United States. To locate TECH-
CARE service in Your area, call our
COOL-LINE service assistance tele-
phone number (see Step 2) or look in
your telephone directory Yellow
Pages under:
4. If you have a problem*...
Call our COOL-LINE service as-
sistance telephone number (see
Step 2) and talk with one of our Con-
sultants, or if you prefer, write to:
Mr. Stephen E.Upton, Sr.Vice President
Whirlpool Corporatlon
Administrative Center
2000 US-33 North
Benton Harbor, Mi 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This in-
formation is needed in order to bet-
ter respond to Your request for
assistance
FSPISa registered trademark
of WhIrlpool Corporation for
quality parts Look for this
symbol of qualrty whenever
you need a replacement part
for your Whrrlpcol applrance
FSPreplacement parts
WIIIfit right and work righi. because they are
made to the same exacting specifications
used to butld every new Whirlpool appliance
0
FSP
8

Notes
14

Notes
15

01
rices
Making your world a little easier.
Part No. 696207
01985 Whirlpool Corporation Printed in U.S.A.
lmalic Washers, Clothes Dryers, Freezers, Refrigerator-Freezers. Ice Makers, Olshwashers. Built-In Ovens and Surface buts, Ranges. Mu
