Whirlpool 8SF302PSY User manual

A Note To You *
Important Safety 3
Instructions
Parts And Features 6
Using Your Range 7
Caring For Your
Range ,’
If You Need
Assistance
Or Service 25
Warranty 28
I-;sOO-253-1301
In the U.S.A., cell us with
questions or comments.
STANDARD-CLEANING GAS RANGES
TO THE INSTALLER: PLEASE LEAVE THIS
MODELS SF3000SY/EY
INSTRUCTION BOOK WITH THE UNIT.
SF304BSA
TO THE CONSUMER: PLEASE READ AND
KEEP THIS BOOK FOR FUTURE REFERENCE.
SF302BSA/BEA
8SF302PSY

A Note To You
Thank you for buying a Whirlpool@ appliance.
Because your life is getting busier and more complicated, Whirlpool ranges are easy to use,
save time, and help you manage your home better. To ensure that you will enjoy years of
trouble-free operation, we developed this Use and Care Guide. It is full of valuable information
on how to operate and maintain your appliance properly and safely. Please read it carefully.
Also, please complete and mail the Ownership Registration Card provided with your appli-
ance. This will help us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of each
symbol.
This symbol will help alert you to such
dangers as personal injury, burns, fire and
electrical shock.
0
@
z
\.:
@
This symbol will help you avoid actions
which could cause product damage
(scratches, dents, etc.) and damage to
your personal property.
*ALL RANGES CAN TIP
.INJURY TO PERSONS
COULD RESULT.
.INSTALL ANTI-TIP
DEVICES PACKED
WITH RANGE.
*SEE INSTALLATION
INSTRUCTIONS.
For more information, see the “The anti-tip
brackets” on page 16.
Our Consumer Assistance Center number, 1-800-253-l 301, is
toll-free, 24 hours a day (for U.S.A. only).
If you ever have a question concerning your appliance’s operation, or if you need service, first
see “If You Need Assistance Or Service” on page 25. If you need further help, feel free to call
our Consumer Assistance Center or an authorized Whirlpool service company. When calling,
you will need to know your appliance’s complete model number and serial number. You can
find this information on the model and serial number plate (see diagram on page 6). For your
convenience, we have included a handy place below for you to record these numbers, the
purchase date from the sales slip and your dealer’s name and telephone number. Keep this
book and the sales slip together in a safe place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone _
2

Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Gas ranges have been thoroughly tested for safe and efficient operation. However, as with
any appliance, there are specific installation and safety precautions which must be followed
to ensure safe and satisfactory operation.
To reduce the risk of fire, electrical shock, injury to persons,
or damage when using the range, follow basic precautions,
including the following:
WARNING: If the information in this manual is not followed exactly, a
fire or explosion could result causing property damage, personal
injury or death.
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
l Do not try to light any appliance.
l Do not touch any electrical switch; do not use any phone in
your building.
l Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
l If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
General
.Install or locate the range only in accor-
dance with the provided Installation
Instructions. The range must be installed
by a qualified installer. The range must
be properly connected to the proper gas
supply and checked for leaks. The range
must also be properly connected to
electrical supply and grounded.
*Gas fuels and tt-eir use in appliances
can cause minor exposures to benzene,
formaldehyde, carbon monoxide and
soot, primarily from incomplete combus-
tion. Significant exposure to these
substances could cause cancer or
reproductive harm. Properly adjusted
burners with a blue, rather than a yellow,
flame will minimize incomplete combus-
tion. Venting with a hood or an open
window will further minimize exposure.
continued on next page
3

1Do not store things children might
want above the range. Children could be
burned or injured while climbing on it.
1Do not leave children alone or unat-
tended in area where the range is in use.
They should never be allowed to sit or
stand on any part of the range. They
could be burned or injured.
1Do not operate the range if it is damaged
or not working properly.
t Do not use the range for warming
or heating the room. Persons could be
burned or injured, or a fire could start.
I Do not attempt to light the oven burner on
electric ignition models during a power
failure. Personal injury could result. Reset
oven controls to the off position in the
event of a power failure.
BUse the range only for its intended use as
described in this manual.
6Do not touch surface burners, areas near
surface burners or interior surfaces of
oven. Areas near surface burners and
interior surfaces of an oven become hot
enough to cause burns. During and after
use, do not touch, or let clothing or other
flammable materials contact surface
burners, areas near surface burners or
interior surfaces of oven until they have
had sufficient time to cool. Other surfaces
of the range, such as the oven vent
opening, the surface near the vent
opening, the cooktop, and the oven door,
could also become hot enough to cause
burns.
6%
‘\
l Do not wear loose or hanging garments
when using the range. They could ignite
if they touch an open flame and you could
be burned.
l Use only dry potholders. Moist or damp
potholders on hot surfaces could result in
burns from steam. Do not let potholder
touch an open flame. Do not use a towel
or bulky cloth for a potholder. It could
catch on fire.
l Keep range vents unobstructed.
l Do not heat unopened containers. They
could explode. The hot contents could
cause burns and container particles could
cause injury.
l Do not store flammable materials on or
near the range. The fumes could create
an explosion and/or fire hazard.
l Do not use the oven for storage.
l Do not use aluminum foil to line area
around surface burners, oven bottom, or
any other part of the range. Use aluminum
foil only as recommended in this manual.
l Never use a match or other flame to look
for a gas leak. Explosion and injury could
result.
l Know where your main gas shutoff
valve is located.
When using the cooktop
l Make sure the utensils you use are large
enough to contain food and avoid
boilovers and spillovers. Heavy splatterin!
or spillovers left on a range could ignite
and burn you. Pan size is especially
important in deep fat frying.
4

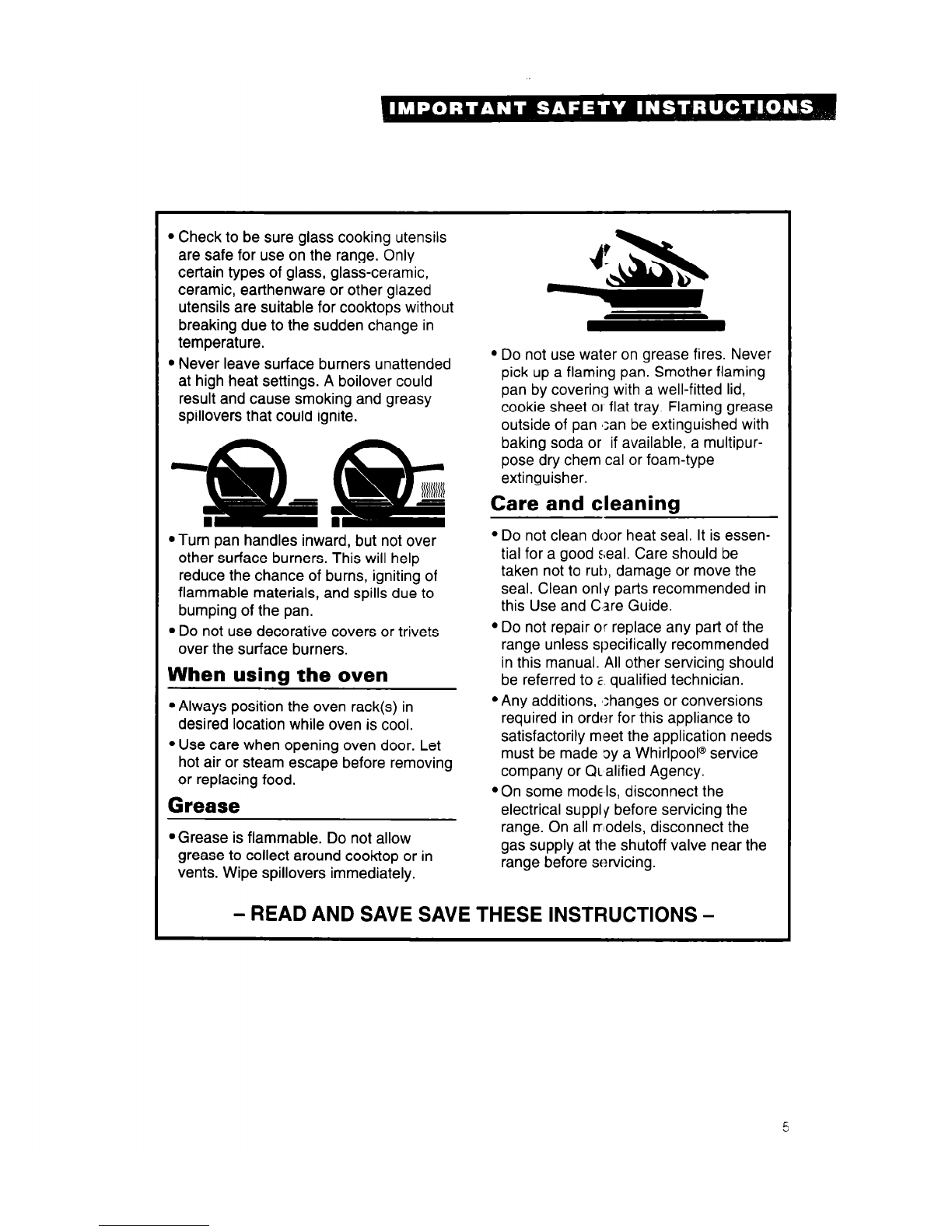

l Check to be sure glass cooking utensils
are safe for use on the range. Only
certain types of glass, glass-ceramic,
ceramic, earthenware or other glazed
utensils are suitable for cooktops without
breaking due to the sudden change in
temperature.
l Never leave surface burners unattended
at high heat settings. A boilover could
result and cause smoking and greasy
spillovers that could ignite.
l Turn pan handles inward, but not over
other surface burners. This will help
reduce the chance of burns, igniting of
flammable materials, and spills due to
bumping of the pan.
l Do not use decorative covers or trivets
over the surface burners.
When using the oven
l Always position the oven rack(s) in
desired location while oven is cool.
l Use care when opening oven door. Let
hot air or steam escape before removing
or replacing food.
Grease
@Grease is flammable. Do not allow
grease to collect around cooktop or in
vents. Wipe spillovers immediately.
l Do not use water on grease fires. Never
pick up a flaming pan. Smother flaming
pan by covering with a well-fitted lid,
cookie sheet OI flat tray. Flaming grease
outside of pan #;an be extinguished with
baking soda or if available, a multipur-
pose dry them cal or foam-type
extinguisher.
Care and cleaning
l Do not clean door heat seal. It is essen-
tial for a good :,eal. Care should be
taken not to rub, damage or move the
seal. Clean only parts recommended in
this Use and Care Guide.
l Do not repair or replace any par-l of the
range unless specifically recommended
in this manual. All other servicing should
be referred to E qualified technician.
*Any additions, #:hanges or conversions
required in order for this appliance to
satisfactorily meet the application needs
must be made mya Whirlpool@ service
company or QL alified Agency.
‘On some mode Is, disconnect the
electrical supply before servicing the
range. On all rr’odels, disconnect the
gas supply at the shutoff valve near the
range before servicing.
- READ AND SAVE SAVE THESE INSTRUCTIONS -
5

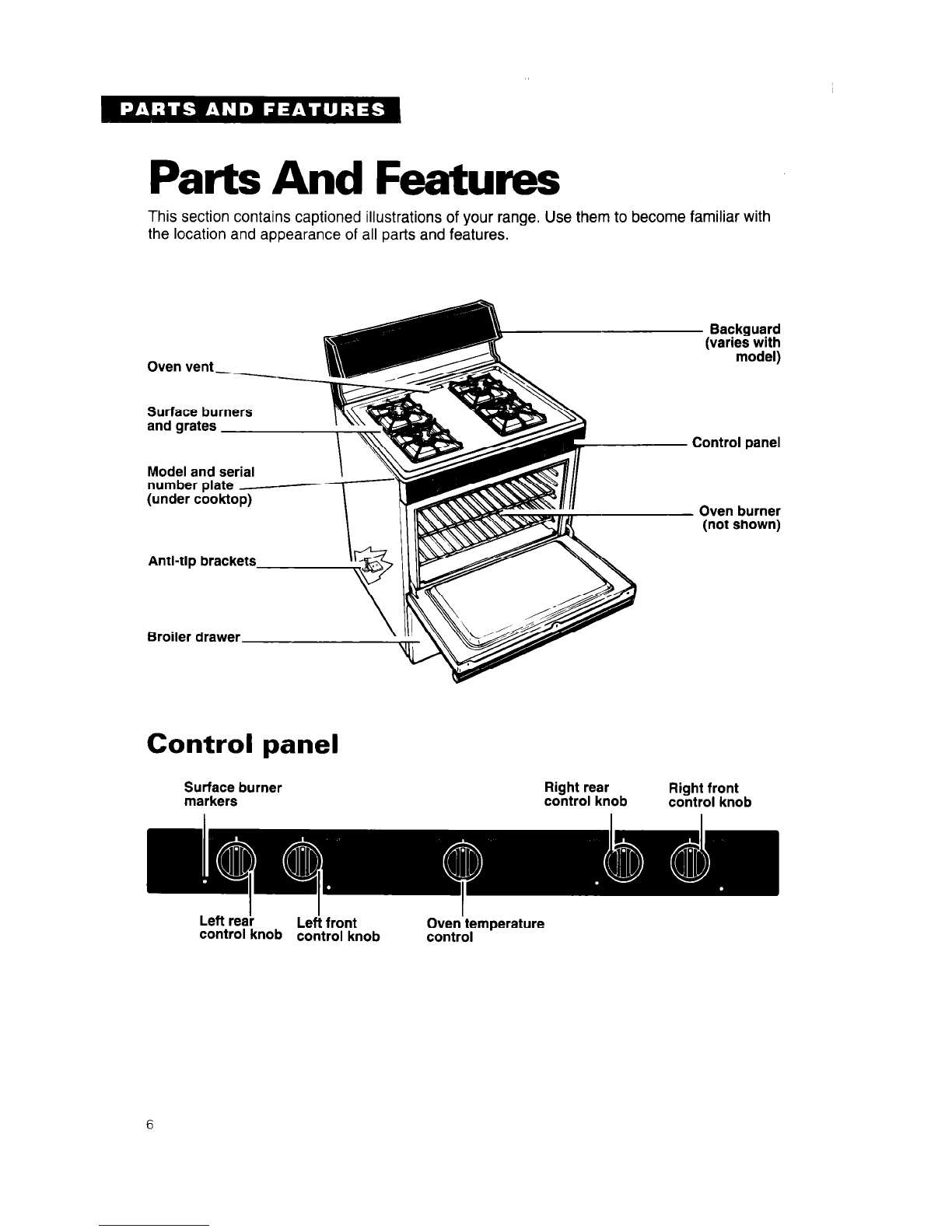

Parts And Features
This section contains captioned illustrations of your range. Use them to become familiar with
the location and appearance of all parts and features.
Oven vent t- ‘I\-
Surface burners
and grates
Model and serial
number plate
(under cooktop)
Anti-tip brackets
Broiler drawer
Control panel
Backguard
-(varies with
model)
Control panel
_ Oven burner
(not shown)
Surface burner Right rear
markers control knob Right front
control knob
I I
Left rear I
Left front
control knob control knob Oven temperature
control
6

Using Your Range
In This Section
Page Page
Using the surface burners .................7 Adjusting the oven temperature 13
Positioning racks and pans ...............9 control ..............I................................
For best air circulation ..................... 10

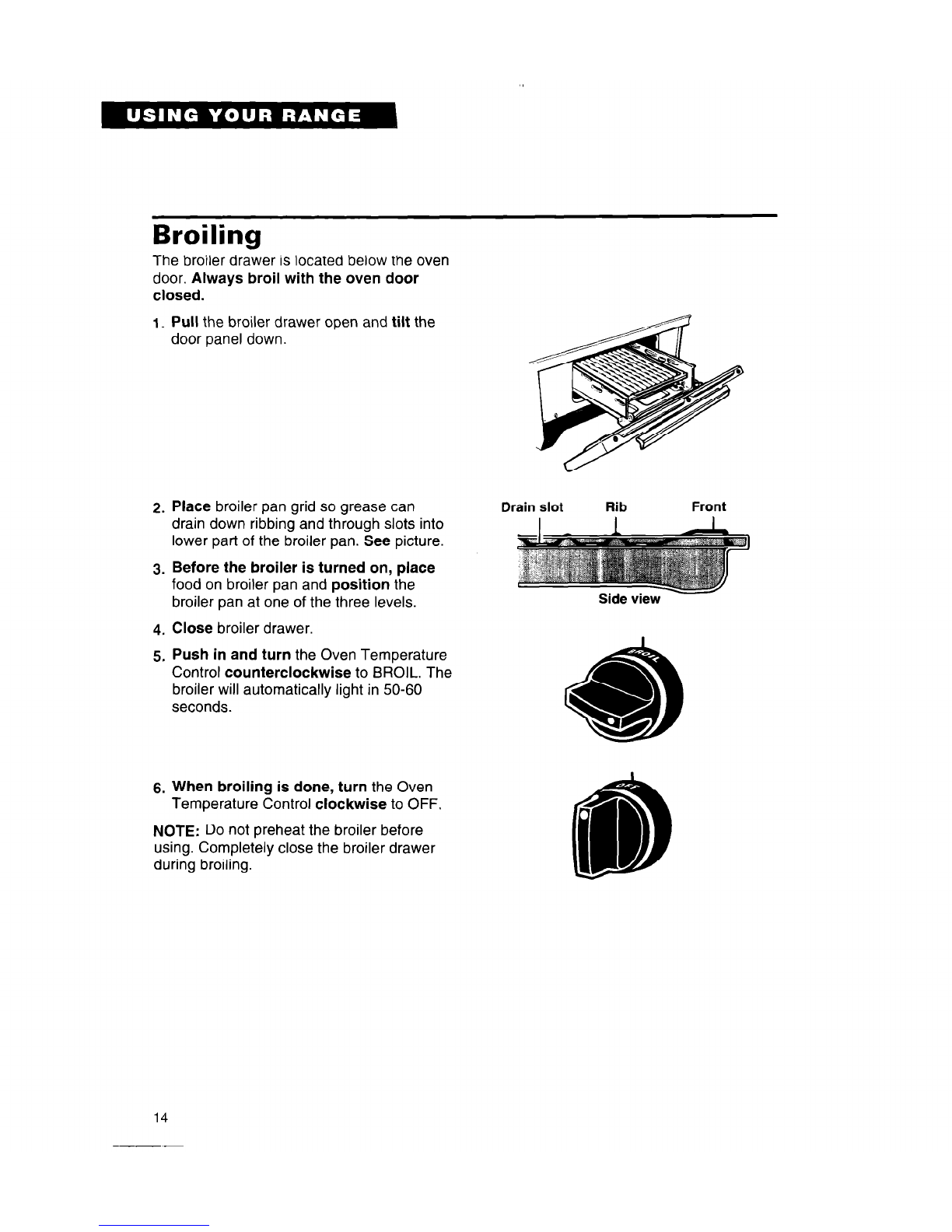

Broiling .................s.........m..................14

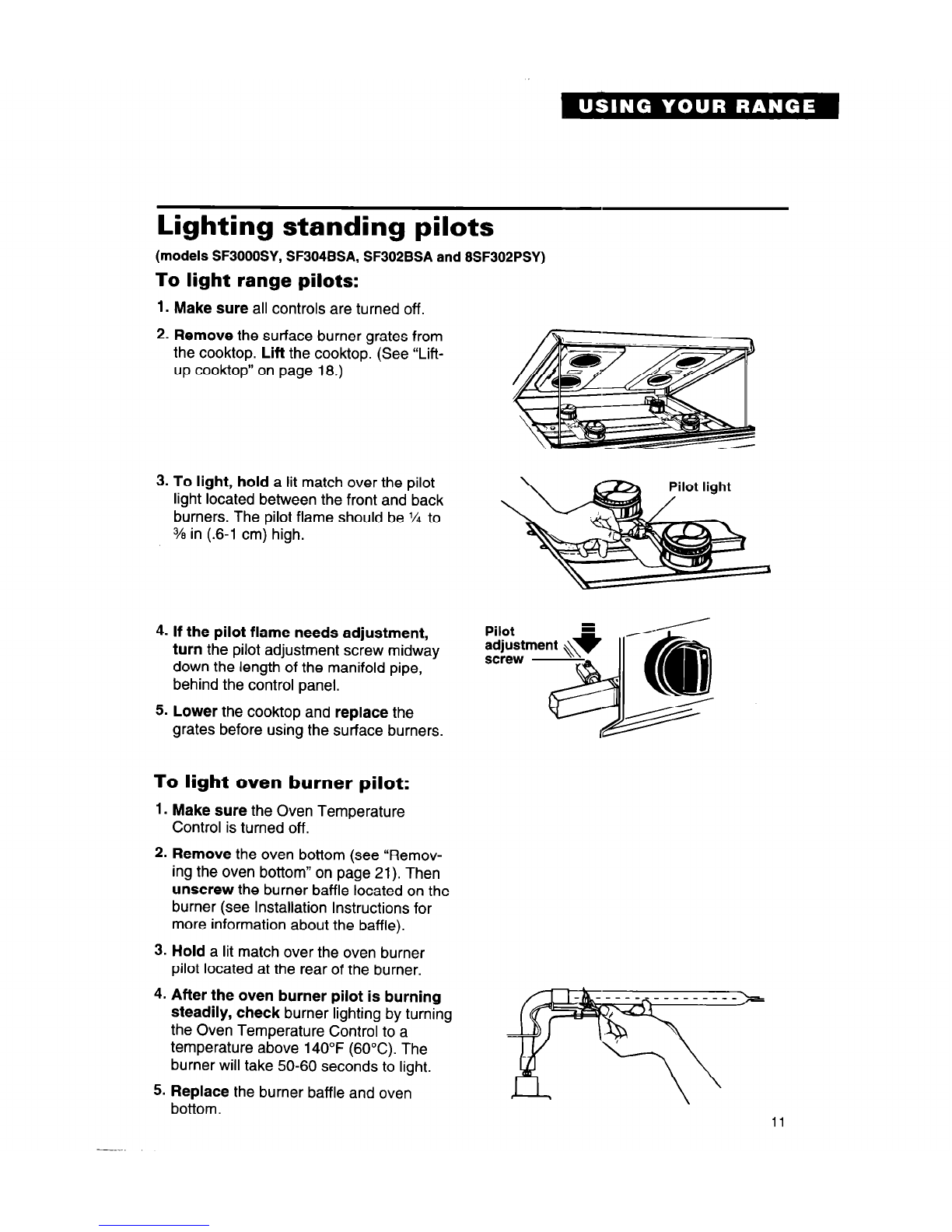

Lighting standing pilots ...................11 Energy saving tips .........m..................15
Baking/roasting 12 The oven vent ..,...,.........,.................. 15
.......#........................ The anti-tip brackets ........................16
To obtain the best cooking results possible, you must operate your range properly. This
section gives you important information for efficient and safe use 01your range.
Using the surface burners
Your range is equipped with either standing
pilots or electric ignitors. Standing pilots
must be lit initially with a match following the
directions on page 11. The pilot light will
remain lit when the burners are turned off.
To turn a burner on again, just push in and
turn the control knob counterclockwise to
LITE and the burner will light. Electric
ignitors automatically light the burners each
time the control knob is turned to LITE.
Push in and turn
Push in the control knob and turn
counterclockwise to the LITE position. On
electric ignitor models, the clicking sound is
the ignitor sparking. Visually check that
burner has lit.
After the burner lights, turn the control
knob to the desired setting. You can set the
control knob anywhere between HI and LO.
Surface burner markers
The solid dot in the surface burner marker
shows which surface burner is turned on by
that knob.
Burner heat settings
Use correct burner heat settings (see next
page). If the heat setting is too high, it can:
l Char bacon and cause curling.
l Make eggs tough and crisp at the edges.
l Toughen liver, fish and seafood.
l Scorch delicate sauces and custards.
l Cause a boilover.
7

Until you get used to the settings, use
the following as a guide. For best results,
start cooking at the high setting; then turn
the control knob down to continue cooking.
: - -.- -- -..- -- -- -._--___ -
! SETTING RECOMMENDED USE
1. __-.-- ._.- -- -- ._.__ -_.-
f LITE . To light the burner. After the
\ burner lights, turn control
back to a desired setting.
f - _- ._.---- --_-___ -
HI
/ aTo start foods cooking.
! eTo bring liquids to a boil.
-- --.----c.
’ Medium --_
. To hold a rapid boil.
aTo fry chicken or pancakes.
l For gravy, pudding and
icing.
. To cook large amounts of
I vegetables.
‘L- .------~--_.
LO . To keep food warm until
ready to serve.
I --.
NOTE: Do not cook with the control in the
LITE position.
In case of a prolonged power
failure
Surface burners with electric ignitors can be
Burn, Fire and Explosion Hazard
. Burner flame should not extend
beyond the edge of the cooking utensil.
The flame could burn you
and cause poor cooking results.
. Be sure all control knobs are turned
to OFF when you are not cooking.
Someone could be burned or a fire
could start if a burner is accidentally
left ON.
. If the flame should go out while cook-
ing, or if there is a strong gas odor,
turn the burners OFF. Wait five min-
utes for the gas odor to disappear
before relighting burner. If gas odor is
still present, see safety note on page 3.
Failure to follow these precautions
could result in explosion or fire.
Product Damage Hazard
Do not leave an empty utensil, or one
which has boiled dry, on a hot surface
burner.
The utensil could overheat and could
damage the utensil or cooking product.
ourner ana slowly turn tne control knob on
manually lighted. Hold a lit match near a
until the burner lights. After the burner
. . . . ..
lights, turn the control knob to the desired
setting. Power failures will not affect stand-
ing pilots. Do not attempt to operate an
electric ignition oven during a power
failure.
No one brand of cookware is best for all
Cookware tips
people. Knowing something about pan
materials and construction will help you select
the correct cookware for your needs.
. NOTE: For best results and greater fuel
efficiency, use only flat-bottomed cookware
in good condition.
-The pan should have straight sides and a
tight-fitting lid.
. Choose medium to heavy gauge (thick-
ness) pans that are fairly lightweight.
*The pan material (metal or glass) affects
how fast heat transfers from the surface
burners through the pan material and how
evenly heat spreads over the pan bottom.
Choose pans that provide the best cooking
results.
. Handles should be made of a sturdy, heat-
resistant material and be securely attached
to the pan.

l Pans should be easy to clean. Check to be
Home canning information
sure there are no crevices, rough edges or
areas where food might collect. The larger diameter of most water-bath or
pressure canners combined with high heat
l Be sure pans do not tip, whether they are settings for long pleriods of time can cause
full or empty. damage to the cooktop.
l Use cookware only as it was intended to be To
protect your range:
used. Follow pan instructions. This is very
important for glass cookware because some l For best results, use a canner which can
should be used only in the oven. Other pans be centered over the surface burner.
are marked as flameware and may be used l Do not place canner on two surface
on the surface burners. burners at the same time. Too much heat
will build up and will damage the cooktop.
l Start with hot water. This reduces the
time the control ISset on high. Reduce
heat setting to lowest position needed to
keep water boiling.
l Refer to your canner manual for specific
instructions.
Positioning racks and pans
For baking/roasting with one rack, place
the rack so the top of the food will be
centered in the oven.
Rack placement for specific foods:
FOOD RACK POSITION
Frozen pies, large 1st or 2nd rack
roasts, turkeys guide from bottom
Angel and bundt cakes, 2nd rack guide
most quick breads, from bottom
yeast breads, casse-
roles, meats
Cookies, biscuits, 2nd or 3rd rack
muffins, cakes, guide from bottom
nonfrozen pies
Personal Injury Hazard
*Always position oven rack(s) in
desired location before turning oven
on. Be sure the rack(s) is level.
l If rack(s) must be moved while oven
is hot, use potholders or oven mitts
to protect hands.
l Do not place iiems on the open oven
door.
l Be careful when installing and
removing large food items from extra
roasting rack position. Food will be
close to hot surfaces, including oven
bottom and sides.
When baking on two racks, arrange racks
on first and third rack guides from bottom. Failure to follow the above precautions
could result in personal injury.
continued on next page g

Extra oven rack position
(roasting rack)
When roasting food too large to be placed in
oven with rack in lowest position, place rack
on bottom of oven.
For proper roasting, follow these
guidelines:
l The rack must be level.
l Use adequate amount of liquid (meat
juices or water) so food does not get
overdone.
l Do not try to pull rack out over door.
Rack will be at the same level as door
when door is opened.
III f
\
Extra oven rack
position
For best air circulation
Hot air must circulate around the pans in the
oven for even heat to reach all parts of the
oven. This results in better baking.
l Place the pans so that one is not directly
over the other.
l For best results, allow 1l/2-2 inches
(4-5 cm) of space around each pan and
between pans and oven walls. There must
be a minimum space of 1 inch (2.5 cm).
l Use only one cookie sheet in the oven at
one time.
Use the following as a guide to determine
where to place the pans:
One pan
Place in the center of the oven rack.
Two pans
Place in opposite corners of the oven rack.
Three or four pans
Place in opposite corners on each oven rack.
Stagger pans so no pan is directly over
another.
!O
