Whirlpool 3PACH12DD0 User manual

Owiier’s
Important Safety
Instructions .................... 4
Parts and Features ........ 4
Using the
Remote Control .............. 5
Setting the Clock ......... 5
AUTO COOL Cycle ..... 6
HEAT Cycle ................. 7
SLEEP Cycle ............... 8
COOL Cycle .............. 11
FAN ONLY Cycle ...... 12
DRY Cycle.. ............... 13
TIMED MODE
Operation .................. 14
Caring for the
Remote Control.. .......... 17
Troubleshooting .......... 20
Obtaining Service ........ XI
REMOTE CONTROL
PART NO. 1180866

You now own the air conditioner with the remote control that’s so
easy to use you’ll hardly believe it! We based our control on the latest
video game technology, so anyone can use it.
This book explains all of the buttons and advanced functions of your
remote control. Besides this, to make everything easy, the display
screen on top of the remote takes you through each step quickly and
clearly.
Most of the time, though, you’ll probably just press “Auto Cool” when
you use your Cool Impressions Air Conditioner. This will give you the
temperature you like in an instant.
So just think of your remote control as a video game control -just
point and shoot. It’s that easy!
WHIRLPOOL CORPORATION
3

Important Safety Instructions
Read all instructions before using your
air conditioner.
” Complete the installation requirements
as described in the Room Air Condi-
tioner Owner’s Manual.
’ Do not allow children to operate or play
with the air conditioner.
(-Do not operate the air conditioner with
the front panel removed.
l Never clean air conditioner parts with
flammable fluids. The fumes can create
a fire hazard or explosion.
l FOR YOUR SAFETY l
DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE VAPOURS AND
LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE. THE FUMES
CAN CREATE A FIRE HAZARD OR
EXPLOSION.
I
- SAVE THESE INSTRUCTIONS -
Parts and Features
Display ---F
Control buttons *
4

Using the Remote Control
Every time you put new batteries in the remote control, or power is interrupted, you need toEvery time you put new batteries in the remote control, or power is interrupted, you need to
set the proper time of day. Make sure the time of day is correct when using the TIMEDset the proper time of day. Make sure the time of day is correct when using the TIMED
MODE Delay Start and Delay Stop operations.MODE Delay Start and Delay Stop operations.
i- .._.-._. .._..-...-.___i- .._.-._. .._..-...-.___ .,., ----.-.--. -_--. .-.--.-- -. -.--------.-.--. -_--. .-.--.-- -. -.----
/ TO SET:/ TO SET: PRESS:PRESS:
,_.-I_---_--__-,_.-I_---_--__- .----_.. -.----_.. - -- ---.--- ____-- ---.--- ____ DISPLAY SHOWS:DISPLAY SHOWS:
_---.-.--~_---.-.--~
I
I 1. Press the A Button.1. Press the A Button.
!
I
L
I
/ 2. Press the A or V Button to set the
I time.
I NOTE: Hold A or V Button down
/
I
for faster time change.
!
I
j 3. Press the F Button. This com-
pletes setting the clock.
To adjust the time of day
TO ADJUST THE TIME OF DAY: DISPLAY SHOWS:
1. Open the battery cover
(see page 17) and press the
Set Button.
Then set time as shown above.
4
l RrfAN
.uu
5

(me buttsal operation)
The AUTO COOL Cycle is designed to provide you with the comfort you desire by continually
“learning” your preferences. Once the Cycle “learns” what temperature(s) you desire, it
automatically chooses a fan speed when turned on and cools the room as quickly as
possible.
TO ACTIVATE AUTO COOL CYCLE:
Press the AUTO COOL Button.
Cycle options
OPTION:
AIR SWING
The Air Swing feature
tells your air conditioner
to move the air output
louvers side-to-side and
swing the cooled air
through the room.
ADJUST AIR
TEMPERATURE
Although the AUTO
COOL Cycle has an
initial factory-preset
cooling temperature,
you may decide the
room is too cool/warm.
ADJUST
FAN SPEED
Although the AUTO
COOL Cycle automati-
cally chooses the proper
fan speed to cool the
room, you may desire to
increase or decrease
the amount of air
blowing into the room.
6
PRESS:
I
AUTO
COOL
I
TO ACTIVATE OPTION:
Press the 4 Button.
NOTE: Press the 4
Button again to deacti-
vate the Air Swing
option.
Press the A or V Button.
NOTE:
A- warmer temperature
V- cooler temperature
Press the b Button to
advance the Fan Speed.
AUTO + LOW --) MED
4 HIGH
DISPLAY SHOWS:
PRESS:
0
laD
v
0
aAD
v
0
aAb
v
DISPLAY SHOWS:

HEAT Cycle
You can set a specific temperature in the Heat Cycle, if desired.
TO ACTIVATE HEAT CYCLE: PRESS: DISPLAY SHOWS:
__---
1. Press the HEAT Button.
OR
2. Press the MENU Button.
Then press the V Button to select
HEAT Cycle.
3. Press the A or V Button to
change temperature setting.
NOTE: Temperature setting
shows in the top of the display.
4. Press b Button to alter fan speed
(if desired).
Fan Speed cycle:
LOW+ MED + HIGH + AUTO 4
LOW
5. Press the 4 Button to activate the
Air Swing option (if desired).
NOTE: Press the 4 Button
to deactivate the Air Swing
7

EP Cycle
The SLEEP Cycle allows your air conditioner to adjust the temperature and fan speed while
you’re sleeping. The cycle “learns” your preferences to optimize your comfort. You can set
the SLEEP Cycle for 1 to 8 hours. The air conditioner control panel shows the setting closest
to the time set for the SLEEP Cycle (4-hour cycle shows as a 5hour cycle).
NOTE: The SLEEP Cycle can be set for cooling only.
TO ACTIVATE SLEEP CYCLE:
1. Press the SLEEP Button.
2. Press the A or V Button to
change the SLEEP Cycle from
1 to 8 hours.
3. Press the b Button to enter the
SLEEP Cycle time selection.
PRESS:
0
SLEEP
0
aAD
v
0
aa)
v
DISPLAY SHOWS:
CyCk options (For a full description of cycle options, see page 6.)
TO ACTIVATE OPTION: 1 PRESS:
AIR SWING
Press the 4 Button to activate.
NOTE: Press the 4 Button again to
deactivate the Air Swing option.
ADJUST TEMPERATURE
Press the A or V Button to adjust
the temperature.
-
ti
lAD
v
ADJUST FAN SPEED
Press the b Button to adjust the
Fan Speed.
8

SETTING Button
(one button operation)
The SETTING 1 Button is preset. You can also change SETTING 1 to your preference.
NOTE: Every time you change the batteries, the SETTING 1 Button settings are lost. You will
have to reset them.
Activating a set cycle
1 TO ACTIVATE CYCLE: 1 PRESS: 1 DISPLAY SHOWS:
Press the SETTING 1 Button.
cl
sE7’NG
Cycle information
Cycle options (For a full description of cycle options, see page 6.)
TO ACTIVATE OPTION: PRESS:
AIR SWING
Press the 4 Button to activate.
NOTE: Press the 4 Button again to
deactivate the Air Swing option.
0
4AD
v
ADJUST TEMPERATURE
Press the A or V Button to adjust the
temperature.
ADJUST FAN SPEED
Press the b Button to adjust the
Fan Speed.
Gl
aAb
V
9

Changing a preset cycle
__._-- .-.-- __---_-- - - .-_---.
TO CHANGE:
--_-----_ .__----- -------..-
1 Open the battery cover (see page
17) and press the SET Button.
2. Press the V Button to select
SETTING 1.
3. Press the A or V Button to
change temperature setting.
NOTE: Temperature setting
shows in display.
4. Press ) Button to alter fan speed
(if desired).
Fan Speed cycle:
LOW ’ MED + HIGH + AUTO +
LOW
5. Press the 4 Button to activate the
Air Swing option (if desired).
NOTE: Press the 4 Button again
to deactivate the Air Swing option.
6. Press SETTING 1 Button.
PRESS:
- _ DISPLAY SHOWS:
..~__._ -- -- ~-_-
0
aAD
v
J
0
aa)
V
c3
laD
V
I
sE7’NG
,
10

COOL Cycle
You can set a specific temperature in the COOL Cycle instead of AUTO COOL, if desired.
-TO ACTIVATE COOL CYCLE: PRESS: DISPLAY SHOWS:
1. Press the MENU Button.
cl MENU
2. Press the A Button to select
COOL Cycle.
3. Press the A or V Button to
change temperature setting.
NOTE: Temperature setting
shows in the top of the display.
4. Press b Button to alter fan speed
(if desired).
Fan Speed cycle:
LOW + MED + HIGH --t AUTO --t
LOW
5. Press the 4 Button to activate the
Air Swing option (if desired).
NOTE: Press the 4 Button again
to deactivate the Air Swing option.
11

FAN ONLY Cycle
The FAN ONLY Cycle allows you to move and circulate the air in the room without cooling it.
TO ACTIVATE FAN ONLY CYCLE:
1. Press the MENU Button.
2. Press the b Button to select the
FAN ONLY Cycle.
PRESS:
cl
MENU
DISPLAY SHOWS:
Cyde options (For a full description of cycle options, see page 6.)
TO ACTIVATE OPTION:
ADJUST FAN SPEED
Press the b Button to alter the
Fan Speed.
Fan Speed Cycle:
LOW --t MED --) HIGH + LOW
AIR SWING
Press the 4 Button to activate the
Air Swing option.
NOTE: Press the 4 Button again to
deactivate the Air Swing option.
PRESS:
0
laD
v
DISPLAY SHOWS:
12

The DRY Cycle allows your air conditioner to operate as a dehumidifier. It removes excess
moisture from the room air without providing significant cooling. The fan defaults to the
optimal speed for the cycle.
TO ACTIVATE DRY CYCLE:
-~ -----
1. Press MENU Button.
2. Press the 4 Button to select the
DRY Cycle.
-I-
t
t
I
PRESS:
_-
cl MENU
0
lAD
\I/
DISPLAY SHOWS:
Cycle options (For a full description of cycle options, see page 6.)
TO ACTIVATE OPTION:
AIR SWING
Press the 4 Button to activate the
Air Swing option.
NOTE: Press the 4 Button again to
deactivate the Air Swing option.
ADJUST FAN SPEED
Press the b Button to alter the
Fan Speed.
Fan Speed Cycle:
LOW + MED + HIGH + LOW
PRESS:
0
lAD
v
DISPLAY SHOWS:
13

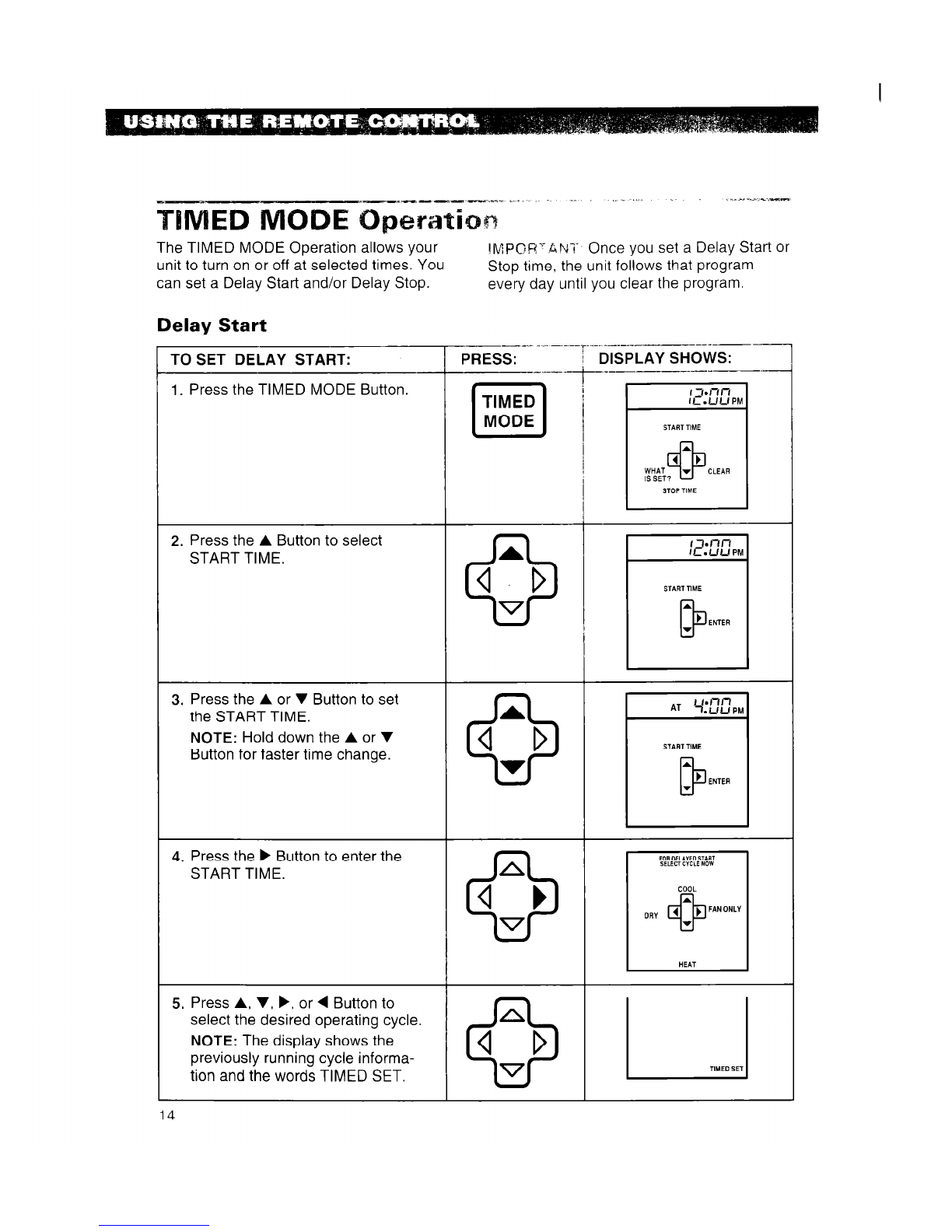

The TIMED MODE Operation allows your
unit to turn on or off at selected times. You !MPOR’AWC Once you set a Delay Start or
Stop time, the unit follows that program
can set a Delay Start and/or Delay Stop. every day until you clear the program.
Delay Start
TO SET DELAY START:
1. Press the TIMED MODE Button.
2. Press the A Button to select
START TIME.
3. Press the A or V Button to set
the START TIME.
NOTE: Hold down the A or V
Button for faster time change.
4. Press the b Button to enter the
START TIME.
5. Press A, V, b, or 4 Button to
select the desired operating cycle.
NOTE: The display shows the
previously running cycle informa-
tion and the words TIMED SET.
PRESS:
I
TIMED
MODE
0
a:D
v
0
aAD
v
0
aAb
v
0
aAD
T7
DISPLAY SHOWS:
START TIME
CLEAR
START TIME
AT I
START TIME
TIMED SET
14

Delay Stop
;_TO SET DELAY STOP:
.~ - ~-~. -.---.- --
i PRESS:
: Press TIMED MODE Button.
j 2. Press the V Button to select
STOP TIME.
3. Press the A or V Button to set
the desired STOP TIME.
4. Press the b Button to enter the
STOP TIME.
NOTE: The display shows the
previously running cycle informa-
tion and the words TIMED SET.
Once the STOP TIME is reached,
the air conditioner turns itself off.
,
c
1.-
1--
I
!
I
I
/
I
I
I
I
I
I-
__--.
DISPLAY SHOWS:
__,___ __.__.. ----_
.)-tl7
:i!.,Ll PN
STOP TIME
:J?:EcPY
AUTO
FAN SPEED
15

To Check What is Set
--
TO CHECK WHAT IS SET:
1. Press the TIMED MODE Button.
2. Press the 4 Button to select
WHAT IS SET?.
NOTE: The Display shows the
Delay Start Time and operating
cycle for a few seconds followed
by the Delay Stop Time for a few
seconds. If no time has been set,
the display returns to the previ-
ously running cycle information.
TO CLEAR A SETTING:
To Clear a Setting
1
1. Press the TIMED MODE Button.
2. Press the F Button to select
CLEAR.
NOTE: Display shows previously
running cycle information. TIMED
SET no longer shows in the
display.
PRESS:
TIMED
cl
MODE
0
laD
77
PRESS:
TIMED
cl
MODE
0
aAb
v
-_- ..-------
DISPLAY SHOWS:
DISPLAY SHOWS:
16

Caring for the Remote
Control
Proper maintenance of your remote control ensures longer life. This section tells you how to
perform general maintenance for your remote control.
Wipe clean with a soft, dry cloth.
h; ‘!‘F! DO NOT immerse the remote control
in water. Doing so could damage the
batteries and the internal electronics of the
remote control.
Under normal use and operating conditions,
you should replace the batteries in the
remote control once a year. However, if the
air conditioner stops responding to the
remote control, the batteries could be low
and need to be changed.
BAlTERIES: (2) AAA Alkaline
Replacing the batteries
IMPORTANT: Every time you replace
the batteries or cut the power to the
remote control, your SETTING 1 Button
loses its program and the time of day
setting. You will have to reprogram the
SETTING 1 Button and the time of day.
17

Troubleshooting
Performance problems often result from little things you can find and fix yourself, without
tools of any kind. Check the chart below for problems you can fix. It could save you the cost
of a service call
-- --
PROBLEM -.--_ -_
-_ - - -- - -- -- -.-
Unit starts
unexpectedly
__-- __----
Unit stops
unexpectedly
Unit does not
respond to
remote control
Unit does not
remember your
cycle settings
----- ._.-- - - _ ____ -.._ __ --__I. .-
POSSIBLE SOLUTION
_---- .---- - - --__--_- ----_~----
Check if Delay Start is set. See pages 14-16 for more information
on TIMED MODE Operations.
_-_ I ___- - I _______ - _ _ - __.-.-- .- - -_ . _~
Check if Delay Stop is set, See pages 14-16 for more information
on TIMED MODE Operations.
Make sure unit is plugged into a live circuit with proper voltage.
Check if a household fuse has blown or the circuit breaker tripped.
Make sure unit is turned on.
See if the local power has failed.
_.--- -.-- --------- ~ _-.. -..____ .~^_
_.__---I
Replace the batteries in the remote control. If this does not work,
call for service on your remote control.
I--- -- ----~~-_--____---.-_
Every time you replace the batteries or cut the power to the remote
control, your SETTING 1 Button loses its setting and the time of
day setting. You will have to reset the SETTING 1 Button and the
time of day.
--_-
Obtaining Service
If the problem is not due
to an item listed in the
chart above ...
Contact the dealer from whom you
purchased the unit or an authorized
Whirlpool* service company.
PART NO. 1180866
0 1995 WhIrlpool Corporation * Rqstered Trademark of WhIrlpool Corporal~on, U.S A 5/95
PrInted ,n U.S.A
