Whirlpool AWG 874/D User manual

How to use the washing machine
To remove any residual water used in testing by the manufacturer, we recommend that you carry out a short wash cycle without laundry.
Open the tap. Close the door. Pour a small amount of detergent (about 30 ml) into the detergent dispenser.
Select a short wash programme (see programme chart). Press the ”Start/On Off” button (depends on model).
Sort the laundry Sort the laundry according to:
Fabric type / care label symbol
Cottons, mixed fibres, easy care/synthetics, wool, handwashed items.
Colours
Separate coloured and white articles. Wash new coloured articles separately.
Size
Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum.
Delicates
Wash delicates separately: Use a special programme for Wool , curtains and other delicates. Always remove
curtain glides or wash curtains with the glides inside a cotton bag. Use the special program for handwash fabrics.
Wash small articles (e.g. nylon stockings, belts etc.) and articles with hooks (e.g. bras) in special cotton bags for
washing machines or in zipped pillow cases.
Prepare the laundry Empty all pockets
Coins, safety pins and similar items can damage your laundry and the appliance drum.
Closures
Close zips and hooks and eyes; loose belts or ribbons should be tied together.
Stain removal
Blood, milk, egg etc. are generally removed by the enzyme phase of the programme.
To remove red wine, coffee, tea, grass and fruit stains etc. add a stain removing agent in detergent dispenser
or chlorine bleach in compartment (depending on model). Particularly stubborn stains can be treated
with stain remover before the wash.
Dyeing and Bleaching
Commercially available products usually consist of a dye colour, fixing agent and salt. Pour the dye colour, the
fixing agent and then the salt directly into the empty drum. Load the laundry only afterwards. Use exclusively
dyes and bleaches recommended for washing machines. Follow the Manufacturer’s instructions. Plastic and
rubber components of the machine can be stained by dyes. Make sure that all zips are closed and pockets are
empty. Make sure there are no cigarette lighters among the items. Turn the items of clothing inside out.
Open the door To open the door press the button inside the handle and pull. If the child lock is active, deactivate it.
Load the laundry
and close the door For optimal washing results, place items loosely into the washing machine. Close the door.
Choose and
measure out the
detergent and
additives
The type of detergent depends on:
The type of fabric (cottons, synthetics, delicates, wool - when washing woollens remember to use a detergent
suitable for woollens), the colour, the washing temperature, the degree and type of soiling.
Dosage
Follow the dosage recommendations on the detergent pack. For the water hardness in your area, you can
request information from the water company. Soft water requires less detergent than hard water (refer to the
water hardness table in the operating instructions).
Switch on the
washing machine
and select the
programme
To switch on the washing machine, press the “On/Off” button. To select the programme, turn the knob. The
corresponding symbol will appear on the display. To change the programme once the wash cycle has started,
turn the knob to “ ” and set the new programme.
Select the desired
special options
Select an option by pressing the corresponding button. Press the button again to cancel the option. Selecting
any option the indication lights up. When the combination of programme, additional options and
temperature is not possible, the indication lights switch off automatically. Unsuitable combinations
of options are deselected automatically.
Switch on the
appliance Open the tap and press the “Start” button. The current stage of the programme is shown on the display.
Programme end –
Unload the laundry The Start button switches off at the end of the wash cycle. Check functions.
Switch off the
appliance Turn the knob to “ ”. Turn off the tap. Open the door and unload the machine.
Leave the door ajar to allow the drum to dry out.
3GB20103.fm Page 1 Wednesday, March 10, 2004 7:04 PM
Black process 45.0° 150.0 LPI

* Programmes in conformity with EN 60456.
Programme table Detergent and additives Options
Programme Care
Labels Type of wash Load
kg
Fabric
Softener Main
Wash Prewash Start
Delay Prewash Intensive
Rinse Easy
Ironing Spin Quick
wash
Max.
speed
Spin
Cotton
90°, 75°, 60°, 40°, 30°
Averagely to lightly soiled cottons, bed linen, table linen, underwear, towels, shirts, etc. For heavily soiled loads the “Prewash“ option can also be selected.
3,5 LYes L L L L L L L 1000
Synthetic
60°, 50°, 40°, 30°
Slightly to normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton. For heavily soiled loads the “Prewash“ option can also be selected.
2,0 LYes L L L L L L L 800
Delicate
40°, 30°
Curtains and delicate clothing, dresses skirts, shirts and blouses. “Intensive Rinse” is not possible in this programme.
1,5 LYes —L— — — L—500
Wool
40°, 30°, 20°
Only machine washable woollens with pure new wool label. 1,0 LYes —L— — — L—800
Hand-
wash
Textiles made of linen, silk, wool and viscose marked as “handwashable”. 2,0 LYes —L— — — L—800
Cold
wash
—
Averagely to lightly soiled cottons, bed linen, table linen, underwear, towels, shirts, etc. For heavily soiled loads the “Prewash“ option can also be selected. A spin cycle is carried out at the end of this programme.
3,5 LYes —L—L L L —1000
Rinse
—To rinse and refresh laundry. 5,0 L— — L— — — L—1000
Drain/
Spin
—Drain and spin. — — — — L— — L L —1000
3GB20103.fm Page 2 Wednesday, March 10, 2004 7:04 PM
Black process 45.0° 150.0 LPI

What to do if...
...The appliance will not
start, the Start button
is not blinking:
Check
whether:
•The appliance is plugged in.
•The wall socket is functioning correctly (use a table lamp or similar).
...The appliance will not
start, but the Start
button is blinking:
Check
whether:
•The appliance door is properly closed.
•A programme has been selected.
• The water tap is open. If not, open the tap and press the Start button.
...No water supply: Check
whether:
•The tap is turned on completely.
•Kinks are present in water hose.
•The water hose filter is clogged.
• The water hose is frozen up.
...Waste water not
pumped out: Check
whether:
•The drain hose is correctly installed (see “Installation Instructions” in the
Instructions Manual.
•The filter is clogged.
•The drain hose is frozen up.
...Detergent and
additive product
residues in detergent
drawer at end of wash:
Check
whether:
•The siphon is correctly installed and clean (see “Care and Maintenance” in the
Instructions Manual).
•Enough water is being supplied. The mesh filters between the inlet hose and
the tap could be clogged (see “Care and Maintenance” in the Instructions
manual); check and clean the filter two or three times a year (see “Removing
the filter” in the Instructions Manual).
Note:
Too much detergent can result in excess foam formation, which reduces washing
efficiency. If the appliance detects excessive foam it may prevent spinning.
Insufficient detergent may result in grey laundry, deposits on the drum, tub and
heater. To prevent dispensing problems when using highly concentrated powder
and liquid detergents, use the special detergent ball or bag supplied with the
detergent and place it inside the drum.
Whitish residues on dark fabrics are caused by insoluble compounds used in
modern phosphate-free powder detergents. If this occurs, shake or brush out
the fabric or use liquid detergents.
Keep detergents and additives in a dry place and out of reach of children.
Use only detergents and additives specifically produced for domestic washing machines.
If you use descaling agents, dyes or bleaches, make sure they are suitable for
washing machine use. Descaler could contain components that can attack parts
of your washing machine.
Do not use any solvents (e.g. turpentine, benzine, etc.). Do not machine wash
fabrics that have been treated with solvents or flammable liquids.
...Machine vibrates
during spin cycle: Check
whether:
•The machine is perfectly horizontal with all four feet on ground
(see “Installation” in the Instructions Manual).
•The transit bolts have been removed. The transit bolts must be removed
before the appliance can be used (see “Installation” in the Instructions manual).
...Final spin results are
poor: Check
whether:
The appliance has an imbalance detection and correction system. If individual
heavy articles are loaded (bathmat, bathrobe, etc.) this system may reduce the
spin speed automatically to protect the appliance or even interrupt the spin cycle
altogether, if the imbalance is too great even after several spin starts.
•If the laundry is still too wet at the end of the cycle, add smaller articles of
laundry and repeat the spin cycle.
•Excessive foam formation may also prevent spinning. Ensure correct amount of
detergent is used.
AFTER SALES SERVICE
If, after carrying out the above checks, the malfunction persists or appears again, turn the appliance off and call our After-Sales Service (see
guarantee).
Specify:
•The nature of the problem
•The type and model of washing machine
• The service code (the number after the
word Service). The After-Sales Service
sticker is on the right side of the open door.
3GB20103.fm Page 3 Wednesday, March 10, 2004 7:04 PM
Black process 45.0° 150.0 LPI

5019 301 20103
GB

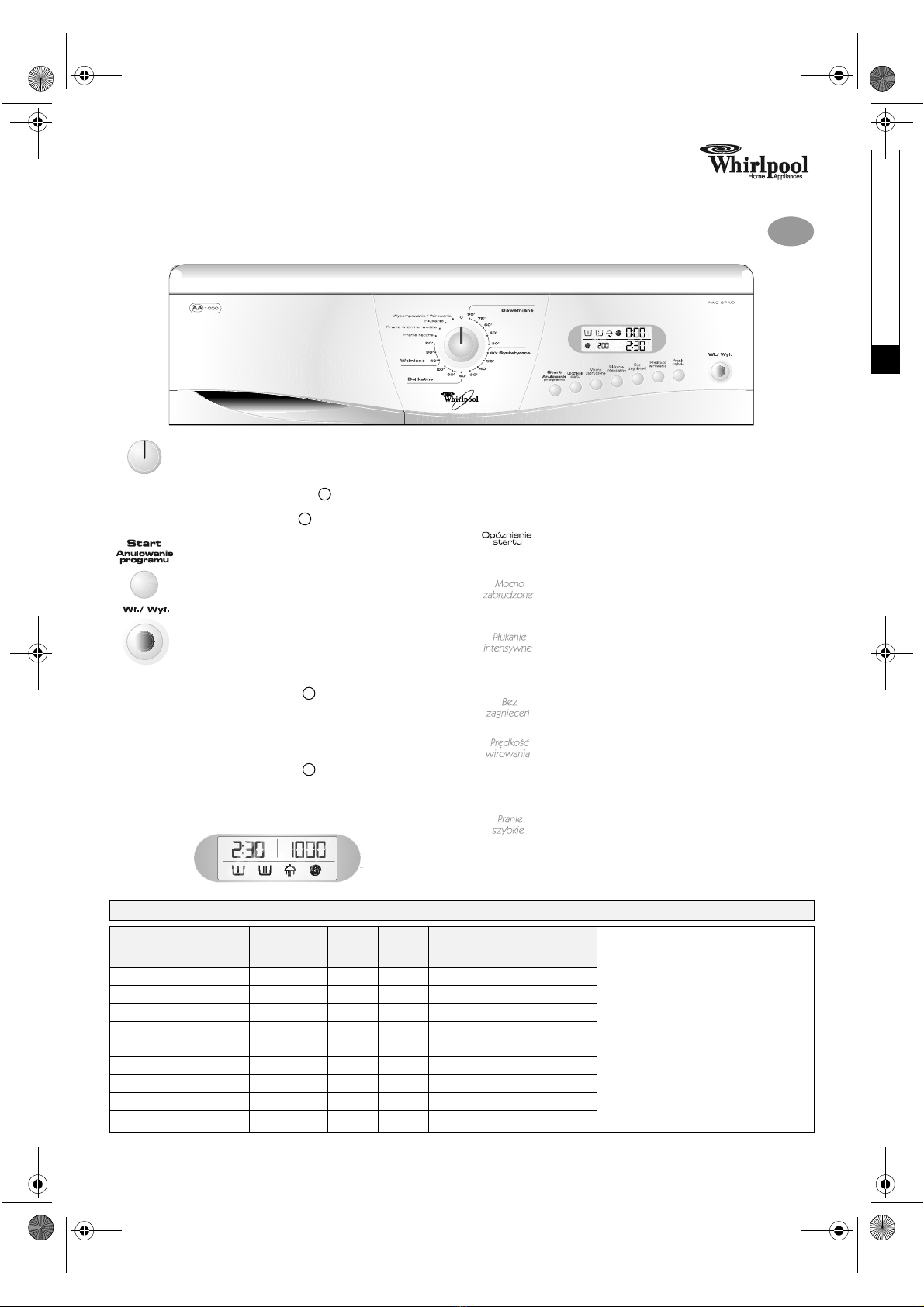

Quick Reference Guide
Please read the Instructions Manual carefully before using your new washing machine
(We reserve the right to make technical modifications)
Whirlpool is a registered trademark of Whirlpool USA
Programme selector
To select a programme, turn the knob.
The corresponding symbol will appear on the display.
To change the programme once the wash cycle has
started, turn the knob to “ ” and set the new
programme.
When the knob is on “ ” three dashes blink on the
display.
Start button
When you press this button, it lights up and the wash
cycle starts. At the end of the wash cycle the light will
turn off and END will appear on the display.
On/Off button
This button switches the washing machine on/off.
Changing or interrupting the programme during the wash cycle
Turn the programme selector to the “”
position.
Select the new programme (with temperature), any options and
another spin speed if you want.
Press the “Start” button again. If the “On/Off” button is pressed, no
detergent has to added.
Cancelling a programme before the end
Turn the programme selector to the “”
position.
Set the programme selector to programme setting “Drain/Spin.
Press the “Start” button to start the “Drain/Spin” cycle.
Display
Shows the wash cycle sequence.
Options
Selecting any option the indication lights up .
When the combination of programme, additional options and
temperature is not possible, the indication lights switch off
automatically. Unsuitable combinations of options are deselected
automatically.
Start Delay
Delays the start of the wash cycle by 1 to 16 hours.
Each time the button is pressed, the start of the wash
cycle is delayed by 1 hour.
Prewash
Only for heavily soiled laundry (e.g. sand, granular
dirt). Programmes with Prewash last approx. 15
minutes longer.
Intensive rinse button
More water and a longer time in rinse cycle is added.
The intensive rinse function is especially suitable for
areas with particularly soft water, for baby clothes
and to help people with allergies.
Easy Ironing
Can be used together with Cotton and Synthetic
programmes to make ironing easier.
Spin
Every programme has an automatic predefined
maximum spin speed.
Press the button to select a different spin speed.
If the spin speed “0” is selected, the final spin is
cancelled. The water is drained out only.
Quick wash
For quick, economical washes. Especially suitable for
small, lightly soiled loads. This option can be used
with Cotton and Synthetic programmes. Selecting this
function allows you to shorten the wash cycle time
depending on the temperature.
Note: reduce the detergent quantity.
Power and water consumption data
Programme Te m p e r a t u r e selector
(°C)
Load
(kg)
Water
(l)
Energy
(kWh)
Programme Duration
approx.
(hours : minutes)*
Prewash cycle increases programme duration
by approx. 15 minutes. Consumption values
were measured in normalized conditions in
compliance with Standard IEC 60 456.
Consumption data in the home may vary with
respect to the values in the table in relation to
the water supply pressure and temperature,
the load and the type of wash.
* The remaining time display may differ from
the values given in the table since it
depends on the conditions of use in the
home.
** To reduce the water temperature, some
cold water is added at the end of the main
wash cycle, before the pump drains the
water out.
Cotton 90 3.5 49** 1.20 1:56
Cotton 60 3.5 44 0.67 2:13
Cotton 40 3.5 44 0.38 2:00
Synthetics 60 2.0 42 0.80 1:44
Synthetics 40 2.0 42 0.43 1:34
Synthetics short 30 2.0 30 0.30 0:40
Delicate 30 1.5 47 0.45 0:53
Wool 40 1.0 58 0.45 0:48
Handwash 30 1.0 55 0.25 0:51
3GB20103.fm Page 4 Wednesday, March 10, 2004 7:04 PM
Black process 45.0° 150.0 LPI
