Whirlpool LA6800XM User manual

AUTOMATIC
WASHERS
Super Capacity
Model
LA6800XM
~.HIiB&s&,5,.js~*%~*
. _j .B*~s:;*> 1_ -sf : i..’ *-+%&?2‘~~ ‘p*meFi’~*
Nave OVens. Trash Compactors. Room AM Conditioners, Oehumldlfiers, Aulomallc Washers, Clothes Dryers, Freezers, Aefngerator-Freezer

Parts and features
LAUNDRY
MAGIC CLEAN@
LINT FILTER
(not shown)
ODEL AND SERIAL
NUMBER PLATE
(not shown)
- LIQUID BLEACH
DISPENSER
-AGITATOR
BASKET
- TUB
Remove the Consumer
Buy Guide label. It will be
easier to remove before
the washer is used.
You should wipe out the
basket with a damp cloth
before using to remove
dust from storing or
shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Model Number
1. Complete Model and Serial Num-
bers(from plate underthe lid nearthe
hinqel. Serio, Number
2. Purchase date from sales slip-
Copy this information in these spaces. Purchase Date
Keep this book in the Laundry Informa-
tion Center with your”Laundry Guide,”
sales slip and warranty. Service Company:
Phone Number
There is no warranty registration to return, Proof-of-purchase is all
that is required for in-warranty service.
2

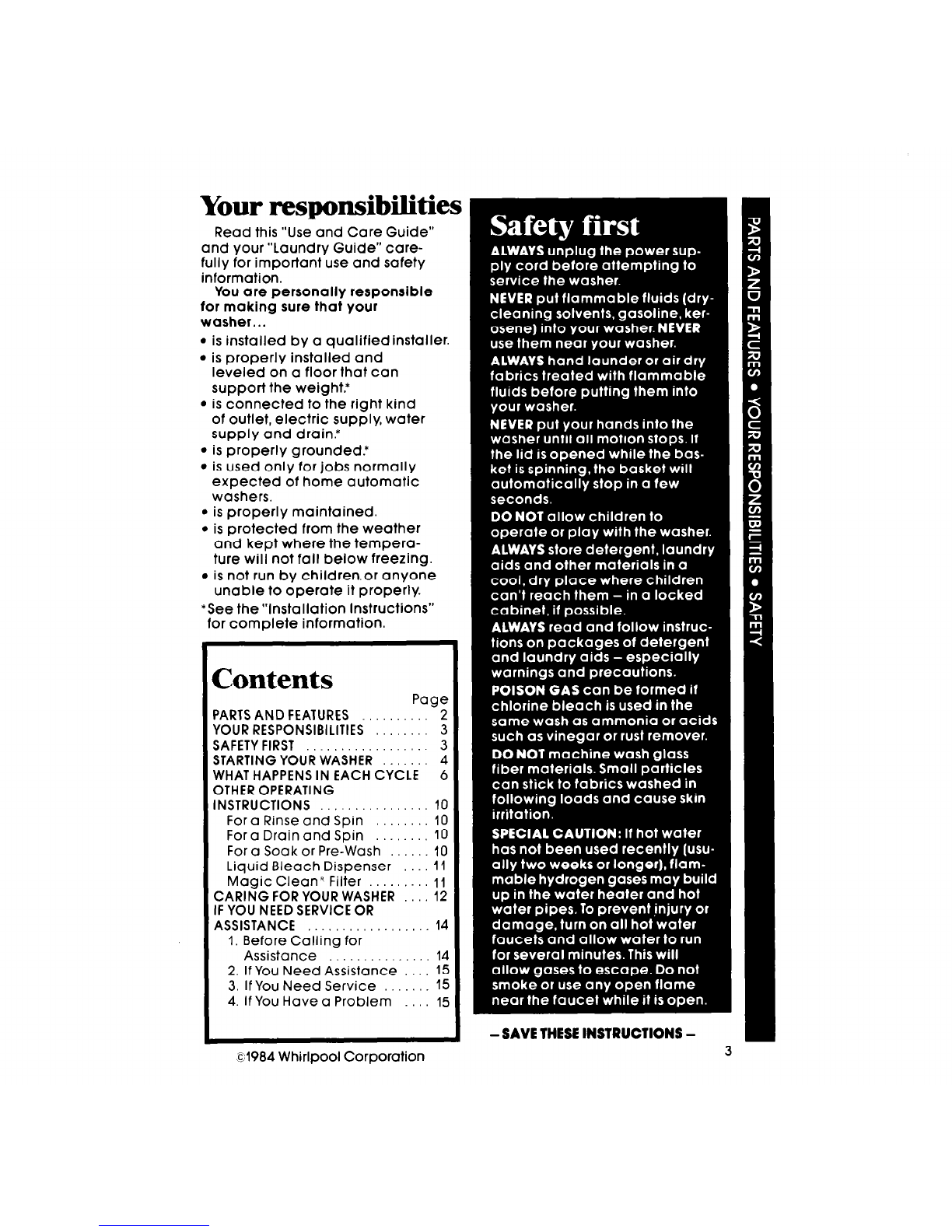

Your re
Read this “Use and Core Guide”
and your “Laundry Guide” care-
fully for important use and safety
information.
You ore personally responsible
for making sure that your
washer.. .
l is installed by a qualifiedinstaller.
l is properly installed and
leveled on a floor that con
support the weight.’
l is connected to the right kind
of outlet, electric supply, water
supply and drain.”
l is properly grounded.*
l is used only for jobs normally
expected of home automatic
washers.
l is properly maintained.
l is protected from the weather
and kept where the tempera-
ture will not fall below freezing.
l is not run by children-or anyone
unable to operate it properly.
*See the”lnstallation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES 2
YOUR RESPONSIBILITIES 3
SAFETY FIRST 3
STARTING YOUR WASHER 4
WHAT HAPPENS IN EACH CYCLE 6
OTHER OPERATING
INSTRUCTIONS 10
For a Rinse and Spin 10
For a Drain and Spin IO
For a Soak or Pre-Wash IO
Liquid Bleach Dispenser 11
Magic Clean” Filter 11
CARING FOR YOUR WASHER 12
IF YOU NEED SERVICE OR
ASSISTANCE . . . . . . . . . . . . . . . . ..I4
1. Before Calling for
Assistance 14
2. If You Need Assistance 15
3. If You Need Service 15
4. If You Hove a Problem 15
~~1994Whirlpool Corporation
-SAVE THESE INSTRUCTIONS - 3

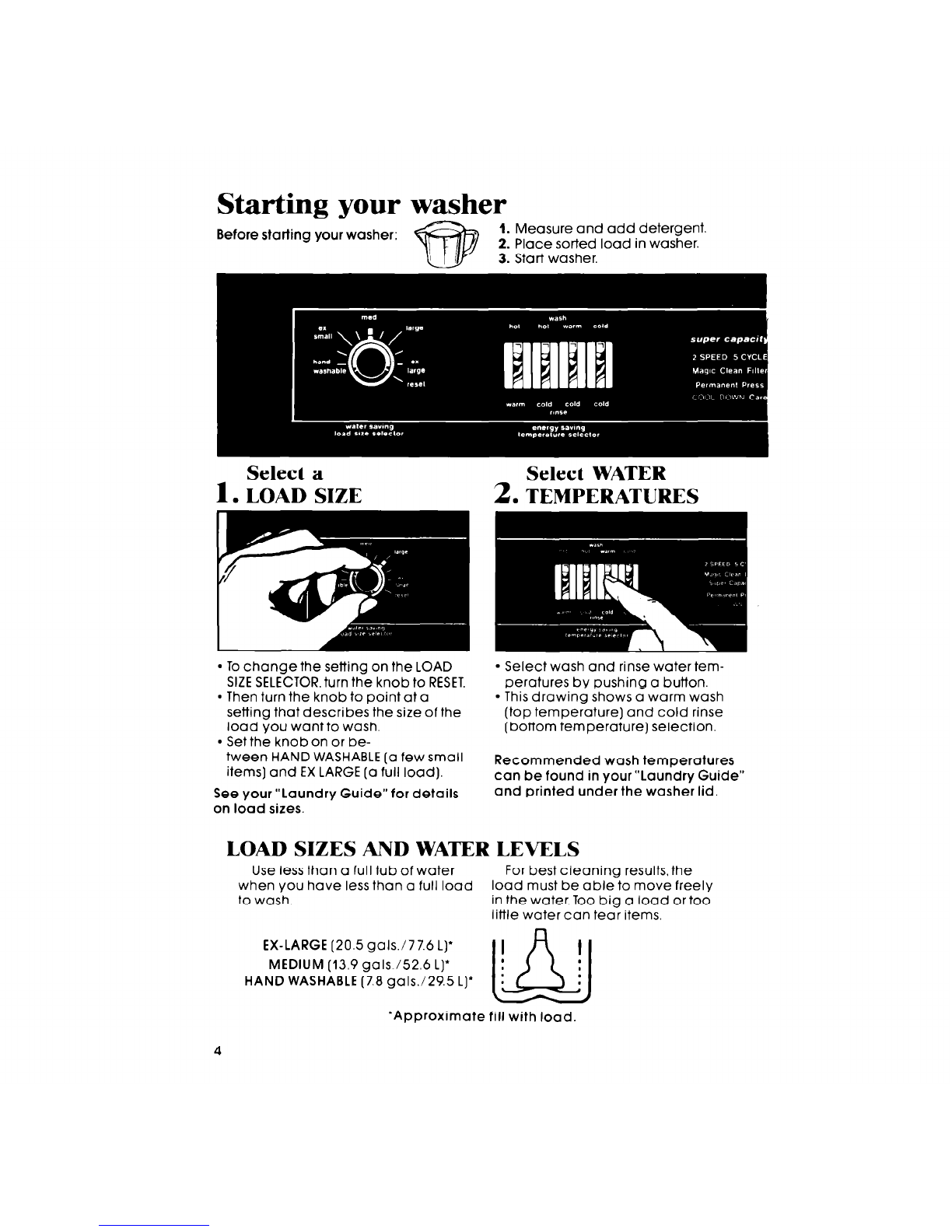

Starting your washer
Before starting your washer: w 1. Measure and add detergent.
2. Place sorted load in washer.
3. Start washer.
Select a
1. LOAD SIZE Select WATER
2. TEMPERATURES
l To change the setting on the LOAD
SIZESELECTOR, turn the knob to RESET.
l Then turn the knob to point at a
setting that describes the size of the
load you want to wash.
l Set the knob on or be-
tween HAND WASHABLE (a few small
items] and EX LARGE [a full load).
See your “Laundry Guide” for details
on load sizes.
l Select wash and rinse water tem-
peratures by pushing a button.
l This drawing shows a warm wash
(top temperature) and cold rinse
[bottom temperature) selection.
Recommended wash temperatures
can be found in your “Laundry Guide”
and printed under the washer lid.
LOAD SIZES AND WATER LEVELS
Use less than a full tub of water For best cleaning results, the
when you have less than a full load load must be able to move freely
to wash. in the water. Too big a load or too
little water can tear items.
EX-LARGE (20.5 gals./77.6 L)’
MEDIUM (13.9 gals 152.6 L)’ ! I
I
HAND WASHABLE (7.8 gals./29.5 L)’ L&J
,
: :
‘Approximate fill with load.
4

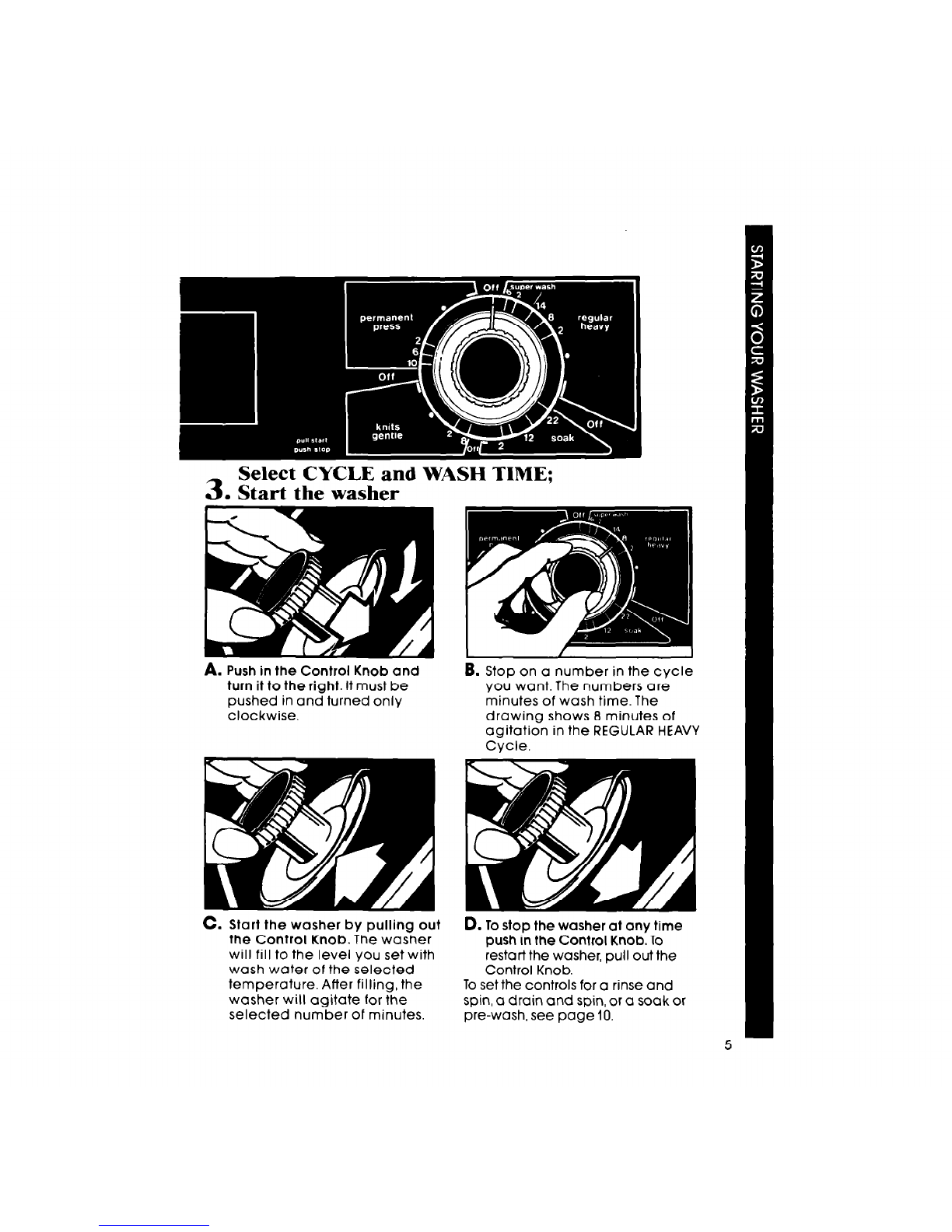

3. Start the washer
A. Push in the Control Knob and
turn it to the right. It must be
pushed in and turned only
clockwise.
B. Stop on a number in the cycle
you want. The numbers are
minutes of wash time. The
drawing shows 8 minutes of
agitation in the REGULAR HEAVY
Cycle.
C. Start the washer by pulling out
the Control Knob. The washer
will fill to the level you set with
wash water of the selected
temperature. After filling, the
washer will agitate for the
selected number of minutes.
D. To stop the washer at any time
push in the Control Knob. To
restart the washer, pull out the
Control Knob.
To set the controls for a rinse and
spin, a drain and spin, or a soak or
pre-wash, see page 10.

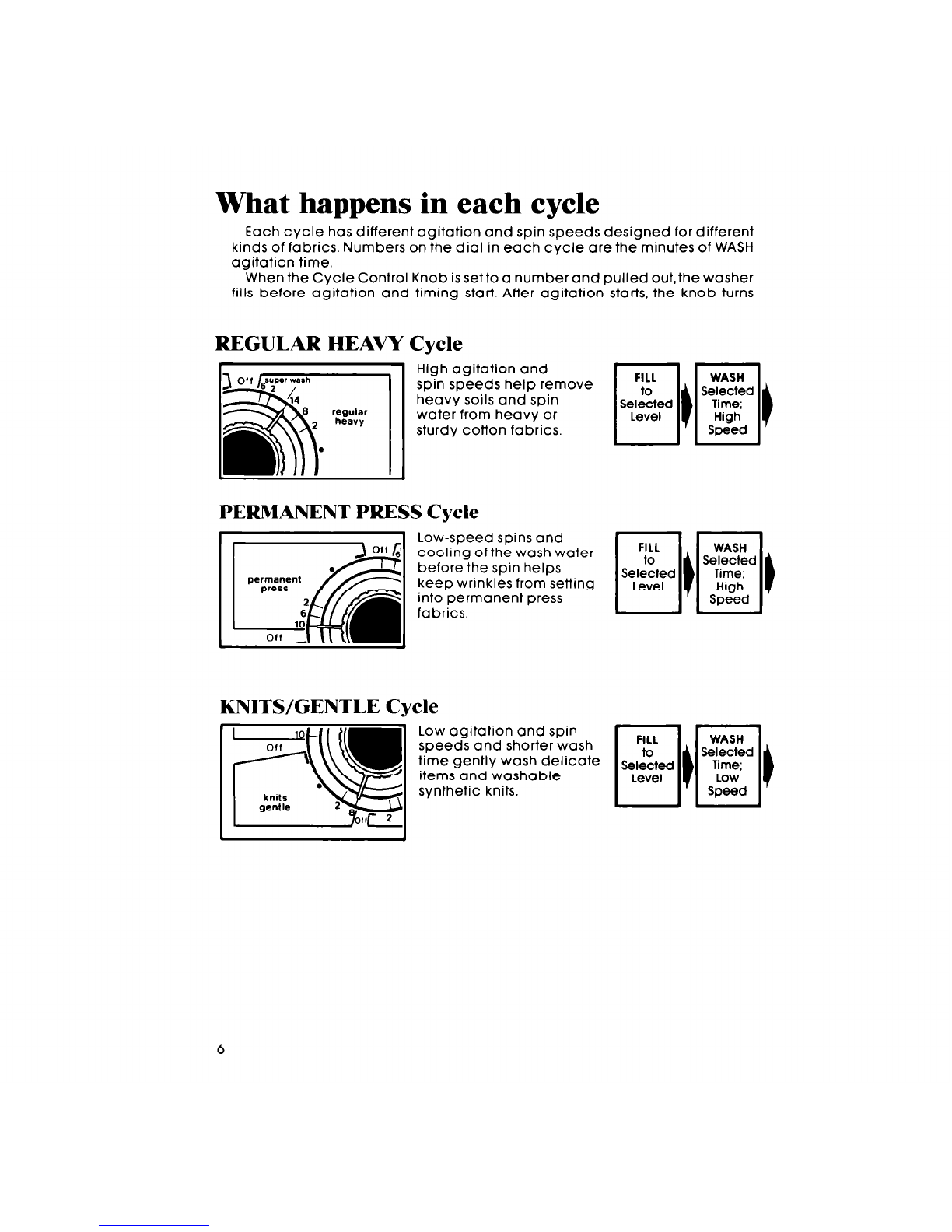

What happens in each cycle
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is set to a number and pulled out, the washer
fills before agitation and timing start After agitation starts, the knob turns
REGULAR HEAVY Cycle
High agitation and
spin speeds help remove
heavy soils and spin
water from heavy or
sturdy cotton fabrics.
PERMANENT PRESS Cycle
Low-speed spins and
cooling of the wash water
before the spin helps
keep wrinkles from setting
into permanent press
fabrics.
KNITS/GENTLE Cycle
I
10
Off
m
f!!F
.
kmts
gentle 2
OllE
Low agitation and spin
speeds and shorter wash
time gently wash delicate
items and washable
synthetic knits.
6

clockwise until it points to OFF and the cycle ends.

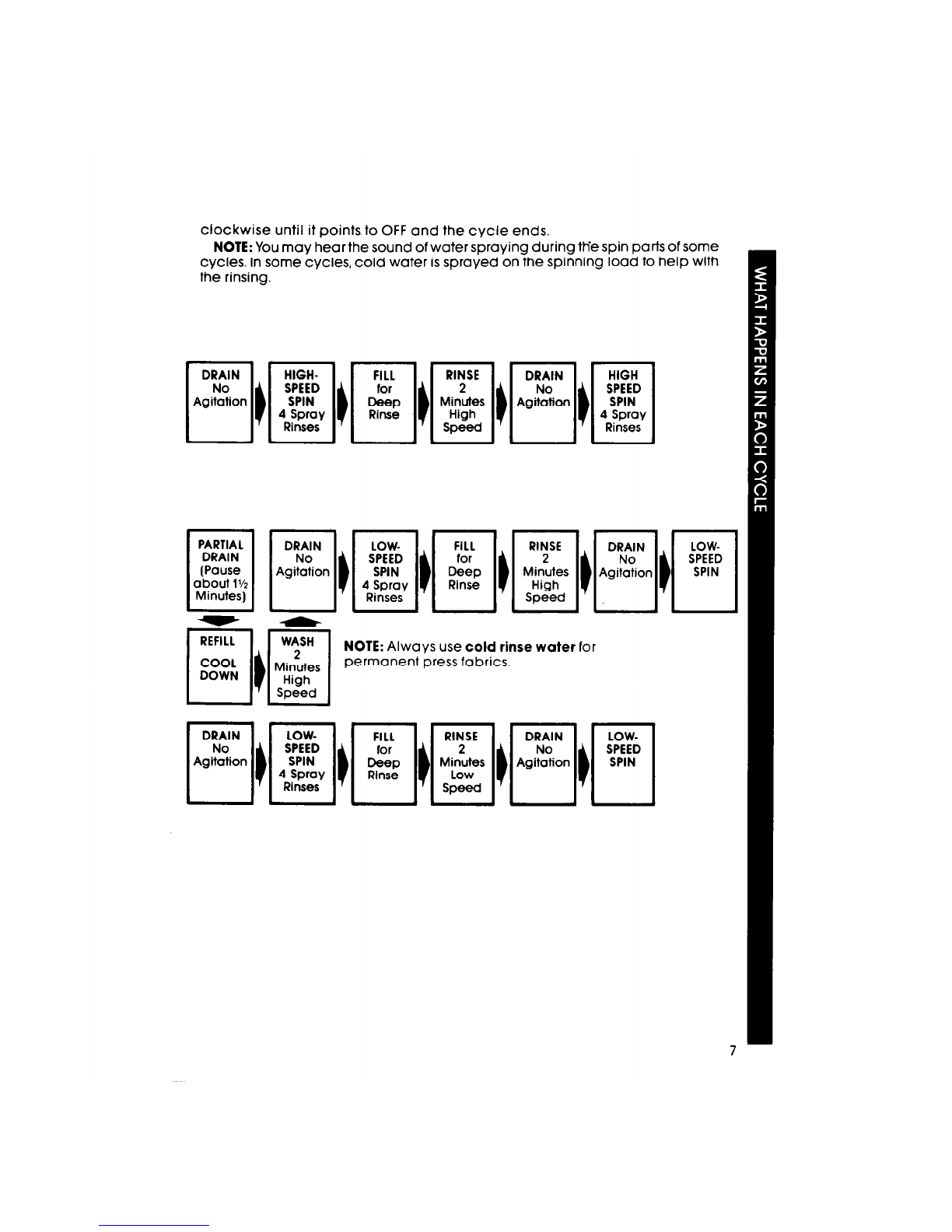

NOTE: You may hear the sound of water spraying during th’e spin parts of some
cycles. In some cycles, cold water is sprayed on the spinning load to help with
the rinsing.
NOTE: Always use cold rinse water for
permanent press fabrics.

SOAK Cycle
m -
J
LiKl
22
I Off
12
,,I 2
soak
. SUPER WASH Cycle
Periods of agitation
and soaking time Clean
stained, yellowed, gray
or heavily soiled laundry
with no rinsing. Use
recommended amount
of detergent.
Use for washing heavily
soiled or stained load that
needs extra agitation. Use
twice the recommended
amount of detergent when
using Super Wash. -II
8

Special care is needed when soaking or pre-washing laundry.
See your %aundry 6ulde” for proper use of this cycle.
The washer will proceed to
the Regular/Heavy Cycle. If
you want a ditferent cycle to
ioltow Super Wash, push in
thecycle Control Knob, turn
to the cycle and time you
want, pull knob out fo start.

Other operating instructions
For a rinse and spin For a drain and spin
You may need an extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra de-
tergent can require an extra rinse.]
l Push Control Knob in.
l Turn clockwise to any l on the dial.
See above drawing.
l Pull Control Knob out.
l The washer will fill to selected level
with cold water,agitate 2 minutes,
drain and spin.
Your washer can be set to drain
and spin out water.
l Push Control Knob in.
l Turn clockwise to the bar just before
OFF in any cycle. See above
drawing.
l Pull Control Knob out.
l The washer will drain and spin.
For agitation and spin speeds in each cycle.see Pages 6 to 9
For a soak or pre-wash
For best results, use warm water
for soaking or pre-washing stained
laundry.
l Use enough detergent or pre-soak
product for a single load.
l Push Control Knob in.
l Turn clockwise to point at a number
in the SOAK Cycle...use the 12-
minute mark for a pre-wash.
l Pull Control Knob out. [After filling,
the washer may pause before
starting to agitate.]
- When the cycle is over, add de-
tergent for the next selected wash
cycle. Important: See additional
care information on page 7 of your
“Laundry Guide!’
Set the washer and start the next
selected wash cycle.
To start the soak or pre-wash with agitation. the Cycle Control
Knob must point to a number in the SOAK Cycle.
10

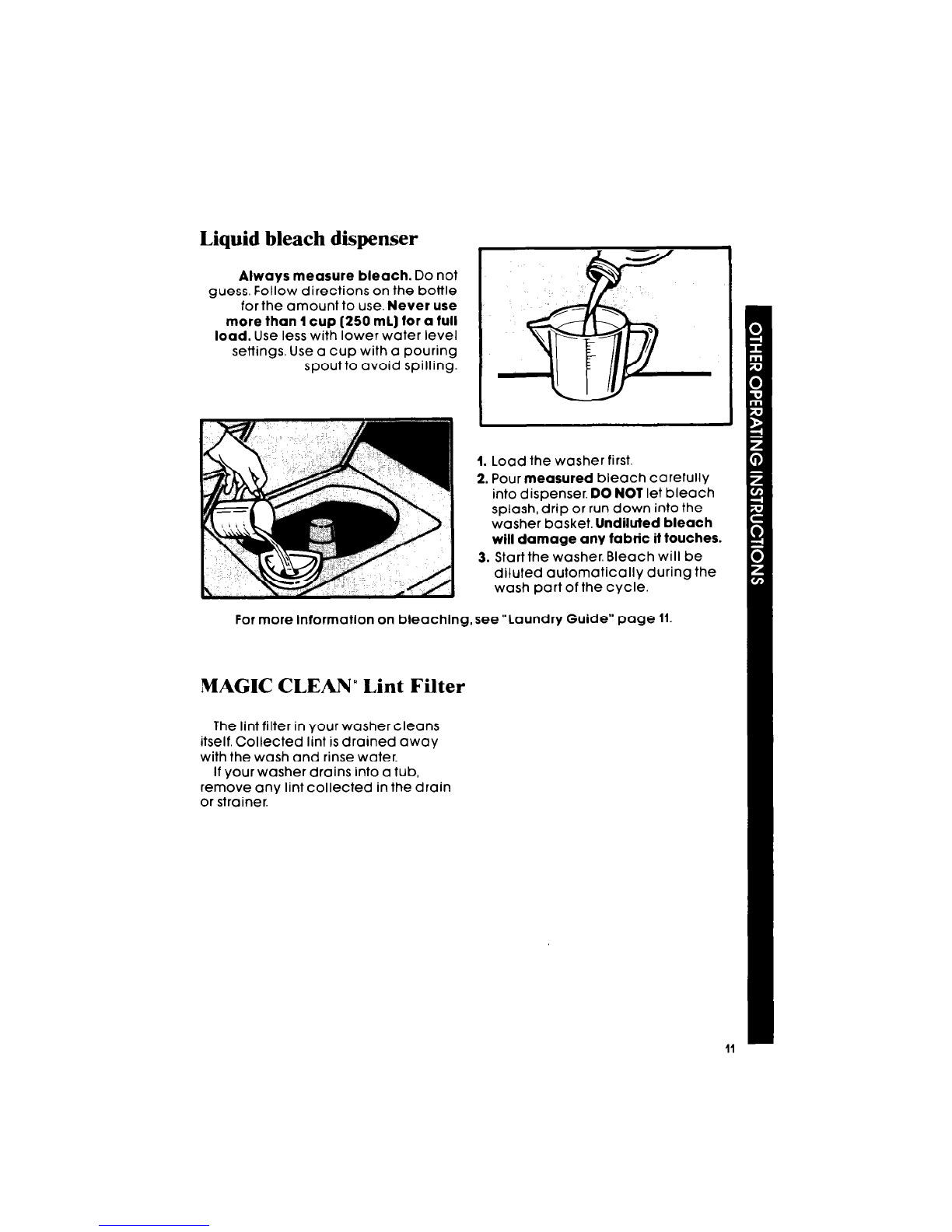

Liquid bleach dispenser
Always measure bleach. Do not
guess. Follow directions on the bottle
for the amount to use. Never use
more than 1 cup (250 ml) for a full
load. Use less with lower water level
settings. Use a cup with a pouring
spout to ovoid spilling.
I. Load the washer first.
2. Pour measured bleach carefully
into dispenser. DO NOT let bleach
splash, drip or run down into the
washer basket. Undiluted bleach
will damage any fabric it touches.
3. Start the washer. Bleach will be
diluted automatically during the
wash port of the cycle.
For more information on bleaching, see”Laundry Guide” page 11.
MAGIC CLEAN” Lint Filter
The lint filter in your washer cleans
itself. Collected lint is drained away
with the wash and rinse water.
If your washer droins into a tub,
remove any lint collected in the drain
or strainer.

Caring for your washer
OF
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
ond hoses.
AFTER WASHING, use Q soft dry cloth
to wipe the outside and inside dry.
leave the lid up until the basket is dry.
Wipe up spills right away. Spills can
dull or damage the finish.
REMOVE SHARP OBJECTS such as pins,
buckles, etc., from clothes before
washing. Close metal zippers.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pockets for bolts, nuts,
tools, etc.
SOME PRETREATMENT PRODUCTS
can damage washer and dryer dials,
consoles and finishes. Do not use
these products on or near your
washer or dryer.
12

WINTERIZING
Because some water stays in the washer, freez-
ing can cause a lot of damage. If your washer is
stored or moved during the cold weather
1. Shut off both water
faucets. Discon-
nect and drain
water inlet hoses.
2. Put a quart of
automobile-type
antifreeze in the
basket.
ON
To use the washer again.. .
4. Run the washer
through a com-
plete cycle with
one cup of deter-
1. Flush water pipes and hoses. gent to clean out
2. Connect hoses to the washer. the antifreeze.
3. Turn on the water faucets,
3. Set the washer for a
DRAIN and SPIN
(see page 8). Let it
run for about 30
seconds to mix the
antifreeze and
water.

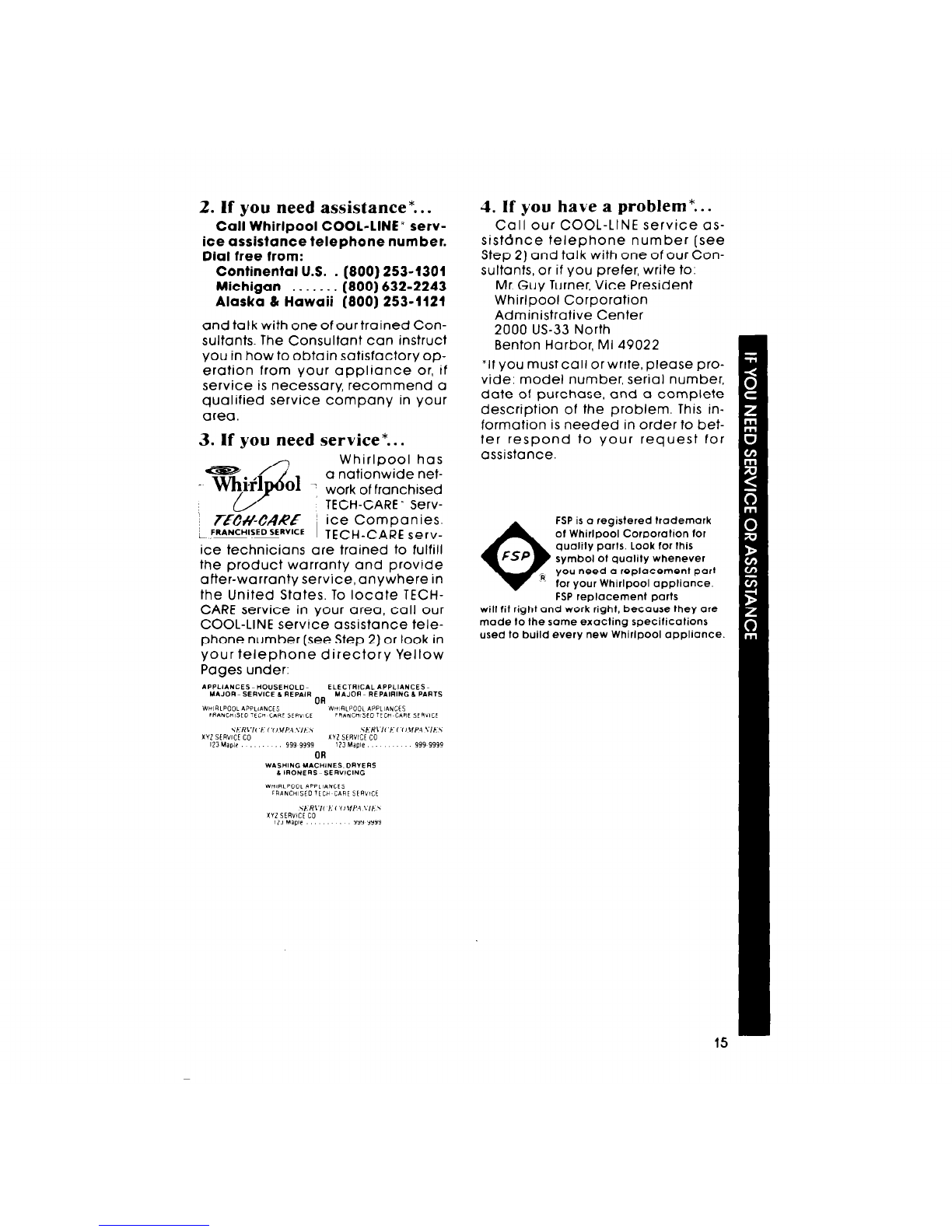

If you need service or assistance, we suggest
you follow these four steps:
1. Before callin
for assistance.. .
Performance problems often
suit from little things you can find
and fix yourself without tools of any
kind.
IF YOUR WASHER DOES NOT FILL:
l Is the power supply cord
l Are both water faucets open?
l Are fuses blown or circuit-breaker
tripped?
l Are the water supply hoses
kinked?
l Is the Cycle Control Knob set and
pulled out?
IF YOUR WASHER DOES NOT SPIN:
l Is the lid closed?
l Is the power supply cord
plugged in?
l Is a fuse blown or circuit-breaker
tripped?
IF YOUR WASHER STOPS DURING
THE PERMANENT PRESS CYCLE:
l Remember, the washer will stop
for about 1% minutes after the
partial drain during the cool-
down period in this cycle.
IF WASHER FILLS AND DRAINS
WITHOUT RUNNING:
l Make sure that the Cycle Control
Knob is pointing to a number in
the cycle.
MAKE SURE THE DRAIN HOSE IS
HIGHER THAN THE WATER LEVEL IN
THE WASHER. IF IT ISN’T...
l The washer may seem to be
draining during wash and rinse
cycles.
l Water can siphon out. (See “ln-
stallation Instructions:‘)
14

2. If you need assistance *...
Call Whirlpool COOL-LINE” serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . . . . [phone]
Alaska 81Hawaii [phone]
and talk with one of our trained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory op-
eration from your appliance or, if
service is necessary, recommend a
qualified service company in your
area.
3. If you need service *.. .
Whirlpool has
a nationwide net-
- work of franchised
v TECH-CARE’ Serv-
: TECU-CAFE
L FR*HCHISEoSERVICE
~ ice Companies.
~.~ J
TECH-CARE serv-
ice technicians are trained to fulfill
the product warranty and provide
after-warranty service, anywhere in
the United States. To locate TECH-
CARE service in your area, call our
COOL-LINE service assistance tele-
phone number [see Step 2) or look in
your telephone directory Yellow
Pages under:
C.PPLI*HCES~~O”SEnOLO~ELECTRICALAPPLIANCES-
MAJOR-SERYICELREPAIR
Otl
PANOR-REPAIRwiG6PARTS
WHlRLPOOL*PPLIANCtS
WHlRLPOoLAPPLl4NCtS
m*NCHlStOTECHCARESIRYICEFRANCHIS~OTFCHCAMSER”lCE
\6RV,C6c,,Lrmx/t.9 \LH\~I~2,OMP4V,b\
XYZSLRYICFco xuStRVlCtco
I23MPDID 9999999 123Maple 9999999
OR
WASHINGMACHINES.DR”ERS
LIROHEFlS-SERYICINC
WHiRLPOOLAPPLlANCtS
lRbNCnlSLOTttHCARESkRVlU
4. If you have a problem*...
Call our COOL-LINE service as-
sistdnce telephone number (see
Step 2) and talk with one of our Con-
sultants, or if you prefer, write to:
Mr. Guy Turner, Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, Ml 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This in-
formation is needed in order to bet-
ter respond to your request for
assistance.
0
FSP is a registered trademark
of Whirlpool Corporation for
FSP
quality parts. Look for this
symbol ot quality whenever
k
you need o replacement part
for your Whirlpool appliance.
FSP replacement parts
will fit right and work right, because they are
made lo the same exacting specifications
used to build every new Whirlpool appliance.

*--
- .’
Making your world a little easier.
Part No. 383168 Rev. 8
01984 Whirlpool Corporation Printed in U.S.A.
mat~c Washers, Clothes Dryers. Freezers, Refrigerator-Freezers, Ice Makers, Dishwashers. Bwll-In Ovens and Surface Units. Ranges. MIC
