CONSUMER SERVICES TECHNICAL
EDUCATION GROUP PRESENTS
L-78
JOB AID
Part No. 8178558
FRONT-LOADING
AUTOMATIC
WASHER
MODELS: WFW8300SW, WFW8500SW, WFW8500SR

- ii -
WHIRLPOOL CORPORATION assumes no responsibility for any repairs
made on our products by anyone other than Authorized Service Technicians.
FORWARD
This Whirlpool Job Aid, “Duet Sport™ Front-Loading Automatic Washer” (Part No. 8178558),
provides the technician with information on the installation, operation, and service of the Duet
Sport™ Front-Loading Automatic Washer. For specific information on the model being serviced,
refer to the “Use and Care Guide,” or “Tech Sheet” provided with the washer.
The Wiring Diagram used in this Job Aid is typical and should be used for training purposes only.
Always use the Wiring Diagram supplied with the product when servicing the unit.
GOALS AND OBJECTIVES
The goal of this Job Aid is to provide information that will enable the service technician to prop-
erly diagnose malfunctions and repair the Duet Sport™ Front-Loading Automatic Washer.
The objectives of this Job Aid are to:
Understand and follow proper safety precautions.
Successfully troubleshoot and diagnose malfunctions.
Successfully perform necessary repairs.
Successfully return the washer to its proper operational status.
•
•
•
•
Copyright © 2006, Whirlpool Corporation, Benton Harbor, MI 49022

- iii -
TABLE OF CONTENTS
Page
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Washer Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Model & Serial Number Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Model & Serial Number Label And Tech Sheet Locations . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
INSTALLATION INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
PRODUCT OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Features And Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Washer Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Washer Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
COMPONENT ACCESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Component Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Removing The Console And The Touchpad/LED Assembly . . . . . . . . . . . . . . . . . . . . . . . 4-2
Removing The Central Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Removing The Water Inlet Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Removing The Pressure Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Removing The Line Filter & Power Supply Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Removing The Detergent Dispenser Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Removing The Detergent Dispenser Motor
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Removing The Door Switch Assembly And The Bellows . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Removing The Drain Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Removing The ECO Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Removing The Motor Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Removing The Temperature Sensor & Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Removing The Drive Belt And Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Removing An Interlock Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Removing The Basket Drive Pulley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
Removing The Tub & Basket And Baffle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
COMPONENT TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Inlet Valve Solenoids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Pressure Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Line Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Detergent Dispenser Motor & Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Door Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Drain Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Temperature Sensor & Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Interlock Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

- iv -
Page
DIAGNOSTICS & TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Diagnostic Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Failure/Error Display Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Diagnostic Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Error History Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
History Overview Test Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Manual Diagnostic Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Manual Overview Test Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Electronic Assemblies - Removal Or Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Washer Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-11
WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Grounding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

1-1
GENERAL
WASHER SAFETY
Your safety and the safety of others is very important.
We have provided many important safety messages in this Job Aid and on the appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and
others.
All safety messages will follow the safety alert symbol and either the word
“DANGER” or “WARNING.” These words mean:
All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.
You can be killed or seriously injured if you don’t
immediately follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
DANGER

1-2
SERIAL NUMBER HL T 35 10901
DIVISION RESPONSIBILITY
Horizontal Washer Facility,
Monterrey, MX
YEAR OF PRODUCTION
T = 2006
WEEK OF PRODUCTION
35 = 35th Week
PRODUCT SEQUENCE NUMBER
MODEL NUMBER W F W 8 3 00 S W 0
BRAND
W = Whirlpool
ACCESS
F = Front Loading
PRODUCT
W = Washer
SERIES
5 = Whirlpool Leap 6 = Oasis
7 = 24˝ Front Load 8 = Mid Line Front Load
9 = Duet Front Load
PRICE POINT LEVELS (1 - 9)
TRADE PARTNER ID (00 = BRANDED)
YEAR OF INTRODUCTION
S = 2006, T = 2007
COLOR CODE
T = Biscuit
Q = White
W = White With Metallic Accent
R = White With Metallic (Sport Only)
ENGINEERING CHANGE (NUMERIC)
MODEL & SERIAL NUMBER DESIGNATIONS
MODEL NUMBER
SERIAL NUMBER

1-3
MODEL & SERIAL NUMBER LABEL
AND TECH SHEET LOCATIONS
The Model & Serial Number Label and Tech Sheet locations are shown below.
Model & Serial Number Label
Tech Sheet (Behind Lower Access Panel)

1-4
SPECIFICATIONS
Model Number WFW8300SW WFW8500SW WFW8500SR
Model Description Front Load Washer Front Load Washer Front Load Washer
Color White with
Gray Accents
White with
Gray Accents
White with Sterling
Bright Accents
Capacity (Cu.Ft. IEC) 3.3 3.6 3.6
Temperature Control ATC - 2 ATC - 4 ATC - 4
Heater No Yes Yes
Sensors Suds Sensor,
NTC (Thermistor),
Water Level Sensor
Suds Sensor,
NTC (Thermistor),
Water Level Sensor
Suds Sensor,
NTC (Thermistor),
Water Level Sensor
Tumble Speed Heavy Duty &
Normal = 40/35 RPM
Gentle = 31 RPM
Heavy Duty &
Normal = 40/35 RPM
Gentle = 31 RPM
Heavy Duty &
Normal = 40/35 RPM
Gentle = 31 RPM
Spin Speed High = 1050 RPM
Medium = 800 RPM
Low = 600 RPM
High = 1100 RPM
Medium = 800 RPM
Low = 600 RPM
High = 1100 RPM
Medium = 800 RPM
Low = 600 RPM
Motor Variable Speed; 1/4 HP Variable Speed; 1/4 HP Variable Speed; 1/4 HP
Voltage 120V 120V 120V
Frequency 60 Hz 60 Hz 60 Hz
Amps 10 Amp 10 Amp 10 Amp
Water Consumption Average
DOE (Gallons-Per-Cycle)
12.77 14.1 14.1
Rated Load 15.43 lbs. (7 kg) 17.64 lbs. (8 kg) 17.64 lbs. (8 kg)
Load Pounds Maximum = 11.7
Average = 7.35
Minimum = 3
N/A N/A
Height 36.0" 36.0" 36.0"
Install Depth: Min - Max 29.25" 30.00" 30.00"
Width 27" 27" 27"
Product Weight (approx) 242 lbs. 242 lbs. 242 lbs.

2-1
INSTALLATION INFORMATION
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before
starting installation. The parts supplied are in
the washer drum.
Tools needed for connecting the water in-
let hoses
Pliers (that open to 1-9/16˝ [39.5 mm])
Flashlight (optional)
Tools needed for installation
Open end wrenches 17 mm and 13 mm
Level
Wood block
Ruler or measuring tape
Parts supplied
•
•
•
•
•
•
Alternate Parts
Your installation may require additional parts.
If you are interested in purchasing one of the
items listed here, call the toll-free number on
the cover or in the “Assistance or Service”
section in the “Use & Care Guide.”
OPTIONS
Pedestal
You have the option of purchasing pedestals
of different heights separately for this washer.
You may select a 10˝ (25.4 cm) or a 15.5˝
(39.4 cm) pedestal. Remember that the ped-
estal will add to the total height of the unit.

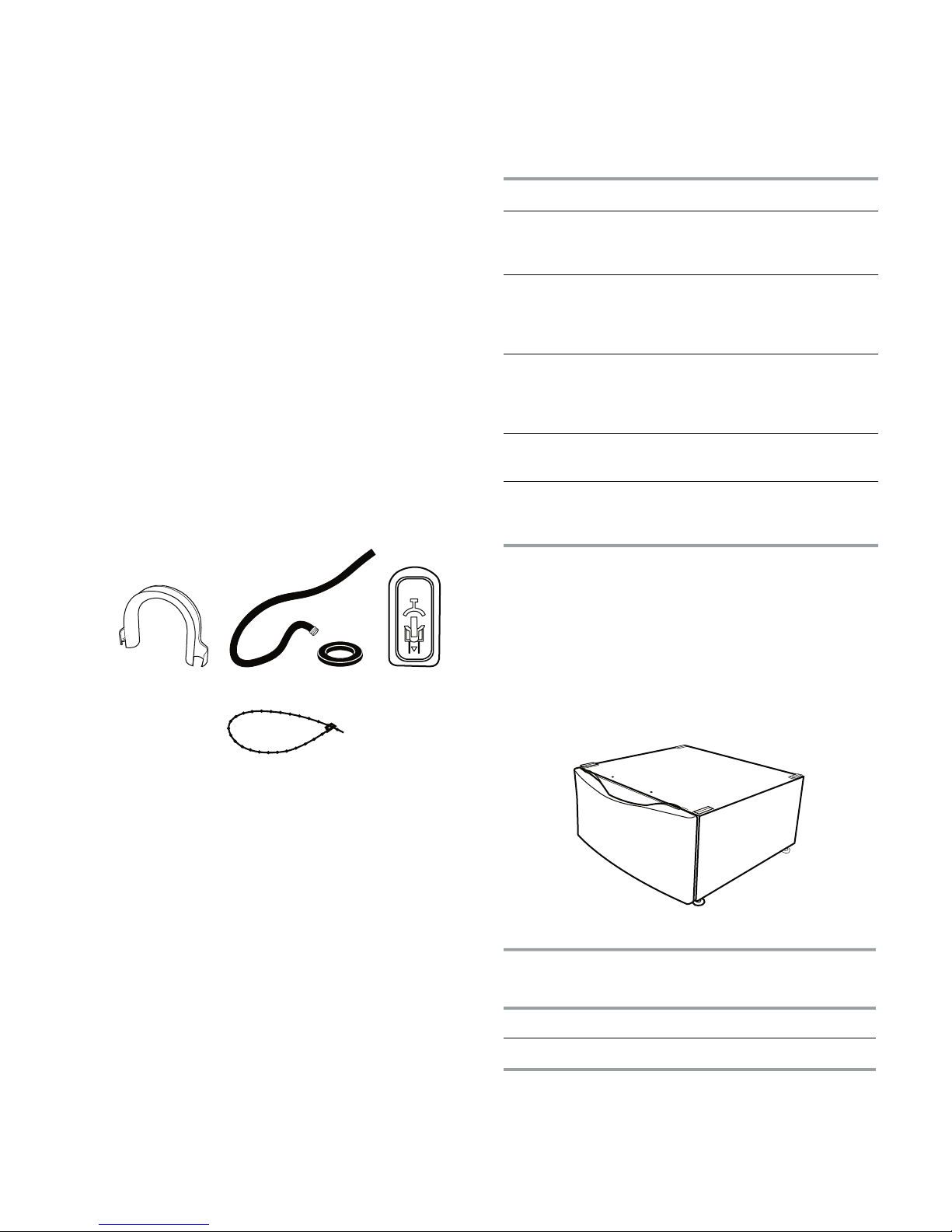

A. U-shaped hose form
B. Water inlet hoses (2)
C. Inlet hose washers (4)
D. Transit bolt hole plug
E. Beaded tie strap
A B C D
E
Optional pedestal
If You Have You Will Need to Buy
Laundry tub or
standpipe taller
than 96" (2.4 m)
Sump pump system (if not already
available)
Overhead sewer Standard 20 gal. (76 L), 30" (76.2 cm)
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
Floor drain Siphon break, Part Number 285834;
additional drain hose
Part Number 8318155; and connector
kit, Part Number 2858835
Drain hose too
short
4 ft (1.2 m) drain hose extension kit,
Part Number 2858863
Water faucets
beyond reach of
fill hoses
2 longer water fill hoses:
6ft (1.8 m) Part Number 76314
10 ft (3.0 m) Part Number 350008
Pedestal
Height
Approximate
Height with
Washer
Color Model
Number
10" (25.4 cm) 46" (116.8 cm) White WHP1000SQ
15.5" (39.4 cm) 51.5" (130.8 cm) White WHP1500SQ

2-2
Installation Clearances
The location must be large enough to allow
the washer door to be fully opened.
Additional spacing should be considered
for ease of installation and servicing. The
door opens more than 90°, and it is not re-
versible.
Additional clearances might be required for
wall, door, and floor moldings.
Additional spacing of 1˝ (2.5 cm) on all
sides of the washer is recommended to re-
duce noise transfer.
Companion appliance spacing should also
be considered.
Washer Dimensions
•
•
•
•
•
Recommended installation spacing for
custom undercounter installation
The dimensions shown are for the recom-
mended spacing.
Custom undercounter installation -
Washer only
Stack Kit
Are you planning to stack your washer and
dryer? To do so you will need to purchase a
Stack Kit.
To order, call the dealer from whom you pur-
chased your dryer or refer to the “Assistance
or Service” section in the “Use & Care Guide.”
Ask for Part Number 8572546.
LOCATION REQUIREMENTS
Selecting the proper location for your washer
improves performance and minimizes noise
and possible washer “walk.”
The washer can be installed under a custom
counter, or in a basement, laundry room, clos-
et, or recessed area. See “Drain System.”
Companion appliance location requirements
should also be considered. Proper installation
is your responsibility.
You will need
A water heater set to deliver 120°F (49°C)
water to the washer.
A grounded electrical outlet located with-
in 6 ft (1.8 m) of where the power cord is
attached to the back of the washer. See
“Electrical Requirements.”
Hot and cold water faucets located within
4 ft (1.2 m) of the hot and cold water fill
valves, and water pressure of 20-100 psi
(137.9-689.6 kPa).
A level floor with a maximum slope of
1˝(2.5 cm) under entire washer. Installing
the washer on soft floor surfaces, such as
carpets or surfaces with foam backing, is
not recommended.
A sturdy and solid floor to support the
washer with a total weight (water and load)
of 400 lbs (180 kg).
Do not operate your washer in temperatures
below 32°F (0°C). Some water can remain
in the washer and can cause damage in low
temperatures.
•
•
•
•
•
50¹⁄4"
(127.6 cm)
27"
(68.6 cm)
36"
(91.4 cm)
29¹⁄4"
(74.3 cm)
1"
(2.5 cm)
1"
(2.5 cm)
36" min.
(91.4 cm)
27"
(68.6 cm)
2" (5 cm)

2-3
Recommended installation spacing for re-
cessed or closet installation, with stacked
washer and dryer
The dimensions shown, at the top of the right
column, are for the recommended spacing.
Recessed or closet installation -
Washer on pedestal
A. Side view - closet or confined area
B. Closet door with vents
48"
(122 cm)
AB
3"
(7.6 cm)
3"
(7.6 cm)
1"
(2.5 cm) 4"
(10.2 cm)
29¹⁄4"
(80 cm)
48 in.
2
(310 cm
2
)
24 in.
2
(155 cm
2
)
A. Recessed area
B. Side view - closet or confined area
1"
(2.5 cm)
29
¹⁄ 4 "
(80 cm)
1"
(2.5 cm)
1"
(2.5 cm)
27"
(68.6 cm)
4"
(10.2 cm)
38" min.
(96.5 cm)
A B
Recommended installation spacing for re-
cessed or closet installation, with or with-
out a pedestal
The dimensions shown are for the recom-
mended spacing.
Recessed area or closet installation
*Min. top and bottom air openings for closet door.
**External exhaust elbow requires additional space.
***Wall, door and floor molding may require additional spacing.
48 in 2 *
(310 cm 2)
3" (7.6 cm)
12" (30.5 cm)
72"
(182.9 cm)
27"
(68.6 cm)
3" (7.6 cm)
1" (2.5 cm)
5 ¹⁄4"**
(13.3 cm)
1"***
(2.5 cm)
1"***
(2.5 cm)
(155 cm 2)
24 in 2 *
Recommended installation spacing for
cabinet installation
The dimensions shown are for the recom-
mended spacing.
For cabinet installation with a door, the
minimum ventilation openings in the top
are required.
7" (17.8 cm)
9"
(22.9 cm)
7" (17.8 cm)
4"
(10.2 cm)
31¹⁄ 2 "
(80.0 cm)
27"
(68.6 cm)
1"
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)

2-4
DRAIN SYSTEM
The washer can be installed using the stand-
pipe drain system (floor or wall), the laundry
tub drain system, or the floor drain system.
Select the drain hose installation method you
need. See “Tools and Parts.”
Standpipe drain system - wall or floor
(views A & B)
The standpipe drain requires a minimum
diameter standpipe of 2˝ (5 cm). The mini-
mum carry-away capacity can be no less than
17 gal. (64 L) per minute.
The top of the standpipe must be at least 30˝
(76.2 cm) high and no higher than 96˝ (2.4 m)
from the bottom of the washer.
Laundry tub drain system (view A)
The laundry tub needs a minimum 20 gal.
(76 L) capacity. The top of the laundry tub must
be at least 30˝ (76.2 cm) above the floor.
Floor drain system (view B)
The floor drain system requires a siphon break
that may be purchased separately. See “Tools
and Parts.”
The siphon break must be a minimum of 28˝
(71 cm) from the bottom of the washer. Addi-
tional hoses might be needed.
30" min.
(76.2 cm)
AB
A B
30" min.
(76.2 cm)
26" min.
(66 cm)

2-5
ELECTRICAL REQUIREMENTS
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
A 120 volt, 60 Hz., AC only, 15- or 20-
amp, fused electrical supply is required. A
time-delay fuse or circuit breaker is recom-
mended. It is recommended that a sepa-
rate circuit serving only this appliance be
provided.
This washer is equipped with a power sup-
ply cord having a 3 prong grounding plug.
To minimize possible shock hazard, the
cord must be plugged into a mating,
3 prong, grounding-type outlet, grounded
in accordance with local codes and ordi-
nances. If a mating outlet is not available,
it is the personal responsibility and obli-
gation of the customer to have the prop-
erly grounded outlet installed by a qualified
electrician.
If codes permit and a separate ground wire
is used, it is recommended that a qualified
electrician determine that the ground path
is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are
not sure the washer is properly grounded.
Do not have a fuse in the neutral or ground
circuit.
•
•
•
•
•
•
•
GROUNDING INSTRUCTIONS
For a grounded, cord-connected washer:
This washer must be grounded. In the
event of a malfunction or breakdown,
grounding will reduce the risk of electrical
shock by providing a path of least resis-
tance for electric current. This washer is
equipped with a cord having an equip-
ment-grounding conductor and a ground-
ing plug. The plug must be plugged into an
appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result
in a risk of electric shock. Check with a
qualified electrician or serviceman if you
are in doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided with the
appliance – if it will not fit the outlet, have a
proper outlet installed by a qualified elec-
trician.
For a permanently connected washer:
This washer must be connected to a
grounded metal, permanent wiring sys-
tem, or an equipment-grounding conductor
must be run with the circuit conductors and
connected to the equipment-grounding
terminal or lead on the appliance.

2-6
INSTALLATION INSTRUCTIONS
REMOVE TRANSPORT SYSTEM
Excessive Weight Hazard
Use two or more people to move and
install washer.
Failure to do so can result in back or
other injury.
IMPORTANT: Position the washer so that the
rear of the unit is within approximately 3 ft
(90 cm) of the final location.
There are 4 bolts in the rear panel of the
washer that support the suspension system
during transportation. These bolts also retain
the power cord inside the washer until the
bolts are removed.
1. Using a 13 mm wrench, loosen each of
the bolts.
2. Once the bolt is loose, move it to the cen-
ter of the hole and completely pull out the
bolt, including the plastic spacer covering
the bolt.
4. Close the bolt holes with the 4 transport
bolt hole plugs.
NOTE: If the washer is to be transported at
a later date, call your local service center.
To avoid suspension and structural damage,
your machine must be properly set up for re-
location by a certified technician.
CONNECT THE INLET HOSES
Insert new flat washers (supplied) into each
end of the inlet hoses. Firmly seat the wash-
ers in the couplings.
Connect the inlet hoses to the water faucets
Make sure the washer drum is empty.
1. Attach a hose to the hot water faucet.
Screw on coupling by hand until it is seat-
ed on the washer.
2. Attach a hose to the cold water faucet.
Screw on coupling by hand until it is seat-
ed on the washer.
3. Using pliers, tighten the couplings with
an additional two-thirds turn.
NOTE: Do not overtighten or use tape
or sealants on the valve. Damage to the
valves can result.
3. Once all 4 bolts are removed, discard the
bolts and spacers. Then pull the power
cord through the opening of the rear pan-
el and close the hole with the attached
cap.
A. Coupling
B. Washer
A B

2-7
Clear the water lines
1. Run water through both faucets and in-
let hoses, into a laundry tub, drainpipe or
bucket, to get rid of particles in the wa-
ter lines that might clog the inlet valve
screens.
2. Check the temperature of the water to
make sure that the hot water hose is con-
nected to the hot water faucet and that
the cold water hose is connected to the
cold water faucet.
Connect the inlet hoses to the washer
NOTE: Replace inlet hoses after 5 years of
use to reduce the risk of hose failure. Record
hose installation or replacement dates on the
hoses for future reference.
Periodically inspect and replace hoses if bulg-
es, kinks, cuts, wear, or leaks are found.
ROUTE THE DRAIN HOSE
Proper routing of the drain hose protects your
floors from damage due to water leakage.
Read and follow these instructions.
Remove drain hose from the washer
Gently pull the corrugated drain hose from the
shipping clips.
1. Attach the hot water hose to the wash-
er’s hot (H) water inlet valve. Screw on
coupling by hand until it is seated on the
washer.
2. Attach the cold water hose to the washer’s
cold (C) water faucet. Screw on coupling
by hand until it is seated on the washer.
3. Using pliers, tighten the couplings with
an additional two-thirds turn.
NOTE: Do not overtighten. Damage to
the coupling can result.
4. Turn on the water faucets completely and
check for leaks.
H. Hot water inlet
C. Cold water inlet
HC

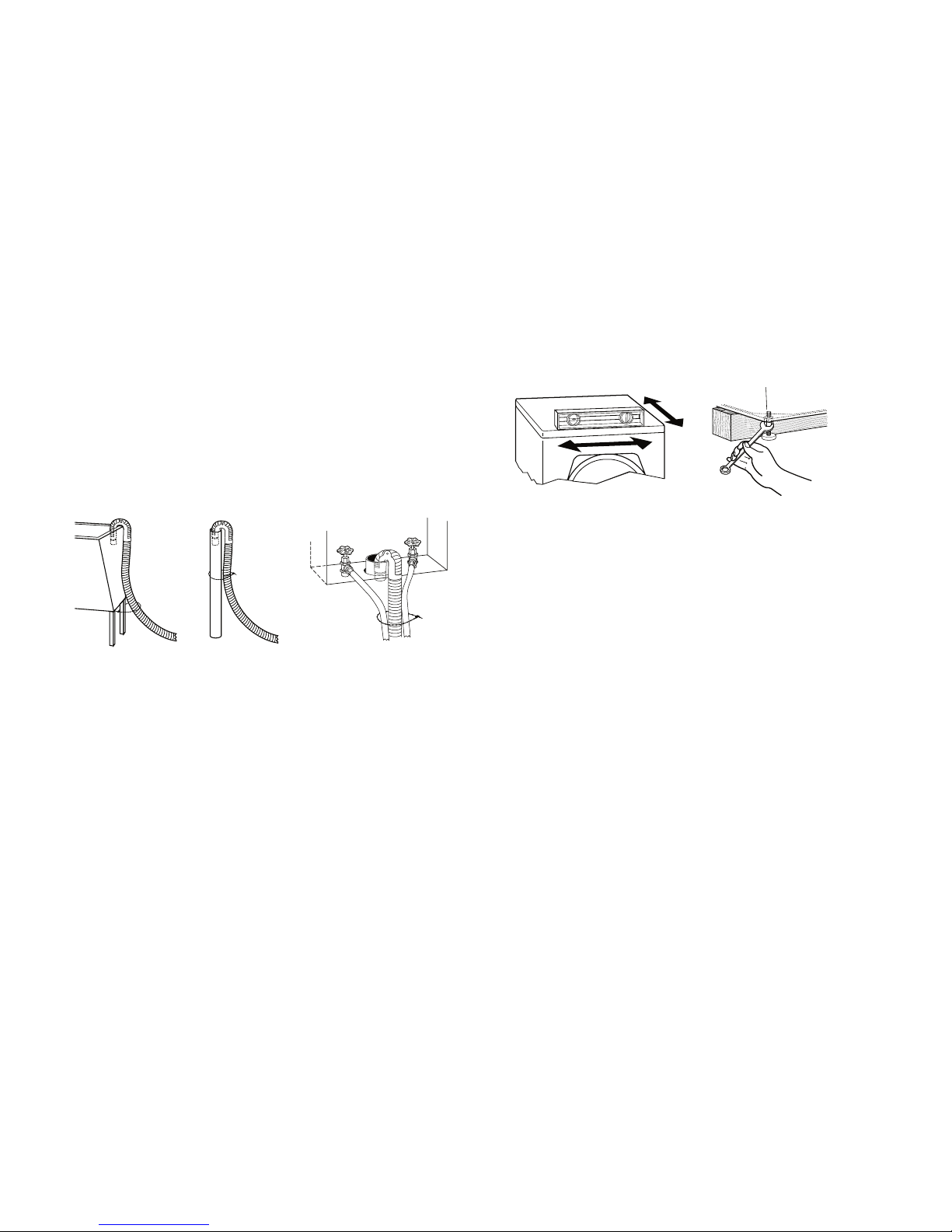

Laundry tub drain or standpipe drain
Connect the drain hose form to the corrugated
drain hose.
A. Snap either end of the drain hose form to the drain hose at
the point where the corrugation begins.
B. Bend drain hose over drain hose form and snap into place.
A B

2-8
4. If the washer faucets and the drain stand-
pipe are recessed, put the hooked end of
the drain hose in the standpipe. See il-
lustration C.
NOTES:
Do not force excess drain hose back into
the rear of the washer.
To prevent siphoning, do not seal the drain
hose into the standpipe.
•
•
If the washer is against a wall, move the
washer out slightly before tipping back.
First prop the front with a wood block and
adjust the feet as necessary; then prop
the back and adjust feet as necessary.
Repeat this step until washer is level.
2. Make sure that all four feet are stable and
resting on the floor. Then check that the
appliance is perfectly level (use a level).
3. After the washer is level, use a 17 mm
open-end wrench to turn the nuts on the
feet tightly against the washer cabinet.
IMPORTANT: All four feet must be tight-
ened. If the nuts are not tight against the
washer cabinet, the washer may vibrate.
4. When you are pushing on the edges of
the washing machine top plate, the ma-
chine should not move front to back, side
to side, or diagonally.
5. Slide the washer to its final location.
6. Confirm the levelness of the washer.
To keep drain water from going back into
the washer:
Do not straighten the drain hose, and do
not force excess drain hose into standpipe.
Hose should be secure, but loose enough
to provide a gap for air.
Do not lay excess hose on the bottom of
the laundry tub.
Floor drain
You may need additional parts. See Floor
Drain under “Tools and Parts.”
SECURE THE DRAIN HOSE
1. Drape the power cord over the washer
top.
2. Move the washer to its final location.
3. Place the drain hose in the laundry tub or
standpipe. See illustrations A and B.
•
•
A B C
LEVEL THE WASHER
One foot has been installed at a different
height on your new washer. The other three
feet were preset at the factory. Properly level-
ing your washer will minimize excessive noise
and vibration.
1. Push on the upper front panel to be sure
that the washer is on the rear feet. Low-
er the right front foot until it contacts the
floor. Check the levelness of the washer
by placing a level on the top edge of the
washer, first side to side, then front to
back.

2-9
COMPLETE INSTALLATION
1. Check the electrical requirements. Be
sure that you have the correct electrical
supply and the recommended grounding
method. See “Electrical Requirements.”
2. Check to be sure all parts are now in-
stalled. If there is an extra part, go back
through the steps to see which step was
skipped.
3. Check that you have all of your tools.
4. Dispose of or recycle all packaging mate-
rials.
5. Check that the water faucets are on.
6. Check for leaks around faucets and inlet
hoses.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
Use only HE High Efficiency detergent.
7. Plug into a grounded 3 prong outlet.
8. Read “Washer Use.”
9. To test and to clean your washer, use
1/2 the manufacturer’s recommended
amount for a medium sized load. Pour
the detergent into the detergent dispens-
er. Select NORMAL/CASUAL, and then
select START. Allow the washer to com-
plete one whole cycle.

2-10
— NOTES —

3-1
FEATURES AND BENEFITS
PRODUCT OPERATION
The front-loading high efficiency washer was
designed to conserve resources and lower your
water and energy bills. The washer is designed
to determine and then provide the amount of
water needed for the best performance. The
time of operation may be greater for this new
system than for a conventional washer.
ELECTRONIC CONTROLS
Flexible electronic controls are easy to use
whether you are a beginner or an expert.
AUTO WATER LEVEL
Adjusting to the size of the load, this feature
allows the washer to use the minimal amount
of water needed to clean and rinse the clothes.
With a low water level, you can obtain the
same results with smaller amounts of additives.
Because only the required amount of water is
used, the washer saves energy, too. You can
obtain the same washing results for small and
large loads size.
LARGER LOAD SIZE
Since there is no agitator, you can wash larger,
bulkier items such as an average size sleeping
bag. You are also able to wash more clothes at
one time, which means fewer loads. You can
wash a pillow or a large stuffed teddy bear.
SUSPENSION SYSTEM
To reduce washer “walk” and “off-balance”
conditions, your new washer combines:
2 Springs to isolate vibration
3 or 4 shock absorbers at the washer base
to minimize movement
•
•
STAINLESS STEEL DRUM
The stainless steel drum eliminates corrosion
and enables higher spin speeds for more water
extraction, reducing drying time.
ADAPTIVE VARIABLE
SPEED MOTOR
The motor adapts to the load size and to the
cycle selected to give the optimum cleaning,
rinsing, and spinning conditions. The motor can
handle slow speeds needed for delicate items
and is powerful enough to drive an average
clothes load up to a high-speed spin.
SPIN SPEEDS
This washer automatically selects the spin
speed based on the cycle selected. For some
cycles, the default spin speed can be changed
if desired. This washer offers up to three differ-
ent spin speed choices.
ADD A GARMENT
This option is available in all wash cycles
except Rinse/Spin and Drain/Spin. When this
option is available at the beginning of the cycle
the Add A Garment status light will illuminate
for the first 7 minutes. This washer allows a
7-minute period in which forgotten garments
may be added to a load.
DYNAMIC BALANCE
A precision balancing system allows the washer
to reach high-speed spins. The washer spins
faster so that clothes coming out of the washer
will have less moisture than with traditional top
load machines. In addition, if the Dynamic Bal-
ance system detects off-balance loads during
spinning, it redistributes the clothes so that they
are evenly balanced.

3-2
SMART DISPENSERS
The three compartments in the dispenser
allow loading of all laundry additives before
the washer is started. The additives will be
dispensed into the wash at the optimal time
for high performance cleaning. The bleach
release system is included in the detergent
advantage system. The detergent is added at
the beginning of the cycle, and the bleach is
added after the enzymes have had a chance
to do their cleaning. The fabric softener is
dispensed in the rinse cycle or in the EXTRA
RINSE, if selected. The Detergent Advantage
System Dispenser tray is easily removed for
cleaning.
Use only HE High Efficiency detergent.
