Whistler WBU-1000 User manual

WIRELESS DIGITAL
BACKUP CAMERA
INSTALLS IN MINUTES
WBU-1000
User Guide

2
Because the WBU-1000 is truly wireless and does not tap
into your vehicle's transmission or backup light, you must tell
the unit when you are backing up. This also allows you to use
your back up camera to view behind the vehicle at any time.
When power is applied to the monitor an image will be
present for 60 sec by default or the user selected time, if the
screen goes blank and more time is required press the
for an image to return to the monitor.
Welcome
Thank you for choosing a Whistler product. We are dedicated
to providing products that represent both quality and value.
Please read the User Guide carefully before using this
product. If you have additional questions visit our website at
www.whistlergroup.com
or call Toll Free [phone] / Tel [phone],
8am to 5pm CT, Monday through Friday
to speak to a Customer Service Representative.
INTRODUCTION

3
TABLE OF CONTENTS
Components................................................................................. 4
Getting Started.........................................................................5-6
Assembly / Installation...........................................................7-8
Test the Camera...........................................................................9
Attach to Vehicle .......................................................................10
Mounting the Monitor .............................................................11
Setup............................................................................................12
Monitor Settings ................................................................. 13-15
Troubleshooting........................................................................16
Disclaimer...................................................................................17
Safety...........................................................................................18
Care and Maintenance.............................................................19
FCC and IC Information ..................................................... 20-21
Specifications.............................................................................22
Warranty Information ........................................................ 23-27

4

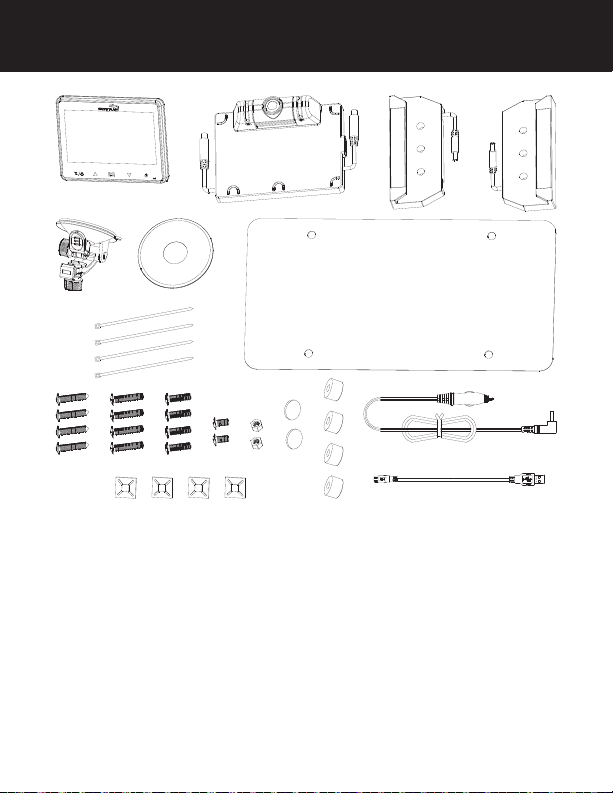

COMPONENTS
1. Monitor
2. Camera
3. Solar cells (2)
4. Suction cup mount
5. Dash disk
6. Tie wraps
7. License back-plate
8. Long screws
(Domestic) (4)
9. Long M6 screws (Import) (4)
10. Medium M5 screws (BMW) (4)
11. Short machine screws (2)
12. Machine nuts (2)
13. Cushions (2)
14. Cable tie mount (4)
15. Spacers (4)
16. Power cord
17. USB cord
1
2
45
7
6
8 9 10 11 12 13
1514
16
3
17

5
GETTING STARTED
The WBU-1000 is equipped with a built-in rechargeable
lithium battery and is connected with two solar panels that
trickle charge the built-in lithium battery when sunlight
is available. This will minimize or eliminate the need to
manually charge the unit during the year.
A USB charging port is provided to initially charge the
battery prior to mounting on your vehicle as well as to
recharge if needed. Your rechargeable battery when fully
charged will last for several months of average use with NO
SUNLIGHT (average use is defined as 4~6 times per day).
With the addition of sunlight, the solar cells will charge your
battery thereby extending the cameras ability to provide
usage day after day and month after month without requiring
you to recharge it manually.
Remove camera assembly from box and make sure all
components are included.

6
STEP 1
Charge The Camera
1. Connect the supplied USB cord to the micro USB port of
the camera assembly.
2. Plug the USB cable into any standard USB charger with an
output rating of 500ma or higher.
3. Charge the camera for 4 to 5 hours.
Under normal use, the camera maintains a charge with
exposure to sunlight. A battery status indicator is provided
on the monitor when the camera is in use.
NOTE: If vehicle will be stored for periods of time greater
than two months, please disconnect both solar cell
connections to shut off the camera and prevent the battery
from discharging.
GETTING STARTED

7
ASSEMBLY / INSTALLATION
STEP 2

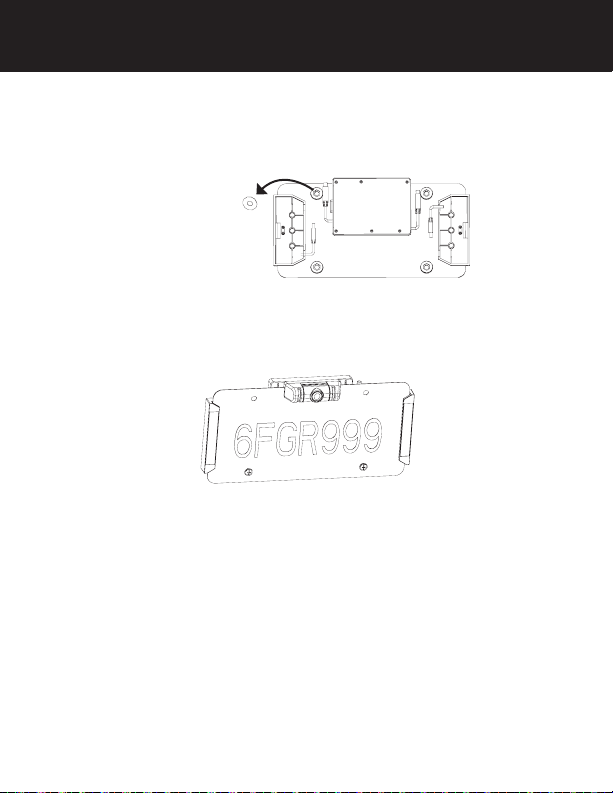

1. Peel the backing from the adhesive disks and apply one
spacer over each license plate mounting hole. Apply
pressure to set the adhesive tape.
2. Slide your license plate into the assembly. If two of
the license plate mounting holes are not required for
attachment to your vehicle, insert the short machine
screws and tighten with the supplied machine nuts.
3. If needed, two cushions are provided to protect your
vehicle. Attach to the back of the spacers containing the
machine nuts.

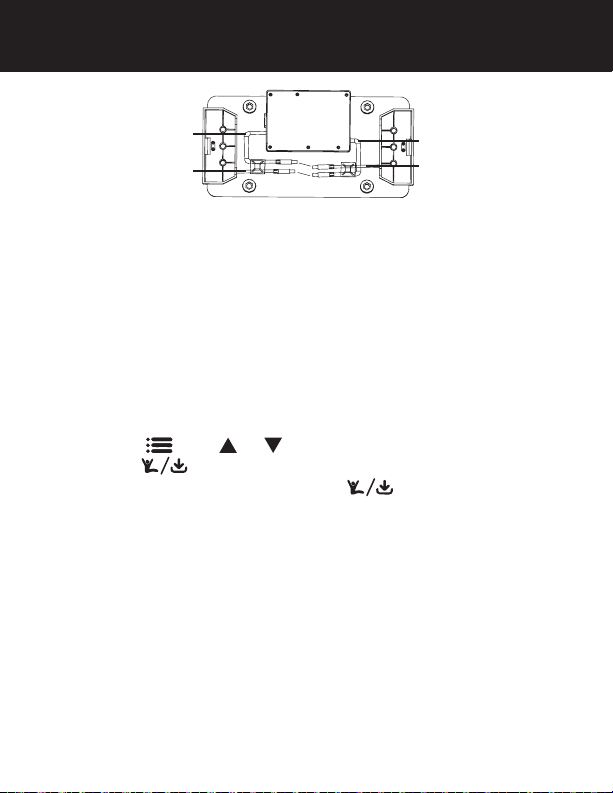

4. Connect the solar panel connectors to the mating
connectors from the main camera housing and place the
tie wrap adhesive pads as shown. Use two tie wraps to
neatly hold the cables in place and cut the excess length
of the tie wrap if desired. Follow illustration for correct
wiring. Connect the A wires and connect the B wires.
Adhesive
disks backing

8
NOTE: Domestic and Import license plate screws are
included and should be compatible with the vast majority of
vehicles. Should your vehicle require a special diameter or
thread, please consult your dealer.
PAIRING MONITOR TO CAMERA
Your WBU-1000 should automatically pair with your monitor.
If your monitor does not automatically pair with the camera
after initial charge, the following steps are to be used.
1. Disconnect both solar cell connections
2. Power on monitor
3. Touch then or to place cursor over SETUP, then
touch to select
4. With PAIR icon selected, touch to begin the pair
process
5. Connect both solar cell connections to turn on the
camera
Pair OK will be displayed when the pairing process is
completed.
A
A
B
B
ASSEMBLY / INSTALLATION

9
TEST THE CAMERA
Test the Camera
Prior to attaching the license plate to your vehicle, follow the
steps below to ensure pairing between the backup camera
and monitor.
1. With power applied to the monitor, the button backlight
will illuminate to indicate the monitor is ON and in
Standby mode.
2. The Blue LED will blink briefly to indicate that it is
attempting to communicate with the camera. When
connected to the camera, the blue LED will turn solid.
It may take a moment for the camera to begin sending
the video information. Allow time for the image to be
displayed.
3. The image is set to time out in 60 seconds however if you
wish to shut the image off manually, touch anytime
that video is present to stop the video transmission and
put the camera back into the power conserve mode. (The
blue LED will shut off when the timer expires)
4. If the 12-volt DC power port in your vehicle is live all
the time the backlight will stay on constantly. To shut
the button backlight off, touch and hold the button
for 3 seconds. The monitor retains this setting and must
be turned back on in order to receive video. This can
be done easily with a touch of the button. Standby is
confirmed when the button backlight remains ON.
NOTE: If the monitor has been shut off with button,
removing the power source and reapplying will not turn your
monitor on as the OFF function is stored in memory and the
unit must be turned ON by touching the button.
NOTE: If using a switched 12-volt DC Power port, it is not
necessary to power off the monitor unless you do not wish to
receive an image automatically when starting your vehicle.

10
ATTACH TO VEHICLE
STEP 3
Attach license plate to vehicle
Once you have tested the camera system and ensured the
pairing between the backup camera and monitor, you are
ready to reattach the license plate to your vehicle.
Be sure to use the appropriate mounting screws for your
vehicle (included).

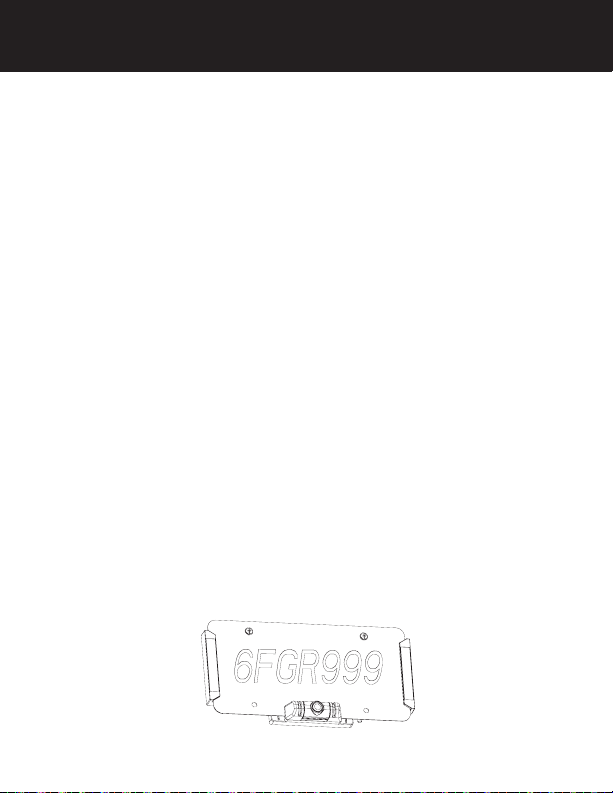

The camera angle should be adjusted to provide an optimal
view of objects behind the vehicle.
Note: Do not exceed 45 degrees up/down from central
position.
Adjust the camera angle as required:
• Loosen the two screws below the camera a few turns.
• To adjust the camera angle, tilt the camera to the correct
angle. (Do not force the camera)
• The camera should be adjusted to a horizontal position
relative to the ground, so as to provide optimal view of
objects behind the vehicle.
• Carefully tighten the 2 screws to prevent the camera
angle from moving during vibrations from driving.

11
MOUNTING THE MONITOR
Find a mounting surface inside the vehicle for the monitor
where it can be easily seen, and does not obstruct your
vision when driving.
NOTE: To maximize the effectiveness of the suction mount,
the mounting location surface temperature should be
between 50° and 100°F. Avoid application below 50°F.
NOTE: Before permanently mounting the monitor, test the
reception of the camera signal in several selected locations
within easy reach as one may have better reception than
another. If mounting to the dashboard, the dash disk must
be used to ensure a smooth surface for the suction cup to
attach.
1. Clean and dry the mounting surface before applying
suction cup or dash disk.
2. Press the suction mount against the mounting surface
and push the suction lock lever down. Make sure the
mount is attached securely.
3. Slide the monitor onto the monitor arm. The monitor
angle can be adjusted by loosening the monitor angle
adjustment knobs, tilting the monitor, then tightening
the knobs.
4. Plug the monitor power cord into a 12-volt DC power
port inside the vehicle.

12

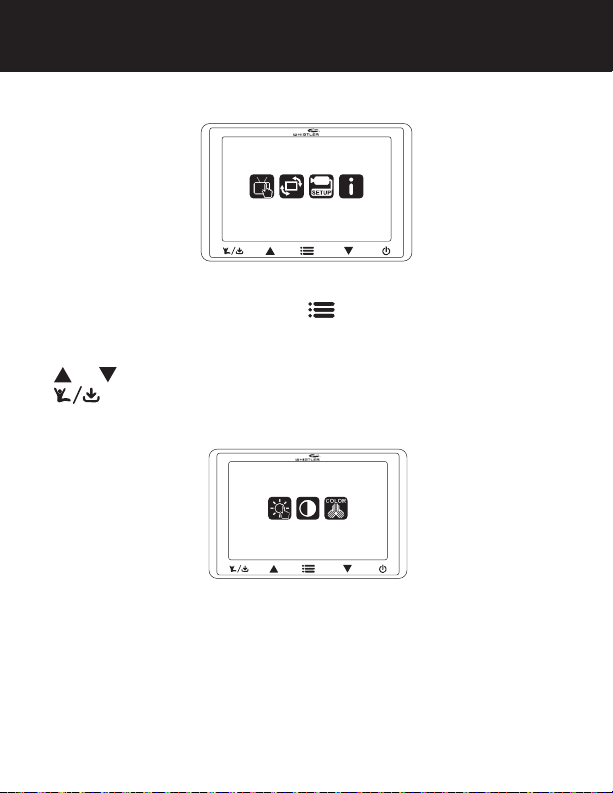

Adjusting Monitor Settings
1. Touch the button to bring up the options
2. Touch or arrow to scroll through the different functions
3. Touch the button to enter the function
4. Touch the button to increase or the button to
decrease settings
5. To change the view on the screen, scroll to ROTATION
then touch the button to select 1 of 4 image
rotations. (It is best to have a video image displayed when
making this selection)
6. To exit, touch the button or wait for the 15 second
timer to exit automatically
Displaying Guidelines
To turn the guidelines On or Off, with video on the display
touch for 3 seconds then release.
SETUP
Functions of the Touch Buttons
(left to right)
Touch to enable or cancel the video on the monitor
Touch for 3 seconds to turn on/off the backup assist
lines. Touch to select a corresponding function.
Touch to move to or adjust a corresponding function.
Touch to enable/cancel the menu.
Touch to move to or adjust a corresponding function.
Touch briefly to turn on, touch and hold for 3
seconds to turn on/off.
:
:
:
:
:

13
MONITOR SETTINGS
User selectable camera time durations
The WBU-1000 has three user selectable camera time
durations.
You may choose to set the monitor to stay on for 30, 60 or
90 seconds by following the below steps when the monitor is
powered on:
1. Touch the
2. Touch the or to move the cursor over SETUP
3. Touch the to select SETUP
4. Touch the or to move the cursor over TIME-OUT
5. Touch the to select TIME-OUT
6. Touch the or to move the cursor over your preferred
time duration
7. Touch the 3 times to save and exit or wait 10 seconds
and your selection will save and exit automatically

14
MONITOR SETTINGS
Menu Operations
Enter the main Menu Interface and 4 options are
available including IMAGE PARAMETERS, IMAGE
ROTATION, SETUP and SOFTWARE INFORMATION. Press
or to select corresponding option, and then touch the
button to enter the option.
In the example above the IMAGE PARAMETERS (Brightness,
Contrast, Color) Setting Interface is shown.

15
MONITOR SETTINGS
Brightness/Contrast/Color Settings
Press or on the interface to adjust the brightness as
shown above.
Image Rotation
Select IMAGE ROTATION, and then touch the button
to rotate or mirror the image. (It is best to have a video
image displayed when making this selection). If you rotate
the image on the display an orange box with arrows will
appear .
Select Software Information
Touch the button to display the software version
information.
Setup
Select SETUP, and touch the button to enter SETUP
Mode. The pairing mode is found within the SETUP menu.
Battery Strength
The battery icon is on the top left corner of the monitor, and
indicates the relative capacity of the built-in lithium battery
when a video image is present.
Signal Strength
The signal strength of the received image is on the top right
corner of the monitor when a video image is present.

16
TROUBLESHOOTING
If the monitor does not turn on when power is applied:
• Check to make sure the power source is active (if your
12V power port is switched with the vehicle ignition, your
monitor will only work when the vehicle is running or the
key is in the ON position)
• Check to make sure the fuse and power cord are in
working order
• With power applied to the monitor, touch the
If the monitor does not display images within a few
seconds of pressing the button:
• The battery in the camera may be depleted and require
recharging
• The signal may be weak due to positioning of the camera
and monitor (try re-positioning the monitor to another
location)
If the video image is poor:
• Check that the camera lens is clean from road grime,
snow, or ice
If the video image is dark:
• Replace the vehicle's old backup and license plate bulbs
with new LED type bulbs
If the image appears to shake when the vehicle is moving:
• Check the camera mounting screws to the vehicle and
retighten if needed
• Check the camera tilt adjustment and retighten the screws
if loose.
If the video image does not last the user selected Time-Out
period:
• Re-check the Time-Out selection
• Recharge the battery in the camera

17
DISCLAIMER
The Whistler Digital Wireless Backup Camera is intended
to assist responsible drivers but it does not relieve a driver
from full responsibility for the operation of the vehicle. It
is the driver’s sole responsibility to avoid contact with any
objects, animals, or persons. By mounting and/or using the
Whistler Digital Wireless Backup Camera, you agree that you
are solely responsible for the operation of your vehicle and
that The Whistler Group is not responsible for any property
damage, personal injury, or loss of life that may result from the
operation of your vehicle.
Notice to Drivers in California and Minnesota:
State law prohibits drivers in California and Minnesota from
using suction mounts on their windshields while operating
motor vehicles. Other dashboard mounting options should
be used. (See California Vehicle Code Section 26708(a);
Minnesota Statutes 2005, Section 169.71).
Notice:
Some states or local governments may have regulations or
laws that restrict the use of anything that might impair the clear
view of a license plate. Check local laws for compliance. If your
state prohibits the use of anything that impedes the top of the
license plate, the camera can be mounted on the bottom of
the license plate as in the image below.

18
Safety
If at any time the backup camera assembly becomes
damaged, hot or begins to swell, discontinue use
immediately. Quickly and safely remove the backup camera
from the vehicle and disconnect the solar charging cables.
Do NOT continue to handle, attempt to use, or ship the
damaged backup camera assembly. Failure to follow these
procedures can cause damage to personal property or cause
serious injury. Damaged or swollen batteries in the backup
camera assembly can be unstable and very hot. DO NOT
touch the batteries until they have cooled. Dispose of the
batteries in the manner required by your city, county, state
or country.
In the event of a crash, quickly and safely disconnect and
remove the backup camera assembly from the vehicle. Then
follow the previously listed safety procedures. If the internal
contents of the batteries included in the backup camera
come into contact with your skin, wash the affected area(s)
with soap and water immediately. If it comes into contact
with your eye(s), flush them with generous amounts of water
for 15 minutes and seek medical attention. In the event of a
fire, a Class D, dry chemical fire extinguisher must be used.
SAFETY

19
CARE AND MAINTENANCE
Cleaning
Do not clean or wipe the Back-Up Camera with solvents or
chemical materials. If necessary, remove dirt or stains using a
soft cloth dampened with a mild detergent solution.
Fuse Replacement
1. Turn the cap on the tip of the power plug
counterclockwise (no tools needed).
2. Remove the cap, center pin and fuse.
3. Replace the fuse with a new 1-amp fuse.
4. Replace the center pin and cap. Turn the cap clockwise.
Disposal
The Back-Up Camera is designed to
provide years of service. The Back-Up
Camera should be recycled or safely
disposed of at a local recycling center.

20
FCC AND IC INFORMATION
IMPORTANT: FCC (Federal Communications Commission)
requirements state that changes or modifications not expressly
approved by Whistler could void the user’s authority to operate the
equipment.
FCC Part 15.19 Warning Statement
This device complies with part 15 of the FCC rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
FCC Part 15.21 Warning Statement
NOTE: The grantee is not responsible for any changes or
modifications not expressly approved by the party responsible for
compliance. Such modifications could void the user's authority to
operate the equipment.
FCC Part 15.105 Warning Statement
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
